1Introduction
By being attached to the asset and measuring environmental parameters such as temperature and shock events, the Sense
S and Sense T beacons make the management of assets and material flow transparent and traceable.
Tracking data and measured values are transferred to the Bosch IoT Cloud via Bosch Connect gateways or mobile
applications.
The Bosch Connected Industry Sense S and Sense T beacons are battery-operated devices for asset tracking, freight
tracking and other tracking or monitoring use cases.
Sense S and Sense T use a 2.4 GHz Low Energy radio and a RFID UHF interface to communicate with corresponding
receivers for data transmission and configuration.
Sense S and Sense T provide
a unique visual ID (GIAI code) as DMC readable by standard scanner applications
a unique electronic ID transmitted via 2.4 GHz wireless technology to be captured by Bosch Connect gateways or
standard Android smartphone apps
a temperature value for the ambient condition
a shock intensity value measured by the integrated acceleration sensor (Sense S only)
a battery assisted passive RFID interface to read the electronic ID

Sense S | Sense T | Asset Monitoring and Tracking Sensor
5 | 11
Data subject not change without notice | Printed in Germany | May 23, 2018
Bosch Connected Industry
Application Advantages
Long battery lifetime resulting in less handling effort
Simple and fast to mount
Very compact design
Maintenance free device
Extremely robust device
No configuration required
Prepared for usage on board of airplanes
Enables tracking transparency within the supply chain
Creates valuable information about assets conditions
2Radio Frequency Radiation Exposure and Further Information
The radiated output power of the device is far below the FCC radio frequency exposure limits. Nevertheless, the device
shall be used in such a manner that the potential for human contact during normal operation is minimized.
3Technical Specifications
MEASUREMENT PARAMETERS
Sense T
Temperature
Sense S
Temperature, Shock Acceleration, Intensity of Shock
TECHNICAL DATA
Dimension (L x W x H)
35mm x 35mm x 11.5mm
Weight
approx. 21g
Power Supply
CR2032
Battery life
Sense T
> 5 years
Note: based on ambient temperature conditions (+25°C)
Sense S
> 3 years
Note: based on ambient temperature conditions (+25°C) and
usage in standard transportation use cases
RFID
Battery assisted passive wireless interface operating at a global frequency range of
856 MHz to 960 MHz.
Supported region specific UHF communication frequencies:
• 865 MHz … 869 MHz (Europe)
• 902 MHz … 928 MHz (US)
• 952 MHz … 956 MHz (JPN)
2m … 4m range
Wireless Transmission
Technology
802.15.1 2.4GHz

Sense S | Sense T | Asset Monitoring and Tracking Sensor
6 | 11
Data subject not change without notice | Printed in Germany | May 23, 2018
Bosch Connected Industry
Air freight ready
Time critical goods are usually shipped using the fastest possible ways. Therefore air freight becomes very relevant. Sense
S and Sense T are air freight ready according to DO-160.
An agreement with your airline is required. Please consult your airline.
4Ordering Information
Product number: Sense T Order Code: 3843.AU2.678
Sense S Order Code: 3843.AU2.679
For any sales information or support, please contact Bosch Connected Industry at
[e-mail]
Protocol
Proprietary
Range
>50m free line of sight
Transmission Interval
15s
Temperature Measurement
Accuracy, typical
± 1.0°C for -30°C … 60°C
± 0.6°C for -1°C … 13°C
Accuracy, maximum
± 2.0°C for -30°C … 60°C
± 1.5°C for -1°C … 13°C
Time constant
<15min for Τ63
Sampling interval
5min
Shock Measurement Sense S
Acceleration per axis
± 8g
Acceleration three-dimensional
± 13.8g
Sampling
100Hz
Housing
Material
Plastic PA6
Potting material
PU
EN 60529 protection category
IPx7
Certifications
RoHS, CE, FCC, DO-160
further on request
OPERATING CONDITIONS
Operating Temperature
-40°C … +70°C
Storage Temperature
+10°C … +30°C
Storage Time
6 months
Note: long storage can reduce battery life
Humidity
20% rH … 100% rH, (non condensing)

Sense S | Sense T | Asset Monitoring and Tracking Sensor
7 | 11
Data subject not change without notice | Printed in Germany | May 23, 2018
Bosch Connected Industry
5Mounting
In general the Sense S and Sense T devices can be mounted in any position as required. The attachment, depending on
the specific requirements, can be carried out with double-sided adhesive tape or an available mounting fixture.
In case of shock measurement a direct non-absorbing connection between the Sense S and the monitored asset is
required. To achieve this, we recommend using a mounting fixture or a fiber-reinforced adhesive tape.
Note: To enable wireless transmission, do not place the device inside metal enclosures or cover device with metal.
6Operations
The 2.4 GHz wireless radio is a 802.15.1 compatible wireless communication interface. The device is transmitting information
packages in configurable constant intervals (e.g. every 15s) on frequencies 2.402 GHz, 2.426 GHz and 2.480 GHz.
The RFID UHF radio interface is a battery assisted passive wireless inferface operating at a global frequency range of
856 MHz to 960 MHz.
Supported region specific UHF communcation frequencies:
865 MHz … 869 MHz (Europe)
902 MHz … 928 MHz (US)
952 MHz … 956 MHz (JPN)
An external reader device activates the RFID communication.
RFID communication can read and write information to the Sense S / Sense T.
Activation:
The Sense S and Sense T are delivered with activated measurement of environmental parameters and wireless
transmission. An activation or configuration is not required.
Operation
The Sense S and Sense T automatically measure the environmental parameters and transmit measured data together with
electronic device IDs via the integrated wireless 2.4GHz interface.
Within the Nexeed Track&Trace solution, the data is received and processed by Bosch Connect Gateways. The gateways
transfer the received data with additional gateway data to the Bosch IoT Cloud.
Temperature Measurement
Temperature values are captured by Sense T and Sense S every 5 minutes. The Sense T and S can provide an actual
temperature with a resolution of 0.5°C/digit to the Bosch IoT Cloud in case of a gateway in range during measurement.
Sense T also provides historical temperature measurements of 110 minutes in the past with a resolution of 1°C/digit.
Shock Measurement
The Sense S is able to detect and measure shock events. A shock measurement is triggered when an acceleration value of
more than 3g occurred at least in one axis.
A shock is characterized with two parameters:
-Peak acceleration: Three-dimensional peak acceleration value with a resolution of 0.5g
-Shock intensity: Digital integration of all acceleration samples > 3g during a shock event over time.
Resolution is 25gms.
The Sense S is using a first-in-first-out (FIFO) structure to store and transmit shock events. The storage size is 7 events. If
the storage structure is completely filled with shock events, every new event will overwrite the oldest existing one. Shock
events older than 10 hours are deleted.

Sense S | Sense T | Asset Monitoring and Tracking Sensor
8 | 11
Data subject not change without notice | Printed in Germany | May 23, 2018
Bosch Connected Industry
7Dimensions

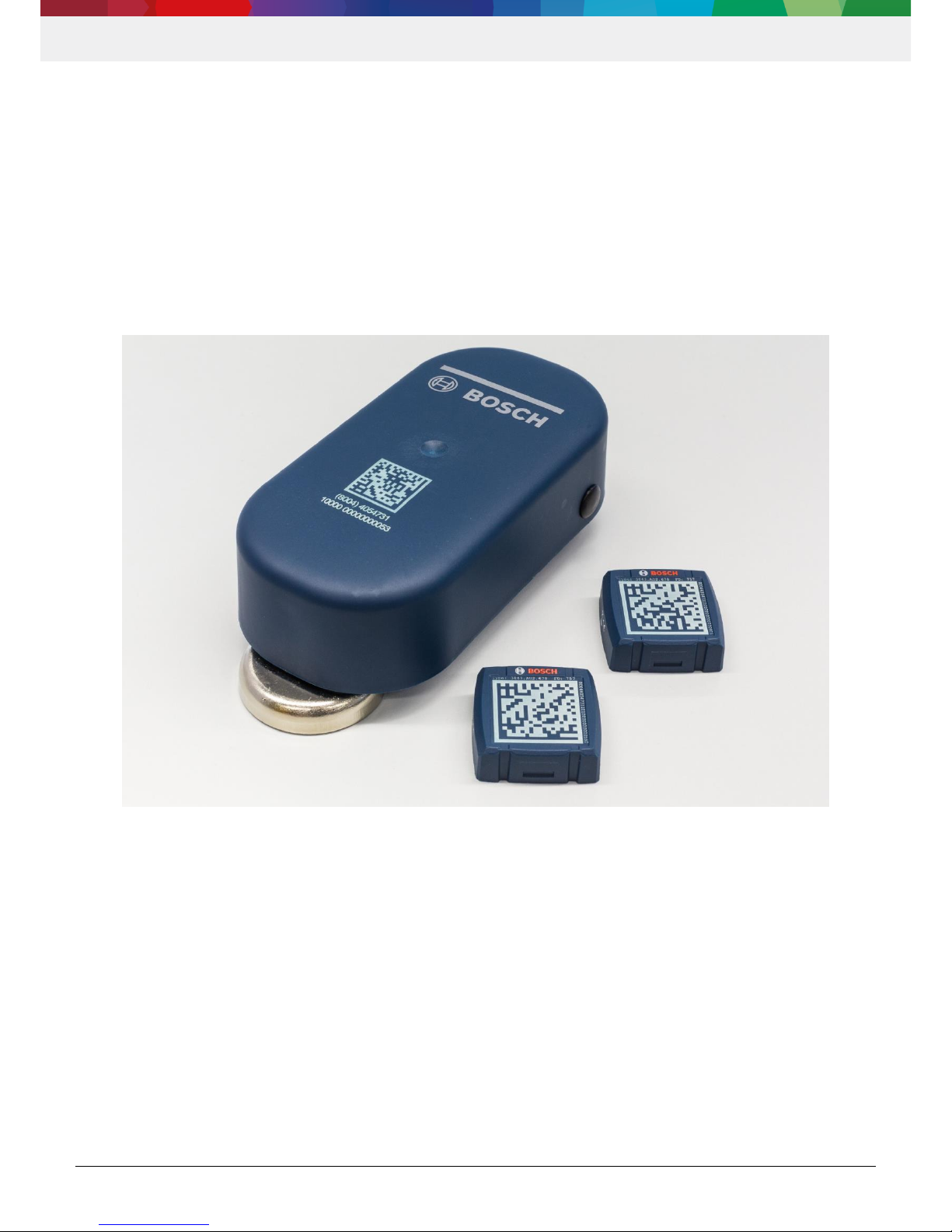

The following figure shows the dimensions of the Sense S and Sense T.
8Handling and Shipping Information
Please contact Bosch Track &Trace support at [e-mail].
9Support
For any questions or inquiries please contact Bosch Track &Trace support at [e-mail].

Sense S | Sense T | Asset Monitoring and Tracking Sensor
9 | 11
Data subject not change without notice | Printed in Germany | May 23, 2018
Bosch Connected Industry
10 Disposal
Disposing this product correctly will help save valuable resources and prevent any potential negative effects on human
health and the environment, which could otherwise arise from inappropriate waste handling.
Please contact your local authority for further details of your nearest designated collection point. Penalties may be
applicable for incorrect disposal of this waste, in accordance with your national legislation.
11 Regulatory Notes
Disposal according to the WEEE Directive 2012/19/EU
The unit, accessories and packaging should be sorted for environmental-friendly recycling. Do not dispose of the
device into the household waste! According to the European Guideline 2012/19/EU, electric and electronic devices
that are no longer usable must be collected separately and disposed of in an environmentally correct manner.
Bosch Connected Industry will collect, reuse or recycle all used Sense T and Sense S units.
To have your device collected, please contact us at: Supp[email protected].
EU Declaration of Conformity
Hereby, Robert Bosch Manufacturing Solutions GmbH – Bosch Connected Industry declares that the radio
equipment type Sense S and Sense T is in compliance with Directive IEC 60950-1, EN 60950-1, EN 301 489-
1, EN 301 489-3, EN 301 489-17, EN 300 328, EN 302 208 and EN 62479.
The full text of the EU declaration of conformity is available at the following internet address:
http://eu-doc.bosch.com/documents/35710/46810/Sense/070270f3-ea29-0e89-e16d-ded681d97307
Operating the device in countries out of the EU
The Sense S and Sense T carry the CE mark and are certified for operation in the European Union. For countries out of the
EU validate that local legal regulation allows the operation of the Sense S and Sense T.
Export Restrictions
Due to legal regulations the device must not be exported into the following countries or regions: Cuba, Crimea, Iran, North
Korea, Syria and Ukraine.
Federal Communications Commission (FCC) Notice
FCC has issued an EQUIPMENT AUTHORIZATION to Robert Bosch Manufacturing Solutions GmbH – Bosch Connected
Industry for Sense S and Sense T according to FCC rule parts 15 C with the FCC ID: 2AOSY-SENSE01
FCC warning statement:
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users
must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be
co-located or operating in conjunction with any other antenna or transmitter.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment

Sense S | Sense T | Asset Monitoring and Tracking Sensor
10 | 11
Data subject not change without notice | Printed in Germany | May 23, 2018
Bosch Connected Industry
Note:
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
12 Intended Use
The Bosch Sense T and Sense S beacons are designed according to the information provided in section 3 of this
document. Any use or operation which requires specific requirements and standards which are not explicitly mentioned in
this document must be validated and tested on customer’s own responsibility.
The housing of the Sense beacon is not to be opened or tampered with. The Sense beacon is designed for use within
environmental conditions as further detailed in the technical specifications in chapter 2. Any intent to use or operate the
product under deviating environmental conditions must be subjected to renewed validation and testing by the customer.
Neither the Sense nor a potential product derivation, are designed, intended, or authorized for use as components in
systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other
application in which the failure of the Bosch product could create a situation where personal injury or death may occur. The
same applies for any kind of weapon, or any device or application which is potentially dangerous to human life.
The Sense beacon is designed for monitoring and tracking purposes and shall not be used as an element of control and
safety in machines under the scope of the Machinery Directive 2006/42/EC.
Bosch Connected Industry shall not hold liable for any damages resulting from any use of the Sense beacon
outside/beyond the certified types of operation and/or defined field of application.
Radio frequency radiation exposure information: this equipment complies with the radiation exposure limits prescribed for
an uncontrolled environment for fixed and mobile use conditions.
13 Safety Notes
CAUTION: Lithium Battery!
The device contains a lithium battery. Handling the battery incorrectly could cause fire. Read and follow the valid
transportation regulations. Do not damage or cut the device.

Sense S | Sense T | Asset Monitoring and Tracking Sensor
11 | 11
Data subject not change without notice | Printed in Germany | May 23, 2018
Bosch Connected Industry
Robert Bosch Manufacturing Solutions GmbH
BCI - Bosch Connected Industry
BCI/ECL
Wernerstr. 51
70469 Stuttgart
Germany
[email protected]
Please insert the contact details accordingly.
