Bosch Nyon User manual

en Original operating instructions
Nyon
Online Version (BUI350)

English – 2
Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

English – 3
Table of Contents
Safety instructions .........................................................................6
Safety information relating to the navigation system..................... 7
Privacy notice......................................................................... 7
Congratulations .............................................................................8
Product description and specifications..............................................8
Intended use .......................................................................... 8
Product Features .................................................................. 10
Technical data ...................................................................... 11
Declaration of Conformity ...................................................... 12
Fitting.........................................................................................13

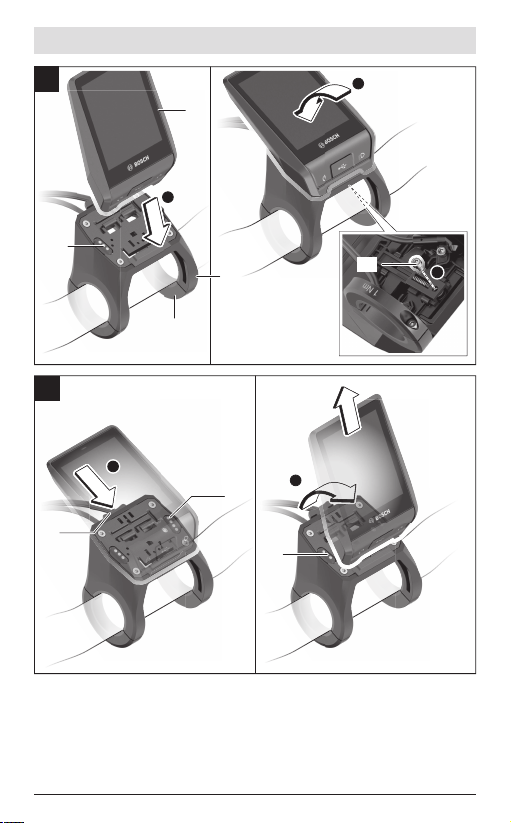

Inserting and removing the on-board computer (seefiguresA–B)
.......................................................................................... 15
Operation ...................................................................................16
Starting up the eBike system................................................... 16
Requirements ...............................................................16
Switching the eBike system on/off ...................................16
Standby Mode ..............................................................17
Power supply of the on-board computer ................................... 17
Battery Charge Indicator ........................................................ 18
Initial operation of the on-board computer ................................ 19
Creating a User ID..........................................................19
Connecting the On-board Computer with the Portal............20
Connecting to the On-Board Computer using the
BoscheBikeConnect App...............................................20
Setting the assistance level..................................................... 21
Switching the push assistance on/off ....................................... 21
Switching bicycle lights on/off................................................. 22
Lock (premium function)........................................................ 22
Compatibility................................................................23
Setting up the Lock function ...........................................23
How it works.................................................................23
Replacing eBike Components and the Lock Function ..........25
Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

English – 4
Activity tracking ................................................................. 25
eShift (optional) ................................................................... 25
ABS – anti-lock braking system (optional)................................. 26
Software Updates ................................................................. 26
Notes on cycling with the eBike system .................................... 26
Taking care of your eBike................................................26
The Nyon operating system..................................................... 26
Premium features..........................................................28
User Administration............................................................... 28
Displays and configurations of the on-board computer.......................29
<Status Screen>.................................................................. 30
<Settings> ..................................................................31
<Ride Screen>..................................................................... 33
<Trip Data Screen>.............................................................. 35
<Map Screen>..................................................................... 35
Active Navigation ..........................................................39
Range Display...............................................................40
<Analysis Screen>............................................................... 42
Creating Your Own Screens .................................................... 43
<Fitness Screen> (preset screen) .......................................... 43
<eMTB Screen> (preset screen) ............................................ 44
<Basic Screen> (preset screen) ............................................. 45
<Quick Menu>..................................................................... 46
Error code display ................................................................. 47
Displays and settings
of the Bosch eBike Connect smartphone app....................................53
Activating the BoscheBikeConnect Application ........................ 53
Registration via Smartphone................................................... 53
Main menu of BoscheBikeConnect ......................................... 55
<Activities> Menu Item .................................................56
<Map> menu item.........................................................56
<My eBike> menu item .................................................57
<Shop> Menu Item........................................................57
Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

English – 5
Displays and settings of the online portal .........................................59
Online registration ................................................................ 59
Online portal main menu ........................................................ 60
<Route Planning> Menu Item.........................................60
<Activities> Menu Item .................................................62
<My eBike> Menu Item..................................................63
<Help> menu item ........................................................63
Profile menu item ..................................................63
Maintenance and servicing ............................................................65
Maintenance and cleaning ...................................................... 65
After-sales service and advice on using products ....................... 65
Transport............................................................................. 65
Disposal .............................................................................. 66
Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

English – 6
Safety instructions
Read all the safety information and instructions. Fail-
ure to observe the safety information and follow instruc-
tions may result in electric shock, fire and/or serious in-
jury.
Save all safety warnings and instructions for future reference.
The term battery is used in these instructions to mean all original Bosch
eBike rechargeable battery packs.
uDo not allow yourself to be distracted by the on-board computer's
display. If you do not focus exclusively on the traffic, you risk being in-
volved in an accident. If you want to make entries in your on-board com-
puter other than switching the assistance level, stop and enter the appro-
priate data.
uSet the display brightness so that you can adequately see important
information such as speed and warning symbols. Incorrectly set dis-
play brightness may lead to dangerous situations.
uBefore beginning any exercise programme, seek advice from a doc-
tor about the level of activity that is suitable for you. This is the only
way to avoid potential physical overexertion.
uWhen using a heart rate monitor, the heart rate displayed may be dis-
torted by electromagnetic interference. The heart rates displayed are
for reference only. No liability can be accepted for consequences caused
by incorrectly displayed heart rates.
uNyon is not a medical product. The values displayed on the Fitness
Screen may differ from the actual values.
uDo not open the on-board computer. Opening the on-board computer
may damage it beyond repair and void any warranty claims.
uDo not use the on-board computer as a handle. Lifting the eBike up by
the on-board computer can cause irreparable damage to the on-board
computer.
uCaution! When using the on-board computer with Bluetooth® and/or
WiFi, interference can occur with other devices and equipment, aircraft
and medical devices (e.g. pacemakers, hearing aids). Likewise, injury to
people and animals in the immediate vicinity cannot be excluded entirely.
Do not use the on-board computer with Bluetooth® in the vicinity of med-
Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

English – 7
ical devices, petrol stations, chemical plants, areas with a potentially ex-
plosive atmosphere or on blast sites. Do not use the on-board computer
with Bluetooth® in aeroplanes. Avoid using the on-board computer near
your body for extended periods.
uThe Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Bosch eBike Systems is
under licence.
Safety information relating to the navigation system
uDo not plan your routes whilst you are cycling. Stop and wait until
you are stationary before entering a new destination. If you do not fo-
cus exclusively on the traffic, you risk being involved in an accident.
uAbandon your route if the navigation system suggests a path or road
that is too ambitious, risky or dangerous for you based on your cyc-
ling ability. Have your navigation system propose an alternative route.
uDo not ignore any road signs, even if the navigation system tells you
to take a specific route. The navigation system cannot take roadworks
or temporary diversions into account.
uDo not use the navigation system in situations that are safety-critical
or unclear (road closures, diversions, etc.). Always carry extra maps
and means of communication with you.
Privacy notice
If the on-board computer is sent to Bosch Service because it requires servi-
cing, the data stored on the on-board computer may be transmitted to
Bosch.
Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

English – 8
Congratulations
Congratulations on purchasing your eBike computer.
Nyon takes over eBike control and gives you reliable information about all
important riding data.
– eBike on-board computer with separate operating unit
– eBike, navigation, fitness and Internet functions
– Can be connected via Bluetooth® to a heart rate strap
– Wi-Fi connection to the Bosch eBike Connect portal
Updates
Nyon's range of functions is continually being expanded. Keep your Bosch
eBike Connect smartphone app up to date.
In addition to the functions shown here, changes to software relating to
troubleshooting and functional enhancements may be introduced at any
time.
Product description and specifications
Intended use
TheNyon (BUI350) on-board computer is designed to control Bosch eBike
systems and display trip data.
In addition to the functions shown here, changes to software relating to
troubleshooting and functional modifications may be introduced at any time.
To find out more, visit: www.Bosch-eBike.com.
Instructions on how to use the app and the portal can be found in the online
operating instructions at www.Bosch-eBike.com.
Nyon (BUI350) is not suitable for navigation without a bicycle (for hikers or
motorists).
Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

English – 9
(7)
(6)
(5)
(4)
(9)
(3)
(2)
(1)
(8)
Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

English – 10
(10)
(11)
(12)
(13)
(14)
(17)
(16)
(15)

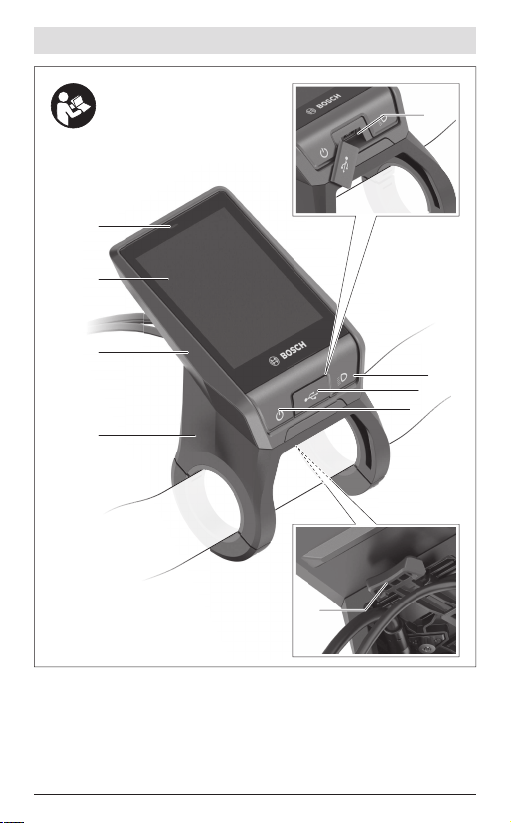

Product Features
All illustrations of bike parts except for the drive unit, on-board computer
(including operating unit), speed sensor and the corresponding holders are
a schematic representation and may differ on your eBike.
(1) Bike light button
(2) Protective cap for the USB port
(3) On/off button for on-board computer
(4) Holder for on-board computerA)
(5) On-board computer
(6) Display (touch-sensitive)
(7) Brightness sensor
(8) USB port
(9) Release mechanism
(10) Next page button
(11) Select button
(12) Decrease assistance level button
(13) Holder for operating unit
Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

English – 11
(14) Previous page button
(15) Increase assistance level button
(16) Operating unit
(17) Start assistance/push assistance WALK button
A) For mounting on the handlebars, custom solutions are possible even without the
use of the handlebar clamps.
Technical data
On-board computer Nyon
Product code BUI350
Total internal memory GB 8
Max. USB port charging current (output) mA 1500
Max. USB port charging voltage V 5
USB charging cable 1 270 016 360
Operating temperature °C –5to+40
Storage temperature °C +10to+40
Charging temperature °C 0to+40
Internal lithium-ion battery V
mAh
3.7
1000
Protection rating IP x5
Supported Wi-Fi standards 802.11b/g/n
(2.4GHz)
Weight, approx. kg 0.2
Wi-Fi
– Frequency MHz 2400–2480
– Transmission power mW <100
Bluetooth®
– Frequency MHz 2400–2480
– Transmission power mW <10
Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

English – 12
Declaration of Conformity
Robert Bosch GmbH, Bosch eBike Systems, hereby declares that the Nyon
(BUI350) radio communication unit complies with Directives 2014/53/EU
and 2011/65/EU. The full text of the EU declaration of conformity can be ac-
cessed at the following website address:
https://www.ebike-connect.com/conformity.
The on-board computer has separate internal antennae for Bluetooth®, Wi-Fi
and GPS with a power output. The antennae are not accessible to the user.
Any change by the user contravenes the legal authorisation for this product.
Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

English – 13
Fitting
uDeactivate and remove the on-board computer when fitting or work-
ing on the holder. This will avoid malfunctions/improper use.
uDeactivate and remove the on-board computer when fitting or re-
moving the securing screw. This will avoid malfunctions/improper use.
Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

English – 14
1
2
3
(5)
(4)
(18)
(20)
1
2
(20)
(19)
(9)
A
B
(18) Locking screw for on-board computer
(19) Drive unit contacts
(20) Operating unit contacts
Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

English – 15
Inserting and removing the on-board computer
(seefiguresA–B)
To insert the on-board computer(5), first fit the lower part into the
holder(4) and then press it forward until you can feel the on-board com-
puter engage. Ensure that the on-board computer is firmly engaged.
To remove the on-board computer(5), press the release mechanism(9)
and remove the on-board computer upwards.
uRemove the on-board computer when you park the eBike.
It is possible to block the release mechanism with a screw. To do so, remove
the holder(4) from the handlebars. Place the on-board computer in the
holder. Screw the enclosed locking screw(18) (M3 thread, 5mm long) from
below into the thread provided in the holder. Fit the holder back onto the
handlebars.
Please note: The locking screw is not designed to prevent theft.
Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

English – 16
Operation
Starting up the eBike system
Requirements
The eBike system can only be activated when the following requirements are
met:
– A sufficiently charged eBike battery is inserted (see operating instruc-
tions for the battery).
– The on-board computer is properly fitted in the holder.
– The on-board computer battery must be sufficiently charged.
Switching the eBike system on/off
The following options are available for switching on the eBike system:
– Once the on-board computer and the eBike battery are fitted, briefly
press the on/off button(3) on the on-board computer.
– With the on-board computer inserted, press the on/off button on the
eBike battery (bicycle manufacturer-specific solutions are possible when
there is no access to the battery on/off button; see the operating instruc-
tions from the bicycle manufacturer).
The drive is activated as soon as you start pedalling (except if you are using
the push-assistance function or if the assistance level is set to OFF). The mo-
tor output depends on the settings of the assistance level on the on-board
computer.
As soon as you stop pedalling when in normal operation, or as soon as you
have reached a speed of 25/45km/h, the eBike drive switches off the as-
sistance. The drive is automatically reactivated as soon you start pedalling
again and the speed is below 25/45km/h.
The following options are available for switching off the eBike system:
– Press and hold the on/off button(3) on the on-board computer for at
least 3 seconds.
– Switch off the eBike battery using its on/off button (bicycle manufac-
turer-specific solutions are possible when there is no access to the bat-
tery on/off button; see the bicycle manufacturer operating instructions).
Note: This puts theNyon (BUI350) into a standby mode.
– Remove the on-board computer from its holder.
If no power is drawn from the eBike drive for about 10minutes (e.g. because
the eBike is not moving) and no button is pressed on the on-board computer
Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

English – 17
or the operating unit of the eBike, the eBike system, and therefore also the
battery, will switch off automatically to save energy.
Nyon (BUI350) goes into standby mode as a result.
Standby Mode
You can put your on-board computer into a standby mode, which enables
the on-board computer and system to start up more quickly.
Standby mode can be activated as follows:
– To do this, press the on/off button(3) on the on-board computer for at
least 1second, but no longer than 3seconds.
– Wait 10 minutes until the system switches off.
– Switch the battery off using the on/off button on the battery.
Pressing the on/off button(3) on the on-board computer for at least
1second ends standby mode.
Standby mode ends and the on-board computer automatically switches off if
the state of charge of the on-board computer's battery is less than 75%. In
any case, the on-board computer switches off at midnight (00:00) at the
latest.
If Nyon (BUI350) cannot be switched on or does not work properly, press
and hold the on/off button (for approx. 15seconds). This may correct the
malfunction.
Power supply of the on-board computer
If the on-board computer is in the holder(4), a sufficiently charged eBike
battery is inserted into the eBike and the eBike system is switched on, then
the on-board computer battery is powered and charged by the eBike bat-
tery.
If the on-board computer is removed from the holder(4), the power is sup-
plied by the on-board computer battery. If the on-board computer battery's
charge is running low, a warning message appears on the display.
Colour of the indicator Explanation
Green The rechargeable battery of the on-
board computer is charged over
30%.
Orange The rechargeable battery of the on-
board computer is charged between
15% and 30%.
Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

English – 18
Colour of the indicator Explanation
Red The rechargeable battery of the on-
board computer is charged less than
15%.
To charge the on-board computer battery, slide the on-board computer back
onto the holder (4). Note that if you do not charge the eBike battery straight
away, the eBike system will automatically switch off after 10 minutes of in-
activity. If this happens, the on-board computer battery will also stop char-
ging.
You can also charge the on-board computer via the USB port(8). To do this,
open the protective cap(2). Use a Micro USB cable to connect the USB port
on the on-board computer to a commercially available USB charger (not in-
cluded with the product as standard) or to the USB port of a computer (max.
5V charging voltage; max. 1500mA charging current).
If the on-board computer's battery is not recharged, the date and time will
be retained for approx. 6 months.
Note: To maximise the lifespan of the on-board computer's battery, it should
be recharged for one hour every three months.
After use, the USB port must be carefully resealed with the protective
cap(2).
USB connections are not waterproof. When cycling in the rain, do not
connect any external devices and make sure that the USB port is fully
sealed by the protective cover(2).
It is not possible to charge external devices via the USB port.
Battery Charge Indicator
The battery charge indicator for the eBike batteryg (see "<Ride Screen>",
pageEnglish – 33) can be read on the status bar. The eBike battery's state
of charge is also indicated by the LEDs on the eBike battery itself.
Colour of the indicator Explanation
White The eBike battery is over 30%
charged.
Yellow The eBike battery is between 15%
and 30% charged.
Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

English – 19
Colour of the indicator Explanation
Red The eBike battery is between 0%
and 15% charged.
Red + ! The capacity for assisting the drive
has been used up, and assistance is
switched off. The remaining capacity
will be provided for the bike lights
and the on-board computer.
If the eBike battery is being charged on the bike, a corresponding notifica-
tion will be displayed.
If the on-board computer is removed from the holder(4), the state of charge
that was last displayed for the battery is saved.
Initial operation of the on-board computer
uBefore first use, remove the protective film from the display in order
to ensure the full functionality of the on-board computer. If the pro-
tective film remains on the display, this can impair the functionality/per-
formance of the on-board computer.
uThe full functionality of the on-board computer cannot be guaranteed
if the protective display film is used.
Nyon is supplied with a partially charged battery. Before first use, the Nyon
battery must be fully charged via the USB port or the eBike system.
When you switch on the on-board computer, you can set off after a short
period of time (about 4 seconds). During the subsequent period, the on-
board computer loads the complete operating system in the background.
Note: When switching on the on-board computer for the first time, the on-
board computer requires a longer period before it is ready for use.
If the on-board computer is connected to the Wi-Fi, the user is informed of
any new updates, where applicable. Download the update and install the
latest version.
Creating a User ID
To be able to use all functions of the on-board computer, you must register
online.
With a user ID, you can analyse your ride data, plan offline routes and trans-
fer these routes to the on-board computer.
Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

English – 20
You can set up a user ID via your Bosch eBike Connect smartphone app or
simply at www.ebike-connect.com. Enter the details required for registra-
tion. The Bosch eBike Connect smartphone app is available to download
free of charge from the AppStore (for Apple iPhones) or from the Google
Play Store (for Android devices).
Connecting the On-board Computer with the Portal
Connect the on-board computer with the portal via a Wi-Fi connection.
Note: The on-board computer does not support the use of router chan-
nels12 and 13. If, for example, your router is set as fixed on channel 12 or
13, these channels are not displayed in the list of available networks on the
on-board computer. If necessary, adjust the settings of the router accord-
ingly, in order to be able to connect the on-board computer with your net-
work.
To do this, proceed as follows:
– Press<Login> on the<Status Screen>.
– Select<WiFi>.
– Select a network.
– Enter your username and password.
Once you have connected successfully, all data that you have shared in your
profile in the portal is synchronised with the on-board computer.
Connecting to the On-Board Computer using the BoscheBikeConnect
App
Follow these steps to establish a connection to your smartphone:
– Load the app.
– Select the tab <My eBike>.
– Select <Add new eBike device>.
– Add Nyon (BUI350).
The app will then display an instruction to press and hold the bike lighting
button(1) on the on-board computer for 5seconds.
Press and hold the button(1) for at least 5seconds. The on-board computer
automatically activates the Bluetooth®Low Energy connection and switches
to pairing mode.
Follow the instructions on the screen. Once pairing is complete, the user
data is synchronised.
Note: The Bluetooth® connection does not have to be activated manually.
Bosch eBike Systems 1 270 020 Nen | (31.08.2020)
