Bosch B443 User manual

2 | Installation and removal
1 | Overview 2.3 | Install the module
Inserting the SIM card:
1. Break away the SIM card from the plastic die-cut card.
2. Insert the SIM card into the SIM card holder on the module by
sliding it into the card holder, verifying that the gold contact side
of the SIM card is against the module. Refer to Figure 2.1.
The programming of B442 Plug-in Communicators is be done through
the compatible control panel or the B450 Plug-in Communicator Inter-
face. Refer to your control panel guide, remote programming software
help or the B450 IOG for parameter descriptions, options and defaults.
For Bosch Cellular account status and management, use RPS or
the online service portal (go to http://www.conettix.com/Cellular.
aspx and click on the Cellular Portal Login link).
Configure network alarm communication routes and settings in the
control panel. Cellular carrier specific settings such as Access Point
Name and SIM card security can also be programmed through B
Series control panel, or Conettix Plug-in Communicator Interface
(B450).
4 | Configuration
The control panel communicates with and provides power to the
module through the plug-in connection. Proper installation results in
the necessary electrical and mechanical connection.
Installing the module:
1. With the module facing the control panel as shown in Figure 2.3,
insert the support leg into the support hole labeled X.
2. Align the PCB metal contacts with the on-board connector.
3. Push the module into place. The retention clip snaps closed and
secures the module in place.
Callout ―Description
1 ―Support leg
2 ―PCB metal contacts
3 ―Plug-in module retention clip
Figure 2.3: Installing the module
2.4 | Module removal
To remove an installed module, hold the plug-in module retention clip
open with one hand while grasping the top corners of the module
support handle with your other hand. Pull the module out.
2.2 | Install the antenna
Installing the antenna:
1. Place the magnetic antenna on top of the enclosure, or
vertically on another metal surface.
2. Route the antenna cable through a knock-out.
3. Connect the antenna cable to the module.
4. Secure the antenna cable to the inside of the enclosure.
Callout ―Description
1 ―Antenna routed through any knock-out
2 ―Antenna cable connected to the module
Figure 2.2: Installing the antenna
2.1 | Insert the SIM card
3 | Diagnostic LED descriptions
At power up, all module LEDs activate for several seconds, indicating
proper insertion. The Signal LEDs then turn off until the module
registers on the cellular network. Registering a new module might take
up to 3 min.
Check the LED display to ensure a good signal strength level, and
adjust the antenna location as required. The signal strength LEDs
momentarily turn off to indicate the module has measured and
updated the signal strength status. Refer to Table 3.1.
Table 3.2: STATUS LED descriptions
Flash pattern Function
Red Indicates an unacceptable
signal strength level.
Yellow Indicates a marginal
signal strength level.
Green (1 light) Indicates a good signal
strength level.
Green (2 lights) Indicates a very good
signal strength level.
Table 3.1: Signal strength LEDs description
Flash pattern Function
Flashes once every 1 sec
(blue)
Normal State. Indicates normal
operation.
On Steady (blue) Communication Error State. Indi-
cates the module is unable to com-
municate on the cellular network.
Off LED Trouble State. Module is not
powered, or some other trouble
condition prohibits the module
from controlling the STATUS LED.
(Check for proper installation.)
Callout ―Description
1 ―Module
2 ―SIM card
Figure 2.1: Inserting the SIM card
If installing the communicator into a B450 module, refer to the
Conettix Plug-in Communicator Interface (B450) Installation and
Operation Guide for more information.
NOTICE!
Remove power to the control panel prior to installing or
removing the module.
1
2
The B443 provides IP communication over the GSM (GPRS/EDGE/
UMTS/HSPA+) digital cellular network by directly connecting the
module to the control panel. The control panel can be configured to
use B443 for alarm reporting, remote access and personal notification
messaging.
The B443 module requires a SIM card with active cellular service
to communicate. Bosch Cellular service and SIM cards are
available in some countries. Consult your Bosch representative for
details.

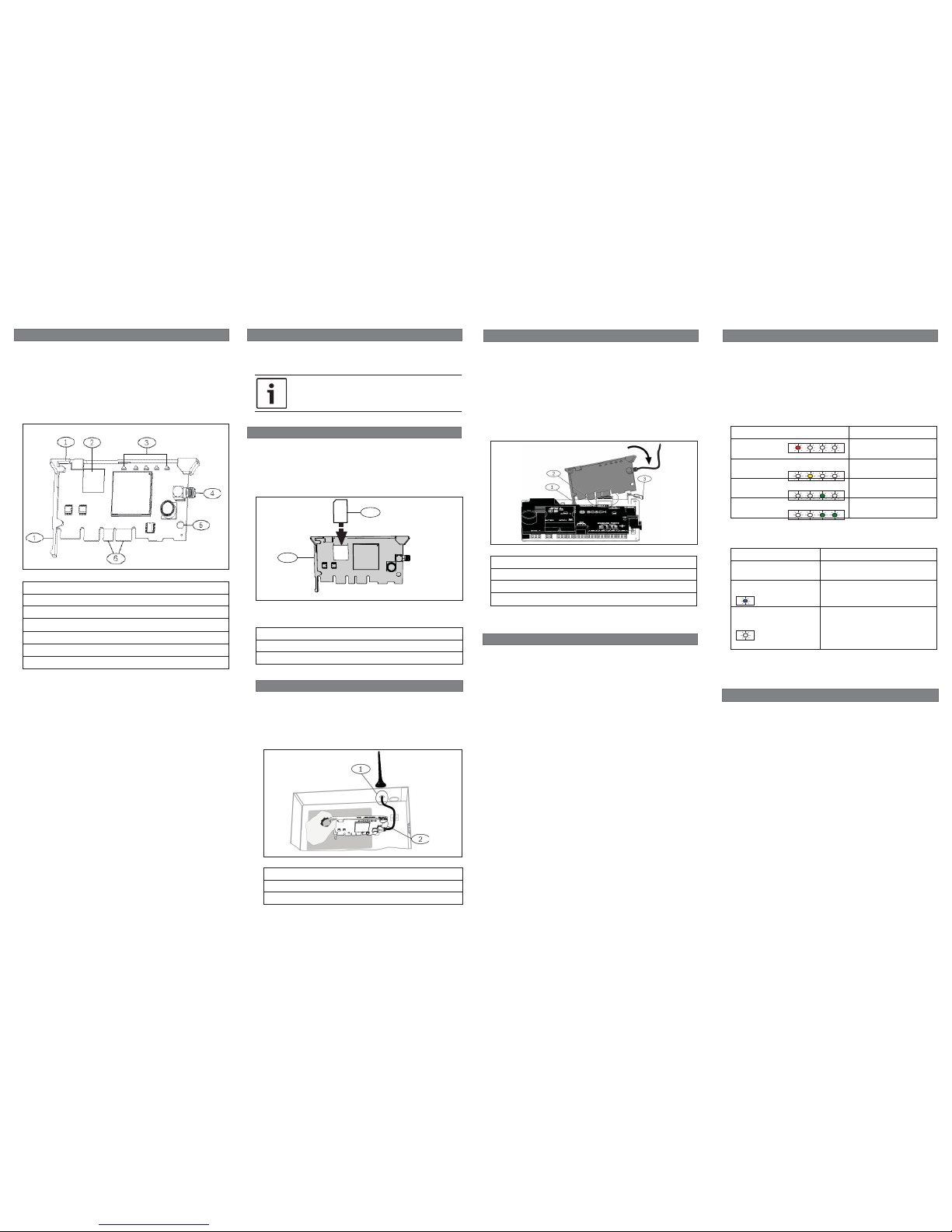

Figure 1.1: Board overview
Callout ―Description
1 ―Module handle and support leg
2 ―SIM card holder
3 ―LEDs
4 ―
Threaded female SMA antenna connector
5 ―Plug-in module retention clip opening
6 ―PCB metal contacts

Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, NY 14450
USA
www.boschsecurity.com
© 2014 Bosch Security Systems, Inc. F01U.299.718 | 04 | 2014.03
Copyright
This document is the intellectual property of Bosch Security Systems,
Inc. and is protected by copyright. All rights reserved.
Trademarks
All hardware and software product names used in this document are
likely to be registered trademarks and must be treated accordingly.
Bosch Security Systems, Inc. product manufacturing dates
Use the serial number located on the product label and refer to the
Bosch Security Systems, Inc. website at
http://www.boschsecurity.com/datecodes/.
English
Hereby, Bosch Security Systems, declares that this intrusion
detector is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
Finnish
Bosch Security Systems vakuuttaa täten että rikosilmoitin tyyp-
pinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä
koskevien direktiivin muiden ehtojen mukainen.
Dutch
Hierbij verklaart Bosch Security Systems dat het toestel inbraak-
detector in overeenstemming is met de essentiële eisen en de
andere relevante bepalingen van richtlijn 1999/5/EG. Bij deze verk-
laart Bosch Security Systems dat deze inbraakdetector voldoet
aan de essentiële eisen en aan de overige relevante bepalingen
van Richtlijn 1999/5/EC.
French
Par la présente Bosch Security Systems déclare que l’appareil
détecteur d’intrusion est conforme aux exigences essentielles et
aux autres dispositions pertinentes de la directive 1999/5/CE. Par
la présente, Bosch Security Systems déclare que ce détecteur
d’intrusion est conforme aux exigences essentielles et aux autres
dispositions de la directive 1999/5/CE qui lui sont applicables.
Swedish
Härmed intygar Bosch Säkerhetssystem att denna inbrottsdetektor
står I överensstämmelse med de väsentliga egenskapskrav och
övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Danish
Undertegnede Bosch sikkerhedssystemer erklærer herved, at
følgende udstyr Indbrudsdetektor overholder de væsentlige krav
og øvrige relevante krav i direktiv 1999/5/EF.
German
Hiermit erklärt Bosch Sicherheitssysteme, dass sich dieser/diese/
dieses Einbruchmelder in Übereinstimmung mit den grundleg-
enden Anforderungen und den anderen relevanten Vorschriften
der Richtlinie 1999/5/EG befindet”. (BMWi). Hiermit erklärt Bosch
Sicherheitssysteme die Übereinstimmung des Gerätes Einbruch-
melder mit den grundlegenden Anforderungen und den anderen
relevanten Festlegungen der Richtlinie 1999/5/EG. (Wien).
Greek
  ∏ μ  Bosch ∆Ω   
Ω ∏  Ω∆ ∏   ∏  ∆  ∆
1999/5/.
Italian
Con la presente Bosch Security Systems dichiara che questo rile-
vatore antintrusione è conforme ai requisiti essenziali ed alle altre
disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Spanish
Por medio de la presente Bosch Security Systems declara que
el detector de intrusión cumple con los requisitos esenciales y
cualesquiera otras disposiciones aplicables o exigibles de la Direc-
tiva 1999/5/CE.
Portuguese
Bosch Security Systems declara que este detector de intrusão
está conforme com os requisitos essenciais e outras disposições
da Directiva 1999/5/CE.
6 | Specifications
Dimensions 50 mm x 93.5 mm x 15.25 mm
(2 in x 3.68 in x 0.60 in)
Voltage (operating) 12 V nominal
Standby current 60 mA
Maximum current 150 mA
Operating temperature 0°C to +49°C (+32°F to +120°F)
Relative humidity Up to 93% non-condensing
Cellular compatibility 4 Bands GPRS/EDGE:
850/900/1800/1900 MHz
5 Bands UMTS/HSPA:
800/850/900/AWS1700/1900/2100
MHz
SIM card 3V/1.8V SIM (compliant with GSM
11.12 recommendation)
Included antenna – Magnetic base omni-directional
antenna
– 2.5 m (8.2 ft) cable with SMA
connector
Environmental Indoor usage only
Compatibility B5512/B4512/B3512
The B443 is compatible with
most Bosch control panels when
used with a B450 Conettix Plug-
in Communicator Interface.
Refer to the Conettix Plug-in
Communicator Interface (B450)
Installation and Operation
Guide for complete control panel
compatibility listings.
5 | Certifications
Region Agency Certification
US FCC FCC, Part 15 Class B Radiated/Conducted
Emissions
UL UL 365 - Police Station Connected Burglar
Alarm Units and Systems
UL 636 Holdup Alarm Units and Systems
UL 864 - Standard for Control Units and
Accessories for Fire Alarm Systems
UL 985 - Household Fire Warning System
Units
UL 1023 - Household Burglar-Alarm System
Units
UL 1610 - Central-Station Burglar-Alarm
Units
UL 1076 - Proprietary Burglar Alarm Units
and Systems
Canada ULC ULC C1023 - Household Burglar Alarm
System Units
ULC C1076 - Proprietary Burglar Alarm
Units and Systems
ULC S303 - Local Burglar Alarm Units and
System
ULC S304 - Central and Monitoring Station
Burglar Alarm Units
ULC S545 - Residential Fire Warning
System Control Units
IC ICES-003
Rogers Certified
North
America PTCRB Certified
Europe CE Hereby, Bosch, declares that this plug-in
communicator is in compliance with the
essential requirements and other relevant
provisions of Directive 1999/5/EC
en Installation Guide
Conettix Plug-in HSPA+ Cellular
Communicator
B443
