qSERVICE MANUAL
CONTENTS
Parts marked with "!" are important for maintaining the safety of the set. Be sure to replace these parts with specified
ones for maintaining the safety and performance of the set.
SHARP CORPORATION This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
CONFIDENTIAL
DIGITAL MOBILE PHONE
MODEL TM200
(INTERNAL MODEL NAME: TM200)
• In the interests of user-safety the set should be restored
to its original condition and only parts identical to those
specified should be used.
Caution:
Risk of explosion if battery is replaced by an incorrect type,
dispose of used batteries according to the instruction.
SERVICING CONCERNS
CHAPTER 1.GENERAL DESCRIPTION
[1] Specifications . . . . . . . . . . . . . . . . . . . . . . . .1-1
[2] Names of parts. . . . . . . . . . . . . . . . . . . . . . . 1-2
[3] Operation manual. . . . . . . . . . . . . . . . . . . . .1-2
CHAPTER 2.
ADJUSTMENTS, PERFORMANCE
CHECK, AND FIRMWARE UPGRADE
[1] SHARP Program Support Tool (SPST) . . . .2-1
[2] Test points . . . . . . . . . . . . . . . . . . . . . . . . .2-25
[3] Trouble shooting. . . . . . . . . . . . . . . . . . . . .2-29
CHAPTER 3. DISASSEMBLY AND REASSEMBLY
[1] Disassembly and reassembly. . . . . . . . . . . . 3-1
CHAPTER 4. DIAGRAMS
[1] Block diagram . . . . . . . . . . . . . . . . . . . . . . . 4-1
CHAPTER 5. CIRCUIT DIAGRAM
[1] Notes on schematic diagram. . . . . . . . . . . . 5-1
[2] Types of transistor and LED . . . . . . . . . . . . 5-1
[3] Waveforms of circuit . . . . . . . . . . . . . . . . . . 5-2
[4] Schematic diagram/
Wiring side of P.W.Board. . . . . . . . . . . . . . . . . 5-5
CHAPTER 6. OTHERS
[1] Function table of IC. . . . . . . . . . . . . . . . . . . 6-1
Parts Guide

TM200 SERVICING CONCERNS
i
CONFIDENTIAL
SERVICING CONCERNS
1. When requested, back up user’s handset data using SPST (SHARP Program Support Tool). Otherwise, before servicing, warn the user that data
in the memory may be lost during repairs.
2. Upgrade the firmware to the latest version using SPST before returning the handset to the customer.
3. After repairs, inspect the handset according to the following flowchart.
4
4
4
4
4. When storing or transporting a PWB, put it into a conductive bag or wrap it in aluminum foil.
(C-MOS IC may be damaged by electrostatic charges.)
5. Do not leave fingerprints, etc. on ornamental parts including a cabinet, especially clear windows for main and sub displays.
Wear fingerstalls to avoid this.
Also, ensure not to leave fingerprints on the surface of main and external display panels.
6. To prevent oxidation which causes connection problems, do not touch any terminals on the electric board,
microphone, vibrator, earpiece and speaker.
When handling these parts, wear fingerstalls. Should you touch these parts, clean them with a soft dry cloth.
Always wear fingerstalls when handling a shield case on the electric board.
Otherwise oxidation may occur causing handset performance deterioration.
7. The FPC is a precision device. Handle it carefully to prevent any damages.
8. Do not expose the moisture sensor to liquids.
If the sheet gets wet, red ink runs. In this case, replace the sheet with a new one.
Be careful about your perspiration.
9. Before you disassemble or reassemble handset, make sure to remove the Li-Ion battery.
10. Be sufficiently careful with static electricity of integrated circuits and other circuits. Wear static electricity prevention bands while servicing.
Repairs are completed.
(Fixed parts have been checked for proper operation.)
Check IMEI No./Operator code (Destination)/
Firmware version by Identity function of SPST.
Inspect each device using performance check adjustment function of SPST.
Carry out RF performance check with SPST.
All completed.

TM200 GENERAL DESCRIPTION
1 – 1
CONFIDENTIAL
CHAPTER 1. GENERAL DESCRIPTION
1. SPECIFICATIONS
*1) For JPEG wallpaper display only.
*2) SD memory card is not included.
*3) It varies depending on the condition.
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER TO THE OPERATION MANUAL.
Camera Device 2 Megapixel CCD digital camera with LED flashlight
Autofocus Autofocus mode, Semi-autofocus mode, Manual focus mode
Function Max. 8x Digital zoom, Delay timer, Continuous shot, ±2 exposure correction
Image size Still : 2 Megapixel : 1,224 x 1,632 dots
1 Megapixel : 858 x 1,144 dots
Large : 768 x 1,024 dots (XGA)
Medium : 480 x 640 dots (VGA)
Small : 240 x 320 dots (QVGA)
Tiny : 120 x 160 dots (QQVGA)
Video : Large : 176 x 144 dots
Small : 128 x 96 dots
Main display Type 2.2 inch Transmissive System LCDs (CG-Silicon)
Colour depth 262k*
1colours
Resolution QVGA (240 x 320 dots)
External display Type 1.06 inch Semi-Transmissive system LCDs
Colour depth 65k colours
Resolution 96 x 64 dots
Connections BluetoothTM, SD memory card slot*
2, Earphone/MIC, USB (Ver.1.1), RF connector
Sound Chords 40 chord polyphonic ringtones
Format AAC, MP3, SMAF, MIDI, i-melody, WAVE, AMR
Contacts list (Phonebook) 500 entries
Messaging SMS (Text message), MMS (Picture/Video messaging), E-mail with POP3 and
SMTP supporting attachment
WAP Version 2.0
Browser Openwave 6.2.3
JAVA TM Version MIDP2.0
Max. application size 200KB
Language
11 languages (English, German, Dutch, Czech, Hungarian, French, Spanish, Italian, Greek, Portuguese, Turkish)
Text input method T9, multi-tap
Band Tri-Band (900/1800/1900MHz)
GPRS Class B, Multislot Class10
Battery Li-Ion (840 mAh)
Continuous standby time Approx. max. 220 hours*
3(TBD)
Continuous talking time Approx. max. 200 minutes*
3(TBD)
Weight Approx. 120g (TBD)
Size (W x D x H) Approx. 49.2 x 96.3 x 27.1mm (with shell closed and excluding protrusions)

TM200 GENERAL DESCRIPTION
1 – 2
CONFIDENTIAL
Please use discretion in privacy matters when taking photographs or
sending images with a camera-equipped mobile phone.
Design and specifications are subject to change without prior notice.
The information contained in this sales manual is current as of Decem-
ber 2004 (product still under development).
All screen images are simulated.

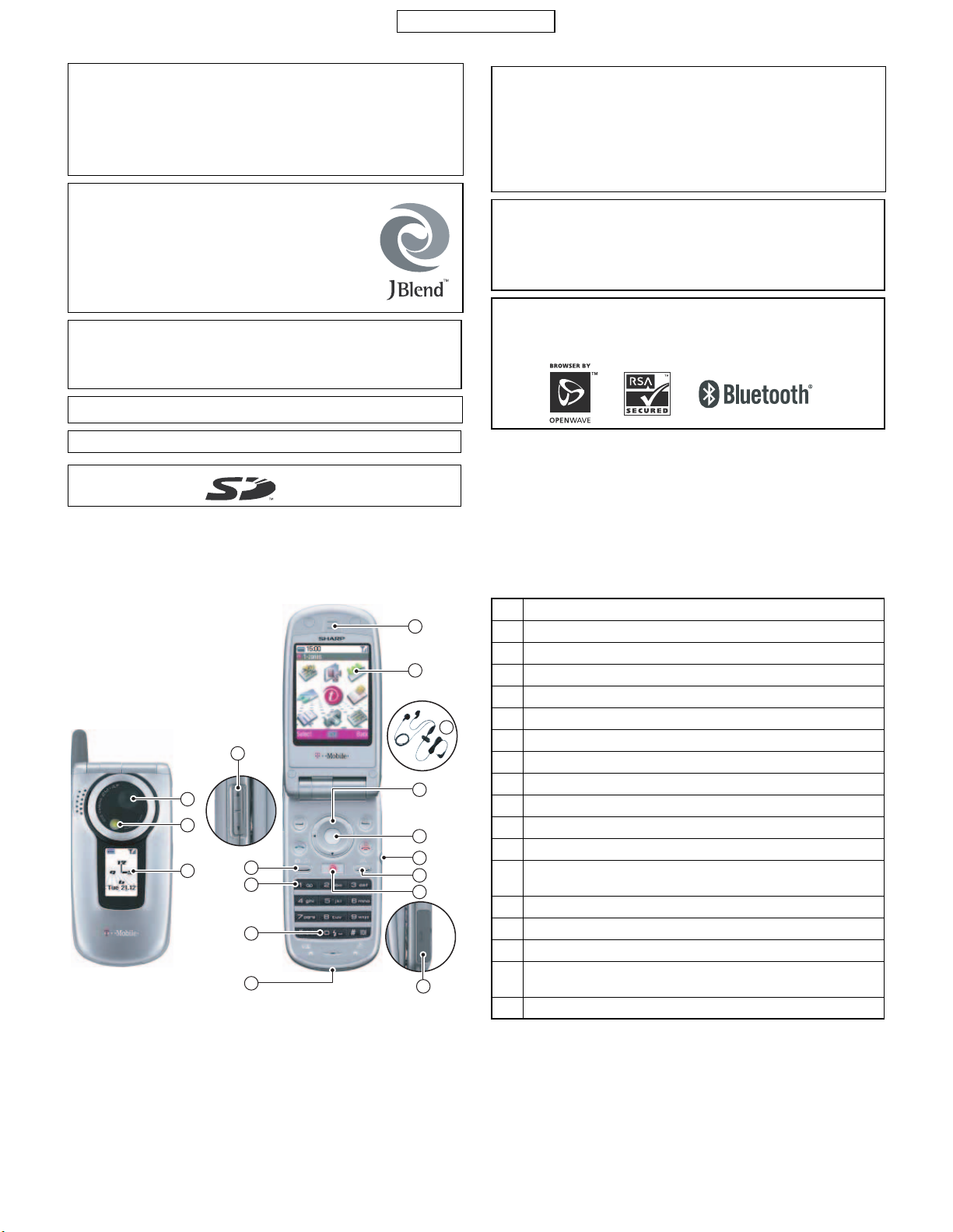

2. NAMES OF PARTS
3. OPERATION MANUAL
(Page numbers refer to the user guide)
[OPTIONAL ACCESSORIES]
• USB data cable
The above accessories may not be available in all regions. For details, please contact your dealer.
Powered by JBlendTM, Copyright 1997-2004 Aplix Corporation.
All right rights reserved. Java and all Java-based trademarks and logos
are trademarks or registered trademarks of Sun Microsystems,
Inc. in the U.S. and other countries.
JBlend and all JBlend-based trademarks and logos are trademarks or
registered trademarks of Aplix Corporation in Japan and other countries.
In this product, JBlendTM is incorporated.
JBlendTM is a Java execution environment that Aplix
developed for implementing advanced performance
and fast operation on small-memory systems.
JBlend and JBlend logo are trademarks or registered
trademarks of Aplix Corporation in Japan and other
countries.
Licensed by Inter Digital Technology Corporation under one or more
of the following United States Patents and/or their domestic or foreign
counterparts and other patents pending, including U.S.
Patents:4,675,863: 4,779,262: 4,785,450 & 4,811,420.
Licensed under U.S. Patent 4,558,302 and foreign counterparts.
CP8 PATENT
SD logo is a trademark.
T9 Text Input is licensed under one or more of the following: U.S. Pat.
Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554;
Australian Pat. No . 727539; Canadian Pat. No.1,331,057;
United Kingdom Pat. No. 2238414B; Hong Kong Sandard Pat. No.
HK0940329; Republic of Singapore Pat. No.51383; Euro. Pat. No 0
842 463 (96927260.8) DE/DK, FI, FR, IT, NL,PT.ES,SE,GB;
Republic of Korea Pat. Nos. KR201211B1 and KR226206B1; and
additional patents are pending worldwide.
Use of this product in any manner that complies with the MPEG-4
Visual Standard is prohibited, except for use directly related to (a) data
or information ( i ) generated by and obtained without charge from a
consumer not thereby engaged in a business enterprise, and ( ii ) for
personal use only; and (b) other uses specifically and separately
licensed by MPEG LA, L.L.C.
Bluetooth is a trademark of the Bluetooth SIG, Inc.
The Bluetooth word mark and logos are owned by the Bluetooth SIG,
Inc. and any use of such marks by Sharp is under license. Other
trademarks and trade names are those of their respective owners.
9
10
4
1
2
36
5
7
8
11
12
13
14
15
16
17
No. Name
12-megapixel camera
2LED flashlight
3External display
4Side-up/Side-down key
5Camera/Music key
6Voice mail key
7Flashlight key
8USB/charger connector
9Earpiece
FMain display
GHandsfree earphones & microphone (stereo)
HNavigation key (Up/Down/Left/Right)
You can programme the Navigation Key yourself.
ICentre key
JEarphones connector
KFont Zoom key
LThe t-zones Key also gives you direct access to the t-zones
Online Homepage.
MSD memory card slot

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE
2 – 1
CONFIDENTIAL
CHAPTER 2. 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE
SPST (SHARP Program Support Tool) allows you to adjust settings, conduct performance checks, and upgrade the firmware.
[1] SHARP PROGRAM SUPPORT TOOL (SPST)
1. SYSTEM REQUIREMENTS
• IBM PC compatible personal computer (standard COM1 115,200 bps
serial port and USB required)
Supported OS: Windows 98/98SE/2000/XP
(except for Windows 95/ME/NT)
(English, German, Italian, Spanish, French and Chinese versions)
• Data cable
<During RF adjustment>
• GSM tester: CMU150
• GPIB interface: National Instruments USB-GPIB cable
(Model No.: NI GPIB-USB-B)
2. INTRODUCTION
2-1. FUNCTIONS
SPST offers seven key functions:
1) Firmware download
2) User data transfer (processes all data at once but not individually.)
3) RF calibration check and test
4) Default setting
5) Identification
6) Performance check and adjustment
7) User password reset
2-2. INSTALLATION

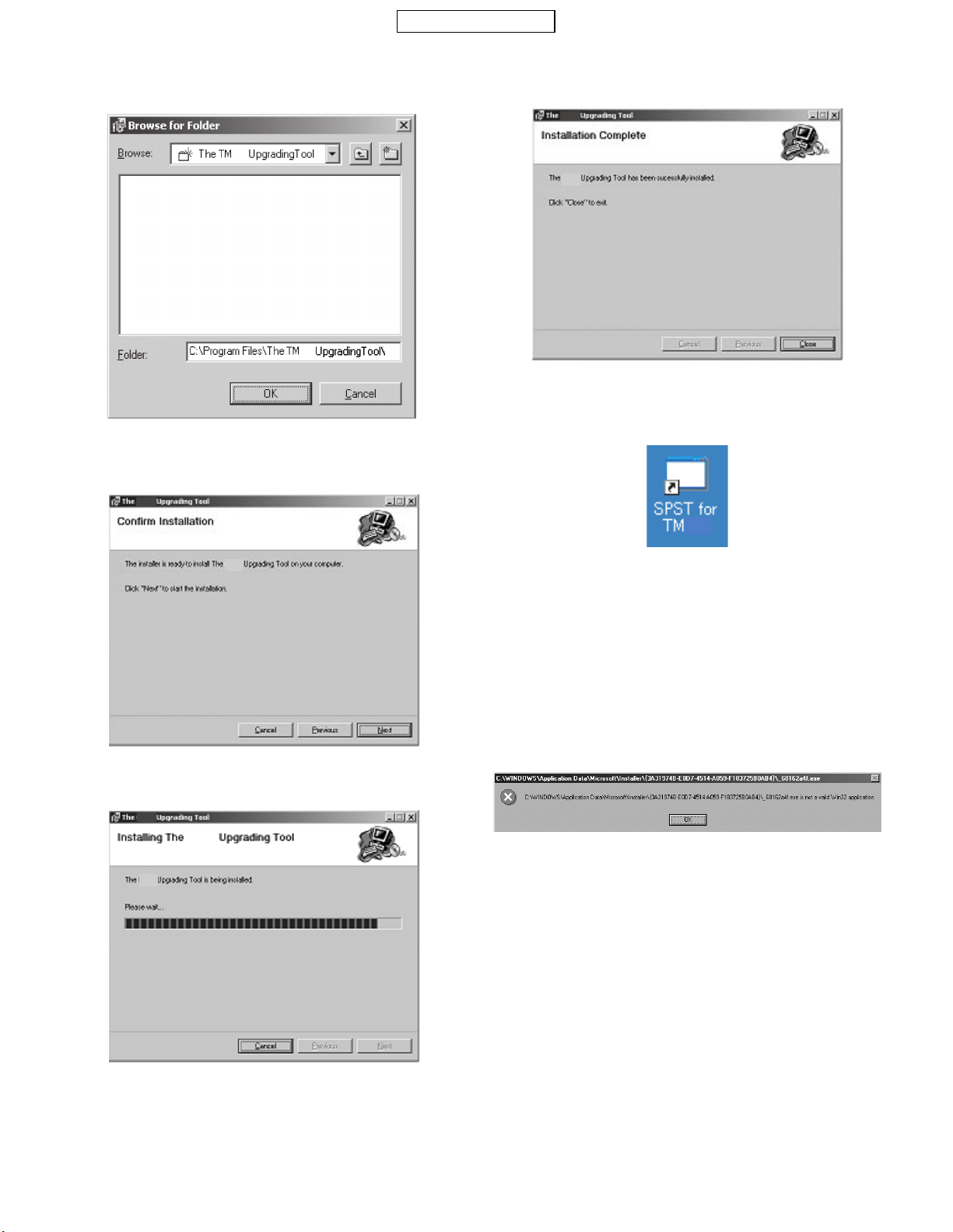

1. Use Windows Explorer to execute the "setup.exe" file on the CD-
ROM.
2. The SPST TM200 setup wizard appears. Follow the installation
instructions.
3. After the installation is complete, shortcuts to SPST are created on
the desktop and under the "Start"-"Programs"-"TM200" menu.
Start SPST from the shortcuts.
2-3. STARTING UP
Connect TM200 to an operable serial port of the PC with the supplied
data cable. Make sure that the battery is fully charged.
Start SPST from the desktop.

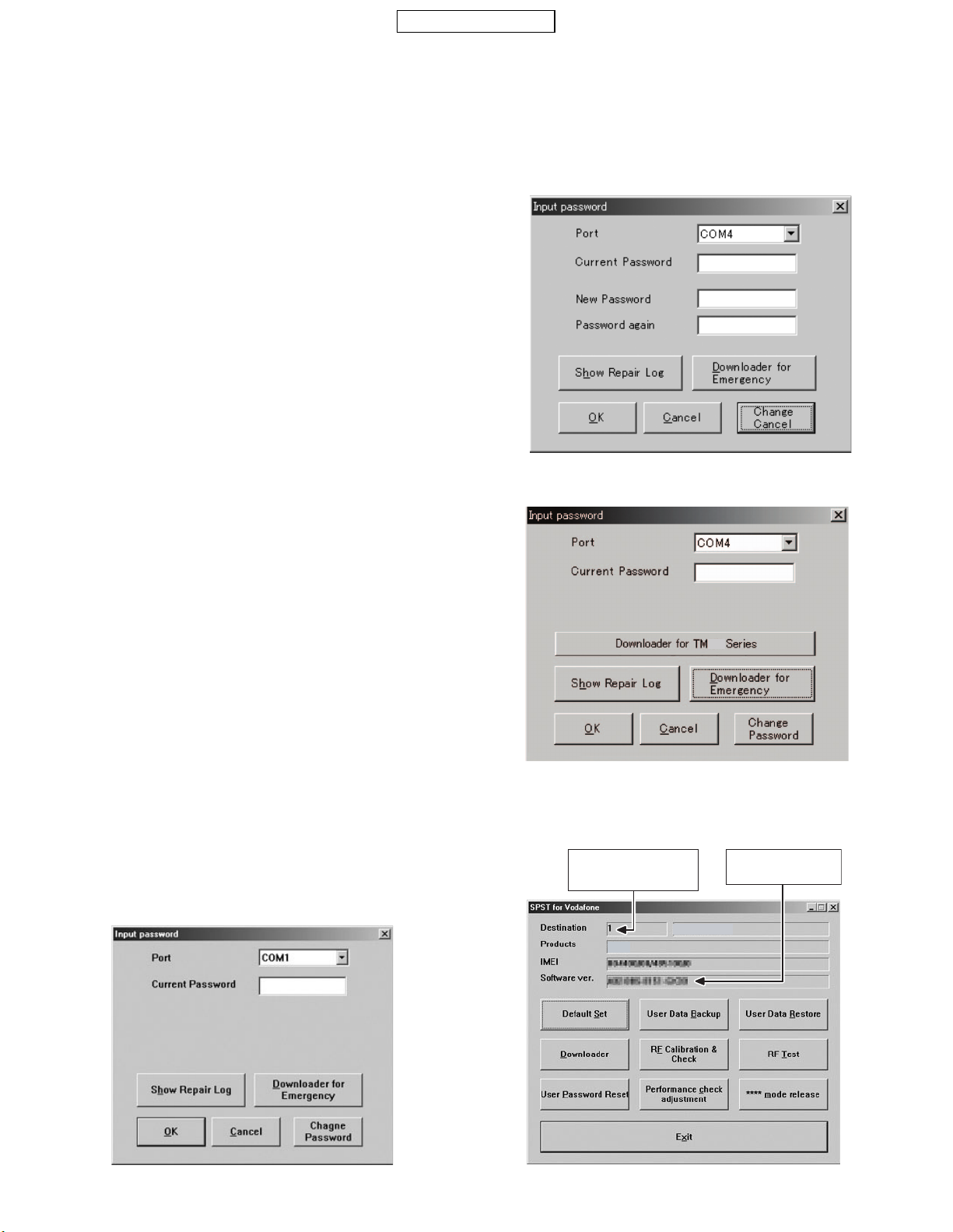

1. The Input password dialog box appears. Enter the password, select
a port where TM200 is connected from the list box, and click "OK".
If you do not know SPC, click “Cancel” to exit.
2. To change the password, enter the current password in procedure 1,
and then click "Change Password".
3.
To check the usage status of tools, click "Show Repair Log" in procedure 1.
4. Click “Downloader for Emergency”.
The above screen appears. Select a model to use and execute the
Downloader. (Use this to initialize the flash, etc.)
5. When the password is correct, a connection is established and the
following screen appears.
200
Refer to the attachment 1
for the destination and
operator name.
TM200
Software version:
A02-006-0138-TM200
T-Mobile Germany

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE
2 – 2
CONFIDENTIAL
QButtons
3. ADJUSTMENTS FOR TM200
1. Adjustments are required after replacing the following parts. ( F)
When replacing other parts in the RF section, carry out RF calibration.
2. Click the buttons on the SPST screen for adjustments. 3. The following screen appears.
Default Set Refer to "4-1. Default setting".
User Data Back-up Refer to "4-2. User data back-up".
User Data Restore Refer to "4-3. User data restore".
Downloader Refer to "4-4. Downloader".

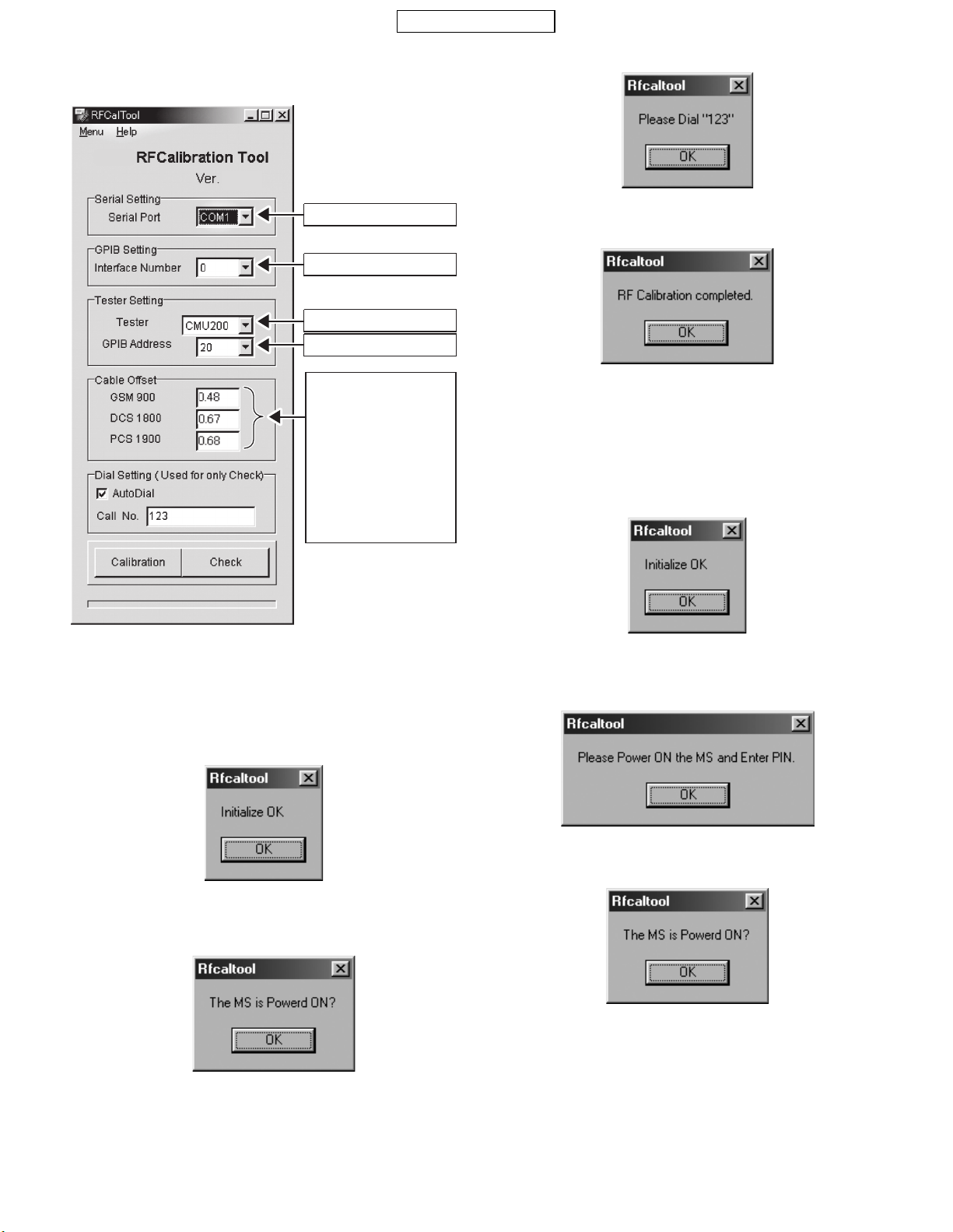

RF Calibration & Check Refer to "4-5. RF calibration & check".
RF Test Refer to "4-6. RF test tool".
User Password Reset Refer to "4-7. Password reset".
Performance check
adjustment
Refer to "4-8. Performance check and adjustment".
**** mode release Refer to "4-9. ****mode release".
Exit End SPST.
Parts Temperature adjustment
(Camera) Temperature adjustment (Battery) Main display flicker adjustment White defect correction
TH101 uFuu
TH701 Fuuu
Main display unit uuFu
Camera unit uuuF
200
200
To abjust the device, click this button
(Performance check adjustment).
RF calibration
1Temperature adjustment (Camera section)
2Temperature adjustment (Battery section)
3Main display flicker adjustment
4External display contrast adjustment
5White defect correction
6Black defect correction
1
2
3
4
5
6
PENDING

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE
2 – 3
CONFIDENTIAL
4. FUNCTIONS
4-1. DEFAULT SETTING
SPST can restore the factory settings.
This function
1. Deletes all user data in the file system;
2. Restores all WAP settings to default; and
3. Restores the values set by the user to default;
(MEP_LOCK settings and the destination and operator name do not change.)
<Operation>
1) Set the COM port on the SPST initial screen and click "Default Set".
2) Click "Yes" to proceed. Click "No" to exit.
3) Click "Yes" to back-up the MEPLOCK data. Click "No" to restore
default settings.
4) Communication starts.
5) The following appears when you select "Yes" in step 3 and
MEPLOCK data exists. Click "Yes" to restore the data.
6) After the handset is turned on, the initialization is complete.
4-2. USER DATA BACK-UP
SPST saves all the data stored on the handset.
1. Set the COM port on the SPST initial screen and click
"User Data Back-up".
2. Specify the file name in the following dialog box and click "Save"
3. The communicating dialog box appears while processing.
4. When completed, the following message appears. Click "OK".
4-3. USER DATA RESTORE
SPST completely restores the backed up data.
1. Set the COM port on the SPST initial screen and click "User Data
Restore".
2. Specify the file name in the following dialog box and click "Save".
TM200
TM200
TM200
TM200
TM200

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE
2 – 4
CONFIDENTIAL
3. The communicating dialog box appears while processing.
4. When the restore is complete, click "OK".

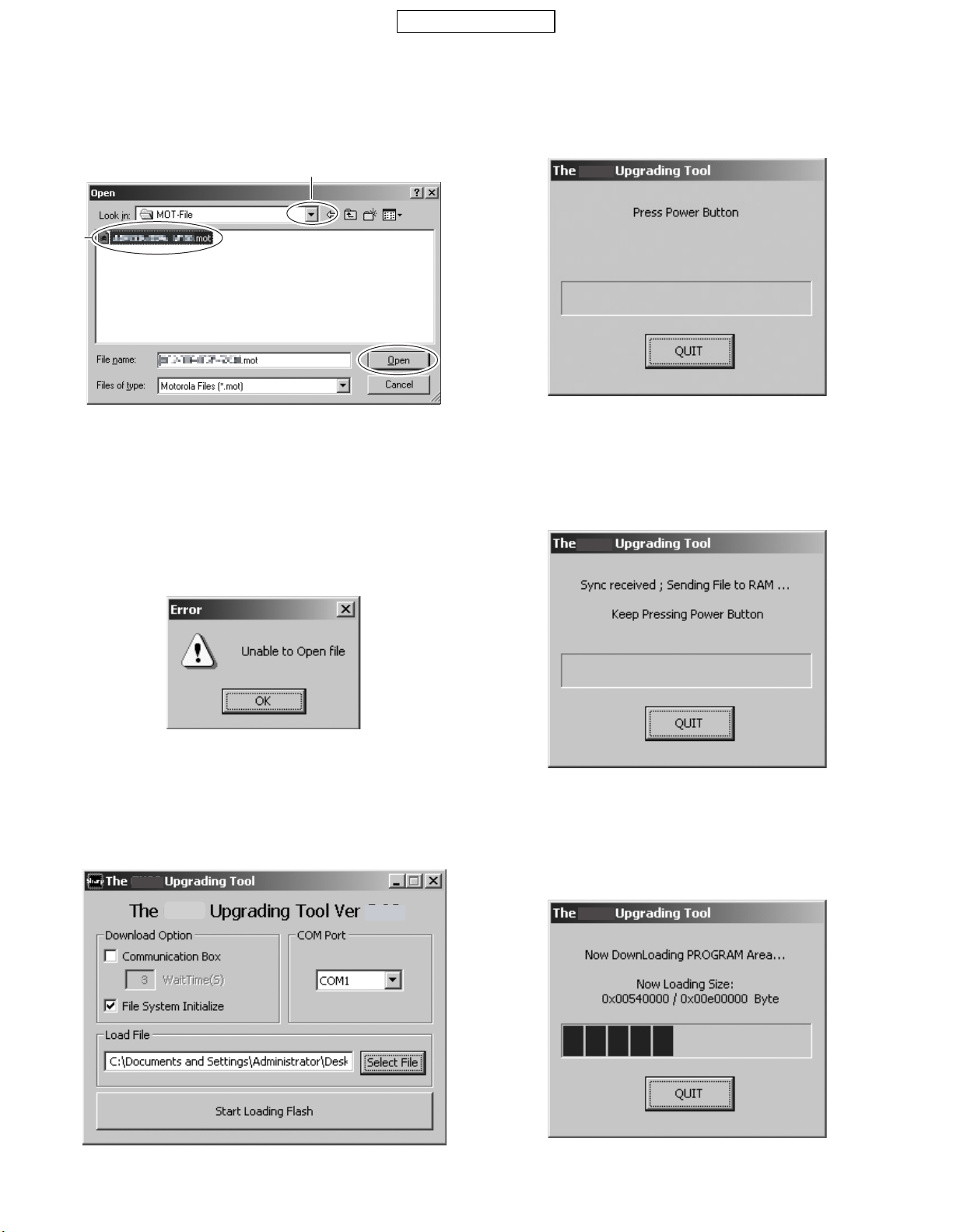

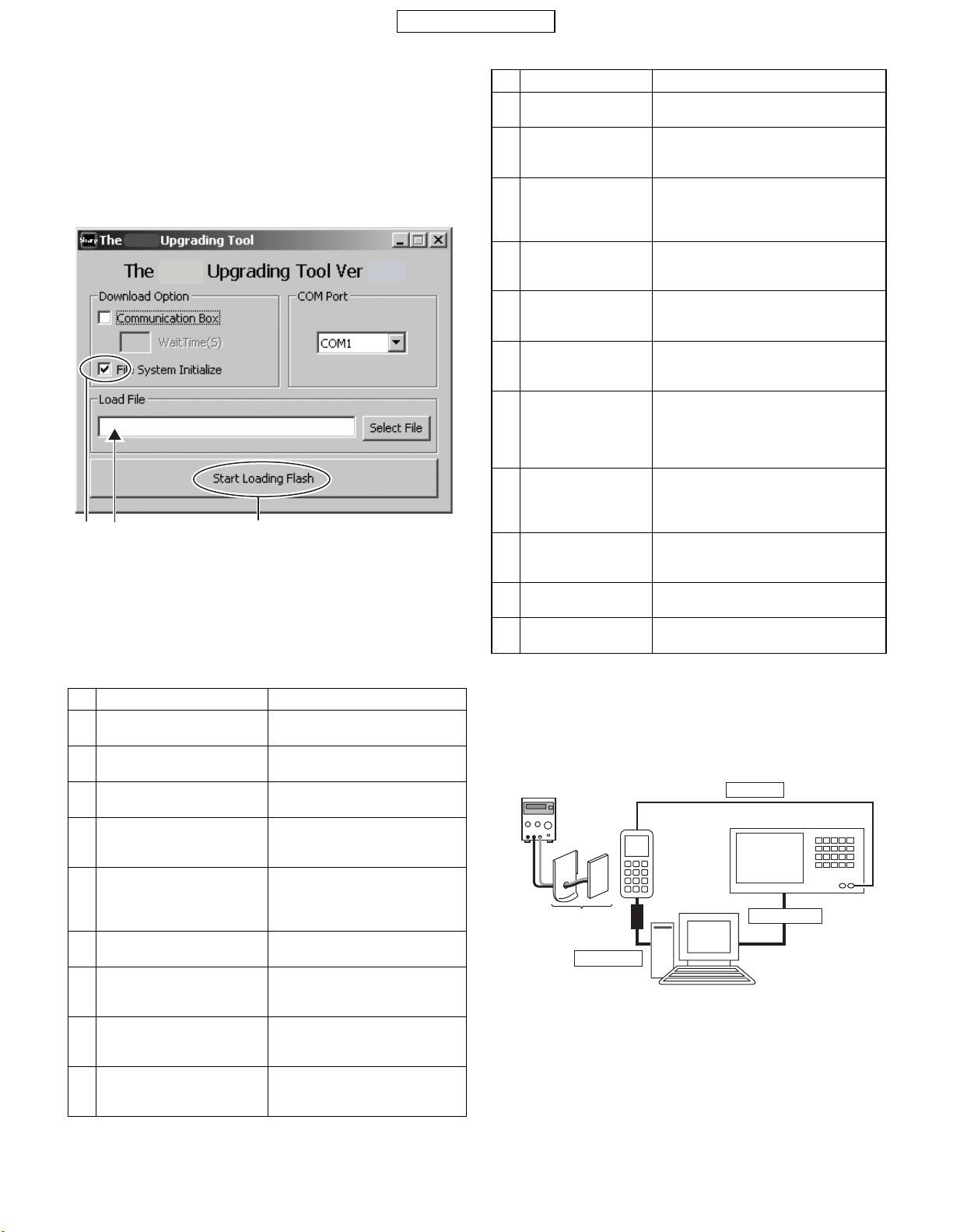

4-4. DOWNLOADER
4-4-1. Introduction
Downloader allows you to upgrade the firmware.
1) System requirements
• Requirements for the upgrading tool:
• Requirements for Loading loader
2) Required devices
The following devices are required to rewrite MOT files using Communi-
cation Box.
Conversion connector (16-pin 310-pin)
This conversion connector is required to connect TM200 with Communica-
tion Box since the cable connector of Communication Box has 16 pins.
4-4-2. Getting started
This section describes how to install/uninstall the software and how to
connect handset to a PC.
1) Installing/uninstalling the software
[Installing the software]
Note: Downloader is installing/uninnstalling simultaneously with SPTP.
1. Double click the “setup.exe” icon in TM200 Install-E folder.
2. The Setup Wizard is activated.
Click the "Next" button.
3. A location to install the software appears.
To install in the default location, click the "Next" button.
To change the location, click the "Browse" button, select a desired
location and then click the "Next" button.
(See the description in "* Changing the install location" below.)
OS : Windows 98, 98 SE, 2000, or XP
Download file : Only the Motorola format is supported.
Communication method : Asynchronous mode
Data length : 8 bits
Parity bit : None
Stop bit length : 1 bit
Handset : TM200
Communication method : Asynchronous mode
Data length : 8 bits
Parity bit : None
Stop bit length : 1 bit
TM200
TM200
TM200
TM200
TM200
TM200
TM200

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE
2 – 5
CONFIDENTIAL
* Changing the install location
Click the "Browse" button in step 3 to browse folders.
Click the "c" button, select a folder and click the "OK" button.
4. A confirmation message appears.
Click the "Next" button.
5. Installtion starts. The progress is displayed.
6. The installation is completed.
Click the "Close" button to close the Setup Wizard.
7. The shortcut icon shown left is created on your desktop when the
installation is completed.
Note:
• After installing the upgrading tool in Windows 98 or 98 SE,
restart the operating system.
While installing the upgrading tool in Windows 98, 98 SE, or ME,
a message may appear prompting to restart the operating system.
In this case, restart your operating system follwoing the instruction.
Even if the message does not appear, restart your operating
system after the installation.
On Windows 98, if you start the upgrading tool without restarting the
operation system, the following message may appear. Restart the
operating system to ensure the proper operation of the upgrading tool.
• Uninstall the upgrading tool before installing the latest version or
reinstalling the current version.
Otherwise, the upgrading tool may not function properly.
To ensure the proper operation, uninstall and then reinstall the
upgrading tool.
200
200
TM200
TM200
TM200
TM200
TM200
TM200
TM200
200

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE
2 – 6
CONFIDENTIAL

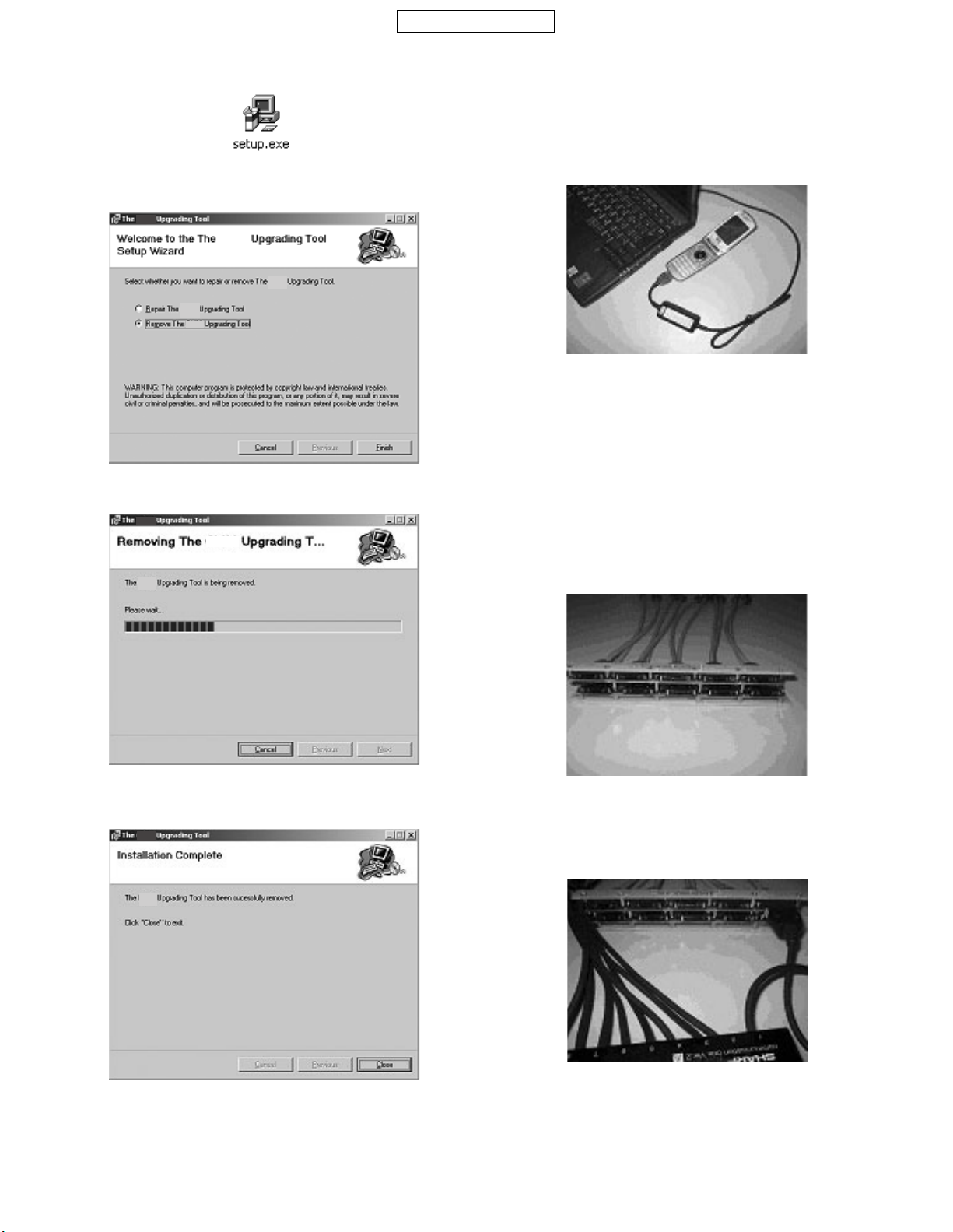

[Uninstalling the software]
1. Double click "setup.exe" in TM200 Install-E folder.
2. The Setup Wizard is activated. Select "Remove The TM200
Upgrading Tool" and click the "Finish" button.
3. Uninstalltion starts. The progress is displayed.
4. The uninstallation is completed. Click the "Close" button to close
the Setup Wizard.
2) Connecting handset to a PC
A) Using a cable for upgrading
1. Connect the cable to a PC.
2. Connect the cable to handset.
3. The photo below shows handset connected to a PC.
B) Using Communication Box
1. Connect a PC to Communication Box via a serial cable.
2. Connect the AC charger to Communication Box and then plug it into
the outlet.
All SET POWER SW on Communication Box must be turned off.
3. Connect the conversion connector to Communication Box Cables.
Connect the conversion connector in the following order, label side up.
From upper right end: Cable No. 1, 3, 5, 7, and 9.
From lower right end: Cable No. 2, 4, 6, 8, and 10.
4. The photo below shows the conversion connector connected to
Communication Box Cable 1.
TM200
TM200
TM200
TM200
TM200
TM200
TM200
TM200
TM200
TM200
