Bosch AMC2-16IOE User manual

AMC2 Extensions
AMC2-16IOE / -8IOE / -16IE
en Installation Manual

Table of contents
1Safety Instructions 5
1.1 Important Safety Notes 5
1.2 Safety Precautions 7
1.3 Unpacking 9
2Important Information 10
2.1 Explanation of symbols in this document 10
2.2 Internet 11
3Introduction 12
3.1 Description 12
3.1.1 Extension AMC2-16IOE 12
3.1.2 Extension AMC2-8IOE 13
3.1.3 Extension AMC2-16IE 14
3.2 Equipment Configuration 15
3.3 Performance Characteristics 16
3.4 System Overview 17
4Installing 19
4.1 Mounting 19
4.2 Unmounting 20
4.3 Opening the Case 21
4.4 Closing the Case 22
4.5 Cabling 23
4.5.1 Conductor data 23
4.6 Grounding and Shielding 25
4.6.1 Grounding for Extension Interface 26
4.7 Connecting Power Supply 27
4.7.1 Direct Power Supply 27
4.7.2 Power Supply via RS-485 Interface 28
4.7.3 Overview - Power supply/consumption 29
4.8 RS-485 for extension modules 32
4.8.1 Addressing 33
4.9 Connecting Relay Outputs 33
4.10 Connecting Analog Input Devices 38
4.11 Tamper Protection 41
AMC2 Extensions Table of Contents | en 3
Bosch Sicherheitssysteme GmbH 2016-11 | AMC2-16IOE |

5Operating 42
5.1 Status Display of the AMC2 42
6Technical Data 44
7Appendices 48
7.1 Connecting Diagrams 48
Index 52
4en | Table of Contents AMC2 Extensions
2016-11 | AMC2-16IOE | Bosch Sicherheitssysteme GmbH

Safety Instructions
Important Safety Notes
1. Read, follow, and retain instructions - All safety and
operating instructions must be read and followed properly
before putting the unit into operation. Retain instructions
for future reference.
2. Do not ignore warnings - Adhere to all warnings on the unit
and in the operating instructions.
3. Accessories - Use only accessories recommended by the
manufacturer or those sold with the product. Accessories
not recommended by the manufacturer must not be used,
as they may cause hazards.
4. Installation precautions - Do not place this unit on an
unstable stand, tripod, bracket, or mount. The unit may fall,
causing serious injury to persons and damage to the unit.
Mount the unit according to the manufacturer’s
instructions.
5. Service - Do not attempt to service this unit by yourself.
Opening or removing covers may expose you to dangerous
voltages or other hazards. Refer all servicing to qualified
service personnel.
6. Damage which requires service - Disconnect the unit from
the main AC or DC power source and refer servicing to
qualified service personnel under the following conditions:
– If the power supply cord or plug is damaged.
– If liquid has been spilled or an object has fallen into
the unit.
– If the unit has been exposed to water and/or inclement
weather (rain, snow, etc.).
– If the unit does not operate normally when following
the operating instructions. Adjust only those controls
specified in the operating instructions. Improper
1
1.1
AMC2 Extensions Safety Instructions | en 5
Bosch Sicherheitssysteme GmbH 2016-11 | AMC2-16IOE |

adjustment of other controls may result in damage,
and require extensive work by a qualified technician to
restore the unit to normal operation.
– If the unit has been dropped or the cabinet damaged.
– If the unit exhibits a distinct change in performance.
7. Replacement parts - If replacement parts are required, the
service technician must use only replacement parts that are
specified by the manufacturer. Unauthorized replacements
may result in fire, electrical shock or other hazards.
8. Safety check - Upon completion of service or repair work
on the unit, ask the service technician to perform safety
checks to ensure that the unit operates properly
9. Power sources - Operate the unit only from the type of
power source indicated on the label. If unsure of the type
of power supply to use, contact your dealer
10. Lightning - For added protection during electrical storms
external lightning conductors can be installed. This
prevents power surges from damaging the unit.
11. The units should be installed in locations with restricted
access.
6en | Safety Instructions AMC2 Extensions
2016-11 | AMC2-16IOE | Bosch Sicherheitssysteme GmbH

Safety Precautions
Read instructions!
Before working with the AMC2 device, read these instructions
carefully. Make sure you have understood all information
described in this document.
!
Warning!
Risk of electric shock
External power supplies must be installed and put into service
by qualified personnel.
Ensure compliance with the relevant regulations.
Ground the controller.
Disconnect both AC and battery power supply before working
on the controller.
!
Warning!
Risk of fire
Installation of the AMC2 device must comply with any local fire,
health, and safety regulations. A secured door that may be part
of an escape route from an area must be installed with:
Install a fail-safe lock (A), so that the door will be released if
power fails. Ideally, use a magnetic lock.
Install a normally-closed break glass or a manual pull (B) in the
lock supply wiring, so that in an emergency the fail-safe lock
can be immediately powered down.
1.2
AMC2 Extensions Safety Instructions | en 7
Bosch Sicherheitssysteme GmbH 2016-11 | AMC2-16IOE |

!
Warning!
Risk of explosion of Lithium battery
The battery can explode if it is replaced incorrectly.
Replace only with the same type as recommended by the
manufacturer.
Dispose used batteries according to the battery manufacturer’s
instructions.
Notice!
Risk of damage to equipment
Protect the hardware from electrostatic discharge by observing
ESD instructions before unpacking of touching connectors of
electronics.
Always switch off power of the AMC2 device before modifying
the installation.
Do not connect or disconnect plug connectors, data cables, or
screw connectors while power is on.
Rules and Conditions
There are no specific requirements as for selling and delivery. As
for storage and safe operation, the environmental temperature
should not exceed the range of 0°C to 50°C.
Disposal
Your Bosch product is designed and manufactured with high-
quality materials and components which can be recycled and
reused.
8en | Safety Instructions AMC2 Extensions
2016-11 | AMC2-16IOE | Bosch Sicherheitssysteme GmbH

This symbol means that electrical and electronic equipment, at
their end-of-life, should be disposed of separately from your
household waste.
In the European Union, there are separate collection systems for
used electrical and electronic products. Please dispose of this
equipment at your local community waste collection/recycling
center.
Unpacking
Check the packaging for visible damage. If anything has been
damaged during transport, please inform the transport agency.
Unpack the unit carefully. This is an electronic device that must
be handled with care to avoid damage. Do not attempt to put
the unit into operation if components are damaged.
If any parts are missing, inform your customer service
representative or a Bosch Security Systems salesperson. The
shipping carton is the safest transport container for the unit.
Store it and the other packaging material for future use. If the
unit has to be sent back, use the original packaging.
1.3
AMC2 Extensions Safety Instructions | en 9
Bosch Sicherheitssysteme GmbH 2016-11 | AMC2-16IOE |

Important Information
Remarks
This hardware is part of a security system. Access should be
limited to authorized persons only.
Some states do not allow the exclusion or limitation of implied
warranties, or limitation of liability for incidental or
consequential damages, hence the above limitation or exclusion
might not apply to you.
Bosch Security Systems retains all rights not expressly granted.
Nothing in this license constitutes a waiver of Bosch’s rights
under the U.S. Copyright laws or any other federal or state law.
If you have any questions concerning this license, please, write
to:
Bosch Sicherheitssysteme GmbH
Robert-Bosch-Ring 5
85630 Grasbrunn
Germany.
Explanation of symbols in this document
Throughout this document, warning messages, important notes,
and helpful tips are presented for the reader. These appear as
follows:
Danger!
Cause of Hazard
Indicates a hazardous situation, which, if not avoided, will result
in death or serious injury.
!
Warning!
Cause of Hazard
Indicates a hazardous situation, which, if not avoided, could
result in death or serious injury.
2
2.1
10 en | Important Information AMC2 Extensions
2016-11 | AMC2-16IOE | Bosch Sicherheitssysteme GmbH

!
Caution!
Cause of Hazard
Indicates a hazardous situation, which, if not avoided, could
result in minor or moderate injury.
Notice!
Cause of Hazard
Important Notes that must be followed to avoid damage to the
equipment or environment, and to ensure successful operation
and programming.
Tips and shortcuts may also be included in such notes.
Internet
If you are interested in further information on this product or
information on other products, please consult our website at
http://www.boschsecurity.com.
2.2
AMC2 Extensions Important Information | en 11
Bosch Sicherheitssysteme GmbH 2016-11 | AMC2-16IOE |

Introduction
Description
Extension AMC2-16IOE
The extension board AMC2-16IOE can be used with an AMC2
controller. It serves additional inputs and outputs.

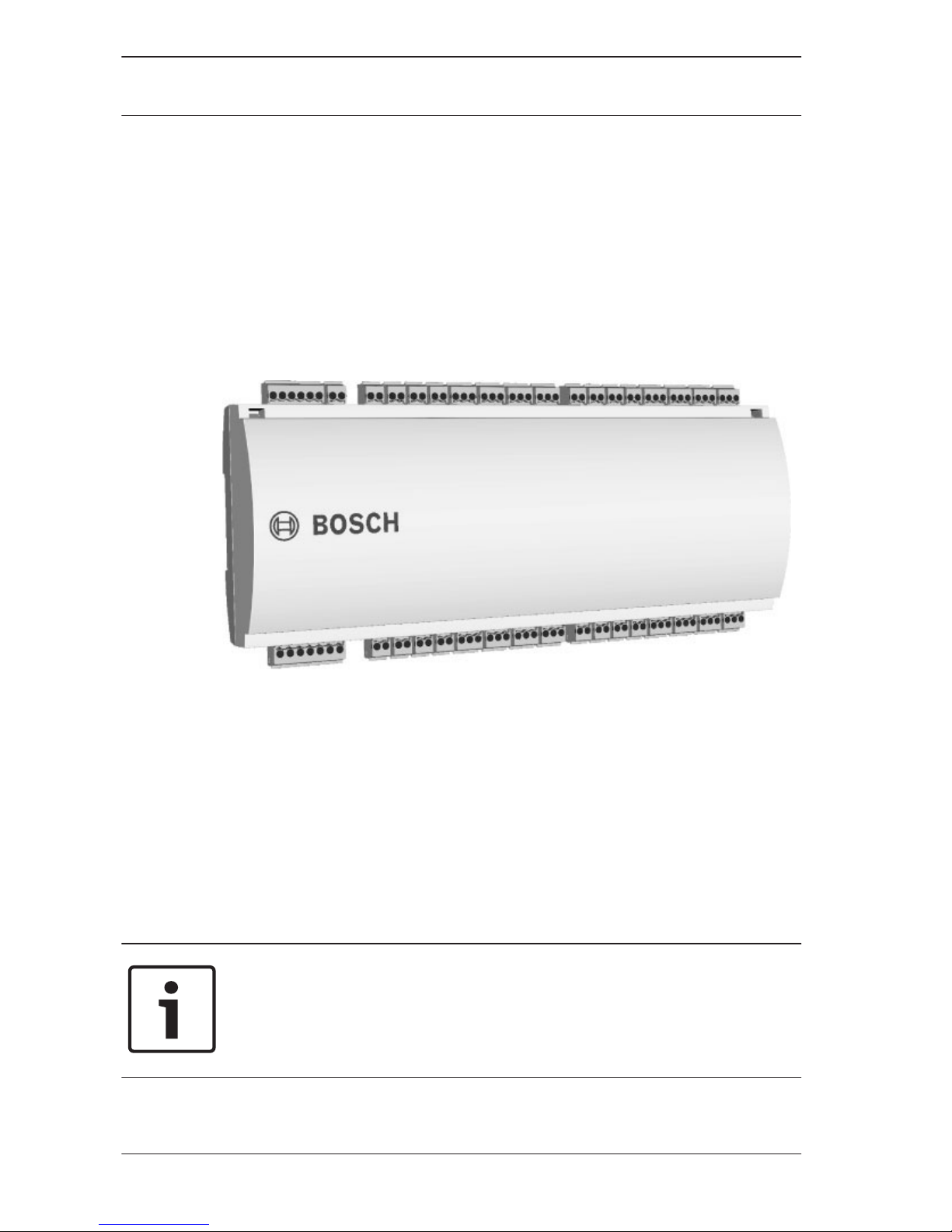

Figure 3.1: The extension board AMC2-16IOE
The AMC2 has eight analog input devices and eight relay
outputs. With its analog input devices, the AMC2 verifies, for
example, if a lock is closed or open. The relay outputs can be
used to activate lock mechanisms if access is granted, or
activate an external alarm system if an intrusion or system alert
is detected.
The AMC2-16IOE electronics are completely covered by a plastic
housing.
Notice!
The AMC2-16IOE has no display. The information about the
input and outputs will be shown on special pages of the AMC2
display.
3
3.1
3.1.1
12 en | Introduction AMC2 Extensions
2016-11 | AMC2-16IOE | Bosch Sicherheitssysteme GmbH

Notice!
An AMC2-16IOE provides signals only to the AMC2 to which it is
connected. Signal transfer to another AMC2 is not possible.
Notice!
Depending on the software system up to 3 extension modules
can be connected at random.
Extension AMC2-8IOE
To optimize the utilization of the available signals the extension
module can be delivered in a reduced version, too. The
AMC2-8IOE has eight inputs and eight outputs. The places of the
pluggable screw connectors are on one side of the module - the
other side will be closed by the housing.

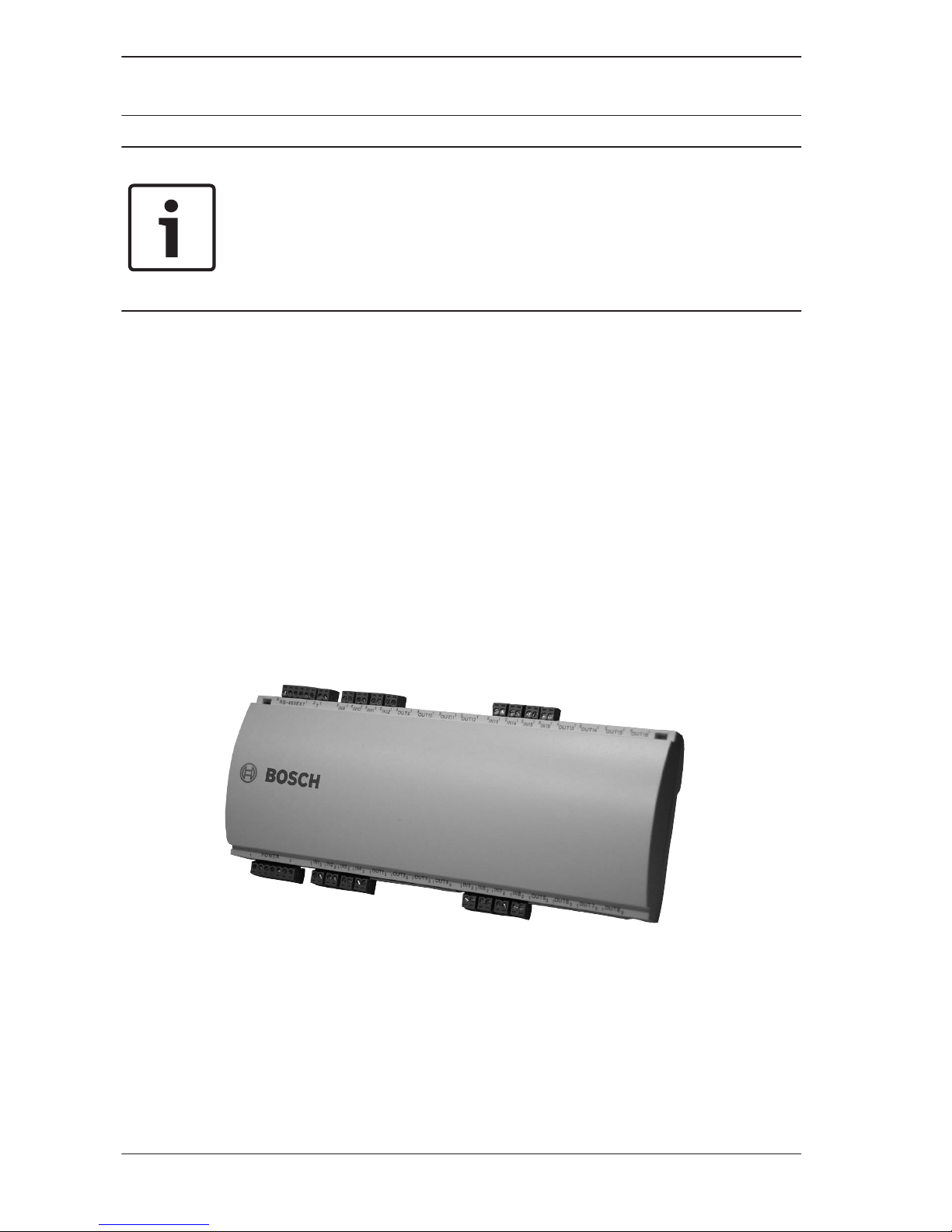

Figure 3.2: Extension module AMC2 8IOE
3.1.2
AMC2 Extensions Introduction | en 13
Bosch Sicherheitssysteme GmbH 2016-11 | AMC2-16IOE |

Notice!
The AMC2-8IOE is identical in all respects to the AMC2-16IOE
except in the number of inputs and outputs. Information in this
manual refers to all three extensions described here, unless
explicitly stated otherwise.
Extension AMC2-16IE
Another variant of the extension modul AMC2-16IOE is the
AMC2-16IE which offers connectors for input signals only.
The inputs are located at the same positions as on the
AMC2-16IOE. The output connections in the AMC2-16IE are not
usable. Within a system configuration the AMC2-16IE is treated
as a normal extension module:
It can be connected at any AMC2. Up to three extensions (for
BIS three, for Access PE only one) can be connected to an
AMC2. Extension variants can be used in any combination.
Figure 3.3: Extension module AMC2-16IE
3.1.3
14 en | Introduction AMC2 Extensions
2016-11 | AMC2-16IOE | Bosch Sicherheitssysteme GmbH

Notice!
The AMC2-16IE is identical in all respects to the AMC2-16IOE
except in missing outputs. Information in this manual refers to
all three extensions described here, unless explicitly stated
otherwise.
Equipment Configuration
Figure 3.4: Overview - Interfaces
1RS-485 extension module bus
2External tamper contact
3N.A.
4Connector for power supply
5Connectors for 16 analog inputs
6Connectors for 16 relay outputs
3.2
AMC2 Extensions Introduction | en 15
Bosch Sicherheitssysteme GmbH 2016-11 | AMC2-16IOE |

Notice!
All connectors are pluggable screw clamp terminals.
Figure 3.5: Jumpers at the bottom side
7Jumper for setting either voltage free relay output (“dry”
mode) or looped-in voltage from the AMC2 internal
power supply (“wet” mode).
8DIL switch for setting the board address.
9Jumper: Equalization of potential between different
systems and earth ground (shield) for the extension
interface.
Performance Characteristics
– Controlled by an AMC2 via RS-485
– 16 relay outputs
– voltage free, power is supplied externally (dry mode)
– powered by internal power supply (wet mode)
– 16 analog inputs with internal power supply
– Transfer rate to the extension interface: 9,6 kBit/s
3.3
16 en | Introduction AMC2 Extensions
2016-11 | AMC2-16IOE | Bosch Sicherheitssysteme GmbH

– Self regulating transmit/receive switching
– Power supply:
– 10V - 30Vdc - max. 5 A
– or over the RS-485 host connector
– Information about the inputs and outputs on the display of
the AMC2 controller
– Tamper contact for external covers
Notice!
If an external power supply is used, this should also guarantee
an uninterruptable power supply (UPS). Example: Bosch power
supply APS-PSU-60 (F.01U.282.970).
System Overview
The extension module AMC2-16IOE is connected to the Access
controller AMC2. By default it is connected via RS-485.
3.4
AMC2 Extensions Introduction | en 17
Bosch Sicherheitssysteme GmbH 2016-11 | AMC2-16IOE |

Figure 3.6: System overview
1 = Host
2 = AMC2-Controller
3 = Card reader
4 = Communication and Power supply
5 = AMC2-Extension
6 = Ethernet
System configurations for Access Control applications.
– The minimum configuration consists of:
– one PC with system software,
– one AMC2 controller,
– one AMC power supply,
– one AMC enclosure.
– The maximum configuration depends on the system
software,
18 en | Introduction AMC2 Extensions
2016-11 | AMC2-16IOE | Bosch Sicherheitssysteme GmbH

Installing
Mounting
The AMC2-16IOE can be attached on a standard 35 mm
(1.377 in.) mounting rail using a snap-in mechanism. Attach the
AMC2-16IOE into the upper edge of the mounting rail [1], then
push down the device and snap it onto the rail by pushing it
towards the back [2].
Figure 4.1: Mounting the AMC2 device on a mounting rail
4
4.1
AMC2 Extensions Installing | en 19
Bosch Sicherheitssysteme GmbH 2016-11 | AMC2-16IOE |

Unmounting
Notice!
To remove the AMC2-16IOE from a mounting rail, first remove
all pluggable connectors.
Push down the AMC2-16IOE until the lower edge snaps out of
the mounting rail [1]. Pull the lower end of the AMC2-16IOE
from the mounting rail [2].
Figure 4.2: Unmounting the AMC2 device from a mounting rail
4.2
20 en | Installing AMC2 Extensions
2016-11 | AMC2-16IOE | Bosch Sicherheitssysteme GmbH
