VIP X1600 M4S Preface | en 7
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
1Preface
1.1 About this Manual
This manual is intended for persons responsible for the installation and operation of the
VIP X1600 XF. International, national and any regional electrical engineering regulations must
be followed at all times. Relevant knowledge of network technology is required. The manual
describes the installation and operation of the unit.
1.2 Conventions in this Manual
In this manual, the following symbols and notations are used to draw attention to special
situations:
1.3 Intended Use
The VIP X1600 XF network video server is intended for use with CCTV systems and serves to
transfer video and control signals via data networks (Ethernet LAN and Internet). The optional
modules for installation determine the range of functions. Encoder modules (senders) and
decoder modules (receivers) are available. The encoder modules each contain RAM memory
for short-term recording of connected cameras. Audio signals can also be transmitted with the
audio versions of the encoder modules. Various functions can be triggered automatically by
incorporating external alarm sensors. Other applications are not permitted.
In the event of questions concerning the use of the unit which are not answered in this
manual, please contact your sales partner or:
Bosch Security Systems
Robert-Koch-Straße 100
85521 Ottobrunn
Germany
www.boschsecurity.com
!
CAUTION!
This symbol indicates that failure to follow the safety instructions described may endanger
persons and cause damage to the unit or other equipment.
It is associated with immediate, direct hazards.
i
NOTICE!
This symbol refers to features and indicates tips and information for easier, more convenient
use of the unit.

8en | Preface VIP X1600 M4S
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
1.4 EU Directives
The VIP X1600 XF network video server complies with the requirements of EU Directives 89/
336 (Electromagnetic Compatibility) and 73/23, amended by 93/68 (Low Voltage Directive).
1.5 Rating Plate
For exact identification, the model name and serial number are inscribed on the rating plate
on the bottom of the VIP X1600 XF base and on the rating plates on the circuit boards of the
modules. Please make a note of this information before installation, if necessary, so as to have
it to hand in case of questions or when ordering spare parts.

VIP X1600 M4S Safety Information | en 9
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
2 Safety Information
2.1 Electric Shock Hazard
– Always install a module in the appropriate VIP X1600 XF base housing only.
– If a fault occurs, disconnect the VIP X1600 XF from the power supply and from all other
units.
– Install the power supply and the unit only in a dry, weather-protected location.
– If safe operation of the unit cannot be ensured, remove it from service and secure it to
prevent unauthorized operation. In such cases, have the unit checked by Bosch Security
Systems.
Safe operation is no longer possible in the following cases:
– if there is visible damage to the unit or power cables,
– if the unit no longer operates correctly,
– if the unit has been exposed to rain or moisture,
– if foreign bodies have penetrated the unit,
– after long storage under adverse conditions, or
– after exposure to extreme stress in transit.
2.2 Installation and Operation
– The relevant electrical engineering regulations and guidelines must be complied with at
all times during installation.
– Relevant knowledge of network technology is required to install the unit.
– Before installing or operating the module, please ensure you have read and understood
the documentation for the VIP X1600 XF base and for any other equipment connected to
the module, such as monitors. The documentation contains important safety instructions
and information about permitted uses.
– Perform only the installation and operation steps described in this manual. Any other
actions may lead to personal injury, damage to property or damage to the equipment.
2.3 Maintenance and Repair
– Never open the housing of a VIP X1600 XF base. The unit does not contain any user-
serviceable parts. Remove only the supplied cover when installing a module.
– Do not change any components in a VIP X1600 XF base or a module. The units do not
contain any user-serviceable parts.
– Never open the housing of the power supply unit. The power supply unit does not contain
any user-serviceable parts.
– Ensure that all maintenance or repair work is carried out only by qualified personnel
(electrical engineers or network technology specialists).

10 en | Safety Information VIP X1600 M4S
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems

VIP X1600 M4S Product Description | en 11
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
3 Product Description
3.1 Scope of Delivery
– VIP X1600 M4S encoder module
– Mounting kit for installation in the VIP X1600 XF base
– Terminal plugs
– Quick Installation Guide
3.2 System Requirements
General Requirements
– VIP X1600 XF base or VIP X1600 B base housing
– Computer with Windows XP or Windows Vista operating system
– Network access (Intranet or Internet)
– Screen resolution 1,024 × 768 pixels
– 16- or 32-bit color depth
– Installed Sun JVM
Additional Configuration Requirements
– Microsoft Internet Explorer (version 6.0 or higher)
or
– Installed Configuration Manager program (version 2.0 or higher)
Additional Operational Requirements
– Microsoft Internet Explorer (version 6.0 or higher)
or
– Receiver software, for example VIDOS (version 3.11 or higher) or Bosch Video
Management System (version 2.02 or higher)
or
– MPEG-4 compatible hardware decoder from Bosch Security Systems (for example
VIP XD) as a receiver and connected video monitor
– For playing back recordings: connection to storage medium
i
NOTICE!
Check that the delivery is complete and in perfect condition. Arrange for the unit to be
checked by Bosch Security Systems if you find any damage.
i
NOTICE!
Please note the information in the System Requirements document on the product CD
supplied with the VIP X1600 XF base. If necessary, you can install the required programs and
controls from the product CD.
The Web browser must be configured to enable Cookies to be set from the IP address of the
unit.
Under Windows Vista, the protected mode on the Security tab under Internet Options must
be deactivated.
You can find notes on using Microsoft Internet Explorer in the online Help in Internet Explorer.

12 en | Product Description VIP X1600 M4S
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
3.3 Overview of Functions
Network Video Encoder
The VIP X1600 M4S encoder module is a network video server for up to four independent
video channels. It is primarily designed for encoding video and control data for transfer over
an IP network. The audio version of the module also allows the transmission of audio signals
to compatible units. The use of existing networks means that integration with CCTV systems
or local networks can be achieved quickly and easily. The module offers a 2/3 D1 or 2CIF
resolution at a complete image rate of 25 (PAL) or 30 (NTSC) images per second for up to
four channels. Video images from a single sender can be received simultaneously on multiple
receivers.
The VIP X1600 M4S encoder module is designed for installation in the VIP X1600 XF base.
Installing the units is a quick and easy operation that does not require any additional tools. All
modules are hot swappable and can be exchanged while the system is running.
Receiver
Compatible MPEG-4 enabled hardware decoders (for example the VIP XD) can be used as
receivers. Computers with decoding software such as VIDOS or computers with the Microsoft
Internet Explorer Web browser can also be used as receivers.
Video Encoding
The VIP X1600 M4S encoder module uses the MPEG-4 video compression standard. Thanks to
efficient encoding, the data rate remains low even with high image quality and can also be
adapted to local conditions within wide limits.
Dual Streaming
Dual Streaming allows the incoming data stream to be encoded simultaneously according to
two different, individually customized profiles. This feature creates two data streams that can
serve different purposes, for example one for recording and one optimized for live
transmission over the LAN.
Multicast
In suitably configured networks, the multicast function enables simultaneous real-time video
transmission to multiple receivers. The UDP and IGMP V2 protocols must be implemented on
the network for this function.
Encryption
The VIP X1600 M4S encoder module offers a variety of options for protection against
unauthorized reading. Web browser connections can be protected using HTTPS. You can
protect the control channels via the SSL encryption protocol. With an additional license, the
user data itself can be encrypted.

VIP X1600 M4S Product Description | en 13
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
Remote Control
For remote control of external units such as pan or tilt heads for cameras or motorized zoom
lenses, control data is transmitted via the module's bidirectional serial interface. This
interface can also be used to transmit transparent data.
Tamper Detection and Motion Detectors
The VIP X1600 M4S encoder module offers a wide range of configuration options for alarm
signaling in the event of tampering with the connected camera. An algorithm for detecting
movement in the video image is also part of the scope of delivery and can optionally be
extended to include special video analysis algorithms.
Snapshots
Individual video frames (snapshots) can be called up as JPEG images, stored on the
computer's hard drive or displayed in a separate browser window.
Backup
A function for storing the video images displayed on the hard drive of your computer is
available on the LIVEPAGE as well as on the RECORDINGS page. Video sequences can be
stored by means of a mouse click and can be redisplayed using the Player supplied as part of
the scope of delivery of the base.

14 en | Product Description VIP X1600 M4S
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
Summary
The VIP X1600 M4S encoder module provides the following main functions:
– Video and data transmission over IP data networks
– Dual Streaming function for simultaneous encoding with two individually definable
profiles
– Multicast function for simultaneous image transmission to multiple receivers
– Four analog BNC composite video inputs (PAL/NTSC)
– Video encoding to international standard MPEG-4
– Transparent, bidirectional data channel via RS-232/RS-422/RS-485 serial interface
– Configuration and remote control of all internal functions via TCP/IP, also secured via
HTTPS
– Password protection to prevent unauthorized connection or configuration changes
– Extensive, flexible storage options
– Four alarm inputs and four relay outputs
– Built-in video sensor for motion and tamper alarms
– Event-controlled automatic connection
– Convenient maintenance via uploads
– Flexible encryption of control and data channels
– Authentication according to international standard 802.1x
The audio version of the module also offers:
– Audio signal transmission via IP data networks
– Audio encoding to international standard G.711

VIP X1600 M4S Product Description | en 15
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
3.4 Connections

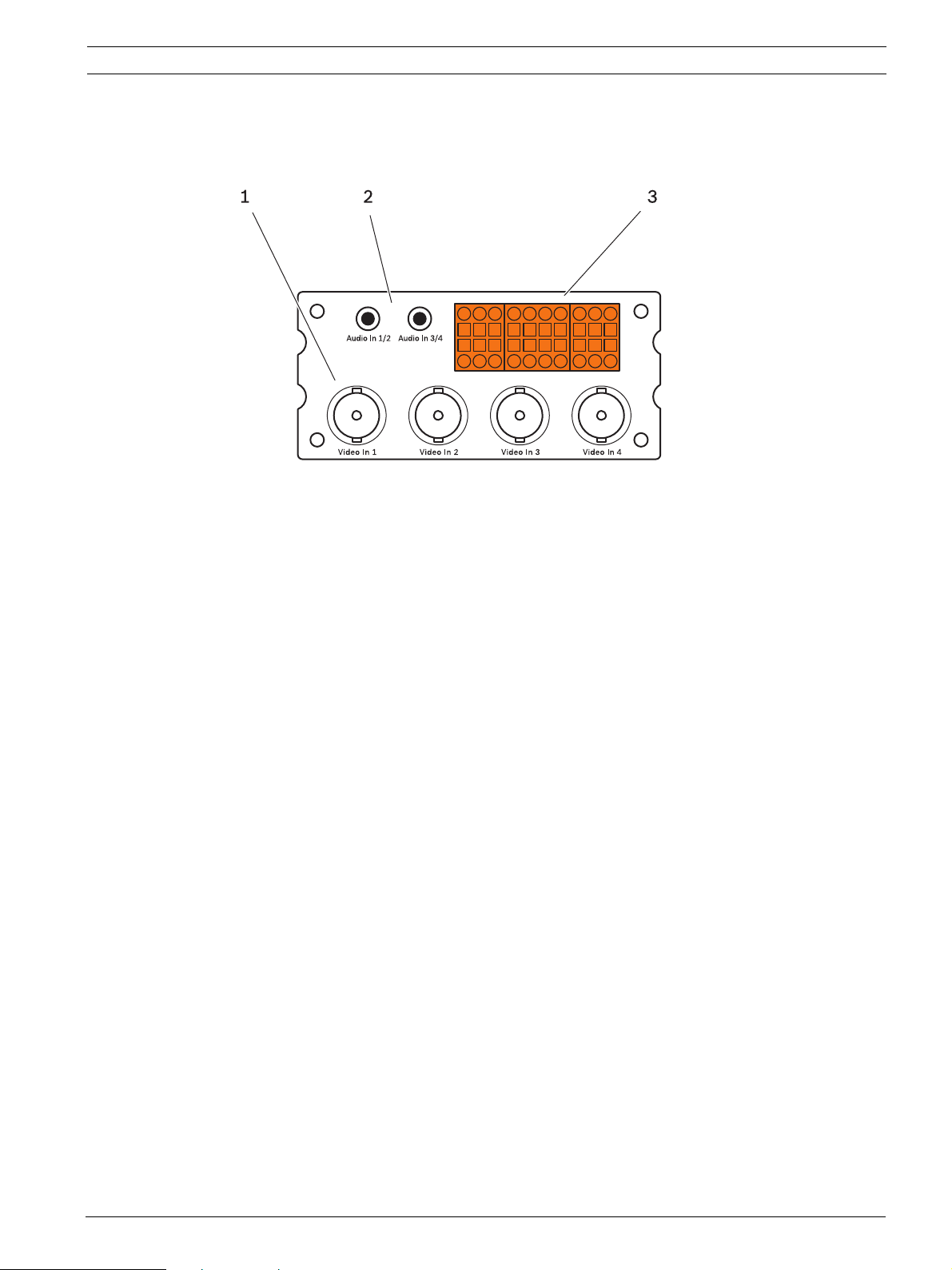

1Video inputs Video In 1 to Video In 4
BNC sockets for attaching video sources
2Audio inputs (mono) Audio In 1/2 and Audio In 3/4
3.5 mm / 1/8 in. stereo sockets line-outs for connecting audio cables
(only audio versions of the module)
3Terminal block
for alarm inputs, relay outputs and serial interface

16 en | Product Description VIP X1600 M4S
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems

VIP X1600 M4S Installation | en 17
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
4 Installation
4.1 Preparations
The module is exclusively designed for installation in the VIP X1600 XF base. Installing the
units is a quick and easy operation that does not require any additional tools.
4.2 Installing Modules
Installation of the different VIP X1600 XF modules in the VIP X1600 XF base is described in
the relevant Quick Installation Guide. Please also take note of the following basic notes when
installing a unit.
Installation Sequence and Capacity of the VIP X1600 XF Base
You can install up to four modules in a VIP X1600 XF base. Slot 1 must always be the first slot
that is populated. The remaining slots can be populated in any order desired. It is also
possible to install and remove modules during operation.
Cooling
The installed modules generate a high volume of heat during operation. As a result, it is
essential that a functional heat dissipation system is in place for problem-free operation of a
VIP X1600 XF.
!
CAUTION!
Do not install a module in a different housing and do not operate the unit outside of the
VIP X1600 XF base. The ambient temperature during installation must be between
0 and +50 °C (+32 and +122 °F), and the relative humidity must not exceed 80% (non-
condensing).
!
CAUTION!
Ensure that Slot 1 is always populated by a module, even when modifying the installation.
Malfunctions may occur when the VIP X1600 XF is switched on without a functional module in
Slot 1.
!
CAUTION!
Whenever the installation is modified, or modules are exchanged or supplemented, it is
essential that all unpopulated slots are properly covered on the rear panel of the VIP X1600 XF
base.

18 en | Installation VIP X1600 M4S
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
Rating Plates
Every module has a label on the circuit board containing a printed MAC address by which the
module can be uniquely identified. Take note of this MAC address and the location in the
VIP X1600 XF base before installation so that you can later identify the module, even after it
has been inserted, for example when performing fault diagnosis.
Removing and Exchanging Modules
It is also possible to install, remove and exchange modules during operation.
1. Before removing a module, terminate all recordings currently running in this module.
2. When installing a module, please ensure that the cover is kept for future use.
3. When removing a module, it is essential that the corresponding slot be closed with the
cover if a module is no longer to be used in this slot. The opening must be closed to
ensure that the unit remains cool.
!
CAUTION!
Ensure that Slot 1 is always populated by a module, even when modifying the installation.
Malfunctions may occur when the VIP X1600 XF is switched on without a functional module in
Slot 1.

VIP X1600 M4S Installation | en 19
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
4.3 Connections
Cameras
You can connect a maximum of four video sources to the module. Any cameras and other
video sources that produce a standard PAL or NTSC signal are suitable.
1. Connect the cameras or other video sources to the BNC sockets Video In 1 to Video In 4
using a video cable (75 Ohm, BNC plug).
2. If the video signal is not looped through, termination is performed by a software setting if
necessary (see Section 5.17 Advanced Mode: Video Input, page 42).
Audio Connections
The audio version of the VIP X1600 M4S module has two audio line inputs for a total of four
mono signals.
The audio signals are transmitted at the same time as the video signals. As a result, you can
connect a speaker or door intercom system at the destination point, for example. The
following specification should be complied with in all cases:
Impedance 9 kOhm typ., 5.5 Vp-p max. input voltage.
The stereo plugs must be connected as follows:
Contact Audio In 1/2 Audio In 3/4
Tip Channel 1 Channel 3
Middle ring Channel 2 Channel 4
Lower ring Ground Ground

20 en | Installation VIP X1600 M4S
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
Data interface
The bidirectional data interface is used to control units connected to the module, such as a
dome camera with a motorized lens. The connection supports the RS-232, RS-422 and RS-485
transmission standards.
The module offers the serial interface via the orange terminal block (see Section 8.8 Terminal
Block, page 107).
The range of controllable equipment is expanding constantly. The manufacturers of the
relevant equipment provide specific information on installation and control.
Alarm Inputs
The module offers four alarm inputs via the orange terminal block (see Section 8.8 Terminal
Block, page 107). The alarm inputs are used to connect to external alarm devices such as door
contacts or sensors. With the appropriate configuration, an alarm sensor can automatically
connect the VIP X1600 XF to a remote location, for example.
A zero potential closing contact or switch can be used as the actuator.
XConnect the lines to the appropriate terminals on the orange terminal block (IN1 to IN4)
and check that the connection is secure.
!
CAUTION!
Please take note of the appropriate documentation when installing and operating the unit to
be controlled.
The documentation contains important safety instructions and information about permitted
uses.
i
NOTICE!
A video connection is necessary to transmit transparent data.
i
NOTICE!
If possible, use a bounce-free contact system as the actuator.
