Bosch D340 User manual

Duct smoke housing, 2-wire
D340/D340P
en Installation manual

Duct smoke housing, 2-wire Notices | en 3
Bosch Security Systems, Inc. Installation manual 2017.04 | 7.0 | F.01U.071.685
1 Notices
These instructions cover the installation of the D340 Duct smoke housing and D340P Duct
smoke kit in a fire system supervised by a fire alarm control panel (FACP) or a combination
Burglary/Fire control panel.
Before installing the module, become familiar with the Installation and Operation Guide for the
control panel you are using.
!
Warning!
Follow these instructions to avoid personal injury and damage to equipment.
Install, test and maintain the module according to these instructions, NFPA codes, local codes,
and the authority having jurisdiction (AHJ). Failure to follow these instructions can result in
failure of a detector to initiate an alarm event. Bosch Security Systems, Inc. is not responsible
for improperly installed, tested or maintained devices.
NFPA72 requires that you perform a complete system wide functional test following any
modifications, repair, upgrades or adjustments made to the system’s components, hardware,
wiring, programming and software/firmware.
Trademarks
All hardware/software product names used in this document are likely to be registered
trademarks and must be treated accordingly.

4en | Description Duct smoke housing, 2-wire
2017.04 | 7.0 | F.01U.071.685 Installation manual Bosch Security Systems, Inc.
2 Description
2.1 Overview
The D340 Duct smoke housing is designed to mount to the ducts of heating, ventilation, and
air-conditioning (HVAC) systems to monitor the presence of smoke in the conditioned air. It
operates on a two‑wire loop, and requires a smoke detector head.
Use the housing with the D285DH Duct smoke head (provided separately or with the D340P
kit). The detector is combined with an efficient housing design to sample the air passing
through a duct and detect potentially hazardous conditions. When it detects smoke, the
detector sends an alarm signal to the control panel. The control panel initiates the necessary
action to shut off fans and blowers or to switch to other air handling systems.
Test the system by placing an external magnet on the housing or by turning the D344‑RT’s key
switch to TEST. Reset control requires a 24V supply from the control panel or an external
power supply.
You can reset the detector by shutting down zone power. If your system has a D344‑RT
Remote test/indicator plate, you can reset the system using the key switch.
The D340 includes:
– One housing, power card, and cover assembly
– Two #10-24 x 1 in. machine screws for mounting
– Two #10-24 jack nuts
– One exhaust tube
– Two tube clamps with four screws
– Two foam gaskets
– Two air filters
– One drilling template
– One cover gasket
The D340P also includes a smoke detector head and 1.5ft (0.5m) tube.
2.2 Compatibilities
Bosch Security Systems, Inc. (Bosch) makes no claim either written, oral, or implied that the
D340 Duct smoke housing with its associated D285DH Duct smoke head works with any
control panel other than those listed in the Two‑wire Smoke Detectors Technical Service Note
that covers the following products:
– D285, D285TH, D285DH, D286, D263, D263TH, D263THC, D263THS smoke detectors
– D603, D604, D605 heat detectors
– D340 Duct smoke detector housing
Two‑wire smoke detector compatibility information is available in the documents for this
product on our website (www.boschsecurity.com).
The D340 Duct smoke housing with its associated D285DH Duct smoke head are compatible
with the following accessory products:
Accessory products
Active:
D344-1.5 Sample tube, duct 1.5ft/45.7cm
D344-3 Sample tube, duct 3ft/91.4cm
D344-5 Sample tube, duct 5ft/152cm
D344-RL Remote indicator plate

Duct smoke housing, 2-wire Description | en 5
Bosch Security Systems, Inc. Installation manual 2017.04 | 7.0 | F.01U.071.685
Accessory products
D344-RT Remote test/indicator plate, 24V
D344-TF Duct tube filters, 20pcs
DRA-5 Remote indicator plate, 5V
PAM-4 Relay module, form C, 10A 12/24V
Legacy:*
D306 Remote Indicator Plate
D307 Remote Test and Indicator Plate
SMK-TM Smoke Test Magnet
* Legacy products are not available for purchase.
2.3 Setting the jumpers
For the locations of the tamper jumper and reset jumper on the power card, see the following
figure.
Figure2.1: Jumper locations
1 Power card 2 Tamper jumper
3 Reset jumper
The tamper jumper enables or disables the housing cover tamper switch. When this jumper is
enabled, a trouble is indicated if the cover is removed. The reset Jumper enables or disables
the remote reset (D344-RT keyswitch). The power off reset from the control panel zone
functions normally regardless of the jumper setting.
Notice!
Disable the reset jumper whenever you are not using the D344-RT (D307).

6en | Description Duct smoke housing, 2-wire
2017.04 | 7.0 | F.01U.071.685 Installation manual Bosch Security Systems, Inc.
For enabled and disabled jumper positions, see the following figure.
Figure2.2: Jumper settings
1 Disabled 2 Enabled

Duct smoke housing, 2-wire Mounting | en 7
Bosch Security Systems, Inc. Installation manual 2017.04 | 7.0 | F.01U.071.685
3 Mounting
3.1 Preparing the duct
Before installing the duct detector, you must verify the duct air flow and velocity. The detector
is designed for use in air handling systems with air velocities between 300ft/min and 4000ft/
min (1.5m/s to 20.3m/s). Check the HVAC engineering specifications to ensure the air
velocity in the duct falls within these parameters. If necessary, use a velocity meter to check
the air velocity in the duct.
3.2 Determining mounting location
To obtain a representative air sample, avoid stratification and dead air space. These
conditions can be caused by return duct openings, sharp turns, connections, or long,
uninterrupted runs. For this reason, place the duct housing in the range of six to ten times the
width of the duct from any uninterrupted run (see the following figure).
Figure3.1: Typical duct detector placement
1 Bend or other obstruction 2 6 to 10 times the width oft he duct
3 Width of duct 4 Return air inlet
The D340 can be mounted in any direction of 90° increments without regard to the air flow
direction (see the following figure).

8en | Mounting Duct smoke housing, 2-wire
2017.04 | 7.0 | F.01U.071.685 Installation manual Bosch Security Systems, Inc.
Figure3.2: Mounting positions
1 Air flow 2 Acceptable mounting positions
3 Unacceptable mounting positions
3.3 Preparing sample tubes
The sample tubes must extend across the width of the duct. The three sizes of sample tubes
are:
– D344-1.5 (1.5 ft [0.46 m])
– D344-3 (3 ft [0.91 m])
– D344-5 (5 ft [1.52 m])
Sample tubes include an end plug that must be installed in the narrow end of the tube (see
the following figure).
Figure3.3: Sample tube
1 Set screw 2 End plug
When using the D344‑1.5 in installations where the duct width is between 12in. (31cm) and
18in. (46cm), cover some of the sample holes. The D344‑1.5 has 19 sample holes, but only
12 are required for normal installations. Depending on the length, you might have to cover
some of the holes with duct tape. Use even spacing when covering the sample holes to allow
an even sample across the width of the duct (see the following figure).
Figure3.4: Covering sample tube holes

Duct smoke housing, 2-wire Mounting | en 9
Bosch Security Systems, Inc. Installation manual 2017.04 | 7.0 | F.01U.071.685
1 Place tape over these sample holes
You can combine or cut sample tubes to make different lengths. A sample tube can be a
maximum length of 10ft (3m) or a minimum length of 1ft (0.3m). For example, you can join
a 3ft (1m) and a 5ft (1.5m) to make an 8ft (2.4m) sample tube.
Notice!
Sample tubes must have at least 12 sample holes within the duct. Do not cut a sample tube
to less than 12 sample holes.
Notice!
Sample tubes over 3ft (1m) must be supported at the end opposite the duct detector. The
support hole should be 1in. to 2in. (2.5cm to 5cm) below the entry hole to allow for
possible moisture drainage (see the figure following step 4 of the following procedure).
To combine sample tubes:
1. Remove the roll pin and set screw from one of the sample tubes.
2. Remove the end plug from the other sample tube.
3. Push the flared end over the sample tube you want to lengthen.
4. Align the holes, insert the set screw, and reinstall the end plug. For example, if you want
a 7ft (2m) sample tube, combine a 3ft (1m) sample tube and a 5ft (1.5m) sample
tube. Then cut 1ft (0.3m) from the narrow end to get the necessary length.
Figure3.5: Support hole position
1 1in. to 2in. (2.5cm to 5cm)
5. Seal the gap between duct and sample tube. You can remove up to 6in. (15cm) from the
D344‑1.5 for 1ft (0.3m) duct installations.
3.4 Mounting the detector
1. Locate the D340 mounting template and remove it from its backing. Place the template
over the desired location on the duct (see the following figure).

10 en | Mounting Duct smoke housing, 2-wire
2017.04 | 7.0 | F.01U.071.685 Installation manual Bosch Security Systems, Inc.
Figure3.6: Mounting template placement
1 Duct 2 Mounting template
3 16.70in. (40.8cm) 4 Two 0.375in. (9.5mm) holes for
mounting the housing to the duct
5 Two 1.75in. (45mm) diameter holes
for the sample tubes
6 6.5in. (16.6cm)
2. Drill out the required holes and remove any remaining debris.
3. Remove the template.
4. Place a #10‑24 jack nut (see the following figure) in each of the 3/8in. (9.5mm) holes.
Figure3.7: Jack nuts
5. Insert the #10-24x1in. machine screws into the jack nuts and firmly tighten. This
attaches the jack nuts to the duct. You might have to hold the jack nuts with a installer
wrench or a pair of pliers while tightening the screws to stop the jack nut from spinning
in the hole. Remove the screws for later use.
6. Place the two foam gaskets over the sample and exhaust ports on the back of the housing
(see the following figure).

Duct smoke housing, 2-wire Mounting | en 11
Bosch Security Systems, Inc. Installation manual 2017.04 | 7.0 | F.01U.071.685
1
2
Figure3.8: Foam gaskets
1 Sample/exhaust tube posts 2 Foam gaskets
7. Mount the housing to the jack nuts using the supplied machine screws (see the following
figure). Remember that over‑tightening the screws can cause excessive bowing of the
duct.
Figure3.9: Mounting the housing
1 Duct 2 Housing
3 Machine screws (supplied)
8. Determine and remove the appropriate wire knockouts for power and for any remote
indicator wiring (see the following figure).

12 en | Mounting Duct smoke housing, 2-wire
2017.04 | 7.0 | F.01U.071.685 Installation manual Bosch Security Systems, Inc.
Figure3.10: Wiring knockouts and earth ground
1 Wiring knockouts 2 Earth ground screw
9. Locate the sample and exhaust tubes (see the following figure). Ensure the sample tube
has a plug installed at the narrow end of the assembly.
Figure3.11: Exhaust/sample tubes
1 Exhaust tube 2 Sample tube
3 Leave end open 4 Insert plug
10. Note the direction of the airflow in the duct. The sampling holes in the sample tube must
face into the air flow (see the first figure below). The exhaust tube must exhaust
downwind from the sample tube (see the second figure below).

Duct smoke housing, 2-wire Mounting | en 13
Bosch Security Systems, Inc. Installation manual 2017.04 | 7.0 | F.01U.071.685
Figure3.12: Airflow direction
1 Sample tube 2 Airflow direction
3 Sampling holes
Figure3.13: Exhaust/sample tube placement
1 Exhaust tube 2 Sample tube
3 Airflow direction
11. Insert the sample and exhaust tubes into the housing, ensuring the sample tube holes
face into the air flow. Ensure the tube alignment point set into the housing.
12. Secure the tubes in place using the tube clamps provided (see the following figure).

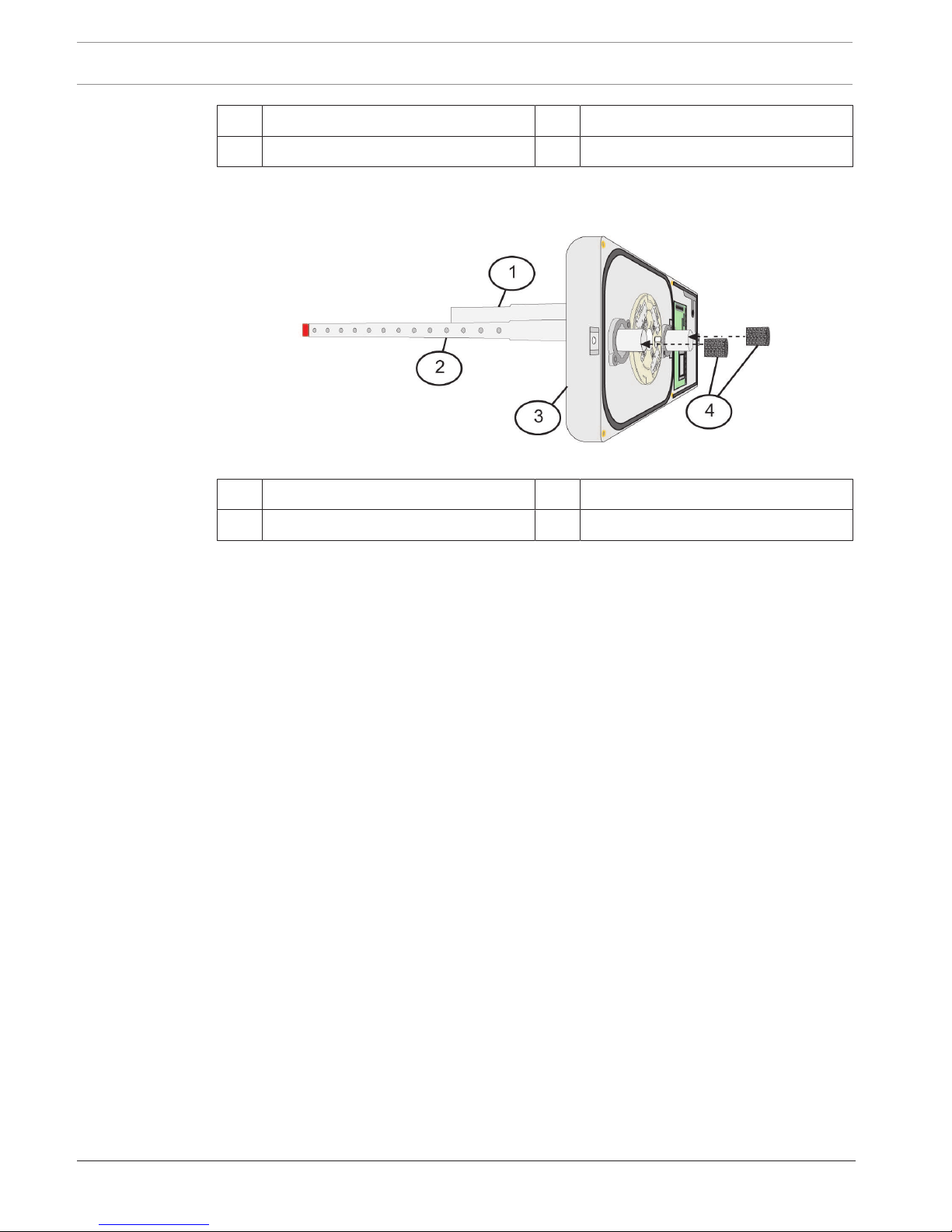

Figure3.14: Mounting tubes in housing

14 en | Mounting Duct smoke housing, 2-wire
2017.04 | 7.0 | F.01U.071.685 Installation manual Bosch Security Systems, Inc.
1 Exhaust tube 2 Sample tube
3 Housing 4 Tube clamps
13. Place the tube filters over the open ends of the sample and exhaust tubes (see the
following figure).
Figure3.15: Tube filters
1 Exhaust tube 2 Sample tube
3 Housing 4 Tube filters

Duct smoke housing, 2-wire Wiring | en 15
Bosch Security Systems, Inc. Installation manual 2017.04 | 7.0 | F.01U.071.685
4 Wiring
The housing/detector is designed for a two‑wire loop power ranging from 8.5VDC to 32VDC.
For use with the D344-RT Remote test/indicator plate or The DRA-5 Remote indicator plate,
you must use an external 24VDC/VAC that can supply a minimum of 170mA. For terminals for
power wiring, see the following figure.

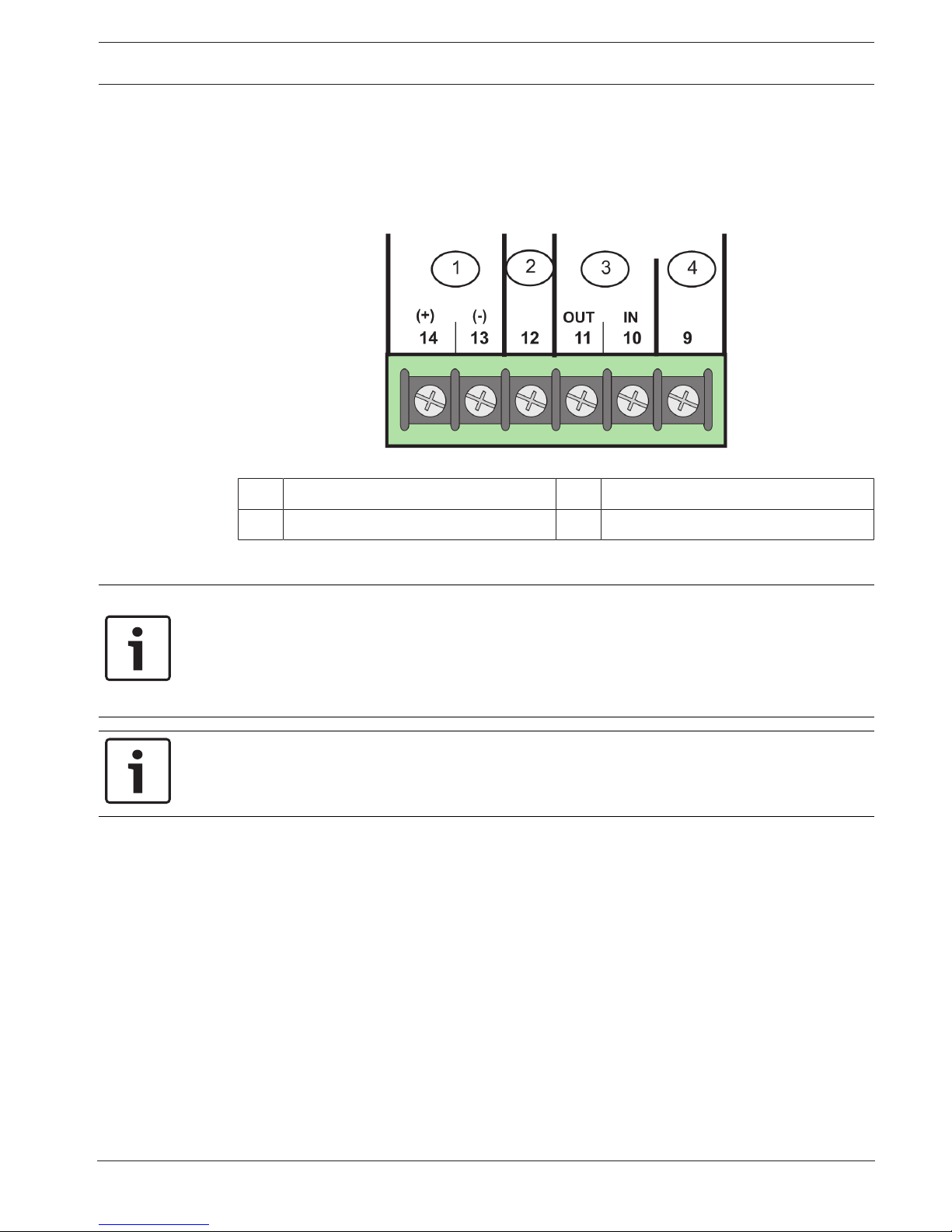

Figure4.1: D340 terminal wiring
1 Optional external power (24VAC/VDC) 2 Remote LED
3 Loop (+) 4 Loop (-)
4.1 Wiring to the D344-RT
Notice!
NFPA Requirement
NFPA-72 requires that where in‑duct smoke detector housings are installed in concealed
locations more than 10ft (3m) above the finished floor or in arrangements where the
detector’s alarm indicator is not visible to responding personnel, the detectors have remote
alarm indicators.
Notice!
Do not exceed 500ft (152m) between the D344-RT (D307) Remote test/indicator plate and
the D340 housing. Use 18AWG (ISO0.75mm2) or larger wire.

16 en | Wiring Duct smoke housing, 2-wire
2017.04 | 7.0 | F.01U.071.685 Installation manual Bosch Security Systems, Inc.

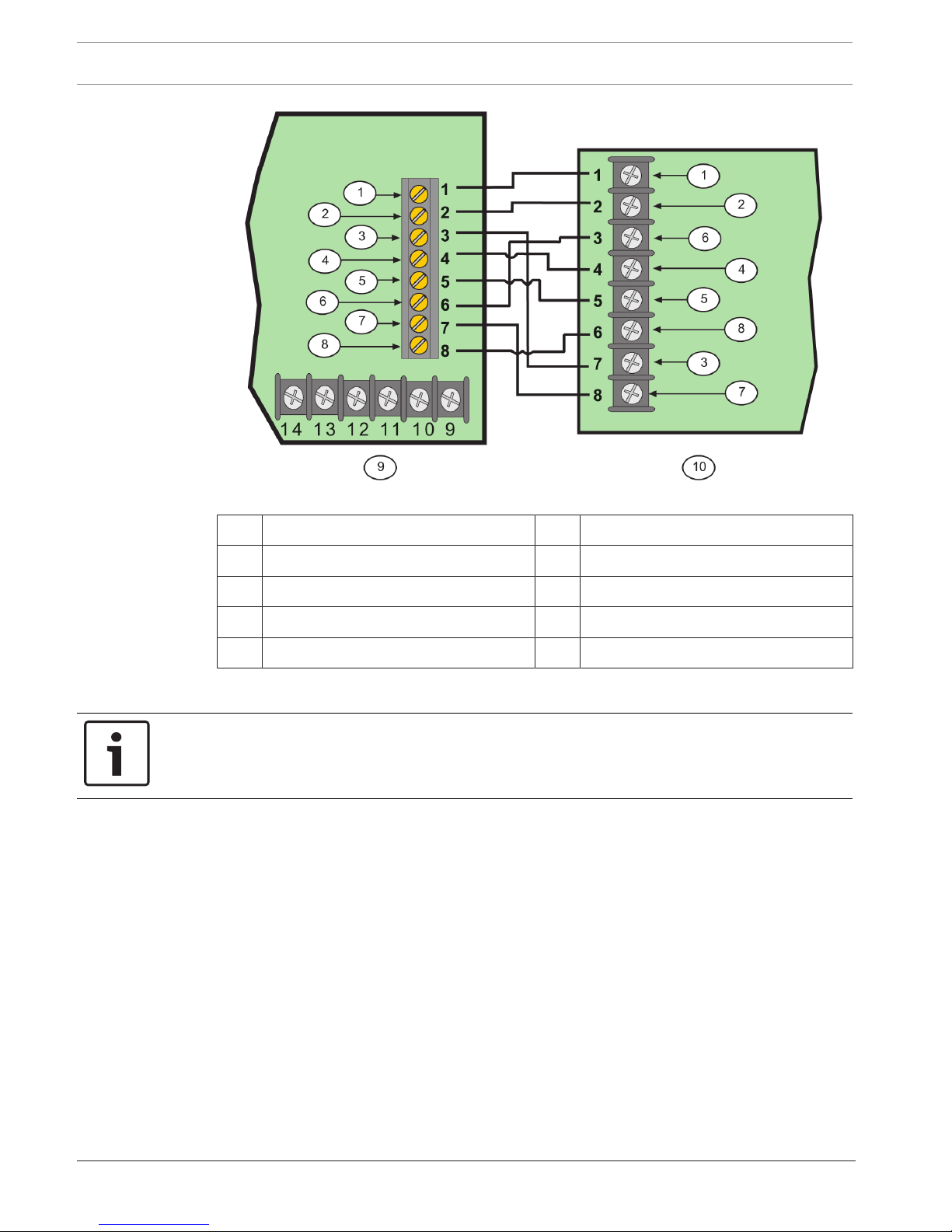

Figure4.2: D340 to D344-RT wiring
1 Voltage in (+) 2 Voltage out (-)
3 Yellow LED 4 Voltage monitor
5 Ground (-) 6 Remote test
7 Green LED 8 Red LED
9 D340 10 D344-RT (D307)
4.2 Wiring to the D344-RL
Notice!
Do not exceed a distance of 500ft (152m) between the D344-RL (D306) Remote indicator
plate and the D340. Use 18AWG (ISO0.75mm2) or larger wire.

Duct smoke housing, 2-wire Wiring | en 17
Bosch Security Systems, Inc. Installation manual 2017.04 | 7.0 | F.01U.071.685
Figure4.3: D340 to D344-RL wiring
1 D340 power card 2 D344-RL (D306)
3 Yellow wire 4 Violet wire
5 Black wire [ground (-)] 6 Terminal 6 is not used
7 Green wire 8 Red wire
4.3 Wiring to the DRA-5
Notice!
Do not exceed a distance of 500ft (150m) between the DRA-5 Remote indicator plate and
the D340 housing. Use 18AWG (ISO0.75mm2) or larger wire.
Figure4.4: D340 to DRA-5 wiring
1 Optional external power (24VAC/VDC) 2 Remote LED
3 Loop (+) 4 Loop (-)
5 DRA-5 6 White wire
7 Red wire

18 en | Wiring Duct smoke housing, 2-wire
2017.04 | 7.0 | F.01U.071.685 Installation manual Bosch Security Systems, Inc.
4.4 Wiring to the FACP
Figure4.5: D340 to FACP wiring
1 FACP 2 Alarm initiating loop
3 EOL resistor
4.5 Wiring for external power
Notice!
Connect the ground wire to the screw on the ground plate when using grounded three-wire
AC wiring (see step 8 of the mounting procedure in Mounting the detector, page 9).

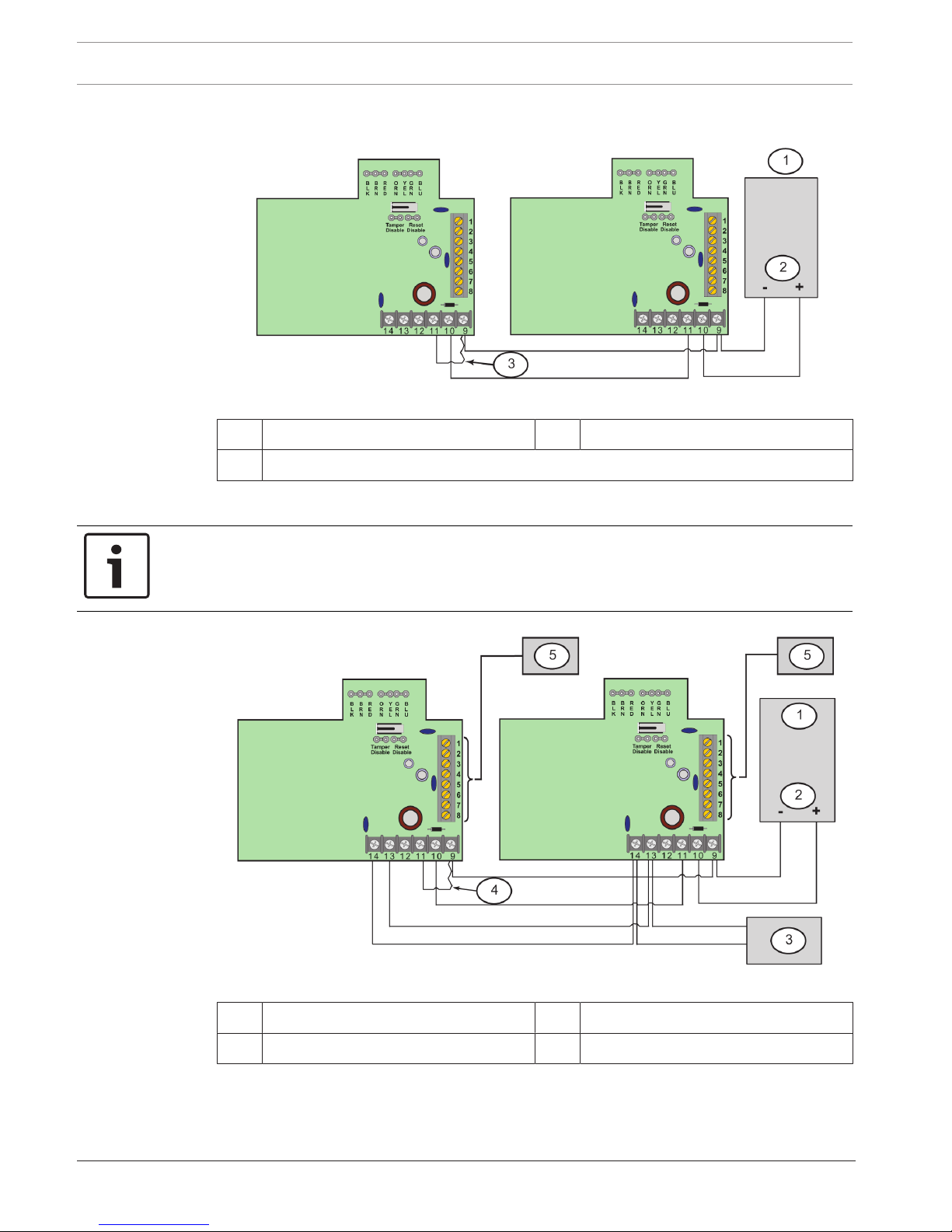

Figure4.6: Wiring D340 to FACP and external power
1 FACP 2 Alarm initiating loop
3 External power (24VAC/VDC) 4 EOL resistor

Duct smoke housing, 2-wire Testing and maintenance | en 19
Bosch Security Systems, Inc. Installation manual 2017.04 | 7.0 | F.01U.071.685
5 Testing and maintenance
5.1 Testing the installation
Verify the airflow to ensure the system is properly operating. Use a manometer to verify the
correct velocity pressure readings ranging from 300ft/min to 4000ft/min (1.5m/s to 20m/s).
The pressure differential between sampling tubes is a minimum of 0.01in. (0.25mm) of water
to a maximum of 1.8in. (45.7mm) of water.
1. Check the wiring from the control panel to the last duct detector on each run for proper
polarity and continuity.
2. Ensure each run terminates with an EOL resistor as specified by the control panel
manufacturer.
3. Apply power to the system, and check for alarms.
Note which smoke detectors are in alarm (if any) and shut down the system.
Remove these detectors from their duct housing and recheck the duct housing for proper
wiring. If the problems persist, replace the affected smoke detectors or swap them with
known good units. This determines if the problem is caused by the detector or the duct
housing.
If there is a system alarm with no detector alarms present, remove all smoke detectors
and check the wiring at each duct housing. Pay close attention to the wiring of each EOL
resistor.
4. When the system is free of alarms, check each detector to ensure the red LED indicator
flashes approximately every 4 sec for the D285DH. This verifies the detector is receiving
power and properly operating.
5. Test each detector to ensure it causes a control panel alarm. Reset the control panel after
each test. Test the detectors by doing one of the following:
Place a magnet against the duct housing’s test point notch on the front cover (see the
following figure).
Figure5.1: Testing the detector
1 Magnet 2 Test point notch
3 Detector 4 Housing

20 en | Testing and maintenance Duct smoke housing, 2-wire
2017.04 | 7.0 | F.01U.071.685 Installation manual Bosch Security Systems, Inc.
Switch a signal from a D344-RT (D307) Remote test/indicator plate.
Notice!
When a detector alarms, the red LED indicator activates and latches to the ON position. Clear
the alarm before proceeding to the next detector.
6. You can reset the detector by momentarily removing power.
7. For duct detectors with the D344-RT (D307) Remote test/indicator plate installed, reset
by moving the keyswitch to the appropriate position and observing the alarm LED.
8. Check the overall loading of the alarm loop by measuring the voltage across each EOL
resistor. This voltage should equal or exceed the minimum specified by the control panel
manufacturer.
5.2 Maintenance
Notice!
NFPA Requirement
NFPA-72 requires a semi‑annual visual inspection of detector housings. Clean or replace the
tube filters at this time. If replacement filters are needed, order the D344-TF.
Notice!
Notify all concerned parties before and after completing maintenance on or testing of the fire
alarm system.
Clean the detector and base annually using a vacuum or with clean, dry compressed air.
