Bose QuietComfort 3 User manual

Bose®QuietComfort®3
Acoustic Noise Cancelling®
Headphones
!"#$%&'()*+,$
-%*.$%/$01$,#+#.
-$,+$#*#.'2#1$+3*#.
)*42(,$(*'2%+5
653+7$(,&*3+1+3'23+5#
82#*21$(,+(+'3%*9+5#+
)$:%*+;'22#"+09+#.
-%*;'2#/+'#+#.$#

Safety Information
2
EnglishJapaneseThaiKoreanS. ChineseTr. ChineseArabic
Safety Information
Please read this owner’s guide
Please take the time to follow the instructions in this owner’s guide carefully. It will
help you to properly use your new Bose®product and enjoy its features. Please save
this owner’s guide for future reference.
WARNINGS
• To reduce the risk of fire or electric shock, do not expose the battery charger to rain or moisture. Do not expose the
charger to dripping or splashing of liquids.
• The batterycharger must be used indoors. It is neither designed nor tested for use outdoors, in recreation vehicles,
or on boats.
• Charge the battery only on a charger approvedby Bose Corporation.Do not continuecharging the battery if it does
not reach full charge within the specified charging time. Doing so may cause the battery to become hot, rupture, or
ignite. If you see any heat deformation or leakage, properly dispose of the battery.
• Do not expose the battery to temperatures greater than 212°F (100°C). Ifexposed to excessive heat, the battery
can catch fire and explode.
• Do not place the battery in direct sunlight, or use or store it inside cars in hot weather where it can be exposed to
temperatures in excess of 140°F (60°C). Doing so may causethebatteryto generateheat,rupture, or ignite.Using
the battery in this manner also may result in a loss of performance and a shortened life expectancy.
• Do not short circuit the battery. Avoid placing it around metal objects such as keys, pocketchange, paper clips, and
jewelry.
• Do not hit the battery with a hammer, step on, throw or dropit to expose it to a strong shock. Do not pierce the bat-
tery with a sharp object such as a nail. Do not crush, dent, or deform the battery in any way. If the battery becomes
deformed, properly dispose of it.
• The battery used in this device may present a risk of fire or chemical burn if mistreated. Do not disassemble, heat
above 212°F (100°C), or incinerate. Replace battery with Bose part PC40229 only. Use of another battery may
present a risk of fire or explosion.
CAUTIONS
• Do not allow the battery to get wet.Avoid using it in high humidity environments.
• Avoid electrostatic discharge to the battery.
• Do not drop or sit on the headphones, or allow them to be immersed in water.
• Long-termexposuretoloudmusicmaycausehearingdamage.Itisbesttoavoidextremevolumewhenusingthese
headphones,especially for extended periods.
• Do not use these headphones when operating a motor vehicle on a public road, or where the inability to hear out-
side sounds may presenta danger to you or others.
• Sounds that you rely on as reminders or warnings may have an unfamiliar character when you are using the head-
phones. Be aware of how these sounds vary in character, so you can recognize them as needed.
Please dispose of used or damaged batteries promptly and properly,
following any local regulations. Keep away from children. Do not incinerate.
To return batteries for recycling, contact Bose or your Bose dealer. In the United
States only, call 1-800-905-2180. For other regions, see the contact information
on the inside back cover.
This product conforms to the EMC Directive 89/336/EEC and to the Low
Voltage Directive 73/23/EEC. The complete Declaration of Conformity can be
found at www.bose.com/static/compliance/index.html.
©2007 Bose Corporation. No part of this work may be reproduced, modified, distributed, or
otherwise used without prior written permission.

3
Important Safety Instructions
English Japanese Thai Korean S. Chinese Tr. Chinese Arabic
Important Safety Instructions
1. Read these instructions – for all components before using this product.
2. Keep these instructions – for future reference.
3. Heed all warnings – on the product and in the owner’s guide.
4. Follow all instructions.
5. Do not use this product near water or moisture – Do not use this product near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, near a swimming pool,or anywhere else that water or moisture are present.
6. Clean only with a dry cloth – and as directed by Bose Corporation. Unplug the battery charger from the wall out-
let before cleaning.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources, such as radiators, heat registers, stoves, or other apparatus (includ-
ing amplifiers) that produce heat.
9. Only use attachments/accessories specified by Bose.
10. Unplug the battery charger during lightning storms or when unused for long periods of time –to prevent
damage to this product.
11. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been dam-
aged in any way: such as power-supply cord or plug is damaged; liquid has been spilled or objects have
fallen into theapparatus; the apparatus has been exposed to rain or moisture, does not operate normally,
or has been dropped – Do not attempt to service thisproduct yourself. Opening or removing covers may expose
you to dangerous voltages or other hazards. Please callBose to be referred to an authorized service center near
you.
Compliance with FCC rules (U.S.A., only)
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide reasonable protection againstharmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, this is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, you are encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a differentcircuit than the one to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING
• Changesor modificationsnot expressly approvedbytheparty responsible for compliancecould void the user’s
authority to operate this equipment.
• Proper connections must be used for connection to a host computer and/or peripherals in order to meet FCC
emission limits.

Welcome
4
EnglishJapaneseThaiKoreanS. ChineseTr. ChineseArabic
Welcome
Introducing the QuietComfort
®
3 Acoustic Noise
Cancelling
®
headphones
Thank you for purchasing the QuietComfort®3 Acoustic Noise Cancelling®
headphones from Bose. Our innovative technologies enable these on-ear
headphones to reduce unwanted distractions while providing you with lifelike audio
performance and a comfortable fit.
Adjustable
headband
Power switch
with power indicator
Replaceableear
cushions
Rotating
earcups
Ports
R (right)
mark
L (left)
mark
Accessories included:
Batteries
Battery
charger
Headphones audio cord
5 ft. (1.5 m) audio
extension cord
Dual-plug
adapter
¼ in. (6.3 mm)
stereo phone
plug adapter
Carrying case
Battery charger plug adapters
N. America/Japan
China
Europe
Korea
U.K./Hong-Kong/
Singapore
Australia/New Zealand
IMPORTANT: Before initial headphone use, it is important to fully charge the
battery for a minimum of two hours. See “Charging the battery” on page 5.

5
Preparing Your Headphones
English Japanese Thai Korean S. Chinese Tr. Chinese Arabic
Preparing Your Headphones
Charging the battery
Initial charging time for a new battery is approximately two hours. After that, charging
time varies depending on the battery charge state.
1. Choose the correct plug adapter and attach it to the charger.
2. Insert the battery into the charger.
3. Plug the charger into a live AC (mains) outlet.
Indicator:
On = Charging
Off = Charging complete
Flashing = See
“Troubleshooting” on
page 10.
123
IMPORTANT: DO NOT STORE A BATTERY IN THE CHARGER.
• After charging, unplug the battery charger and remove the battery.
• Storing a battery in the charger diminishes the charged state of the bat-
tery over time and may permanently reduce the capacity of the battery.
Battery handling and precautions
• The battery does not have to be completely discharged in order to charge it. You
can charge the battery at any time.
• Never leave the battery in a discharged state. Charge after use and before storage.
• Avoid extreme temperatures when charging the battery. Battery charging should
occur within the temperature range of 32°F (0°C) to 95°F (35°C).
• A fully charged battery provides approximately 25 hours of use. Replace the battery
when it no longer provides adequate power after charging. To order a replacement
battery, see “Troubleshooting” on page 10.
• Keep the terminals on the battery, in the charger, and in the right earcup of the
headphones clean at all times. Dirty terminals may cause poor electrical connec-
tions and affect performance. For cleaning instructions, see “Cleaning” on page 10.

Preparing Your Headphones
6
EnglishJapaneseThaiKoreanS. ChineseTr. ChineseArabic
Installing the battery
Be sure to fully charge the battery before
first use. See “Charging the battery” on
page 5.
Right
earcup
Battery
Headband
1. Make sure the headphones power
switch is off.
2. Hold the headphones right earcup as
shown.
3. Insert the battery into the compartment.
Be sure to push the battery all the way
in until it is flush with the earcup.
Removing the battery for charging
Perform Step 1 and 2 and lift the battery
straight up and out of the battery
compartment.

7
Using Your Headphones
English Japanese Thai Korean S. Chinese Tr. Chinese Arabic
Using Your Headphones
Wearing your headphones
You can use your headphones only for noise reduction or for listening to audio along
with the benefit of noise reduction.
As you put on the headphones, observe the L (left) and R (right) markings that identify
the left and right earcups. Adjust the headband so it rests gently on top of your head
and the earcup cushions fit comfortably on your ears.
Using your headphones for audio with noise reduction
For listening to an audio source, you need to use the supplied headphones cord.
1. Plug the appropriate end of the head-
phones cord into the left earcup.
Left
earcup
Headphones
cord
Power switch
indicator
Right earcup
2. Plug the other end of the cord into the
audio device (see “Connecting to porta-
ble and home audio devices” on page 8).
3. Turn on the audio device, making sure
the volume is initially set to a low level.
4. Turn on your headphones. The power
switch indicator should light.
5. Set the volume level using the volume
control on the audio device.
Using your headphones only
for noise reduction
When using the headphones only for noise
reduction, you do not need to connect the
headphones cord. Just turn on your
headphones and put them on your head.
When the battery needs charging
• When the power switch indicator starts flashing the battery is in a low-charge state.
From the moment the indicator starts flashing, the battery has about four hours of
life left.
• When replacing a battery, make sure you charge the new battery for a minimum of
two hours. See “Charging the battery” on page 5.
• Before storing the battery for an extended period of time, fully charge the battery to
maximize its life.

Using Your Headphones
8
EnglishJapaneseThaiKoreanS. ChineseTr. ChineseArabic
Connecting to portable and home audio devices
The 3.5 mm plug on the headphones cord allows you to connect
your headphones to a variety of audio devices that use a 3.5 mm
output jack:
• CD, DVD, or MP3/digital audio player
• Desktop or laptop personal computer
To connect to a home stereo system that has a ¼-in. (6.3 mm) stereo output jack, use
the ¼-in. (6.3 mm) stereo adapter plug included with your headphones.
Plug the headphone cord into the stereo plug adapter and insert it into
the output jack on your stereo system.
Connecting to airline audio systems
The audio output connections on airline audio systems vary,
but they typically have dual or single 3.5 mm output jacks.
Note: Airline audio may not equal the high-quality audio you
experience from a home stereo or portable source.
Connecting to dual output jacks
Headphones
cord jack
Dual 3.5 mm
plugs
Plug the headphone cord into the dual-
plug adapter and insert it into the dual
output jacks.
Connecting to a single output jack
Headphones
cord jack
Single 3.5
mm plug
Movable
plug
Pivot the movable plug so that it snaps in
place against the adapter body. Plug the
headphone cord into the adapter and
insert it into the single output jack.
The dual-plug adapter lowers the volume
levels of strong audio output signals that
are common on airline systems. If you find that the volume level is too low,
remove the adapter and plug the headphone cord directly into the 3.5 mm
output jack.

9
Care and Maintenance
English Japanese Thai Korean S. Chinese Tr. Chinese Arabic
Care and Maintenance
Folding and storing
QuietComfort®3 Acoustic Noise Cancelling®headphones feature rotating earcups
that fold flat for easy, convenient storage.
Left Right
CAUTION: The earcups rotate only in one direction. Incorrectly rotating the earcups can
damage the headphones.
Using the carrying case
The carrying case provides safe storage for your headphones and its accessories.
The foam tray holding the battery and charger is removable, allowing you to store
other items, such as an MP3 player, in the case.
Note: To maximize battery life, always charge the battery before storing it and never
store the battery in the charger.
Charger
Dual-plug
adapter
Headphones
Battery
Space for
headphones
cord and other
accessories

Care and Maintenance
10
EnglishJapaneseThaiKoreanS. ChineseTr. ChineseArabic
Cleaning
Scheduled cleaning is not required. However, you can simply wipe the outside surface
of the headphones with a damp cloth, as needed. Also, be sure that the earcup ports
are clear and that no moisture is allowed into the earcups. Use only a dry cloth to
clean the electrical contacts on the battery, in the charger, or in the battery
compartment of the headphones.
CAUTIONS:
• Be sure to unplug the battery charger before cleaning it.
• DO NOT use a moist cloth to clean the electrical contacts on the battery, in the char-
ger, or in the battery compartment of the headphones.
Troubleshooting
If you experience any trouble using your headphones, try the instructions in the
following table. If you still need help, call for technical assistance. In the United States
only, call 1-800-905-2180. For other regions, see the contact information on the inside
back cover.
Problem What to do
No noise reduction • Make sure the headphones power switch is on.
• Charge the battery.
Low or no volume • Make sure the audio source is on and the volume is turned up.
• Do not use the dual-plug adapter.
• Check the headphones cord connection at the source and the
earcup.
Crackling noise;
intermittent loss of
noise reduction
• Charge the battery.
• Clean the contacts on the battery and in the battery
compartment. See “Cleaning” on page 10.
• Replace the battery.
Low rumbling
sound • Adjust earcup fit on your ears.
• Make sure earcup ports are not blocked.
Charger indicator
is flashing • Remove the battery, wait 10 seconds, and insert it again.
• Unplug the charger, wait 10 seconds, and plug it in again.
• Make sure the air temperature is within the acceptable range
for charging, 32° F (0°C) to 95° F (35°C).
• Replace the battery.
• Replace the charger.
Short battery life
after charging • Replace the battery.
• Replace the charger.

11
Care and Maintenance
English Japanese Thai Korean S. Chinese Tr. Chinese Arabic

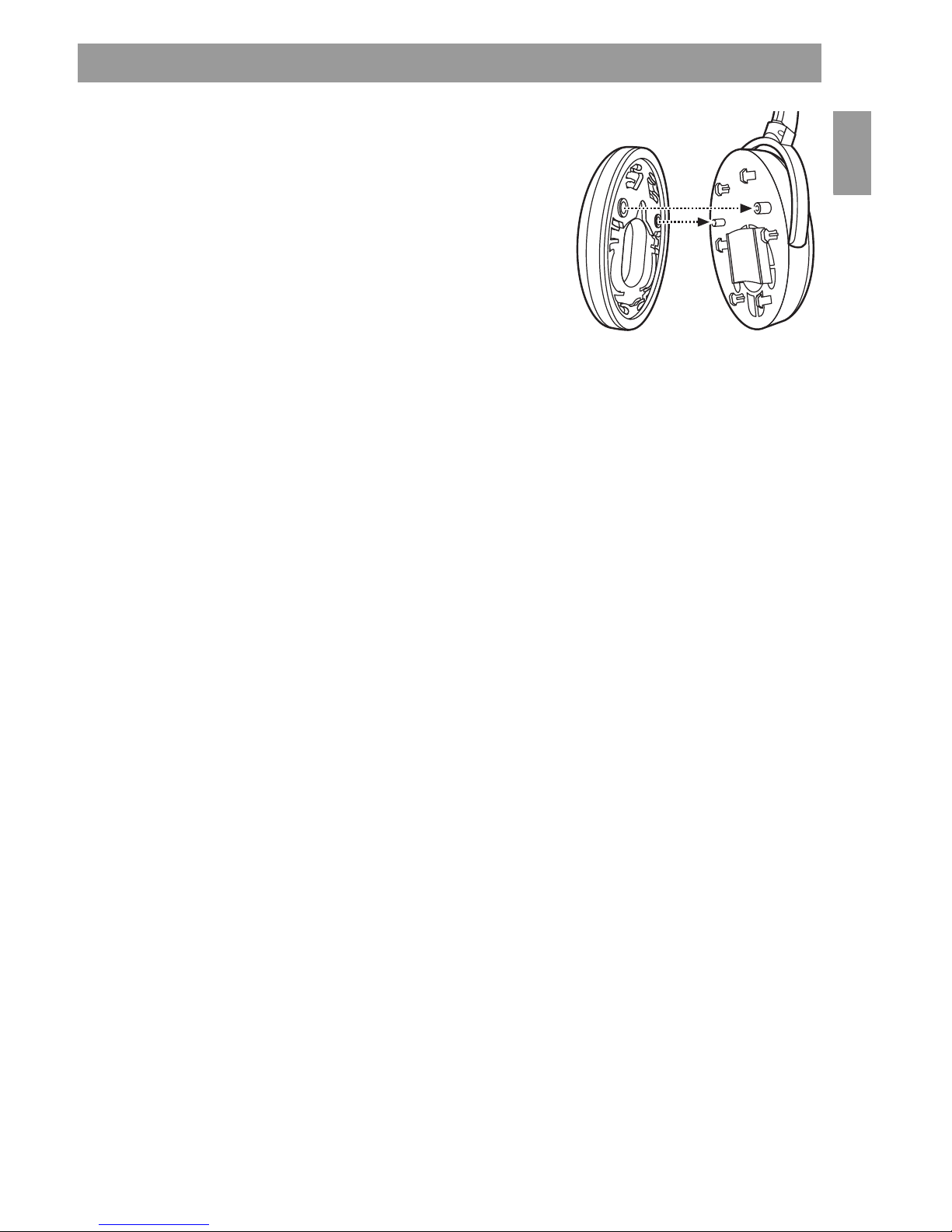

Reattaching earcup cushions
If an earcup cushion becomes detached from the
earcup:
1. Align the two holes on the back of the cush-
ion with the two posts on the earcup.
2. Push the cushion onto the earcup.
3. Press in around the outside edge of the
cushion to snap it in place.
4. Make sure the cushion is flush all the way
around and that there are no gaps between
the cushion and the earcup.
Accessories
You can purchase accessories from your Bose®dealer, on the internet
(www.bose.com), or by placing an order over the phone. See the inside back cover for
contact information.
•Battery • Replacement ear cushions
• Battery charger • Accessory kit (includes adapters and extension cord)
• Carrying case
Power ratings
Battery charger: 100VAC - 240VAC, 5.5W
Battery: 3.7VDC, 200mAh

13_BackCover.fm Page 1 Tuesday, March 21, 2006 3:25 PM

Bose Corporation
English FrançaisEspañol
Bose Corporation
Australia
Phone: [phone]
www.Bose.com.au
Belgique/België
Phone: [phone]
Fax: [phone]
Canada
Phone: [phone]
Fax: [phone]
www.Bose.ca
China
Phone: [phone], x162
Fax: [phone]
Danmark
Phone: [phone]
Fax: [phone]
Deutschland
Phone: [phone]
Fax: [phone]
www.Bose.de
France
Phone: [phone]
Fax: [phone]
www.Bosefrance.fr
India
Phone: [phone]
Fax: [phone]
www.Boseindia.com
Ireland
Phone: [phone]
Fax: [phone]
www.Bose.ie
Italia
Phone: [phone]
Fax: [phone]
www.Bose.it
Japan
Phone: [phone]
Fax: [phone]
www.Bose.co.jp
Mexico
Phone: [phone]
Fax: [phone]
Nederland
Phone: [phone]
Fax: [phone]
www.Bose.nl
New Zealand
Phone: [phone]
Norge
Phone: [phone]
Fax: [phone]
Österreich
Phone: [phone]
Fax: [phone]
Schweiz
Phone: [phone]
Fax: [phone]
Sverige
Phone: [phone]
Fax: [phone]
United Kingdom
Phone: [phone]
Fax: [phone]
www.Bose.co.uk
United States
Phone: [phone]
Fax: [phone]
www.Bose.com
World Wide Web
www.Bose.com
www.Boseeurope.com

13_BackCover.fm Page 1 Tuesday, March 21, 2006 3:25 PM

13_BackCover.fm Page 1 Tuesday, March 21, 2006 3:25 PM

Bose®QuietComfort®3
Acoustic Noise Cancelling®
Headphones
Owner’s Guide
Brugervejledning
Bedienungsanleitung
Guía de usario
Notice d’utilitsation
Manuale di istruzioni
Gebruiksaanwijzing
Bruksanvisningen
©2007 Bose Corporation, The Mountain,
Framingham, MA 01701-9168 USA
AM294695 Rev.01
BOSE®QUIETCOMFORT®3 ACOUSTIC NOISE CANCELLING®HEADPHONES
