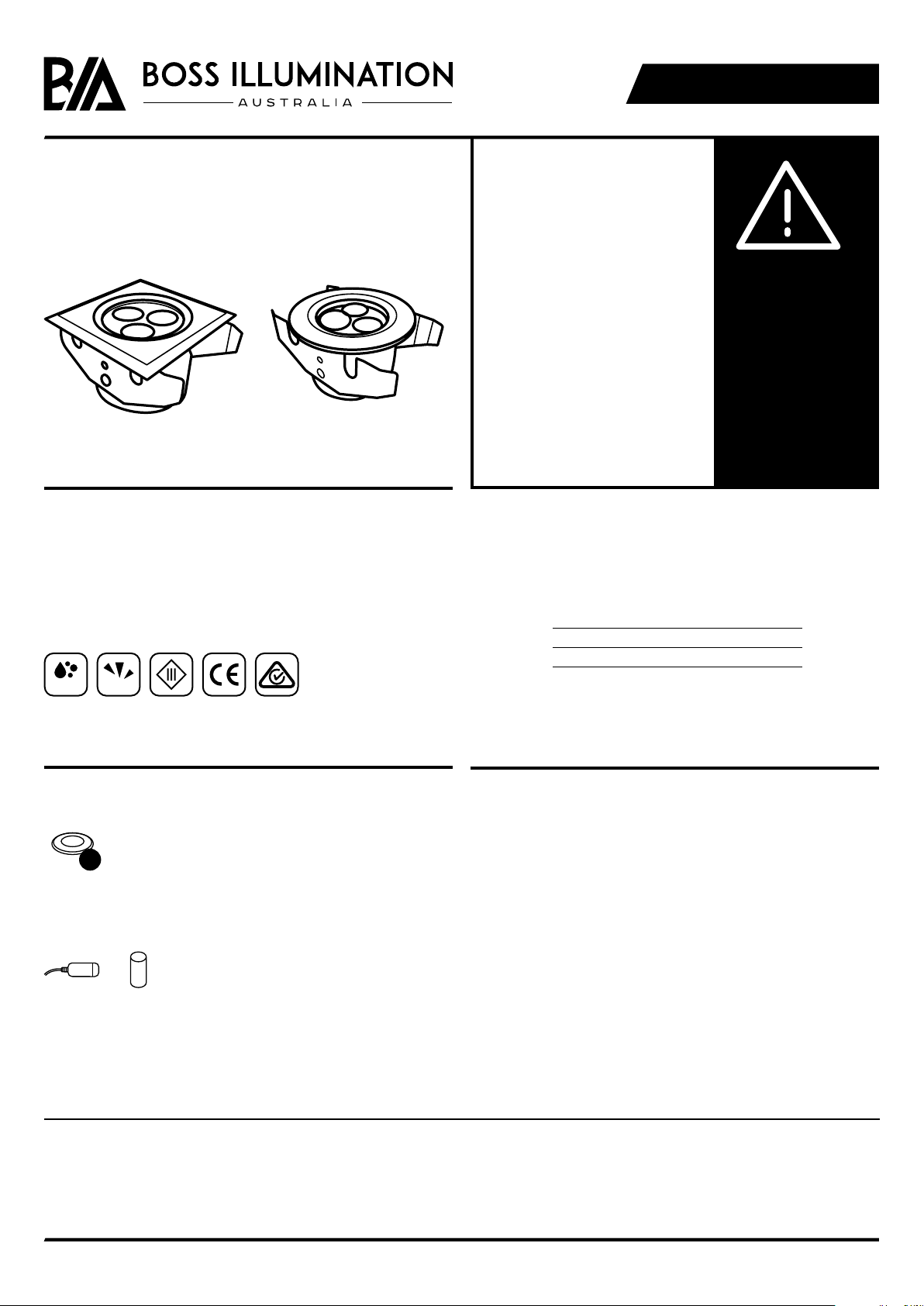

BOSS ILLUMINATION MAGNA 3 User manual

www.bia.lighting | [email protected]page 1 / 2
PRODUCT MANUAL
COPYRIGHT BIA ©2020 V08.20
WARRANTY STATEMENT This product is covered by a 5 year replacement warranty.
BIA guarantees this product to be free of defects from the date of purchase for the stated period above. If product fails within the warranty period, BIA will x
or replace the product. This excludes any costs associated with the removal or installation of product. This warranty is subject to the terms and conditions stated
on www.bia.lighting. Failure to comply with installation guidelines will automatically void the warranty. Please retain purchase receipt. For more information on
warranty please visit www.bia.lighting/warranty
BIA reserves the right to change specications and other information, modify products and discontinue items without prior notication.
PRODUCT VARIANTS
Fascia : Round
Square
Dimmable Input Voltage
CCT : 3000K No 12V / 24V DC
4000K No 12V / 24V DC
6000K No 12V / 24V DC
RGB PWM 24V DC
Beam Angle: 20°
60°
PRODUCT SPECIFICATIONS
Power : 3W
Input Voltage : 12V / 24V DC
Operating Temperature : -10 to 40°C
Material : Stainless Steel 316
Cutout Size : Ø65mm
MAGNA 3
INGROUND LIGHT
Must be installed by
a licensed electrician.
Must be installed
in accordance with
relevant Australian
Standards.
ADDITIONAL INFORMATION
1. This product can be installed directly into decking.
2. Canister is required for installation into concrete slab.
3. The face of the light tting must be installed ushed against
the surface.
4. Installation on uneven surfaces is not recommended.
5. Ensure the prepared cable is of the correct size and length.
6. Adequate drainage must be prepared underneath the light/
canister.
7. If cleaning maintenance is required, disconnect from mains
supply and allow luminaire to cool. Use a clean microbre cloth,
slightly dampened with a mild dilution of detergent that is PH
neutral, alcohol free and non-abrasive.
8. Do not use harsh chemicals or solvents. Do not use high
pressure cleaners.
9. Care must be taken during installation and maintenance to
prevent accidental damage to the surface of the luminaire.
These damages may result in corrosion.
PARTS INCLUDED
SOLD SEPARATELY
Driver Canister
IP68 IK10
Disclaimer: Please read this product
manual carefully before installing the
product.
Warranty is void if installation
guidelines are disregarded, if the
product has been modied, or if
damage is caused by misuse or
improper installation.
Images, drawings and diagrams are for
illustrative purposes only.
BIA products are manufactured
and certied in accordance with all
mandatory Australian Standards.
Technical data and information subject
to changes. Please visit our website
for latest version.
x1
Luminaire

www.bia.lighting | [email protected]page 2 / 2
PRODUCT MANUAL
COPYRIGHT BIA ©2020 V08.20
INSTALLATION INSTRUCTIONS
A DIRECT INSTALLATION INTO
DECKING
1. Before commencing installation, ensure the main power is
switched off.
2. Measure and cut hole to 65mm.
3. Lay conduit and prepare wiring.
4. Connect and waterproof cables accordingly.
5. Hold the clips and gently push luminaire into place. The face
of the luminaire must be ushed against the installed surface.
B INSTALLING INTO A CANISTER
1. Before commencing installation, ensure the main power is
switched off.
2. Canisters are to be installed prior to concrete work. Please
plan accordingly and allow for adequate drainage.
3. Secure canisters into intended position. Lay conduit and
prepare wiring.
4. Connect and waterproof cables accordingly.
5. After the concrete has cured, install luminaire by holding the
clips and gently push luminaire into place. The face of the
luminaire must be ushed against the installed surface.
DIMENSION DIAGRAM
5
4
4
3
2
65mm
12V / 24V
single
conduit
24V RGB
canister
MAGNA 3 Round
MAGNA 3 Square
Ø70mm
150mm
3000mm47mm
Ø58mm
76mm
Ø76mm
76mm
76mm
IMPORTANT NOTE:
All connections made must be
waterproofed to the appropriate
IP rating for the application.
Warranty is void if connection
IP ratings are not met.
DRIVER
+
-
+
-
+
-
RGB+ RGB+ RGB+
CONTROLLER
