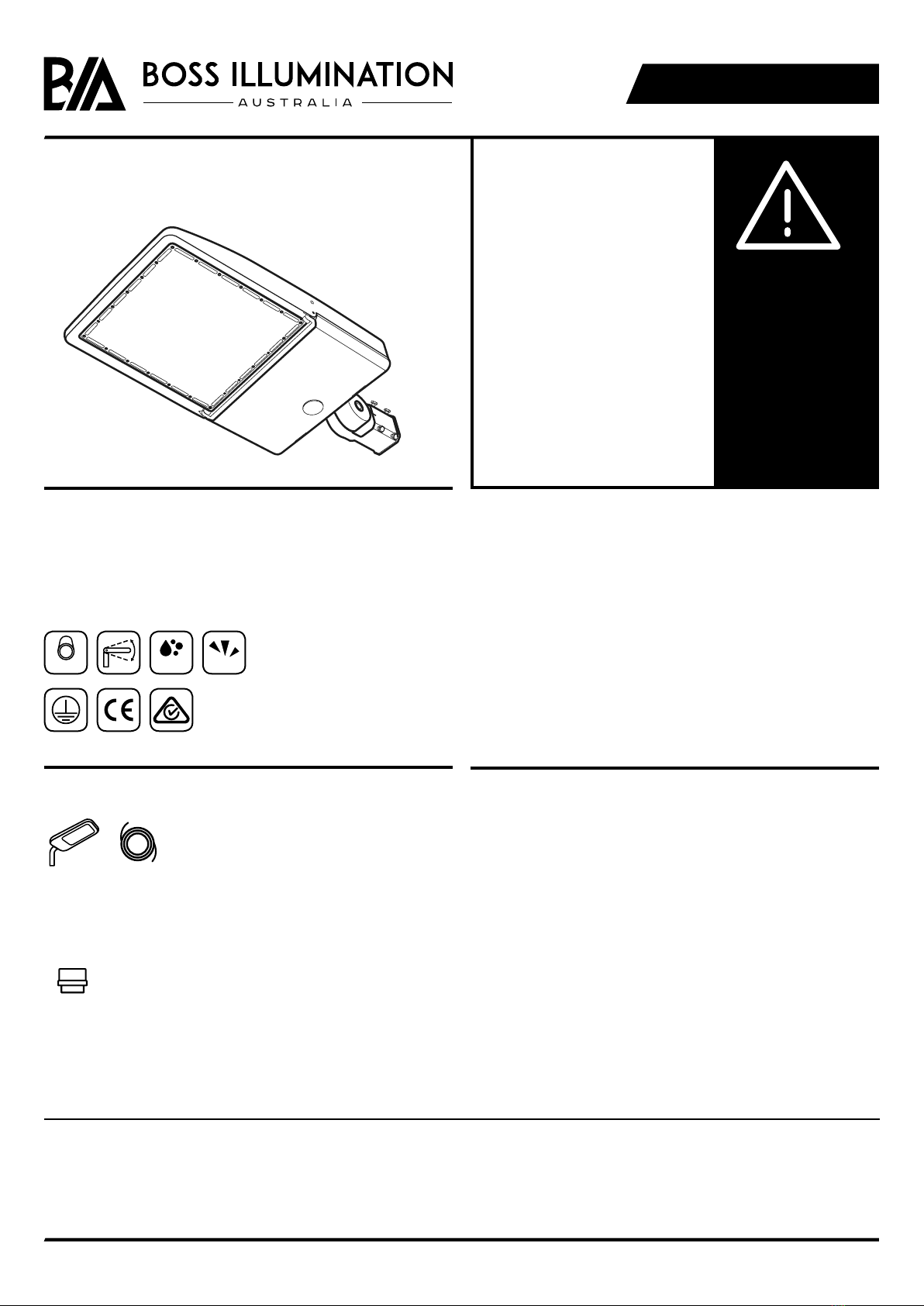

BOSS ILLUMINATION PARK II User manual

www.bia.lighting | [email protected]page 1 / 3
PRODUCT MANUAL
COPYRIGHT BIA ©2020 V04.20
Disclaimer: Please read these warranty
and installation instructions carefully
before installing the product.
BIA products are manufactured
and certied in accordance with all
mandatory Australian Standards.
All products must be installed by a
licensed electrician, in accordance
with relevant Australian Standards.
Technical data and information subject
to changes, visit our website for the
most updated version.
WARRANTY STATEMENT This product is covered by a 5 year replacement warranty.
BIA guarantees this product to be free of defects from the date of purchase for the stated period above. If product fails within the warranty period, BIA will x
or replace the product. This excludes any costs associated with the removal or installation of product. This warranty is subject to the terms and conditions stated
on www.bia.lighting. Failure to comply with installation guidelines will automatically void the warranty. Please retain purchase receipt. For more information on
warranty please visit www.bia.lighting/warranty
BIA reserves the right to change specications and other information, modify products and discontinue items without prior notication.
PRODUCT VARIANTS
Power :
S 75W
115W
145W
M180W
200W
230W
L300W
420W
Photocell : Yes
No
CCT : 3000K
4000K
5000K
Colour : Black
Silver
Beam Angle : Type III
Type IV
Type V
PRODUCT SPECIFICATIONS
Input Voltage : 100-277 VAC
Ambient Temperature : -10 to 45°C
Dimming : No
Weight : 4.8 – 10.5kg
PARK II
STREET LIGHT
Must be installed by
a licensed electrician.
Must be installed
in accordance with
relevant Australian
Standards.
ADDITIONAL INFORMATION
1. This luminaire is not dimmable.
2. Luminaire installation angle is adjustable. Refer instructions
overleaf.
3. Installation must be carried out with care to ensure the surface of
the luminaire is not scratched or damaged. Damaged surfaces will
result in material corrosion when exposed under harsh weather
conditions.
4. Please ensure luminaire cover is sealed.
5. If cleaning maintenance is required, use a clean microfibre cloth,
slightly dampened with a mild dilution of detergent that is PH
neutral, alcohol free and non-abrasive.
PARTS INCLUDED
10m CableLED
Luminaire
IP66 IK1060mm
OPTIONAL COMPATIBLE PARTS sold separately
Photocell

www.bia.lighting | [email protected]page 2 / 3
PRODUCT MANUAL
COPYRIGHT BIA ©2020 V04.20
INSTALLATION INSTRUCTIONS
A ADJUSTING THE ANGLE
1. Loosen the bolt screws and adjust the spigot
bracket by sliding it up or down.
2. Tighten the bolt screws to secure the bracket.
B INSTALLATION
1. Ensure pole of the correct diametre has been installed/supplied.
2. Feed wiring cable through spigot. Cable should be terminated
within the pole and to the IP rating required.
3. Place luminare over spigot and slide it all the way in.
4. Tighten the screws to rmly secure luminaire.
Note: If necessary, silicone should be applied to wire entry points to
enforce IP rating.
4
12
3
4
2
1
PHOTOCELL INSTALLATION
1. Remove the back cover.
2. Twist in the photocell unit until it clicks.
1
2

www.bia.lighting | [email protected]page 3 / 3
PRODUCT MANUAL
COPYRIGHT BIA ©2020 V04.20
56mm56mm75mm
77mm
77mm
77mm
150mm
150mm
150mm
270mm
350mm
360mm
165mm
165mm
165mm
585mm
679mm
750mm
585mm
679mm
750mm
Park II S
Weight: 4.8kg
Park II M
Weight: 5.5kg
Park II L
Weight: 10.5kg
DIMENSION DIAGRAM
