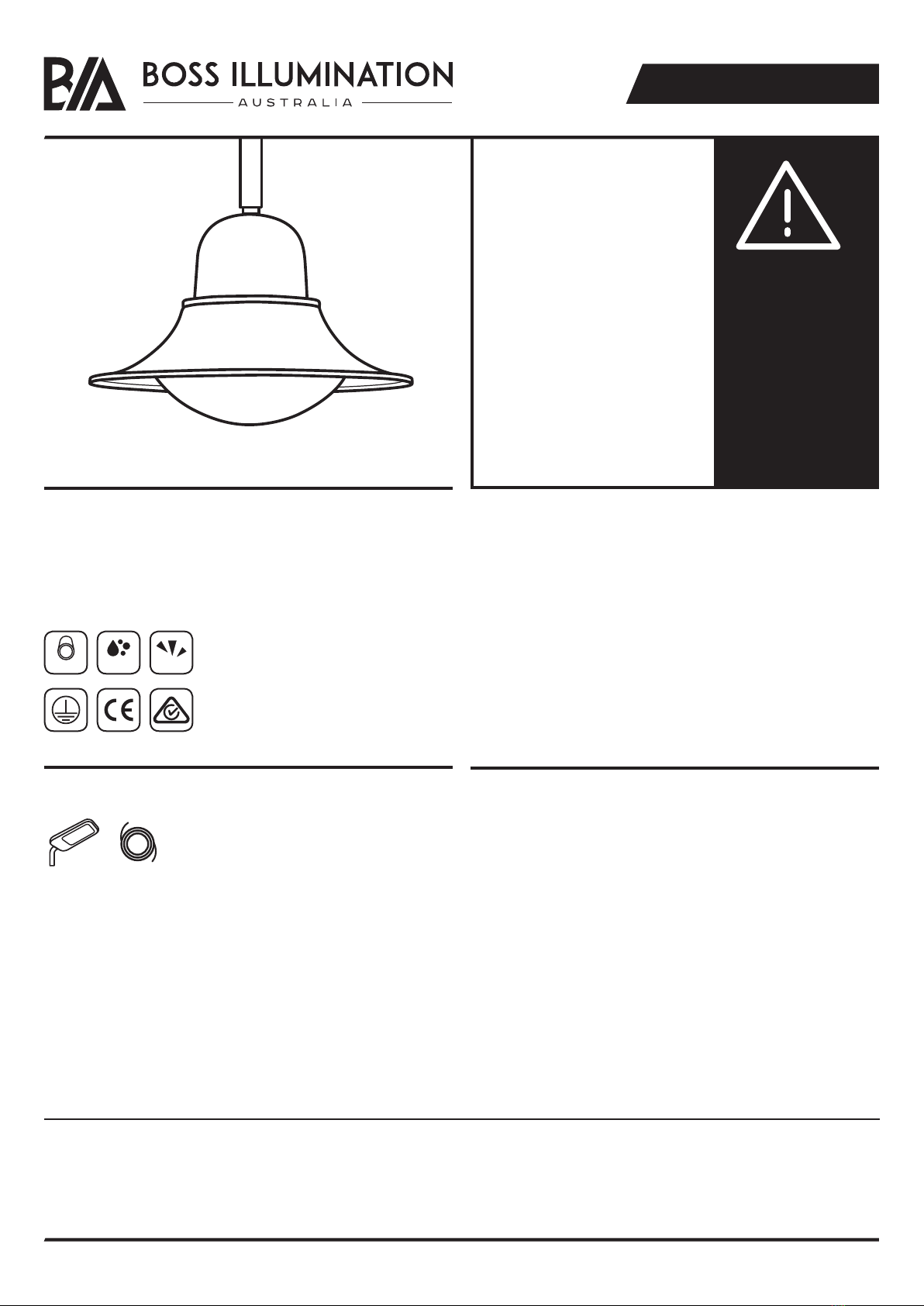

BOSS ILLUMINATION VESPER User manual

www.bia.lighting | [email protected]page 1 / 2
PRODUCT MANUAL
COPYRIGHT BIA ©2019 V08.19
Disclaimer: Please read these warranty
and installation instructions carefully
before installing the product.
BIA products are manufactured
and certied in accordance with all
mandatory Australian Standards.
All products must be installed by a
licensed electrician, in accordance
with relevant Australian Standards.
Technical data and information subject
to changes, visit our website for the
most updated version.
WARRANTY STATEMENT This product is covered by a 5 year replacement warranty.
BIA guarantees this product to be free of defects from the date of purchase for the stated period above. If product fails within the warranty period, BIA will x
or replace the product. This excludes any costs associated with the removal or installation of product. This warranty is subject to the terms and conditions stated
on www.bia.lighting. Failure to comply with installation guidelines will automatically void the warranty. Please retain purchase receipt. For more information on
warranty please visit www.bia.lighting/warranty
BIA reserves the right to change specications and other information, modify products and discontinue items without prior notication.
PRODUCT VARIANTS
Power/Weight: 20W 5.8kg
30W 5.8kg
40W 5.8kg
60W 5.8kg
80W 6.2kg
90W 6.2kg
Photocell: Yes
No
CCT : 3000K
4000K
5000K
PRODUCT SPECIFICATIONS
Input Voltage : 100-277 VAC 50-60Hz
Ambient Temperature : -10 to 45°C
Dimming : No
Beam Angle : 135°
VESPER
STREET LIGHT
Must be installed by
a licensed electrician.
Must be installed
in accordance with
relevant Australian
Standards.
ADDITIONAL INFORMATION
1. This luminaire is not dimmable.
2. Luminaire installation angle is adjustable. Refer instructions
overleaf.
3. Installation must be carried out with care to ensure the surface of
the luminaire is not scratched or damaged. Damaged surfaces will
result in material corrosion when exposed under harsh weather
conditions.
4. Please ensure luminaire cover is sealed.
5. If cleaning maintenance is required, use a clean microfibre cloth,
slightly dampened with a mild dilution of detergent that is PH
neutral, alcohol free and non-abrasive.
PARTS INCLUDED
8m CableLED
Luminaire
IP66 IK10
34~38mm

www.bia.lighting | [email protected]page 2 / 2
PRODUCT MANUAL
COPYRIGHT BIA ©2019 V08.19
4
INSTALLATION INSTRUCTIONS
1. Ensure pole of the correct diameter has been installed/supplied.
2. Twist on the diffuser cover.
A WITH L-SHAPED BRACKET
3. Feed wiring cable through the L-shaped bracket provided.
4. Secure L-shaped bracket onto luminaire with screws provided.
5. Feed wiring cable through spigot.
6. Secure L-shaped bracket onto pole with screws provided.
7. Cable should be terminated within the pole and to the IP
rating required.
Note: If necessary, silicone should be applied
to wire entry points to enforce IP rating.
with photocell
B WITHOUT L-SHAPED BRACKET
3. Feed wiring cable through spigot.
4. Secure luminaire onto pole with screws provided.
5. Cable should be terminated within the pole and to the IP
rating required.
Ø32mm Ø32mm
158.5mm
106mm
Ø81mm
Ø40mm Ø40mm
160mm 160mm
90mm 60mm
120mm 130mm
10mm
Ø37mm Ø40mm
Ø34mm Ø38mm
Ø45mm Ø50mm
55mm
Ø560mm Ø560mm
411mm
411mm
DIAMENSION DIAGRAM
3
3
4
5
5
6
7
2
2
