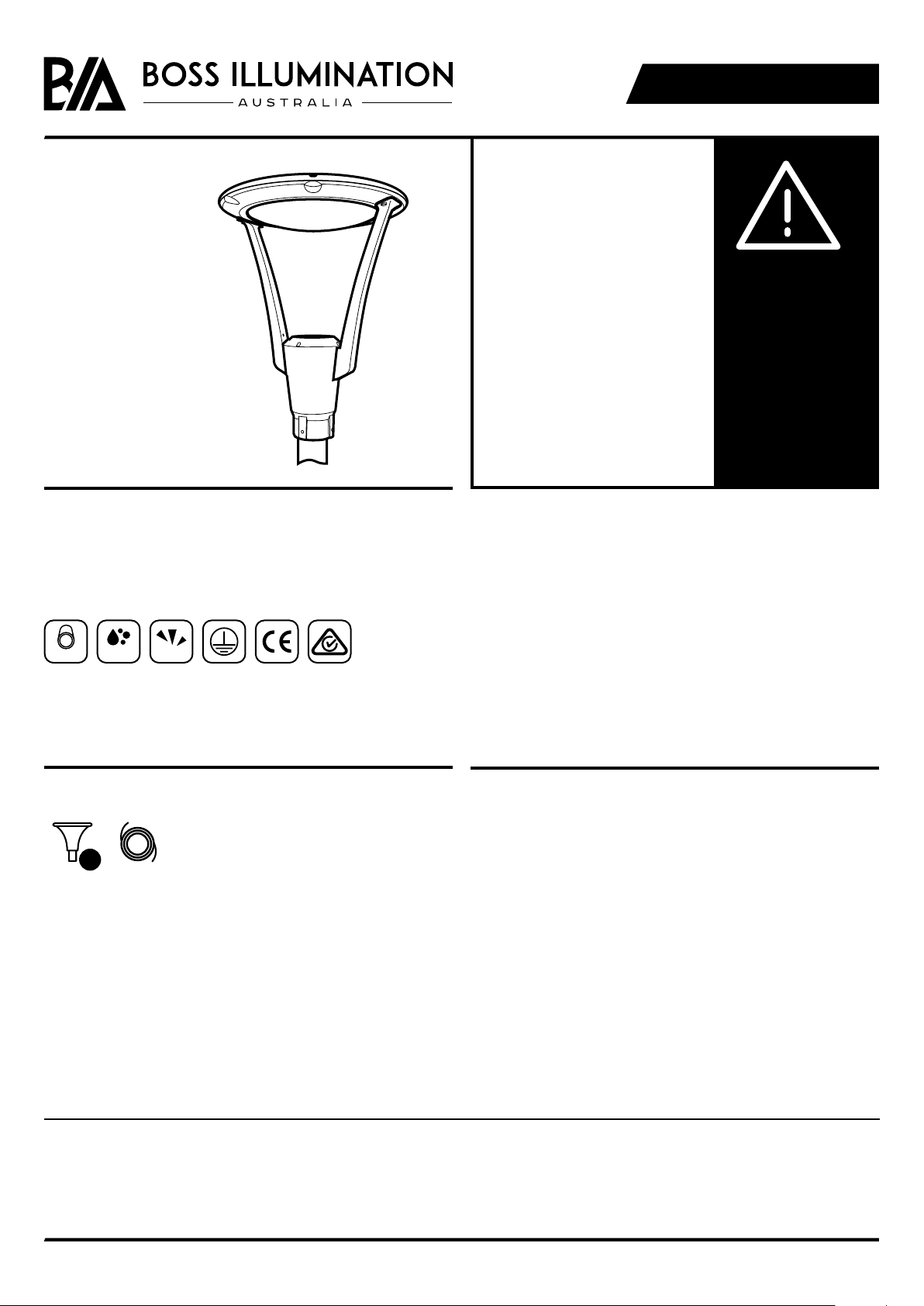

BOSS ILLUMINATION VIO User manual

www.bia.lighting | [email protected]page 1 / 2
PRODUCT MANUAL
COPYRIGHT BIA ©2020 V08.20
Disclaimer: Please read these warranty
and installation instructions carefully
before installing the product.
BIA products are manufactured
and certied in accordance with all
mandatory Australian Standards.
All products must be installed by a
licensed electrician, in accordance
with relevant Australian Standards.
Technical data and information subject
to changes, visit our website for the
most updated version.
WARRANTY STATEMENT This product is covered by a 5 year replacement warranty.
BIA guarantees this product to be free of defects from the date of purchase for the stated period above. If product fails within the warranty period, BIA will x
or replace the product. This excludes any costs associated with the removal or installation of product. This warranty is subject to the terms and conditions stated
on www.bia.lighting. Failure to comply with installation guidelines will automatically void the warranty. Please retain purchase receipt. For more information on
warranty please visit www.bia.lighting/warranty
BIA reserves the right to change specications and other information, modify products and discontinue items without prior notication.
PRODUCT VARIANTS
Power : 30W
40W
50W
CCT : 3000K
4000K
5000K
Dimming: Non-dimmable
1-10V
DALI
PRODUCT SPECIFICATIONS
Input Voltage : 100-240VAC
Operating Temperature : -10 to 40°C
Weight : 8kg
Material : Aluminium
VIO
POLE LIGHT
Must be installed by
a licensed electrician.
Must be installed
in accordance with
relevant Australian
Standards.
IP65 IK0890mm
PARTS INCLUDED
8-10m CableLuminaire
ADDITIONAL INFORMATION
1. 1-10V and DALI dimmable option available. These cables must be
terminated if not in use.
2. Please ensure luminaire cover is sealed.
3. If cleaning maintenance is required, disconnect from mains
supply and allow luminaire to cool. Use a clean microbre cloth,
slightly dampened with a mild dilution of detergent that is PH
neutral, alcohol free and non-abrasive.
4. Do not use harsh chemicals or solvents. Do not use high
pressure cleaners.
5. Care must be taken during installation and maintenance to
prevent accidental damage to the surface of the luminaire. These
damages may result in corrosion.
x1

www.bia.lighting | [email protected]page 2 / 2
PRODUCT MANUAL
COPYRIGHT BIA ©2020 V08.20
INSTALLATION INSTRUCTIONS
1. Ensure pole of the correct diametre has been installed/supplied.
2. Place luminaire over holder. Screw tightly to hold it in place.
3. Connect the cables within the cavity of the holder.
4. Optional: If installing dimmable version, connect cable within
the cavity of the holder.
5. Install cover plate onto holder and screw to secure.
6. Feed wiring cable through spigot. Cable should be terminated
within the pole and to the IP rating required.
7. Place luminaire over spigot and slide it all the way in. Tighten
the screws.
IMPORTANT NOTE: All connections made must be
waterproofed to the appropriate IP rating for the application.
Warranty is void if connection IP ratings are not met.
DIMENSION DIAGRAM
7
6
5
3
2
2
Ø450mm
605mm
Ø90mm
L
L
N
N
E
E
4
6
1-10V DALI
+
+DA+
DA+DA-
DA-
-
-
