Boston Scientific Vercise Neural Navigator 4.0 User manual

Vercise™
Neural Navigator 4.0
Installer
(DB-7105-N4A)
Installation Guide
92441272-02
Content: MP92441272-02 REV A
Installation Guide
Guide d’installation
Installationsanleitung
Installatiehandleiding
Guía de instalación
Guida di installazione
Manual de Instalação
Οδηγός εγκατάστασης
Installasjonsveiledning
Installationsvejledning
asennusopas
installationsprogram
průvodce instalací
Sprievodca inštaláciou
Telepítési útmutató
Przewodnik dotyczący instalacji
Ръководство за инсталиране
Vodič za instalaciju
Ghid de instalare
Priročnik za namestitev
en fr de nl es it pt-EU el no da sv cs sk hu pl bg hr ro sl

Vercise™ Neural Navigator 4.0 Installation Guide
Vercise™ Neural Navigator 4.0 Installation Guide
92441272-02 ii of ii
en
How to Use this Manual
This manual describes the installation of the Boston Scientic Vercise Neural Navigator software. Read all instructions
carefully before using the DBS System.
For indications for use, contraindications, warnings, precautions, adverse events, sterilization, component disposal,
storage and handling, and warranty information, refer to the Information for Prescribers DFU for your Boston Scientic
DBS System as listed in your DBS Reference Guide. For other device‑specic information not included in this manual or
labeling symbols, refer to the appropriate DFU for your Boston Scientic DBS System as listed in your DBS Reference
Guide.
Guarantees
Boston Scientic Corporation reserves the right to modify, without prior notice, information relating to its products in
order to improve their reliability or operating capacity.
Drawings are for illustration purposes only.
Trademarks
All trademarks are the property of their respective holders.
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such
marks by Boston Scientic Neuromodulation Corporation is under license.
Contacting Boston Scientic
To contact Boston Scientic, see the “Technical Support” section of this manual.
Product Model Numbers
Installer Model Number Description
DB-7105-N4A Vercise Neural Navigator 4.0 Installer
Compatible Clinician Programmer
Model Number Description
DB-7164 and NM-7164 Clinician Programmer
DB‑7164‑R and NM‑7164‑R Clinician Programmer (Refurbished)

Vercise™ Neural Navigator 4.0 Installation Guide
92441272-02 1 of 359
en
Table of Contents
Vercise™ Neural Navigator 4.0 Installer (DB‑7105‑N4A) Installation Guide .............................................2
Description................................................................................................................................................................................ 2
Package Contents .................................................................................................................................................................... 2
Software Installation.................................................................................................................................................................. 2
Setup for Software Installation......................................................................................................................3
Software Installation on CP...........................................................................................................................4
Software 9028429‑400.............................................................................................................................................................. 4
Software 9028602‑100.............................................................................................................................................................. 7
Complete the Software Installation on the CP (9028429‑400 and 9028602‑100) .................................................................... 10
Uninstall and Remove Software or Delete the Database............................................................................11
Appendix A ‑ McAfee Security Policies........................................................................................................13
Appendix B ‑ Web Activation Portal .............................................................................................................14
Appendix C - Web Activation Portal, Conrm Activation ...........................................................................15
Technical Support ..........................................................................................................................................16

Vercise™ Neural Navigator 4.0 Installation Guide
Vercise™ Neural Navigator 4.0 Installation Guide
92441272-02 2 of 359
en
Vercise™ Neural Navigator 4.0 Installer (DB‑7105‑N4A) Installation
Guide
Description
This Installer contains two executable les that will install Vercise Neural Navigator 4.0 (software version 9028429‑400)
and Charge Density (CD) 1.5 Conguration (software version 9028602‑100) onto a Clinician Programmer (CP). The
CD 1.5 Conguration executable le will congure the charge density settings according to your regional regulatory
approval.
Package Contents
(1) Vercise Neural Navigator 4.0 Installer USB drive (DB‑7105‑N4A) containing an executable installation le for
software version 9028429‑400 and an executable installation le for software version 9028602‑100.
This device is to be disposed of per local regulatory requirements.
Software Installation
Important: Copying or moving of the les on the Installer USB is strictly prohibited. Do not copy or move any les
from the Installer USB onto the CP or to any other electronic device.
Important: It is important that both Vercise Neural Navigator 4.0 (9028429‑400) and CD 1.5 Conguration
(9028602‑100) be installed on every CP.
Important: If installation of Bionic Navigator 2.03 (software version 9028287‑203) is also desired on the same CP, it
is recommended that Bionic Navigator 2.03 be installed prior to installation of Neural Navigator 4.0.
Boston Scientic Neuromodulation (BSN) Employees:
To complete the installation of Vercise Neural Navigator 4.0 (software version 9028429‑400), you will need the CP, an
Installer USB, and another VPN‑enabled BSN computer. This installation may only be performed on a compatible model
CP (see the “Product Model Numbers” section of this manual). On your BSN computer, complete the VPN connection
process, then follow the steps outlined in “Appendix B ‑ Web Activation Portal” and “Appendix C ‑ Web Activation Portal,
Conrm Activation” to receive an activation key and provide a conrmation key to allow BSN to track the installation.
The steps below must be repeated in order to install 9028429‑400 and 9028602‑100 on each compatible CP as each
installation requires a unique activation key.
If you encounter any issues during installation, contact Technical Support.
Non-BSN Employees:
To complete the installation of Vercise Neural Navigator 4.0 (software version 9028429‑400), you will need your CP and
an Installer USB. This installation may only be performed on a compatible model CP, (see the “Product Model Numbers”
section of this manual). To obtain activation keys, contact your local sales representative. The steps below must be
repeated in order to install 9028429‑400 and 9028608‑100 on each compatible CP as each installation requires a
unique activation key.
If you encounter any issues during installation, contact Technical Support.

Software Installation
Vercise™ Neural Navigator 4.0 Installation Guide
92441272-02 3 of 359
en
Setup for Software Installation
1. Open the pouch containing the Installer USB.
2. Plug the CP into a power source.
3. Turn on the CP.
4. Log in as ClinicUser. If this is the rst login, use password “bsn”. You will then be prompted to set up a new
ClinicUser password when logging into the CP for the rst time. The new ClinicUser password must be 10 or more
characters in length.
Note: In regions where software is installed by a third party, follow region‑specic guidance for the initial
ClinicUser password.
5. Ensure the power level of the CP is at least 30% or greater. If the power level is below 30%, ensure that the CP is
charging by checking for a white light in the charger connector. Wait until the power level is above 30%.
Note: In order to perform software installation, the CP must be plugged in and have a power level of 30% or
greater.
6. Navigate to the CP desktop and ensure that all applications and programs, including any previous versions of
Vercise Neural Navigator, are closed.
7. From the CP desktop, launch AirWave .
8. Insert the Installer USB into an available USB port.

Vercise™ Neural Navigator 4.0 Installation Guide
Vercise™ Neural Navigator 4.0 Installation Guide
92441272-02 4 of 359
en
Software Installation on CP
Software 9028429‑400
1. Select the Import from USB button in AirWave (Figure 1).
Figure 1. AirWave Import from USB
2. Within the le explorer window pop‑up, navigate to the USB drive and then select the installation le for Vercise
Neural Navigator 4.0 named “DB7105N40W10.bsnpkg” (Figure 2).
3. Select Open for the installation le for Vercise Neural Navigator 4.0 (DB7105N40W10.bsnpkg) (Figure 2).
Figure 2. Select Installation File
4. You will be asked if you want to install the application now. Select Yes.
Note: If you select No, the application can be installed at a later time by selecting the Install button for the
appropriate software application (Figure 3).
Figure 3. VNN 4.0 Installation

Vercise™ Neural Navigator 4.0 Installation Guide
92441272-02 5 of 359
en
5. Verify that the Software Part Number is 9028429‑400, as shown in Figure 4:
Figure 4. CP Product Activation (9028429‑400)
Note: The CP serial number and activation key displayed here is for illustration only.
BSN employees: To obtain an activation key, see the “Appendix B - Web Activation Portal” section of this
manual, then continue to Step 6.
Non-BSN employees: Contact your local sales representative to obtain an activation key, then continue to
Step 6.
6. On the CP, enter the activation key generated from the web activation portal or provided by your local sales
representative (Figure 4).
7. Select the Activate button (Figure 4). This process may take several minutes as the system is being recongured
to support the new application. Various status messages will be displayed as the Installer installs the Vercise Neural
Navigator 4.0 software on the CP (Figure 5). Select Next or Finish as necessary.
Figure 5. Software Installation on CP

Vercise™ Neural Navigator 4.0 Installation Guide
Vercise™ Neural Navigator 4.0 Installation Guide
92441272-02 6 of 359
en
8. After a successful installation, a conrmation key will be displayed (Figure 6).
Note: The conrmation key displayed in Figure 6 is for illustration only.
9. Record the conrmation key displayed on the screen and conrm the activation (Figure 6).
BSN employees: To conrm activation, see the “Appendix C - Web Activation Portal, Conrm Activation”
section of this manual, then continue to Step 10.
Non-BSN employees: Contact your local sales representative to provide the conrmation key then continue to
Step 10.
10. Select OK (Figure 6).
Figure 6. Conrmation Key
11. Follow the prompts to restart the CP.

Software 9028602-100
Vercise™ Neural Navigator 4.0 Installation Guide
92441272-02 7 of 359
en
Software 9028602‑100

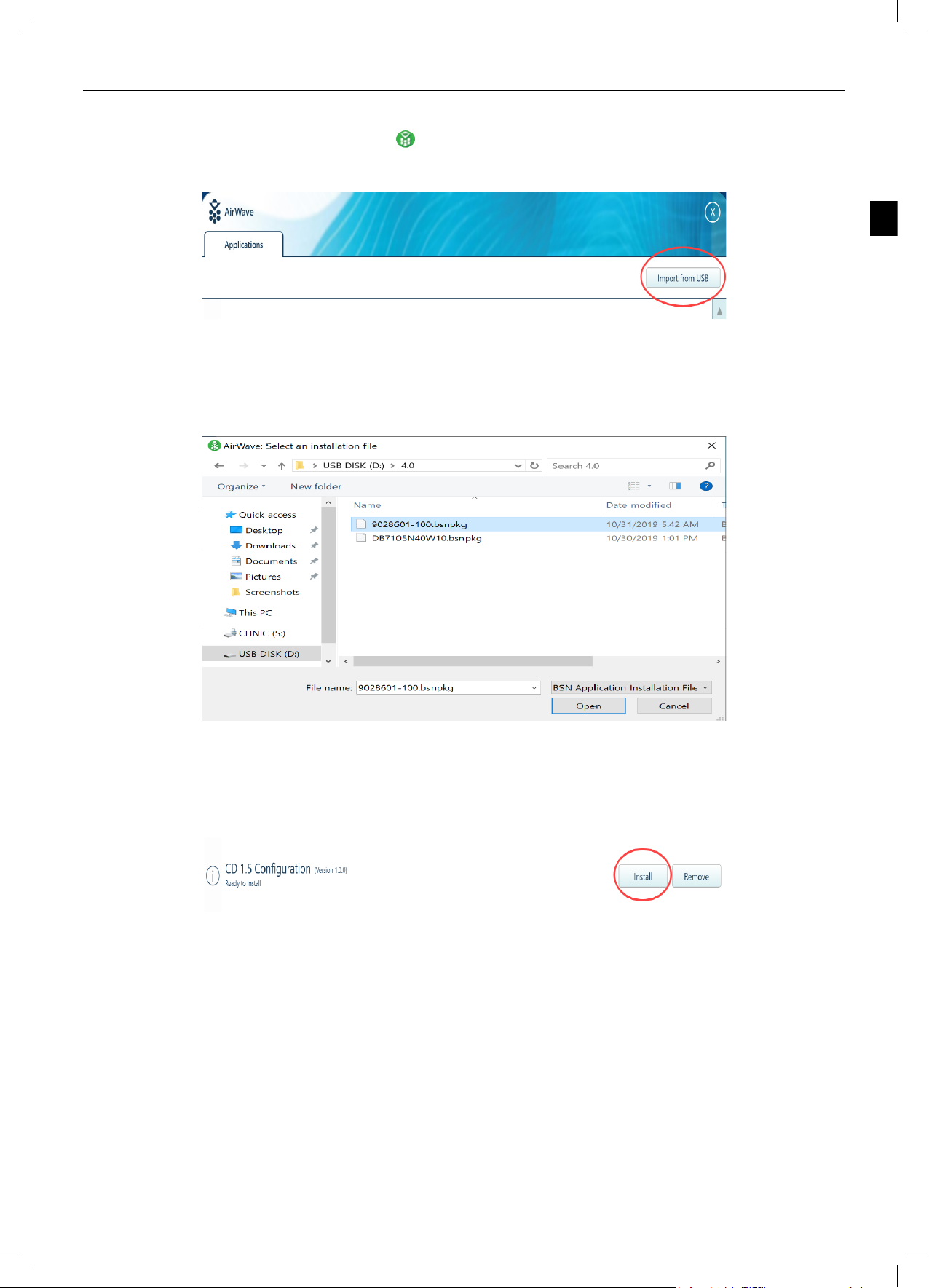

12. After the CP has restarted, relaunch AirWave .
13. Select the Import from USB button in AirWave (Figure 7).
Figure 7. AirWave Import from USB
14. Within the le explorer window pop‑up, navigate to the USB drive and then select the installation le for
CD 1.5 Conguration named “9028602‑100.bsnpkg” (Figure 8).
15. Select Open for the installation le for CD 1.5 Conguration (9028602‑100.bsnpkg) (Figure 8).
Figure 8. Select Installation File
16. You will be asked if you want to install the application now. Select Yes.
Note: If you select No, the application can be installed at a later time by selecting the Install button for the
appropriate software application (Figure 9).
Figure 9. CD 1.5 Conguration Installation

Vercise™ Neural Navigator 4.0 Installation Guide
Vercise™ Neural Navigator 4.0 Installation Guide
92441272‑02 8 of 359
en
17. Verify that the Software Part Number is 9028602‑100, as shown in Figure 10:
Figure 10. CP Product Activation (9028602‑100)
Note: The CP serial number and activation key displayed here is for illustration only.
BSN employees: To obtain an activation key, see the “Appendix B - Web Activation Portal” section of this
manual, then continue to Step 18.
Non-BSN employees: Contact your local sales representative to obtain an activation key, then continue to
Step 18.
18. On the CP, enter the activation key generated from the web activation portal or provided by your local sales
representative (Figure 10).

Software 9028602-100
Vercise™ Neural Navigator 4.0 Installation Guide
92441272-02 9 of 359
en
19. Select the Activate button (Figure 10). This process may take several minutes as the system is being
recongured to support the new application. Various status messages will be displayed as the Installer installs the
CD 1.5 Conguration software on the CP (Figure 11). Select Next or Finish as necessary.
Figure 11. Software Installation on CP
20. After a successful installation, a conrmation key will be displayed (Figure 12).
Note: The conrmation key displayed in Figure 12 is for illustration only.
21. Record the conrmation key displayed on the screen and conrm activation (Figure 12).
BSN employees: To conrm activation, see the “Appendix C - Web Activation Portal, Conrm Activation”
section of this manual, then continue to Step 22.
Non-BSN employees: Contact your local sales representative to provide the conrmation key then continue to
continue to Step 22.
22. Select OK (Figure 12).
Figure 12. Conrmation Key

en
Vercise™ Neural Navigator 4.0 Installation Guide
Vercise™ Neural Navigator 4.0 Installation Guide
92441272-02 10 of 359
Complete the Software Installation on the CP (9028429‑400 and 9028602‑100)

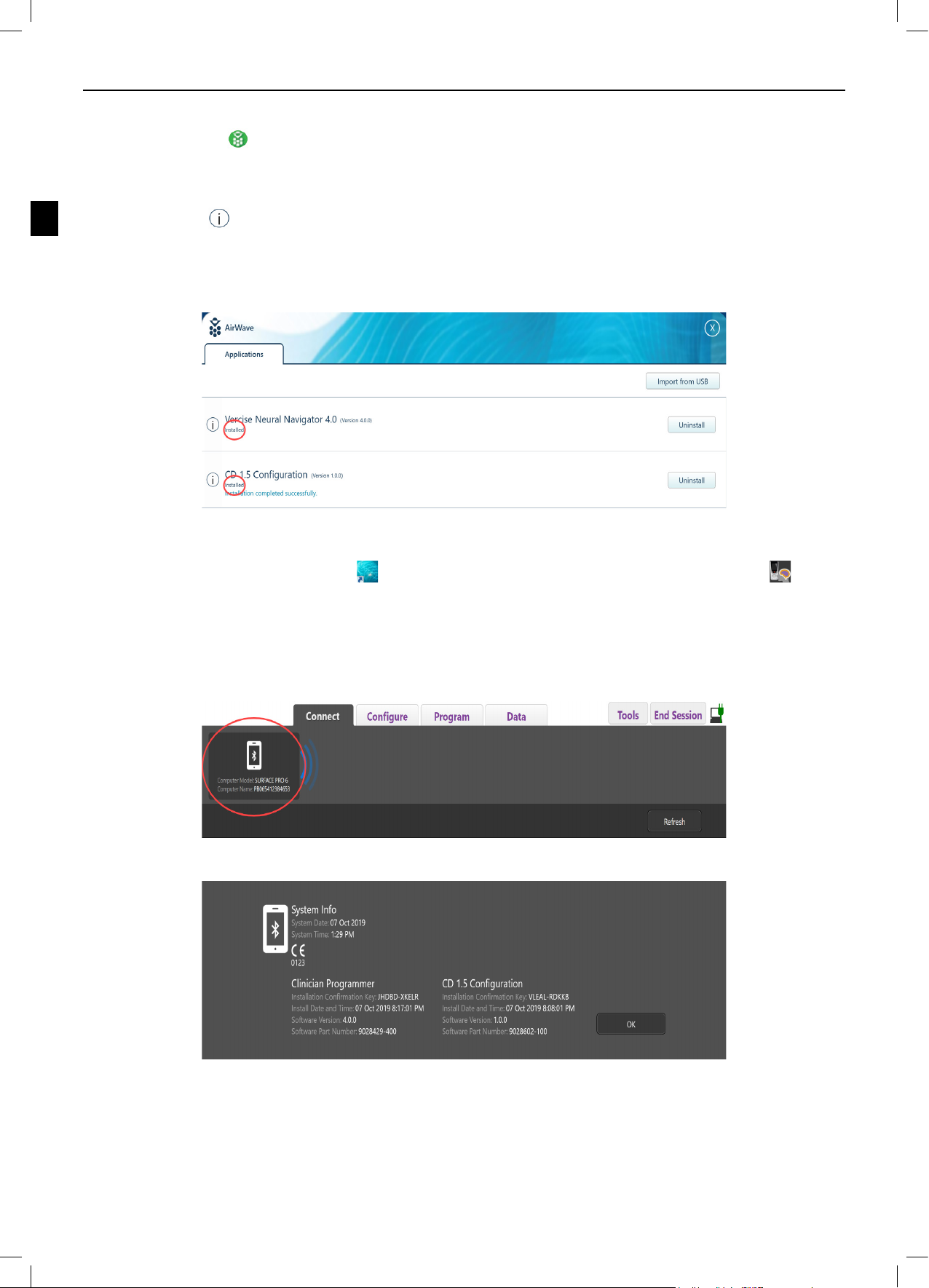

23. Relaunch AirWave and conrm the software status is “Installed” and that there are no error messages displayed
in red under the “Installed” status (Figure 13).
Note: In addition, to view further details regarding the application status, select the Installation Information
button (Figure 13).
Note: Software installation cannot be performed if security policies are not up to date. If software was not
successfully installed, refer to the “Appendix A ‑ McAfee Security Policies” section of this manual and
complete the steps provided to troubleshoot.
Figure 13. VNN 4.0 and CD 1.5 Installation Conrmation
24. Double-click the Vercise Launcher icon on the desktop and select the Vercise Neural Navigator icon to
launch the Vercise Neural Navigator software. A window will display with the Connect Tab highlighted. Select the
CP button to conrm the successful installation of software parts 9028429‑400 and 9028602‑100 (Figure 14 and
Figure 15).
Note: The conrmation key is also displayed on this screen as shown in Figure 15.
Figure 14. Select the CP Button on the Connect Tab
Figure 15. Conrm Successful Installation
Note: If you do not see a successful installation message, or the Software Part Number does not display
correctly, contact Technical Support.

en
Vercise™ Neural Navigator 4.0 Installation Guide
92441272-02 11 of 359
Uninstall and Remove Software or Delete the Database
Uninstall and Remove Software or Delete the Database
To uninstall software, and, if desired, remove software from the CP, or to delete the database, follow the steps below:
1. Navigate to the CP desktop and ensure that all applications and programs, including any versions of Vercise Neural
Navigator, are closed.
2. Double‑click the AirWave icon to launch AirWave.
3. Within the AirWave window, identify which software you would like to uninstall. Select the Uninstall button adjacent
to the software application title that you wish to uninstall (Figure 16).
Note: After the software is uninstalled, the software can be reinstalled at a later date without an Installer USB.
Note: Software uninstallation, software removal, and database deletion procedures are the same regardless of
software application. The gures provided are general representations.
Figure 16. Software Uninstallation
4. Select Yes to proceed with the uninstallation (Figure 17).
Figure 17. Uninstallation Prompt
5. Select Remove Vercise Neural Navigator 4.0 and then select Next to proceed with the uninstallation (Figure 18).
Note: If you would only like to delete the database, select Delete Database Only and proceed through the
prompts to complete database deletion.
Figure 18. Uninstallation Setup Type

en
Vercise™ Neural Navigator 4.0 Installation Guide
Vercise™ Neural Navigator 4.0 Installation Guide
92441272-02 12 of 359
6. When prompted, select Yes to proceed with the uninstallation and then select Finish once the uninstallation is
complete.
7. When prompted, select OK to restart the CP.
8. Conrm the software was successfully uninstalled (Figure 19).
Note: Once the software is uninstalled, the two buttons displayed next to the software title will be “Install” and
“Remove” (Figure 19).
Figure 19. Uninstallation Conrmation
9. If desired, the software can be completely removed from the CP after uninstallation by selecting the Remove button
adjacent to the software title (Figure 20).
Note: After the software has been removed from the CP, the software can be reinstalled at a later date using an
Installer USB.
Figure 20. Remove Software
10. Select Yes to proceed with the software removal.

en
Vercise™ Neural Navigator 4.0 Installation Guide
92441272-02 13 of 359
Appendix A - McAfee Security Policies
Appendix A ‑ McAfee Security Policies
The following instructions outline how to update McAfee Security Policies.
1. Connect to WiFi.
2. Using the touch pad on the keyboard, move the pointer to the bottom of the screen to bring up the Status Bar.
3. If desired, select to show hidden icons (Figure 21).
4. Select the McAfee Icon (Figure 21).
5. Select McAfee Agent Status Monitor (Figure 21).
Figure 21. McAfee Agent Status Monitor
6. Select Collect and Send Props on the McAfee Agent Monitor dialog (upper right button) (Figure 22).
Figure 22. Collect and Send Props
7. Wait for the “Agent communication session closed” message to appear in the Agent Status List (about 1 to 2
minutes) (Figure 23).
Figure 23. Agent Status List
8. Restart the CP.
9. Proceed to install software beginning at Step 5 of the “Setup for Software Installation” section of this manual.

en
Vercise™ Neural Navigator 4.0 Installation Guide
Vercise™ Neural Navigator 4.0 Installation Guide
92441272-02 14 of 359
Appendix B ‑ Web Activation Portal
1. On a BSN computer, log onto the BSN VPN.
2. Once connected to the VPN, open a web browser and connect to the BSN Product Activation Portal using the
following URL:
http://valapp16/SAP/ActivateSAP/
3. Click on Activate CP Software (Figure 24).

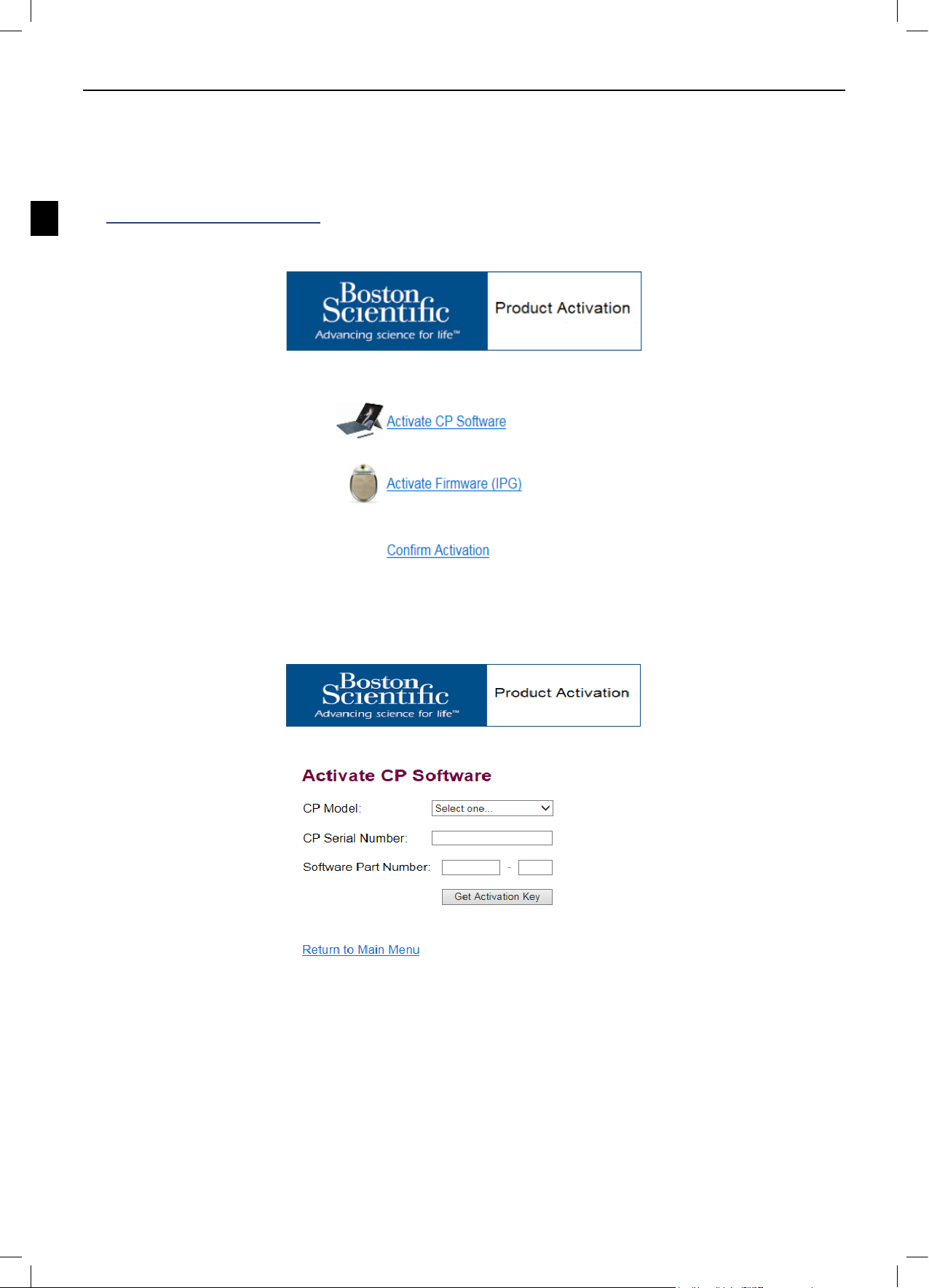

Figure 24. Web Activation Portal
4. Use the drop‑down arrow to select the CP model, then enter the CP serial number and Software Part Number
displayed on the CP screen into the appropriate elds on the web page (Figure 25).
Figure 25. Activate CP Software Portal
Note: Serial numbers are case‑sensitive. Note also that the letter “O” and the number “0” look similar and must
be distinguished.
5. Click Get Activation Key to generate the activation key (Figure 25). Record the activation key, to be used in Step 9
and Step 21 of the “Software Installation on CP” section of this manual. The activation key is valid for 5 days.
6. Click on the Return to Main Menu link.

en
Vercise™ Neural Navigator 4.0 Installation Guide
92441272-02 15 of 359
Appendix C - Web Activation Portal, Conrm Activation
Appendix C - Web Activation Portal, Conrm Activation
1. On the Product Activation Portal, click on Conrm Activation (Figure 26).
Figure 26. Web Activation Portal
2. Enter the conrmation key from the CP into the displayed eld on the Product Activation Portal (Figure 27).
Figure 27. Conrm Activation Portal
3. Click Conrm Activation button (Figure 27).
Note: The conrmation key is displayed in a pop‑up message upon activation on the CP. In addition, the
conrmation key can be found by selecting the Installation Information button within AirWave for the
applicable software.

en
Vercise™ Neural Navigator 4.0 Installation Guide
Vercise™ Neural Navigator 4.0 Installation Guide
92441272-02 16 of 359
Argentina
T: [phone] F: [phone]
Australia / New Zealand
T: 1800 676 133 F: 1800 836 666
Austria
T: [phone] F: [phone]
Balkans
T: 0030 210 95 37 890 F: 0030 210 95 79 836
Belgium
T: 080094 494 F: 080093 343
Brazil
T: [phone] F: [phone]
Bulgaria
T: [phone] F: [phone]
Canada
T: [phone] F: [phone]
Chile
T: [phone] F: [phone]
China – Beijing
T: [phone] F: [phone]
China – Guangzhou
T: [phone] F: [phone]
China – Shanghai
T: [phone] F: [phone]
Colombia
T: [phone] F: [phone]
Czech Republic
T: [phone] F: [phone]
Denmark
T: 80 30 80 02 F: 80 30 80 05
Finland
T: 020 762 88 82 F: 020 762 88 83
France
T: [phone] F: [phone]
Germany
T: 0800 072 3301 F: 0800 072 3319
Greece
T: [phone] F: [phone]
Hong Kong
T: [phone] F: [phone]
Hungary
T: [phone] F: [phone]
India – Bangalore
T: [phone]/5 F: [phone]
India – Chennai
T: [phone] F: [phone]
India – Delhi
T: [phone]/6 F: [phone]
India – Mumbai
T: [phone] F: [phone]
Italy
T: [phone] F: [phone]
Korea
T: [phone] F: [phone]
Malaysia
T: [phone] F: [phone]
Mexico
T: [phone] F: [phone]
Middle East / Gulf / North Africa
T: [phone] F: [phone]
The Netherlands
T:[phone] F: [phone]
Norway
T: 800 104 04 F: 800 101 90
Philippines
T: [phone] F: [phone]
Poland
T: [phone] F: [phone]
Portugal
T: [phone] F: [phone]
Singapore
T: [phone] F: [phone]
South Africa
T: [phone] F: [phone]
Spain
T: [phone] F: [phone]
Technical Support
Boston Scientic Corporation has highly trained service professionals to assist you. The Technical Support Department
is available to provide technical consultation 24 hours a day. To speak to a representative, please choose your locality
from the following list:

en
Vercise™ Neural Navigator 4.0 Installation Guide
92441272-02 17 of 359
Technical Support
Sweden
T: 020 65 25 30 F: 020 55 25 35
Switzerland
T: 0800 826 786 F: 0800 826 787
Taiwan
T: [phone] F: [phone]
Thailand
T: [phone] F: [phone]
Turkey – Istanbul
T: [phone] F: [phone]
Uruguay
T: [phone] F: [phone]
UK & Eire
T: [phone] F: [phone]
Venezuela
T: [phone] F: [phone]
Note: Phone numbers and fax numbers may change. For the most current contact information, please refer to our
website at http://www.bostonscientic‑international.com/
or write to the following address:
Boston Scientic Neuromodulation Corporation
25155 Rye Canyon Loop
Valencia, CA 91355 USA

Guide d'installation de Vercise™ Neural Navigator 4.0
Guide d'installation de Vercise™ Neural Navigator 4.0
92441272-02 18 sur 359
fr
Comment utiliser ce manuel
Ce manuel décrit l'installation du logiciel Vercise Neural Navigator de Boston Scientic. Avant d'utiliser le système DBS,
lisez attentivement toutes les instructions.
Pour les indications d'utilisation, les contre-indications, les mises en garde, les précautions, les effets indésirables,
la stérilisation, la mise au rebut des composants, le stockage et la manipulation et les renseignements relatifs à la
garantie, consultez le mode d'emploi Informations destinées aux médecins du système DBS de Boston Scientic
répertorié dans le Guide de référence DBS. Pour d'autres informations spéciques relatives à des dispositifs qui
ne gurent pas dans ce manuel ou dans les symboles des étiquettes, consultez le mode d'emploi approprié pour le
système DBS de Boston Scientic répertorié dans le Guide de référence DBS.
Garanties
Boston Scientic Corporation se réserve le droit de modier, sans préavis, les informations relatives à ses produits dans
le but d’améliorer leur abilité ou leur capacité de fonctionnement.
Les dessins et schémas sont présentés à des ns d'illustration uniquement.
Marques commerciales
Toutes les marques commerciales citées appartiennent à leurs détenteurs respectifs.
La marque et le logo Bluetooth® sont des marques déposées appartenant à Bluetooth SIG, Inc. et toute utilisation de
ces marques par Boston Scientic Neuromodulation Corporation s’effectue sous licence.
Contacter Boston Scientic
Pour contacter Boston Scientic, consultez la section « Service technique » dans ce manuel.
Références des produits
Numéro de modèle de l'Installeur Description
DB-7105-N4A Installeur de Vercise Neural Navigator 4.0
Numéro de modèle du programmateur du
médecin compatible Description
DB-7164 et NM-7164 Programmateur du médecin
DB-7164-R et NM-7164-R Programmateur du médecin (reconditionné)
