Boxfish LUNA User manual

Boxfish Luna Owner’s Manual
R7. All rights reserved. Information and specifications may change at any time without notice. p0
Owner’s Manual

Boxfish Luna Owner’s Manual
p1 R7. All rights reserved. Information and specifications may change at any time without notice.

Boxfish Luna Owner’s Manual
R7. All rights reserved. Information and specifications may change at any time without notice. p2
Table of Contents
1 Welcome to Boxfish ..........................................................................................................6
2 Notices .................................................................................................................................. 7
3 About this document........................................................................................................8
3.1 Other Luna documents ............................................................................................8
3.2 IMPORTANT and WARNING messages .............................................................8
4 Important safety information.......................................................................................10
4.1 Battery safety, maintenance, storage and disposal ..................................... 10
4.2 Lifting ROV components.......................................................................................10
4.3 Hazards........................................................................................................................ 10
4.4 Safe ROV operation.................................................................................................. 11
5 Boxfish Luna ROV system overview .......................................................................... 12
5.1 Charge battery after receiving your ROV ........................................................ 12
5.2 Storage cases............................................................................................................ 12
5.3 ROV............................................................................................................................... 13
5.4 Control Station.......................................................................................................... 14
5.5 Tether reel .................................................................................................................. 18
5.6 Accessory Box contents........................................................................................ 19
6 Charging the ROV battery pack..................................................................................25
6.1 Receiving your ROV ................................................................................................25
6.2 How to charge your ROV battery pack.............................................................25
7 Putting together the Boxfish Luna system............................................................. 26
7.1 Charge the ROV battery....................................................................................... 26
7.2 Connecting cables - connection diagram....................................................... 26
7.3 Connect Control Station to power.....................................................................27
7.4 Assemble tether reel...............................................................................................27
7.5 Connect fibre patch cable to tether reel and Control Station................. 28
7.6 Connect tether cable to ROV ............................................................................. 29
7.7 Store fibre port caps and fibre cable caps safely......................................... 30
7.8 Attach Ninja V monitor/recorder to Control Station.................................... 31
7.9 Familiarity with your ROV...................................................................................... 31
8 Powering on the Boxfish Luna.....................................................................................33
8.1 Power on Control Station......................................................................................33
8.2 Power on ROV with magnetic key......................................................................33
8.3 View feeds on telemetry screen..........................................................................33

Boxfish Luna Owner’s Manual
p3 R7. All rights reserved. Information and specifications may change at any time without notice.
9 Pre-deployment checks.................................................................................................35
9.1 Camera setup and testing.....................................................................................35
9.2 Apply and test vacuum on ROV pressure vessel...........................................35
9.3 Test LED illumination lights ................................................................................. 36
9.4 Test thrusters............................................................................................................37
9.5 Test scaling lasers (if present) ............................................................................ 38
9.6 Add ballast washers ............................................................................................... 38
9.7 Lubricate tether penetrator O-rings................................................................. 39
10 Boxfish Luna pack up sequence (from out-of-water testing) ......................40
10.1 Power off Ninja V Recorder.................................................................................40
10.2 Power down ROV.................................................................................................... 40
10.3 Unplug tether from ROV....................................................................................... 40
10.4 Disconnect fibre patch cable............................................................................... 41
10.5 Power off Control Station ..................................................................................... 41
10.6 Pack away other components ............................................................................. 41
11 Planning your dive........................................................................................................... 42
11.1 Charge ROV Battery .............................................................................................. 42
11.2 Safety.......................................................................................................................... 42
11.3 Research your launch vessel/site...................................................................... 42
11.4 Hazards....................................................................................................................... 43
11.5 Keeping the ROV cool ........................................................................................... 43
12 Deploying your Boxfish Luna in the water .............................................................. 44
12.1 Overview .................................................................................................................... 44
12.2 Assembling Boxfish Luna for a dive.................................................................. 44
12.3 Power on ROV and Control Station .................................................................. 44
12.4 Pre-deployment checks........................................................................................ 44
12.5 (If installed) Turn on Sensor Power switch for external devices.............. 44
12.6 Put ROV in the water ............................................................................................. 45
12.7 Make ROV balanced and neutrally buoyant................................................... 45
12.8 Check depth sensor ............................................................................................... 46
12.9 Begin launch sequence ......................................................................................... 46
13 Piloting your ROV.............................................................................................................47
13.1 Useful telemetry screen info for piloting .........................................................47
13.2 ROV Navigation ....................................................................................................... 48
13.3 Piloting modes ......................................................................................................... 49
13.4 Speed...........................................................................................................................52

Boxfish Luna Owner’s Manual
R7. All rights reserved. Information and specifications may change at any time without notice. p4
13.5 Using the LEVEL button ........................................................................................52
13.6 Adjusting the ROV LED illumination lights ......................................................52
13.7 Activate RTS Disable (Return to Surface Disable) ........................................53
13.8 More about Sea Mode and ROV Mode .............................................................53
13.9 Battery monitoring during your dive..................................................................53
13.10 Battery limits ........................................................................................................ 54
13.11 Piloting tips and tricks........................................................................................... 54
13.12 Notes....................................................................................................................... 54
14 Managing tether cable during a dive .........................................................................55
14.1 Safety...........................................................................................................................55
14.2 Fibre cable handling................................................................................................55
14.3 Tips for tether management.................................................................................55
14.4 Tips for winding in the tether cable ...................................................................55
15 Bringing the ROV back to surface..............................................................................57
15.1 Safe ascent practices .............................................................................................57
15.2 How to bring ROV back to surface ....................................................................57
16 After-dive procedures................................................................................................... 58
16.1 Disconnect ROV components and cables ...................................................... 58
16.2 Rinse ROV, tether, and any accessories.......................................................... 58
16.3 Leave ROV components to dry .......................................................................... 58
16.4 Attend to ROV battery.......................................................................................... 59
17 Storing your ROV ............................................................................................................60
17.1 Prepare for storage ................................................................................................ 60
17.2 Storage conditions ................................................................................................. 60
17.3 Adjust battery to storage voltage ..................................................................... 60
17.4 Monthly maintenance during storage .............................................................. 60
18 Updating your Luna system......................................................................................... 62
18.1 Items required.......................................................................................................... 62
18.2 Relevant buttons and labels................................................................................ 62
18.3 How to update Luna Control Station and camera ....................................... 62
18.4 How to update ROV ............................................................................................... 63
19 Troubleshooting .............................................................................................................. 64
19.1 Potential issues and solutions ............................................................................ 64
19.2 How to recalibrate ROV compass ......................................................................67
19.3 How to retrieve log files from Control Station .............................................. 68

Boxfish Luna Owner’s Manual
p5 R7. All rights reserved. Information and specifications may change at any time without notice.
19.4 Thruster troubleshooting during a dive ........................................................... 69
20 Regular maintenance procedures.......................................................................... 70
20.1 Monthly: Power on ROV for six hours every month to maintain camera
internal battery .................................................................................................................... 70
20.2 Dome care and maintenance .......................................................................... 70
20.3 Tether care..............................................................................................................71
20.4 As required: cleaning the fibre optic connections .....................................71
20.5 O-rings maintenance ..........................................................................................73
21 Authorised repairs ...........................................................................................................75
21.1 How to release vacuum from inside the ROV.................................................75
21.2 How to replace a thruster .....................................................................................75
21.3 How to replace a propeller.................................................................................... 77
21.4 How to put a thruster back on the ROV..........................................................80
21.5 Changing time zone on Control Station .......................................................... 82
22 Shipping or travelling with the ROV...................................................................... 84
22.1 Returning your ROV to us for service or repair............................................. 84
22.2 General preparation ............................................................................................... 84
22.3 Preparing ROV battery.......................................................................................... 84
22.4 Packing the ROV components........................................................................ 85
22.5 Meeting weight limits for air travel.................................................................... 85
23 Appendix I: Control Station – more information................................................87
24 Appendix II: Telemetry screen – more information.......................................... 94
25 Appendix III: Boxfish Luna ROV – more information ....................................... 96
25.1 Status indicator LEDs.............................................................................................97
26 Appendix IV: Document history.............................................................................. 99

Boxfish Luna Owner’s Manual
R7. All rights reserved. Information and specifications may change at any time without notice. p6
1 Welcome to Boxfish
Congratulations on your Boxfish Luna! Please read these instructions carefully
before use.
The Boxfish Luna is an ROV with an advanced camera (Sony a7S III or Alpha 1)
with multiple recording options and surface camera controls, allowing you to
capture cinematic-quality underwater video and still images.
In this manual, and the accompanying Boxfish Luna Camera Operations Manual
and Boxfish Battery Charging Manual, we aim to give you easy to follow
instructions for using your Boxfish Luna.
If you need help using your Boxfish Luna, please contact us at
[email protected].
We hope you enjoy your Boxfish Luna!

Boxfish Luna Owner’s Manual
p7 R7. All rights reserved. Information and specifications may change at any time without notice.
2 Notices
This manual is part of the documentation for your Boxfish product as
mentioned in our Terms of Sale (available on our website at
https://www.boxfish.nz/support/terms-conditions/).
Please ensure all Boxfish Luna operators have read and understood this manual
and accompanying Boxfish Luna Camera Operations Manual and Boxfish
Battery Charging Manual before using your Boxfish Luna.
We make every effort to ensure that the information in this manual is an
accurate and complete description of this Boxfish product at the time of
release of this manual.
The latest version of this manual will be available to all customers on our
website at https://www.boxfish.nz/downloads/. The most recent version on our
website will supersede any previous versions, whether printed or electronic.
We will not be held responsible for any errors or omissions from this manual,
and we reserve the right to change the specifications of the hardware and
software described in this manual at any time and without prior notice.
We will not be held liable for any damages resulting from the use of this
product.

Boxfish Luna Owner’s Manual
R7. All rights reserved. Information and specifications may change at any time without notice. p8
3 About this document
When first using your Boxfish Luna ROV, we recommend reading this document
from beginning to end. Once you are familiar with your ROV, you can use it as a
reference or to refresh your memory.
This document covers:
General safety information
Components of the ROV system
How-to guides for ROV operations including testing and field use
Tips and tricks to get the best out of your ROV
Storage instructions
Approved maintenance instructions
Guidelines for packing and travelling with the ROV/sending the ROV by third
party freight
Troubleshooting tips
Appendices with more detailed specifications of ROV components.
3.1 Other Luna documents
Battery safety information and instructions
This document does NOT cover any instructions or safety information relating
to the Lithium Polymer (LiPo) batteries used in your ROV battery pack. For this
information you must read our Boxfish Battery Charging Manual. (latest version
available on our website: https://www.boxfish.nz/downloads/.
Camera control
This document does not describe how to take video or still images with the
Luna. We have created a separate manual, the Boxfish Luna Camera
Operations Manual with all information related to shooting video and photos.
3.2 IMPORTANT and WARNING messages
Throughout this document you will see the following messages:
IMPORTANT!
Important notices draw your attention to things you must do (or must not
do) so that you don’t BREAK OR DAMAGE the ROV or its accessories.

Boxfish Luna Owner’s Manual
p9 R7. All rights reserved. Information and specifications may change at any time without notice.
WARNING!
Warnings are for your SAFETY so that you don’t CAUSE INJURY
to yourself, any other operators of the ROV, or people nearby.
LiPo BATTERY WARNING!
Warnings for SAFETY so that INJURY or DAMAGE does not
occur when dealing with the Lithium Polymer (LiPo) batteries in
Boxfish ROV battery packs.
If not treated according to our instructions, LiPo batteries could
leak corrosive substances, emit toxic gases, catch fire or
explode.

Boxfish Luna Owner’s Manual
R7. All rights reserved. Information and specifications may change at any time without notice. p10
4 Important safety information
Please follow the information in this section closely to prevent injury, damage,
or violation of your warranty conditions (available in our Terms of Sale at
https://www.boxfish.nz/support/terms-conditions/).
4.1 Battery safety, maintenance, storage and disposal
The ROV uses Lithium Polymer (LiPo) batteries in its battery pack.
Please refer to our Boxfish Battery Charging Manual. (latest version available
on our website: https://www.boxfish.nz/downloads/.

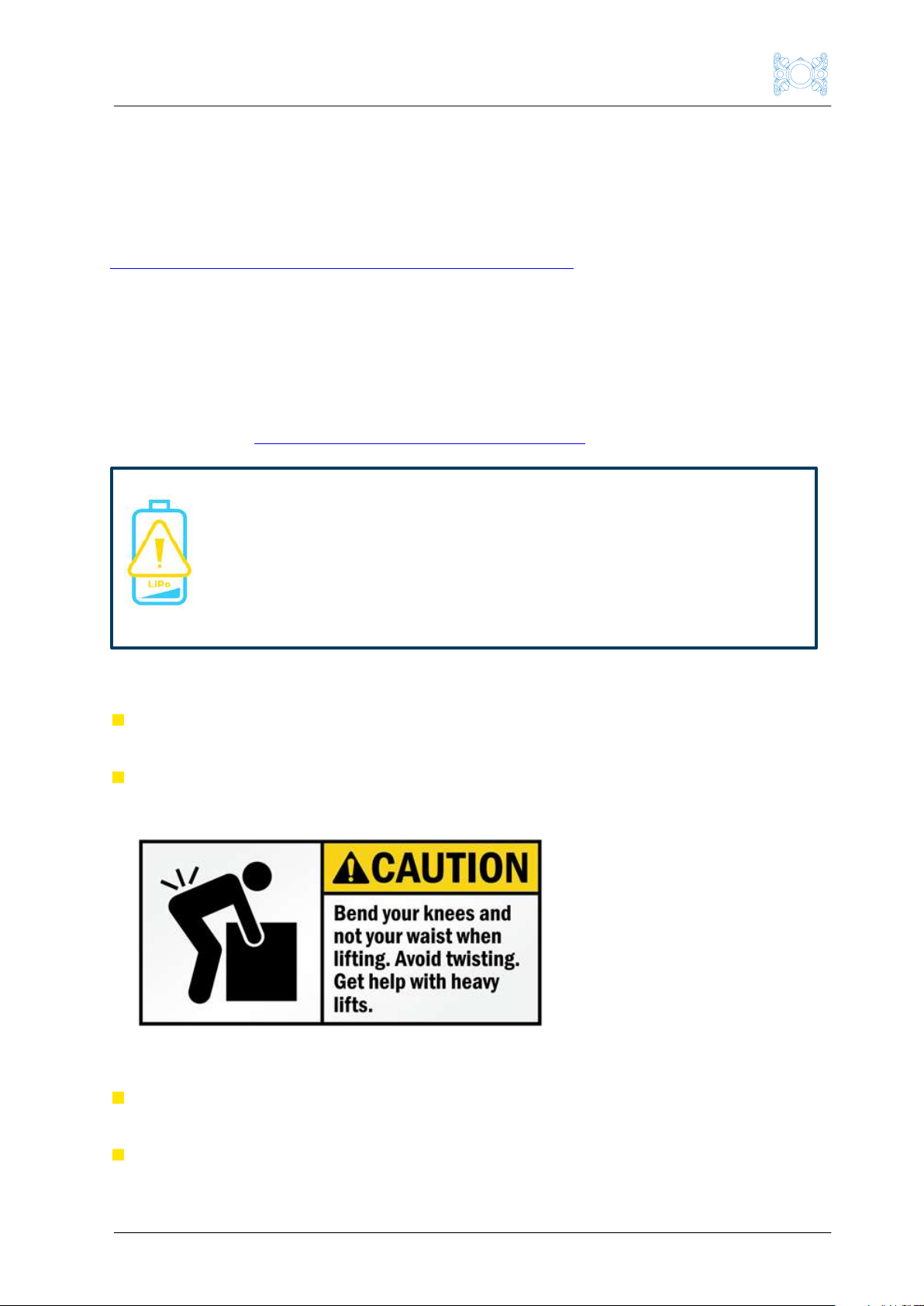

4.2 Lifting ROV components
The ROV, Accessories Box (with Control Station inside) and larger tether
reels (>1.2km version) require two people to lift. Take care when lifting.
The ROV can only be safely lifted by the stainless-steel bumper/protection
bars, carbon fibre frame tubes, or the lifting eye on top.
4.3 Hazards
Take extreme care around deep water and potential slip hazards when
piloting and retrieving the ROV.
Plan your operations to minimize trip hazards from the ROV system,
especially the tether and cables.
LiPo BATTERY WARNING!
You must read the Boxfish Battery Charging Manual and follow
the instructions carefully. Misuse of the Boxfish ROV lithium
battery pack may cause a battery fire and/or explosion.

Boxfish Luna Owner’s Manual
p11 R7. All rights reserved. Information and specifications may change at any time without notice.
Never operate the ROV in the presence of unaware swimmers or other
vessels.
Supervise children and keep them well away when ROV is operating.
While ROV is running pay close attention to the thrusters. Do not touch the
thrusters any time the ROV is powered on, or serious injury may occur. Keep
fingers, long hair and loose clothing or anything that may become entangled
well clear of the thrusters when operating.
The ROV should not be operated close to any object which may get caught
in the thrusters.
DO NOT look directly into the ROV LED illumination lights when they are
turned on.
DO NOT look directly into the ROV scaling lasers (if supplied). The scaling
lasers emit Class 3R laser light. Laser protective eye wear is normally not
necessary. A Class 3R laser is not a skin or materials burn hazard.
DO NOT look directly into fibre optic cables, or fibre optic ports on the ROV,
tether reel or Control Station while the ROV or Control Station is operating.
The lasers used to transmit the signal is invisible but can cause damage to
the retina of the eye. The below stickers are present on these ports to
remind you.
4.4 Safe ROV operation
The Boxfish Luna takes at least two people to operate: one person to pilot
the ROV and one person to manage the tether cable.
DO NOT use the ROV below its depth rating: check the rating specified in
your order or contact us if you are unsure. Some domes have different depth
ratings to the ROV – check with us if you are unsure.
DO NOT operate in currents where control is impeded.
DO NOT operate outside the water temperature range of -10˚C to +45˚C.
DO NOT store the ROV outside the range of -20˚C to +70˚C.

Boxfish Luna Owner’s Manual
R7. All rights reserved. Information and specifications may change at any time without notice. p12
5 Boxfish Luna ROV system overview
5.1 Charge battery after receiving your ROV

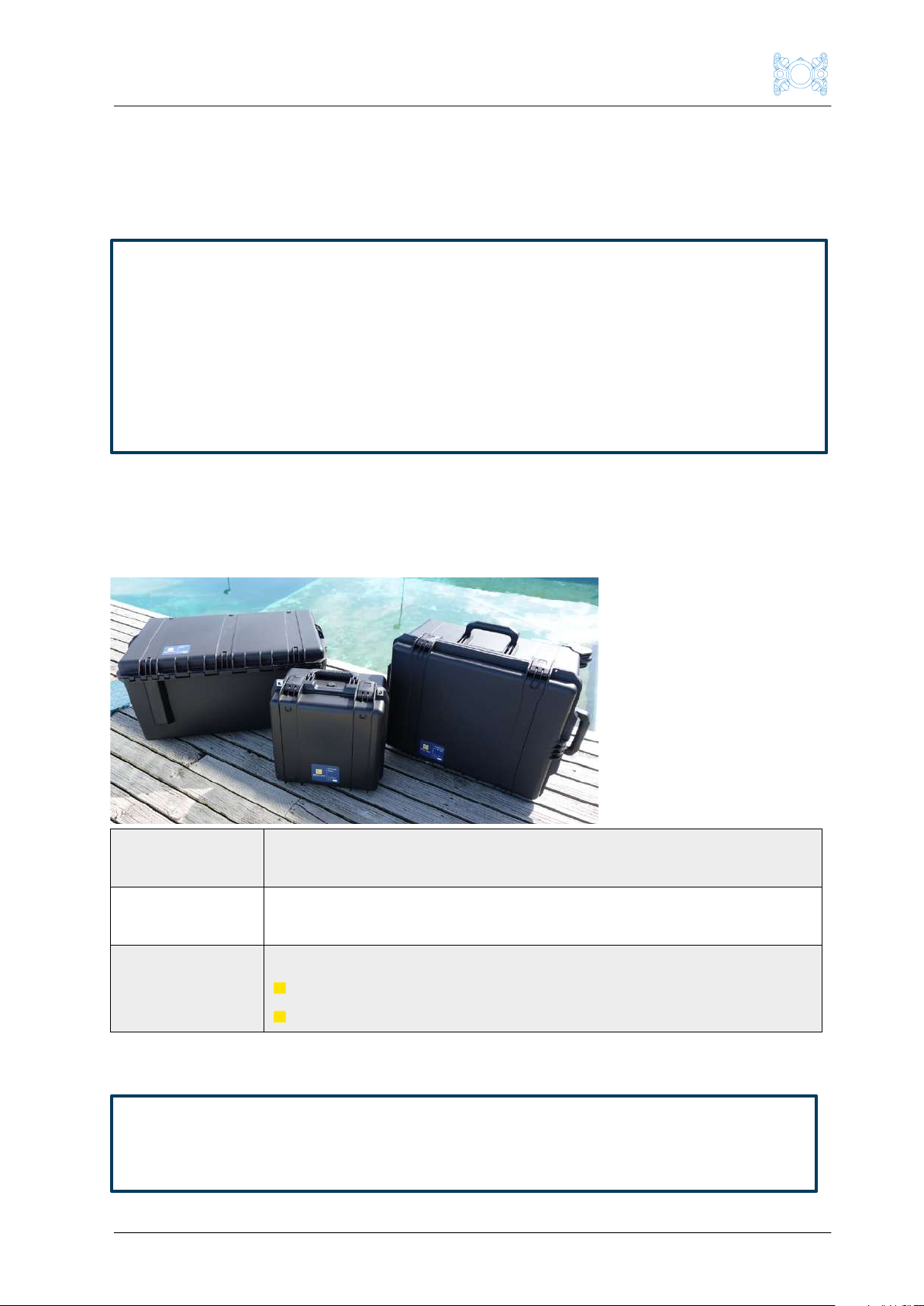

5.2 Storage cases
Each component of your Boxfish Luna system will be stored in a black
waterproof Pelican case. A typical Luna system is shown below.
ROV case
(left)
ROV case. Includes the Boxfish Luna ROV.
Tether case
(middle)
Includes tether reel and cable. Winder handle and
thumbscrew to attach the handle are also in this case.
Accessory
Box (right)
Contains:
The surface Control Station in its own case.
All necessary cables, tools and spare parts for your ROV.
There may be additional cases with your order, depending on if you have
ordered extra sensors.
IMPORTANT!
As soon as possible after receiving your ROV, you MUST charge its battery
to 15.6V This will prevent the battery from draining completely and will
prolong the life of the battery and protect the components inside the ROV.
See our Boxfish Battery Charging Manual for instructions.
IMPORTANT! The Control Station must be stored inside the Accessory
Box case for protection.

Boxfish Luna Owner’s Manual
p13 R7. All rights reserved. Information and specifications may change at any time without notice.
5.3 ROV
Note: Individual Boxfish Luna ROVs may vary slightly from pictures and
descriptions below, but most components will remain the same.
Front and left side view
Rear view
1.
Pressure vessel
Pressure-rated ROV body
2.
Front dome *
Contains Sony a7S III or Sony Alpha 1 front camera
and wide-angle navigation camera
3.
Sunshade/bumper
Black Perspex sunshade/bumpers to protect dome
3.
Luna front ballast
system
(Some Lunas only) Ballast weights may be present
above and/or below the front dome
4.
Frame tube/lifting
tube
Carbon-fibre shock-absorbing buoyancy tubes with
balancing chambers at each end
5.
Ballast chambers
Ballast chambers for holding ballast rings at each
end of frame tubes
6.
Thrusters
Eight 3D vectored thrusters
7.
Lifting eye
For attachment of a lifting or securing cable
8.
Lighting arms and
LED lights
Adjustable arms with LED illumination lights
9.
(Optional)
Adjustable LEDs (optional extra)
10.
Rails for optional
accessories
For mounting accessories such as sonar or USBL
11.
Tether port
To connect fibre optic tether cable
12.
Rear bumper
Stainless steel protective bumper
13.
Rear dome
Contains Status LEDs and rear camera
14.
Off pad (red)
For powering off ROV using magnetic key

Boxfish Luna Owner’s Manual
R7. All rights reserved. Information and specifications may change at any time without notice. p14
15.
On pad (green)
For powering on ROV using magnetic key
16.
Battery charge
ports
Positive and negative ports (terminals) for battery
charging
17.
Battery balance
port
For connecting cell balancing cable to charge each
battery cell to the same voltage
18.
Vacuum port
Port for applying vacuum to ROV body
19.
Depth sensor
Port containing ROV depth sensor
*If you have ordered a larger glass dome, the dome will not be affixed to the
ROV during shipping as it does not fit inside the ROV case. A cap (or standard
dome, if ordered) will be affixed to the front of the Luna to protect internal
components during shipping, and the glass dome will be shipped in its own
case.
Front camera
With the Boxfish Luna ROV there are two options for the front camera: the
Sony a7S III and Sony Alpha 1.
An easy-to-use mounting system inside the ROV makes it easy to change
lenses (if supplied), adjust physical dials on the camera and even swap between
cameras (if both cameras are ordered).
Please see the separate Boxfish Luna Camera Operations Manual for details on
how to use the camera.
5.4 Control Station
The Control Station is a multifunctional surface unit. It is used to:
Receive and display video and telemetry data from the ROV
Pilot the ROV
Remotely operate the front camera inside the ROV and facilitate recording
of photos and video
Plug in optional accessories or connect a computer
Update software and firmware for the ROV, Control Station and camera
Retrieve logs from the ROV (if needed for troubleshooting purposes).
The Control Station is connected to the ROV via a fibre patch cable. The tether
reel in turn is attached to the ROV via the tether cable.

Boxfish Luna Owner’s Manual
p15 R7. All rights reserved. Information and specifications may change at any time without notice.
Control Station layout
1.
17” 4K monitor. Displays video feed from front camera
2.
POWER: Power in port. Provides power to the Control Station, via:
Boxfish AC Adapter (15 Volts 13.4 Amps), OR
IMPORTANT!
The Control Station is designed to be splash-proof, but it is not waterproof.
Ensure all ports are covered when not in use. Do not block the air vents
otherwise the Control Station could overheat.

Boxfish Luna Owner’s Manual
R7. All rights reserved. Information and specifications may change at any time without notice. p16
Directly from a DC supply capable of supplying 10 Amps with the
Boxfish DC Power Cable, OR
Boxfish DTap power cable.
3.
FIBRE communication port: used to send/receive telemetry, control
signals and video between the Control Station and the ROV.
Communication is provided by connecting a fibre optic patch cable
between the fibre communication port and the tether reel fibre
connector and the tether cable to the ROV.
4.
EXT port. Supplies 12V and can be used to power the local USBL beacon
(if USBL accessory is supplied). Usage will be detailed in the accessory
manual.
5.
ETHERNET: RJ45 network port. Can be used to connect a
laptop/computer to the Control Station. Use only if you have specific
accessories fitted (such as sonar or USBL) that require a laptop to be
connected. Usage will be detailed in the accessory manual.
6.
LEVEL button. Can be used to zero the controls and restore the ROV to
zero roll and pitch
7.
ENABLE button (green). Used to power on Control Station, and to enable
the thrusters during the launch sequence
8.
THRUST control thumb wheel. Used to adjust speed of the ROV through
the water
9.
LEFT joystick. Controls the ROV depth and lateral (sideways “crab”)
movement
10.
AUX joystick. Controls pitch and roll ROV movements
11.
Dial for adjusting intensity of LED illumination lights
12.
Lighting switch. Turns on and off LED illumination lights
13.
Lasers switch. Turns on and off scaling lasers (if present)
14.
Mode button. For selecting ROV operational mode: Sea Mode, Sea-Q
Mode, ROV Mode or ROV-Q Mode. Also used when recalibrating
compass
15.
Stabilisation Hold switch. To enable/disable Stabilisation Hold function
16.
Depth Hold switch. To enable/disable Depth Hold function
17.
Sensor Power on/off switch. Used to supply power to additional sensors
or accessories (if present on your ROV). Use only as directed in the
applicable manual for the sensor/accessory
18.
RTS Disable switch (Return to Surface Disable) to enable/disable
automatic return to surface functionality

Boxfish Luna Owner’s Manual
p17 R7. All rights reserved. Information and specifications may change at any time without notice.
19.
Manual Focus on/off switch. To toggle focus mode of front camera
between Auto Focus and Manual Focus
20.
Altitude Hold on/off switch (can only be used if optional altimeter
accessory is present)
21.
Multi-functional buttons – includes controls for changing settings on the
front camera, compass calibration and troubleshooting features.
Functions of specific buttons are explained further in this manual
22.
Dial to scroll through available settings for the front camera on the
Control Station Camera Application
23.
OK button (✓). Used for thruster test or to select a setting for the front
camera using the camera application
24.
Cancel button (X). Can be used in conjunction with LIGHTS switch to
independently operate a second set of lights on the ROV
25.
Zoom dial to adjust zoom on front camera
26.
FOCUS button. Used to manually focus the front camera
27.
RIGHT joystick. Controls ROV yaw and forward/back movement
28.
PHOTO button. Can be used to take a photo with the front camera – see
separate Boxfish Luna Camera Manual for details
29.
VIDEO on/off toggle button. Pressing once will turn the camera off.
Pressing again will turn the camera on again – can be used for
troubleshooting
30.
(Optional: only present if ordered) ZOOM/FN thumb wheel. Used to
quickly adjust camera’s aperture and ISO settings
31.
Stop button (red). Used to power off the Control Station
32.
¼” mounting plate. Used to attach the mount for the Ninja V Recorder
accessory
33.
ACCESSORY port. Supplies power to the Ninja V
34.
CLEAN HDMI port. Used to route the video signal from the ROV to the
Ninja V Recorder.
34.
Air ventilation intakes. Used to keep Control Station cool. Do not cover
or allow water to enter
36.
Left USB port. Has a few uses, including software updates and
photo/video transfer from the Luna camera.
37.
HDMI In port used to send video signal from the Ninja to the 17” 4K
screen
38.
Right USB port

Boxfish Luna Owner’s Manual
R7. All rights reserved. Information and specifications may change at any time without notice. p18
39.
Telemetry screen. Used to view data and navigation video from the ROV
to assist in piloting
More information and specifications of the Control Station is in Appendix I:
Control Station – more information. Camera-related controls are explained in
detail in the separate Boxfish Luna Camera Operations Manual.
5.5 Tether reel
The tether reel comes in a few standard sizes and lengths depending on the
depth capability of your ROV. The parts shown below are common to all sizes.
The tether penetrator (at the end of the fibre optic tether cable) attaches to
the ROV.
The tether reel connects to the Control Station via a fibre patch cable, which is
attached to the side of the tether reel.
1.
Tether cable
(fibre optic)
Durable fibre optic cable neutrally buoyant in salt water.
Carries all control and video signals to and from ROV.
Comes in a few standard diameters, depending on the
depth capability of your ROV: 2.7mm, 3.7mm or 4.3mm.
2.
3.
Tether
penetrator and
protective
caps
This is the brass connector containing the fibre cable at
the end of the tether cable. The tether penetrator is
goes into the tether port on the ROV. When not in use,
the tether penetrator should always be covered with
TWO caps: a small clear plastic cap should cover the
exposed end of the fibre cable, and the large black
plastic cap should cover the whole brass assembly.
Additionally, the black plastic cap should be fastened to
its black plastic collar on the tether cable.

Boxfish Luna Owner’s Manual
p19 R7. All rights reserved. Information and specifications may change at any time without notice.
5.6 Accessory Box contents
The following accessories are provided in the Accessory Box at the time of this
manual’s release. Other items may be present if your order includes additional
sensors/accessories.
Camera peripherals
Spare lense(s) (if purchased)
Lens caps: for camera and for any spare lenses
Battery charger and a spare battery.
Control Station power cables
Power can be supplied to the Control Station via one of the options below:
AC outlet, or
D-Tap, or
12V DC source such as boat or car.
Universal single-phase (100-250V AC 50-60 Hz) AC adaptor
for powering the Control Station from an AC supply.
Local cable to connect the AC power adapter to your local
wall outlet.
4.
Drum
Stores the wound tether cable. Cable should not be
kinked or twisted. Light tension should be applied to the
tether cable to make sure it is not jammed or kinked
while winding on to the drum.
5.
Carry handles
Used to carry and move the tether reel. Larger tether
reels (carrying more than 1.2km tether cable) are a two
(2) person lift; please take care when lifting.
6.
Fibre patch
cable port
Port for the fibre optic patch cable between the tether
reel and the Control Station. Always cover the
connector with its red/yellow cap when not in use.
7.
Tether reel
winder handle
and
thumbscrew
Used to wind the tether cable back onto the drum. The
handle should be attached to the tether reel using the
thumbscrew provided. Not for use as a winch: do not
use winder to retrieve ROV using the tether cable.
