Potensic A30 User manual

A30
Operation Guidance

http://www.ipotensic.com
Front
LED Light

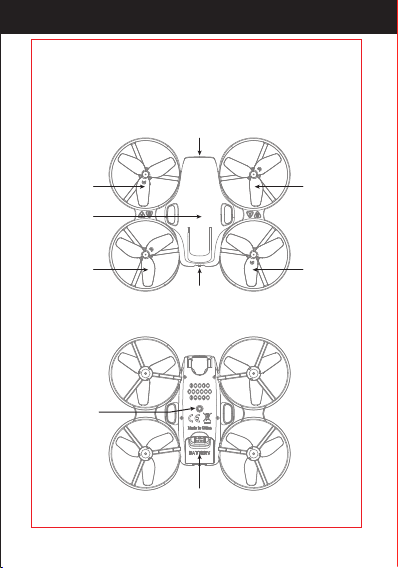

Overview of drone and transmitter
Drone
Propeller A
Power switch
Rear
Battery
Rear
Drone cover
Propeller B
Propeller B
Propeller A
Drone body
2

3
http://www.ipotensic.com
Main parameter
Drone Size
Weight of drone
140x140x43.5mm
63g
50m
~80 mins
Frequency 2.4Ghz
Flight time 6~7 mins
Drone battery 3.7V x 500mAh
Charging time
of drone battery
Flying Distance/Radius
Exploded View
1
34
14
4
3
2
14
5
6
7
8
9
10
11
12
13
2

4

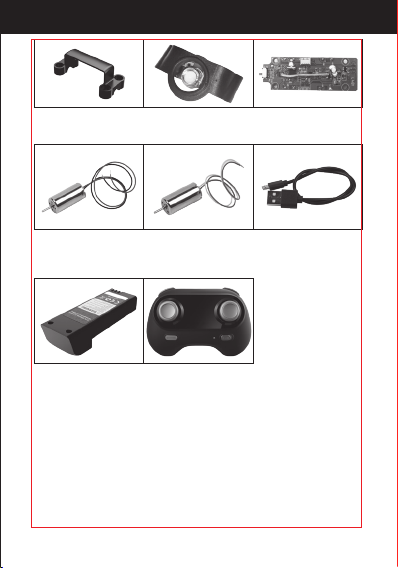

Name
Drone cover
Propeller A
Propeller B
Clockwise Motor
Battery
Drone body
Buckle
Back cover of light
NO. NO.
1
2
3
4
5
6
7
8
Name
Light Board
Light Organic Board
10
Front cover of light
9
11
12
13
Receiver Board
Inner box of battery
Counterclockwise Motor
14

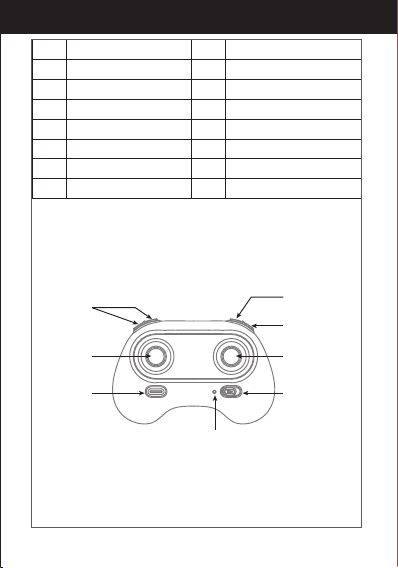

Transmitter
Left Stick
Non
function
Right Stick
High / Medium/
Low Speed
button
Headless Mode
One button
Taking Off /
Landing /
Emergency
Stop Button
Power Switch
Power indicator
http://www.ipotensic.com

http://www.ipotensic.com
5
Trimmer Mode button
(Press down the left stick)
                      
Left Stick
Right Stick
Power
Switch

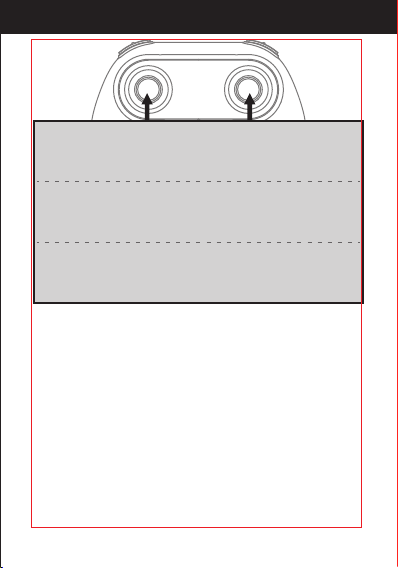

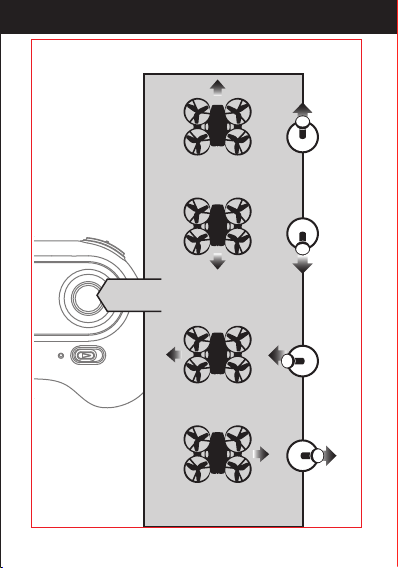

Move the Stick forward / backward / left / right to fly
the droneto up / down / turn left / turn right.
Move the Stick forward / backward / left / right to fly
the drone to forward / backward / left / right.
Pull right the power switch key to power on the
transmitter, power off when returns.
High / Medium/
Low Speed Button
Press the key to switch to High /Medium/ Low
Speed.
Headless
Mode
Press the key to enter the headless mode;
Press again to exist.
Trimmer
Mode
Button

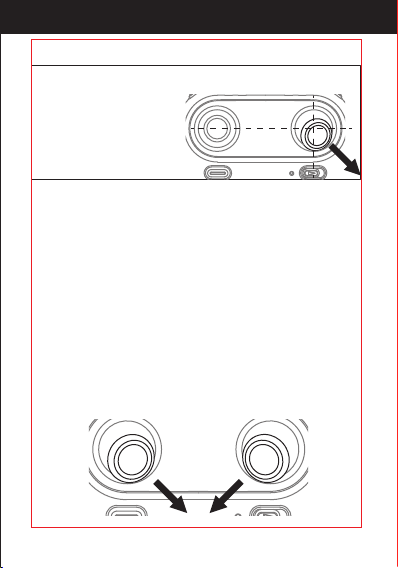

Press this button and move the right stick to the
required trimmer direction, then it will adjust the
direction accordingly. Release the stick to end
trimmer mode.
Take O /
Landing
/Emergency
Stop
Button
After frequency pairing, press once and the drone
will take off automatically. Press again and the
drone will land automatically. Press and hold the
button for more than 1 second for an emergency
landing. The drone propellers will stop and land.

6
3X1.5V
Alkaline Battery
Battery Cover
1. Make sure the electrodes are correct.
2. Do not mix new with old batteries.
3. Do not mix different kinds of batteries.
4. Do not charge the non rechargeable battery.
Notice:
Open the battery cover of the transmitter, insert 3 AAA batteries
following the polarity indicators ( Picture below, battery is not
included) and then close it.
               
http://www.ipotensic.com

7
http://www.ipotensic.com
Charging Instruction for Drone Battery
Parts installation
* For faster charging, it is recommended to use an adapter with 5V
2A output
1. Connect the drone battery with USB cable first and then choose one
of the method as below picture shown to connect with USB plug.
2.The indicator light on drone battery will become red and it will turn
green when fully charged.
Drone Battery
Power BankPhone Charger Computer Charging Car Charger
Li-Po Battery Disposal & Recycling
Wasted Lithium-Polymer batteries must not be placed
with household trash. Please contact local
environmental or waste agency or the supplier of
your model or your nearest Li-Po battery recycling center.

8

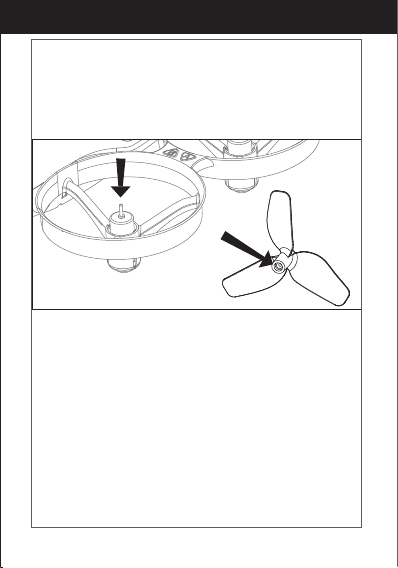

To disassemble, press the motor and gently pull the propeller
upward with another hand.
To install the propeller, align and snap on the propeller blade
to the motor.
Note: Align propeller A with the motor marked A, and align propeller B
with the motor marked B.
Assemble/Disassemble the Propellers
Picture 7
http://www.ipotensic.com

9
http://www.ipotensic.com
Picture 8
Picture 9
Stickers up
Battery buckle

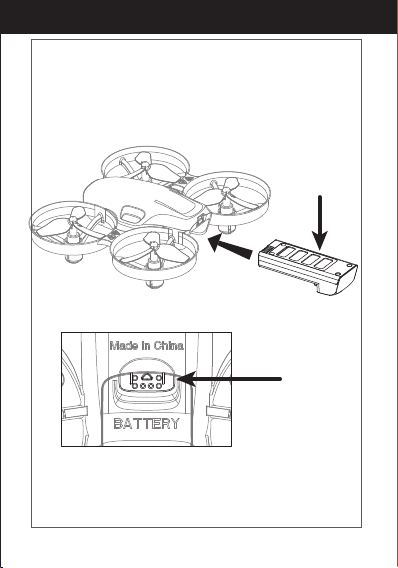

When installing, insert the battery into the drone as per diagram
(on picture 8) and the battery sticker should be facing upward.
When removing, pull up the drone buckle and pull out the
battery buckle (Picture 9).
Drone battery installation

10
Precautions before flying
1. Make sure the transmitter and the battery of the drone are
fully charged.
2. Before starting, please confirm that the left stick of the
transmitter is in the middle position.
3. Please follow the correct steps to turn on the drone/trans-
mitter. Before flight, turn on transmitter and then the the
drone. After flight, turn off the drone and then transmitter.
Turning ON/OFF incorrectly may cause the drone to lose
control.
4. Make sure to correctly install the battery, motor, etc.
5. Check the rotation direction of the propellers. The left front &
right rear propeller A should rotate clockwise. The left rear &
right front should rotate counterclockwise.
6. Improper operation may cause drone crash, which may
cause a motor defect, prevent you from flying, and other
issues. Please go to the local distributor to buy new parts
for replacement so that the drone will return to its best
http://www.ipotensic.com
