Bradley Terreon TDB3104 User manual

Installation
Instructions
TDB3104
Terreon®54" Semi-Circular Deep
Bowl Washfountain with
Air Metering Valve
WF3204
Terreon®Extra Height 54" Semi-
Circular Classic Washfountain
with 9" Deep Bowl and
Air Metering Valve
215-1470 Rev. H; EN 06-915
© 2007 Bradley Corporation
Page 1 of 29 2/8/07
P.O. Box 309, Menomonee Falls, WI 53052-0309
TEL. 1-800-BRADLEY FAX [phone]
http://www.bradleycorp.com
Table of Contents
Pre-Installation Information . . . . . . . . . . . . . . . . . 2
Model TDB3104 Washfountain Dimensions . . . . 3
Model WF3204 Washfountain Dimensions . . . . . .4
Washfountain Rough-Ins . . . . . . . . . . . . . . . . . . 5-7
Drain Installation . . . . . . . . . . . . . . . . . . . . . . . . . .8
Bowl/Pedestal Mounting and Assembly . . . . . . . .9
Drain Spud Installation . . . . . . . . . . . . . . . . . . . . .10
Air Valve Installation (A/O drains) . . . . . . . . .11-12
Air Valve Installation (B/H drains) . . . . . . . . .13-14
Valve and Tubing Connections . . . . . . . . . . . .15-17
Vernatherm Adjustment Procedure . . . . . . . . . . . .18
Terreon® Cleaning/Maintenance . . . . . . . . . . . . .19
Gel-Coated Fiberglass Cleaning/Maintenance . . .19
Stainless Steel Cleaning/Maintenance . . . . . . . . .20
Soap Dispensing Valve Repair Parts . . . . . . . . . .21
Soap Recommendations and Maintenance . . . . . .23
Sprayhead Troubleshooting/Repair Parts . . . . . . 24
Actuator Module Assembly Components . . . . . .25
Metering Air Valve Maintenance . . . . . . . . . .25-27
Vernatherm™ Mixing Valve Maintenance . . .28-29
Cleaning the Strainer . . . . . . . . . . . . . . . . . . . .28-29
TDB3104 with Push Button Air Valve
WF3204 with Push Button Air Valve
TDB3104 Juvenile Height with
Push Button Air Valve
TDB3104 TAS Height with
Push Button Air Valve

Terreon® 54" Semi-circular Washfountain with Cylindrical Air Valve
TDB3104, WF3204 Installation Instructions
Bradley Corporation • 215-1470 Rev. H; EN 06-915
2 2/8/07
Pre-Installation Information
IMPORTANT: Read this entire installation manual to ensure proper installation.
IMPORTANT: Flush all the water supply lines before making connections.
IMPORTANT: Main water supply to the unit should be ON at all times.
IMPORTANT: This installation manual and parts list should be filed by the owner’s
maintenance department.
Cylindrical air valve
The air valve pushbutton allows each user to activate an air metering valve (starting the flow of
water) by pushing and releasing the pushbutton. The air metering valve is factory-preset to run for 10
seconds and can be adjusted to run from 5-60 seconds.
Supplies required for installation:
• (4) lag bolts, screws or other fasteners to anchor washfountain pedestal
• 1" hot and cold water supply lines and fittings (refer to rough-ins on pages 6-7)
• Reducing fittings and 1/2" nom. copper tubing supply lines for types with supplies from above
• Standard P-trap (refer to rough-ins on pages 6-8) (vented trap supplied by Bradley when
required)
• 2" drain lines and fittings (refer to rough-ins on pages 6-7)
• Teflon tape or pipe dope
• 1-1/2" vent or tie pipe on fixtures vented through washfountain column (see page 8 for lengths
required)
Terreon® Semi-circular Washfountain Warranty
Product warranties may be found under “Product Information” on our website at www.bradleycorp.com

Terreon® 54" Semi-circular Washfountain with Cylindrical Air Valve
Installation Instructions TDB3104, WF3204
Bradley Corporation • 215-1470 Rev. H; EN 06-915 32/8/07

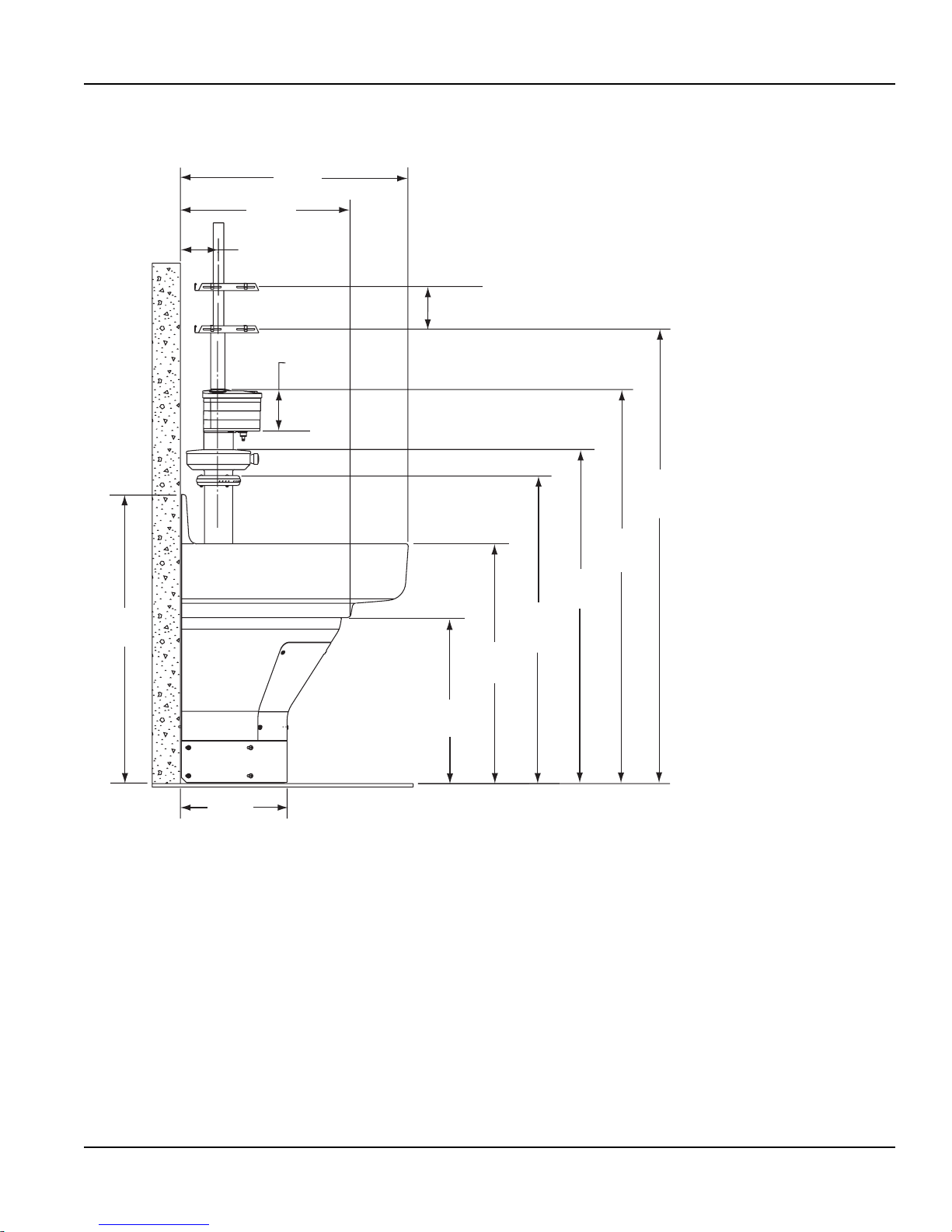

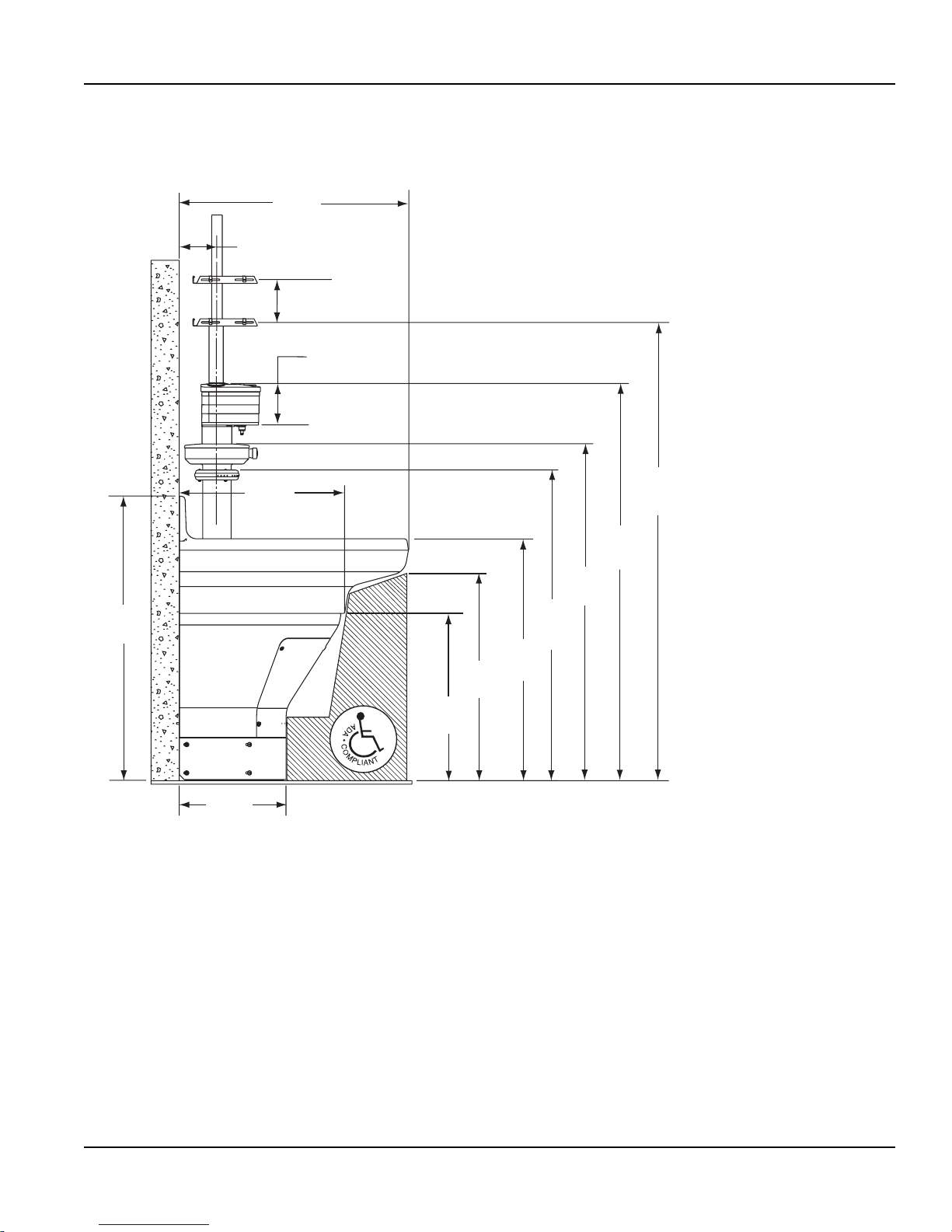

Semi-Circular Washfountain Dimensions
34"
(864)
40"
(1016)
43-3/4"
(1111)
32-1/4"
(819)
5-1/4"
(133)
6"
(152)
47-1/4"
(1200)
55-3/4"
(1416)
64" (1626) WITH SOAP
55-1/2" (1410) WITHOUT SOAP
23-1/2"
(597)
27"
(686)
22-3/4"
(577)
15"
(381
ADJUST TO
TOWEL DISPENSER
MOUNTING HOLES
Optional equipment may not comply with all ADA
dimensional guidelines
Model TDB3104
54" Semi-circular - side view
Figure 1a

Terreon® 54" Semi-circular Washfountain with Cylindrical Air Valve
TDB3104, WF3204 Installation Instructions
Bradley Corporation • 215-1470 Rev. H; EN 06-915
4 2/8/07

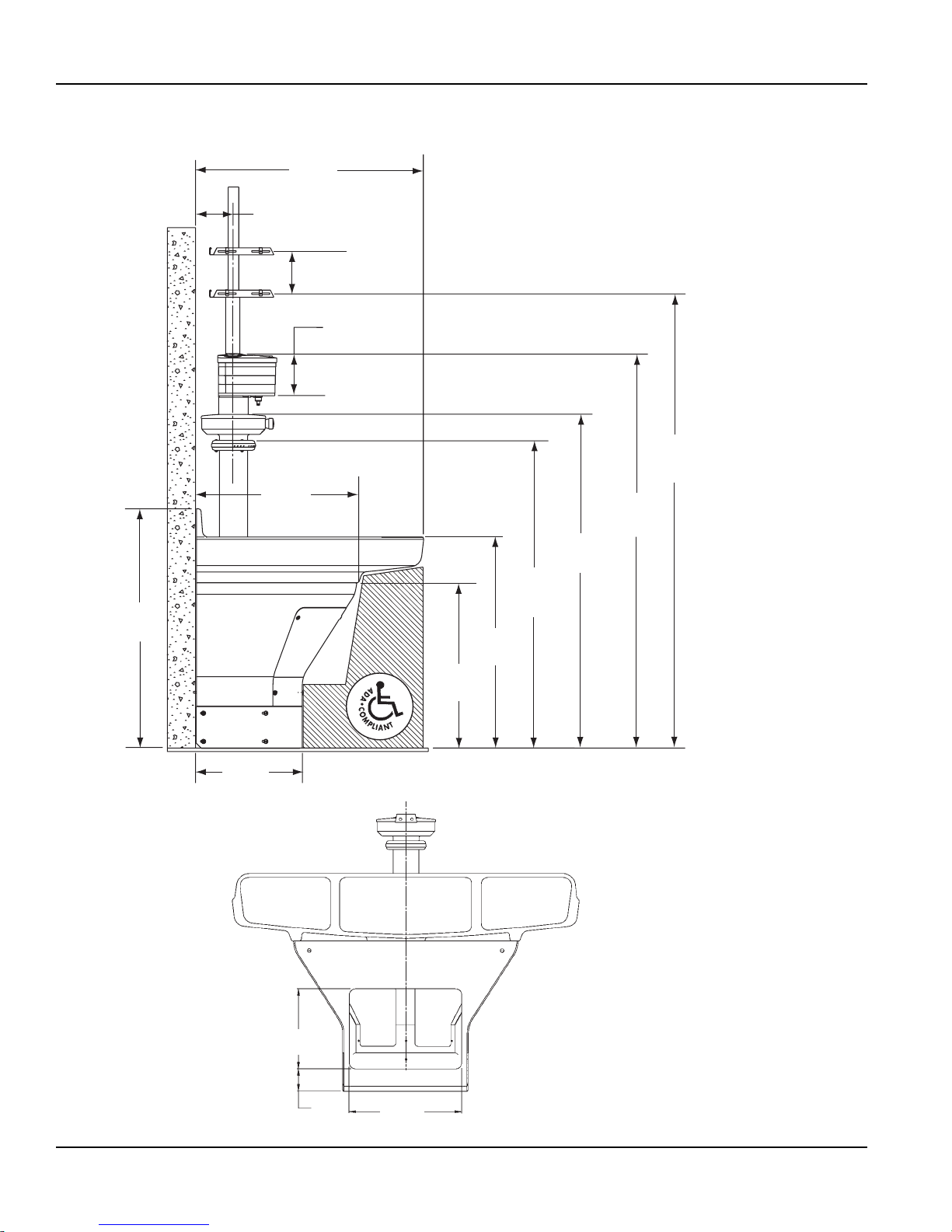

Semi-Circular Washfountain Dimensions (juvenile height)
*34"
(864)
*39-1/8"
(994)
32-1/4"
(819)
5-1/4"
(133)
6"
(152)
*42-5/8"
(1084)
*51-1/4"
(1301)
*59-1/2" (1511) WITH SOAP
*51" (1295) WITHOUT SOAP
*23-1/2"
(597)
*30"
(762)
22-3/4"
(577)
15"
(381 * ADD 2" (51) FOR TAS HEIGHT UNIT
ADJUST TO
TOWEL DISPENSER
MOUNTING HOLES
Model TDB3104
54" Semi-circular - side view
Figure 1b
54" Semi-circular - rear view
pedestal access
17-1/2"
(444)
12-1/2"
(318)
*3-1/2"
(89)
Figure 1c
Optional equipment may not comply with all ADA
dimensional guidelines

Terreon® 54" Semi-circular Washfountain with Cylindrical Air Valve
Installation Instructions TDB3104, WF3204
Bradley Corporation • 215-1470 Rev. H; EN 06-915 52/8/07
Semi-Circular Washfountain Dimensions
34"
(864)
41"
(1041)
43-3/4"
(1111)
32-1/4"
(819)
5-1/4"
(133)
6"
(152)
47-1/4"
(1200)
55-3/4"
(1416)
64" (1626) WITH SOAP
55-1/2" (1410) WITHOUT SOAP
23-1/2"
(597)
22-3/4"
(577)
15"
(381
ADJUST TO
TOWEL DISPENSER
MOUNTING HOLES
Model WF3204 is not ADA compliant
Model WF3204
54" Semi-circular - side view
Figure 1d

Terreon® 54" Semi-circular Washfountain with Cylindrical Air Valve
TDB3104, WF3204 Installation Instructions
Bradley Corporation • 215-1470 Rev. H; EN 06-915
6 2/8/07

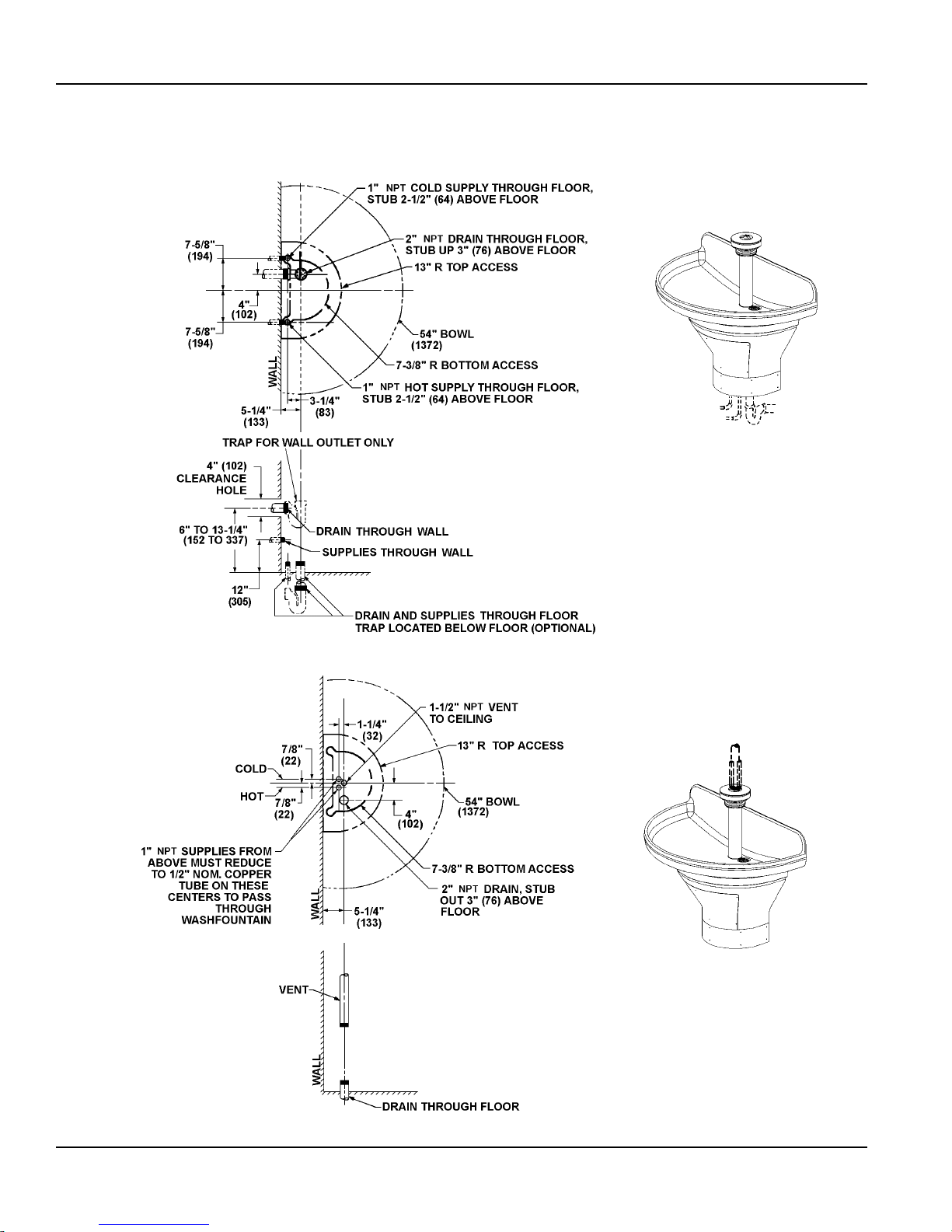

Rough-In Specifications
NOTE: Supply lines for one to two
washfountains should be 1”; for three
washfountains, 1-1/4”. For more than
three washfountains, pipe sizes should
be increased proportionately.
Figure 2a
Type A Drain
- Supplies from below or through wall
- Vent from below or through wall
off-drain
Figure 2b
Type B Drain
- Supplies from above
- Vent through ceiling off trap inside
pedestal
NOTE: Supply lines for one to two
washfountains should be 1”; for three
washfountains, 1-1/4”. For more than
three washfountains, pipe sizes should
be increased proportionately.
(mm)
(mm)

Terreon® 54" Semi-circular Washfountain with Cylindrical Air Valve
Installation Instructions TDB3104, WF3204
Bradley Corporation • 215-1470 Rev. H; EN 06-915 72/8/07

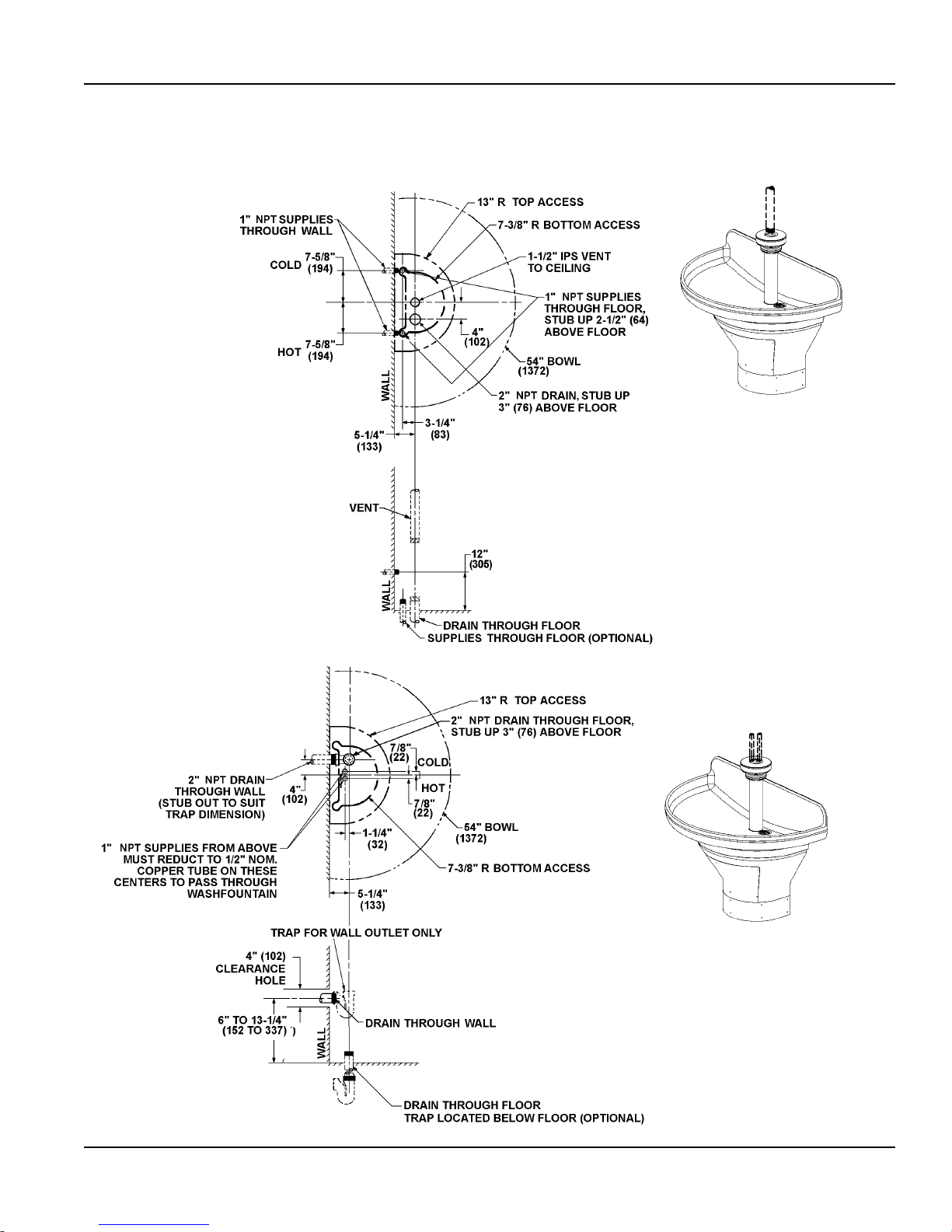

Rough-In Specifications continued . . .
NOTE: Supply lines for one to two
washfountains should be 1”; for
three washfountains, 1-1/4”. For
more than three washfountains,
pipe sizes should be increased
proportionately.
Figure 2c
Figure 2d
NOTE: Supply lines for one to two
washfountains should be 1”; for
three washfountains, 1-1/4”. For
more than three washfountains,
pipe sizes should be increased
proportionately.
Type H Drain
- Supplies from below or through wall
- Vented through ceiling off trap
inside pedestal
Type O Drain
- Supplies from above
- Vented from below or through wall
off drain
(mm)
(mm)

Terreon® 54" Semi-circular Washfountain with Cylindrical Air Valve
TDB3104, WF3204 Installation Instructions
Bradley Corporation • 215-1470 Rev. H; EN 06-915
8 2/8/07
Centerline of
Washfountain
Centerline of
Washfountain
Centerline of
Washfountain
See rough-ins
on Pages 6-7
for dimensions
not shown
Types B, H
Types A, O
With Tie Pipe
Bracket Option
Types A, O
2" NPT Coupling if Tie
Pipe is not required
(Supplied by Installer)
Vent
or
Tie Pipe
(Supplied by Installer)
Vent
or
Tie Pipe
(Supplied by Installer)
Vented Trap
(111-024)
Optional
Tie Pipe Bracke
t
(S70-082)
4"
(102)
4"
(102)
B – See Table 1
B – See Table 1
B – See Table 1
4"
(102)
Installation Instructions
Step 1: Installing the drain
1. Rough in supply and drain piping as required for your installation (see pages 6-7 for rough-ins
of the optional installations).
2. Assemble the drain to the dimension shown in Figure 3 for the bowl you are installing.
NOTE: All piping shown in dotted lines to be supplied by installer.
Figure 3
Dim Standard Height Juvenile Height TAS
B 23-3/8" (594mm) 22-1/2" (572mm) 24-1/2" (622mm)
Table 1 — “B” Trap Dimensions

Terreon® 54" Semi-circular Washfountain with Cylindrical Air Valve
Installation Instructions TDB3104, WF3204
Bradley Corporation • 215-1470 Rev. H; EN 06-915 92/8/07
Installation Instructions continued . . .

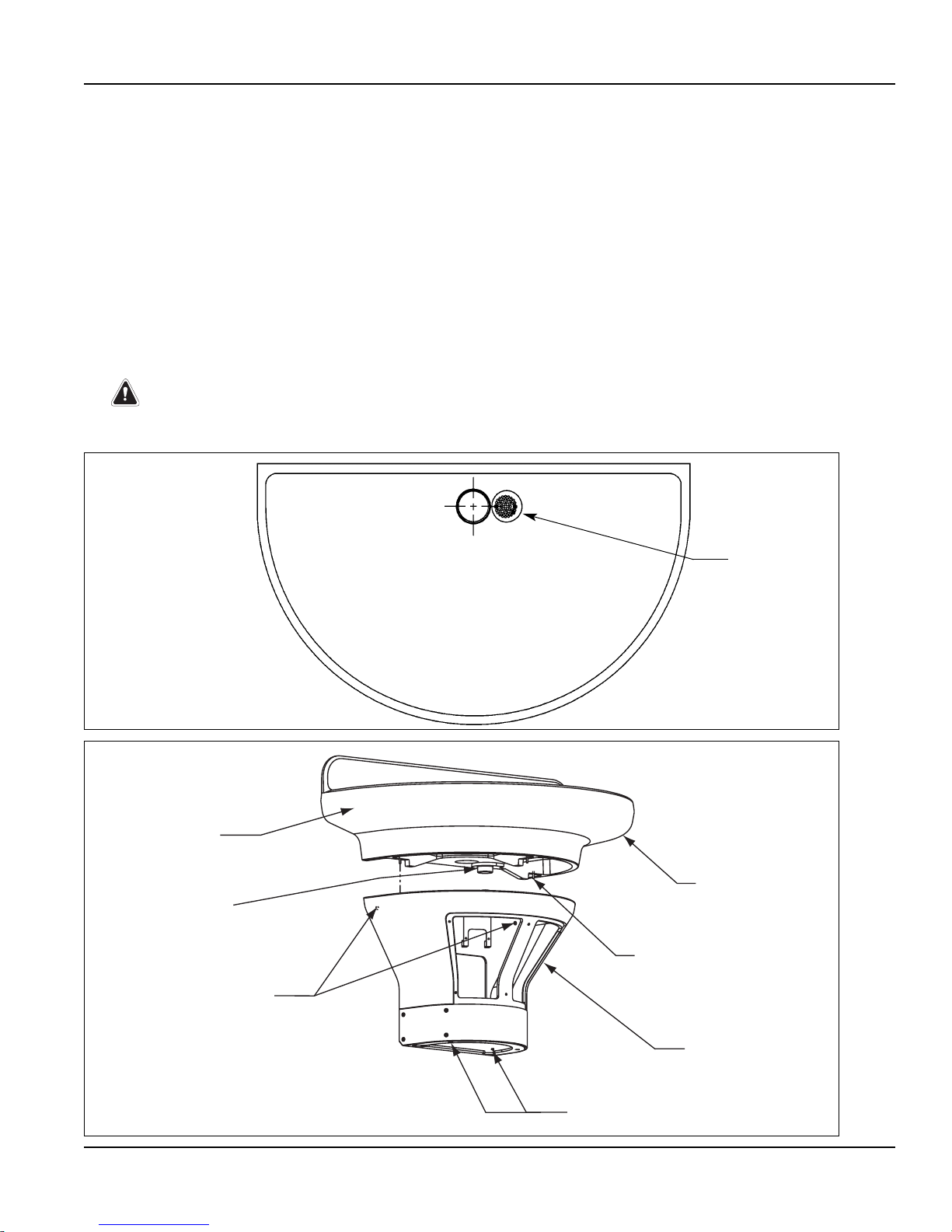

Step 2: Bowl/pedestal mounting and assembly
1. Position pedestal at desired location and mark the position of the (2) pedestal wall mounting
locations and (2) pedestal floor mounting locations (see Figure 5b).
TAS Option:
Place TAS spacer on floor over the mounting holes. Place pedestal on top of the spacer.
2. Secure pedestal to wall and floor with suitable fasteners, 1/2" anchors and 1/2" bolts (supplied by
installer) (see Figure 5b for floor and wall mounting locations).
3. Using two to three people, carefully lift bowl onto pedestal (see Figure 5b).
4. Position bowl so that threaded rods in bowl mate with slotted holes in pedestal (see Figure 5b).
5. Using 1/4" wing nuts and washers, secure bowl to pedestal, three places (see Figure 5b).
CAUTION: BOWL SURFACE IS VERY SMOOTH. APPROXIMATE WEIGHT OF BOWL
IS 146 LBS. (model TDB3104), 136 lbs. (model WF3204) or 101 lbs.
(TDB3104/JUV). HANDLE WITH CARE!
PLACE HANDS
HERE WHEN
LIFTING BOWL
WALL MOUNTING
LOCATIONS
PLACE HANDS
HERE WHEN
LIFTING BOWL
FLOOR MOUNTING LOCATIONS
PEDESTAL
DRAIN
THREADED ROD
(Secured by 1/4" wing
nut and washer)
Figure 5b
Figure 5a
DRAIN
TOP VIEW
FRONT VIEW

Terreon® 54" Semi-circular Washfountain with Cylindrical Air Valve
TDB3104, WF3204 Installation Instructions
Bradley Corporation • 215-1470 Rev. H; EN 06-915
10 2/8/07
Installation Instructions continued . . .

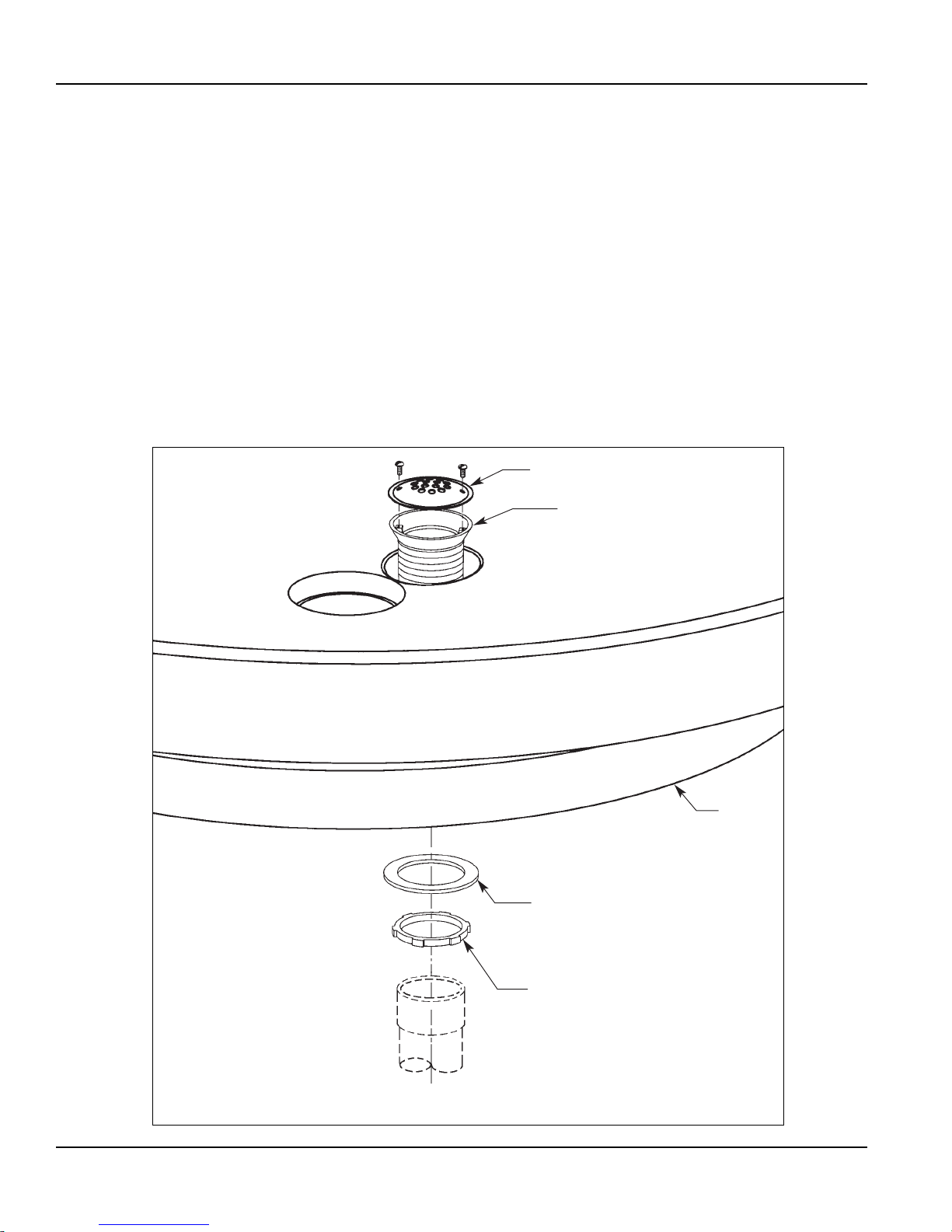

Step 3: Installing drain spud in bowl
NOTE: Seal between drain spud and drain hole with plumber’s putty (supplied by installer).
1. Loosely attach the drain spud to the bowl with the locknut and washer as shown in Figure 6.
B Trap Option:
Attach B Trap to drain spud.
Tie Pipe Option:
Attach Tie Pipe Bracket to drain spud.
2. Tighten the spud and lock nut against the bowl.
3. Secure the strainer to drain spud with the screws provided.
4. Connect spud (or B Trap or Tie Pipe Bracket) to drain.
STRAINER
S45-067
SPUD
112-015
BOWL
WASHER
142-068
LOCKNUT
161-021
DRAIN PRE-PACK
S45-273
Figure 6

Terreon® 54" Semi-circular Washfountain with Cylindrical Air Valve
Installation Instructions TDB3104, WF3204
Bradley Corporation • 215-1470 Rev. H; EN 06-915 112/8/07
Installation Instructions continued . . .

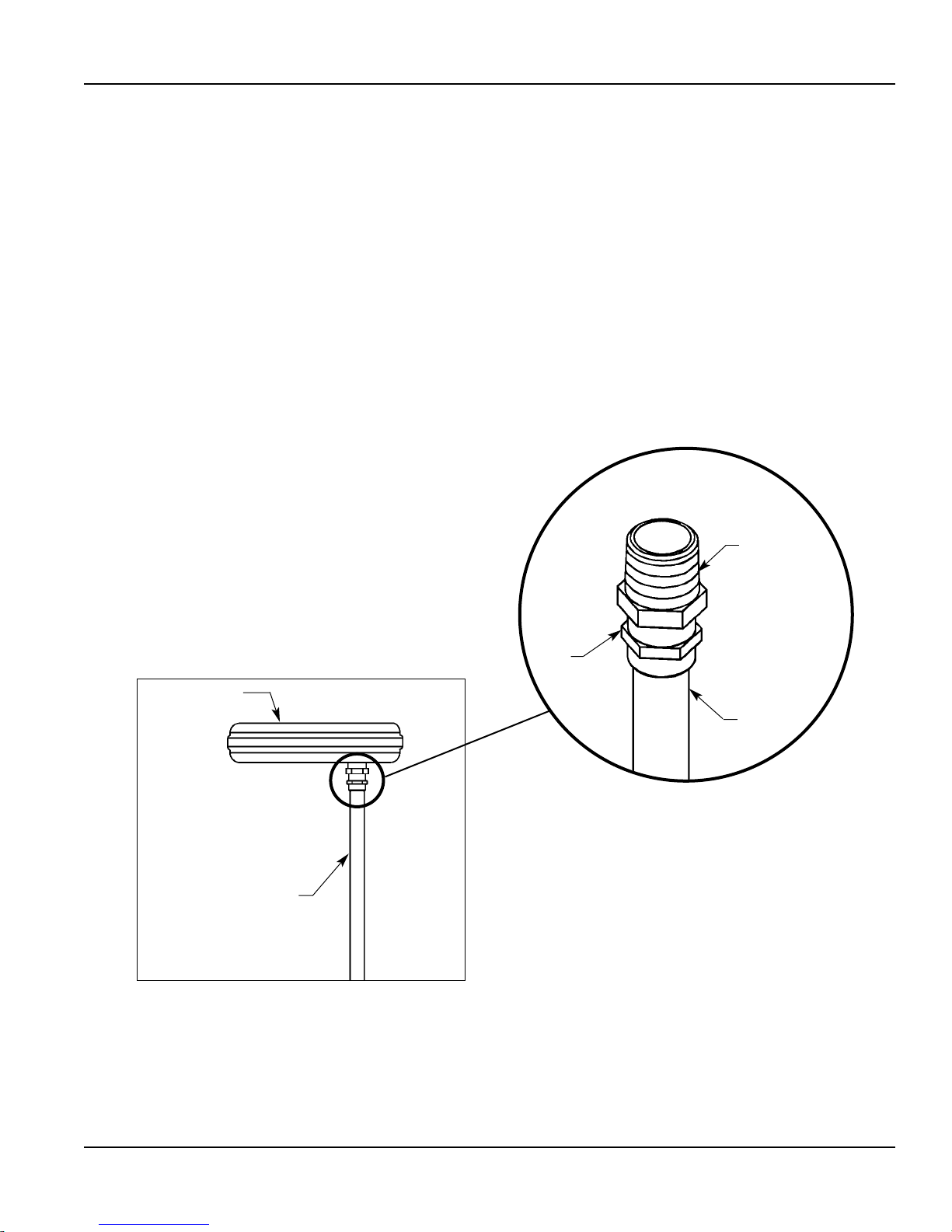

Step 4a: Air Metering Valve assembly for A drain and O drain units without Tie Pipe option
1. Install hemmed end (not sharp end) of support tube with gasket onto bowl (see Figure 7).
2. Place sprayhead with 1/2" tubing onto support tube. Run the tubing down through the support
tube and connect to valve tube connector. Make sure the spray holes point away from the wall.
3. Place the upper tie bar (notched at both corners of each end) on top of sprayhead parallel to wall.
Connect the longer tie rod to the 4-1/4" tie rod using the coupling nut with hex head set screws.
Run the tie rod assembly down through upper tie bar (see Figure 7 inset) and secure from under-
neath the bowl using lower tie bar (no notches) and hex nut with socket head set screw.
SUPPORT TUBE
GASKET
125-011
SUPPORT TUBE
(STD) S57-005
(TAS) (JUV) S57-006
STD. TIE ROD 176-008A
JUV. TIE ROD 176-008
TIE BAR
PRE-PACK
S45-055
SEMI-CIRC. BOWL
PRE-PACK
S45-1523
1/2" FLEXIBLE
SUPPLY TUBE
TIE BAR
STANDARD PEDESTAL
ASSY. S17-259
TAS PEDESTAL
ASSY. S17-345
TOP COVER
107-099 (A)
107-179 (O)
ACTUATOR MODULE ASSY.
S65-134
RESTRAINING BRACKET
140-126
TIE ROD PRE-PACK
S45-1336
SPRAYHEAD
S05-054B
DRAIN
S45-273
VALVE ASSY.
(
See Fi
g
ure 7a
)
ACCESS PANEL
186-1456
TERREON® SEMI-CIRCULAR BOWL
MODULE COVER
1/8" AIR TUBES
A/O
(A shown)
(PART No. VARIES WITH COLOR OF
BOWL — CONTACT YOUR LOCAL
BRADLEY REP. FOR ASSISTANCE)
COVER
TIE ROD
PRE-PACK
TIE
ROD
COUPLING
NUT
SECTION VIEW OF
A/O UNIT ASSEMBLY
SPRAYHEAD
ACTUATOR
MODULE
ASSY.
TIE
BAR
SUPPLY TUBE
Figure 7

Terreon® 54" Semi-circular Washfountain with Cylindrical Air Valve
TDB3104, WF3204 Installation Instructions
Bradley Corporation • 215-1470 Rev. H; EN 06-915
12 2/8/07
Installation Instructions continued . . .
4. Place the actuator module assembly on top of sprayhead. Rotate until actuator module locks in
with tie bar. Drop two 1/8" diameter tubes down to valve assembly and connect to the air valve.
NOTE: Skip to number 5 for units without soap.
• For units with soap option, install the spacer, soap dispenser and cover using the third tie rod
(8-5/8" long) and second coupling nut as shown (see Figure 8). Secure with acorn nut and set
screw.
5. Secure actuator module cover and top cover with sprayhead restraining bracket, acorn nut and
set screw.
6. FOR A UNIT: Connect supply lines to stops using suitable fittings.
FOR O UNIT: Install 1/2" nominal copper tubing supply lines (pass them through holes in
cover down through support column) and connect to stops using suitable fittings.
Sprayhead troubleshooting. Adjust volume control valve, if necessary, to control water flow.
Figure 8
TOP COVER
SPRAYHEAD
S05-054B
SUPPORT TUBE
(STD.) S57-005
(TAS)(JUV.) S57-006
MODULE
COVER
COUPLING NUT
SPACER
ACTUATOR
MODULE
ASSEMBLY
S65-134
SOAP
DISPENSER
TIE ROD
21-5/8" (STD.)
18-1/8" (JUV.)
TIE BAR
UNIT WITH “O” DRAIN AND ACTUATOR MODULE
SHOWN, ALSO AVAILABLE WITH “A” DRAIN
COUPLING
NUT
8-5/8"
TIE ROD
4-1/4"
TIE ROD

Terreon® 54" Semi-circular Washfountain with Cylindrical Air Valve
Installation Instructions TDB3104, WF3204
Bradley Corporation • 215-1470 Rev. H; EN 06-915 132/8/07
Installation Instructions continued . . .
Step 4b: Air Metering Valve assembly for B and H units and units with Tie Pipe option
1. Install hemmed end (not sharp end) of support tube with gasket onto bowl (see Figure 9).
2. Place sprayhead with 1/2" tubing onto support tube. Run the tubing down through support tube.
3. Insert the 1-1/2" vent pipe (supplied by installer) down through the support tube and thread into
vented trap.
SUPPORT TUBE
GASKET
125-011
SUPPORT TUBE
(STD) S57-005
(TAS) (JUV) S57-006
SEMI-CIRCULAR
BOWL PRE-PACK
S45-1523
VENTED TRAP
111-024
TIE BAR
PRE-PACK
S45-056
STANDARD PEDESTAL ASSY.
S17-259
TAS PEDESTAL ASSY.
S17-345
TOP COVER
107-185 (B)
107-048 (H)
ACTUATOR
MODULE ASSY.
S65-134
SPRAYHEAD
S05-054B
1/8" AIR TUBES
MODULE COVER
DRAIN
S45-273
VALVE ASSY.
(See Figure 7a)
ACCESS PANEL
186-1456
TERREON® SEM-CIRCULAR
BOWL
Part No. varies with color
of bowl. — Contact your Bradley Rep.
for assistance.
1-1/2" VENT PIPE
B/H
(B shown)
COVER
SECTION VIEW OF
B/H UNIT ASSEMBLY
SPRAYHEAD
ACTUATOR
MODULE
ASSY.
TIE
BAR
SUPPLY
TUBE
Figure 9

Terreon® 54" Semi-circular Washfountain with Cylindrical Air Valve
TDB3104, WF3204 Installation Instructions
Bradley Corporation • 215-1470 Rev. H; EN 06-915
14 2/8/07
Installation Instructions continued . . .
4. Place the actuator module assembly on top of the sprayhead. Drop 1/8" diameter tube down to
the valve assembly and connect to the air valve. Make sure the spray holes point away from the
wall.
NOTE: Skip to number 5 for units without soap.
• For units with soap option, slide the spacer and soap dispenser over the 1-1/2" pipe.
5. Position the upper tie bar slightly below the module (see Figure 9 inset on previous page) or
soap dispenser (see Figure 12) and fasten securely to vent pipe with set screws provided. Secure
top cover to tie bar with two cap screws provided.
6. FOR B UNIT: Install 1/2" nominal copper supply lines (pass through holes in cover and
through support column) and connect supply lines to stops using suitable fittings.
FOR H UNIT ONLY: Connect supply lines to stops using suitable fittings.
Figure 10
TOP COVER
SPRAYHEAD
S05-054B
SUPPORT TUBE
S57-005 (STD.)
S57-006 (JUV.) (TAS)
MODULE
COVER
SPACER
ACTUATOR
MODULE
ASSEMBLY
S65-134
SOAP
DISPENSER
TIE BAR
UNIT WITH “H” DRAIN AND ACTUATOR MODULE
SHOWN, ALSO AVAILABLE WITH “B” DRAIN

Terreon® 54" Semi-circular Washfountain with Cylindrical Air Valve
Installation Instructions TDB3104, WF3204
Bradley Corporation • 215-1470 Rev. H; EN 06-915 152/8/07
Installation Instructions continued . . .

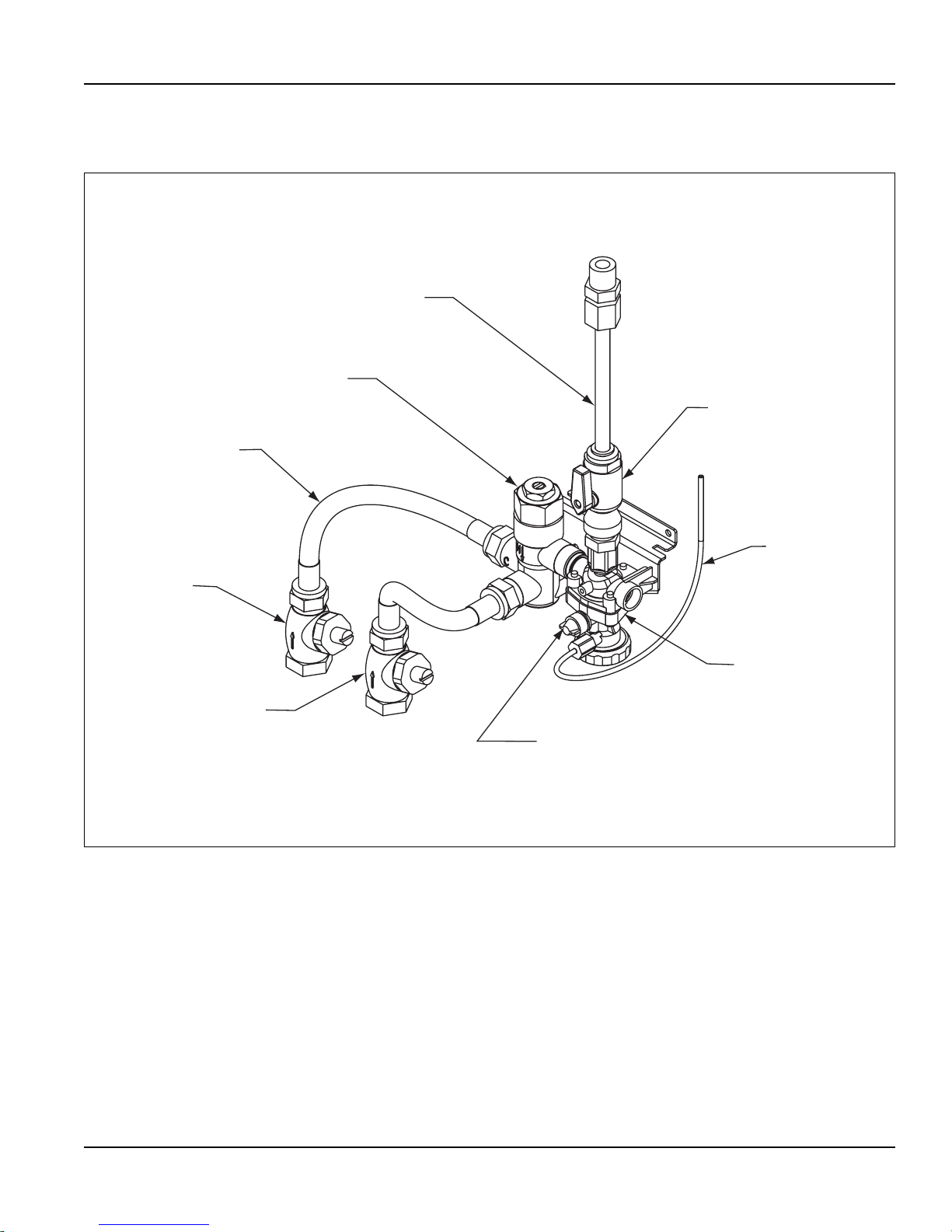

3/8" TUBE TO
SPRAYHEAD
VOLUME CONTROL VALVE
FLEXIBLE HOSE
CHECK STOP
CHECK STOP
AIR VALVE
ASSEMBLY
THERMOSTATIC MIXING
VALVE ASSEMBLY
1/8" TUBING TO
ACTUATOR
AIR VALVE TIMER
(DO NOT APPLY PIPE SEALANT
TO COMPRESSION FITTINGS)
Figure 11a
VALVE ASSEMBLY S45-2246

Terreon® 54" Semi-circular Washfountain with Cylindrical Air Valve
TDB3104, WF3204 Installation Instructions
Bradley Corporation • 215-1470 Rev. H; EN 06-915
16 2/8/07

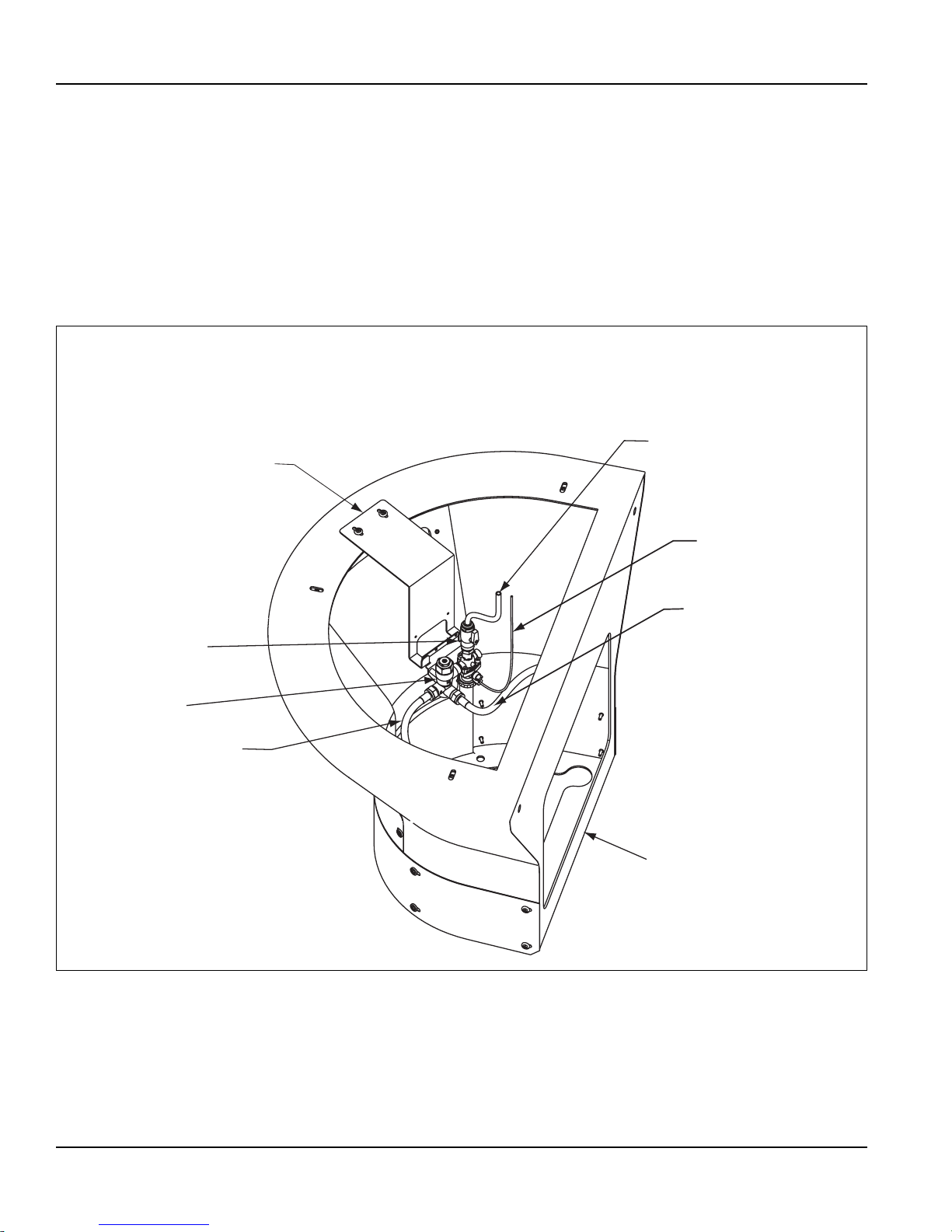

3/8" TUBE FROM
SPRAYHEAD
THERMOSTATIC
MIXING VALVE
VALVE
BRACKET
VOLUME
CONTROL
FLEXIBLE
HOSING
COLD SUPPLY
PEDESTAL
REAR
FLEXIBLE
HOSING
HOT SUPPLY
1/8" TUBING TO
ACTUATOR
VALVE AND TUBING CONNECTIONS - AIR METERING VALVE OPTION
NOTE: FLUSH SUPPLY LINES BEFORE MAKING CONNECTIONS.
DO NOT APPLY PIPE SEALANT TO COMPRESSION FITTINGS.
Figure 11b
Installation Instructions continued . . .
Step 5: Valve and Tubing Connections
NOTE: Flush supply lines before making connections.
1. Attach hot and cold flexible supply lines to mixing valve assembly, two places (see Figure 11a
and Figure 11b).
2. Hang valve assembly on pedestal valve bracket.
3. Use wire tie to secure valving to valve bracket.

Terreon® 54" Semi-circular Washfountain with Cylindrical Air Valve
Installation Instructions TDB3104, WF3204
Bradley Corporation • 215-1470 Rev. H; EN 06-915 172/8/07
Figure 12
SPRAYHEAD
TUBING
NUT
MALE
TUBE
CONNECTOR
TUBING
Installation Instructions continued . . .
NOTE: Flush supply lines before making connections.
4. Follow the procedures below and refer to Figure 12 when installing tubing to ensure that you
achieve a leakproof seal. Install 3/8" supply tubing in the sprayhead using the male tube con-
nector.
• Using a sharp razor, cut tubing squarely and remove any burrs. DO NOT pinch or crush end
of tubing.
• Loosen nut on fitting. Moisten end of tube and push into fitting until it is firmly seated.
Tighten nut to secure tube to fitting (make sure nut is securely tightened).
• If connector leaks, reseat tubing according to above procedure. If leaking persists,
replace male connector, or call your Bradley representative for assistance.

Terreon® 54" Semi-circular Washfountain with Cylindrical Air Valve
TDB3104, WF3204 Installation Instructions
Bradley Corporation • 215-1470 Rev. H; EN 06-915
18 2/8/07
Installation Instructions continued . . .

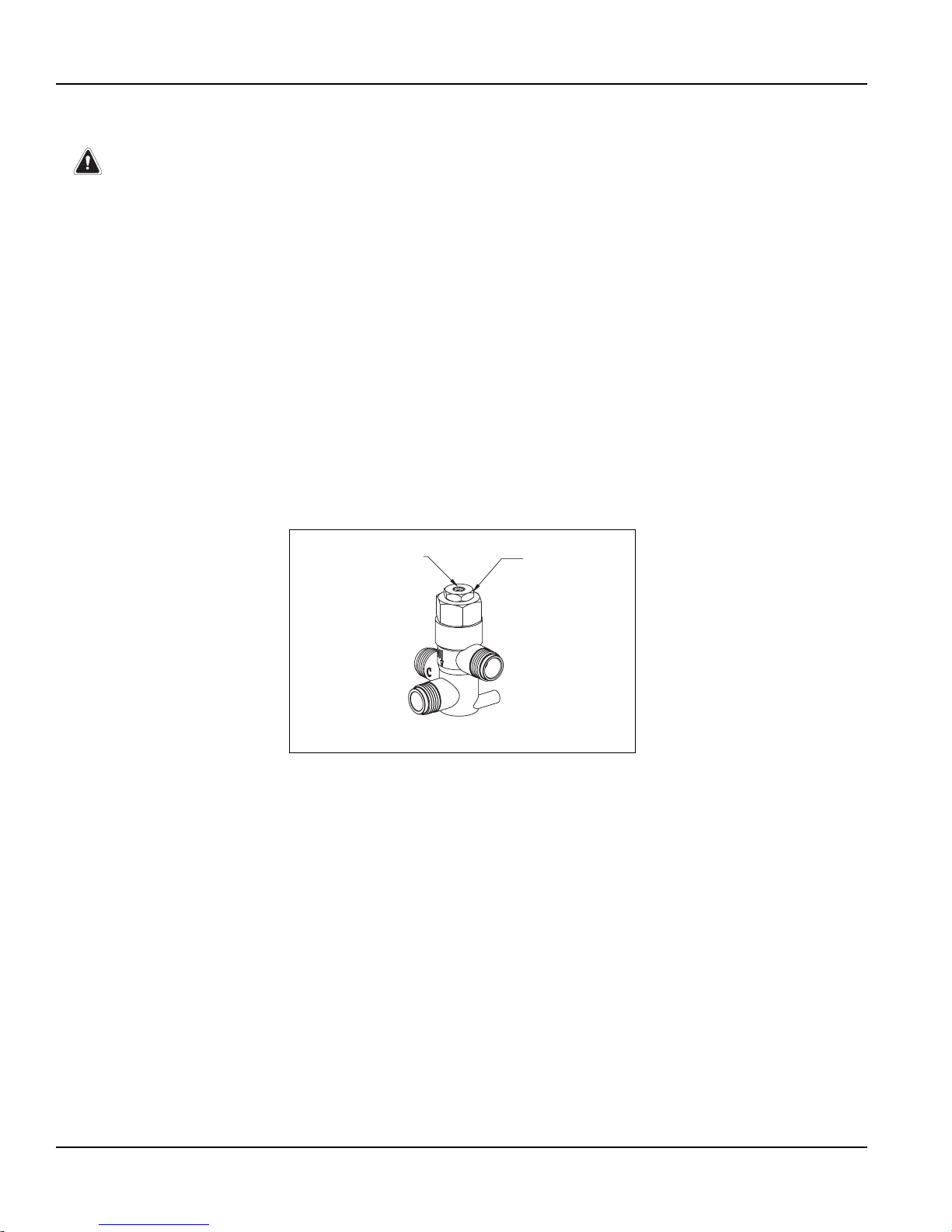

NOTE: The Vernatherm TMA valve is NOT factory preset. Upon installation, the temperature of
this valve must be checked and adjusted to ensure delivery of a safe water temperature. Water in
excess of 110°F (43°C) may cause scalding.
5. Check the temperature when approximately 1.0 GPM water flow is reached and adjust if neces-
sary (the range of the valve is 95°F–115°F (35°C–43°C). To adjust the temperature, follow the
procedure below:
• Loosen temperature locking nut with wrench.
• Using a blade screwdriver, turn the adjustment stem counterclockwise to increase the tempera-
ture or clockwise to decrease the temperature (Figure 13).
• Once desired temperature is reached, tighten nut to prevent temperature change.
6. Clean sprayhead if necessary. See page 24 for sprayhead maintenance and repair parts. Adjust the
volume control valve, if necessary, to control the flow of water.
7. Attach pedestal access panel with hardware provided.
8. Attach kick plate to pedestal base with hardware provided.
TEMPERATURE
ADJUSTMENT
STEM
TEMPERATURE
LOCKING
NUT
Figure 13

Terreon® 54" Semi-circular Washfountain with Cylindrical Air Valve
Installation Instructions TDB3104, WF3204
Bradley Corporation • 215-1470 Rev. H; EN 06-915 192/8/07
Cleaning/Maintenance Instructions for Terreon®
Material Description: Terreon® is a NAHB Certified densified solid surface material composed of polyester
resin and is resistant to chemicals, stains, burns and impact. Surface damage can be easily repaired with
everyday cleansers or fine grit abrasives.
Routine Cleaning: Clean daily or as often as conditions require using a standard commercial or household
cleaner such as Formula 409®or Windex®.
Stubborn Stains: Remove tough stains with Ajax®, Comet®, or Soft-Scrub®and a green Scotch-Brite®pad or
lightly sand in a circular motion with 240 grit wet/dry sandpaper. The finish can be renewed with a maroon
Scotch-Brite pad.
Special Situations for Material
Scratches: Remove scratches with a green Scotch-Brite®pad. The finish can then be renewed with a maroon
Scotch-Brite®pad.
Hard Water Deposits: Remove hard water deposits with a mild solution of vinegar and water. Always rinse
the unit thoroughly after cleaning.
Restoring the Surface: Use Hope's®Solid Surface cleaner and polish to refresh and protect the Terreon
Solid Surface material. Bradley recommends additional care and maintenance for the darker colored Terreon,
for complete instructions on this additional maintenance see Bradley document #1505.
IMPORTANT:
DO NOT USE STRONG ACID OR ALKALINE CHEMICALS AND CLEANSERS TO
CLEAN TERREON. IF THESES CHEMICALS COME IN CONTACT WITH THE TERREON SUR-
FACE WIPE THEM OFF IMMEDIATELY AND RINSE WITH SOAPY WATER. AVOID CONTACT
WITH HARSH CHEMICALS SUCH AS PAINT REMOVER, BLEACH, ACETONE, ETC. AVOID
CONTACT WITH HOT PANS AND OBJECTS.
Repair Kits: Terreon®repair kits are available. Contact your Bradley representative or distributor for part
numbers and pricing.
NOTE: Repair kits are made to order and have a shelf life of 30 days.
Brand Names: Use of brand names is intended only to indicate a type of cleaner. This does not constitute an
endorsement, nor does the omission of any brand name cleaner imply its inadequacy. Many products named
are regional in distribution, and can be found in local supermarkets, department and hardware stores, or
through your cleaning service. It is emphasized that all products should be used in strict accordance with
package instructions.
Cleaning/Maintenance Instructions for Gel-coated Fiberglass
Material Description: The Terreon®Washfountains referenced in this installation manual use a gel-coated
fiberglass pedestal.
Routine cleaning: The gel-coated pedestal should be cleaned daily or as often as needed with a mild solution
of detergent and water. Always use a soft cloth to avoid damage to the finish.
Repair Kits: There are no repair kits available for fiberglass materials. However, replacement parts are
available, contact your Bradley representative for pricing and part numbers.
IMPORTANT: DO NOT EXPOSE GEL-COATED FIBERGLASS TO SOLVENTS AS THEY
WILL DAMAGE THE MATERIAL AND MAY CREATE HARMFUL FUMES.
Brand Names: Use of brand names is intended only to indicate a type of cleaner. This does not constitute an
endorsement, nor does the omission of any brand name cleaner imply its inadequacy. Many products named are
regional in distribution, and can be found in local supermarkets, department and hardware stores, or through your
cleaning service. It is emphasized that all products should be used in strict accordance with package instructions.

Terreon® 54" Semi-circular Washfountain with Cylindrical Air Valve
TDB3104, WF3204 Installation Instructions
Bradley Corporation • 215-1470 Rev. H; EN 06-915
20 2/8/07
Cleaning and Maintenance Instructions for Stainless Steel
Material Description: Stainless steel is extremely durable, and maintenance is simple and inexpensive.
Proper care, particularly under corrosive conditions, is essential. Always start with the simplest solution and
work your way toward the more complicated.
Routine cleaning: Daily or as often as needed use a solution of warm water and soap, detergent, or ammonia.
Apply the cleaning solution per the manufactures instructions and always use a soft cloth or sponge to avoid
damaging the finish.
Stubborn Stains: To remove stains from stainless steel use a stainless steel cleaner and polish such as Ball®
stainless steel cleaner or a soft abrasive. Always follow the manufactures instructions and apply in the same
direction as the polish lines.
IMPORTANT: NEVER USE ORDINARY STEEL WOOL OR STEEL BRUSHES ON STAINLESS
STEEL. ALWAYS USE STAINLESS STEEL WOOL OR STAINLESS STEEL BRUSHES.
Special Situations for Material
Finger Prints and Smears: To remove fingerprints or smears use a high quality stainless steel cleaner and
polish in accordance with the manufactures instructions. Many of these products leave a protective coating
the helps prevent future smears and fingerprints.
Grease and Oil : To remove grease and oil use a quality commercial detergent or caustic cleaner. Apply in
accordance to the manufactures instructions and in the direction of the polish lines.
Precautions: Avoid prolonged contact with chlorides (bleaches, salts), bromides (sanitizing agents), thio-
cyanates (pesticides, photography chemicals, and some foods), and iodides on stainless steel equipment,
especially if acid conditions exist.
IMPORTANT: DO NOT PERMIT SALTY SOLUTIONS TO EVAPORATE AND DRY ON
STAINLESS STEEL.
The appearance of rust streaks on stainless steel leads to the belief that the stainless steel is rusting. Look for the
actual source of the rust in some iron or steel particles which may be touching, but not actually a part of the
stainless steel structure.
NOTE: Strongly acidic or caustic cleaners may attack the steel causing a reddish film to appear. The use of
these cleaners should be avoided.
Brand Names: Use of brand names is intended only to indicate a type of cleaner. This does not constitute an
endorsement, nor does the omission of any brand name cleaner imply its inadequacy. Many products named are
regional in distribution, and can be found in local supermarkets, department and hardware stores, or through your
cleaning service. It is emphasized that all products should be used in strict accordance with package instructions.
