Bradley Verge WashBar LVQ Series User manual

Installation
P.O. Box 309
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
[phone]
bradleycorp.com
215-1844 Rev. C; ECN 17-08-017
© 2017 Bradley
Page 1 of 25 8/24/2017
LVQD3
Verge®Lavatory System – LVQ-Series
with WashBar™Technology
Table of Contents
Pre-Installation Information................................................2
Supplies Required .............................................................2
Components ...................................................................3-4
Dimensions.....................................................................5-6
Structural Rough-Ins..........................................................7
Plumbing and Electrical Rough-Ins ...................................8
Bracket Mounting...............................................................9
Drain Assembly .................................................................9
WashBar Installation........................................................10
Aerator Installation...........................................................10
Attach Soap Motor and Soap Container Bracket ............11
Bowl Mounting with WashBar..........................................12
Install P-Trap....................................................................12
Strainer and Drain Cap....................................................12
Dryer Motor Assembly.....................................................13
Attach Power Line Filter ..................................................14
Control Box and Valve Installation...................................15
Soap Installation..............................................................16
Electrical Connections .....................................................17
Adjust Temperature with Water Running .........................17
Access Panel...................................................................18
Master Control Box.....................................................19-23
Cleaning and Maintenance.........................................24-25

LVQD3 Installation
28/24/2017 Bradley • 215-1844 Rev. C; ECN 17-08-017
WARNING
Make sure that all water supply lines have been flushed and then completely turned off before beginning
installation. Debris in supply lines can cause valves to malfunction.
Turn OFF electrical power to the electrical outlets, then unplug all electrical units prior to installation. Electrical
power MUST remain off until installation is complete.
Installer's hardware must be appropriate for wall construction. Wall anchors must have a minimum pull-out
rating of 1,000 pounds.
IMPORTANT
Read this entire installation manual to ensure proper installation. When finished with the installation, file this
manual with the owner or maintenance department. Compliance and conformity to local codes and ordinances
is the responsibility of the installer. Product warranties may be found under “Products” on our Web site at
www.bradleycorp.com.
Separate parts from packaging and make sure all parts are accounted for before discarding any packaging
material. If any parts are missing, do not begin installation until you obtain the missing parts.
For standard height mounting, do not exceed the recommended 33.5" distance from the fixture rim to the
finished floor.
Supplies Required
• (6) 3/8" fasteners and wall anchors for bowl and wall bracket (minimum pull-out rating of 1,000 lbs.)
• (4) #10 fasteners and wall anchors for soap tank brackets (minimum pull-out rating of 100 lbs.)
• (4) #10 fasteners and wall anchors for access panel brackets (minimum pull-out rating of 100 lbs.)
• 1/2" hot/cold or tempered stub-out
• 1½" NPT drain stub-out(s)
• (3) 110 volt GFCI protected electrical outlet (installed per local code)
• (2) Grounding Wires
• Drill
• Basin Wrench
• Tape Measure
• Phillips Screw Driver
• Flat Head Screw Driver
• Level
• 5/16" nut driver
• 5/16" socket (with or without extension)

Installation LVQD3
Bradley • 215-1844 Rev. C; ECN 17-08-017 8/24/2017 3

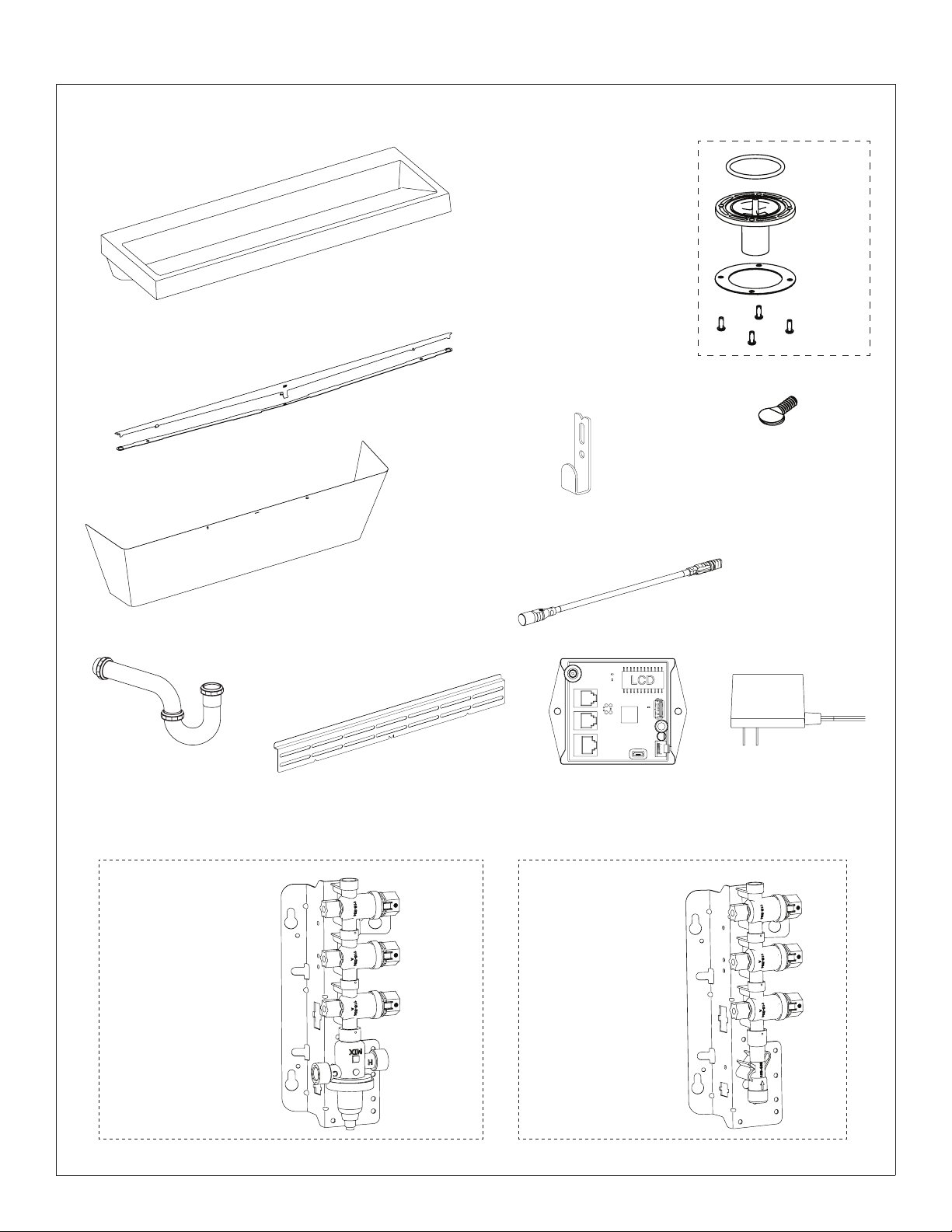

Components
Chrome P-trap (S29-094)
Plastic P-trap (269-1697)
DC Lead Free Valve
Assembly, Single TMA
(S08-2403TMA)
DC Lead Free Valve
Assembly, Single TL
(S08-2403TL)
DC Power
Adapter (3x)
(261-147)
Wall Bracket
(140-1153)
Master Control
Box (3x)
(S39-845)
LVQD3BO
Contact your Bradley Representative for
color options
Access Panel
(186-1913)
Drain Cap Kit with
Spacers (S65-478) Strainer Kit with Screw
(S65-475)
O-Ring
(125-111)
Drain
Adapter
Packing
Washer
#10-24
Screw
Drain
Adapter
Prepack
(S45-2480)
Cable, 1000MM
(251-023)
Access Panel Bracket
(140-1172)
#10 Access Panel
Thumb Screw
(160-536)
Access Panel Security
Screw Option
(S45-2880)
Hose/90 Stop Lead Free TMA
(S45-2730)
Hose/90 Stop Lead Free TL
(S45-2731)

LVQD3 Installation
48/24/2017 Bradley • 215-1844 Rev. C; ECN 17-08-017
Components
Control Box Assembly with
Liquid Pump (S52-166)
Control Box Assembly with
Foam Pump (S52-167)
Gallon Jug
(Supplied by Others)
Soap Tank Bracket
(140-1171)
Hose Clamps - 2-1/2" Dia
(269-678)
Flexible PVC
(269-2561A)
Dryer Motor
(S39-844)
Dryer Vibration Pad
4" x 10"
(124-105)
(Not Shown)
Hook and Loop Strap
(269-2574)
Hook and Loop Strap
(not shown)
(269-2574)
Liquid Pump with External
Rubber Sleeve Connection
(269-2518)
Foam Pump with Internal
Press Fit Connection
(269-2519)

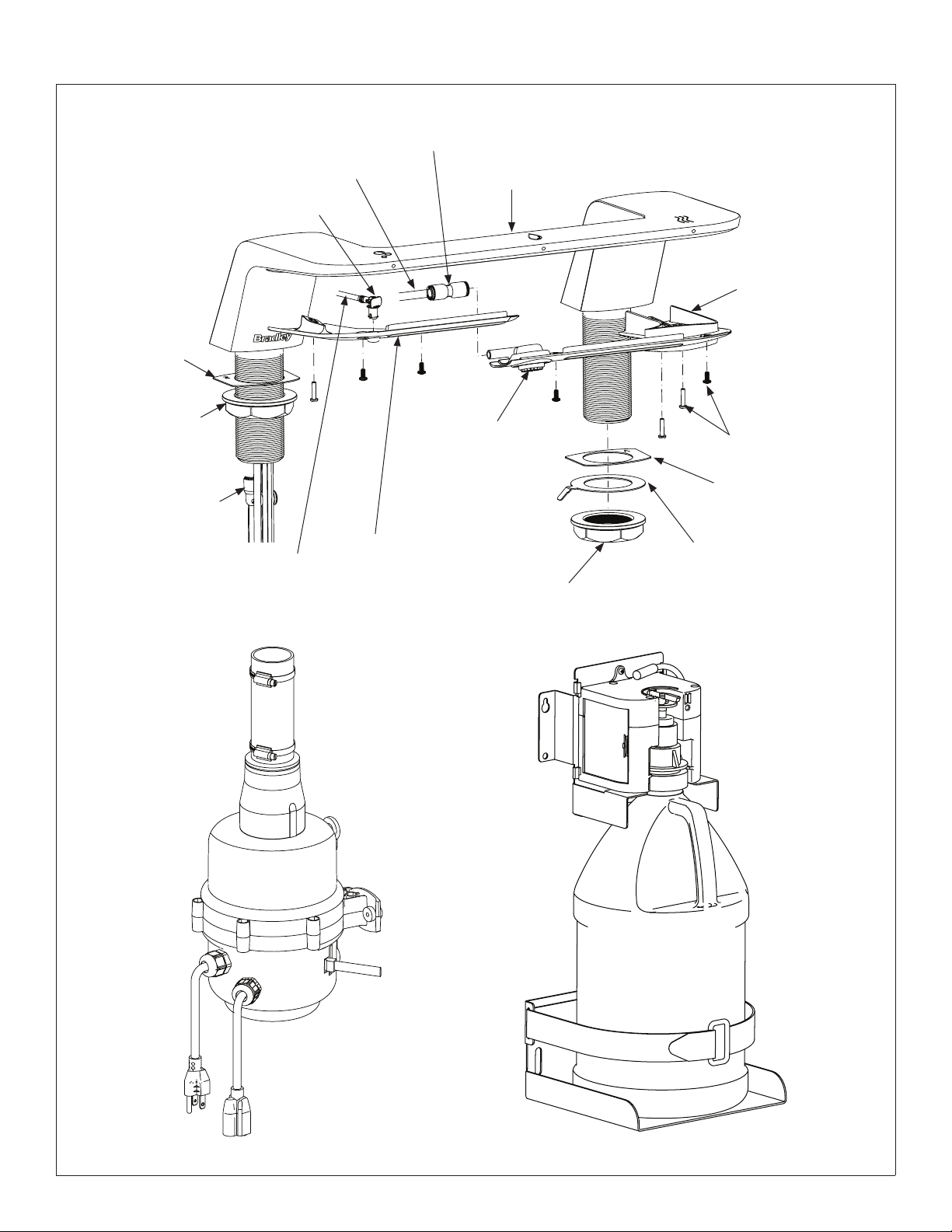

Casting ASM. WashBar,
Chrome w/ LED
(S05-214F01)
Union Tube, 1/4" OD
(269-624)
1/4" x 60 Tubing (269-547C)
For Service - 1' Increments (R68-600011)
Elbow, 1/4 x 3.4mm
Hose Barb (145-221)
Gasket WashBar
Deck, Soap Side
(124-101)
Soap Tube
5.5mm OD x 55cm long
(269-2522)
Access Plate Soap
Assembly Kit (S65-479)
Aerator .50 GPM (S05-175)
Aerator .35 GPM (S05-215)
(Aerators are shipped loose
in bag with red service key)
Nut, WashBar, 1-3/8-18
(110-256)
Washer Ground .25"
QC (230-035)
Gasket, WashBar Deck,
Air Side (124-102)
Access Plate Hardware
Kit (S65-481)
Access Plate Air Water
Assembly Kit (S65-480)
Union Elbow
(269-2531)
Nut, WashBar,
1-3/8-18
(110-256)

Installation LVQD3
Bradley • 215-1844 Rev. C; ECN 17-08-017 8/24/2017 5

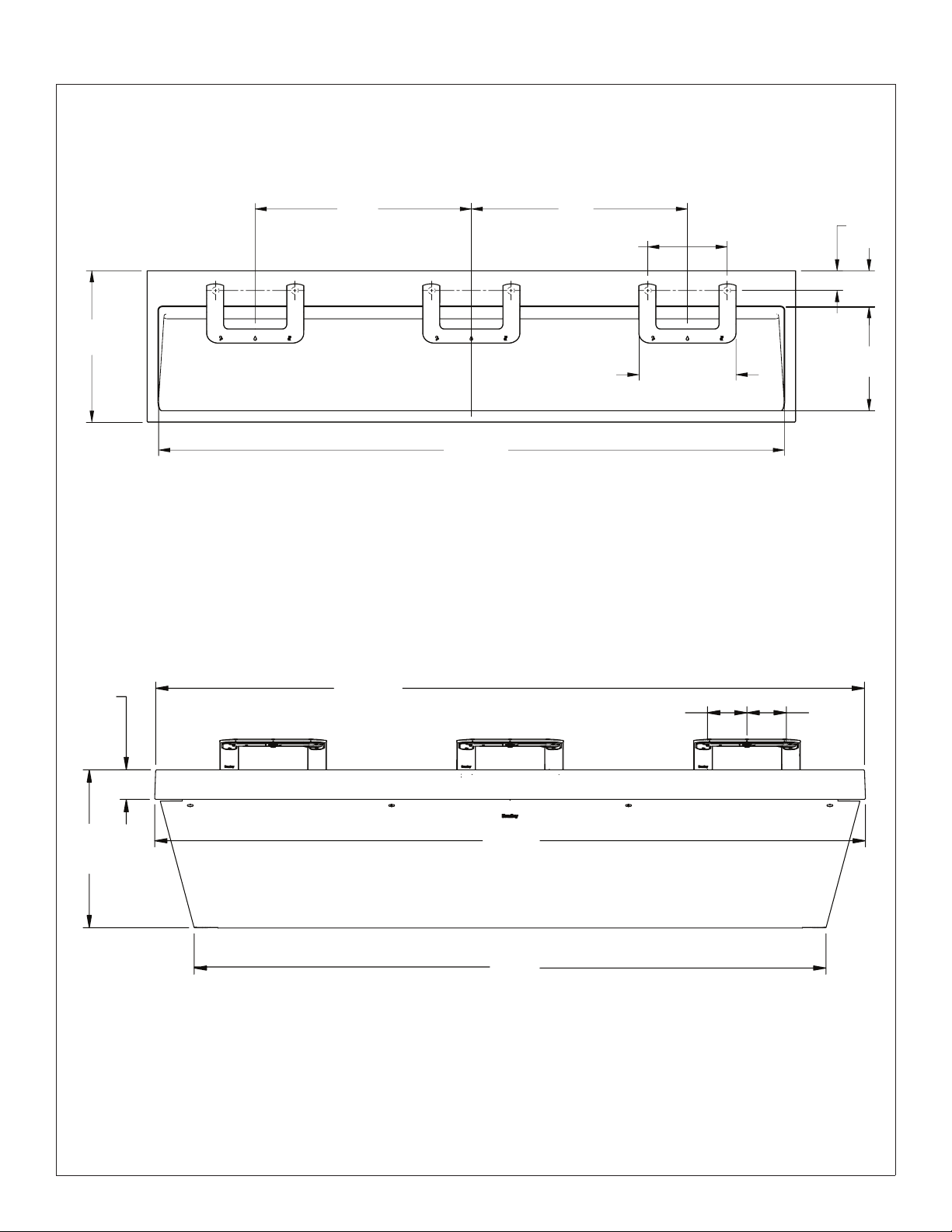

Dimensions
Top View
Front View
(mm)
86-3/4"
(2206)
21"
(533) 14-3/8"
(366)
13-1/2" (343)
5" (127)
30"
(762)
30"
(762) 2-3/4"
(70)
11" (279)
80"
(2032)
89-3/4"
(2280)
20"
(508)
5"
(127)
5"
(127)
90"
(2286)
3-3/4"
(95)

LVQD3 Installation
68/24/2017 Bradley • 215-1844 Rev. C; ECN 17-08-017

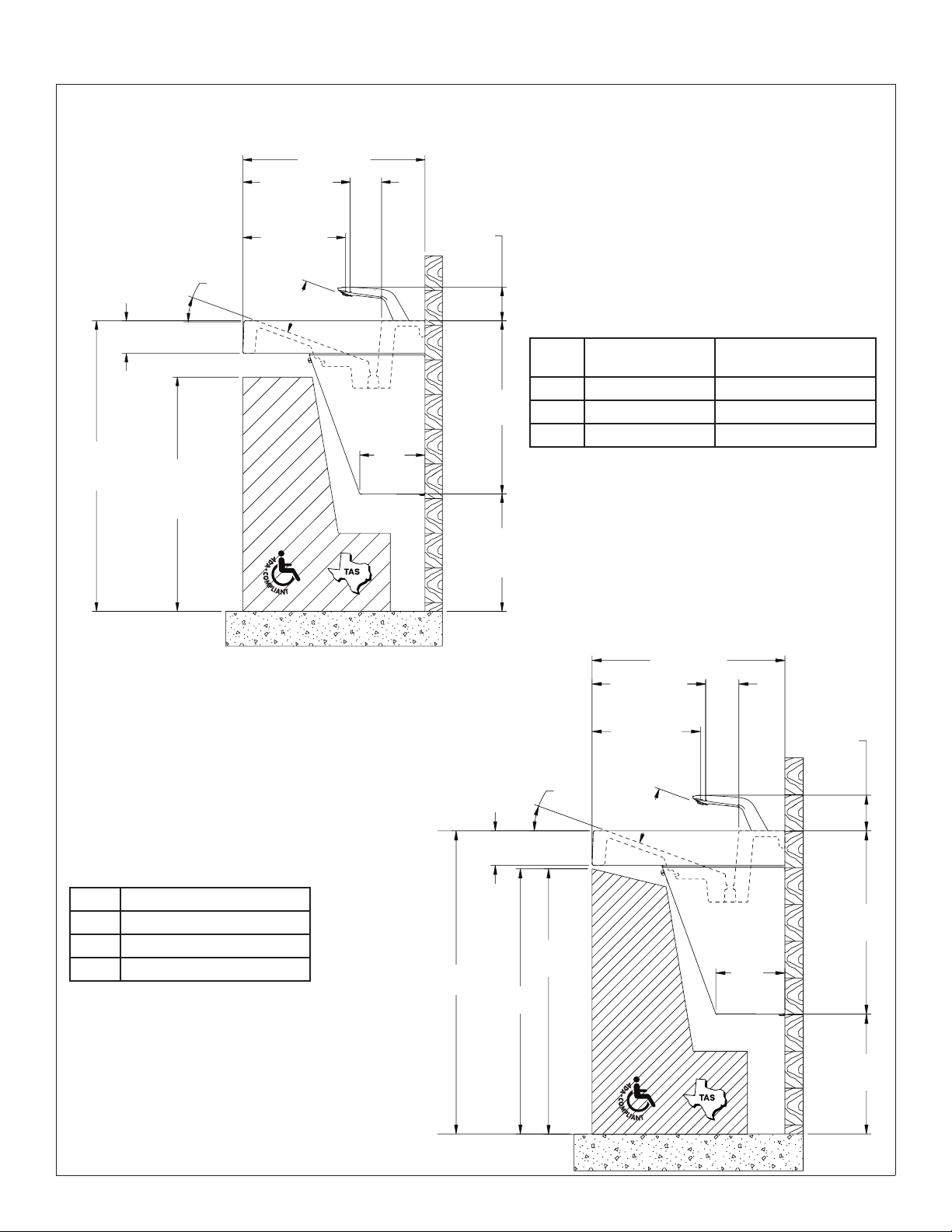

Dimensions – Side View
A
B
12-3/8"
(314)
Dryer
11-3/4"
(299)
Faucet
C
3-5/8"
(92)
21" (534)
ADA/TAS Standard
Height
ADA/TAS Juvenile Height
(Children 6-12 years)
Dim A 33-1/2" (851mm) 30-1/2" (775mm)
Dim B 27" (686mm) 24" (610mm)
Dim C 13-1/2" (343mm) 10-1/2" (267mm)
20"
(507)
7-1/2"
(189)
3-3/4"
(95)
6-1/2"
(165)
20°
3-7/8"
(99)
A
B
12-3/8"
(314)
Dryer
11-3/4"
(299)
Faucet
C
3-5/8"
(92)
21" (534)
20"
(507)
7-1/2"
(189)
3-3/4"
(95)
6-1/2"
(165)
20°
3-7/8"
(99)
28-15/16"
(735)
CSA Standard Height
Dim A 33-1/2" (851mm)
Dim B 29-29/32" (760mm)
Dim C 13-1/2" (536mm)
(mm)

Installation LVQD3
Bradley • 215-1844 Rev. C; ECN 17-08-017 8/24/2017 7
Mounting for Standard, ADA and TAS height shown.

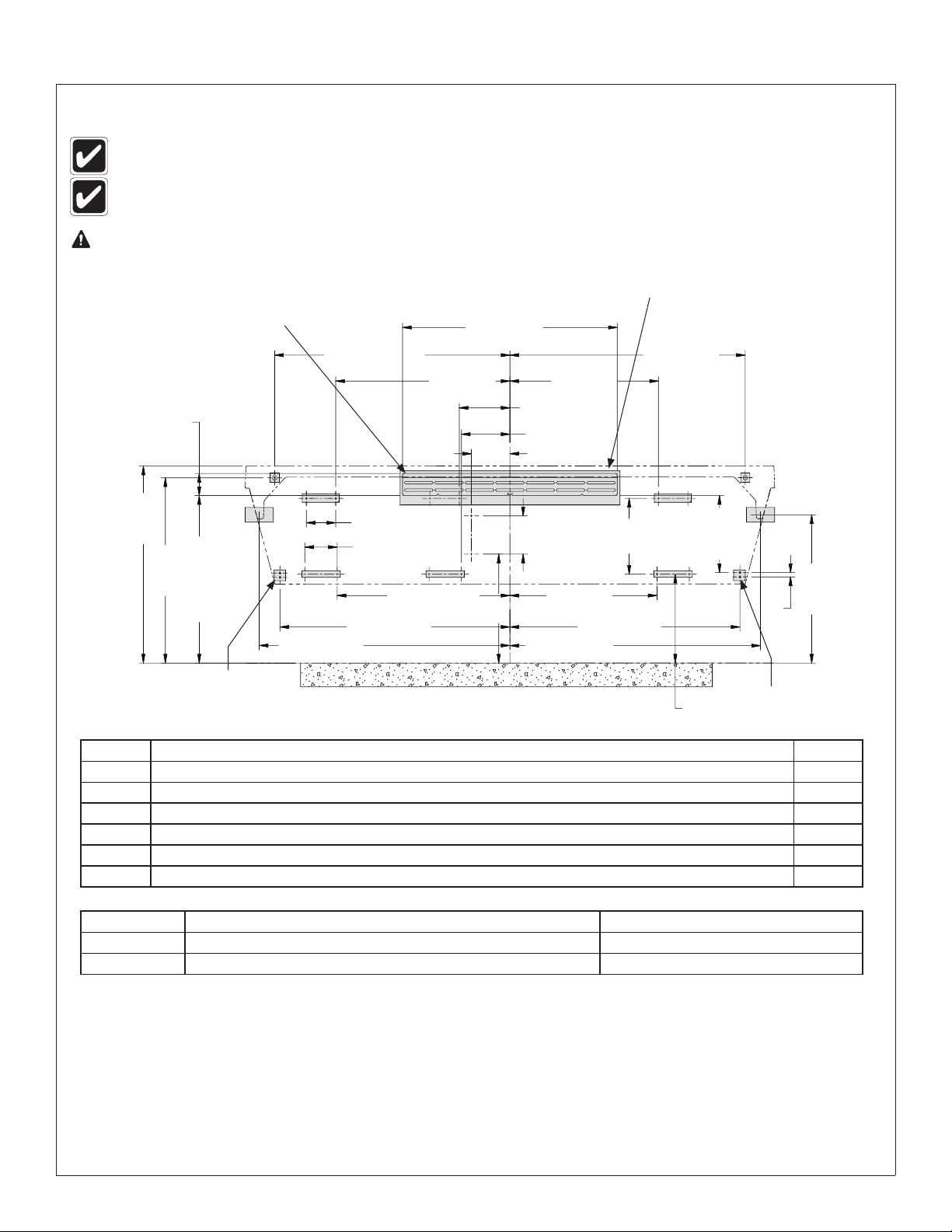

Structural Rough-Ins
Points A, B and C require sufficient backing
compliant with local building codes.
WARNING Ensure bowl is completely seated in
the wall bracket and securely fastened
to the wall at point A.
(mm)
31-1/2"
(800)
A
A
B
B
C
L
28-1/2"
(723)
Bottom of
Bracket
CODE DESCRIPTION QTY.
A Install (1) 3/8" wall anchor with a minimum pull-out force of 1,000 lbs. per local codes at locations shown 2
B Provide structural backing compliant with local building codes. 2
C Install wall anchor with a minimum pull-out force of 100 lbs. per local codes at locations shown 2
D #10 Wall Anchors for Valve Bracket 2
S #10 Wall Anchors for Soap Control Box Bracket 2
S1 #10 Wall Anchors for Soap Tank Bracket (100 lb pull out) 2
Wall Bracket
RIM HEIGHT VERTICAL HEIGHT ADJUSTMENTS FIXTURE STYLE
33½" No Adjustment Standard Height, ADA, TAS and CSA
30½" Subtract 3" Juvenile, ADA and TAS
C
C
25-1/4"
(640)
33-1/2"
(851)
39-1/8" (993)
13-1/8"
(333)
42-5/8" (1082) 42-5/8" (1082)
39-1/8" (993)
3/4"
(19)
36-1/2" (927)
40" (1016) 40" (1016)
3-3/4"
(96)
Secure bracket to wall using min.
(2) ³⁄₈" anchor bolts to the left of
C/L and min. (2) ³⁄₈" anchor bolts
to the right of C/L. The (2) anchor
bolts to the right of C/L must be
min. 16" apart from the anchor bolts
to the left of C/L. When mounting
is complete, check to ensure the
bracket is level. See Step 1: Bracket
Mounting for more information.
S S S S
S1 S1
S1 S1
S1 S1
29-3/8" (746) 25" (635)
29-5/8"
(752)
25-1/4"
(641)
SS
5" (127)
(3x)
5-1/2"
(140) (3x)
6-1/2"
(165)
8-5/8" (219)
13"
(330)
Access
Panel
Bracket
Access
Panel
Bracket
8-1/4" (210)
6-1/2"
(165)
D
D
18-1/2"
(470)
15-1/8"
(384)

LVQD3 Installation
88/24/2017 Bradley • 215-1844 Rev. C; ECN 17-08-017
Plumbing and Electrical Rough-Ins
Mounting for Standard, ADA and TAS height shown. (mm)
33½"
(851)
Rim
Height
18"
(457)
A
E
EE
HC
40"
(1016)
CODE DESCRIPTION QTY.
A 1½" NPT Drain, Stub-out 2" from wall 1
H,C ½" Nominal (⁵⁄₈" O.D. Comp.) Hot/Cold supplies, Stub-out 2" from wall 1
E 110V GFI protected electrical outlet (15 amp circuit breaker) 3
12"
(305)
15-1/8"
(384)
16-3/4"
(425)
2-3/4"
(70)
23-3/4"
(603)
Finished
Floor
Tempered
Supply

Installation LVQD3
Bradley • 215-1844 Rev. C; ECN 17-08-017 8/24/2017 9
Bracket Mounting
Typical installation is shown. It may be necessary to repair the wall
after mounting. The fixture may not cover all of the wall modifications.
1
Install wall bracket to wall
per structural rough-in
dimensions. Check to
ensure the bracket is
level. Example anchor
locations shown.
A
Mounting height per structural rough-in dimensions.

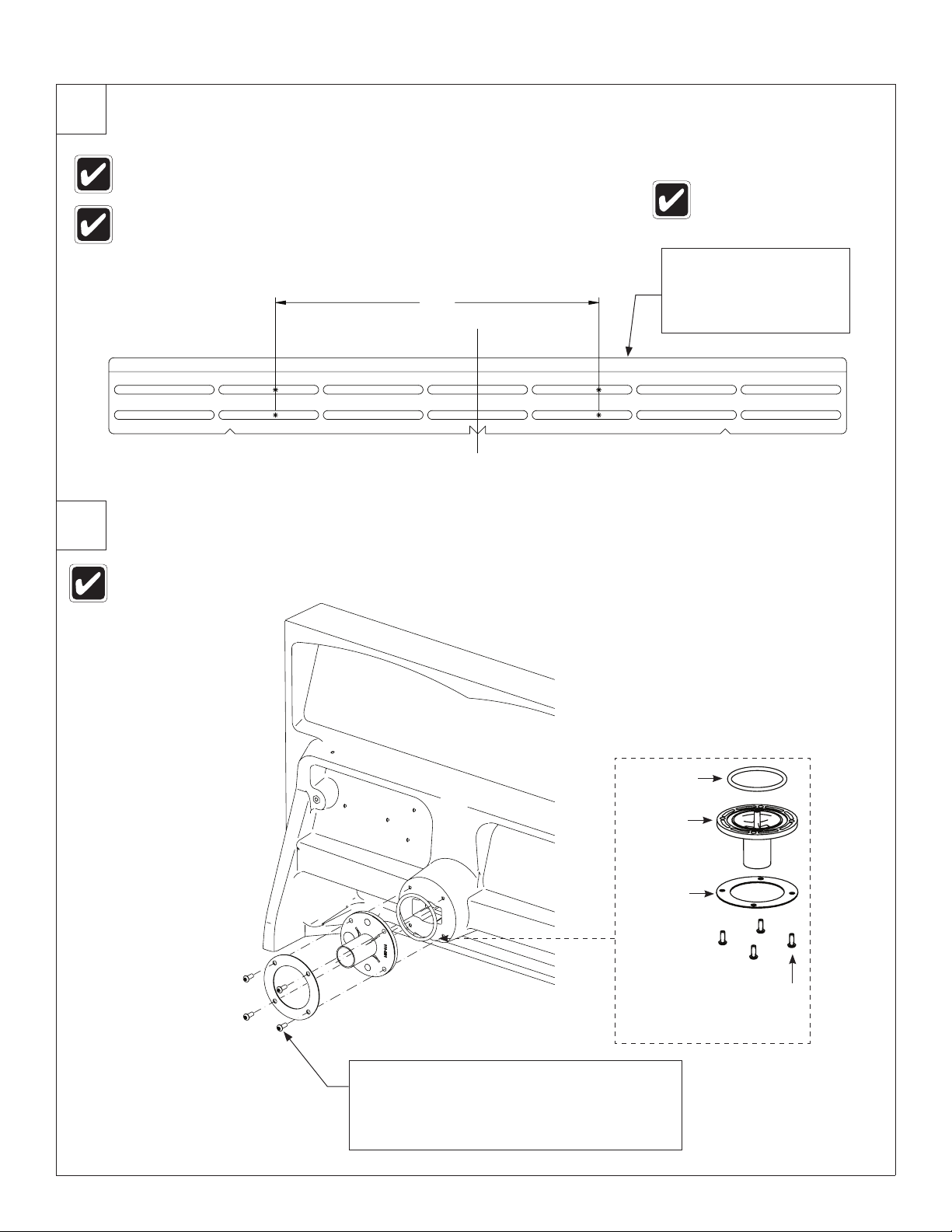

2Drain Assembly
16"
(406mm)
min.
C
L
For ease of drain installation, lay the bowl on its back.
O-Ring
Drain
Adapter
Packing
Washer
#10-24
Screw
Assemble the remaining components as
shown and thread the four screws through
the drain adapter and into the basin inserts.
Ensure the screws compress the drain adapter
evenly onto the basin. Do not overtighten.
A
Access Panel brackets can
be installed at this time, if
preferred. See Step 14.

LVQD3 Installation
10 8/24/2017 Bradley • 215-1844 Rev. C; ECN 17-08-017

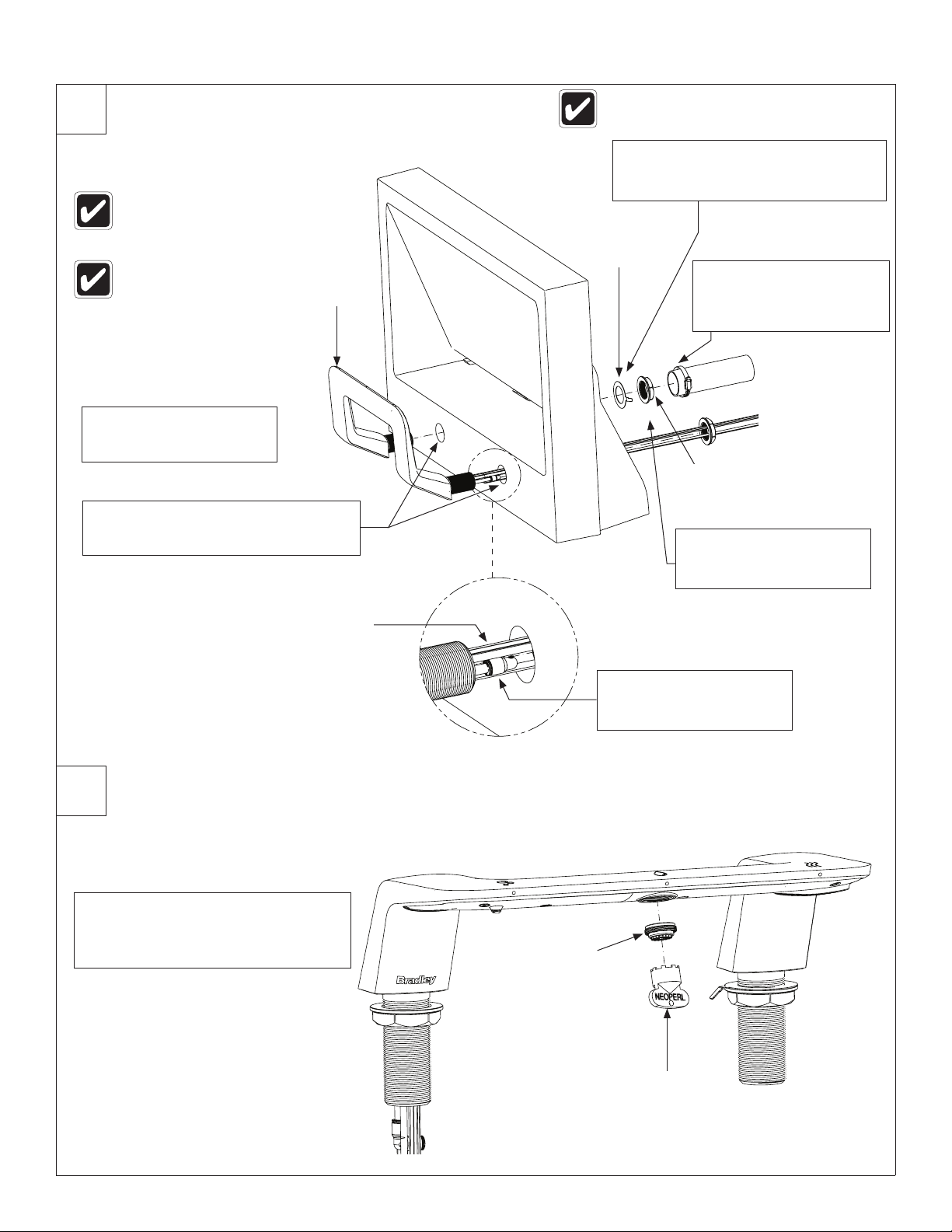

WashBar Installation
3Single station shown; 3 station similar.
Aerator Installation
4
Red Service Key
Aerator
(0.35 gpm or
0.5 gpm)
Carefully thread the aerator into
the WashBar casting using the red
service key provided. Ensure no
leaks after installation.
A
Assemble WashBar through basin
WashBar holes. Run cables and
tubes on left side only.
BSecure from underside
with nuts and grounding
washer (right side only).
D
WashBar
Grounding Washer,
.25 QC
Nut, WashBar,
1-3/8-18
Connect grounding wire (supplied by
installer) to grounding washer and
ground per local building code.
C
Position bowl on the
floor, upright, as shown.
A
Soap Tube (Clear), 1/4" Water
Tube, LED Cable (Gray), Soap
Sensor Cable (Shorter Cable) and
Air/Water Cable (Longer Cable)
WashBar comes pre-assembled,
with the exception of the aerator.
Attach flexible PVC dryer
tube to shank using hose
clamp. Tighten to 30-35
ft. lbs using 5/16" socket.
E
Attach the 1/4" supply
tube to the 1/4" union
elbow.
F
When attaching flexible
PVC dryer tube, be
sure tube is touching
the WashBar nut when
complete.

Installation LVQD3
Bradley • 215-1844 Rev. C; ECN 17-08-017 8/24/2017 11
Attach Soap Motor and Soap Container Bracket
5
Attach soap motor control box and
soap container bracket to wall using
#10 fasteners at locations shown in
Structural Rough-In drawing.
A
Install the soap pump onto gallon
container opening (supplied by others).
B
The liquid soap pump has a rubber
sleeve that fits over the soap
container opening. The foam soap
pump has an interior white cylinder
that fits into the soap container.
This fit up may be tight. Move the
soap pump laterally while applying
pressure to seat into soap container
opening.
Soap Motor
Control Box
Soap
Container
Bracket
Soap Supply
Tube
To check soap fitup, slide gallon jug
with soap pump into soap motor
control box. Ensure soap pump flange
is positioned below motor control box
lever and soap control box flange
is positioned in soap pump groove.
Gallon jug should rest on soap
container bracket without soap pump
pulling off of container.
C
Soap Pump
Flange
Motor Control
Box Lever
Once fitup is correct, remove soap
container with pump attached and set
aside. Soap container will be installed
in a later step.
D
Liquid soap pump
shown. Foam soap
pump similar.
15-1/2"
(394)
13"
(330)
6-5/8"
(168)
12"
(305)
Soap Control
Box Flange
Soap Pump
Groove

LVQD3 Installation
12 8/24/2017 Bradley • 215-1844 Rev. C; ECN 17-08-017
6
Position bowl above wall bracket.
Press firmly on the back of the bowl
to seat the bowl flange into the wall
bracket lip. Ensure bowl is level.
A
Secure the bowl to the wall
anchors using fasteners
per the structural rough-in
requirement (supplied by
installer).
B
WARNING Ensure bowl is completely
seated in the wall bracket
and securely fastened to
the wall at point A.
CAUTION Bracket is not
intended to support
the weight of bowl
for an extended
period of time. Be
sure to secure the
bowl to the wall
using appropriate
fasteners.
Bowl Mounting with WashBar (to Bracket and Wall)
1 station shown, 3 station similar.
Positioning bowl onto bracket
may require 3 people.
Strainer and Drain Cap
8
Position drain cap over trough strainer,
aligning tabs into drain. Push drain
cap down until drain cap is flush with
basin. Grommets should hold drain cap
securely against drain trough walls.
A
To remove drain cap, carefully slip flat
screwdriver into left or right hand corner
of drain cap and gently lift upwards.
B
WashBar removed for clarity.
Front
Note Angle of
Drain Cap
Drain cap is labeled front and back.
Be sure front is facing the user. Top
surface of drain cap should be sloped
away from user.
Install P-Trap
7
Drain Adapter
P-Trap

Installation LVQD3
Bradley • 215-1844 Rev. C; ECN 17-08-017 8/24/2017 13
Dryer Motor Assembly
9
Slide the hose clamp onto
the flexible PVC dryer tube
and begin to tighten clamp
so that it does not fall off.
A
Dryer Outlet Nozzle
Dryer Motor
Foam Bumper
Dryer Motor Feet
Power Cord to GFCI Outlet
Dryer Motor, 120V/60Hz
Power Cord to DC Adapter Only
After assembly, dryer
motor should hang freely.
Secure dryer motor foam
bumper to finished wall,
in-line with the dryer motor
feet.
E
Bundle loose cords to
motor using hook and loop
cable tie.
F
Flexible Hose
Hose Clamp
Front View of Motor
CAUTION If dryer motor is not secured properly
to flexible PVC dryer tube, motor may
come lose and detach from tube.
While holding the motor
from the bottom with one
hand, insert dryer outlet
nozzle into the flexible
PVC dryer tube.
B
Tighten hose clamp using
the 5/16" socket wrench.
Tighten clamp to 30-35
in/lbs.
C
Check to be sure motor
is securely attached to
flexible PVC dryer tube
by gently pulling down on
motor. Motor should stay
attached to tube.
D
1 station shown, 3 station similar.
Discard water detector
wire (shipped loose) and
RJ45 connector cable
from motor and discard.
G
Water Detector
Wire
RJ45 Connector Cable
(unplug and discard)

LVQD3 Installation
14 8/24/2017 Bradley • 215-1844 Rev. C; ECN 17-08-017
Attach Power Line Filter
10
Secure dryer power line
filter to underside of bowl
using (2) #10 x 1" screws
provided.
A

Installation LVQD3
Bradley • 215-1844 Rev. C; ECN 17-08-017 8/24/2017 15
Control Box and Valve Installation
11
Secure control box to
underside of bowl using
(2) #10 x 1/2" long screws
provided.
A
Secure cable duct to bowl
at location shown with (2)
#10 screws provided, one
per WashBar. Run loose
wire and cables through
the cable duct ( places).
B
For thermostatic mixing valve
installation, secure 1/2" supply hose
to hot water supply valve inlet. Secure
the other supply hose from cold water
supply to cold water supply valve inlet.
Secure valve to wall using (2) #10
fasteners (provided by installer).
For tempered line installation, secure
1/2" supply hose to tempered water
supply and TL valve inlet (not shown).
Secure valve to wall using (2) #10
fasteners (provided by installer).
D
Cold Supply/
Stop Valve
Hot Supply/Stop Valve
Cable Extension for RH
WashBar Connects Here
Cable Duct
(255-058)
Attach 1/4" supply tube from
the LH WashBar to the 1/4"
supply valve outlet. Loosen the
compression nut on the valve
body. Push the 1/4" supply tube
firmly into the tube connector
until it is fully seated. Tighten
the compression nut by hand.
Repeat this step for Center and
RH WashBar supply tube.
C
No Cable Extension Needed
for Center WashBar
Cable Extension for LH
WashBar Connects Here
1/4" Supply Tube
for RH WashBar
1/4" Supply
Tube for Center
WashBar
1/4" Supply
Tube for LH
WashBar
Remove 3/8" compression nut/sleeve from the
hot and cold supply stop valves. Connect 3/8"
end of flexible supply hose to 3/8" compression
on supply stop valve. Ensure hot and cold supply
hoses are connected to hot and cold supply stop
valve. For TL option, only connect cold supply.
E
3/8" Compression Nut

LVQD3 Installation
16 8/24/2017 Bradley • 215-1844 Rev. C; ECN 17-08-017
Soap Installation
12 The soap system is designed to be used with a standard
U.S. gallon soap container. For accurate low soap
indication, user needs to set soap type (see configuration
mode at the end of this manual on how to set soap type.
Attach soap supply tube from the
WashBar to the top of the soap pump.
A
To manually prime the soap, press
down on the control box lever arm 6
to 8 times.
G
Use the hook and loop cable tie
provided to secure container to soap
bracket. Feed end of cable tie (smooth
side facing you) through the right side
slot of bracket flange at top. Feed
through left side flange slot and wrap
around jug. Secure with hook and loop
end.
D
Ensure that the soap tube is not
kinked. Position hand above soap
motor control box and adjust tube if
needed.
F
Slide gallon jug with soap pump into
soap motor control box. Ensure soap
pump flange is positioned below motor
control box lever. Gallon jug should rest
on soap container bracket without soap
pump pulling off of container.
C
Attach soap pump with supply tubes
attached into gallon jug.
B
For ease of soap container
removal, pull tank while rotating
bottom of tank out.
Ensure Soap Pump
Flange is Positioned
Below Control Box Lever
Attach Soap Supply Tube Here
Top Flange
Cable Tie Slot
Soap Container
Bracket
Cable Tie Hook
and Loop Strap
Soap Pump
Soap cycle count defaults to liquid soap configuration. If
you have the foam soap option, please see Setting the
Soap Type under Configuration Mode towards the end of
this manual.

Installation LVQD3
Bradley • 215-1844 Rev. C; ECN 17-08-017 8/24/2017 17
Adjust Temperature with Water Running
H
C
ALoosen Cap Screw about 1/4" (4-6
turns) and lift up cover (do not
remove).
BUsing cover, turn cartridge gently until
desired water temperature is reached.
Do not turn past stops as this may
damage unit. Push cover down and
tighten screw.
WARNING This valve is NOT factory
preset. Upon installation,
the temperature of this
valve must be checked and
adjusted to ensure delivery
of a safe water temperature.
Water in excess of 110°F
(43°C) may cause scalding.
14

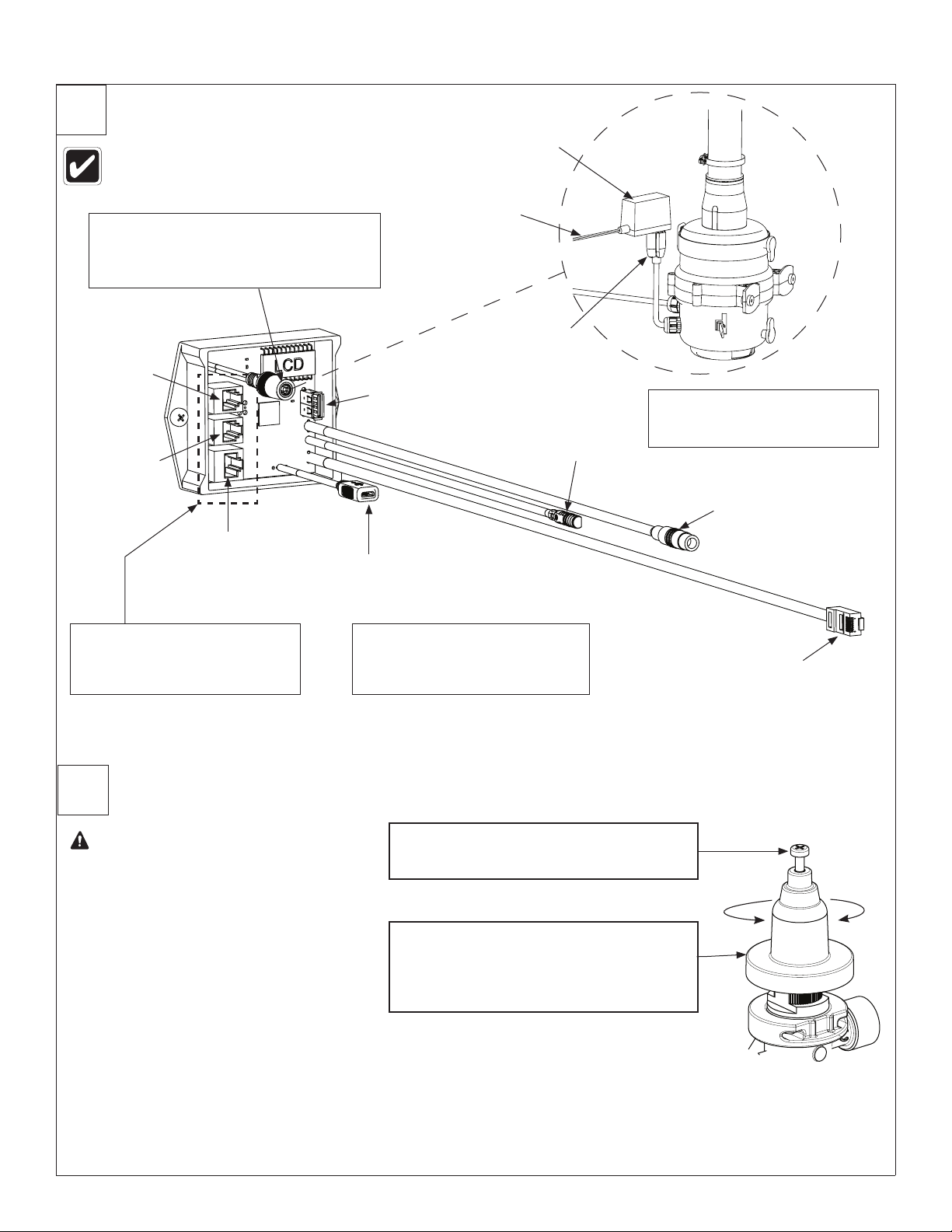

Electrical Connections
13
Air/Water Sensor
Board Connector
(Red) - From
WashBar (Shorter
of 2 Sensor
Cables - Red)
Soap Sensor
Board Connector
- From WashBar
(Longer of 2
Sensor Cables)
LED Board
Connector - From
WashBar
(Gray Cable)
Not Used
Connector Plug to DC Valve
Plug, Center Station Only.
Connector Plug to Cable
Extension, other end of cable
to DC Valve Plug (LH and RH
WashBars) Female Barrel
Plug to Soap
Motor Control Box
Male Barrel Plug
Connector Plug to
Dryer Motor
(Gray Cable)
Make (3) connections from
the WashBar assembly as
shown (Air/Water Sensor,
Soap Sensor and LED)
A
Make barrel plug and
connector plug connections
as shown.
C
USB for Software
Upgrades
Each WashBar requires the same connections.
After all connections are made,
reference Master Control Box:
System Startup section later in
this manual.
D
Connect DC power adapter male barrel
plug into master control female barrel
plug. Plug the DC power adapter into
the blower power cord.
B
This End to
Master Control
Box Female Barrel
Plug
DC Power
Adapter
Dryer
Power Cord

LVQD3 Installation
18 8/24/2017 Bradley • 215-1844 Rev. C; ECN 17-08-017

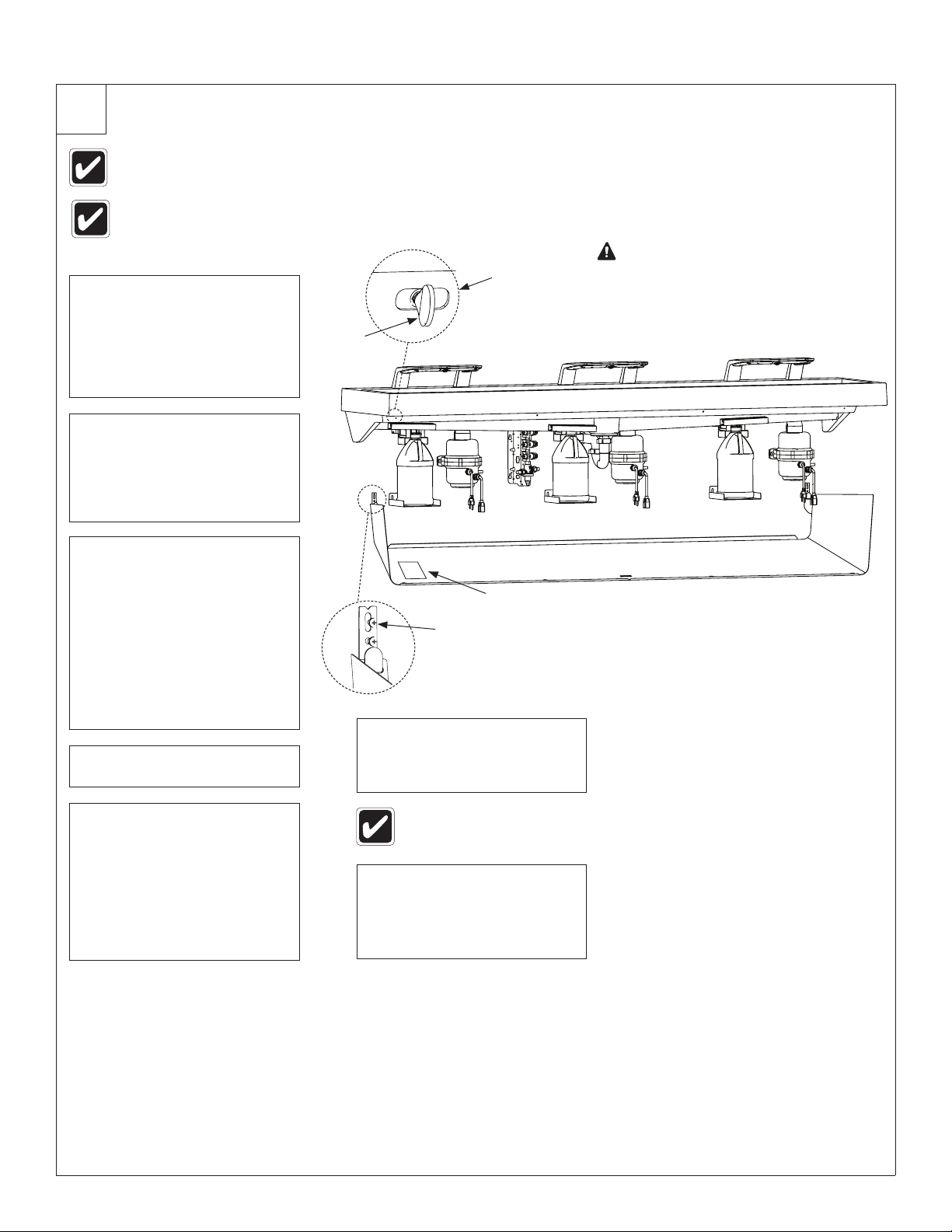

Install access panel brackets
to wall using #10 fasteners
(supplied by installer) as
shown in rough in drawing.
Install top screw into slot. Do
not install bottom screw until
Step C is complete.
A
Make all connections before installing access panel.
Access Panel
15
#10 Top
Screw
Shown in closed
position. Rotate
90° to Open
Insert #10 thumbscrews
into front bowl apron as
shown. Thumbscrew in
vertical position is closed.
Thumbscrew in horizontal
position is open.
B
Hang access panel onto
mounting brackets attached
to the wall on the left and
right sides. Rotate panel up
and check fitup between
thumbscrews and panel slots.
Rotate access panel down
and make adjustment to
brackets if necessary. Install
bottom #10 fastener into
brackets.
C
Rotate access panel up
and secure by rotating
thumbscrews to the closed
position.
F
To open access panel, rotate
thumb screw, slightly push
panel up and swing access
panel down. Do not remove
thumbscrews.
G
#10
Thumb
Screw
CAUTION For applications where
children are present or
for applications subject to
vandalism, order security
screw option S45-2880.
Attach P-trap to drain adapter
and waste outlet.
D
Plug dryer power cord
from dryer motor into
GFCI protected wall outlet.
WashBar LED's will light up
blue. Wait 5 seconds. Place
hands under soap dispenser,
water and dryer to be sure
all 3 functions work properly.
Check for water leaks.
E
For ease of installation, lift trap cover up at bottom, while positioning
over thumb screw. Start at center and move left to right.
If access panel brackets were
previously installed in Step 1,
skip A and proceed to B.
Information
Label

Installation LVQD3
Bradley • 215-1844 Rev. C; ECN 17-08-017 8/24/2017 19

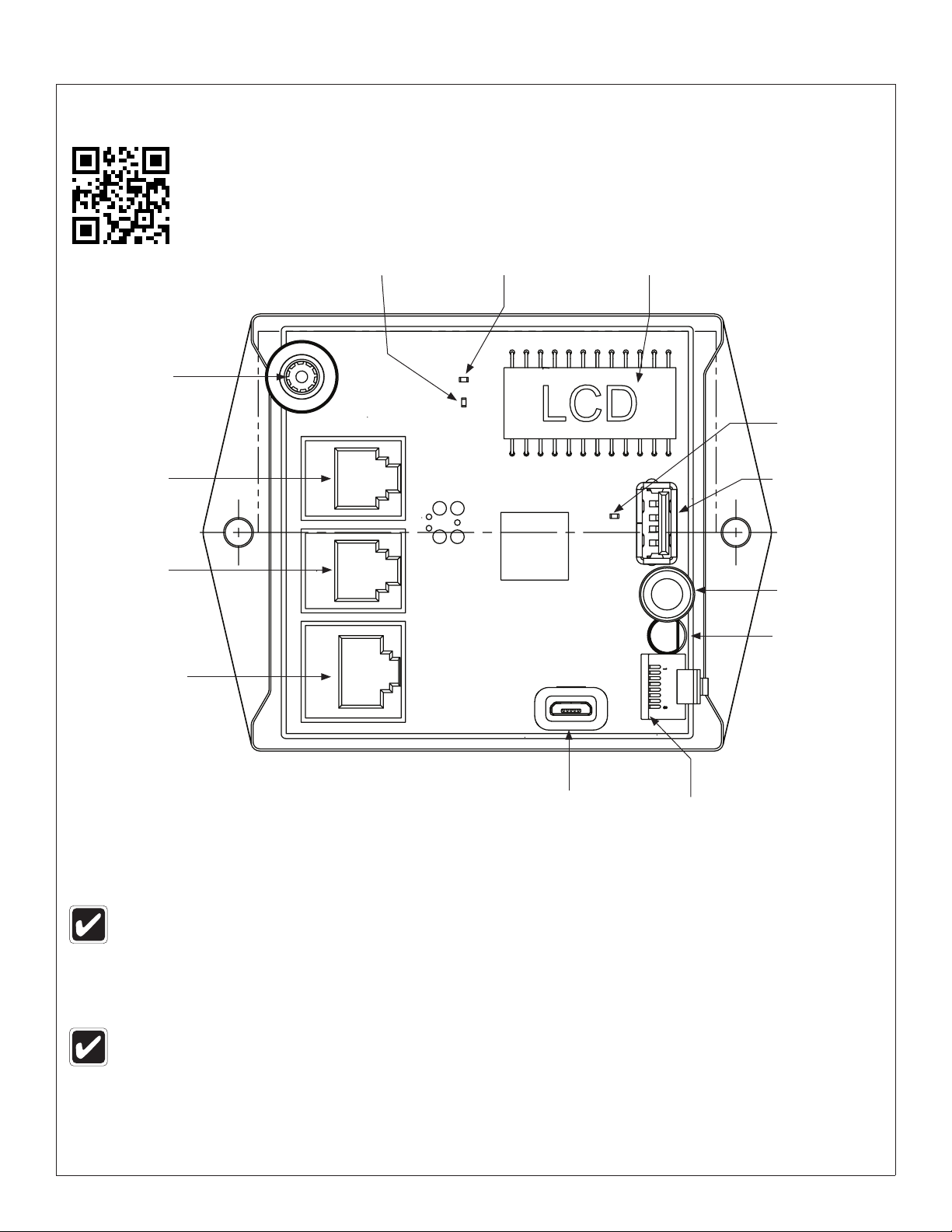

Master Control Box
Scan to watch maintenance and
troubleshooting videos for the WashBar!
6V Power LED Over Current LED LCD
Status LED
USB Connector
Soap Cable
Water Valve Cable
(Female)
Dryer Cable
Proximity Cable (USB
1.1 Mini B, Female)
LED Board
Connector
Sensor Board 2
Connector
Sensor Board 1
Connector
12V 2A
Barrel Plug
System Startup
The first time the WashBar is powered up, there is a sequence of LEDs that will light up.
• Within 5-10 seconds of receiving power, the WashBar will cycle it's LED lights RED, GREEN and then BLUE. Once
the LEDs turn blue, the WashBar is in Standy/Idle Mode.
Before providing power to WashBar, make sure the area under the WashBar is clear of any obstructions and
that sensors are clear.
• The power LED on the master control box will be GREEN indicating the unit has power.
If any of the WashBar LEDs flash RED, check for sensor obstruction. Once obstruction is removed or
cleaned, the WashBar LEDs will return to blue indicating that the WashBar is in Standby/Idle Mode.

LVQD3 Installation
20 8/24/2017 Bradley • 215-1844 Rev. C; ECN 17-08-017
Master Control Box: Operation Modes
Standby/Idle Mode
Standby/Idle mode is automatically activated when the WashBar is not in use. All of the sensors (soap, water, dryer) are active in
this mode. When any sensor is activated (soap, water, dryer or approach), the WashBar will exit Standby/Idle Mode.
LED Indicators Meaning
All blue dimmed Default/normal
All blue User option, See Configuration Mode
All Off User option, See Configuration Mode
Only Soap LED solid red Low soap (Reset: Hold hand under soap sensor until red
LED turns off, approximately 13 seconds.)
Soap and water LED solid
red
Soap sensor board error
Air and water LED solid red Air sensor board error
Soap and air LED solid red Both sensor boards error
All LED solid red Air sensor board error and low soap
Any Flashing Red LED Dryer, water or soap has timed-out. This is caused by a
obstructed sensor. Remove obstruction or wipe sensors with
microfiber cloth to prevent from scratching sensor. System
will return operational automatically once cleared.
Operation Mode
Operation mode is the normal dispensing/washing/drying mode automatically activated when the WashBar is in use. All of the
sensors (soap, water, dryer) are active in this mode.
While in operating mode:
• The soap and water can activate at the same time but the dryer cannot activate at the same time as the soap and water.
• When dryer is active, disable water sensor closest to dryer.
• When a water sensor is still detecting an object after 30 seconds, the water will shut off and wait for a no-detect before
becoming ready again.
• To reset low soap, hold hand under soap for 13 seconds (see table below for low soap indicator LED).
• When a soap sensor is still detecting an object after 15 seconds, the soap will prime for 30 seconds or until a no-detect
occurs before becoming ready again.
• When a dryer sensor is still detecting an object after 30 seconds, the dryer will shut off and wait for no detect before
becoming ready again.
LED Indicators Meaning Solution
All blue bright Ready Mode n/a
Green bright Dispensing soap, water or air n/a
Only Soap LED solid red Low soap (Reset: Hold hand under soap sensor until red
LED turns off, approximately 13 seconds)
Refill soap.
Soap and water LED solid red Soap sensor board error Contact Bradley Terchnical Services.
Air and water LED solid red Air sensor board error Contact Bradley Terchnical Services.
Soap and air LED solid red Both sensor boards error Contact Bradley Terchnical Services.
All LED solid red Air sensor board error and low soap Contact Bradley Technical Services.
Any Flashing Red LED Dryer, water or soap has timed-out. This is caused by a
obstructed sensor.
Remove obstruction or wipe sensors
with microfiber cloth to prevent from
scratching sensor. System will return
operational automatically once
cleared.
The dryer has a 1.5
second delay in this mode.
