Bradley Verge LVQ Series User manual

Installation
P.O. Box 309
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
[phone]
bradleycorp.com
215-1843 Rev. B; ECN 16-08-005T
© 2016 Bradley
Page 1 of 23 11/30/2016
LVQD2
Verge®Lavatory System – LVQ-Series
with WashBar™Technology
Table of Contents
Supplies Required .............................................................2
Components ...................................................................3-4
Dimensions....................................................................5–6
Rough-Ins .......................................................................7-8
Bracket Mounting...............................................................9
Drain Assembly .................................................................9
WashBar Installation........................................................10
Aerator Installation...........................................................10
Attach Soap Motor and Soap Container Bracket ............11
Bowl Mounting ................................................................12
Strainer and Drain Cap....................................................12
Dryer Motor Assembly.....................................................13
Attach Power Line Filter ..................................................14
Control Box and Valve Installation...................................15
Soap Installation..............................................................16
Adjust Temperature..........................................................17
Electrical Connections .....................................................17
Access Panel...................................................................18
Master Control Box: Operation Modes .......................19-21
Cleaning and Maintenance.........................................22-23

LVQD2 Installation
211/30/2016 Bradley • 215-1843 Rev. B; ECN 16-08-005T
WARNING
Make sure that all water supply lines have been flushed and then completely turned off before beginning
installation. Debris in supply lines can cause valves to malfunction.
Turn OFF electrical power to the electrical outlets, then unplug all electrical units prior to installation. Electrical
power MUST remain off until installation is complete.
Installer's hardware must be appropriate for wall construction. Wall anchors must have a minimum pull-out
rating of 1,000 pounds.
IMPORTANT
Read this entire installation manual to ensure proper installation. When finished with the installation, file this
manual with the owner or maintenance department. Compliance and conformity to local codes and ordinances
is the responsibility of the installer. Product warranties may be found under “Products” on our Web site at
www.bradleycorp.com.
Separate parts from packaging and make sure all parts are accounted for before discarding any packaging
material. If any parts are missing, do not begin installation until you obtain the missing parts.
For standard height mounting, do not exceed the recommended 33.5" distance from the fixture rim to the
finished floor.
Supplies Required
• (6) 3/8" fasteners and wall anchors for bowl and wall bracket (minimum pull-out rating of 1,000 lbs.)
• (4) #10 fasteners and wall anchors for soap tank brackets (minimum pull-out rating of 100 lbs.)
• (4) #10 fasteners and wall anchors for access panel brackets (minimum pull-out rating of 100 lbs.)
• 1/2" hot/cold or tempered stub-out
• 1-1/2" NPT drain stub-out(s)
• (2) 110 volt GFCI protected electrical outlet
• (2) Grounding Wires
• Drill
• Basin Wrench
• Tape Measure
• Phillips Screw Driver
• Flat Head Screw Driver
• Level
• 5/16" nut driver
• 5/16" socket (with or without extension)

Installation LVQD2
Bradley • 215-1843 Rev. B; ECN 16-08-005T 11/30/2016 3

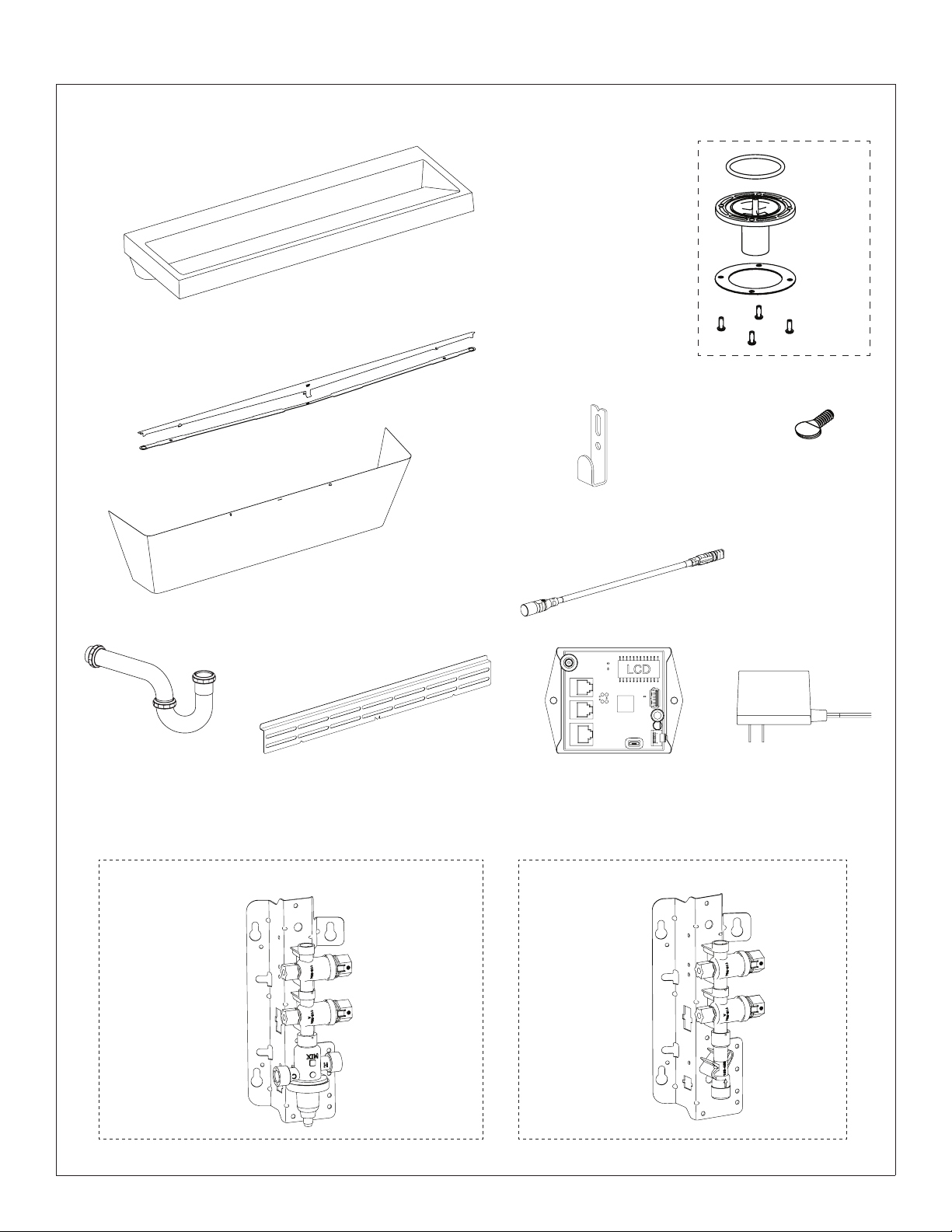

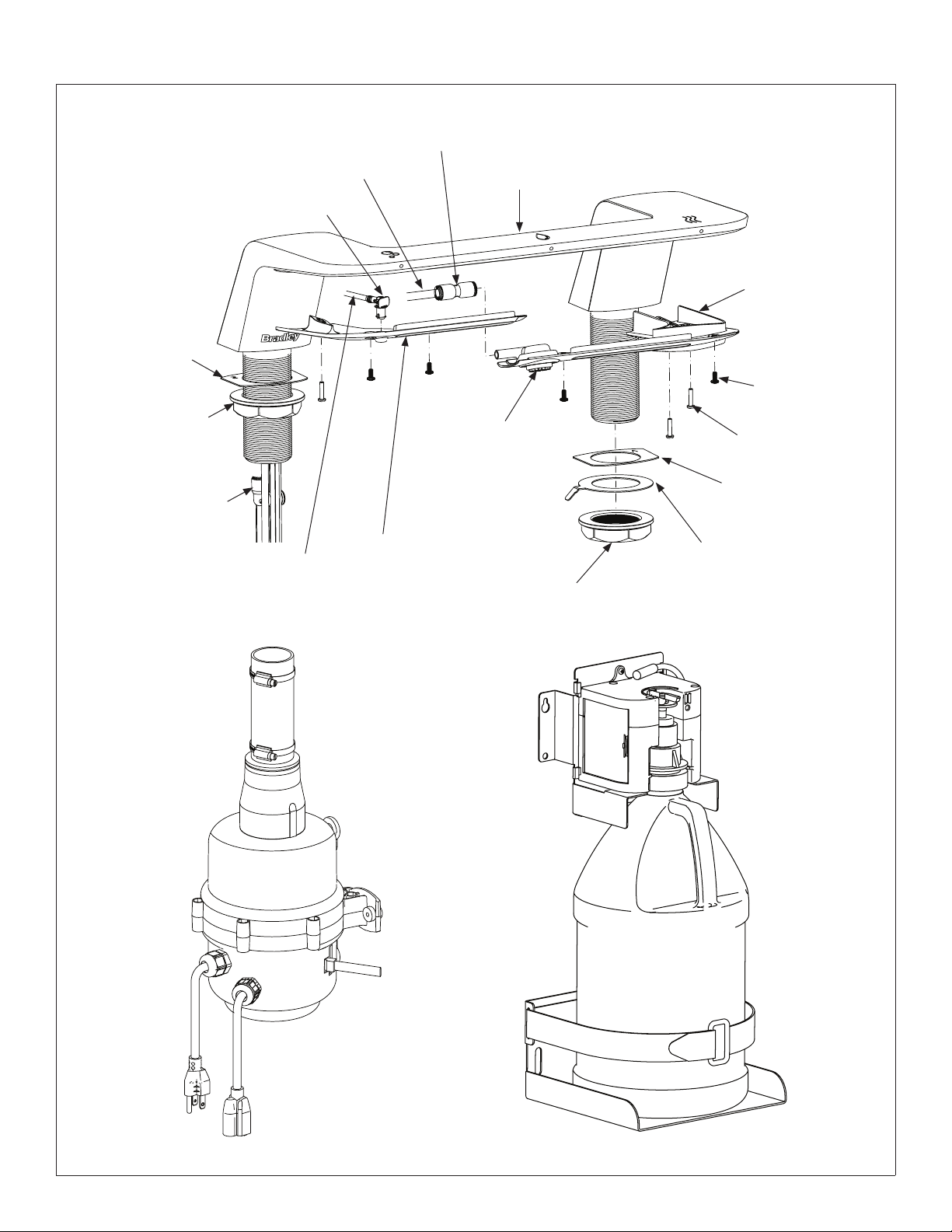

Components
Bowl
Contact your Bradley Representative for
color options
Chrome P-trap (S29-094)
Plastic P-trap (269-1697)
Access Panel
(186-1912)
Wall Bracket
(140-1128)
DC Lead Free Valve
Assembly, Single TMA
(S08-2402TMA)
DC Lead Free Valve
Assembly, Single TL
(S08-2402TL)
DC Power
Adapter (2x)
(261-147)
Drain Cap
(111-140)
Drain Cap Spacer
(269-2540)
Trough Strainer
(173-039)
Trough Strainer Screw
(160-353)
O-Ring
(125-111)
Drain
Adapter
Packing
Washer
#10-24
Screw
Drain
Adapter
Prepack
(S45-2480)
Master Control Box
(S39-845)
#10 x 3/8" Screw (2x)
(P18-054)
Access Panel Bracket
(140-1172)
#10 Access Panel
Thumb Screw
(160-536)
Access Panel Security
Screw Option
(S45-2880)
Cable, 1000MM
(251-023)

LVQD2 Installation
411/30/2016 Bradley • 215-1843 Rev. B; ECN 16-08-005T
Components
Control Box Assembly with
Liquid Pump (S52-166)
Control Box Assembly with
Foam Pump (S52-167)
Gallon Jug
(Supplied by Others)
Soap Tank Bracket
(140-1171)
Hose Clamps - 2-1/2" Dia
(269-678)
Flexible PVC
(269-2561A)
Dryer Motor
(S39-844)
Dryer Vibration Pad
4" x 10"
(124-105)
(Not Shown)
Hook and Loop Strap
(269-2574)
Hook and Loop Strap
(not shown)
(269-2574)
Liquid Pump with External
Rubber Sleeve Connection
(269-2518)
Foam Pump with Internal
Press Fit Connection
(269-2519)
Casting ASM. WashBar,
Chrome w/ LED
(S05-214F01)
Union Tube, 1/4" OD
(269-624)
1/4" x 60 Tubing (269-547C)
For Service - 1' Increments (R68-600011)
Elbow, 1/4 x 3.4mm
Hose Barb (145-221)
Gasket WashBar
Deck, Soap Side
(124-101)
Soap Tube
5.5mm OD x 55cm long
(269-2522)
Access Plate ASM,
Soap with Sensor
Printed Circuit Board
(S04-121)
Aerator .50 GPM (S05-175)
Aerator .35 GPM (S05-215)
(Aerators are shipped loose
in bag with red service key)
Nut, WashBar, 1-3/8-18
(110-256)
Washer Ground .25"
QC (230-035)
Gasket, WashBar Deck,
Air Side (124-102)
Screw #4-40 x 1/2 Pan
Mach SS (160-418)
Screw, #4-40 x 1/4 Pan
Mach SS Black Oxide
(160-534)
Access Plate ASM,
Air/Water with Sensor
Printed Cricuit Board
(S04-122)
Union Elbow
(269-2531)
Nut, WashBar,
1-3/8-18
(110-256)

Installation LVQD2
Bradley • 215-1843 Rev. B; ECN 16-08-005T 11/30/2016 5
Dimensions
Top View
Front View
(mm)
56-3/4"
(1443)
21"
(533)
11" (279)
14-3/8"
(366)
13-1/2" (343)
5" (127)
15"
(381)
15"
(381) 2-3/4"
(70)
11" (279)
50"
(1270)
59-3/4"
(1518)
20"
(508)
5"
(127)
5"
(127)
60"
(1524)
3-3/4"
(95)

LVQD2 Installation
611/30/2016 Bradley • 215-1843 Rev. B; ECN 16-08-005T
Dimensions – Side View
A
B
12-3/8"
(314)
Dryer
11-3/4"
(299)
Faucet
C
3-5/8"
(92)
21" (534)
ADA/TAS Standard
Height
ADA/TAS Juvenile Height
(Children 6-12 years)
Dim A 33-1/2" (851mm) 30-1/2" (775mm)
Dim B 27" (686mm) 24" (610mm)
Dim C 13-1/2" (343mm) 10-1/2" (267mm)
20"
(507)
7-1/2"
(189)
3-3/4"
(95)
6-1/2"
(165)
20°
3-7/8"
(99)
A
B
12-3/8"
(314)
Dryer
11-3/4"
(299)
Faucet
C
3-5/8"
(92)
21" (534)
20"
(507)
7-1/2"
(189)
3-3/4"
(95)
6-1/2"
(165)
20°
3-7/8"
(99)
33"
(839) 28-15/16"
(735)
CSA Standard
Height
OBC/BCBC Standard
Height
Dim A 33-1/2" (851mm) 33" (838mm)
Dim B 29-29/32" (760mm) 28-15/16" (735mm)
Dim C 13-1/2" (536mm) 13" (330mm)
(mm)

Installation LVQD2
Bradley • 215-1843 Rev. B; ECN 16-08-005T 11/30/2016 7
Mounting for Standard, ADA and TAS height shown.
Structural Rough-Ins
Points A, B and C require sufficient backing
compliant with local building codes.
WARNING Ensure bowl is completely seated in
the wall bracket and securely fastened
to the wall at point A.
(mm)
A
A
B
B
C
L
28"
(723)
max
CODE DESCRIPTION QTY.
A Install (1) 3/8" wall anchor with a minimum pull-out force of 1,000 lbs. per local codes at locations shown 2
B
Provide structural backing compliant with local building codes. 2
C Install wall anchor with a minimum pull-out force of 100 lbs. per local codes at locations shown 4
D #10 Wall Anchors for Valve Bracket 2
S #10 Wall Anchors for Soap Control Box Bracket 4
S1 #10 Wall Anchors for Soap Tank Bracket (100 lb pull out force) 4
Wall Bracket
RIM HEIGHT VERTICAL HEIGHT ADJUSTMENTS FIXTURE STYLE
33½" No Adjustment Standard Height, ADA, TAS and CSA
30½" Subtract 3" Juvenile, ADA and TAS
33" Subtract ½" OBC/BCBC
CC
28-1/8"
(723)
Bottom
of
Bracket
33-1/2"
(851)
24-1/8"
(612)
13-1/8"
(333)
27-5/8"
(701)
27-5/8"
(701)
24-1/8"
(612)
3/4"
(19)
36-1/2" (927)
25" (635) 25" (635)
25-1/4"
(640)
16-1/2"
(419)
15-1/8"
(384)
5-1/2"
(140)
5-1/2"
(140)
14-3/4"
(375)
9-3/4"
(248)
3-1/2"
(89) 6-1/2"
(165)
5"
(127)
15"
(381)
10"
(254)
5"
(127)
D
D
S S S S
S1 S1 S1 S1
Secure bracket to wall using min. (2)
3/8" anchor bolts to the left of C/L and
min. (2) 3/8" anchor bolts to the right
of C/L. The (2) anchor bolts to the right
of C/L must be min. 16" apart from the
anchor bolts to the left of C/L. When
mounting is complete, check to ensure
the bracket is level. See Step 1: Bracket
Mounting for more information.
31-1/2"
(800)

LVQD2 Installation
811/30/2016 Bradley • 215-1843 Rev. B; ECN 16-08-005T

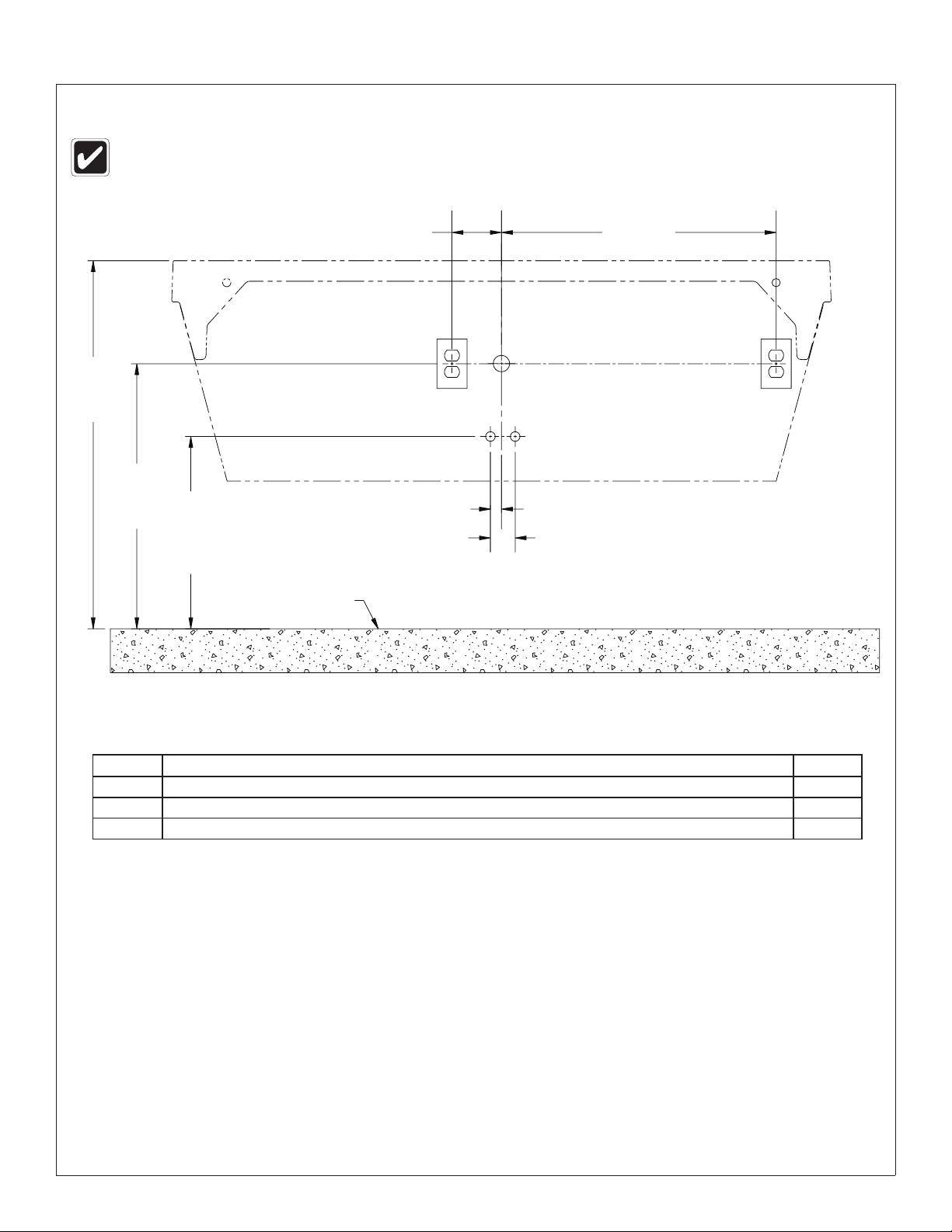

Plumbing and Electrical Rough-Ins
Mounting for Standard, ADA and TAS height shown. (mm)
33-1/2"
(851)
24-1/8"
(613)
17-1/2"
(444)
Min
AE
H C
C
L
2-1/4"
(57)
1"
(25)
Finished Floor
25" (635)
4-1/2"
(114)
E
CODE DESCRIPTION QTY.
A 1½" NPT Drain, Stub-out 2" from wall 1
H,C ½" Nominal (⁵⁄₈" O.D. Comp.) Hot/Cold supplies, Stub-out 2" from wall 1
E 110V GFI protected electrical outlet 2

Installation LVQD2
Bradley • 215-1843 Rev. B; ECN 16-08-005T 11/30/2016 9
Bracket Mounting
Typical installation is shown. It may be necessary to repair the wall
after mounting. The fixture may not cover all of the wall modifications.
1
Install wall bracket to wall
per structural rough-in
dimensions. Check to
ensure the bracket is
level. Example anchor
locations shown.
A
Mounting height per structural rough-in dimensions.
For ease of drain installation, lay the bowl on its back.
2Drain Assembly
C
L
16"
(406mm)
min.
O-Ring
Drain
Adapter
Packing
Washer
#10-24
Screw
Assemble the remaining components as
shown and thread the four screws through
the drain adapter and into the basin inserts.
Ensure the screws compress the drain
adapter evenly onto the basin.
A

LVQD2 Installation
10 11/30/2016 Bradley • 215-1843 Rev. B; ECN 16-08-005T

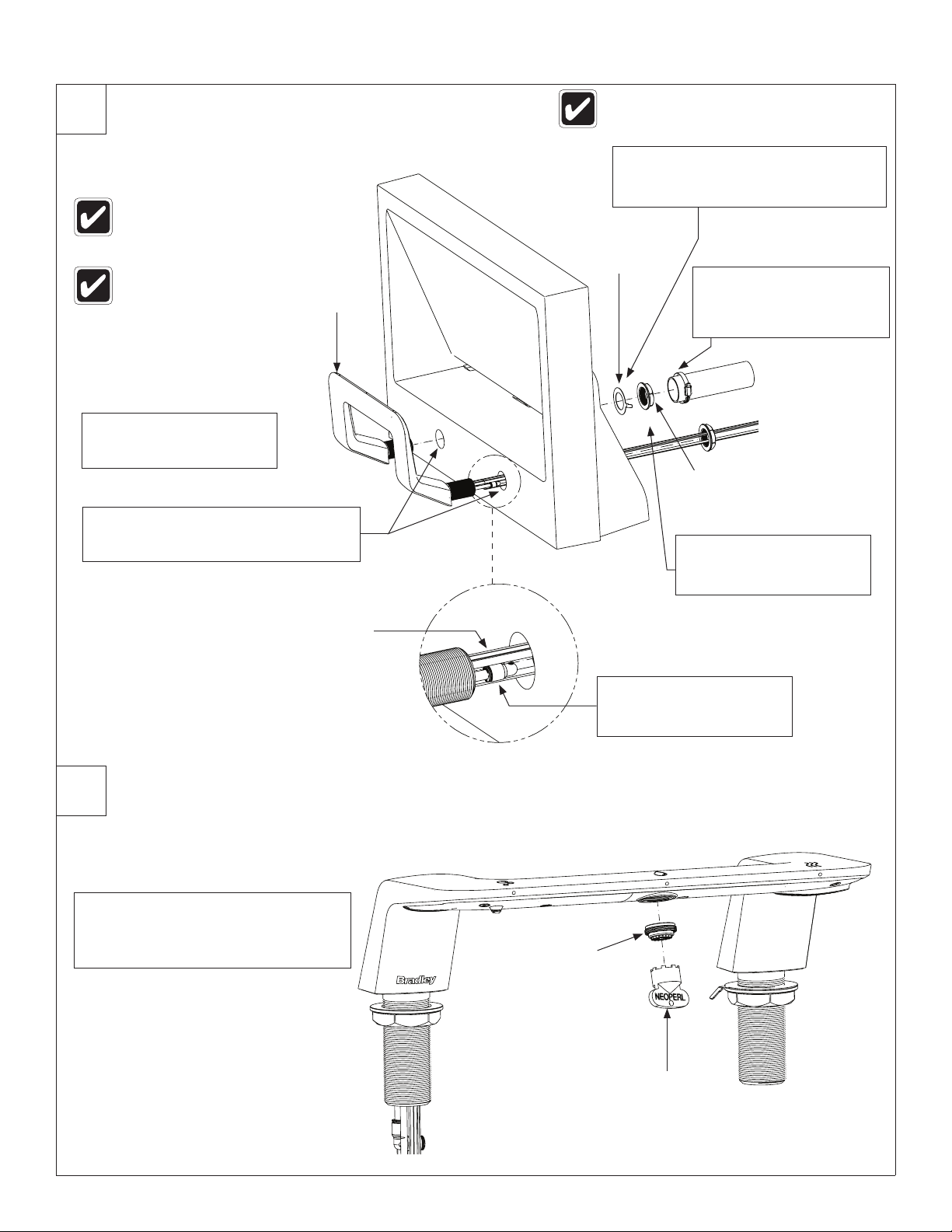

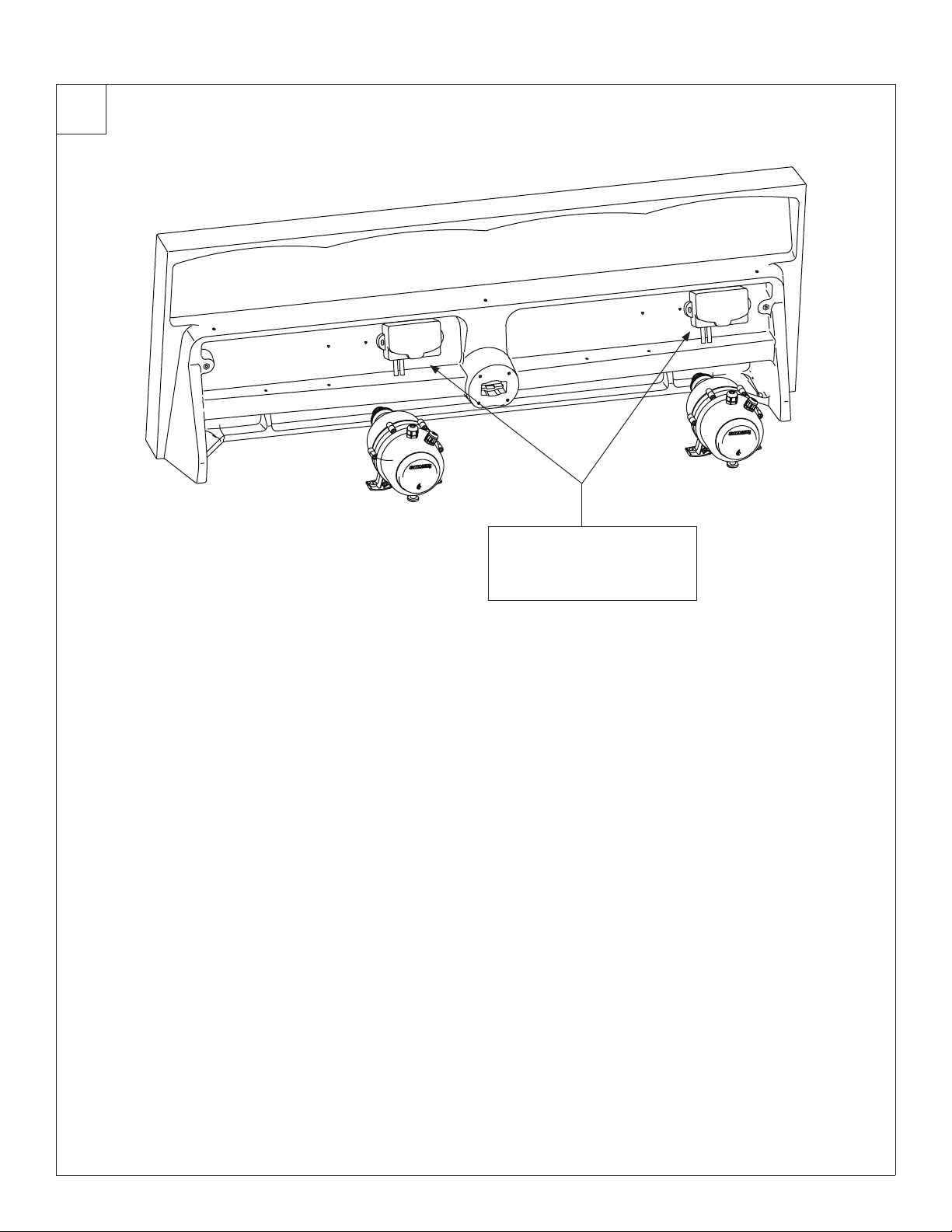

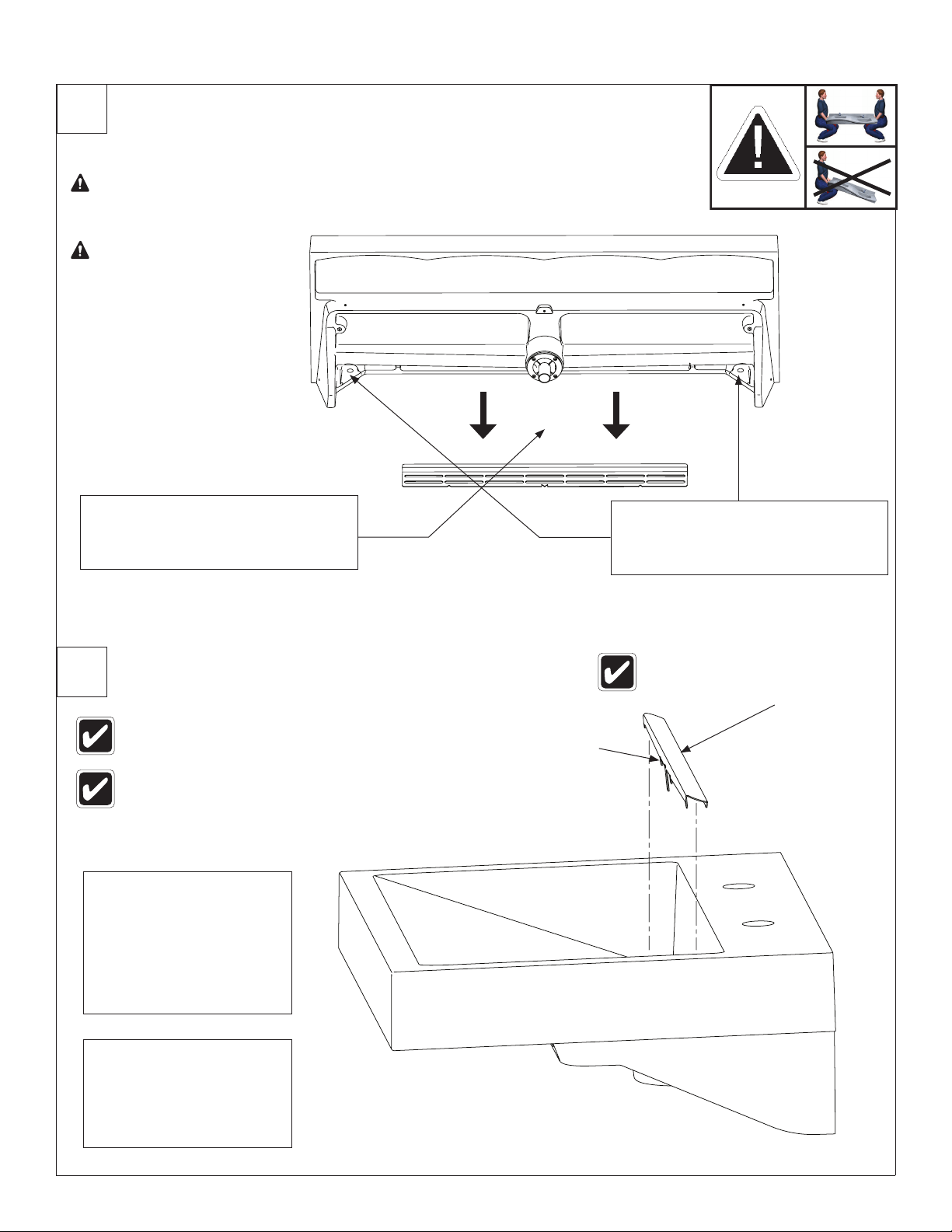

WashBar Installation
3Single station shown; 2 station similar.
Aerator Installation
4
Red Service Key
Aerator
(0.35 gpm or
0.5 gpm)
Carefully thread the aerator into
the WashBar casting using the red
service key provided. Ensure no
leaks after installation.
A
Assemble WashBar through basin
WashBar holes. Run cables and
tubes on left side only.
BSecure from underside
with nuts and grounding
washer (right side only).
D
WashBar
Grounding Washer,
.25 QC
Nut, WashBar,
1-3/8-18
Connect grounding wire (supplied by
installer) to grounding washer and
ground per local building code.
C
Position bowl on the
floor, upright, as shown.
A
Soap Tube (Clear), 1/4" Water
Tube, LED Cable (Gray), Soap
Sensor Cable (Shorter Cable) and
Air/Water Cable (Longer Cable)
WashBar comes pre-assembled,
with the exception of the aerator.

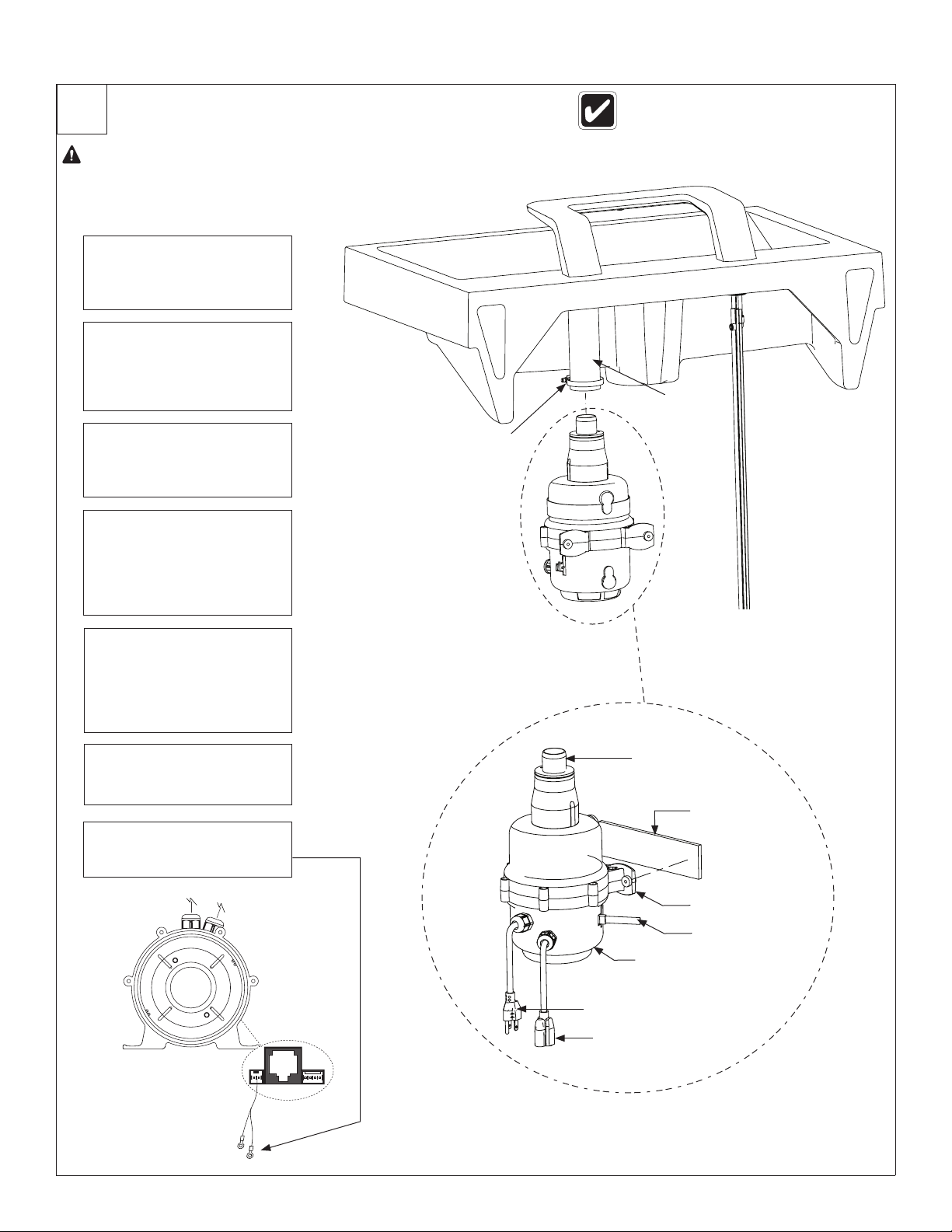

Attach flexible PVC dryer
tube to shank using hose
clamp. Tighten to 30-35
ft. lbs using 5/16" socket.
E
Attach the 1/4" supply
tube to the 1/4" union
elbow.
F
When attaching flexible
PVC dryer tube, be
sure tube is touching
the WashBar nut when
complete.

Installation LVQD2
Bradley • 215-1843 Rev. B; ECN 16-08-005T 11/30/2016 11
Attach Soap Motor and Soap Container Bracket
5
Attach soap motor control box and
soap container bracket to wall using
#10 fasteners at locations shown in
Structural Rough-In drawing.
A
Install the soap supply tube into the
bottom of the soap pump. Install the
soap pump into gallon container
opening (supplied by others).
B
The liquid soap pump has a rubber
sleeve that fits over the soap
container opening. The foam soap
pump has an interior white cylinder
that fits into the soap container.
This fit up may be tight. Move the
soap pump laterally while applying
pressure to seat into soap container
opening.
Soap Motor
Control Box
Soap
Pump
Soap
Container
Bracket
Soap Supply
Tube
To check soap fitup, slide gallon jug
with soap pump into soap motor
control box. Ensure soap pump flange
is positioned below motor control box
lever. Gallon jug should rest on soap
container bracket without soap pump
pulling off of container.
C
Soap Pump
Flange
Motor Control
Box Lever
Once fitup is correct, remove soap
container with pump attached and
set aside. Soap container will be
reattached in a later step.
D

LVQD2 Installation
12 11/30/2016 Bradley • 215-1843 Rev. B; ECN 16-08-005T
Bowl Mounting with WashBar (to Bracket and Wall)
6
Position bowl above wall bracket.
Press firmly on the back of the bowl
to seat the bowl flange into the wall
bracket lip. Ensure bowl is level.
ASecure the bowl to the wall anchors
using fasteners per the structural
rough-in requirement (supplied by
installer).
B
WARNING Ensure bowl is completely seated in
the wall bracket and securely fastened
to the wall at point A.
CAUTION Bracket is not
intended to support
the weight of bowl
for an extended
period of time. Be
sure to secure the
bowl to the wall
using appropriate
fasteners.
1 station shown, 2 station similar.
Strainer and Drain Cap
7
Position drain cap over
trough strainer, aligning
tabs into drain. Push
drain cap down until drain
cap is flush with basin.
Grommets should hold
drain cap securely against
drain tough walls.
A
To remove drain cap,
carefully slip flat
screwdriver into left or
right hand corner of
drain cap and gently lift
upwards.
B
WashBar removed for clarity. Front
Note Angle of
Drain Cap
Drain cap is labeled front and back.
Be sure front is facing the user. Top
surface of drain cap should be sloped
away from user.

Installation LVQD2
Bradley • 215-1843 Rev. B; ECN 16-08-005T 11/30/2016 13
Dryer Motor Assembly
8
Slide the hose clamp onto
the flexible PVC dryer tube
and begin to tighten clamp
so that it does not fall off.
A
TMS
COM
Dryer Outlet Nozzle
Dryer Motor
Foam Bumper
Dryer Motor Feet
Power Cord to GFCI Outlet
Dryer Motor, 120V/60Hz
Power Cord to DC Adapter
After assembly, dryer
motor should hang freely.
Secure dryer motor foam
bumper to finished wall,
in-line with the dryer motor
feet.
E
Remove water detector
and RJ45 connector from
motor and discard.
G
Bundle loose cords to
motor using hook and loop
cable tie.
F
Flexible Hose
Hose Clamp
Front View of Motor
CAUTION If dryer motor is not secured properly
to flexible PVC dryer tube, motor may
come lose and detach from tube.
While holding the motor
from the bottom with one
hand, insert dryer outlet
nozzle into the flexible
PVC dryer tube.
B
Tighten hose clamp using
the 5/16" socket wrench.
Tighten clamp to 30-35
ft lbs.
C
Check to be sure motor
is securely attached to
flexible PVC dryer tube
by gently pulling down on
motor. Motor should stay
attached to tube.
D
RJ45 Connector Cable
1 station shown, 2 station similar.

LVQD2 Installation
14 11/30/2016 Bradley • 215-1843 Rev. B; ECN 16-08-005T
Attach Power Line Filter
9
Secure dryer power line
filter to underside of
bowl using (2) #10 x 3/8"
screws provided.
A

Installation LVQD2
Bradley • 215-1843 Rev. B; ECN 16-08-005T 11/30/2016 15
Control Box and Valve Installation
10
Secure control box to
underside of bowl using
(2) #10 x 1/2" long screws
provided.
A
For thermostatic mixing valve
installation, secure 1/2" supply hose
to hot water supply and valve hot inlet.
Secure the other supply hose from cold
water supply to valve cold inlet. Secure
valve to wall using (2) #10 fasteners
(supplied by installer).
For tempered line installation, secure
1/2" supply hose to tempered water
supply and TL valve inlet (not shown).
Secure valve to wall using (2) #10
fasteners (supplied by installer).
D
Secure cable duct to bowl
at location shown with (2)
#10 screws provided. One
per WashBar. Run loose
wire and cables through
the cable duct (2 places).
B
Cold Supply
Hot Supply
Hot Inlet
Cable Duct
(255-058)
Attach 1/4" supply tube from
the LH WashBar to the 1/4"
supply valve outlet. Loosen the
compression nut on the valve
body. Push the 1/4" supply tube
firmly into the tube connector
until it is fully seated. Tighten
the compression nut by hand.
Repeat this step for RH WashBar
supply tube.
C
Cold Inlet
Cable extension for LH
WashBar connects here.
Cable extension for RH
WashBar connects here.

LVQD2 Installation
16 11/30/2016 Bradley • 215-1843 Rev. B; ECN 16-08-005T

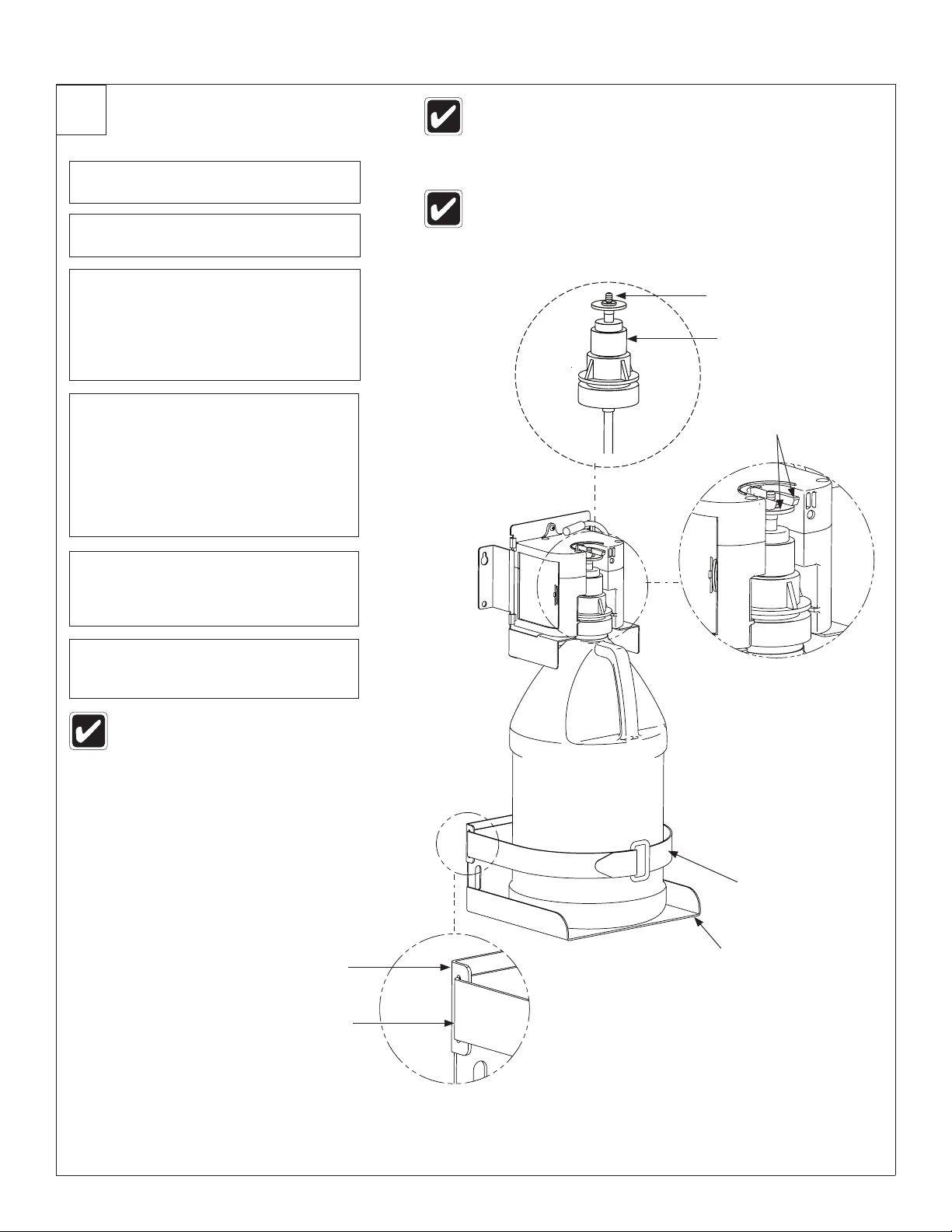

Soap Installation
11 The soap system is designed to be used with a standard
U.S. gallon soap container. For accurate low soap
indication, user needs to set soap type (see configuration
mode at the end of this manual on how to set soap type.
Attach soap supply tube from the
WashBar to the top of the soap pump.
A
To manually prime the soap, press
down on the control box lever arm 6
to 8 times.
G
Use the hook and loop cable tie
provided to secure container to soap
bracket. Feed end of cable tie (smooth
side facing you) through the right side
slot of bracket flange at top. Feed
through left side flange slot and wrap
around jug. Secure with hook and loop
end.
D
Ensure that the soap tube is not
kinked. Position hand above soap
motor control box and adjust tube if
needed.
F
Slide gallon jug with soap pump into
soap motor control box. Ensure soap
pump flange is positioned below motor
control box lever. Gallon jug should rest
on soap container bracket without soap
pump pulling off of container.
C
Attach soap pump with supply tubes
attached into gallon jug.
B
For ease of soap container
removal, pull tank while rotating
bottom of tank out.
Ensure Soap Pump
Flange is Positioned
Below Control Box Lever
Attach Soap Supply Tube Here
Top Flange
Cable Tie Slot
Soap Container
Bracket
Cable Tie Hook
and Loop Strap
Soap Pump
Soap cycle count defaults to liquid soap configuration. If
you have the foam soap option, please see Setting the
Soap Type under Configuration Mode towards the end of
this manual.

Installation LVQD2
Bradley • 215-1843 Rev. B; ECN 16-08-005T 11/30/2016 17
Electrical Connections
13
Barrel Plug to
6V 2A DC Power
Adapter Plug
Air/Water Sensor
Board Connector
- From WashBar
(Shorter of 2
Sensor Cables)
Soap Sensor
Board Connector
- From WashBar
(Longer of 2
Sensor Cables)
LED Board
Connector - From
WashBar
(Gray Cable)
Not Used
Connector Plug to
Cable Extension
(Other End of Cable to
DC Valve Plug)
Barrel Plug to
Soap Cable Plug
Connector Plug to
Dryer Motor
(Gray Cable)
Make (3) connections from
the WashBar assembly as
shown (Air/Water Sensor,
Soap Sensor and LED)
A
Make barrel plug and
connector plug connections
as shown.
B
USB for Software
Upgrades
Each WashBar requires the same connections.
After all connections are made,
reference Master Control Box:
Operation Modes section later
in this manual.
C
Adjust Temperature with Water Running
H
C
ALoosen Cap Screw about 1/4" (4-6
turns) and lift up cover (do not
remove).
BUsing cover, turn cartridge gently until
desired water temperature is reached.
Do not turn past stops as this may
damage unit. Push cover down and
tighten screw.
WARNING This valve is NOT factory
preset. Upon installation,
the temperature of this
valve must be checked and
adjusted to ensure delivery
of a safe water temperature.
Water in excess of 110°F
(43°C) may cause scalding.
12

LVQD2 Installation
18 11/30/2016 Bradley • 215-1843 Rev. B; ECN 16-08-005T

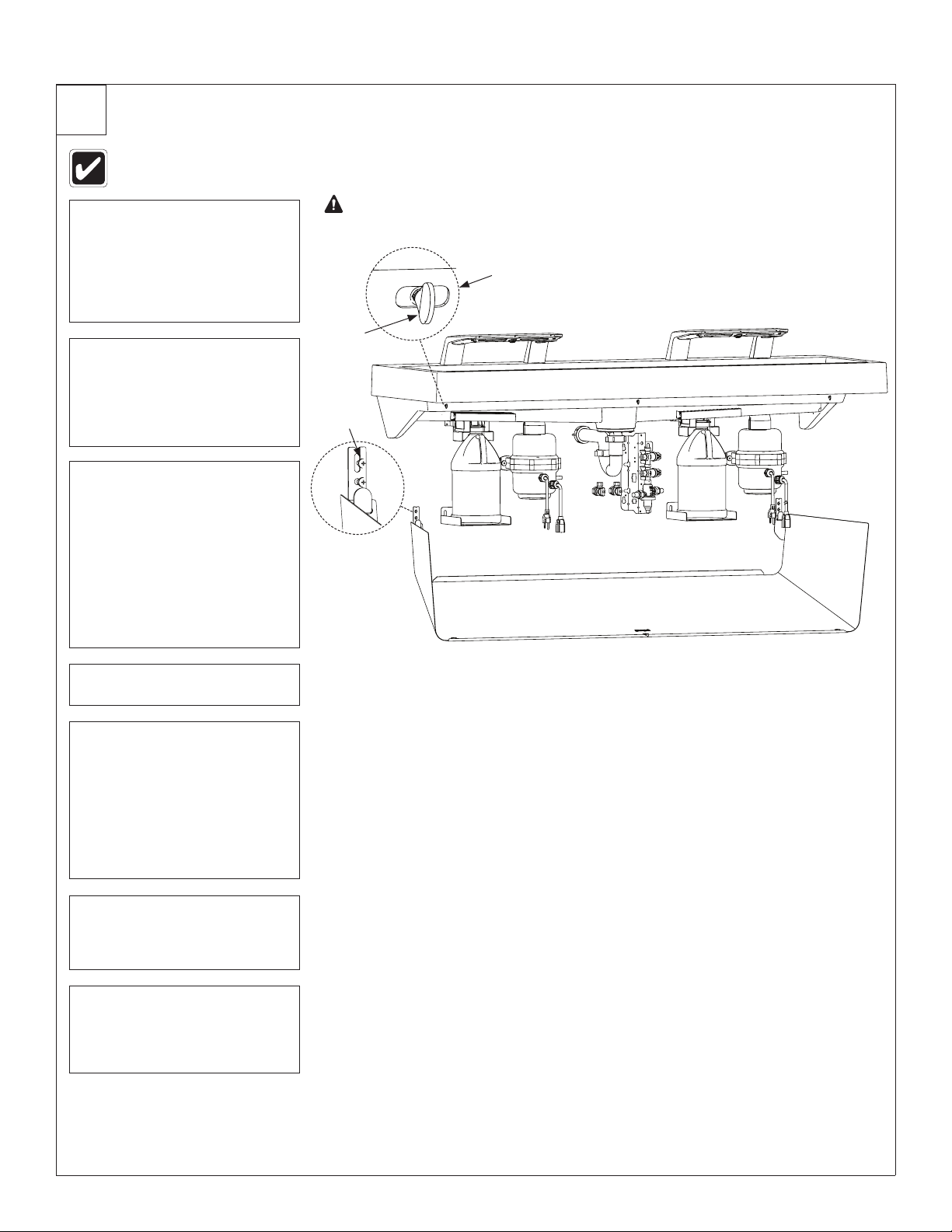

Install access panel brackets
to wall using #10 fasteners
(supplied by installer) as
shown in rough in drawing.
Install top screw into slot. Do
not install bottom screw until
Step C is complete.
A
Make all connections before installing access panel.
Access Panel
14
#10 Top
Screw
Shown in closed
position. Rotate
90° to Open
Insert #10 thumbscrews
into front bowl apron as
shown. Thumbscrew in
vertical position is closed.
Thumbscrew in horizontal
position is open.
B
Hang access panel onto
mounting brackets attached
to wall on the left and right
sides. Rotate panel up
and check fitup between
thumbscrews and panel slots.
Rotate access panel down
and make adjustment to
brackets if necessary. Install
bottom #10 fastener into
brackets.
C
Rotate access panel up
and secure by rotating
thumbscrews to the closed
position
D
To open access panel, rotate
thumb screw, slightly push
panel up and swing access
panel down. Do not remove
thumbscrews.
E
#10
Thumb
Screw
CAUTION For applications where children are present or for applications
subject to vandalism, order security screw option S45-2880.
Attach P-trap to drain adapter
and waste outlet.
D
Plug dryer power cord
from dryer motor into
GFCI protected wall outlet.
WashBar LED's will light up
blue. Wait 5 seconds. Place
hands under soap dispenser,
water and dryer to be sure
all 3 functions work properly.
Check for water leaks.
E

Installation LVQD2
Bradley • 215-1843 Rev. B; ECN 16-08-005T 11/30/2016 19
Master Control Box: Operation Modes
Standby/Idle Mode
Standby/Idle mode is automatically activated when the WashBar is not in use. All of the sensors (soap, water, dryer) are active in
this mode. When any sensor is activated (soap, water, dryer or approach), the WashBar will exit Standby/Idle Mode.
LED Indicators Meaning
All blue dimmed User option, See Configuration Mode
All blue Default/normal
All Off User option, See Configuration Mode
Soap LED solid red Low soap (Reset: Hold hand under
soap sensor until red LED turns off,
approximately 13 seconds.)
Soap and water LED solid
red
Soap sensor board error
Air and water LED solid red Air sensor board error
Soap and air LED solid red Both sensor boards error
All LED solid red Air sensor board error and low soap
Operation Mode
Operation mode is the normal dispensing/washing/drying mode automatically activated when the WashBar is in use. All of the
sensors (soap, water, dryer) are active in this mode.
While in operating mode:
• The soap and water can activate at the same time but the dryer cannot activate at the same time as the soap and water.
• When dryer is active, disable water sensor closest to dryer.
• When a water sensor is still detecting an object after 30 seconds, the water will shut off and wait for a no-detect before
becoming ready again.
• To reset low soap, hold hand under soap for 13 seconds (see table below for low soap indicator LED).
• When a soap sensor is still detecting an object after 15 seconds, the soap will prime for 30 seconds or until a no-detect
occurs before becoming ready again.
• When a dryer sensor is still detecting an object after 30 seconds, the dryer will shut off and wait for 7 seconds before
becoming ready again.
LED Indicators Meaning
All blue bright Ready Mode
Green bright Dispensing soap, water or air
Soap LED solid red Low soap (Reset: Hold hand under soap sensor until
red LED turns off, approximately 13 seconds)
Soap and water LED solid red Soap sensor board error
Air and water LED solid red Air sensor board error
Soap and air LED solid red Both sensor boards error
All LED solid red Air sensor board error and low soap
Cleaning Mode
Cleaning mode temporarily locks out the WashBar for approximately 30 seconds. All of the sensors (soap, water, dryer) are
inactive in this mode. After 30 seconds, the WashBar will exit Cleaning Mode and return to Standby/Idle Mode.
To activate Cleaning Mode:
1. Place a hand under the dryer and then immediately (within 1 second) under the soap sensor and hold hands under both
dryer and soap sensors for approximately 5 seconds until all LED lights turn solid white.
2. Remove hands only when all LED lights turn solid white.
LED lights may flash and cycle different colors. To activate this mode, only remove hands once all LED lights
are solid white.
The dryer has a 1.5 second delay
in this mode.

LVQD2 Installation
20 11/30/2016 Bradley • 215-1843 Rev. B; ECN 16-08-005T
Configuration Mode
Configuration Mode is when the user can configure the WashBar or obtain cycle counts for soap, water and dryer. All of the
sensors (soap, water, dryer) are active in this mode. After 20 seconds of no use, the WashBar will slow flash all LEDs green and
then return to Standby/Idle Mode.
To activate Configuration Mode:
1. Place a hand under the dryer and then immediately (within 1 second) under the soap sensor and hold hands under both
dryer and soap sensors for approximately 10 seconds until all LED lights turn solid red.
2. Remove hands only when all LED lights turn solid red.
LED lights may flash and cycle different colors. To activate this mode, only remove hands once all LED lights
are solid red.
While in Configuration Mode, LED lights will be solid red unless changing configurations or getting cycle counts.
Cycle Counts
To display cycle counts, while in Configuration Mode:
1. Place and remove hand within 3 seconds under the device you want to get a cycle count for (soap, water, dryer).
2. The LED light for that device will turn green to indicate the count will follow.
3. The LED light for that device will turn solid red and then flash the number of cycles as follows:
• Soap: the LED flashes the number of 100,000 cycles for the device.
• Water: the LED flashes the number of 10,000 cycles for the device.
• Dryer: the LED flashes the number of 1,000 cycles for the device.
For example, a water activation cycle of 248,000 will be displayed in the following order: A solid green water LED, followed by
a 1.5 second solid red soap LED, followed by 2 white soap LED flashes (indicating the 2 in 248,000). Next, there will be a 1.5
second solid red water LED followed by 4 white soap LED flashes (indicating the 4 in 248,000). Finally, a 1.5 second solid red
dryer LED followed by 8 white soap LED flashes (indicating the 8 in 248,000).
Setting the Soap Type
If the WashBar is set to the correct soap type, the low soap indicator will display low soap at 80% empty as intended. If not set
correctly, a liquid soap system will be empty before indicator lights up if set to foam and a foam soap system will be 60% empty if
set to liquid.
To set soap type, while in Configuration Mode:
1. Hold hand under soap sensor for 5 seconds to start selection process. Selection options will cycle until hand is removed.
2. Continue to hold hand under soap until desired setting color is shown then remove hand while color is being displayed.
• Red LED: Liquid Soap (default when WashBar is reset)
• Blue LED: Foam Soap
Setting the LED Lights ON (Bright) / ON (Low) / OFF for Standby/Idle Mode
To set the LED lights to ON (Bright) / ON (Low) / OFF for Standby/Idle Mode, while in Configuration Mode:
1. Hold hand under water sensor for 5 seconds to start the selection process. Selection options will cycle until hand is
removed.
2. Continue to hold hand under water until desired setting color is shown then remove hand while color is being displayed.
• Blue LED (Bright): standby LEDs ON (default when WashBar is reset)
• Blue LED (Low): Standby LEDs slightly dimmer
• LED Off: standby LEDs OFF
Setting Motor Speed
To set the dyer motor speed, while in Configuration Mode:
1. Hold hand under dryer for 5 seconds to start selection process. Selection options will cycle until hand is removed.
2. Continue to hold hand under dryer until desired setting color is shown then remove hand while color is being displayed.
• Red LED: High Speed (default when WashBar is reset)
• Blue LED: Medium Speed
• LED Off: Low Speed
