Installation
215-1513 Rev. H; ECM 11-08-011
© 2012 Bradley Corporation
Page 1 of 37 2/15/2012
FL-3H, FL-3L
Frequency®Lavatory System
Système de lavabos Frequency®
Sistema de lavabo Frequency®
U.S. Pat. No. Des. 477,060
507,634
527,809
537,927
7,039,963
Table of Contents
Pre-Installation Information ..............................2
Components .........................................3
Dimensions ........................................4–5
Rough-ins for FL-3H ...................................6
Rough-ins for FL-3L....................................7
Lavatory Deck Mounting ................................8
Drain and P-Traps .....................................9
Faucet Battery Box ...................................10
Optional Tankless Water Heater .........................10
Adjust the Temperature ................................11
End Outlet and Continuous Waste .......................11
Optional Trap/Transition Covers .........................12
Cleaning and Maintenance Instructions ...................13
Table des matières
Avant l’installation ....................................14
Composants ........................................15
Dimensions ......................................16–17
Mises en place des canalisations pour FL-3H...............18
Mises en place des canalisations pour FL-3L ...............19
Lavabo.............................................20
Drain et siphon en P ..................................21
Compartiment des piles de robinets ......................22
Chauffage d’eau sans réservoir en option..................22
Sortie en bout et évacuation continue.....................23
Faire couler l'eau pour régler la température................23
Siphon/Couvercles de transition en option .................24
Instructions de nettoyage et d’entretien pour Terreon .........25
Contenido
Información previa a la instalación .......................26
Componentes de la cubierta del lavabo ...................27
Dimensiones ......................................28-29
Colocación de tuberías empotradas del FL-3H..............30
Colocación de tuberías empotradas del FL-3L ..............31
Montaje de la cubierta del lavabo ........................32
Desagüe y sifón en P .................................33
Caja de batería de la llave..............................34
Calentador de agua sin tanque opcional...................34
Salida del extremo y desechos continuos ..................35
Ajuste la temperatura con el aqua corriendo................35
Sifón/Cubiertas de transición opcionales ..................36
Instrucciones de limpieza y mantenimiento para Terreon ......37
FL-3H
FL-3L

FL-3H, FL-3L Installation
22/15/2012 Bradley Corporation • 215-1513 Rev. H; ECM 11-08-011
IMPORTANT!
Read this entire installation manual to ensure proper installation.
When finished with the installation, file this manual with the owner or
maintenance department. Compliance and conformity to local codes
and ordinances is the responsibility of the installers.
Separate parts from packaging and make sure all parts are accounted
for before discarding any packaging material. If any parts are
missing, do not begin installation until you obtain the missing parts.
Make sure that all water supply lines have been flushed and then
completely turned off before beginning installation. Debris in supply
lines can cause valves to malfunction.
Turn OFF electrical power to the electrical outlets, then unplug all
electrical units prior to installation. Electrical power MUST remain off
until installation is complete. After installation is complete, turn on
the water supply first, then turn on the electrical power.
Hardware provided by installer must be appropriate for wall
construction. Wall anchors must have a minimum pull-out rating of
1,000 lbs.
Product warranties may be found under “Products” on our Web site
at bradleycorp.com.
THIS
SIDE
UP
Packing List
•
•
•
•
Installation
Supplies Required:
• (8)3/8"wallanchors,boltsand1"min.O.D.washerstomountmainframeandbowltowall(minimumpull-outratingof
1,000 lbs.)
• (2)#10wallanchors(foroptionalmixingvalve/bracketmounting)
• 1/2"Nominalcoppertubingforhot/coldortemperedsupplypiping
• 1-1/2"NPTdrainpiping
• OPTIONAL:110voltGFCIprotectedelectricaloutletfor100–120VACplug-intransformer(forBradleyFaucets)
• OPTIONAL:240/208or277voltsforelectrictanklesswaterheater

Installation FL-3H, FL-3L
Bradley Corporation • 215-1513 Rev. H; ECM 11-08-011 2/15/2012 3

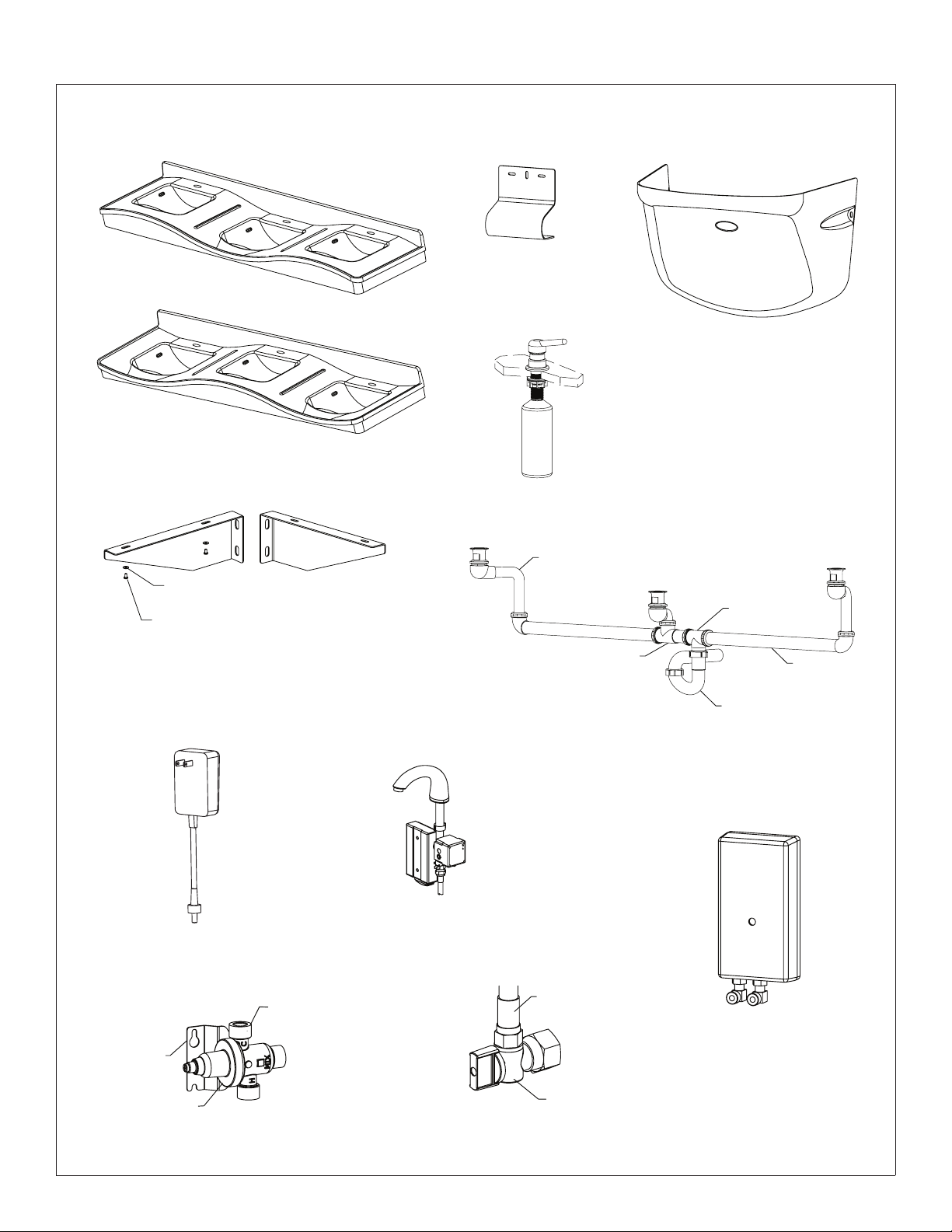

Components
Valve
(S01-526)
BowlFL-3H(187-271)
contact Bradley for
color options
Prepack Trap Cover FL-3
(S45-2110 –Gray)
(S45-2110A – Putty)
(S45-2110B – Coal)
Transition Cover
(186-1459–Gray)
(186-1459A – Putty)
(186-1459B – Coal)
Soap Dispenser
Model 6334
Support Bracket
(140-823L) Support Bracket
(140-823R)
Single-Unit Adapter
(153-443)
Aerada™ 1200 Series
CS Faucet
Model S53-315
Standard Waste Assembly
FL-3Hisshown
FL-3L is similair
P-trap
(269-1697)
Tee End Outlet
(269-1745)
Offset Strainer
(269-1751)
Optional Tankless Hot Water Heater
269-1767 – EX95TMLB, 240/208 volts
269-1768 – EX100TMLB, 277 volts
Navigator®
TMVAssembly
Optional
Tempered Line
Bracket
(140-1041)
½"FlexHose
(269-2053)
#10-24Screw
(P18-054)
#10Washer
(142-002AT) Tee Center
Outlet
(269-1744)
Waste Arm
(269-1747)
BowlFL-3L(187-272)
contact Bradley for
color options
Screw#10-24
(160-447)
StopValve
(S27-340)

FL-3H, FL-3L Installation
42/15/2012 Bradley Corporation • 215-1513 Rev. H; ECM 11-08-011

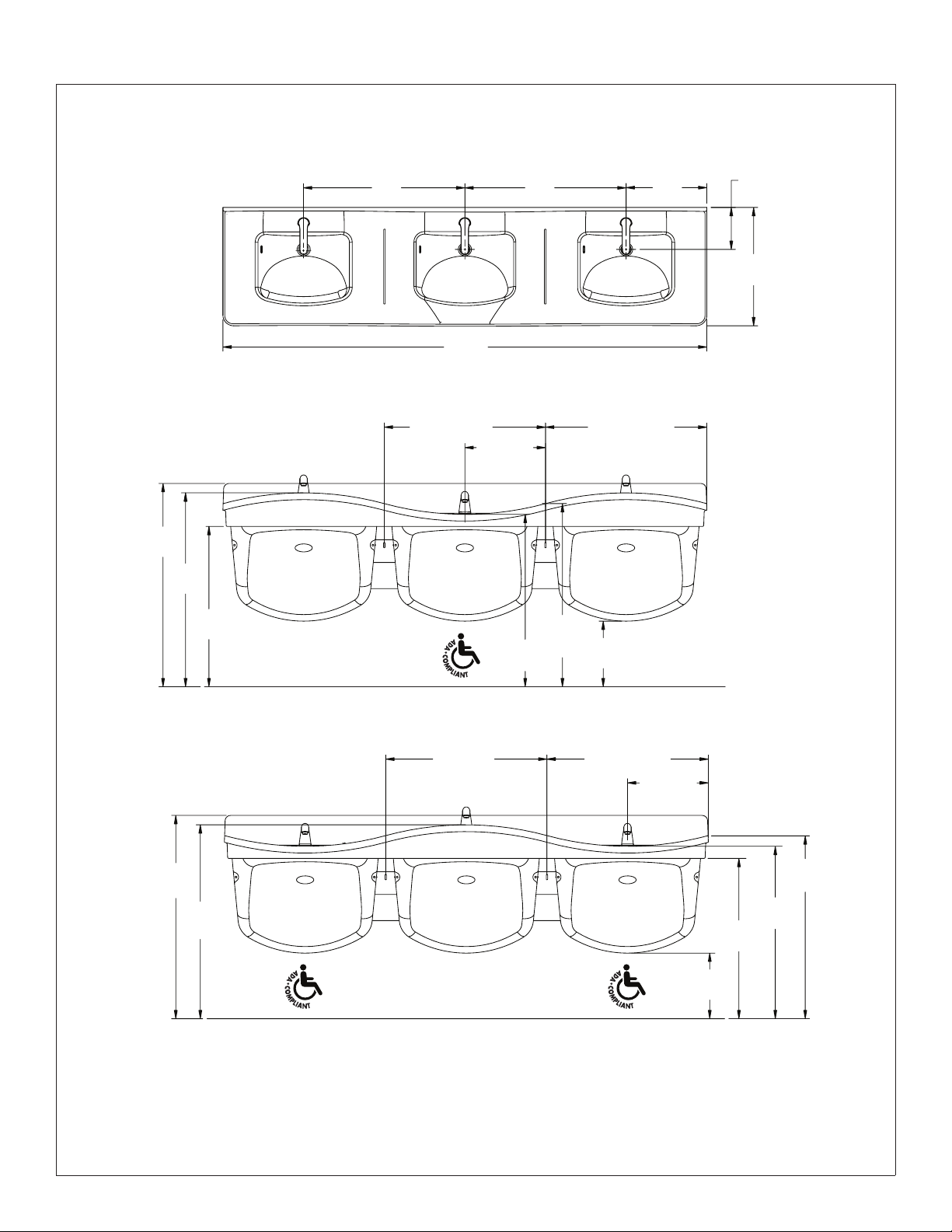

Dimensions - Front and Top Views
FL-3H is shown
FL-3L is similar
FL-3H
FL-3L
15"
(381mm)
90"
(2286mm)
30"
(762mm)
7¾" (197mm)
22"
(559mm)
30" (762mm) ADA
15" (381mm)
ADA
37¾"
(959mm)
30"
(762mm) 34"
(864mm)
ADA
32"
(813mm)
12¼"
(311mm)
30" (762mm) ADA
15" (381mm)
ADA
34" (864mm)
ADA
32"
(813mm)
37¾"
(959mm)
361⁄8"
(918mm) 30"
(762mm)
12¼"
(311mm)
30"
(762mm)
30" (762mm)
361⁄8"
(918mm)
30" (762mm)

Installation FL-3H, FL-3L
Bradley Corporation • 215-1513 Rev. H; ECM 11-08-011 2/15/2012 5

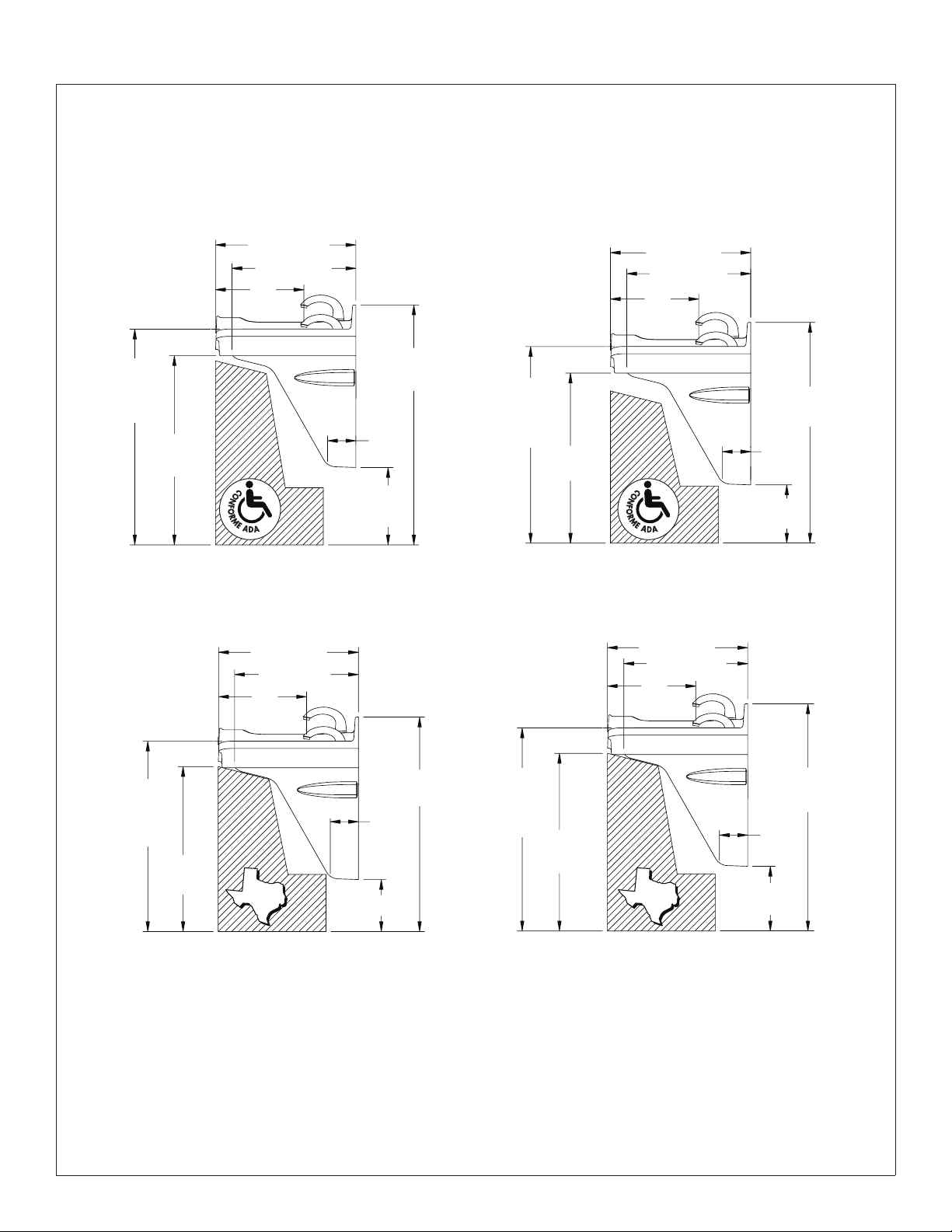

Dimensions - Side Views
TASTA S
14"
(356mm)
30"
(762mm)
37¾"
(959mm)
31"
(787mm)
ADA Rim
Height
12¼"
(311mm)
34"
(864mm)
ADA Rim
Height
9¼"
(235mm)
22" (559mm)
8¼" (210mm)
10¼"
(260mm)
19½" (495mm)
14"
(356mm)
14"
(356mm)
14"
(356mm)
4½"
(114mm) 4½"
(114mm)
4½"
(114mm) 4½"
(114mm)
32"
(813mm)
ADA Rim
Height
30"
(762mm)
ADA Rim
Height
27"
(686mm)
26"
(660mm)
28"
(711mm)
34¾"
(883mm)
33¾"
(857mm)
35¾"
(908mm)
22" (559mm)
22" (559mm)
22" (559mm)
19½" (495mm) 19½" (495mm)
19½" (495mm)
Juvenile
Height
Ages 6–12
Standard
Height
TAS Height
Grades Pre-K
through 5 or 6
TAS Height
Grades 6
through 8 or 9

FL-3H, FL-3L Installation
62/15/2012 Bradley Corporation • 215-1513 Rev. H; ECM 11-08-011

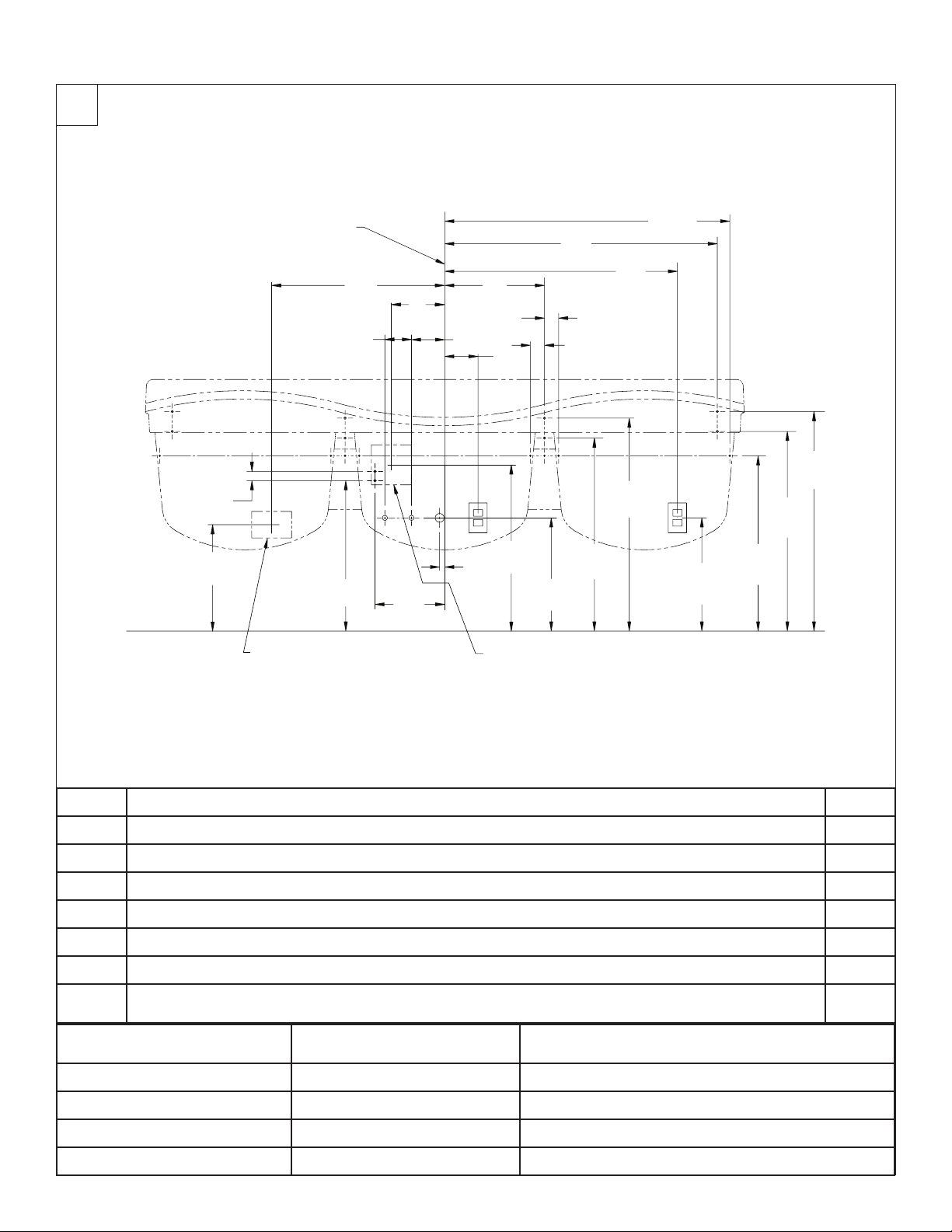

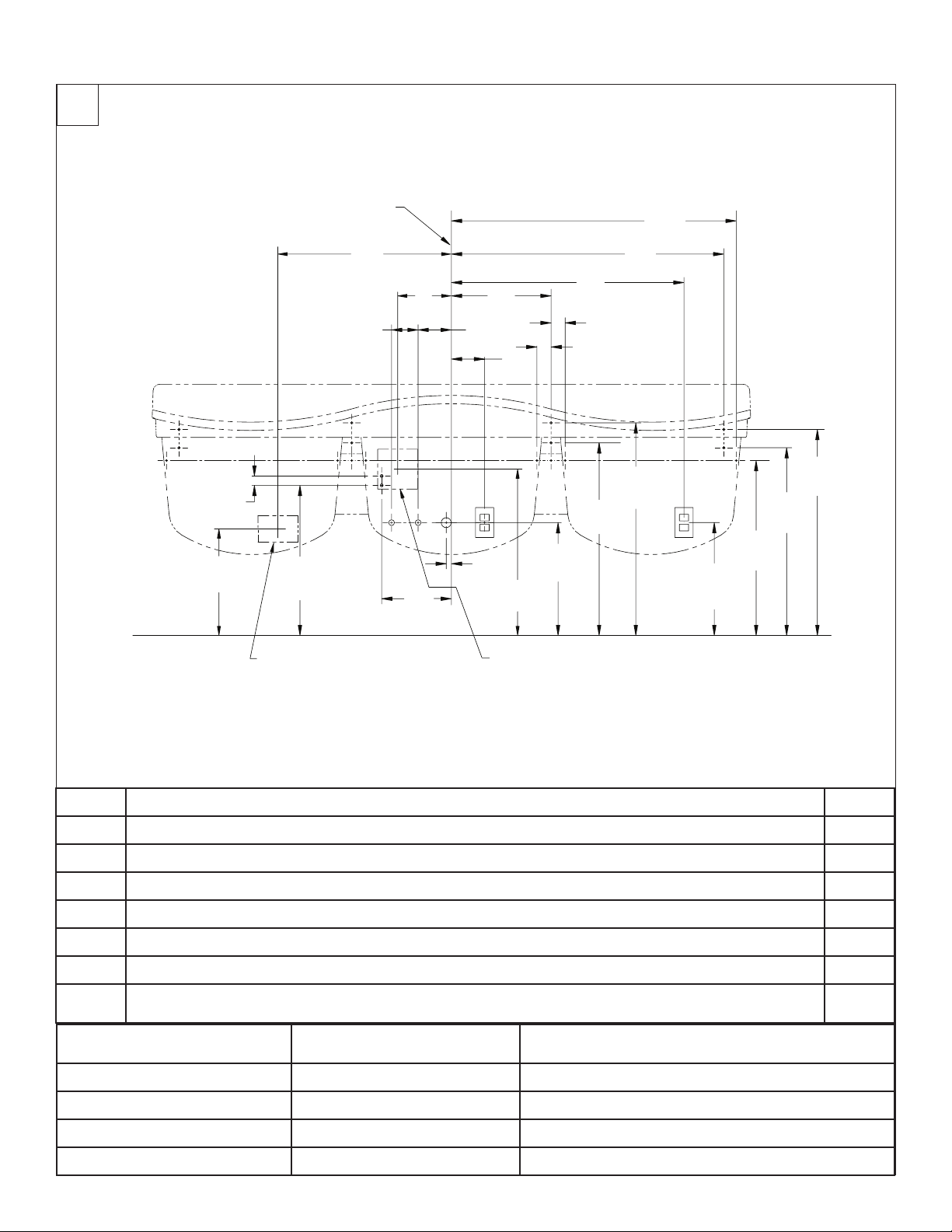

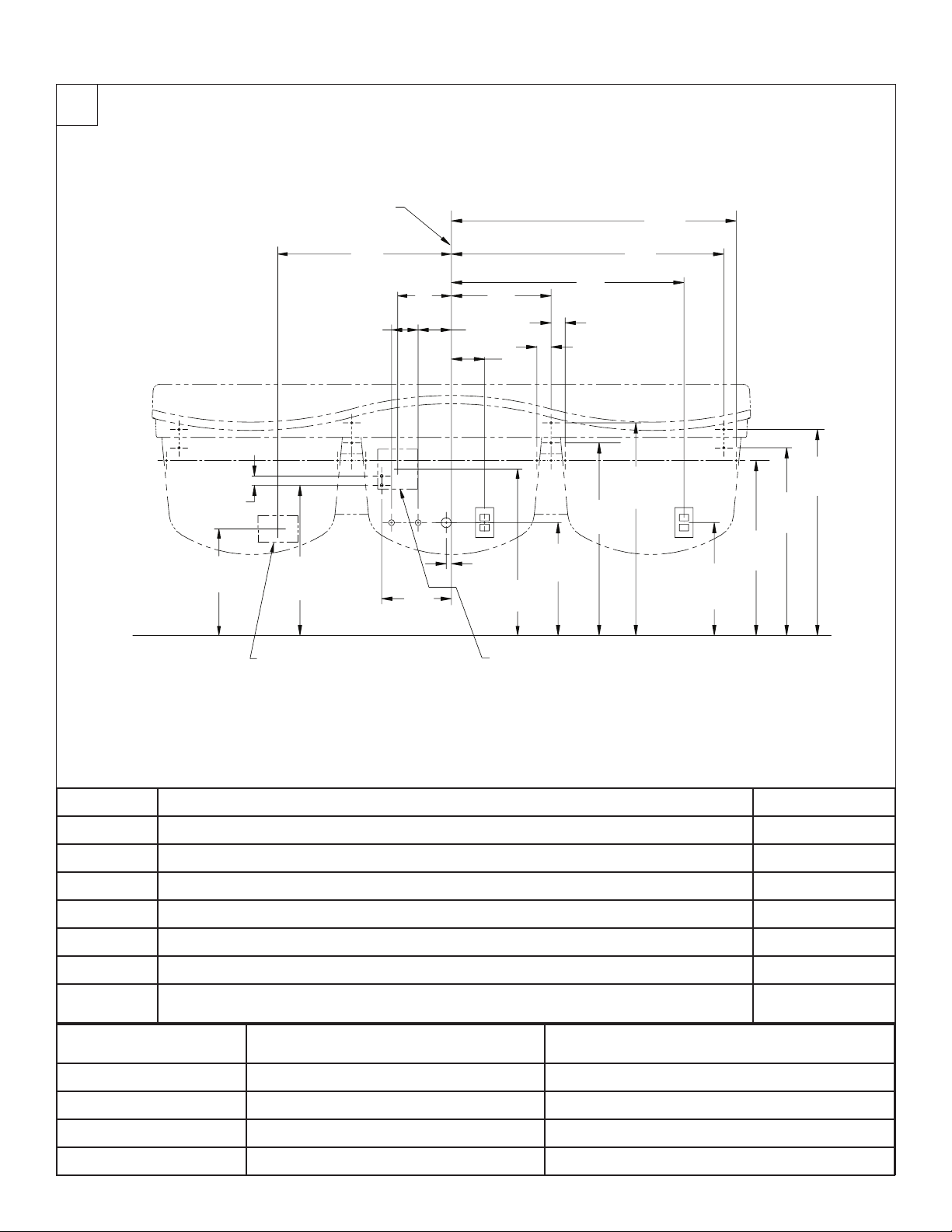

1a Rough-Ins for FL-3H
Code Description Qty.
A3⁄8"LavDeckAnchorswithaMinimumPull-OutForceof1,000lbs. 8
B#10WallAnchors/FastenersforMountingTrap/TransitionCovers 8
H, C ½"NominalCopperTubingforHot/ColdSupplies,Stub-Out2"FromWall 1
D#10WallAnchors/FastenersforValveMounting 2
E110vGFIProtectedElectricalOutlet 1
E2 110vGFIProtectedElectricalOutlet 1
W1½"NPTDrain,stubout2"fromwall(forcombined drain)
NOTE: For individual drains, refer to page 9. 1
Outside Edge Rim Height
(Lower Station) Vertical Height Adjustments for codes A–E, H, C and W Fixture Style
34" 0 Standard Height
32" Subtract2" TAS,Grades6through8or9
31" Subtract3" TAS,Pre-KthroughGrades5or6
30" Subtract4" Juvenile Height
A
AA
A
BBB
B
HC
E
W
A
A
A
A
BBBB
D
D
E2
C
L
¾"
(19mm)
30"
(762mm)
32"
(813mm)
4" (102mm)
33"
(838mm)
26"
(660mm)
29"
(737mm)
25"
(635mm)
Anchors are symmetrical
about the centerline
8"
(203mm)
17"
(432mm)
13⁄8" (35mm)
21⁄8" (54mm)
21⁄8" (54mm)
427⁄8"
(1089mm)
263⁄8"
(670mm)
10½"
(267mm)
225⁄8"
(575mm)
Option 2: Recommended 240v/208v or 277v
ElectricalRough-InLocation(approx.6"x6")
41"
(1041mm)
15"
(391mm)
35"
(889mm)
5"
(127mm)
5" (127mm)
17"
(432mm)
16"
(406mm)
Option 1: Recommended 240v/208v
or 277v Electrical Rough-In Location
(approx.4"x6")

Installation FL-3H, FL-3L
Bradley Corporation • 215-1513 Rev. H; ECM 11-08-011 2/15/2012 7

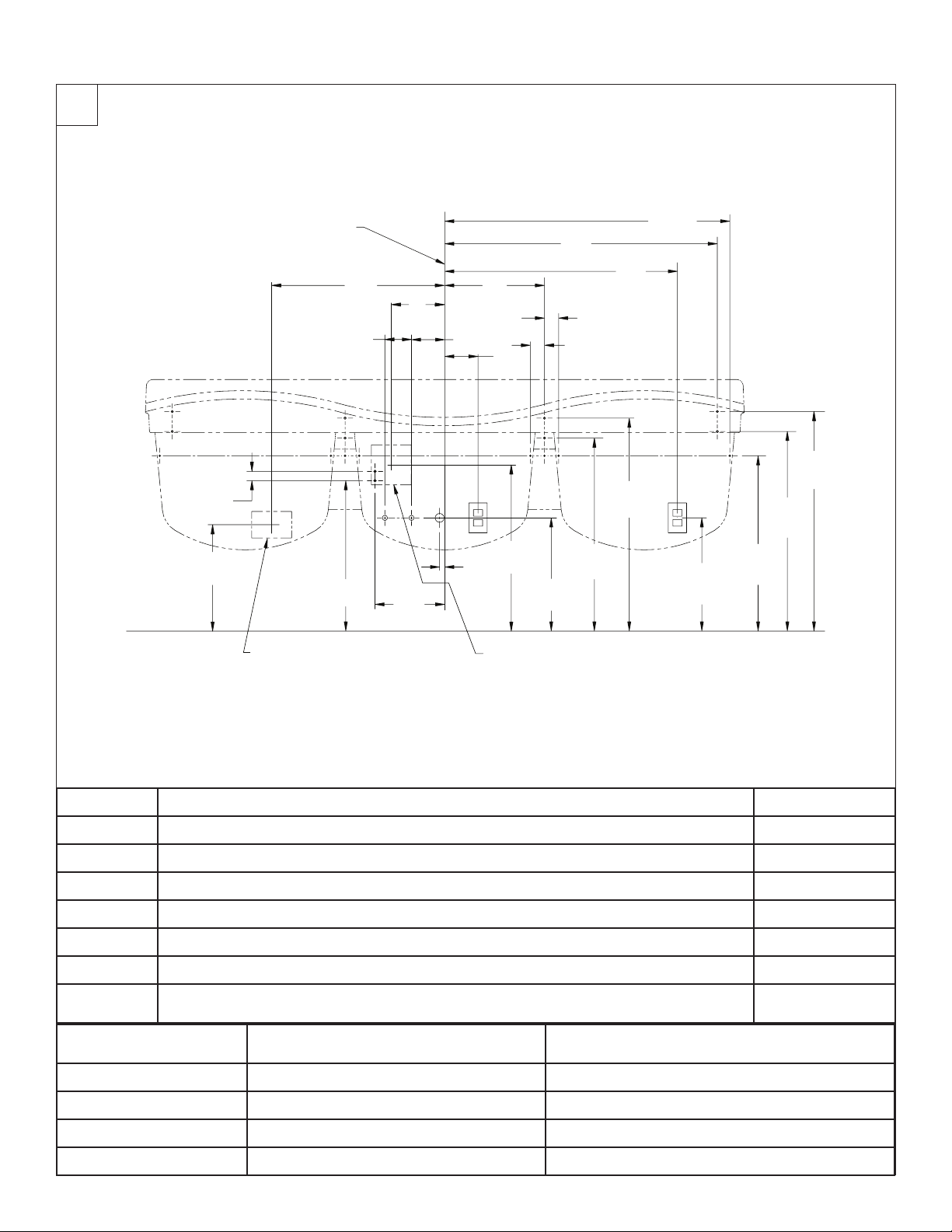

1b Rough-Ins for FL-3L
Code Description Qty.
A3⁄8"LavDeckAnchorswithaMinimumPull-OutForceof1,000lbs. 8
B#10WallAnchors/FastenersforMountingTrap/TransitionCovers 8
H, C ½"NominalCopperTubingforHot/ColdSupplies,Stub-Out2"FromWall 1
D#10WallAnchors/FastenersforValveMounting 2
E110vGFIProtectedElectricalOutlet 1
E2 110vGFIProtectedElectricalOutlet 1
W1½"NPTDrain,stubout2"fromwall(forcombined drain)
NOTE: For individual drains, refer to page 9. 1
Outside Edge Rim Height
(Lower Station) Vertical Height Adjustments for codes A–E, H, C and W Fixture Style
34" 0 Standard Height
32" Subtract2" TAS,Grades6through8or9
31" Subtract3" TAS,Pre-KthroughGrades5or6
30" Subtract4" Juvenile Height
A
A
A
A
A
AA
A
B
BBB
BB
B
B
D
D
E
C
H
WE2
C
L
¾"
(19mm)
28"
(711mm)
32"
(813mm)
4" (102mm)
31"
(787mm)
26"
(660mm)
29"
(737mm)
25"
(635mm)
Anchors are symmetrical
about the centerline
8"
(203mm)
17"
(432mm)
13⁄8" (35mm)
21⁄8" (54mm)
21⁄8" (54mm)
427⁄8"
(1089mm)
263⁄8"
(670mm)
10½"
(267mm)
225⁄8"
(575mm)
41"
(1041mm)
15"
(391mm)
35"
(889mm)
5"
(127mm)
5" (127mm)
17"
(432mm)
16"
(406mm)
Option 2: Recommended 240v/208v or 277v
ElectricalRough-InLocation(approx.6"x6")
Option 1: Recommended 240v/208v
or 277v Electrical Rough-In Location
(approx.4"x6")

FL-3H, FL-3L Installation
82/15/2012 Bradley Corporation • 215-1513 Rev. H; ECM 11-08-011

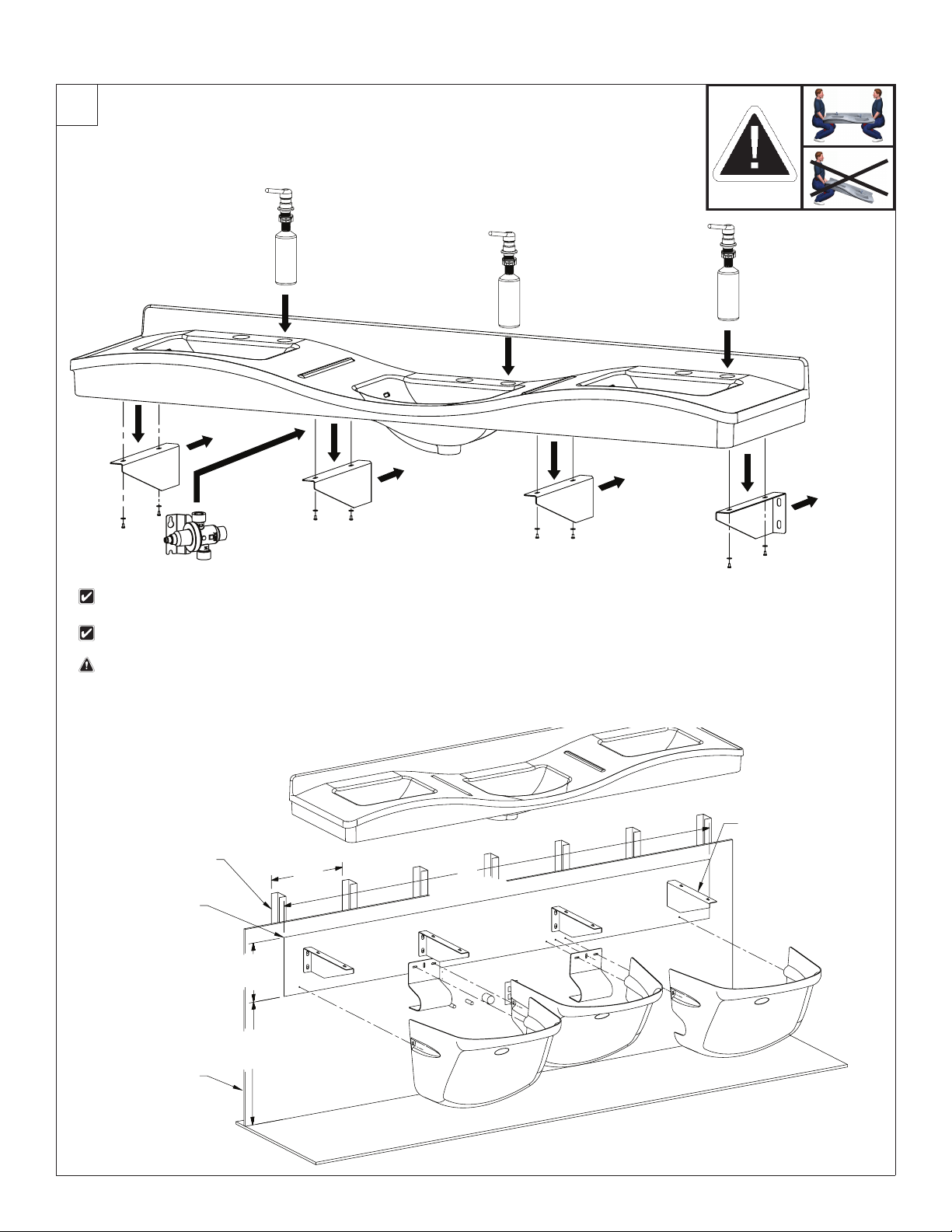

2Lavatory Deck
Metal Studs
Drywall
Securely fasten the
plywoodtoatleast(7)
metalstuds(plywood
to equal thickness of
drywall,½"minimum)
Use ³⁄₈"toggleboltsand
washerstosecurethe
support brackets to the
plywood(4)places.
16"
(406mm)
96"
(2438mm)
12"
(305mm)
25"
(635mm)
Backing Information
Refertotherough-instodeterminewallmountinglocationforoptional
mixing valve.
Installer may prefer to install the faucet before mounting the fixture to
thewall.Refertopage8forfaucetinstallationdetails.
If necessary, adjust the fixture height before securing to the support
brackets.

Installation FL-3H, FL-3L
Bradley Corporation • 215-1513 Rev. H; ECM 11-08-011 2/15/2012 9

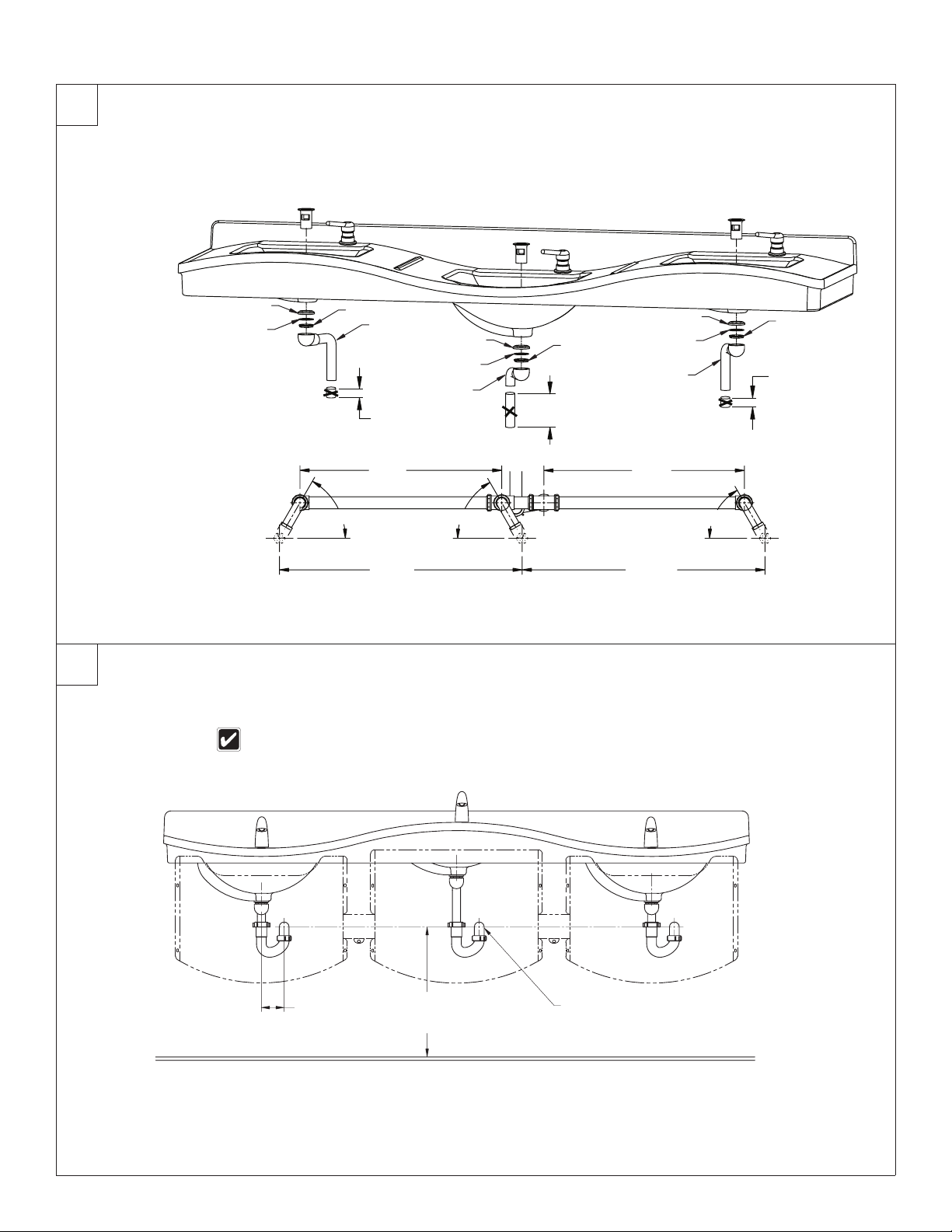

3a Drain and P-Trap
FL-3L is shown
FL-3H is opposite
3b Individual P-Traps
1½"
(38mm)
Rubber
Friction
Nut
Tailpiece
25"
(635mm)
30"
(762mm)
Rotate 60°
5"
(127mm)
Rubber
Friction
Nut
Tailpiece
Rotate 60°
1½"
(38mm)
Rubber
Friction
Nut
Tailpiece
25"
(635mm)
30"
(762mm)
Rotate 60°
TopView
FL-3L:Remove4"fromleftandrightsidetailpiecesonly.
FL-3H:Remove4"fromcentertailpieceonly.
FL-3Lisshown;FL-3Hissimilar.
20"
(508mm)
3½"(89mm)
Max. (3) Places
Ø1½"DrainStub-Out
2"(51mm)FromWall
(3) Places

FL-3H, FL-3L Installation
10 2/15/2012 Bradley Corporation • 215-1513 Rev. H; ECM 11-08-011

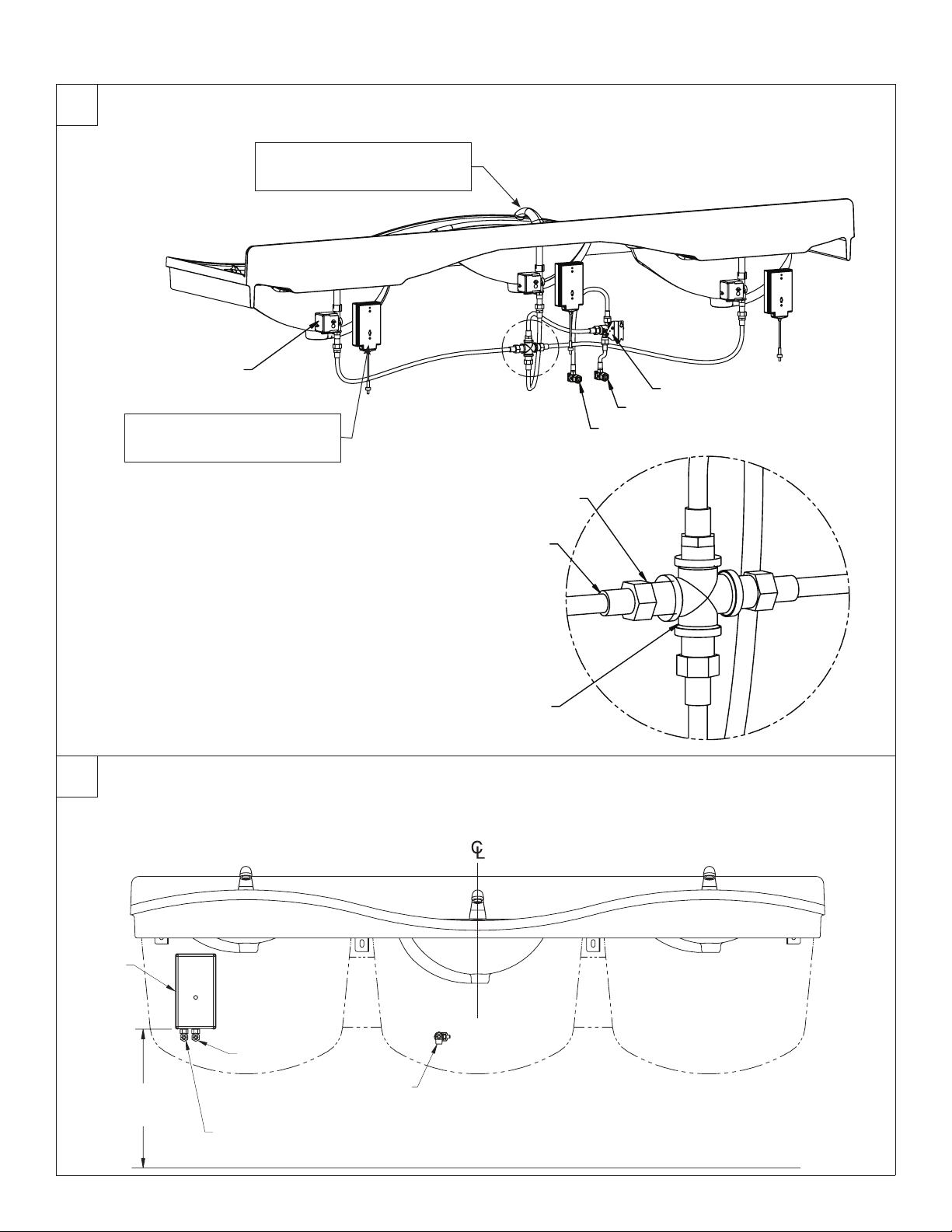

4Faucet Battery Box
5Optional Tankless Water Heater
Adapter½"NPTx½"NPT
(qty. 3) (113-006DH)
FaucetValve
Control Module MixingValve
Hot
Cold
½"FlexibleHose(qty.4)
(269-653)
Cross
(269-1585)
Mount the faucet battery boxes
tothewallatdesiredlocations.
A
Install the faucets according to
manufacturer’s instructions.
B
18"
(457mm)
Outlet
Water
Heater
Inlet
Floor
Tempered
Supply
FL-3H shown
FL-3L is similar

Installation FL-3H, FL-3L
Bradley Corporation • 215-1513 Rev. H; ECM 11-08-011 2/15/2012 11
H
C

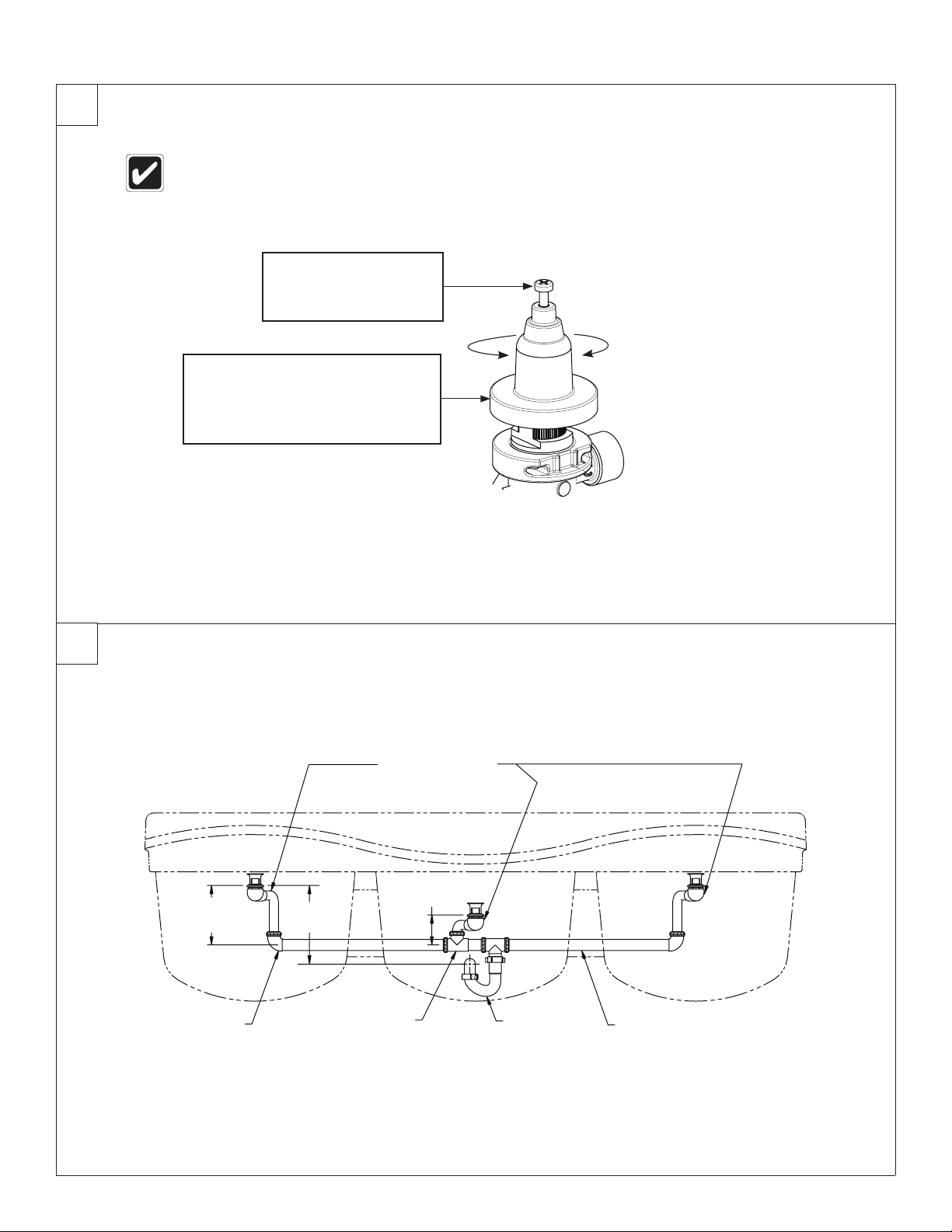

ALoosenthecapscrew
about¼"(4–6turns)
and lift up the cover (do
not remove).
BUsing the cover, turn the cartridge
gentlyuntildesiredwatertemperature
is reached. Do not turn past stops as
this may damage the unit. Push the
coverdownandtightenthescrew.
This valve is NOT factory preset. Upon installation, the temperature of this
valve must be checked and adjusted to ensure delivery of a safe water
temperature. Water in excess of 110°F (43°C) may cause scalding.
6Adjust the Temperature
7End Outlet and Continuous Waste
FL-3L is shown
FL-3H is opposite
Offset Lav Strainer
Tee End Outlet P-trap Waste Arm
8"ref.
(203mm)
Waste Arm
FrontView
10¾"ref.
(273mm)
4"ref.
(102mm)

FL-3H, FL-3L Installation
12 2/15/2012 Bradley Corporation • 215-1513 Rev. H; ECM 11-08-011

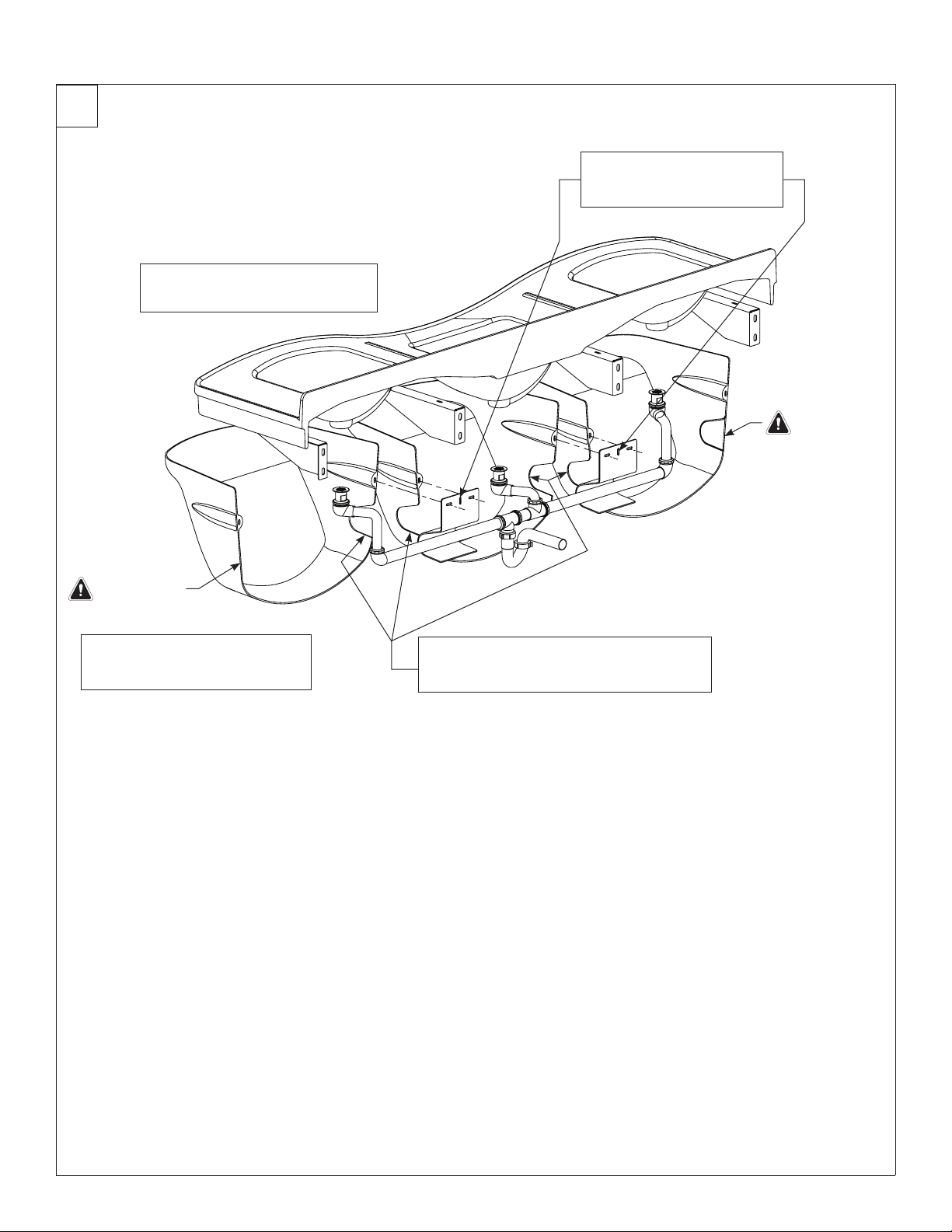

8Optional Trap/Transition Covers
Do not trim!
Trim the trap covers (at inside scoring only!)
withahigh-speedrotarytooland¹⁄₈"radius
tip bit (or very sharp knife). Clean burrs.
C
Position the trap covers over the
transition cover and secure to the
wallwithhardwareprovided.
D
Do not trim!
Turnonthewaterandtesttheunit
for leaks and proper operation.
A
Secure the transition covers
throughtheverticalslotwith
hardwareprovided.
B

Installation FL-3H, FL-3L
Bradley Corporation • 215-1513 Rev. H; ECM 11-08-011 2/15/2012 13
Cleaning and Maintenance for Terreon®
Material Description: Terreon is an NAHB-certified densified solid surface material composed of polyester resin and is resistant
tochemicals,stains,burnsandimpact.Surfacedamagecanbeeasilyrepairedwitheverydaycleansersornegritabrasives.
Routine Cleaning: Clean daily or as often as conditions require using a standard commercial or household cleaner such as
Formula 409®or Windex®.
Stubborn Stains: RemovetoughstainswithAjax®, Comet®, or Soft-Scrub®and a green Scotch-Brite®pad or lightly sand in a
circularmotionwith240gritwet/drysandpaper.ThenishcanberenewedwithamaroonScotch-Britepad.
Special Situations for Terreon Material
Scratches:RemovescratcheswithagreenScotch-Britepad.ThenishcanthenberenewedwithamaroonScotch-Brite
pad,followedbyawhiteScotch-Britepador30-micronsandpaper.
Hard Water Deposits:Removehardwaterdepositswithamildsolutionofvinegarandwater.Alwaysrinsetheunit
thoroughly after cleaning.
Restoring the surface: Use Hope’s®Solid Surface cleaner and polish to refresh and protect the Terreon Solid Surface
material. Bradley recommends additional care and maintenance for the darker colored Terreon. For complete instructions on
this additional maintenance, visit bradleycorp.com.
Do not use strong acid or alkaline chemicals and cleansers to clean Terreon. If these chemicals come in contact
with the surface, wipe them off immediately and rinse with soapy water. Avoid contact with harsh chemicals
such as paint remover, bleach, acetone, etc. Avoid contact with hot pans and objects.
Repair Kits: Terreon repair kits are available. Contact your Bradley representative or distributor for part numbers and pricing.
Repair kits are made to order and have a shelf life of 30 days.
Terreon is a unique, cast solid surface material. Aggregate flow and distribution as well as shades of color can vary from
product to product creating natural characteristics.
Brand Names
Use of brand names is intended only to indicate a type of cleaner. This does not constitute an endorsement, nor does the omission
of any brand name cleaner imply inadequacy. Many products named are regional in distribution, and can be found in local
supermarkets,departmentandhardwarestores,orthroughyourcleaningservice.Itisemphasizedthatallproductsshouldbeused
instrictaccordancewithpackageinstructions.

FL-3H, FL-3L Installation
14 2/15/2012 Bradley Corporation • 215-1513 Rev. H; ECM 11-08-011
IMPORTANT !
Lire ce manuel d’installation dans son intégralité pour garantir une installation
appropriée. Une fois celle-ci terminée, classer ce manuel auprès du service à
la clientèle ou d’entretien. L’installateur est responsable de la conformité de
l’installation aux codes pour des drain et codes et règlements en vigueur.
Assurez-vous que toutes les pièces sont incluses dans l’emballage et qu’il n’en
manque aucune avant de jeter l’emballage. Ne commencez pas l’assemblage avant
de recevoir les pièces manquantes.
Veiller à bien vidanger et fermer toutes les conduites d’eau avant de commencer
l’installation. Tout débris dans les conduites d’alimentation risque de provoquer un
mauvais fonctionnement des soupapes.
Couper toute alimentation électrique aux prises électriques puis débrancher
toutes les unités électriques avant l’installation. L’alimentation électrique DOIT
être coupée jusqu’à ce que l’installation soit terminée. Une fois l’installation
terminée, ouvrir d’abord l’alimentation en eau puis mettre en marche l’alimentation
électrique.
La quincaillerie fournie par l’installateur doit être appropriée pour la construction
des murs. Les dispositifs d’ancrage muraux doivent avoir un indice d’arrachement
minimum de 1,000 lb (453,6 kg).
Les garanties de produits figurent sous la rubrique « produits » sur notre site
Internet à bradleycorp.com.
THIS
SIDE
UP
Packing List
•
•
•
•
Installation
Equipements nécessaires :
• (8) dispositifs d’ancrage muraux de 3⁄8",boulonsetrondellesdeD.E.de1"mini.pourmonterbâtiprincipaletlavabo
sur le mur (indice d’arrachement minimum de 453,6 kg/1 000 lb)
• (2) dispositifs d’ancrage muraux n° 10 (pour robinet mitigeur/support de fixation en option)
• Tubedecuivrede½"nominalpourlatuyauteried’alimentationd’eauchaude/froideoutempérée
• Canalisationdedrain1½"NPT
• ENOPTION:Priseélectriqueprotégée110voltsGFCIpourtransformateuràbrancher100–120Vc.a.(pour
robinets Bradley)
• ENOPTION:240/208ou277voltspourchauffaged’eauélectriquesansréservoir

Installation FL-3H, FL-3L
Bradley Corporation • 215-1513 Rev. H; ECM 11-08-011 2/15/2012 15
Composants
Soupape
(S01-526)
Lavabo FL-3H (187-271)
contacter Bradley pour
les options de couleur
Paquet de couvercle de siphon FL-3
(S45-2110 –Gray)
(S45-2110A – Putty)
(S45-2110B – Coal)
Couvercle de transition
(186-1459–Gray)
(186-1459A – Putty)
(186-1459B – Coal)
Distributeur de savon
Modèle 6334
Patte de support
(140-823L) Patte de support
(140-823R)
Adaptateur d’unité
simple en option
(153-443)
Robinet Aerada™
1200 Série CS
Modèle S53-315
Ensemble évacuation standard
FL-3H est montrée
FL-3L est similaire
Siphon en P
(269-1697)
Té de sortie en bout
(269-1745)
Crépine en déport
(269-1751)
Chauffage d’eau sans réservoir en option
269-1767 – EX95TMLB, 240/208 volts
269-1768 – EX100TMLB, 277 volts
Ensemble Navigator®
TMV Conduite trempée
en option
Support
(140-1041)
Tuyau
exible½"
(269-2053)
Vis#10-24
(P18-054)
Rondelle#10
(142-002AT) Té de sortie
en centre
(269-1744)
Bras de vidange
(269-1747)
Lavabo FL-3L (187-272)
contacter Bradley pour
les options de couleur
Vis#10-24
(160-447)
Vanned’arrêt
(S27-340)

FL-3H, FL-3L Installation
16 2/15/2012 Bradley Corporation • 215-1513 Rev. H; ECM 11-08-011
FL-3H
FL-3L
15"
(381mm)
90"
(2286mm)
30"
(762mm)
7¾" (197mm)
22"
(559mm)
30" (762mm) ADA
15" (381mm)
ADA
37¾"
(959mm)
30"
(762mm) 34"
(864mm)
ADA
32"
(813mm)
12¼"
(311mm)
30" (762mm) ADA
15" (381mm)
ADA
34" (864mm)
ADA
32"
(813mm)
37¾"
(959mm)
361⁄8"
(918mm) 30"
(762mm)
12¼"
(311mm)
30"
(762mm)
30" (762mm)
361⁄8"
(918mm)
30" (762mm)
Dimensions - Vues de face et de dessus
FL-3H est montrée
FL-3L est similaire

Installation FL-3H, FL-3L
Bradley Corporation • 215-1513 Rev. H; ECM 11-08-011 2/15/2012 17
TASTA S
14"
(356mm)
30"
(762mm)
37¾"
(959mm)
12¼"
(311mm)
34" (864mm)
ADA Hauteur
de bord
9¼"
(235mm)
22" (559mm)
8¼" (210mm)
10¼"
(260mm)
19½" (495mm)
14"
(356mm)
14"
(356mm)
14"
(356mm)
4½"
(114mm) 4½"
(114mm)
4½"
(114mm) 4½"
(114mm)
27"
(686mm)
26"
(660mm)
28"
(711mm)
34¾"
(883mm)
33¾"
(857mm)
35¾"
(908mm)
22" (559mm)
22" (559mm)
22" (559mm)
19½" (495mm) 19½" (495mm)
19½" (495mm)
Hauteur
enfant
Hauteur
standard
Hauteur TAS
Niveaux
scolaires
Pre-K à 5 ou 6
Hauteur TAS
Niveaux
scolaires 6 à
8 ou 9
Dimensions - Vues latérales
31" (787mm)
ADA Hauteur
de bord
30" (762mm)
ADA Hauteur
de bord
32" (813mm)
ADA Hauteur
de bord

FL-3H, FL-3L Installation
18 2/15/2012 Bradley Corporation • 215-1513 Rev. H; ECM 11-08-011
1a Mises en place des canalisations pour FL-3H
Code Description Qté.
A Dispositifs d’ancrage 3⁄8"d’unitédelavaboavecuneforced’arrachementminimumde453,6kg.(1000lb.) 8
B Dispositifs d’ancrage muraux n° 10/Fixations pour monter siphon/Couvercles de transition 8
H, C Tubed’alimentationchaud/froidencuivrede½"nominal,tubulurederaccordementà2"(51mm)dumur 1
D Dispositifs d’ancrage muraux n° 10/Fixations pour montage de robinet 2
EPriseélectriqueprotégée110vGFI 1
E2 Priseélectriqueprotégée110vGFI 1
WDrain1½"NPT,tubulurederaccordement2"dumur(pourdrainmixte)
NOTE: Pour drains individuels, consulter la page 20. 1
Taille externe de hauteur de bord
(la station inférieure) Réglages de hauteur verticale pour codes A–E, H, C et W Style d’appareils sanitaires
34" 0 Hauteur standard
32" Soustraire2" HauteurTASNiveauxscolaires6à8ou9
31" Soustraire3" HauteurTASNiveauxscolairesPre-Kà5ou6
30" Soustraire4" Hauteur enfant
A
AA
A
BBB
B
HC
E
W
A
A
A
A
BBBB
D
D
E2
C
L
¾"
(19mm)
30"
(762mm)
32"
(813mm)
4" (102mm)
33"
(838mm)
26"
(660mm)
29"
(737mm)
25"
(635mm)
8"
(203mm)
17"
(432mm)
13⁄8" (35mm)
21⁄8" (54mm)
21⁄8" (54mm)
427⁄8"
(1089mm)
263⁄8"
(670mm)
10½"
(267mm)
225⁄8"
(575mm)
41"
(1041mm)
15"
(391mm)
35"
(889mm)
5"
(127mm)
5" (127mm)
17"
(432mm)
16"
(406mm)
Option 2 : Emplacement des mises en place des
canalisations électriques recommandé 240 v/208
vou277v(approximativement6"x6")
Option 1 : Emplacement des mises
en place des canalisations électriques
recommandé 240 v/208 v ou 277 v
(approximativement4"x6")
Les dispositifs d’ancrage
sont symétrique

Installation FL-3H, FL-3L
Bradley Corporation • 215-1513 Rev. H; ECM 11-08-011 2/15/2012 19
1b Mises en place des canalisations pour FL-3L
Code Description Qté.
A Dispositifs d’ancrage 3⁄8"d’unitédelavaboavecuneforced’arrachementminimumde453,6kg.(1000lb.) 8
B Dispositifs d’ancrage muraux n° 10/Fixations pour monter siphon/Couvercles de transition 8
H, C Tubed’alimentationchaud/froidencuivrede½"nominal,tubulurederaccordementà2"(51mm)dumur 1
D Dispositifs d’ancrage muraux n° 10/Fixations pour montage de robinet 2
EPriseélectriqueprotégée110vGFI 1
E2 Priseélectriqueprotégée110vGFI 1
WDrain1½"NPT,tubulurederaccordement2"dumur(pourdrainmixte)
NOTE: Pour drains individuels, consulter la page 20. 1
Taille externe de hauteur de bord
(la station inférieure) Réglages de hauteur verticale pour codes A–E, H, C et W Style d’appareils sanitaires
34" 0 Hauteur standard
32" Soustraire2" HauteurTASNiveauxscolaires6à8ou9
31" Soustraire3" HauteurTASNiveauxscolairesPre-Kà5ou6
30" Soustraire4" Hauteur enfant
A
A
A
A
A
AA
A
B
BBB
BB
B
B
D
D
E
C
H
WE2
C
L
¾"
(19mm)
28"
(711mm)
32"
(813mm)
4" (102mm)
31"
(787mm)
26"
(660mm)
29"
(737mm)
25"
(635mm)
8"
(203mm)
17"
(432mm)
13⁄8" (35mm)
21⁄8" (54mm)
21⁄8" (54mm)
427⁄8"
(1089mm)
263⁄8"
(670mm)
10½"
(267mm)
225⁄8"
(575mm)
41"
(1041mm)
15"
(391mm)
35"
(889mm)
5"
(127mm)
5" (127mm)
17"
(432mm)
16"
(406mm)
Les dispositifs d’ancrage
sont symétrique
Option 2 : Emplacement des mises en place des
canalisations électriques recommandé 240 v/208
vou277v(approximativement6"x6")
Option 1 : Emplacement des mises
en place des canalisations électriques
recommandé 240 v/208 v ou 277 v
(approximativement4"x6")

FL-3H, FL-3L Installation
20 2/15/2012 Bradley Corporation • 215-1513 Rev. H; ECM 11-08-011
Solidement fixer le
contreplaquéàaumoins
sept (7) poteaux métalliques
(contreplaquéégalà
épaisseur de cloison sèche,
1,3cm[½"]minimum)
Poteaux métalliques
Cloison sèche
2Lavabo
Utiliser les boulons
àailettes³⁄₈"et
les rondelles pour
fixer les pattes
de support au
contreplaqué quatre
(4) emplacements.
16"
(406mm)
96"
(2438mm)
12"
(305mm)
25"
(635mm)
Information relative au support
Consulter les mises en place de canalisations pour déterminer
l’emplacement de fixation sur le mur pour un robinet mitigeur en option.
L’installateur peut préférer installer le robinet avant de monter l’appareil
sanitaire sur le mur.
Le cas échéant, ajuster la hauteur de l’appareil sanitaire avant de fixer
aux pattes de support.
