Breezesta AD-0114 User manual

REV07-07/21

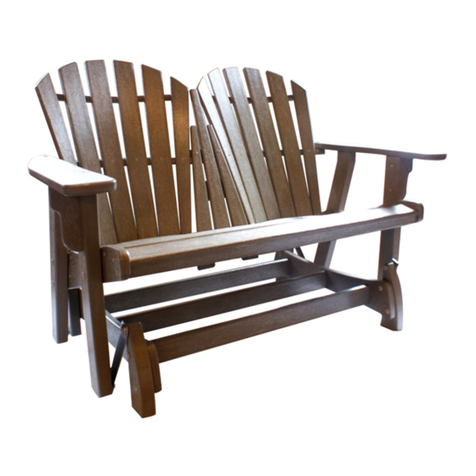

DOUBLE COASTAL GLIDER
AD-0114
1 AD-0114 Assembly

A
B
C D
F
E
a b c d
Suggested Tools:
Drill, Plastic Mallet
e
G
H
I
J
K
L
N
P
O
f g
M
PARTS
PART DESCRIPTION PART NO. QTY
A FRONT LEG ASSEMBLY SA-00101 2
B UNDER ARM SUPPORT PRT-00146 2
C LEFT BACK LEG ASSEMBLY SA-00102 1
D RIGHT BACK LEG ASSEMBLY SA-00103 1
E LEFT ARM ASSEMBLY SA-00458 1
F RIGHT ARM ASSEMBLY SA-00459 1
G SEAT ASSEMBLY SA-00094 1
H DOUBLE COASTAL GLIDER SPREADER SS-34.5 3
I STOP BAR PRT-00197 1
J BASE SIDE RAIL PRT-00422 2
K LEFT BASE FOOT ASSEMBLY SA-00420 2
L RIGHT BASE FOOT ASSEMBLY SA-00419 2
M SEAT SUPPORT PRT-00184 1
N CENTER BACK ASSEMBLY SA-00097 1
O LEFT BACK ASSEMBLY SA-00095 1
P RIGHT BACK ASSEMBLY SA-00096 1
HARDWARE
PART DESCRIPTION PART NO. QTY
a #8 X 1-1/2" TORX SCREW H-0000-S815 2
b1 #8 X 2" TORX SCREW-FRAME COLOR H-0000-S82 18
b2 #8 X 2" TORX SCREW-UNPAINTED H-0000-S82 5
c #8 X 2-1/2" TORX SCREW H-0000-S825 4
d 5/16" X 1-1/2" CHAIR BOLT H-0000-CB51615 10
e 5/16" X 2-1/8" CHAIR BOLT H-0000-CB516218 14
f DOUBLE SCREW H-0000-DS 4
g T20 & T25 TORX BIT H-0000-CTD 1
AD-0114 Assembly 2

f
x2
E
C
A
T20
c
x2
B
1.
Starting with Part C, attach Parts C & A to
Part E by inserting Hardware f into the pre-
drilled holes and rotating clockwise, stopping
when the assembly is tight
3.
Repeat Steps 1 & 2 with
Parts A, B, F, D
Please read entire instructions
before beginning
2.
Place Part B into the pre-cut
slot and attach with Hardware c
3 AD-0114 Assembly

T25
G
e
x6
T20
T20
T20
b2
x5
unpainted
M
b1
frame color
b1
frame color
4.
Attach Part G to the previous
assemblies using Hardware e
5.
Place Part M into Part G &
attach it with the hardware shown
4 AD-0114 Assembly

T20
T25
T25
T25
T20
b1
x4
P
O
d d
Push seat backs
against notch in
the side rail
N
a
x2
6.
Slide Parts O & P into the assembly & attach
as shown
7.
Slide Part N between
Parts O & P into the
assembly & attach as shown
Back View
Front View
d
x4
5 AD-0114 Assembly

T20
T20
b1
x6
frame color
H
x3
J
x2
I
b1
x6
frame color
9.
Attach Part I to the previous assembly
8.
Connect Parts H to Parts J using Hardware b
6 AD-0114 Assembly

T25
T25
T25
e
x8
K
x2
L
x2
d
x4
11.
Assemble the base to the upper as shown,
starting from the front & moving to the back
10.
Connect Parts K & L using Hardware e
7 AD-0114 Assembly
