Breezy Ibis PowerDrive User manual

Ibis PowerDrive
9009169C
USER MANUAL EN
Power Assist

2 Table of content Ibis PowerDrive
Table of content
1 Introduction....................................................................................................................................3
1.1 This user manual 3
1.2 For further information 3
1.3 Symbols used in this manual 3
2 Safety ............................................................................................................................................4
2.1 Temperature 4
3 General description .......................................................................................................................5
3.1 Main components 5
3.2 The controller 5
4 Use of the wheelchair....................................................................................................................6
4.1 Checking the wheelchair before use 6
4.2 Getting in and out of the wheelchair (transfer) 6
4.3 Driving with PowerDrive assistance 7
4.4 Free wheel lever 9
5 Settings .......................................................................................................................................10
5.1 Seating system 10
6 Maintenance................................................................................................................................ 11
6.1 Maintenance plan 11
6.2 Batteries 11
6.3 Tyres 12
6.4 Cleaning and desinfection 12
7 Troubleshooting...........................................................................................................................13
8 Technicalspecications...............................................................................................................14
9 Labelling......................................................................................................................................15
9.1 Markings on the wheelchair 15
10 Accessories.................................................................................................................................16
11 Warranty......................................................................................................................................17
11.1 Denitionsofterms 17
11.2 Warranty period table 18
12 Additional Information..................................................................................................................20

Introduction 3Ibis PowerDrive
1 Introduction
Congratulations on choosing a Sunrise Medical
wheelchair. Sunrise Medical’s high-quality
mobility products are designed to enhance
independence and make your everyday life
easier.
1.1 This user manual
This user manual will help you to use and
maintain your wheelchair safely. This entire
user manual for this wheelchair consists of
three booklets:
• The general wheelchair user manual (this
booklet)
• The user manual for the seating system
When necessary this general user manual
refers to other manuals as shown below:
&Seating system: Refers to the user manual
for the seating system.
&Battery charger: Refers to the user manual
for the battery charger.
Read this entire user manual (all of the
booklets) carefully before using the product.
If one of the user manuals was not included
with your wheelchair, please contact your
dealer immediately.
In addition to this user manual, there is also a
servicemanualforqualiedspecialists.
If you are visually impaired, this
document can be viewed in PDF format at
www.SunriseMedical.eu or alternatively is
available on request in large text.
1.2 For further information
Please contact your local, authorised Sunrise
Medical dealer if you have any questions
regarding the use, maintenance or safety of
your wheelchair. In case there is no authorised
dealer in your area or you have any questions,
contact Sunrise Medical either in writing or by
telephone.
For information about product safety
notices and product recalls, go to
www.SunriseMedical.eu
1.3 Symbols used in this manual
Note!
Pointing out possible problems to the user.
Caution!
Advice for the user to prevent damage to the
product.
Warning!
Warnings for the user to prevent personal in
jury.
Not following these instructions may result
in physical injury, damage to the product or
damage to the environment!

2 Safety
Warning!
Always follow the instructions given next to
the warning symbols! Not following these
instructions may result in physical injury,
damage to the wheelchair or damage to
the environment. Where possible, the
warnings have been placed in the applicable
paragraphs.
2.1 Temperature
Warning!
Avoid physical contact with the wheelchair’s
motors. The motors are continuously in
motion during use and can reach high
temperatures. After use, the motors will cool
down slowly. Physical contact may cause
burns.
Ensure that the wheelchair is not exposed
to direct sunlight for extended periods of
time. Certain parts of the wheelchair, such
as the seat, the backrest and the armrests,
can become hot if exposed to the sun for too
long. This may cause burns or skin irritation.

General description 5Ibis PowerDrive
1
2
3
1
4
2
3 General description
The Ibis PowerDrive is a wheelchair equipped
with a power assistive system, that allows the
carekeeper to drive the wheelchair and its user
withlessmanuale󰀨ort.
3.1 Main components
Seegure1
1. Drive wheels
2. Castor wheels
3. Freewheel switch
4. Controller
5. Seat cushion
6. Backrest
7. Armrest
8. Legrest with foot support
• Headrest (optional)
3.2 The controller
Seegure2
1. On/O󰀨key
Key used to activate the PowerDrive. When
activated the battery indicator will light up.
In case of a general malfunction the battery
indicatorwillash.
2. Operating throttle
Throttle (proportional) which activates the
power assistance function.
3. Speed button
Button on the controller to set the maximum
speed. The speed button is stepless.
4. Battery indicator
Lights showing the battery condition. The
battery indicator comprises 10 lights (red: 30%,
orange: 30-70%, green: 70-100% charge).
When the PowerDrive is activated, the battery
indicator is visible. When the battery charge is
less than 20%, you should charge the batteries.

6 Use of the wheelchair Ibis PowerDrive
1
A
B
2
C
D
3
3
4 Use of the wheelchair
4.1 Checking the wheelchair
before use
Before driving check that:
1. Thetyresaresu󰀩cientlyinated(see6.3
Tyres).
2. Thebatteriesaresu󰀩cientlycharged.The
green lights on the battery indicator must
be on
3. The freewheel switch has been set to ‘drive’
(see 4.4 Free wheel lever).
Note!
Before use, always check to see whether
clothing or accessories could come into
contact with wheels or other moving and/
or rotating parts in which they could become
entangled.
The capacity of batteries is reduced in winter.
During a period of light frost, the capacity
is roughly 75% of the normal capacity. At
temperaturesbelow-5˚Cthiswillberoughly
50%. This will reduce the wheelchair’s range.
4.2 Getting in and out of the
wheelchair (transfer)
(&Seating system)
Warning!
Before a transfer is made, ensure that the
controllerhasbeenswitchedo󰀨.
Ensure that the freewheel switch has been
switched to ‘drive’ (see 4.4 Free wheel lever)
Do not stand on the footrests. Putting
your full weight on the footrests may lead
to wheelchair damage and to hazardous
situations, including the wheelchair tipping
up.
Forwards transfer(gure3)
1. Fold up the foot supports
2. Swing the calf plates to the side (if
applicable)
3. If possible, swing the legrests to the side
4. Seat yourself in the chair

Use of the wheelchair 7Ibis PowerDrive
A
B
1
2
1
B 2
A
A
4
5
6
Flipping up the central legrest footplate
(gure4)
1. Flip up (A).
Sideways transfer
Removingthearmrestassembly(gure5)
1. Tip (A) downwards.
2. Remove (B).
Foldingbackthearmrest(gure6)
1. Press (A).
2. Fold (B) to the rear.
Caution!
Remove the tray before folding back the
armrest.
4.3 Driving with PowerDrive
assistance
Use the speed button to select the desired
speed. Gently squeeze the left part of throttle
handle. The further you squeeze the handle, the
faster you will drive. To drive reverse, gently
squeeze the right part of throttle handle.
Braking
To brake, release the throttle handle completely.
The wheelchair will then brake automatically.
Driving up obstacles
1. Drive straight up to the kerb.
2. Slowly squeeze the throttle to go forward.
Drive up the sidewalk without changing
direction.
3. As soon as the front wheels are on the
sidewalk, you must keep your speed for
the rear wheels to be able to move up the
sidewalk as well. If you cannot drive up onto
thesidewalk,ndalowerplacewhereyou
can.
Driving down obstacles
1. Drive straight up to the edge of the sidewalk.
2. Slowly squeeze the throttle to go forward.
Drive carefully down the sidewalk without
changing direction.

8 Use of the wheelchair Ibis PowerDrive
Slopes
When all of the adjustment options are set
to the standard position, it can be assumed that
aslopeof≤10°(17.6%)belongstoanormal
user environment with no danger of instability.
Inthetechnicalspecications,youwillndthis
under„maximumsafeslope‟.
Slopes steeper than the normal user
environment
Driving on slopes with a gradient greater than
the maximum safety limit may lead to safety
risks with respect to stability. This requires
great care and complete control on the part of
the user. Always drive carefully and never take
unnecessary risks! Follow the instructions given
by the warnings!
The stability and performance of a wheelchair
depend on a number of variables. Wheelchairs
are adapted to the needs of individual users.
Thisiswhyvariableswilldi󰀨erfromwheelchair
to wheelchair. You should therefore ask your
dealer to inform you about how to use the
wheelchairandwhetherthespecicsettings
and adjustments for your own situation can
inuencethedrivingcharacteristicsofthe
wheelchair.
Warning!
When driving on a slope, always drive
carefully and with the utmost concentration.
Avoid sudden, jerky movements.
Avoid making emergency stops on a slope.
Avoid changing direction on a slope
whenever possible.
Do not turn on a slope.
Only drive up a slope with all the adjustment
options set to the neutral position.
Never drive in reverse on a slope.
Do not drive on slopes with loose gravel or a
sandy surface, as one of the driving wheels
could slip/spin.
Do not drive on slopes for extended periods
of time in order to prevent the motor from
overheating.
When driving down a slope forwards in an
FWD wheelchair, use an anti-tip mechanism.
Ifyounoticeasignicantdecreaseinspeed
when driving up a slope, take a route which
is less steep.
Prevent the wheelchair from gaining too
much speed when driving downhill.
Curves
Note!
Never take curves at full speed. Decrease
speed before taking a curve.
Keep the throttle handle engaged at the
desired speed and slightly pull the push handle
backwards from the direction where you want
to go, e.g. when turning left pull the left push
handle slightly backwards.

Use of the wheelchair 9Ibis PowerDrive
7

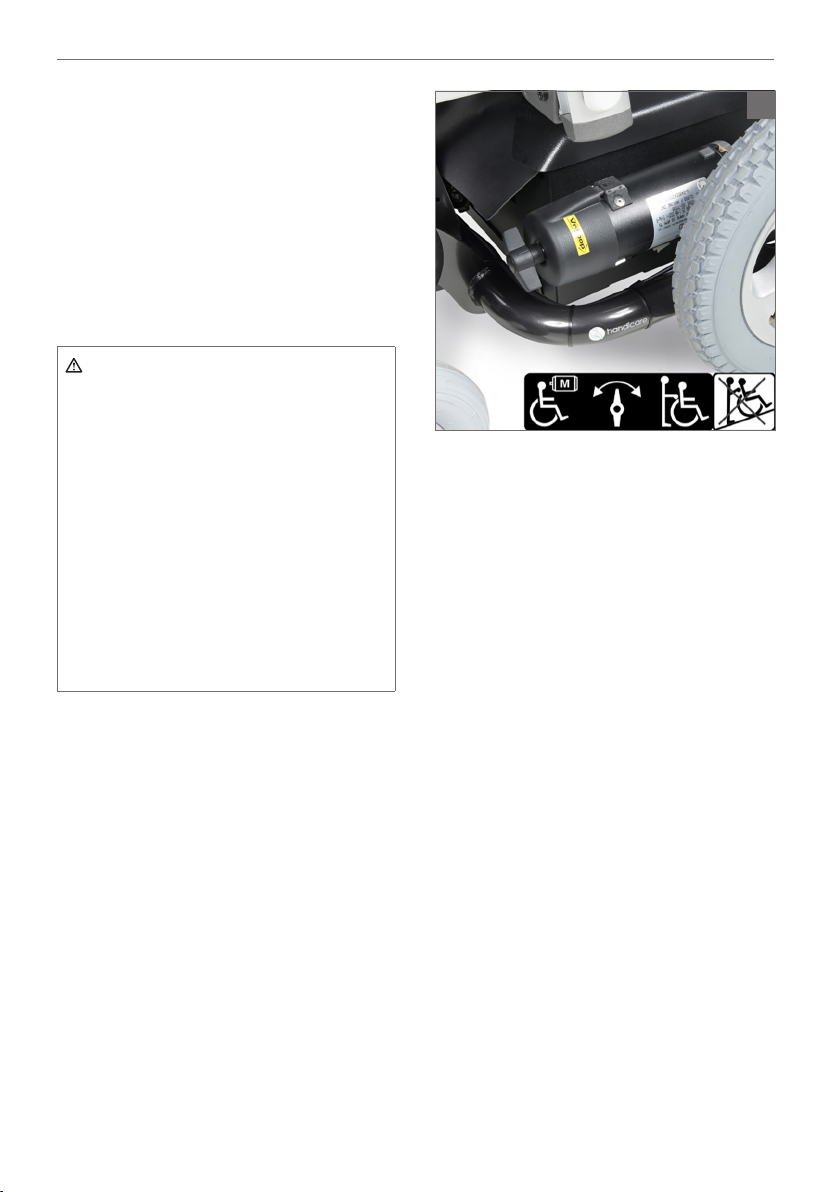

4.4 Free wheel lever
The wheelchair can also be moved by
pushing. In order to do so, the motors must be
disengagedusingafreewheelswitch(gure7).
This feature was developed for the attendants
of wheelchair users, to push manually, in other
words without power assistance.
The freewheel switch has two positions:
1. The ‘Drive’ position.
2. The ‘Push’ position.
Warning!
The freewheel switch should only be
operated by the attendant and never by the
user.
Never set the switch to ‘push’ on a slope!
When the freewheel switch is set to ‘push’,
the automatic parking brake is deactivated.
This makes it possible for the wheelchair to
roll down the slope.
The automatic parking brake only works if
the switch is set to the ‘drive’ position.
When the chair is no longer being pushed
manually, the freewheel switch should be set
to ‘drive’ immediately.

10 Settings Ibis PowerDrive
5 Settings
The average wheelchair user does not exist.
This is why Sunrise Medical wheelchairs can
beadjustedaccordingtothespecicneedsof
the user.
In this, we make a distinction between
wheelchair settings and wheelchair adjustment
options. Settings are carried out only once
andmustbeexecutedbyqualiedspecialists,
unless explicitly stated otherwise. Adjustment
options can be carried out by the user. These
adjustment options do not require the use of
tools.
5.1 Seating system
The extensive settings with respect to the
seating system allow for optimum support of
the body (&Seating system). The following
setting options are possible:
1. Seat depth and seat width
2. Backrest angle
3. Armrest height
4. Lower leg length
5. Angle of the footplate

Maintenance 11Ibis PowerDrive
6 Maintenance
The wheelchair’s lifespan is dependent on it
being well maintained.
Forinformationconcerningspecicsettings,
maintenance or repair work, please contact
your dealer. Always be sure to mention the
model,yearofmanufactureandidentication
numberprovidedontheidenticationplateof
the wheelchair when contacting your dealer.
Note!
The wheelchair should be serviced by
your dealer once a year or, in the case of
intensive use, every six months.
6.1 Maintenance plan
Task Chap.
Daily Charge the batteries
after each use 6.2
Weekly
Check the tyre
pressureandinate
the tyres if necessary
6.3
Monthly Clean the wheelchair 6.4
Annually Have wheelchair
serviced by dealer -
6.2 Batteries
The wheelchair uses two 12V ‘dry’ gel batteries
in series. These batteries are fully sealed and
require no maintenance.
Note!
Do not use ‘wet’ batteries.
Take into account the fact that the
wheelchair’s range is reduced at low
temperatures. During a period of light frost,
the capacity is roughly 75% of the normal
capacity.Attemperaturesbelow-5˚Cthiswill
be roughly 50%.
Charging the batteries (&Battery charger)
Consult the user manual for the battery charger
to determine whether it is suitable for the
batteries in use (see 9.2 Technical information).
• Switcho󰀨thewheelchair’scontroller.
• Plug the battery charger’s charging plug into
the charging connector on the controller.
• Activate the battery charger. Consult the
user manual for the battery charger.
Warning!
It is advised to mount a smoke detector in
the charging area.
Disconnect batteries in case of longer
storage without usage.
Charge the batteries if the wheelchair is not
being used for an extended period of time. The
batteries should be charged every night under
normal use. The battery charger’s display will
indicate when the batteries are fully charged.
Depending on how depleted the batteries are,
it may take up to 12 hours to fully charge the
batteries again.
Maintaining the batteries
Note!
Ensure that the batteries are always fully
charged. Not using the batteries for an
extended period of time can damage them.
Do not use the wheelchair if the batteries
are almost depleted and never completely
deplete the batteries. This can seriously
damage the batteries and you may run the
risk of coming to an unintended standstill.

12 Maintenance Ibis PowerDrive
Replacing the batteries
If the capacity of the batteries is continually
decreasing so that the wheelchair can only be
used for short trips, then this means that the
batteries are reaching the end of their lifespan.
The batteries will then need to be replaced.
Please contact your dealer for assistance.
Warning!
Batteries contain acids. Damaged batteries
are a serious health hazard. Follow the
instructions on the batteries at all times.
6.3 Tyres
To ensure that your wheelchair functions
properly, it essential that the tyres are kept at
the correct pressure. The correct pressure is
indicated on the side of the tyre.
Tyre pressure
Castor wheel 2.5 bar max.
Drive wheel 2.7 bar max.
Tyres that are too soft will have a negative
e󰀨ectonthewheelchair’sperformance.Moving
the wheelchair will require more energy, making
more demands on the batteries. Furthermore,
wear on the tyres when driving with soft tyres is
unnecessarily high.
Note!
Never exceed the maximum tyre pressure
Drive wheel tyre repair
Note!
Tyresshouldonlybereplacedbyaqualied
specialist. For an extensive description
of tyre repairs, please refer to the service
manualavailabletoqualiedspecialists.
Beforetyresarerepairedtheymustrstbe
fullydeated.
6.4 Cleaning and desinfection
Please consult the user manual for the seating
system for information about cleaning the
seating system (&Seating system).
Caution!
Ensurethatthecontrollerisswitchedo󰀨
while cleaning. If the joystick is accidently
touched, the wheelchair can start to move
or the electrical options can be operated
accidentally.
Take care with water in view of the electronic
system
Removing dry dirt
First, wipe the dirty parts clean using a wet
sponge. Preferably use clean water or a mild
soap solution. Wipe the parts dry using a soft
dry cloth.
Note!
Never use abrasive or aggressive cleaning
agents. These can scratch the wheelchair.
Do not use organic solvents such as thinner,
benzine or white spirit.

Troubleshooting 13Ibis PowerDrive
7 Troubleshooting
If the wheelchair is not working as it should,
check the following points.
• Check whether the batteries are charged.
• Turnthewheelchairo󰀨andthenbackon
again.
• Check whether the battery plugs are all
securely in place.
• Check whether the freewheel switch is in the
DRIVE position.
• Check the position of the speed regulator.
If, after taking all of the above steps, the
problem still persists, contact your dealer.

14Technicalspecications Ibis PowerDrive
8 Technical specications
As the manufacturer, SUNRISE MEDICAL, declares that this product conforms to the
Medical Device Regulation (2017/745).
Model Ibis PowerDrive
Description Unit Dimensions
Maximum user weight kg (st.) 136 (21.4)
Total length mm (inch) 1040 (40.9)
Total width mm (inch) 595 (23.4)
Total weight excl. batteries kg (st.) 60 (9.4)
Total weight incl. 31 Ah batteries kg (st.) 82 (13)
Batteries Ah 31 / 40
Static stability
Downwards
Upwards
Sidewards
°
°
°
15
15
15
Range* (ISO 7176) 31 Ah (C20) km (mi.) 25 (15.5)
Maximum safe slope (dynamic stability) °10
Climbing capacity for obstacles (RWD) mm (inch) 50 (2)
Maximum speed km/h (mph) 6 (4)
Seat tilt adjustment °15
Seat angle adjustment °0 - 6
E󰀨ectiveseatdepth mm (inch) 440 - 600 (17.3 - 23.6)
E󰀨ectiveseatwidth mm (inch) 400 - 540 (15.7 - 21.3)
Seat height (excl. cushion)** mm (inch) 365 / 380 / 395 / 410 / 425 / 440 / 455 / 470
(14.4 / 15 / 15.6 / 16.1 / 16.7 / 17.3 / 17.9
/ 18.5)
Seat height (incl. cushion)** mm (inch) 435 / 450 / 465 / 480 / 495 / 510 / 525 / 540
(17.1 / 17.7 / 18.3 / 18.9 / 19.5 / 20.1 / 20.7
/ 21.3)
Backrest angle °89 - 118
Backrest height mm (inch) 500 - 640 (19.7 - 25.2)
Lower leg length mm (inch) 360 - 530 (14.2 - 20.9)
Minimum turning radius RWD mm (inch) 790 (31.1)
Ground clearance mm (inch) 60 (2.4)
* Thefollowingaspectshaveanegativee󰀨ectonthedistancerange:obstacles,ruggedterrain,
driving on slopes, exposure to temperatures below freezing point and frequent use of electronic
adjustment options.
**Seatheightincl.loadand0°seatangle

Labelling 15Ibis PowerDrive
1
2
3
4
5
6
7
8
9 Labelling
9.1 Markings on the wheelchair
Note!
Never remove or cover up the markings,
symbolsandinstructionsa󰀩xedtothe
wheelchair. These safety features must
remain present and clearly legible throughout
the entire lifespan of the wheelchair.
Replace or repair any markings, symbols
or instructions that have become illegible or
damaged immediately. Please contact your
dealer for assistance.
Markingsusedonthewheelchair(gure8):
1. Check manual before using
2. Freewheel switch in ‘Drive’ mode. Freewheel
switch in ‘Push’ mode. Never set the
freewheel switch to ‘Push’ mode while the
wheelchair is on a slope.
3. Battery charging connection
4. Attachment point for the tie-down system for
transportation in a vehicle.
5. Risk of breakage! Use caution when
swinging the controller aside in order to
avoid anything becoming trapped.
6. Riskofpinching.Keephandsandngers
clear of the moving parts when adjusting the
height and/or when adjusting the tilt of the
wheelchair.
7. Identicationplate
A. Model
B. Year of manufacture
C. Identicationnumber
D. Indoor or outdoor use
E. CE mark
F. Maximum load in kg

16 Accessories Ibis PowerDrive
A
B
C

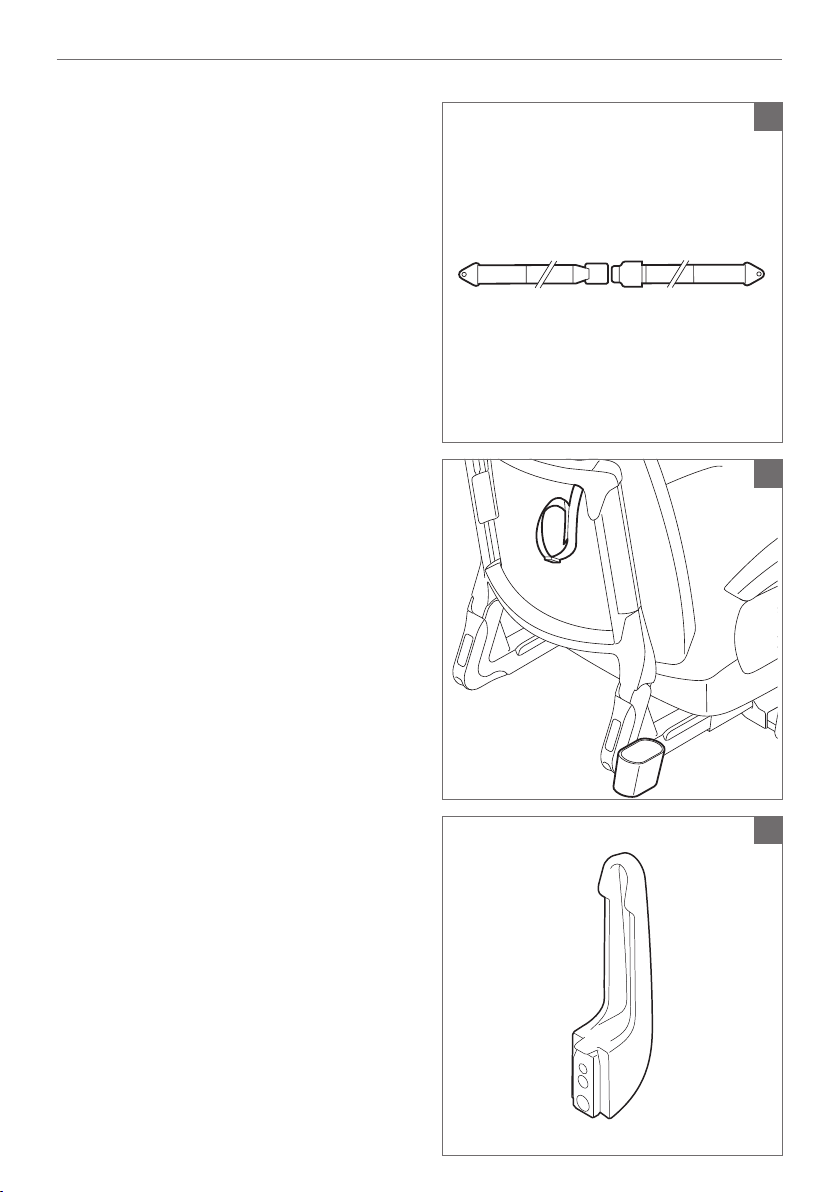

10 Accessories
A. Lap strap (short or long)
B. Cane/crutch holder for 2 walking canes
C. Brackets for bag on backrest frame
• Anti-tip bracket
See www.SunriseMedical.eu or contact your
dealer for more options, accessories and spare
parts

Ibis PowerDrive Warranty 17
11 Warranty
11.1 Denitions of terms
Denitionsoftermsusedinthiswarranty:
• After sales service part: Part purchased after the intial product that is durable and may be
subjected to natural wear and tear or natural contamination during normal operation within the
lifetime of the product.;
• Consumable part: Part that is subjected to natural wear and tear or natural contamination during
normal operation within the lifetime of the product (section 9 of Sunrise Medical HCM B.V.’s general
terms and conditions of sale);
• Client: Those who purchase the product directly from Sunrise Medical;
• Corrective action: Repair, replace or refund of the product;
• Dealer: Those who re-sell the product to the User;
• Defect:Anycircumstanceduetowhichtheproductisnotsoundorttouse,causedbyalackof
quality of the material used to manufacture the product as well as the quality of the manufacturing
process;
• Option: An accessory delivered with the initial product by Sunrise Medical to extend the standard
product model;
• Product: Product that is delivered according to brochure or contract (e.g. wheelchair, scooter,
battery-charger etc.);
• Part: Part of product that can be exchanged or replaced. This can be an option, accessory, service
part or consumable part;
• Returns: Product or part that needs to be returned;
• RMA-process user: Process to return goods, contact your dealer;
• RMA-process client: Process to return goods, contact Sunrise Medical’s Customer Service;
• User: Those who use the product;
• Warranty: The rights and obligations set forth in this document;
• Warranty period: The period of time during which the warranty is valid;
• Warranty provider: Sunrise Medical HCM B.V., Vossenbeemd 104, 5705 CL Helmond, The
Netherlands (also referred to as Sunrise Medical).
Notwithstanding the rights and obligations of Sunrise Medical, Client and User set forth in Sunrise
Medical’s general terms and conditions of sale, the rights of the Client and/or User towards Sunrise
Medical in case of defects are limited to the provisions set forth in this warranty. For the duration of the
warranty period Sunrise Medical guarantees that the product is without defects.
In case of any defects the User is required –within two weeks after discovery of the defect- to contact
the dealer. He has to complete a return form and return the product or part via the RMA-process.
SunriseMedicalwill,atitssolediscretion,takethecorrectiveactionitseemstunderthegiven
circumstances within a reasonable period of time (depends on nature of claim) from receipt of the
completed return form. The warranty period will not be extended after a corrective action.

18 Warranty Ibis PowerDrive
11.2 Warranty period table
Manual wheelchair
Description Warranty period Examples include, but are not limited
to the parts mentioned below
Frame 2 years Weldment/frame
After sales service
parts
New: 1 year after invoice
Repaired: 90 days after invoice Brakes
Consumable parts 40 days after invoice Seat- and back textiles, wheels,
griphandles etc.
Options/
Accessories 2 years Headrests, legrests, drum brake etc.
Delivered with the initial product
* also in case of after sales service part delivery
PowerDrive
Description Warranty period Examples include, but are not limited
to the parts mentioned below
Frame 2 years Weldment/frame
Drive system* 1 year Transaxle, motor, motor brake
Electronics* 1 year Controller, controlling mechanism, wiring
harness, electronic components
After sales service
parts
New: 1 year after invoice
Repaired: 90 days after invoice Brakes
Consumable parts 40 days after invoice Carbon brushes, etc.
Options/
Accessories 2 years Mirror, mudguards etc.
Delivered with the initial product
* also in case of after sales service part delivery
Seating
Description Warranty period Examples include, but are not limited
to the parts mentioned below
Frame 2 years Weldment/frame
Electronics 1 year Electronic components
After sales service
parts
New: 1 year after invoice
Repaired: 90 days after invoice Metal parts
Consumable parts 40 days after invoice Upholstery etc.
Options/
Accessories 2 years Lap strap, bag brackets etc.
Delivered with the initial product

Ibis PowerDrive Warranty 19
Sunrise Medical will only accept shipment costs and corrective costs related to warranty on equipment
during the warranty period.
This warranty will void in case of:
• Theproductand/oritspartsbeingmodied;
• Changes in cosmetic appearance by use;
• Failure to observe the instructions for use and maintenance, use other than normal use, wear
and tear, negligence, collateral damage by neglect of earlier symptoms, overloading, third-party
accidents, non-original parts used and defects not caused by the product;
• Circumstancesbeyondourcontrol(ood,re,etc.).
This warranty does not cover:
• Tyres and inner tubes
• Batteries (covered by the battery manufacturer’s warranty).
Clients and/or Users have legal (statutory) rights under applicable national laws relating to the sale of
consumerproducts.Thiswarrantydoesnota󰀨ectstatutoryrightsyoumayhavenorthoserightsthat
cannot be excluded or limited, nor rights against the entity from whom the product was purchased.
Clients may assert any rights they have at their sole discretion.

20 Additional Information Ibis PowerDrive
12 Additional Information
Note!
A notice to the user and/or patient that any serious incident that has occurred in relation to the device
should be reported to the manufacturer and the competent authority of the Member State in which the
user and/or patient is established.
B4Me special adaptations
Sunrise Medical strongly recommends that in order to ensure that your B4Me product operates, and
performs as intended by the manufacturer; all the user information supplied with your B4Me product is
readandunderstood,beforetheproductisrstused.
Sunrise Medical also recommends that the user information is not discarded after reading it, but it is
kept safely stored for future reference.
Medical Device Combinations
It may be possible to combine this Medical device with one or more other Medical Device or other
product. Information on which combinations are possible can be found at www.Sunrisemedical.co.uk.
All combinations listed have been validated to meet the General Safety and Performance
Requirements, section 14.1 of the Medical Device Regulation 2017/745.
Guidance on the combination, such as mounting, can be found at www.SunriseMedical.co.uk
