Hardware User’s Manual
Megapixel Day & Night
Mini Dome Network Camera
Quality Service Group
MD-500Ap & MD-300N Series

--
Review History:
1. Separate User Manual into HW and SW.
2. Merge MD-500Ap/MD-400Ap/MD-300Ap/MD-200Ap/MD-300Np/MD-200Np/MD-130Np
into this User Manual.
Product name:
Network Camera (MD-100A series)
Release Date:
2012/05
Manual Revision:
V3.0
Web site:
www.brickcom.com
Email:
[e-mail]
[e-mail]
©2012 Brickcom Corporation. All Rights Reserved

--
Table of Contents
Before You Use This Product................................................................................1
FCC Warning...................................................................................................1
Regulatory Information........................................................................................2
Package Contents.............................................................................................3
Mini Dome Network Camera Overview ....................................................................4
Device Appearance Description.............................................................................7
Installation ......................................................................................................8
Hardware Installation...........................................................................................................8
Camera Connection...........................................................................................................11
LED Behavior.....................................................................................................................13
System Requirements........................................................................................................15
Software Installation...........................................................................................................16
EasyConfig ........................................................................................ 24

1
Before You Use This Product
In many countries, there are laws prohibiting or restricting the use of surveillance
devices. This Network Camera is a high-performance, web-ready camera which can be
part of a flexible surveillance system. It is the user’s responsibility to ensure that the
operation of this camera is legal before installing this unit for its intended use.
Upon opening the product’s package, verify that all the accessories listed on the
“Package Contents” are included. Before installing the Network Camera, read the
warnings in the “Quick Installation Guide” to avoid misuse. When installing the
Network Camera, carefully read and follow the instructions in the “Installation” chapters
to avoid damages due to faulty assembly or installation.
FCC Warning
This device complies with Part 15 of FCC rules.
Operation is subject to the following two conditions;
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operations.

--
Regulatory Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The availability of some specific channels and/or operational frequency bands are country
dependent and are firmware programmed at the factory to match the intended destination.
The firmware setting is not accessible by the end user.

- 3 -
Package Contents

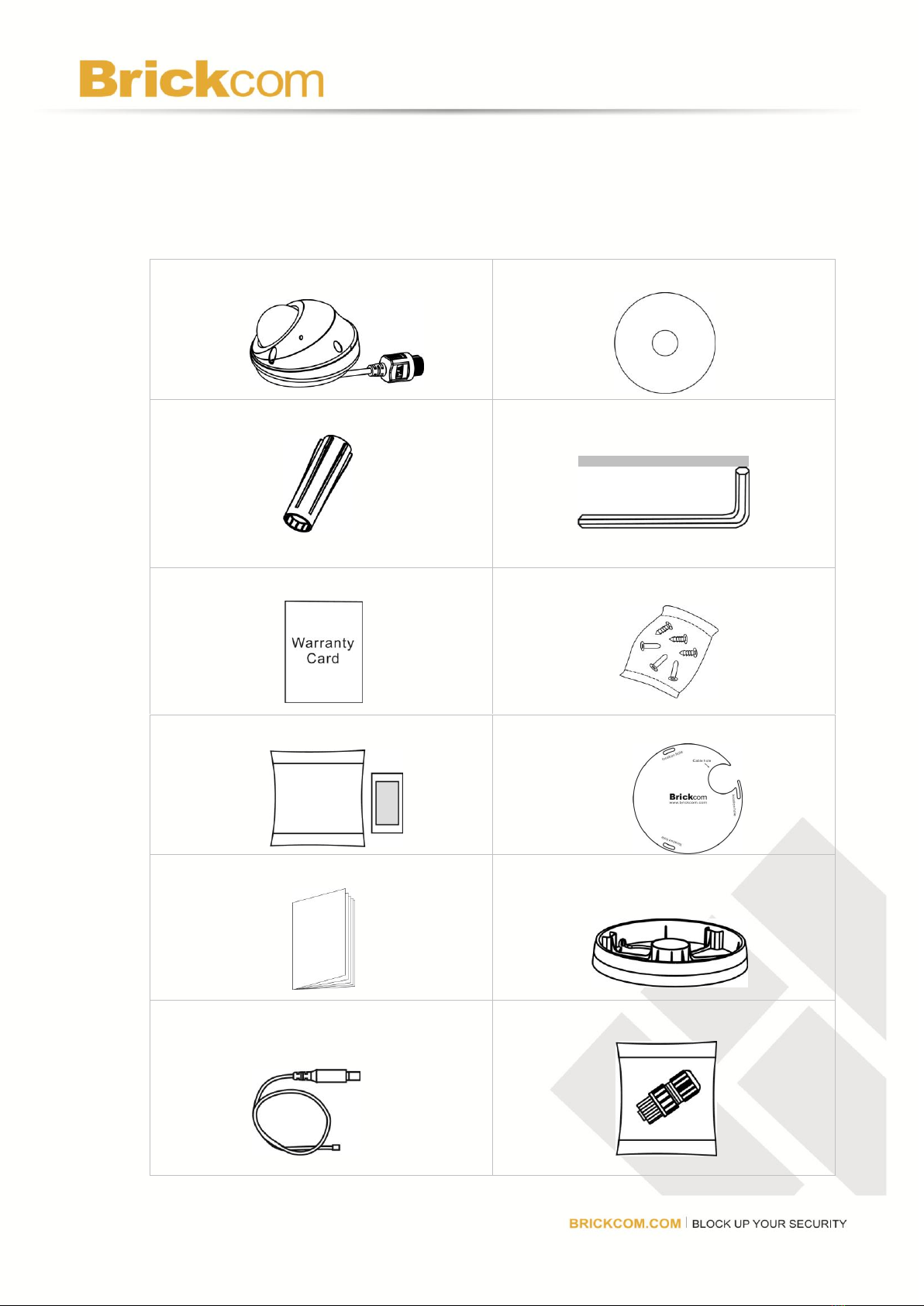

Please check to make sure that the product package contains all the accessories listed below.
a. MD-500A Series/ MD-300Np Series
b. Product CD
c. Adjusting Lens Tool
d. Allen Key
e. Warranty Card
f. Screw Bags(2pcs)
g. Dry Bag / Double-Sided Tape
h. Alignment Sticker
i. Easy Installation Guide
j. Mounting Adapter
k. TV out Connector Cable (Optional)
l. M12 Connector(Optional)

- 4 -
Product Comparison
Model Name
Lens
Focal
Length
Cable Type
Power Input
USB port
for 3G/ 4G
DC12V
PoE
802.3af
M12
MD-500A
Series
MD-500Ap-A1
f=4.00mm
RJ45, DC12V


-
-
MD-500Ap-A2
f=3.60mm
RJ45, DC12V


-
-
MD-500Ap-B1
f=4.00mm
M12 Connector
-
-

-
MD-500Ap-B2
f=3.60mm
M12 Connector
-
-

-
MD-500Ap-C1
f=4.00mm
RJ45,
USB Connector
-

-

MD-500Ap-C2
f=3.60mm
RJ45, USB
Connector
-

-

MD-300N
Series
MD-300Np-A1
f=4.00mm
RJ45, DC12V


-
-
MD-300Np-A2
f=3.60mm
RJ45, DC12V


-
-
MD-300Np-B1
f=4.00mm
M12 Connector
-
-

-
MD-300Np-B2
f=3.60mm
M12 Connector
-
-

-
MD-300Np-C1
f=4.00mm
RJ45,
USB Connector
-

-

MD-300Np-C2
f=3.60mm
RJ45,
USB Connector
-

-

*This table compliant with MD-500A Series, MD-400A Series, MD-300A Series, MD-200A
Series, MD-130A Series,MD-300N Series, MD-200N Series, MD-130N Series.

- 5 -
Mini Dome Network Camera Overview
The Brickcom MD-500A series/ MD-300N series is a mini dome network camera designed for
outdoor use. MD-500A series/ MD-300N series has a compact and stylish design, also
provides Full HDTV video (1080p @ 30fps). IP67 certified, IK10 vandal-proof and EN50155
Anti Vibration and Shock, the MD-300A & MD-500A Series is perfect for outdoor surveillance,
and surveillance in buses, trains, subway cars and emergency vehicles.
The MD-500A series/ MD-300N series is designed to provide end users with high quality
video feed for an easily accessible security system. By offering H.264/M-JPEG/MPEG-4 triple
codec compression, it is able to offer a flexible system which does not require high bandwidth
and storage capabilities. The internal micro SD/SDHC memory card slot allows for local
storage, which prevents data loss if the data connection is lost. The MD-300A & MD-500A
Series comes with a wide-angle lens, and Pan 35°/ Tilt 0-90° / Rotation 180° wide angle
adjustment, allowing a wide open view for maximum coverage.
Different from other dome cameras, MD-500A series/ MD-300N series supports
exchangeable lenses for different conditions. Moreover, MD-500A series/ MD-300N
series supports 3G/4G (WiMAX/ LTE) wireless connectivity which allows the camera to
transmit video data over wireless networks.
The MD-500A series/ MD-300N series is designed for easy installation. With the BNC TV-Out
Connector, the camera can be connected to a monitor which makes it easier for installers to
adjust the picture focus while setting up the camera. The MD-500A series/ MD-300N series is

- 6 -
equipped with a special designed mounting adapter and can be installed on a curved surface.
The camera supports different power inputs such as PoE 802.3af, M12 and DC12Vs

- 7 -
Device Appearance Description
(*) These are optional features. Please refer to the Product List for the full list of
optional features that are available for this product.

- 8 -
Installation
Hardware Installation
WARNING: Do not mount the camera on a soft material. The camera may fall and be
damaged.

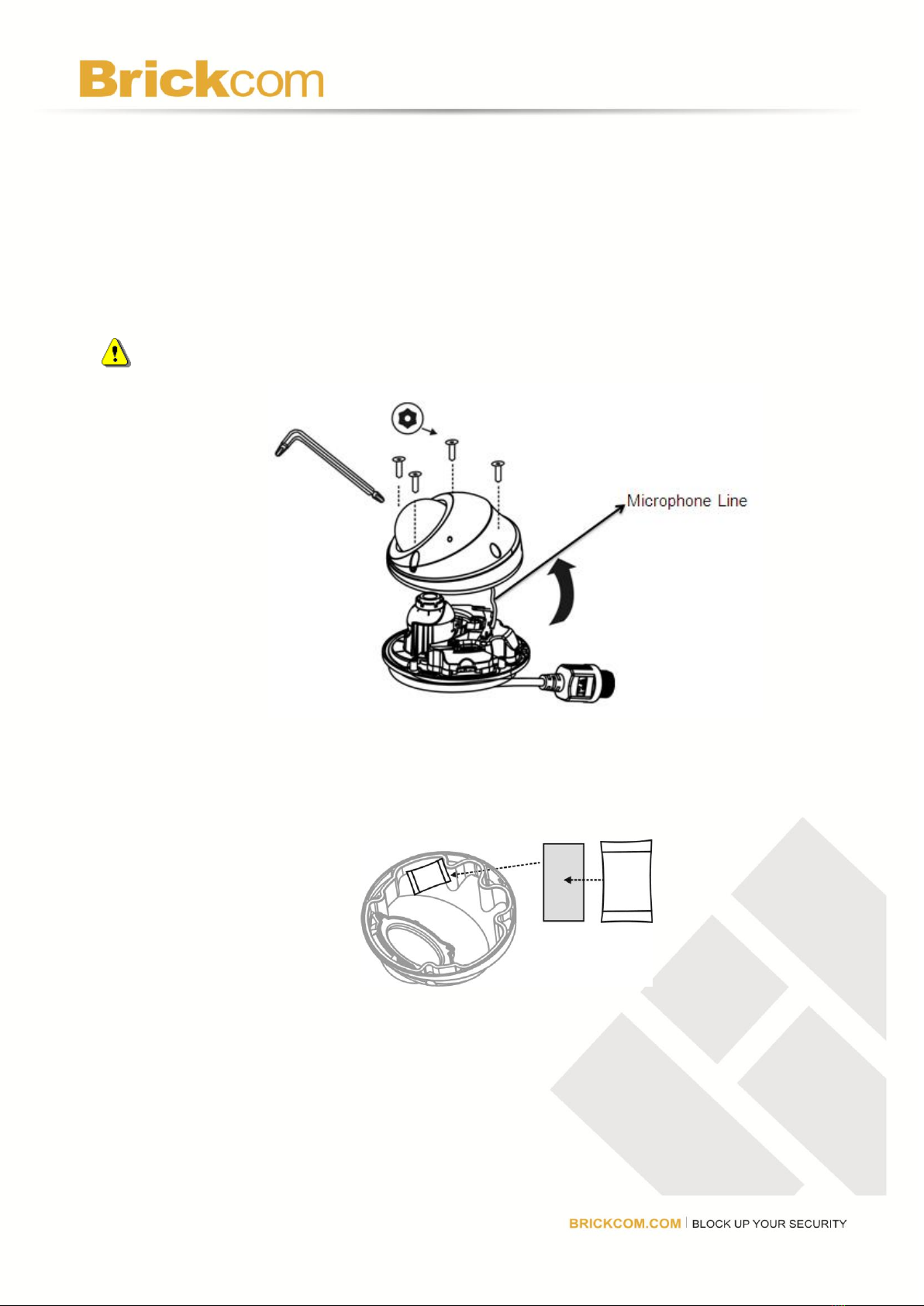

1. Use the enclosed Allen key to detach the dome cover from the camera device.
As remove the cover, please be aware of the Microphone Line.
2. Remove the dry bag from its package. Use the double-sided tape to stick the dry bag
onto the designate position inside of the dome cover.

- 9 -

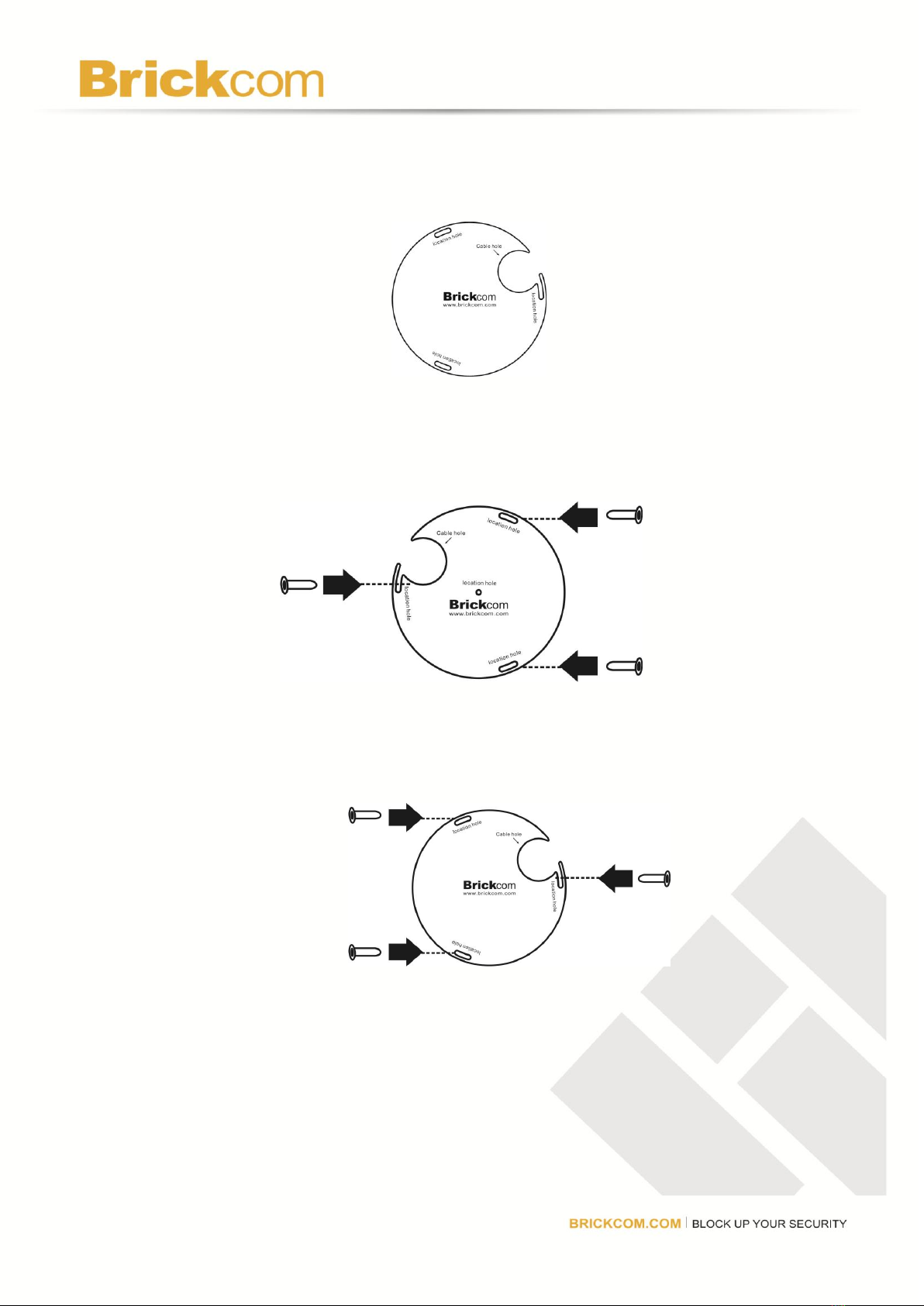

3. Choose the location on the wall or ceiling to place the camera. Attach the location sticker
to the desired spot. For ceiling installation, the best place to mount the camera is into a
ceiling stud.
4. Drill three holes through the center of the three location holes on the sticker.
5. Hammer the three plastic anchors which are provided in the product package into the
three location holes.

- 10 -
6. Please use the “Waterproof Tape”to wrap around the RJ45 connector, DC12V connector, USB
connector (*), in order to prevent water to seep in to the connectors.
7. The user needs the three screws which are included in the product package and a
screwdriver. Mount the camera on the wall or ceiling and position the three screw slots
over the plastic anchors. Insert the screws into the holes and use the screwdriver to
tighten the screws clockwise until they are secure.
8. If you use the Mounting Adapter, please use the three screws which are included in the
product package and a screwdriver. Mount the camera on the wall or ceiling and
position the three screw slots over the plastic anchors. Insert the screws into the holes
and use the screwdriver to tighten the screws clockwise until they are secure.

- 11 -
Lens Adjustment
1. Please use the”Adjusting Lens tool”to adjust the lens to the desired position.
2. Focus
a. Rotate the lens until the image in the Live View page is focused.
b. Remove the tool directly.
Camera Connection
The New Mini Dome Series is DC12V and PoE compliant, so there are two options for
connecting the camera to a power and Ethernet source. The camera can either be
connected to a PoE-enabled switch or a non-PoE switch.
a. If using a PoE-enabled switch:
Use a single Ethernet cable to connect the camera to the PoE-enabled switch.

- 12 -
b. If using a non-PoE switch:
i. Use a standard RJ-45 cable to connect the camera to a PoE Injector.
ii. Use a standard RJ-45 cable to connect the PoE Injector to the non-PoE switch.
iii. Use a standard power cable to connect the PoE Injector to a power outlet.
c. If using the DC12V for the power Supply. The RJ45 cable will be data
transmission.
Complete the Installation
Place the dome cover back on the camera device using the Allen Key.

- 13 -
LED Behavior
Function
LED Behavior
Description
Remark
Status
Steady On
Normal Operation
Blue
Status
Unlit
1. Power off
2. Power on till System
setup
Blue
Status
Upgrading F/W
Blue
Internet
Blinking
Blinking while network
connection in progress
Blue
Internet
Unlit
No connection
Blue
Power
Unlit
Power off
Blue

- 14 -

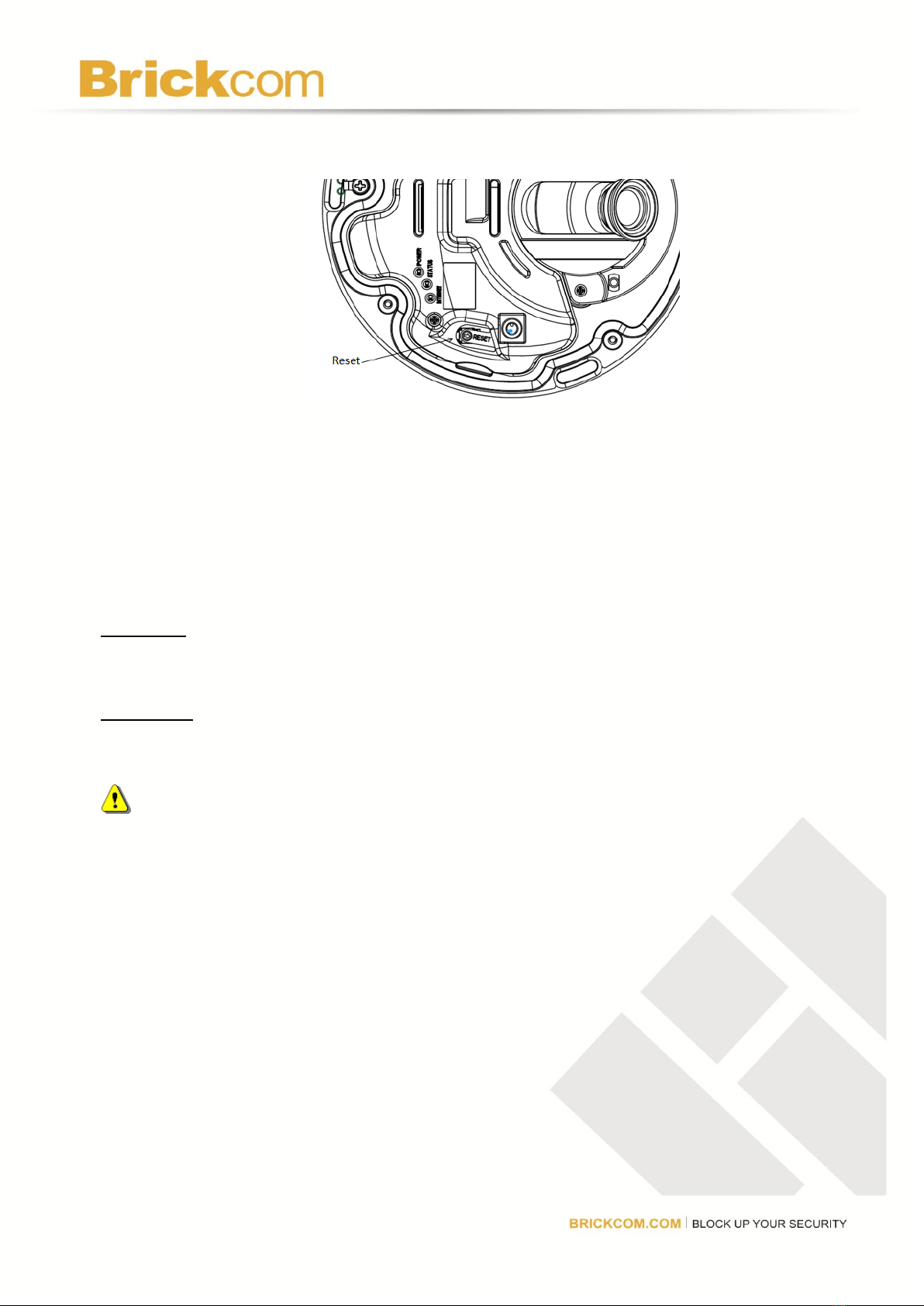

Hardware Reset
The Reset Button can be used to reboot the camera or restore it to factory default settings. If
the camera experiences a problem, rebooting the camera may correct the problem. If the
problem remains, please restore the camera to factory default settings and reinstall the
software.
To Reboot - Press and hold the Reset Button for one second using a paper clip or thin object.
Wait for the camera to reboot.
To Restore –Press and hold the Reset Button for ten seconds until the LED light turns off.
When successful restored, the LED will be blue during normal operation.
NOTE: By restoring the camera, all settings will be restored to the factory default settings.
Micro-SD/SDHC Card Capacity (*)
The network camera is compatible with Micro-SD/SDHC (Maximum 32GB) cards.

- 15 -
System Requirements
Operating System:
Microsoft Windows XP Home Edition SP2
Microsoft Windows XP Professional SP2
Computer:
IBM PC/AT Compatible
CPU:
Pentium 3GHz or faster
Memory:
1024 MB or more
Monitor:
1024 x 768 pixels or more, 24-bit True color or better
Network Interface:
10/100Mbps Network interface card must be installed
Web Browser:
Microsoft Internet Explorer 6.0 SP2 or higher
Adobe Reader:
Adobe Reader 8.0 or higher
Audio:
The audio function will not work if a sound card is not installed in the PC. Audio may be
interrupted depending on network traffic.

- 16 -

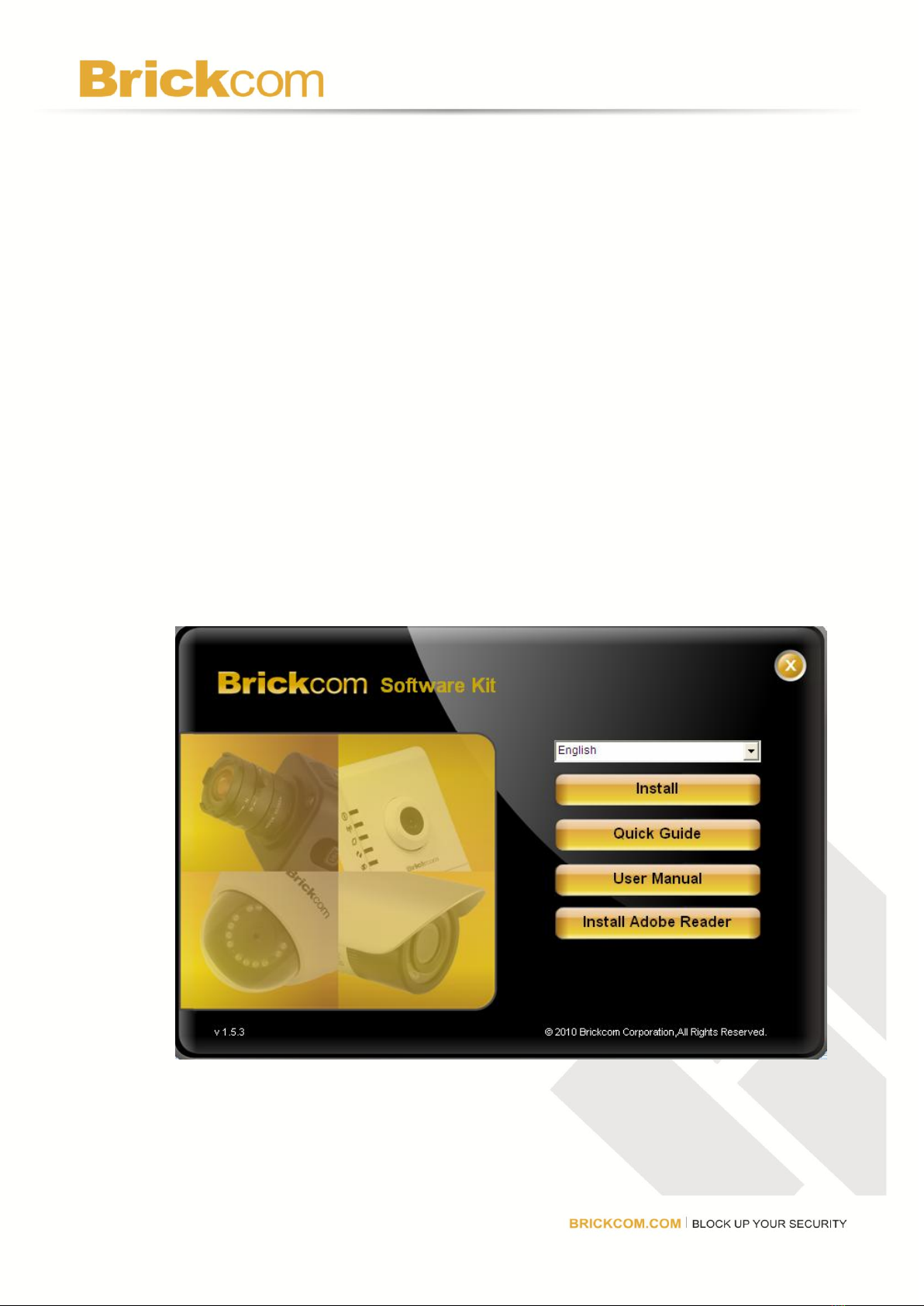

Software Installation
In this manual, "User" refers to whoever has access to the Network Camera, and
"Administrator" refers to the person who can configure the camera and grant user access to
the camera.
After checking the hardware connection, run the Installation Wizard program included on the
product’s CDROM to automatically search the intranet for the camera. There may be many
cameras on the local network. Differentiate the cameras using the serial number which is
printed on the labels on the carton and the bottom of the camera.
1. Insert the Installation CD into the CD-ROM driver. Run Auto-Run Tool directly from
the CD-ROM to start the installation. When installing the Brickcom software kit for the
first time, select a desired language for the interface. The available languages are
listed in the scroll box. Click <Install> and follow the steps to install the EasyConfig
wizard on the desired computer.

- 17 -
2. In the Install Shield Wizard dialog box, click <Next> to continue.
3. Read the End-User License Agreement and check the option “I accept the terms of the
license agreement”. Click <Next> to continue.
