BRIG EAGLE E780 2013 User manual

SERIE: "EAGLE"
MODEL: E780
complete sets: E780
E780N OverNight
Design category (2013/53/EU): B / C
ISO6185: Type VIII
236A.01
OWNER'S MANUAL
English

— 2 — "BRIG" inflatable boats
CONTENTS:
DANGER LEVELS 5
INTRODUCTION 5
IDENTIFICATION PLATE 6
BEAUFORT Wind Scale and Corresponding State of the Sea, After Few Hours of Wind, Away From the Coast. 7
Boat Design Categories 7
SAFETY REGULATIONS 8
REMEMBER FIRE DANGER ALWAYS 9
TECHNICAL SPECIFICATIONS 10
COMPLETE SETS 11
BOAT DESIGN 14
POLYESTER HULL 16
REINFORCED BUOYANCY TUBE 17
POLYESTER ARC 18
STEERING CONSOLE 18
FUEL SYSTEM 20
SHOWER SYSTEM 21
DRAIN SYSTEM 22
ANCHOR SYSTEM 23
HOW TO OPERATE WITH ANCHOR SYSTEM 24
WIRING DIAGRAM 26
PREPARATION FOR EXPLOITATION 28
HOW TO INSTALL STEERING CONSOLE 28
HOW TO INSTALL DOORS TO THE STEERING CONSOLE 29
HOW TO INSTALL POLYESTER ARC 30
MOUNTING OF THE COMPOSED DRIVER SEAT/BOLSTER 31
HOW TO INSTALL STERN PLATFORMS 32
HOW TO INSTALL SUNDECK 33
Care & Maintenance of your Sunbrella® Fabric 34
HOW TO INSTALL A TABLE 35
STORAGE BATTERY INSTALLATION 35
INFLATION/DEFLATION BOAT TUBE 36
BOAT TRANSPORTATION BY TRAILER 37
MAINTENANCE 38
OPERATING REGULATIONS 39

— 3 —
EAGLE E780 - 2018 236A.01
For you safety and for the validity of the guarantee expert and authorised personnel
must install the motor and inspect and check the systems. All onboard systems must
be completed and inspected.
CHECK, THAT THE CHECKS HAVE BEEN MADE AND THAT THE PLANTS HAVE BEEN
COMPLETED BEFORE DELYVERY.
BRIG Ltd declines any responsibility for systems and accessories that have not been
installed and checked by expert and authorised personnel.
The manual and all its enclosures should be stored carefully, and the manual should
always be kept aboard. If the craft is resold, the manual and all its enclosures must be
handed over to the new owner.

— 4 — "BRIG" inflatable boats
CE Certification and Main Features
TheCEmarkingindicatesthattheinflatableboatmeetstherequirementsofthe
RecreationalCraftDirective2013/53/EU
Certifying Body:
INTERNATIONALMARINECERTIFICATIONINSTITUTE
RueAbbeCuypers3/B-1040Bruxelles/Belgique
Notified Body : 0609
www.imci.org
Name of Manufacture:
BRIGLtd.
Lozovskaya88,Dergachy62303
Kharkovskayaobl.
UKRAINE
www.brig-ribs.com

— 5 —
EAGLE E780 - 2018 236A.01
INTRODUCTION.
This manual was written to help you to use your boat safely. It contains information on the boat, its equipment (supplied
or installed),operation and maintenance.
DANGER LEVELS.
The manual contains warnings, identified as follows:
A note like this indicates that there is serious risk, that is likely to cause death or
permanent serious injury, if appropriate precautions are not taken.
A note like this indicates the existence of risk that may cause death or injury, if
appropriate precautions are not taken.
A note like this indicates reference to the application of safety or environmental
protection practices,or draws attention to unsafe behaviour that might cause injury to
persones or damage to the craft, its components or the environment.
Before using your boat, read this MANUAL carefully and ensure that you have
understood all the procedures it describes. Before taking command of your boat, be
sure to have acquired experience and confidence in its operation.

— 6 — "BRIG" inflatable boats
IDENTIFICATION PLATE.
Builder's Plate:
It is fundamental for the plates to be aboard the boat, since they are only form of
recognition and identification. Without them the boat does not comply with the
legislation in effect. The plates must never be removed. Any tampering or removal not
authorised by the manufacturer is the full responsibility of the owner.
Plate with identification number:
UA-QRK12345A000
Maximum propulsion power
rating for the boat
300 HP (220 kW)
The rated tube pressure value is
0.2 bar (2.9 psi).
Passengers capacity not exceed:
8persons (Design Category B)
or
16persons (Design Category C)
Boat Design Categories
according to
Directive 2013/53/EU
Manufacturer’srecommendedmaximumload,
includingthe mass ofthe outboardengine(s) but
excluding the mass of the contents of fixed fuel
and water tanks when full

— 7 —
EAGLE E780 - 2018 236A.01
BEAUFORT Wind Scale and Corresponding State of the Sea, After Few Hours of Wind, Away From the Coast.
BoatDesignCategories(Directive2013/53/EU):
NOTE: The significant wave height is the mean height of the highest one-third of the waves, which approximately
corresponds to the wave height estimated by an experienced observer. Some waves will be double this height.
State of the sea
Force Denomination Knots Km/h m/sec and wave height in meters
0Calm <1 <1 0-0.2 Calm 0
1Light Air 1-3 1-5 0.3-1.5 Calm 0
2Light Breeze 4-6 6-11 1.6-3.3 Almost calm 0.2
3Gentle Breeze 7-10 12-19 3.4-5.4 Almost calm 0.2
4Moderate Breeze 11-16 20-28 5.5-7.9 Small waves 0.5
5Strong Breeze 17-21 29-38 8.0-10.7 Large waves 1.25
6Fresh Wind 22-27 39-49 10.8-13.8 Large waves 2.0
7Strong Wind 28-33 50-61 13.9-17.1 Very large waves 2.5
8Gale 34-40 62-74 17.2-20.7 Rough sea 4
9Strong Gale 41-47 75-88 20.8-24.4 Very rough sea 6
10 Storm 48-55 89-102 24.5-28.4 Heavy 9
11 Violent Storm 56-63 103-117 28.5-32.6 Very heavy 14
12 Hurricane 64 and over 118 and over 32.7and over Stormy 14 and over
Design category
"A" - "Ocean"
"B"- "Offshore"
"C"- "Inshore"
"D"- "Sheltered waters"
Wind force
(Beaufort scale)
exceeding 8
up to,and including, 8
up to,and including, 6
up to,and including, 4
Significant wave height
exceeding 4
up to,and including, 4
up to,and including, 2
up to,and including, 0.3

— 8 — "BRIG" inflatable boats
SAFETY REGULATIONS.
This manual contains recommendations and basic rules of conduct for using the boat in complete safety.Although it is not possible to offer
safety information for all potential situations, in general it is recommended that you :
Regularly check which safety requirements are in force.
Maintain the boat and the onboard plants in optimum condition.
Have the boat inspected by the dealer where it was purchased or by an authorised mechanic
at least once every year for your own safety and for maintaining the guarantee.
Max number of transportable persones is referred to an established weight of 75 kg per person
(ISO 6185), so always make reference to total maximum transportable weight.
The max weight of the installable motors indicates the maximum overall weight applicable on
the stern board, including any emergency motors. NEVER exceed the stated value.
Always check weather and seagoing conditions before setting out.
For safe navigation, compare the design category of your boat with the table above.
The boat must be equipped with liferaft(s) to be stowed for the crew limit. If the liferaft is a rigid canister type,
it shall be mounted in the cockpit, ready for use. If the liferaft is contained in a soft bag then it may be stowed
in a compartment but shall be readily available for use.

— 9 —
EAGLE E780 - 2018 236A.01
ALWAYS REMEMBER ABOUT FIRE DANGER .
Fire may be caused by:
Crew negligence when smoking, the presence aboard of flammable liquids, electrical contacts, propulsion motor, errors in fueling, or if
maintenance has not been performed as required.
Once again, it is important that the crew behave correctly and that the boat is kept in order to avoid serious damage to it and to persons.
However, if a fire does occur aboard, stop motor, disconnect the batteries immediately, check to see if it is an electrical component or any case
a small-scale fire that does not involve flammable liquids, in which case use a suitable fire extinguisher to try and put the fire out completely.
Easily flammable products must not be kept aboard.
BATTERY: the battery may cause sparks or explosions. It must be stored in an appropriate container,
easily reached and well aired, AWAY FROM FUEL OR INFLAMMABLE PRODUCTS. Periodically check that
the clips are tight and protect them with appropriate insulation in order to prevent sparks or the spread
of current.
Extinguisher or any other fire-fighting equipment must not be kept in compartments with key lock, but
in easily accessible and clearly indicated locations.
Extinguisher or any other fire-fighting equipment should be checked periodically and replaced with
the same or superior types if expired or inefficient.
Equip the boat with fire-fighting equipment before launch and use.

— 10 — "BRIG" inflatable boats
TECHNICAL SPECIFICATIONS.
The basic parameters and dimensions of the "EAGLE" boat E780 (E780N) comply with the data specified in the following table.
All dimension measurments indicated have a tolerance of +/- 3%, weight measurments indicated have a tolerance of +/- 5%.
Parameter E780(E780N)
Design category
BC
7.85 7.85
2.90 2.90
2.29 2.29
0.58 0.58
5.77 5.77
1.69 1.69
20 ° 20 °
22 ° 22 °
622 / 241/2 622 / 24 1/2
5 5
0.2 / 2.9 0.2 / 2.9
816
250-300 250-300
220 / 300 220 / 300
335 335
Extra long / 25" Extra long / 25"
1080 1080
1150 1150
1940 1940
1500 1500
1520 1520
1565 1565
3020 3020
Length (without engine) m
Beam m
Height m
Inflatable tube diameter, max. m
Cockpit dimensions:
- length m
- width m
Deadrise angle on transom
Deadrise angle in middle section
Transom height mm/inches
Number of independent air-tight chambers pcs.
Nominal pressure BAR/psi
Passengers capacity persons
Recommended engine power HP
Maximum engine power kW/HP
Maximum engine weight (including controls and batterys) kg
Engine shaft length
Weight of empty boat (with steering console,
with arc, with seats, without engine) kg
Weight of boat with equipments kg
Carring capacity of the boat kg
Displacement In Light Craft Condition (LCC) kg
Maximum total load ML ( total weight of the fuel,
weight of the people and cargo onboard)kg
Maximum recommended load (including weight of the
max engine(s), passengers and cargo onboard, but excluding
the mass of the contents of fixed fuel and water tanks when full )kg
Loaded displacement mass (LDC) kg

— 11 —
EAGLE E780 - 2018 236A.01
E780 COMPLETE SETS.

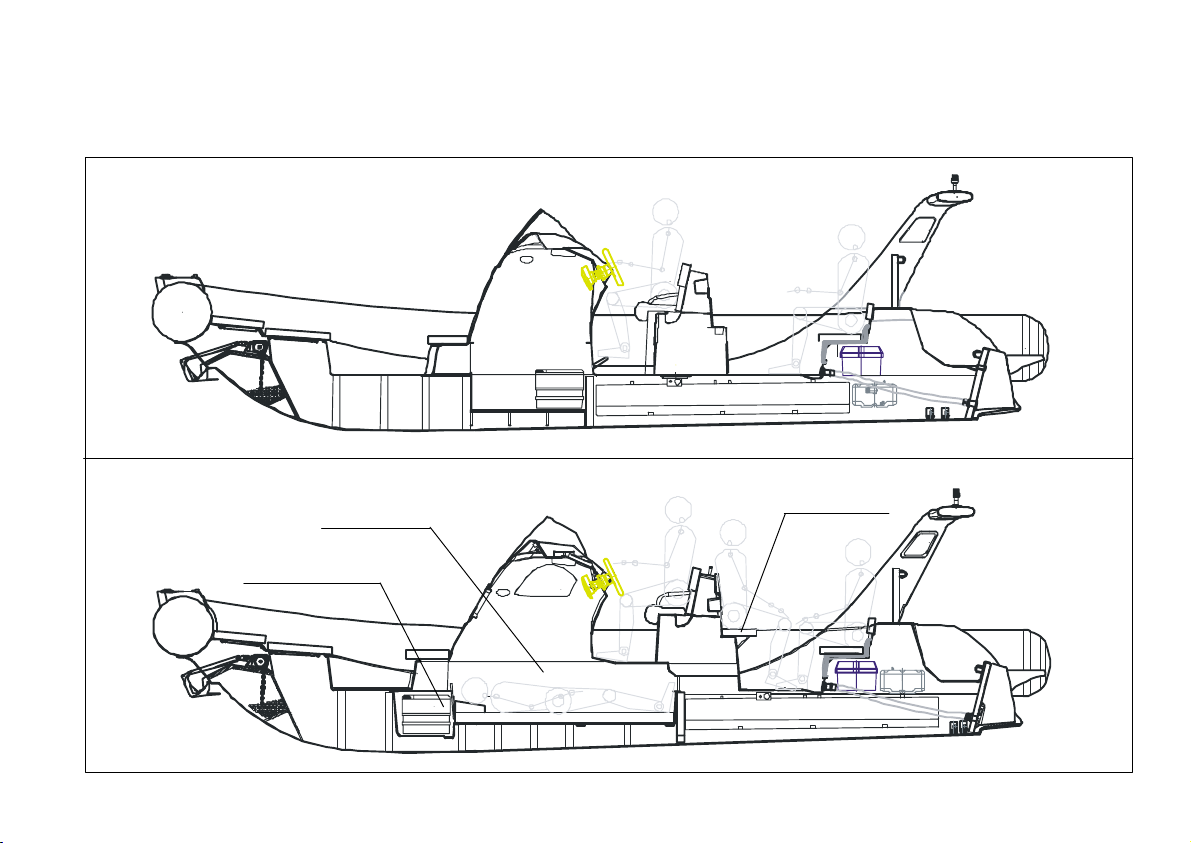

Rigid inflatable boat model E780 has two complete sets: E780 and E780N OverNight. In the enlarged cabin E780N OverNight two people can
sleep lying down freely. Pilot seat E780N OverNight has an extra rear soft seat for two people. Cabin E780N OverNight has a closed space
for a biotoilet.(see fig.D)
More details of complete set for E780 and E780N you can see in the table below.
E780
E780N OverNight
enlarged cabin
Pilot seat with
extra rear seat
closed space for a
biotoilet
Fig.D

— 12 — "BRIG" inflatable boats
1 Inflatable boat + +
2 Foot pump + +
3 Paddle + +
4 Set of spare parts and repair kit + +
5 Bag + +
6 Owner's manual + +
7Valve cap pressure gauge + +
8 Steering console + +
Steering console equipments:
9Hydraulic steering system + +
10 Steering wheel + +
11 Fuel level clock + +
12 Electrical switches with fuses + +
13 Socket 12V with fuse + +
14 Speedometer + +
15 Tachometer + +
16 Electric horn + +
17 Driver seat +--
18 Driver seat with extra rear soft seats -- +
19 Polyester arch with navigation lights + +
20 Stern soft seat with backrest + +
21 Front step-plate + +
22 Fuel system with fuel tank 340 litres + +
23 Drain system with automatic bilge pumps + +
24 Anchor with electrical windlass + +
E780 E780N
In the table below is shown the maximum possible complete set, which may differ from your boat.

— 13 —
EAGLE E780 - 2018 236A.01
Shower kit :
25 Water tank (45 litres) + +
26 Shower handset + +
27 Shower pump + +
28 Removable sundeck and table + +
29 Soft cushions of the cabin -- +
30 Front locker removable cushion + +
31 Rear platforms + +
32 Foldable stainless steel ladder + +
33 Auxiliary motor bracket + +
34 Ski mast + +
35 Overall cover + +
36 Cover for steering console and seat + +
37 Collapsible sun-top + +
38 Battery container + +
39 SeaDek set + +
E780 E780N

— 14 — "BRIG" inflatable boats
23421
16
6
6
1
13
10
5
17 18 9 11
24
22
16
17
20 19 21
12
12
25
8
24
7
4

— 15 —
EAGLE E780 - 2018 236A.01

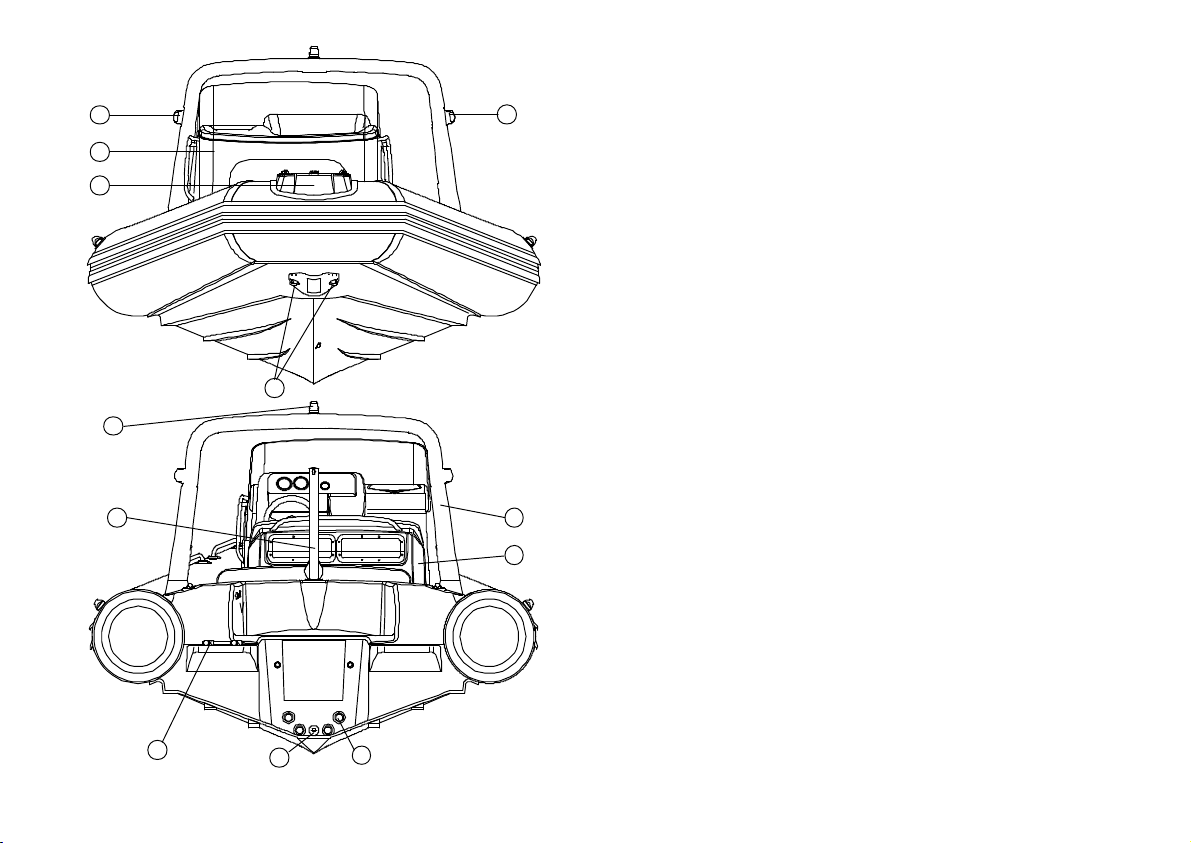

D1
7
15
14
25
6
16
23 22
24
21
17
1—Polyester hull.
2—Reinforced buoyancy tube.
3—Doubled rubbing strake.
4—Safety handle.
5—Towing bow eyes (hull) (2 pcs.).
6—Bow step-plate with antiskid layer.
7—Mast for towing skier.
8—Neck for fuel fill.
9—Box with cap for shower handset.
10 —Steering console seat.
11 —Air fill valve (5 pcs.).
12 —Stern antiskid platforms.
13 —Front locker removable cushions.
14 —Drain plug.
15 —Cockpit drain system socket (4 pcs.).
16 —Steering console.
17 — Composed driver seat/bolster
18 —Stern-part seat.
19 —Soft back of stern-part seat.
20 —Neck for water fill.
21 —Polyester arc.
22 —Port running light (red).
23 —Starboard running light (green).
24 —Anchor light (white).
25 —Foldable stainless steel ladder.
The boat series "EAGLE" E780 consists of the next main components (Fig. D1):
- polyester hull (1);
- reinforced buoyancy tube (2);
- steering console (16);
- composed driver seat/bolster (17);
- polyester arc (21).
BOAT DESIGN.
lDESCRIPTION:
5

— 16 — "BRIG" inflatable boats
The boat hull has "deep-V" shaped bottom with four longitudial steps.
The upper deck has a special moulded antiskid coating. There are five
specified sections (Fig. D2):
—bow anchor locker (1) is intended for arrangement of anchor system
and anchor chain/rope;
—bow locker (2) is intended for baggage arrangement;
—compartment in the interior part of steering console (3);
—stern compartment (4).
The bow lockers and stern compartment has a direct access by hinge
out the access doors (respectively 11 and 12 positions).
Onto the access doors of the bow lockers there are a removable soft
cushions (13, Fig. D1). Onto the stern compartment door the are soft
seat (18, Fig. D1) with soft back (19, Fig. D1).
The boat hull is arranged with the following components:
— two bow towing eyes (5, Fig.D1);
—two bow cleats (16, Fig. D2d);
—two stern cleats (17, Fig. D2f);
—fuel tank (6);
—water tank (7);
—cockpit drain system sockets (8, Fig. D2a, D2c);
—drain out of motor recess (9, Fig. D2b);
—drain automatic bilge pumps (10, Fig. D2c);
—outer neck for fuel fill (19, Fig. D2f);
—neck for water fill (18, Fig. D2e);
—inspection hatch (13);
—mast for towing skier (14);
—box with cap for shower handset (15);
—foldable stainless steel ladder (25, Fig. D1);
—lifter of stern compartment door seat (20).
lPOLYESTER HULL.
D2
123b
6
a
7c
abc
20
89
8
10
311 12
d
13
17
f
1514
18
16 19
e
d
e
f
4

— 17 —
EAGLE E780 - 2018 236A.01
lREINFORCED BUOYANCY TUBE.
5 687
412 3
D3
The boat buoyancy tube has U-shaped form. The tube is separated by means
of inner elastic partitions into five chambers of a similar volume, each being
provided with an air fill valve.
The air fill valve is intended for:
—filling the compartment with air from a standard pump or filling system
and maintaining pressure in the tube for prolonged time,
—adjustable drop of pressure in compartment.
The air fill valve is designed as a tab-type non-return valve and consists of
the following components (Fig. D3):
—housing (1);
—cup (2) with strap (3);
—washer with gasket (4);
—nut (5);
—spindle (6) with spring (7) and cup diaphragm (8).
Also there are the following elements fitted on the tube (Fig. D1):
—doubled rubbing strake (3, Fig.D1);
—safety handles (4, Fig.D1);
—bow step-plate with a special moulded antiskid coating (6, Fig.D1).
There is also three-position battery disconnector located in the stern
compartment.
The fore part of the cockpit may be simply converted into the sundeck
by means of false deck and soft cushions.

— 18 — "BRIG" inflatable boats
lPOLYESTER STEERING CONSOLE.
The console consists of the following components (Fig. D4):
— console body (1) is installed onto the console base (2),
which is built-in the boat deck;
—windscreen (3);
—stainless steel railing (left and right) (4);
—front soft seat (5);
—soft seat-back;
—doors with lock for access the interior space of the console (6).
—console recess with glass cap (7);
—two stainless steel bearings for feet (8);
—stainless steel handrail (9);
—electric horn (on the right side of the console).
Console equipment (Fig. D5):
Polyester arc (21, Fig.D1) is located in the stern part of the boat.
Arc is equipped with anchor light (white, 24) and running lights:
port (red, 22) and starboard (green, 23), (Fig. D1).
lPOLYESTER ARC.
D4
57
3
8
9
1
2
6
4
4

— 19 —
EAGLE E780 - 2018 236A.01
—hydraulic steering system;
—steering wheel (1);
—fuel level clock (2);
—speedometer (3);
—additional equipment (4) (tachometer or multi-purpose meter,
trimmer, voltmeter, clock);
—socket 12V with fuse (5).
—electrical circuit breaker (for electrical windlass) (6) (can be
installed inside of the console).
— fuse holding box with warning lights(see D5) (inside of the
steering console)
—switches:
—horn switch (7);
—running lights and meter lamp switch (8);
—anchor light switch (9);
—anchor windlass "up" and "down" switch (10);
—bilge pump 1 switch (11);
—bilge pump 2 switch (12);
—shower pump switch (13);
—reserve switch (14).
Always check the fuse. Burning red
LED display on the fuse box warns of
faulty fuse
Always keep a spare set the fuse in
an easily-accessible location.
D5
4 3 2 54
8
9
10
11
7
13
12
14
1
11
12
8
9
13
10
14
7
6
Fuse holding box
with warning lights

— 20 — "BRIG" inflatable boats
lFUEL SYSTEM.

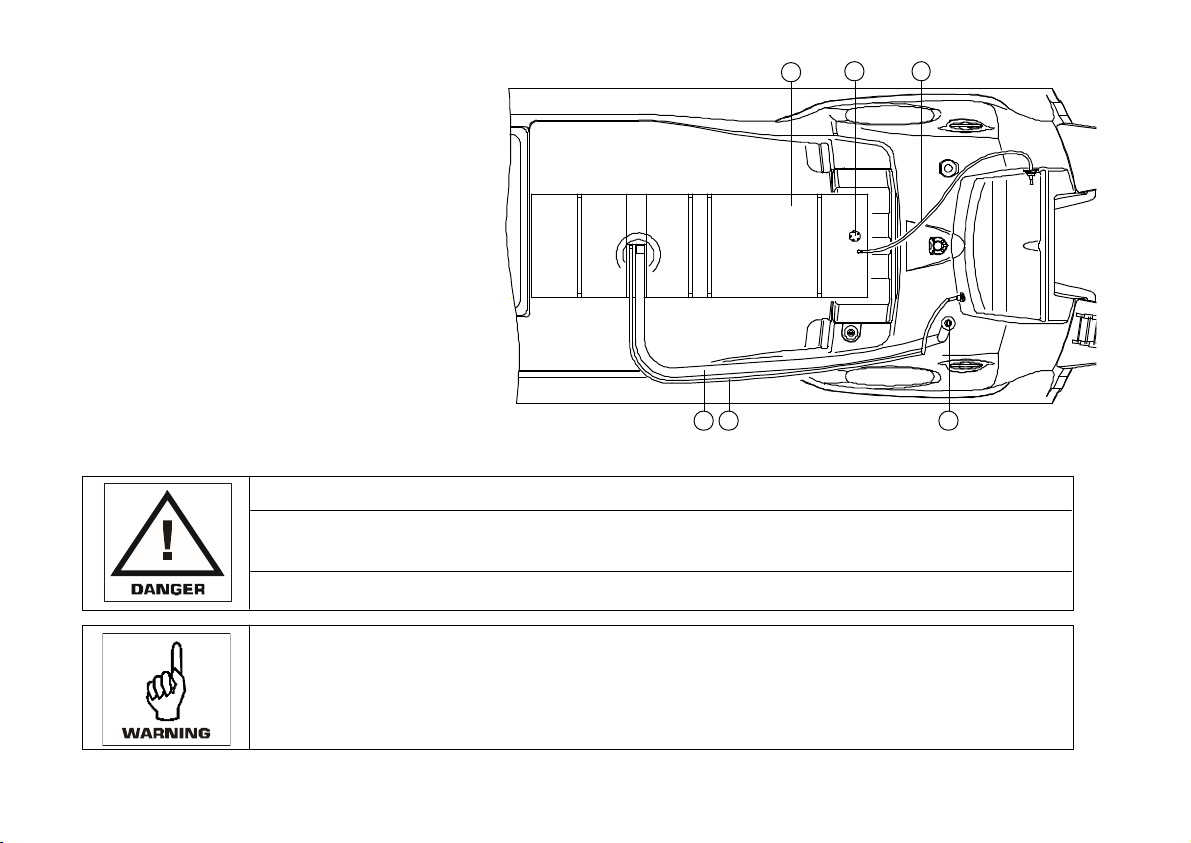

Fuel system consists of the following components (Fig. D6):
—built-in fuel tank 340L (90gal) (1);
—electric fuel gauge (2);
—outer neck for fuel fill (3);
—fuel hose (from outer neck for fuel fill to fuel tank) (4);
—fuel hose (from fuel tank to outboard motor) (5);
—fuel venting hose (6).
D6
634
25 1
Check that there are no leaks in the fuel systems
Pre-filter and fuel valve must be installed by authorized representative specialists only.
Do not modify fuel system. Any modification, repair and planned maintenance of the fuel system may
be made by authorized representative specialists only.
Do not smoke when refueling. Stop the engine and switch off any electric equipments before refueling.
