BRIG EAGLE E780 User manual

SERIES: "EAGLE"
MODEL: E780
complete set: E780H*
Design category (2003/44/EC): B/C
ISO6185-3: Type VII
236A.01
OWNER'S MANUAL
H* – boats tube made of HYPALON (Du Pont registered trademark) coated fabrics.
English

— 2 — "BRIG" inflatable boats
CONTENTS:
DANGER LEVELS 5
INTRODUCTION 5
IDENTIFICATION PLATE 6
BEAUFORT Wind Scale and Corresponding State of the Sea, After Few Hours of Wind, Away From the Coast. 7
Boat Design Categories 7
SAFETY REGULATIONS 8
REMEMBER FIRE DANGER ALWAYS 9
TECHNICAL SPECIFICATIONS 10
COMPLETE SET 11-13
BOAT DESIGN 14-25
POLYESTER HULL 16-17
REINFORCED BUOYANCY TUBE 17
POLYESTER ARC 18
POLYESTER STEERING CONSOLE 18-19
FUEL SYSTEM 20
SHOWER KIT 21
DRAIN SYSTEM 22
ANCHOR SYSTEM 23
HOW TO OPERATE WITH ANCHOR SYSTEM 24
WIRING DIAGRAM 26-27
PREPARATION FOR EXPLOITATION 28
HOW TO INSTALLSTEERING CONSOLE 28
HOW TO INSTALLDOORS TO THE STEERING CONSOLE 29
HOW TO INSTALL POLYESTER ARC 30
MOUNTING OF THE COMPOSED DRIVER SEAT/BOLSTER 31
HOW TO INSTALL STERN ANTISKID PLATFORMS 32
HOW TO INSTALL SUNDECK 33
Care & Maintenance of your Sunbrella® Fabric 34
HOW TO INSTALL A TABLE 35
STORAGE BATTERY INSTALLATION 35
INFLATION/DEFLATION BOAT TUBE 36
BOAT TRANSPORTATION BY TRAILER 37
MAINTENANCE 38
OPERATING REGULATIONS 39-43

— 3 —
Series "EAGLE" E780 236A.01
For you safety and for the validity of the guarantee expert and authorised personnel
must install the motor and inspect and check the systems. All onboard systems must
be completed and inspected.
CHECK, THAT THE CHECKS HAVE BEEN MADE AND THAT THE PLANTS HAVE BEEN
COMPLETED BEFORE DELYVERY.
BRIG Ltd declines any responsibility for systems and accessories that have not been
installed and checked by expert and authorised personnel.
The manual and all its enclosures should be stored carefully, and the manual should
always be kept aboard. If the craft is resold, the manual and all its enclosures must be
handed over to the new owner.

— 4 — "BRIG" inflatable boats
CE Certification and Main Features
The CE marking indicates that the inflatable boat was built in compliance with the Directive
2003/44/EC applied to pleasure craft
Certifying Body:
BUREAU VERITAS S.A.
92077 Paris La Defense Cedex
Name of Manufacture:
BRIG Ltd.
Lozovskaya 88, Dergachy 62303
Kharkovskaya obl.
UKRAINE
www.brig.ua
www.brig-ribs.com

— 5 —
Series "EAGLE" E780 236A.01
INTRODUCTION.
This manual was written to help you to use your boat safely. It contains information on the boat, its equipment (supplied
or installed),operation and maintenance.
DANGER LEVELS.
The manual contains warnings, identified as follows:
A note like this indicates that there is serious risk, that is likely to cause death or
permanent serious injury, if appropriate precautions are not taken.
A note like this indicates the existence of risk that may cause death or injury, if
appropriate precautions are not taken.
A note like this indicates reference to the application of safety or environmental
protection practices,or draws attention to unsafe behaviour that might cause injury to
persones or damage to the craft, its components or the environment.
Before using your boat, read this MANUAL carefully and ensure that you have
understood all the procedures it describes. Before taking command of your boat, be
sure to have acquired experience and confidence in its operation.

— 6 — "BRIG" inflatable boats

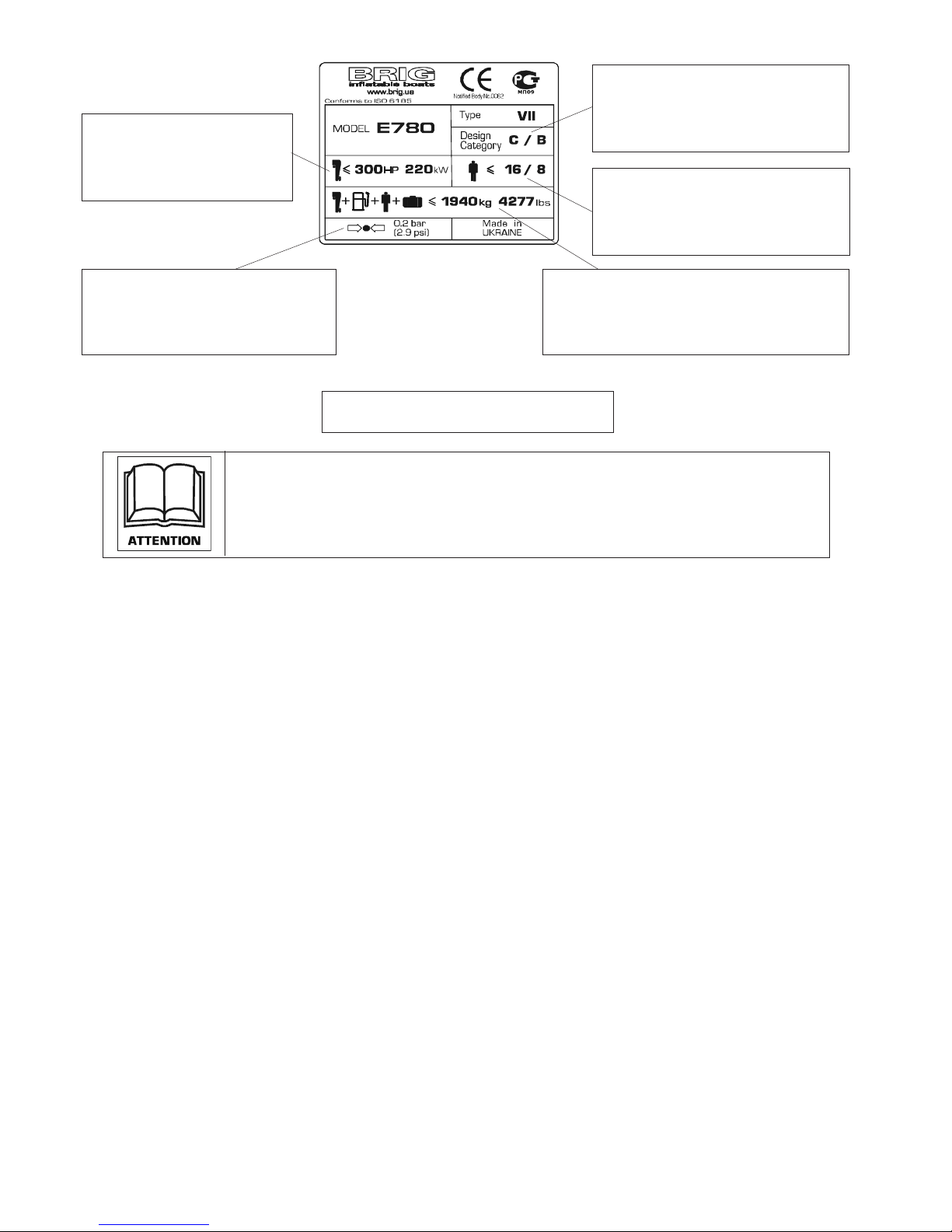

IDENTIFICATION PLATE.
Builder's Plate:
It is fundamental for the plates to be aboard the boat, since they are only form of
recognition and identification. Without them the boat does not comply with the
legislation in effect. The plates must never be removed. Any tampering or removal not
authorised by the manufacturer is the full responsibility of the owner.
Plate with identification number:
UA-QRK12345A000
Total weight of the engine(s), fuel, weight
of the people and cargo onboard
can not exceed 1940kg (4277lbs)
Maximum propulsion power
rating for the boat
300 HP (220 kW)
The rated tube pressure value is
0.2 bar (2.9 psi).
Passengers capacity not exceed:
16men (Design Category C)
or 8men (Design Category B)
Boat Design Categories
according to
Directive 2003/44/EC

— 7 —
Series "EAGLE" E780 236A.01
BEAUFORT Wind Scale and Corresponding State of the Sea, After Few Hours of Wind, Away From the Coast.
Boat Design Categories (Directive 2003/44/EC):
NOTE: The significant wave height is the mean height of the highest one-third of the waves, which approximately
corresponds to the wave height estimated by an experienced observer. Some waves will be double this height.
State of the sea
Force Denomination Knots Km/h m/sec and wave height in meters
0 Calm <1 <1 0-0.2 Calm 0
1 Light Air 1-3 1-5 0.3-1.5 Calm 0
2 Light Breeze 4-6 6-11 1.6-3.3 Almost calm 0.2
3 Gentle Breeze 7-10 12-19 3.4-5.4 Almost calm 0.2
4 Moderate Breeze 11-16 20-28 5.5-7.9 Small waves 0.5
5 Strong Breeze 17-21 29-38 8.0-10.7 Large waves 1.25
6 Fresh Wind 22-27 39-49 10.8-13.8 Large waves 2.0
7 Strong Wind 28-33 50-61 13.9-17.1 Very large waves 2.5
8 Gale 34-40 62-74 17.2-20.7 Rough sea 4
9 Strong Gale 41-47 75-88 20.8-24.4 Very rough sea 6
10 Storm 48-55 89-102 24.5-28.4 Heavy 9
11 Violent Storm 56-63 103-117 28.5-32.6 Very heavy 14
12 Hurricane 64 and over 118 and over 32.7and over Stormy 14 and over
Design category
"A" - "Ocean"
"B"- "Offshore"
"C"- "Inshore"
"D"- "Sheltered waters"
Wind force
(Beaufort scale)
exceeding 8
up to,and including, 8
up to,and including, 6
up to,and including, 4
Significant wave height
exceeding 4
up to,and including, 4
up to,and including, 2
up to,and including, 0.3

— 8 — "BRIG" inflatable boats
SAFETY REGULATIONS.
This manual contains recommendations and basic rules of conduct for using the boat in complete safety.Although it is not possible to offer
safety information for all potential situations, in general it is recommended that you :
Regularly check which safety requirements are in force.
Maintain the boat and the onboard plants in optimum condition.
Have the boat inspected by the dealer where it was purchased or by an authorised mechanic
at least once every year for your own safety and for maintaining the guarantee.
Always check weather and seagoing conditions before setting out.
For safe navigation, compare the design category of your boat with the table below.
When the tank is installed by the yard, the plant is prepared with a ground plait. The installation of the
motorMUST FORESEE A PLAINT CONNECTION to the boat ground plait. Failure to connect (or failed
maintenance) can result in the tank perforating leading to a serious risk of fire / explosion caused by
leaking fuel.
Max number of transportable persones is referred to an established weight of 75 kg per person
(ISO 6185), so always make reference to total maximum transportable weight.
The max weight of the installable motors indicates the maximum overall weight applicable on
the stern board, including any emergency motors.NEVER exceed the stated value.

— 9 —
Series "EAGLE" E780 236A.01
ALWAYS REMEMBER ABOUT FIRE DANGER .
Fire may be caused by:
Crew negligence when smoking, the presence aboard of flammable liquids, electrical contacts, propulsion motor, errors in fueling, or if
maintenance has not been performed as required.
Once again, it is important that the crew behave correctly and that the boat is kept in order to avoid serious damage to it and to persons.
However, if a fire does occur aboard, stop motor, disconnect the batteries immediately, check to see if it is an electrical component or any case
a small-scale fire that does not involve flammable liquids, in which case use a suitable fire extinguisher to try and put the fire out completely.
Easily flammable products must not be kept aboard.
BATTERY: the battery may cause sparks or explosions. It must be stored in an appropriate container,
easily reached and well aired, AWAY FROM FUEL OR INFLAMMABLE PRODUCTS. Periodically check that
the clips are tight and protect them with appropriate insulation in order to prevent sparks or the spread
of current.
Extinguisher or any other fire-fighting equipment must not be kept in compartments with key lock, but
in easily accessible and clearly indicated locations.
Extinguisher or any other fire-fighting equipment should be checked periodically and replaced with
the same or superior typesif expired or inefficient.
Equip the boat with fire-fighting equipment before launch and use.

— 10 — "BRIG" inflatable boats
TECHNICAL SPECIFICATIONS.
The basic parameters and dimensions of the "EAGLE" boat E780H comply with the data specified in the following table.
All dimension measurments indicated have a tolerance of +/- 3%, weight measurments indicated have a tolerance of +/- 5%.
Parameter E780 (E780H)
Design category
Unit of
measure
BC
7.85 7.85
2.90 2.90
2.29 2.29
0.58 0.58
5.77 5.77
1.69 1.69
20 20
22 22
622/241/2 622/241/2
55
0.2 0.2
816
250-300 250-300
300 300
315 315
Extra long / 25 Extra long / 25
920 920
1080 1080
1940 1940
1475 1475
1545 1545
1775 1775
2420 1820
3020 3020
Length (without engine) m
Width m
Height m
Inflatable tube diameter, max. m
Cockpit dimensions:
- length m
- width m
Deadrise angle on transom °
Deadrise angle in middle section °
Transom height mm/inches
Number of independent air-tight chambers pcs.
Nominal pressure BAR
Passengers capacity men
Recommended engine power HP
Maximum engine power HP
Maximum engine weight kg
Engine shaft length /inches
Weight of empty boat (with steering console,
without arc, without driver seat, without engine) kg
Weight of boat with steering console,
with arc, with driver seat, without engine kg
Carring capacity of the boat kg
Displacement In Light Craft Condition (LCC) kg
Maximum load for boat in LCC (when boat
with equipments, with max engine, without fuel) kg
Weight of boat with fuel and MAX engine kg
Maximum transportable mass kg
Loaded displacement mass (LDC) kg

— 11 —
Series "EAGLE" E780 236A.01
1Inflatable boat pcs. 1 —
2Foot pump pcs. 1 —
3Paddle pcs. 2 —
Set of spare parts and repair kit:
4 - mooring line m 18 —
5 - coated fabric for repair m
2
0.06 —
6 - glue set for repair set 1 —
7Bag pcs. 1 —
8Owner's manual pcs. 1 —
9Fuel tank (340 litres) pcs. 1 —
10 Steering console E780 with installation kit pcs. 1 —
Console E780 equipment:
11 Hydraulic steering system set 1 —
12 Steering wheel pcs. 1 —
13 Fuel level clock pcs. 1 —
14 Switches of electrical equipment pcs. 8 —
15 Socket 12V with fuse pcs. 1 —
16 Speedometer pcs. 1 —
17 Tachometer pcs. 1 —
18 Electric horn pcs. 1 —
19 Front locker removable cushion pcs. 2 —
20 Composed driver seat/bolster E780
with installation kit pcs. 1 —
21 Polyester arc with installation kit pcs. 1 —
COMPLETE SET.
Model E780H
No Unit of Q-ty (set)
Description measure Pack.1 Pack.2

— 12 — "BRIG" inflatable boats
Polyester arc equipment:
22 Anchor light (white) pcs. 1 —
Running lights:
23 Port (red) pcs. 1 —
24 Starboard (green) pcs. 1 —
25 Drain automatic bilge pump pcs. 2 —
26 Soft back of stern-part seat with installation kit pcs. 1 —
Additional options:
Shower kit :
27 Water tank (45 litres) pcs. 1 —
28 Neck for water fill pcs. 1 —
29 Shower handset pcs. 1 —
30 Shower pump pcs. 1 —
31 Box with cap for shower handset pcs. 1 —
Fore removable sundeck:
32 False deck board pcs. 2 —
33 Soft cushion pcs. 2 —
34 Foldable stainless steel ladder pcs. 1 —
35 Auxiliary motor bracket pcs. 1 —
36 Ski mast pcs. 1 —
37 Overall cover set 1 —
38 Steering console cover set 1 —
39 Collapsible sun-top set 1 —
40 Battery container pcs. 2 —
Model E780H
No Unit of Q-ty (set)
Description measure Pack.1 Pack.2

— 13 —
Series "EAGLE" E780 236A.01
Note .Perfection of the design and improvement of quality of our products is the fundamental production policy of our
company. Therefore, alternations may be made to the complete set (and as the components become available).
—Your "BRIG" boat "EAGLE" complete set included this items.
√√
√√
√
Model E780H
No Unit of Q-ty (set)
Description measure Pack.1 Pack.2
41 Valve cap pressure gauge pcs. 1 —
Electrical anchor system:
42 Electrical windlass with control box pcs. 1 —
43 Stemhead roller pcs. 1 —
44 Windlass circuit breaker pcs. 1 —
45 Anchor pcs. 1 —
46 Anchor chain (25m) pcs. 1 —

— 14 — "BRIG" inflatable boats
2 3 421
16
6
6
1
13
10
5
17 18 9
11
24
22
16
17
20 19 21
12
12
25
8
24
7
4

— 15 —
Series "EAGLE" E780 236A.01
D1
7
15
14
25
6
16
23 22
24
21
17
1 — Polyester hull.
2 — Reinforced buoyancy tube.
3 — Doubled rubbing strake.
4 — Safety handle.
5 — Towing bow eyes (hull) (2 pcs.).
6 — Bow step-plate with antiskid layer.
7 — Mast for towing skier.
8 — Neck for fuel fill.
9 — Box with cap for shower handset.
10 — Steering console seat.
11 — Air fill valve (5 pcs.).
12 — Stern antiskid platforms.
13 — Front locker removable cushions.
14 — Drain plug.
15 — Cockpit drain system socket (4 pcs.).
16 — Steering console.
17 — Composed driver seat/bolster
18 — Stern-part seat.
19 — Soft back of stern-part seat.
20 — Neck for water fill.
21 — Polyester arc.
22 — Port running light (red).
23 — Starboard running light (green).
24 — Anchor light (white).
25 — Foldable stainless steel ladder.
The boat series "EAGLE" E780H consists of the next main components
(Fig. D1):
- polyester hull (1);
- reinforced buoyancy tube (2);
- polyester steering console (16);
- composed driver seat/bolster (17);
- polyester arc (21).
BOAT DESIGN.
zDESCRIPTION:
5

— 16 — "BRIG" inflatable boats

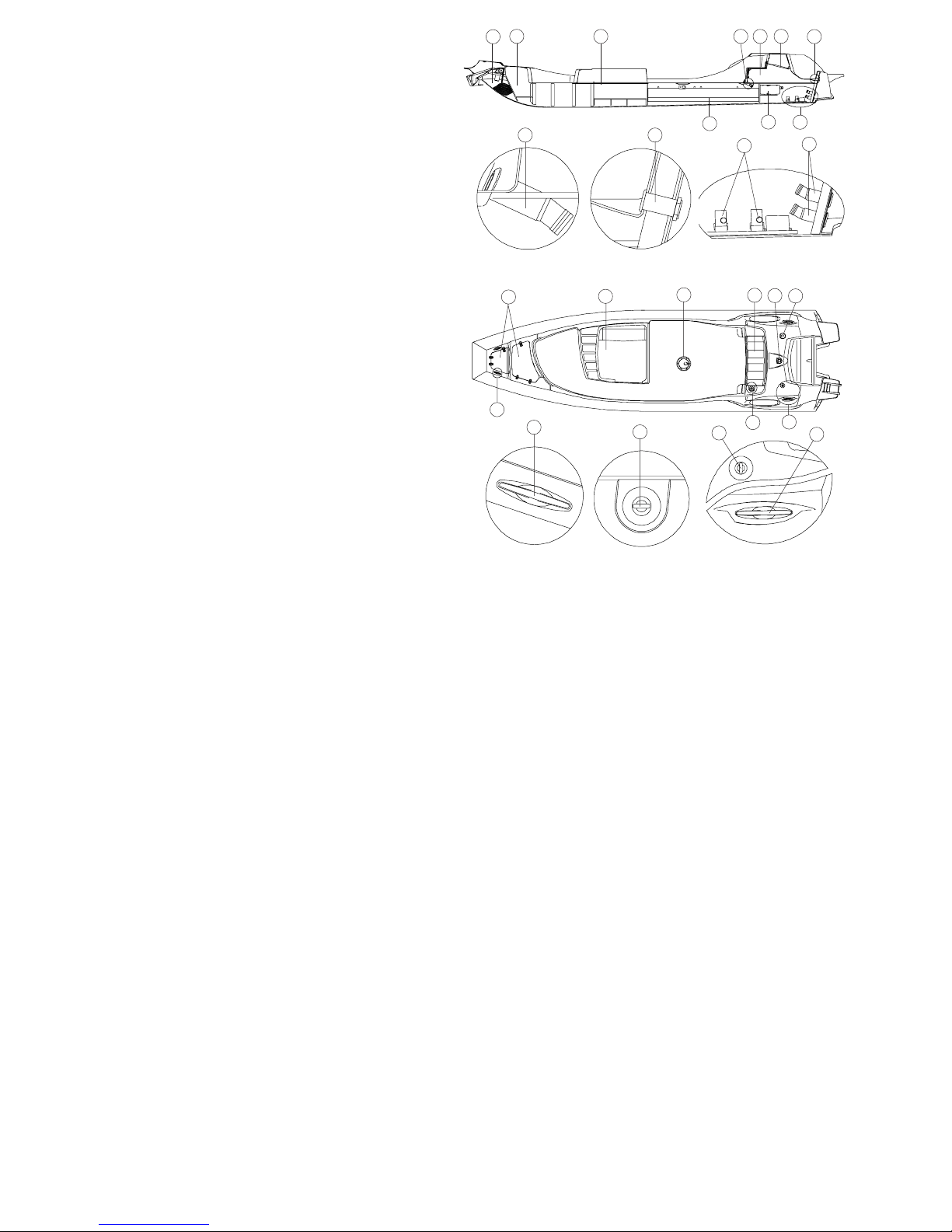

The boat hull has "deep-V" shaped bottom with four longitudial steps.
The upper deck has a special moulded antiskid coating. There are five
specified sections (Fig. D2):
— bow anchor locker (1) is intended for arrangement of anchor system
and anchor chain/rope;
— bow locker (2) is intended for baggage arrangement;
— compartment in the interior part of steering console (3);
— stern compartment (4).
The bow lockers and stern compartment has a direct access by hinge
out the access doors (respectively 11 and 12 positions).
Onto the access doors of the bow lockers there are a removable soft
cushions (13, Fig. D1). Onto the stern compartment door the are soft
seat (18, Fig. D1) with soft back (19, Fig. D1).
The boat hull is arranged with the following components:
— two bow towing eyes (5, Fig.D1);
— two bow cleats (16, Fig. D2d);
— two stern cleats (17, Fig. D2f);
— fuel tank (6);
— water tank (7);
— cockpit drain system sockets (8, Fig. D2a, D2c);
— drain out of motor recess (9, Fig. D2b);
— drain automatic bilge pumps (10, Fig. D2c);
— outer neck for fuel fill (19, Fig. D2f);
— neck for water fill (18, Fig. D2e);
— inspection hatch (13);
— mast for towing skier (14);
— box with cap for shower handset (15);
— foldable stainless steel ladder (25, Fig. D1);
— lifter of stern compartment door seat (20).
zPOLYESTER HULL.
D2
123 b
6
a
7c
abc
20
8 9
8
10
3
11 12
d
13
17
f
15
14
18
16 19
e
d
e
f
4

— 17 —
Series "EAGLE" E780 236A.01
zREINFORCED BUOYANCY TUBE.
5687
41 23
D3
The boat buoyancy tube has U-shaped form. The tube is separated by means
of inner elastic partitions into five chambers of a similar volume, each being
provided with an air fill valve.
The air fill valve is intended for:
— filling the compartment with air from a standard pump or filling system
and maintaining pressure in the tube for prolonged time,
— adjustable drop of pressure in compartment.
The air fill valve is designed as a tab-type non-return valve and consists of
the following components (Fig. D3):
— housing (1);
— cup (2) with strap (3);
— washer with gasket (4);
— nut (5);
— spindle (6) with spring (7) and cup diaphragm (8).
Also there are the following elements fitted on the tube (Fig. D1):
— doubled rubbing strake (3, Fig.D1);
— safety handles (4, Fig.D1);
— bow step-plate with a special moulded antiskid coating (6, Fig.D1).
There is also three-position battery disconnector located in the stern
compartment.
The fore part of the cockpit may be simply converted into the sundeck
by means of false deck and soft cushions.

— 18 — "BRIG" inflatable boats
zPOLYESTER STEERING CONSOLE.
Steering console is located in the central part of the boat. The console
consists of the following components (Fig. D4):
— console body (1) is installed onto the console base (2),
which is built-in the boat deck;
— windscreen (3);
— stainless steel railing (left and right) (4);
— front soft seat (5);
— soft seat-back;
— doors with lock for access the interior space of the console (6).
— console recess with glass cap (7);
— two stainless steel bearings for feet (8);
— stainless steel handrail (9);
— electric horn (on the right side of the console).
Polyester arc (21, Fig.D1) is located in the stern part of the boat.
Arc is equipped with anchor light (white, 24) and running lights:
port (red, 22) and starboard (green, 23), (Fig. D1).
zPOLYESTER ARC.
D4
57
3
8
9
1
2
6
4
4

— 19 —
Series "EAGLE" E780 236A.01

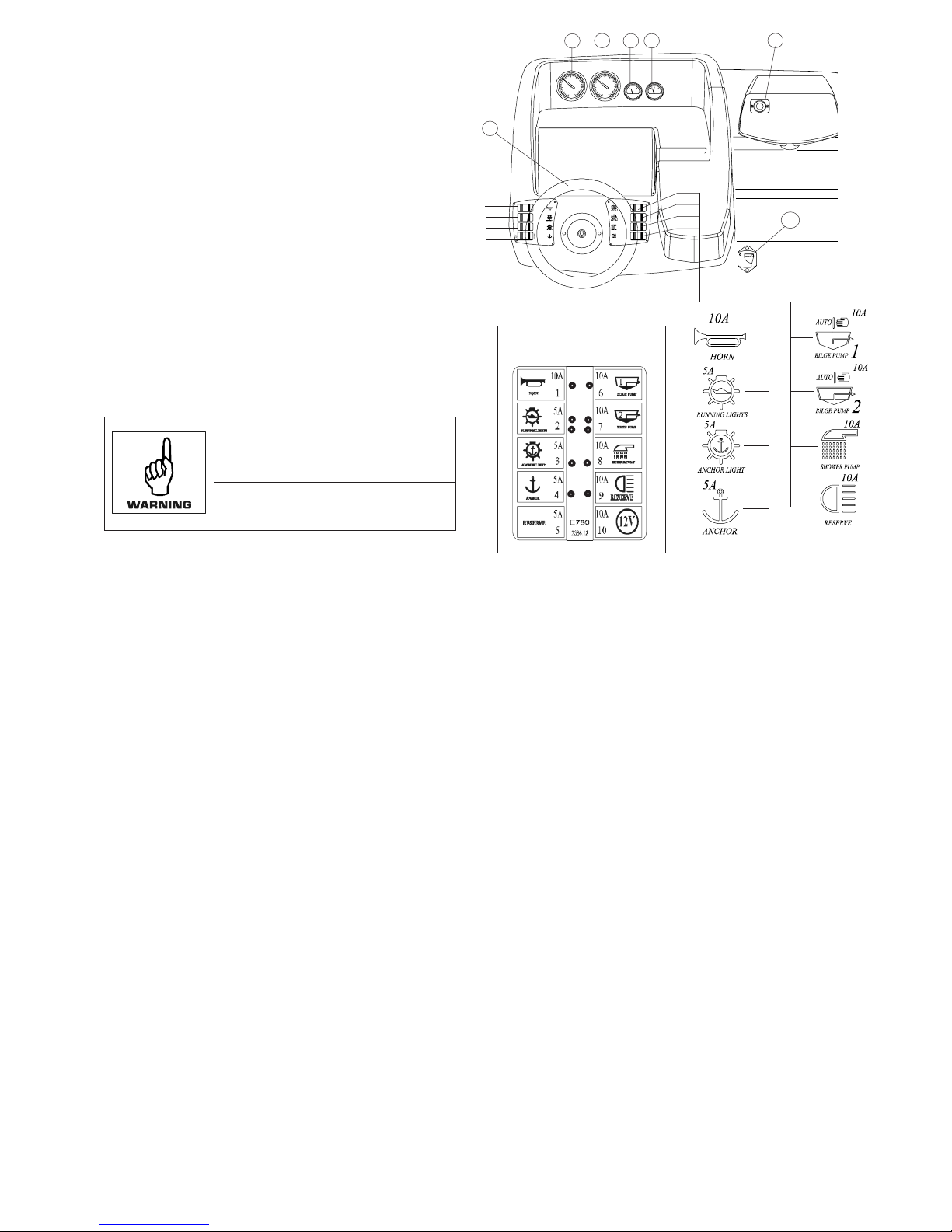

Console equipment (Fig. D5):
—hydraulic steering system;
— steering wheel (1);
— fuel level clock (2);
— speedometer (3);
— additional equipment (4) (tachometer or multi-purpose meter,
trimmer, voltmeter, clock);
— socket 12V with fuse (5).
— electrical circuit breaker (for electrical windlass) (6) (can be
installed inside of the console).
— fuse holding box with warning lights(see D5) (inside of the
steering console)
— switches:
— horn switch (7);
— running lights and meter lamp switch (8);
— anchor light switch (9);
— anchor windlass "up" and "down" switch (10);
— bilge pump 1 switch (11);
— bilge pump 2 switch (12);
— shower pump switch (13);
— reserve switch (14).
Always check the fuse. Burning red
LED display on the fuse box warns of
faulty fuse
Always keep a spare set the fuse in
an easily-accessible location.
D5
4 3 2 5 4
8
9
10
11
7
13
12
14
1
11
12
8
9
13
10
14
7
6
Fuse holding box
with warning lights

— 20 — "BRIG" inflatable boats
zFUEL SYSTEM.

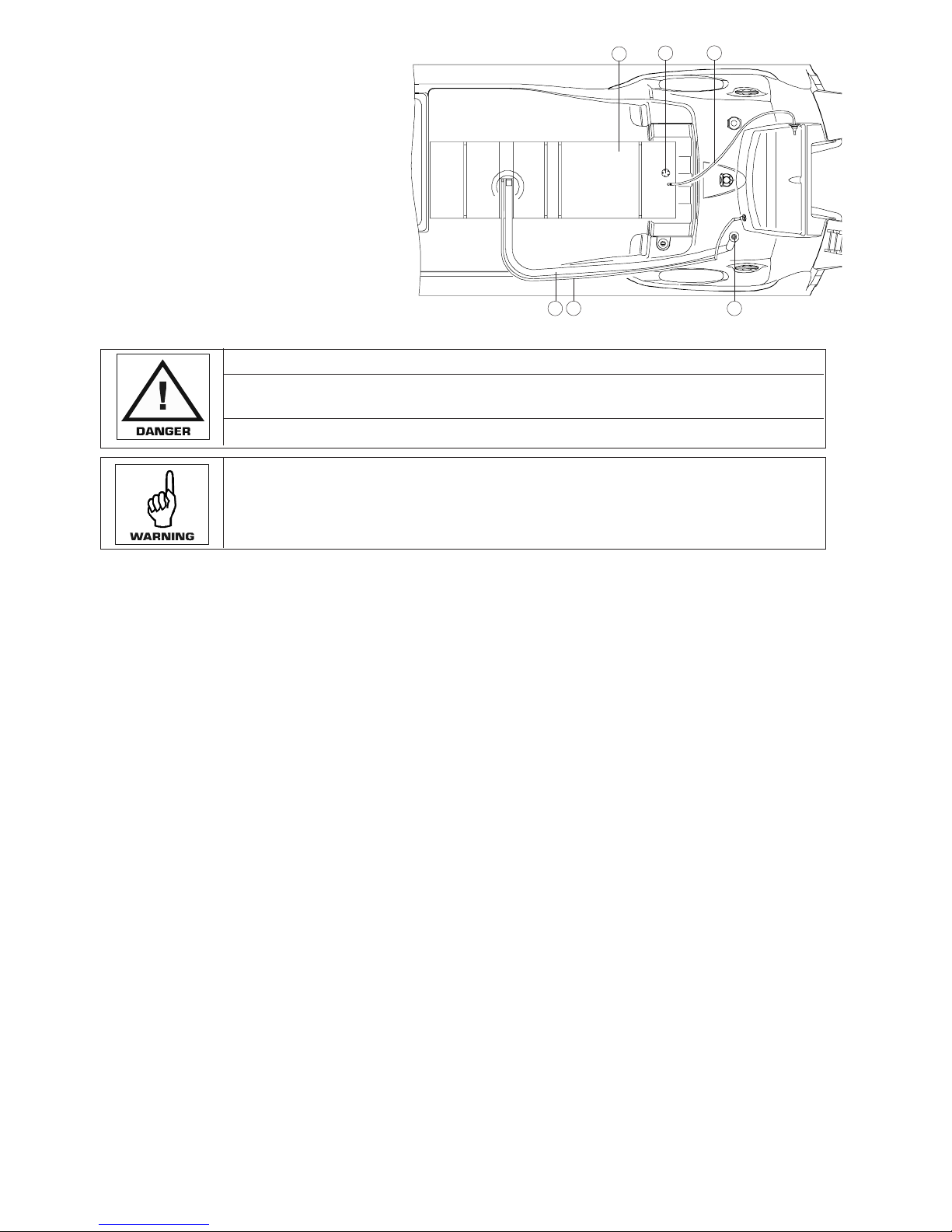

Fuel system consists of the following components (Fig. D6):
— built-in fuel tank 340L (90gal) (1);
— electric fuel gauge (2);
— outer neck for fuel fill (3);
— fuel hose (from outer neck for fuel fill to fuel tank) (4);
— fuel hose (from fuel tank to outboard motor) (5);
— fuel venting hose (6).
D6
63
4
25
1
Check that there are no leaks in the fuel systems
Pre-filter and fuel valve must be installed by authorized representative specialists only.
Do not modify fuel system. Any modification, repair and planned maintenance of the fuel system may
be made by authorized representative specialists only.
Do not smoke when refueling. Stop the engine and switch off any electric equipments before refueling.
