BRIG Eagle 5 User manual

Rigid Inflatable Boat
MODEL: Eagle 5
complete set:
deluxe version: Eagle 5L
sport version: Eagle 5S
Design category (2013/53/EU): C
ISO6185: Category VIII
2378J.01
OWNER'S MANUAL
English

— 2 — "BRIG"
CONTENTS:
DANGER LEVELS 5
INTRODUCTION 5
IDENTIFICATION PLATE 6
SAFETY REGULATIONS 7
BEAUFORT W ind Scale 8
Boat Design Categories 8
REMEMBER FIRE DANGER ALWAYS 9
TECHNICAL SPECIFICATIONS 1 0
COMPLETE SET 1 1
THE MAIN DIMENSIONS 1 3
BOAT DESIGN 1 5
HULL 1 7
REINFORCED BUOYANCY TUBE 1 8
MAST FOR NAVIGATION LIGHTS 1 9

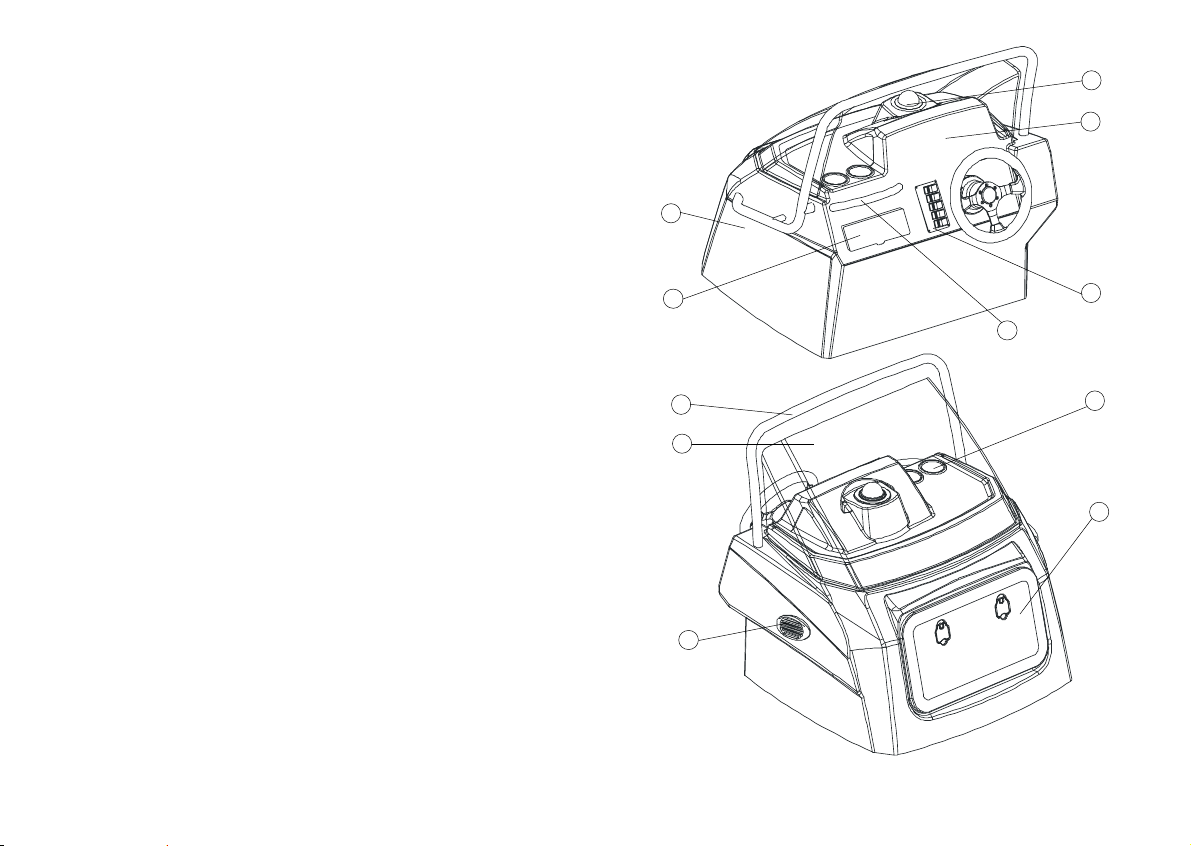

STEERING CONSOLE DELUXE VERSION 1 9
STEERING CONSOLE SPORT VERSION 2 0
STEERING CONSOLE EQUIPMENT 2 1
FUEL SYSTEM 2 2
DRAIN SYSTEM 2 3
SHOW ER KIT 2 5
WIRING DIAGRAM 26
PREPARATION FOR EXPLOITATION 2 7
INFLATION/DEFLATION BOAT TUBE 2 7
STORAGE BATTERY INSTALLATION 2 8
BOAT TRANSPORTATION BY TRAILER 2 8
HOW TO INSTALL SUNDECK 3 0
REBOARDING MEANS 3 1
CREW LIMIT 3 2
MOORING. STRONG POINT 3 3
ANCHORING AND TOW ING. STONG POINT 3 4
MAINTENANCE 3 5
OPERATING REGULATIONS 3 6
W ARNING SIGNS AND LABELS 4 1

— 3 —
EAGLE 5-2020 2378J.01
For you safety and for the validity of the guarantee expert and authorised personnel
must install the motor and inspect and check the systems. All onboard systems must
be completed and inspected.
CHECK, THAT THE CHECKS HAVE BEEN MADE AND THAT THE PLANTS HAVE
BEEN COMPLETED BEFORE DELYVERY.
BRIG Ltd declines any responsibility for systems and accessories that have not
been installed and checked by expert and authorised personnel.
The manual and all its enclosures should be stored carefully, and the manual should
always be kept aboard. If the craft is resold, the manual and all its enclosures must
be handed over to the new owner.

— 4 — "BRIG"
CE Certification and Main Features
The CE marking indicates that the inflatable boat meets the requirements of the Recreational
Craft Directive 2013/53/EU
Certifying Body:
INTERNATIONAL MARINE CERTIFICATION INSTITUTE
Rue Abbe Cuypers 3 / B-1040 Bruxelles / Belgique
Notified Body : 0609
www.imci.org
Name of Manufacture:
BRIG Ltd.
Lozovskaya 88, Dergachy 62303
Kharkovskaya obl.
UKRAINE
www.brig-ribs.com

— 5 —
EAGLE 5-2020 2378J.01
INTRODUCTION.
This manual was written to help you to use your boat safely. It contains information on the boat, it s equipment (supplied
or installed),operation and maintenance.
DANGER LEVELS.
The manual contains warnings, identified as follows:
A note like this indicates that there is serious risk, that is likely to cause death or
permanent serious injury, if appropriate precautions are not taken.
A note like this indicates the existence of risk that may cause death or injury, if
appropriate precautions are not taken.
A note like this indicates reference to the application of safety or environmental
protection practices,or draws attention to unsafe behaviour that might cause injury to
persones or damage to the craft, its components or the environment.
Before using your boat, read this MANUAL carefully and ensure that you have
understood all the procedures it describes. Before taking command of your boat, be
sure to have acquired experience and confidence in its operation.

— 6 — "BRIG"
It is fundamental for the plates to be aboard the boat, since they are only form of
recognition and identification. W ithout them the boat does not comply with the legislation
in effect. The plates must never be removed. Any tampering or removal not authorised by
the manufacturer is the full responsibility of the owner.
IDENTIFICATION PLATE.
Builder's Plate:
Plate with identification number:
UA-QRK12345A000
Maximum propulsion
power rating for the
boat
Boat Design Category
according to
Directive 2013/53/EU
The rated tube
pressure value
Passengers capacity
VIII
C
Eagle5
85 115 7
855 1885
3
Manufacturer’s recommended maximum load,
including the mass of the outboard engine(s) but
excluding the mass of the contents of fixed fuel
and water tanks when full

— 7 —
EAGLE 5-2020 2378J.01
SAFETY REGULATIONS.
This manual contains recommendations and basic rules of conduct for using the boat in complete safet y.Although it is not
possible to offer safety information for all potential situations, in general it is recommended that you :
Regularly check which safety requirements are in force.
Maintain the boat and the onboard plants in optimum condition.
Have the boat inspected by the dealer where it was purchased or by an authorised
mechanic at least once every year for your own safety and for maintaining the guarantee.
Always check weather and seagoing conditions before setting out.
For safe navigation, compare the design category of your boat with the table below.
W hen the tank is installed by the yard, the plant is prepared with a ground plait. The
installation of the motor MUST FORESEE A PLAINT CONNECTION to the boat ground plait.
Failure to connect (or failed maintenance) can result in the tank perforating leading to a
serious risk of fire / explosion caused by leaking fuel.
Max number of transportable persones is referred to an established weight of 75 kg per
person (ISO 6185), so always make reference to total maximum transportable weight.
The max weight of the installable motors indicates the maximum overall weight applicable
on the stern board, including any emergency motors. NEVER exceed the stated value.

— 8 — "BRIG"
BEAUFORT Wind Scale and Corresponding State of the Sea, After Few Hours of Wind, Away From the Coast.
Boat Design Categories (Directive 2013/53/EU):
NO TE : T he significant wave height is the mean height of the highest one-third of the waves, whic h approximately
corresponds to the wave height estimated by an experienced observer. Some waves will be double this height.
State of the sea
For ce Denomination Knots Km/h m/s ec and wave height in meters
0 Calm <1 <1 0-0.2 Calm 0
1 Light Air 1-3 1-5 0.3-1.5 Calm 0
2 Light Breeze 4- 6 6-11 1.6-3.3 Almost calm 0.2
3 Gentle Breeze 7-10 12-19 3.4-5.4 Almost calm 0.2
4 Moderate Breeze 11-16 20-28 5.5-7.9 Small waves 0.5
5 Strong Breeze 17-21 29-38 8.0-10.7 Large waves 1.25
6 Fresh W ind 22-27 39-49 10.8-13.8 Large waves 2.0
7 Strong W ind 28-33 50-61 13.9-17.1 Very large waves 2.5
8 Gale 34-40 62-74 17.2-20.7 Rough sea 4
9 Strong Gale 41-47 75-88 20.8-24.4 Very rough sea 6
10 Storm 48-55 89-102 24.5-28.4 Heavy 9
11 Violent Storm 56-63 103-117 28.5-32.6 Very heavy 14
12 Hurricane 64 and over 118 and over 32.7and over Stormy 14 and over
Design category
"A" - "Ocean"
"B"- "Offshore"
"C"- "Inshore"
"D"- "Sheltered waters"
Wind force
(Beaufort scale)
exceeding 8
up to,and including, 8
up to,and including, 6
up to,and including, 4
Significant wave height
exceeding 4
up to,and including, 4
up to,and including, 2
up to,and including, 0.3

— 9 —
EAGLE 5-2020 2378J.01
ALWAYS REMEMBER ABOUT FIRE DANGER .
Fire may be caused by:
Crew negligence when smoking, the presence aboard of flammable liquids, electrical contacts, propulsion motor, errors in fueling, or if
maintenance has not been performed as required.
Once again, it is important that the crew behave correctly and that the boat is kept in order to avoid serious damage to it and to persons.
However, if a fire does occur aboard, stop motor, disconnect the batteries immediately, check to see if it is an electrical component or any case
a small-scale fire that does not involve flammable liquids, in which case use a suitable fire extinguisher to try and put the fire out completely.
Easily flammable products must not be kept aboard.
BATTERY: the battery may cause sparks or explosions. It must be stored in an appropriate
container, easily reached and well aired, AW AY FROM FUEL OR INFLAMMABLE PRODUCTS.
Periodically check that the clips are tight and protect them with appropriate insulation in
order to prevent sparks or the spread of current.
Extinguisher or any other fire-fighting equipment must not be kept in compartments with
key lock, but in easily accessible and clearly indicated locations.
Extinguisher or any other fire-fighting equipment should be checked periodically and
replaced with the same or superior types if expired or inefficient.
Equip the boat with fire-fighting equipment before launch and use.

— 10 — "BRIG"
TECHNICAL SPECIFICATIONS.
The basic parameters and dimensions of the EAGLE 5 (version Eagle 5L and Eagle 5S) comply with the d ata specified in the
following table. All dimensions measurments indicated have a tolerance of +/- 3%, weight measurments indicated have a
tolerance of +/- 5%.
4.95 m
2.30 m
1.60m
0.51 m
3.31 m
1.28 m
20°
23°
508mm
5
0.15 bar / 2.2 psi
7
90HP / 66kW
115HP / 85 kW
280kg
20" (Long)
98L
415kg
430kg
980kg
730kg
680kg
855kg
1410kg
Parameter Eagle 5L Eagle 5S
Length (without engine)
Beam
Height
Inflatable tube diameter, max.
Cockpit dimensions:
- length
- width
Deadrise angle on transom
Deadrise angle in middle section
Transom height
Number of independent air-tight chambers
Nominal pressure
Passengers capac ity
Rec ommended engine power
Maximum engine power*
Maximum engine weight (including controls and battery)
Engine shaft length
Built-in fuel tank capacity
W eight of empty boat (with steering console, without engine, without fuel)
W eight of boat with equipment provided by the manufacturer
Maximum load capacity of empty boat (ISO method)
Displacement in Light Craft Condition (LCC)
Maximum total load (ML)
Maximum recommended load (including weight of the
max engine(s), passengers and cargo onboard, but excluding
the mass of the contents of fixed fuel and water tanks when full )
Loaded displacement mass
* When the boat is fitted with an engine with maximum recommended power it must be use with extreme care.
This application is directed at experienced users using their boats for very specific purposes.
4.95 m
2.30 m
1.52m
0.51 m
3.31 m
1.28 m
20°
23°
508mm
5
0.15 bar / 2.2 psi
7
90HP / 66kW
115HP / 85 kW
280kg
20" (Long)
98L
410kg
425kg
980kg
730kg
680kg
855kg
1410kg

— 11 —
EAGLE 5-2020 2378J.01
COMPLETE SET .
1Inflatable boat pcs. 1
2Foot pump pcs. 1
3Pad dle pcs . 2
Set of spare parts and repair kit:
4 - mooring line m 18
5 - coated fabric for repair m
20.06
6 - glue set for repair set 1
7Bag pcs. 1
8Owner's manual pcs. 1
9Built-in fuel tank pcs. 1(98L)
10 Steering console (deluxe or sport version) pcs. 1
Steering console equipment:
11 Mechanical steering system pcs. 1
12 Mechanical steering system cable pcs. 1
13 Hydraulic steering system set 1 (variant)
14 Steering wheel pcs. 1
15 Fuel level clock pcs. 1
16 Switches of electrical equipment pcs. 5
17 Socket 12V with fuse pcs. 1
18 Compass pcs. 1
19 Speedometer pcs. 1
20 Tachometer pcs. 1
21 Electric horn pcs. 1
22 Front locker removable cushion pcs. 2
N o De sc ri p t io n Unit of Eagle 5
measure
In the table shows the maximum possible complete set, which may differ from your boat.

— 12 — "BRIG"
Note. Perfection of the design and improvement of quality of our products is the fundamental production policy of our company.
Therefore, alternations may be made to the complete set (and as the components become available).
2 3 Mast with white navigation light p cs . 1
2 4 Front step plate with nav igation lights p cs . 1
2 5 Drain aut omatic bilge pump p cs . 1
2 6 Towin g ey e p cs . 1
2 7 Soft back of ster n-part seat p cs . 1
2 8 Foldable stainless steel ladder p cs . 1
Ad diti onal op ti on s:
Shower kit :
2 9 W ater tank (39 litres) pcs . 1
3 0 External water fill pcs . 1
3 1 S hower hands et pcs . 1
3 2 Shower pump pcs . 1
3 3 Box with cap for shower handset pcs . 1
3 4 Bow sun deck set with cushion pcs . 1
3 5 Overall cover set 1
3 6 Steer ing console cover set 1
3 7 Collapsible sun-top set 1
3 8 B attery container p c s . 1
3 9 Valve cap pressure gauge pcs . 1
4 0 SeaDek set set 1
N o De sc ri p t io n Unit of Eagle 5
measure

— 13 —
EAGLE 5-2020 2378J.01
The main dimensions of Eagle 5L and Eagle 5S have tolerance of +/- 3%.
The length of the boat with the engine can vary depending on the model of the engine and the angle of its deviation. (See Fig. D0)

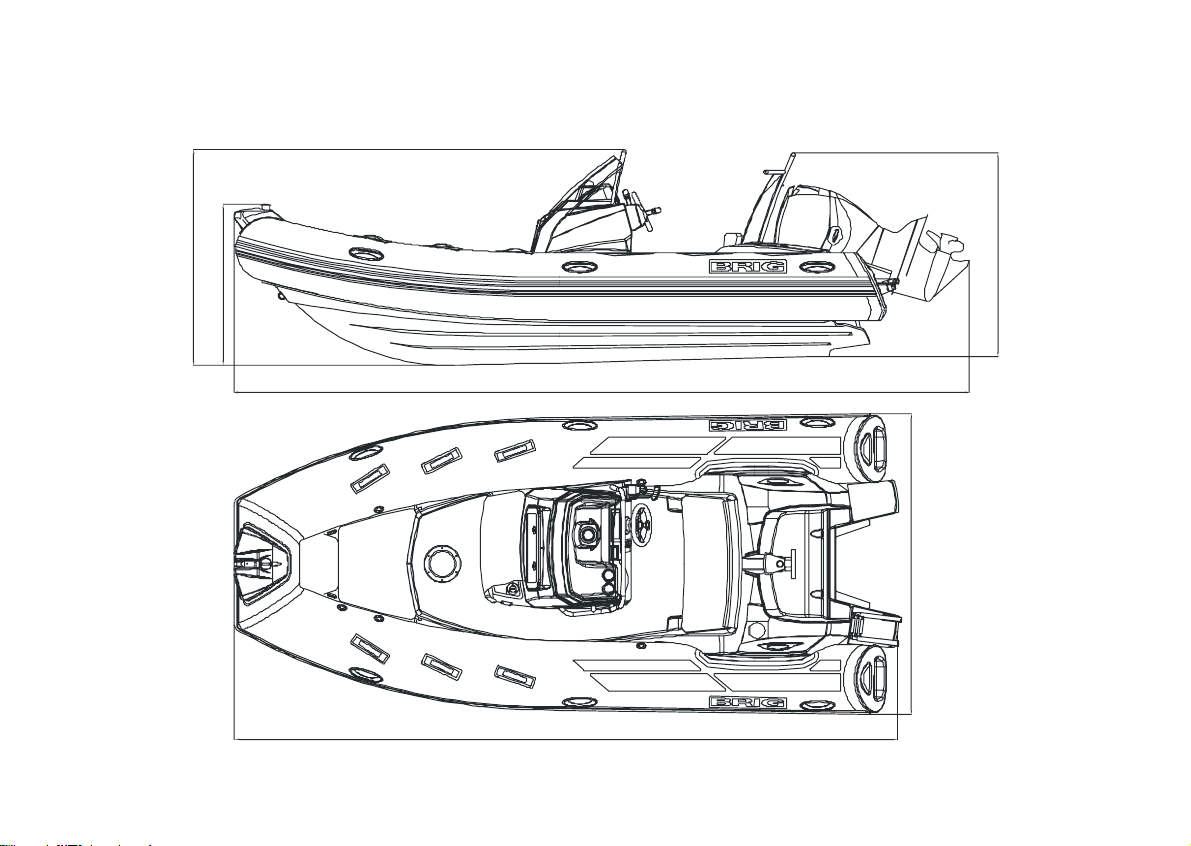

THE MAIN DIMENSIONS.
Fig. D0
Eagle 5L
5500mm ( 5.5m )
1200mm (1.2m)
4950mm (4.95m)
1600mm (1.6 m)
1520mm (1.52m)
2300mm (2.3m)

— 14 — "BRIG"
5500mm ( 5.5m )
1200mm (1.2m)
4950mm (4.95m)
1400mm (1.4 m)
1520mm (1.52m)
2300mm (2.3m)

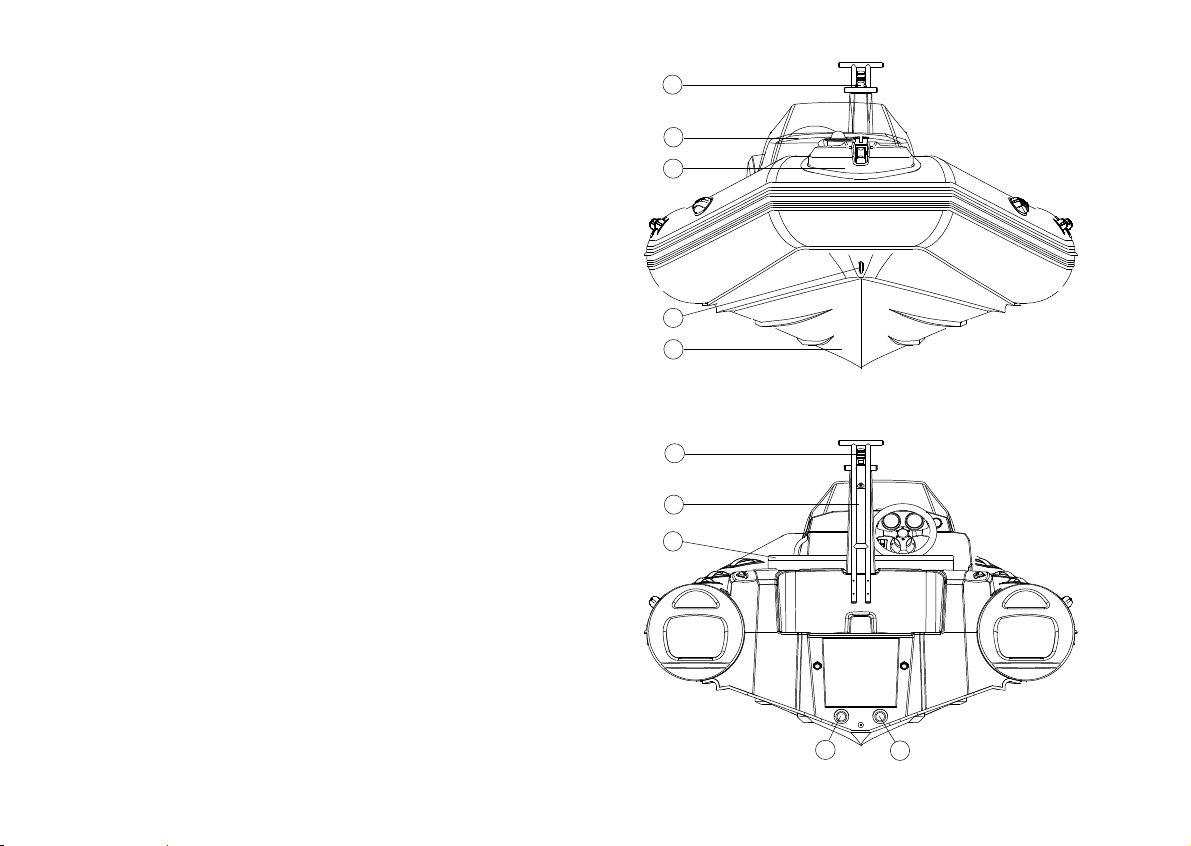

Fig. D0
Eagle 5S

— 15 —
EAGLE 5-2020 2378J.01
1 — Polyester hull.
2 — Reinforced buoyancy tube.
3 — Doubled rubbing strake.
4 — Safety handle.
5 — Towing bow eye.
6 — Front step-plate with bow roller.
7 — Neck for fuel fill.
8 — Box for shower handset.
9 — Steering console seat.
1 0 — Air fill valve (5 pcs.).
1 1 — Front lockers removable cushions.
1 2 — Cockpit drain system sockets (2 pcs.).
1 3 — Steering console (Deluxe or Sport version).
1 4 — Neck for water fill.
1 5 — Stern-part seat.
1 6 — Soft back of stern-part seat.
1 7 — Mooring cleats.
1 8 — Mast.
1 9 — Navigation lights (red and green).
2 0 — Anchor light (white).
2 1 — Stern lifting eyes.
2 2 — Bow liftig eyes.

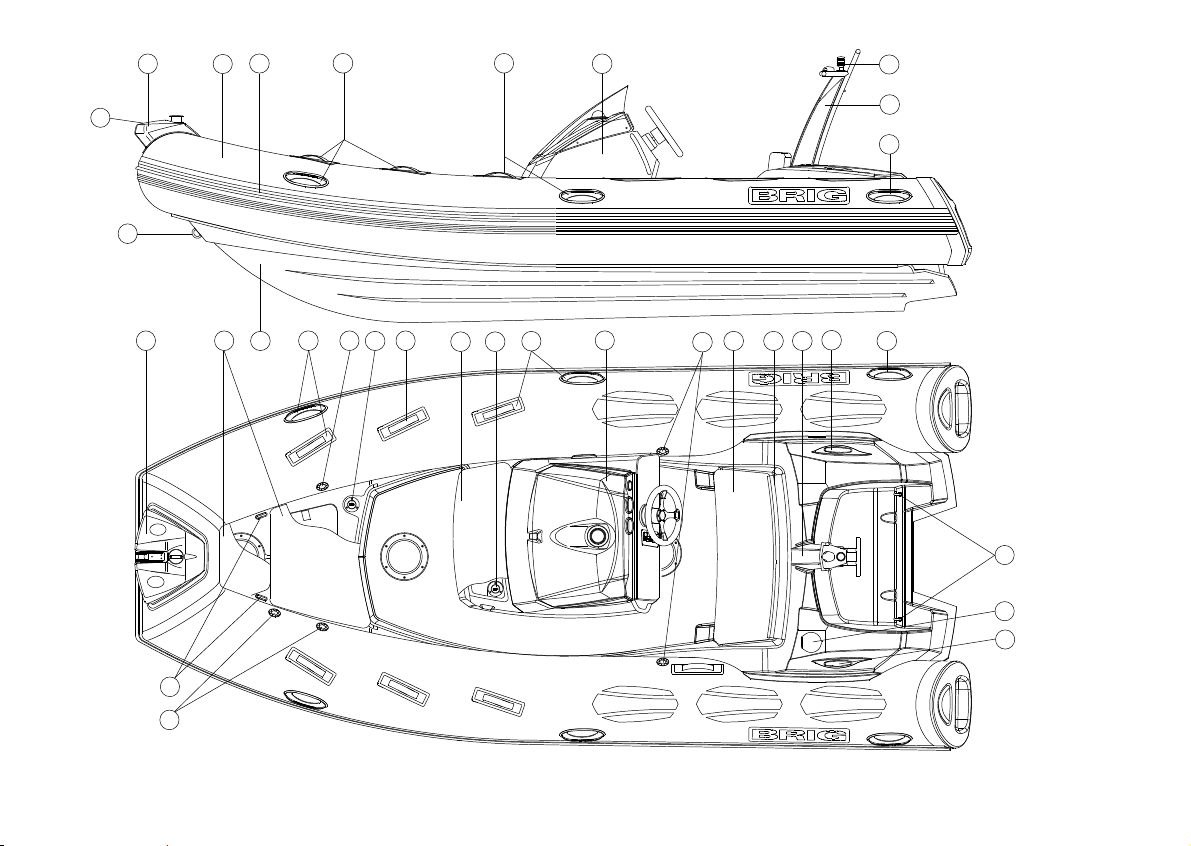

The boat series "EAGLE" consists of the next main components (Fig.
D1):
- Polyester hull (1);
- Reinforced buoyancy tube (2);
- Polyester steering console (13);
- Mast for navigation lights (18).
BOAT DESIGN.
DESCRIPTION:
Fig.D1
20
13
6
19
5
1
18
16
12
12

— 16 — "BRIG"
623 4 13
4
5
16 11 74
22
913
4
14 10 15 16 18 4
21
10
20
19
18
4
410 17
17
8
Fig.D1

— 17 —
EAGLE 5-2020 2378J.01
 HULL.
The boat hull has "deep-V" shaped bottom with four longitudial steps.
The upper deck has a special moulded antiskid coating. There is four

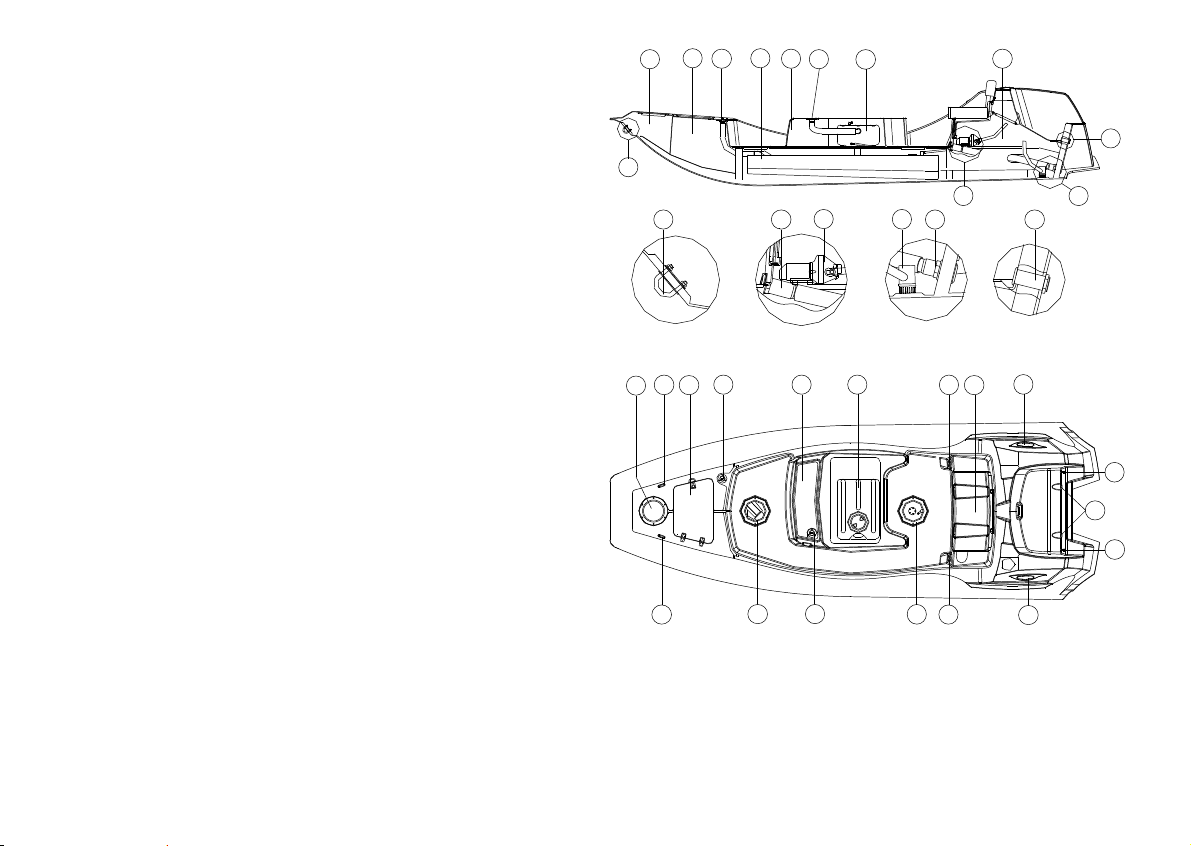

specified sections (Fig. D2):
— bow anchor locker (1) is intended for arrangement of anchor
and anchor chain/rope;
— bow locker (2) is intended for baggage arrangement;
— locker under the seat of steering console base part (3) is
intended for baggage arrangement;
— stern compartment (4).
Onto bow lockers there are removable soft cushions (11, Fig. D1).
Onto the stern compartment door there is soft seat (15, Fig. D1) and
soft back (16, Fig. D1).
The boat hull is arranged with the following components:
— bow towing eye (5, Fig.D2a);
— fuel tank (6);
— water tank (7);
— battery disconnector (at the stern part of the cockpit);
— cockpit drain system sockets (8, Fig. D2b, D2c);
— two stern lifting eyes (9);
— drain out of motor recess (10, Fig. D2d);
— drain automatic bilge pump (11, Fig. D2c);
— shower pump (12, Fig. D2b);
— two bow lifting eyes (13);
— outer neck for fuel fill (14);
— outer neck for water fill (15);
— inspection hatches (16);
— two stern cleats (17);
The fore part of the cockpit may be simply converted into the sundeck
by means of false decks and soft cushions.
Fig.D2
abc
a
3
b
d
8
4
5810
12 11
d
7
9
8
14
10
13
17
17
13 314
16 2
c
15 7
1516 16
12
8
9
4

— 18 — "BRIG"
REINFORCED BUOYANCY TUBE.
5 6 8 7
4 1 2 3
Fig.D3
The boat buoyancy tube has U-shaped form. The tube is separated by
means of inner elastic partitions into five chambers of a similar volume,
each being provided with an air fill valve.
The air fill valve is intended for:
— filling the compartment with air from a standard pump or filling system
and maintaining pressure in the tube for prolonged time,
— adjustable drop of pressure in compartment.
The air fill valve is designed as a tab-type non-return valve and consists
of the following components (Fig. D3):
— housing (1);
— cup (2) with strap (3);
— washer with gasket (4);
— nut (5);
— spindle (6) with spring (7) and cup diaphragm (8).
Also there are the following elements fitted on the tube (Fig. D1):
— doubled rubbing strake (3, Fig.D1);
— safety handles (4, Fig.D1);
— bow step-plate with a special moulded antiskid coating (6, Fig.D1).

— 19 —
EAGLE 5-2020 2378J.01
STEERING CONSOLE DELUXE VERSION.
The console of the Eagle 5L consists of the following components
(Fig. D4):
— console base, integrated with the deck;
— console upper part (1);
— windscreen (2);
— stainless steel handrail (3) and handle (10);
— niche for things (4) with socket 12V;
— plate with switches (5);
— place (6) for installation of analog or/and digital devices,
such as speedometer, tachometer, trim-meter, fuel-level meter,
multipurpose meters, GPSmap, etc. ;
— hatch (7);
— electric horn (8);
— compass (9);
— cup holder (11);
— fuse holding box with warning lights (located inside the
cons ole).
Mast (18, Fig.D1) is located in the stern part of the boat. Mast is
equipped with anchor light (white, 20) and may be used as ski-mast,
(Fig. D1).
MAST.
Fig.D4
Steering Console
Deluxe Version
1
3
2
5
10
4
9
6
7
8
1 1

— 20 — "BRIG"
STEERING CONSOLE SPORT VERSION.
The console of the Eagle 5S consists of the following components
(Fig. D5):
— console base, integrated with the deck;
— console upper part (1);
— windscreen (2);
— stainless steel handrail (3);
— front soft seat (9, Fig.D1);
— hatche (4);
— plate with switches (5);
— place (6) for installation of analog or/and digital devices,
such as speedometer, tachometer, trim-meter, fuel-level meter,
multipurpose meters, GPSmap, etc.;
— niche for things (7) with socket 12V;
— electric horn (8);
— compass (9);
— fuse holding box with warning lights (10) (located inside the
cons ole).
Fig.D5
7
1
10
3
2
8
9
9
2
6
5
4
Steering Console
Sport Version
