BRIG FALCON F570 User manual

SERIE: "FALCON"
MODEL: F570
complete sets:
Base version: F570 (F570H)*
Deluxe version: F570L (F570HL)*
Sport version: F570S (F570HS)*
Design category (2013/53/EU):C
ISO6185: Category VIII
2384.01
OWNER'S MANUAL
H* – boats tube made of HYPALON (Du Pont registered trademark) coated fabrics.
English

— 2 —
CONTENTS:
DANGER LEVELS 4
INTRODUCTION 4
IDENTIFICATION PLATE 5
SAFETY REGULATIONS 6
BEAUFORT Wind Scale and Corresponding State of the Sea, After Few Hours of Wind, Away From the Coast. 7
Boat Design Categories 7
REMEMBER FIRE DANGER ALWAYS 8
TECHNICAL SPECIFICATIONS 9
COMPLETE SET for Deluxe, Sport and Base versions 10
PACKAGE DIMENSIONS 11
BOAT DESIGN 11-12
"DELUXE" console 12-13
"DELUXE" console equipment 13
Double seat 14
"SPORT" console 14
"SPORT" console equipment 15
"DELUXE" console installation 15-16
Double seat installation 16
"SPORT" console installation 17-18
Stainless steel arc assembling and installation 18-19
WIRING DIAGRAM 20-21
STORAGE BATTERY INSTALLATION 21
Inflation/deflation boat tube 22
DRAIN SYSTEM 23
FUEL SYSTEM 24
PREPARATION FOR EXPLOITATION 25
MAINTENANCE 25
OPERATING REGULATIONS 26-30
Care & Maintenance of your Sunbrella® Fabric 31

— 3 —
2384.01 -2020
CE Certification and Main Features
The CE marking indicates that the inflatable boat meets the requirements of the Recreational Craft
Directive 2013/53/EU
Certifying Body:
INTERNATIONAL MARINE CERTIFICATION INSTITUTE
Rue Abbe Cuypers 3 / B-1040Bruxelles / Belgique
Notif ied Body : 0609
www.imci.org
Name of Manufacture:
BRIG Ltd.
Lozovskaya 88, Dergachy 62303
Kharkovskaya obl.
UKRAINE
www.brig-ribs.com
The manual and all its enclosures should be stored carefully, and the manual should always be kept aboard.
If the craft is resold, the manual and all its enclosures must be handed over to the new owner.
For you safety and for the validity of the guarantee expert and authorithed personnel must install the motor
and inspect and check the systems. All onboard systems must be completed and inspected.
CHECK THAT THE CHECKS HAVE BEEN MADE AND THAT THEPLANTS HAVE BEEN COPLETED BEFORE
DELYVERY.
BRIG Ltd declines any responsibility for systems and accessories that have not been installed and checked
by expert and authorithed personnel.

— 4 —
INTRODUCTION.
This manual was written to help you using your boat safety. It contains information of the boat, its equipments (supplied or
installed),operation and maintenance.
DANGER LEVELS.
The manual contains warnings, identified as follows:
A note like this indicates that there is serious riskthat is likely to cause death or
permanant serious injury, if appropriate precautions are not taken.
A note like this indicates the existence of risk that may cause death or injury, if
appropriate precautions are not taken.
A note like this indicates reference to the application of safety or environmental
protection practices,or draws attention to unsafe behaviour that might cause injury to
persones or damage to the craft, its components or the environment.
Before using your boat, read the MANUAL carefully and ensure that you have
understood all the procedures it describes. Refore taking command of your boat, be
sure to have acquired experience and confidence in its operation.

— 5 —
2384.01 -2020
IDENTIFICATION PLATE.
Builder's Plate:
It is fundamental for the plates to be aboard the boat, since they are only form of
recogmition and identification. Without them the boat does not comply with the
legislation in effect. The plates must never be removed. Any tampering or removal not
authorised by the manufacturer is the full responsebility of the owner.
Plate with identification number:
UA-QRK12345A000
Maximum propulsion
power rating for the
boat
Boat Design Category
according to
Directive 2013/53/EU
The rated tube
pressure value
Passengers capacity
Model
of the boat
VIII
F570
88.3 120 8
C
1075 2370
3
Maximum recommended load is including
weight of the max engine, passengers and
cargo onboard, but excluding the mass of the
contents of fixed fuel tank when full

— 6 —
SAFETY REGULATIONS.
This manual contains recommendations and basic rules of conduct for using the boat in complete safety.Although it is not possible
to offer safety information for all potential situations, in general it is recommended that you:
Regularly check which safety requirements are in force.
Maintain the boat and the onboard plants in optimum condition.
Have the boat inspected by the dealer where it was purchassed or by an authorised machanic at least
once every year for your own safety and for maintaining the guaruntee.
Always check weather and seagoing conditions before setting out.
For safe navigation, compare the design category of your boat with the table below.
When the tank is installed by the yard, the plant is prepared with a graund plait. The installation
of the motor MUST FORESEE A PLAINT CONNECTION to the boat graund plait. Failure to
connect (or failed maintenance) can result in the tank perforaiting leading to a serious risk of
fire / explosion caused by leaking fuel.
Max number of transportable persones is referred to an established weight of 75 kg per person
(ISO 6185), so always make reference to total maximum transportable waight.
The max weight of the installable motors indicates the maximum overall weight applicable on the
stern board, including any emergency motors. NEVER exceed the stated value.

— 7 —
2384.01 -2020
BEAUFORT Wind Scale and Corresponding State of the Sea, After Few Hours of Wind, Away From the Coast.
Boat Design Categories (Directive 2013/53/EU):
NOTE: The significant wave height is the mean height of the highest one-third of the waves, which approximately
corresponds to the wave height estimated by an experienced observed. Some waves will be double this height.
State of the sea
Force Denomination Knots Km /h m/sec and wave height in meters
0 Calm <1 <1 0-0.2 Calm 0
1 Light Air 1-3 1-5 0.3-1.5 Calm 0
2 Light Breeze 4-6 6-11 1.6-3.3 Almost calm 0.2
3 Gentle Breez 7-10 12-19 3.4-5.4 Almost calm 0.2
4 Moderate Breeze 11-16 20-28 5.5-7.9 Small waves 0.5
5 Strong Breeze 17-21 29-38 8.0-10.7 Large waves 1.25
6 Fresh Wind 22-27 39-49 10.8-13.8 Large waves 2.0
7 Strong Wind 28-33 50-61 13.9-17.1 Very large waves 2.5
8 Gale 34-40 62-74 17.2-20.7 Rough sea 4
9 Strong Gale 41-47 75-88 20.8-24.4 Very rough sea 6
10 Storm 48-55 89-102 24.5-28.4 Heavy 9
11 Violent Storm 56-63 103-117 28.5-32.6 Very heavy 14
12 Hurricane 64 and over 118 and over 32.7and over Stormy 14 and over
Design category
"A" - "Ocean"
"B"- "Offshore"
"C"- "Inshore"
"D"- "Sheltered waters"
Wind force
(Beaufort scale)
exceeding 8
up to,and including, 8
up to,and including, 6
up to,and including, 4
Significant wave height
exceeding 4
up to,and including, 4
up to,and including, 2
up to,and including, 0.3

— 8 —
REMEMBER FIRE DANGER ALWAYS.
Fire may be caused by:
Crew nagligence when smoking, the presence aboard of flammable liquids, electrical contacts, propulsion motor, errors in fueling, or if maintenance
has not been performed as required.
Once again, it is important that the crew behave correctly and that the boat is kept in order to avoid serious damage to it and to persons.
Howevwr, if a fire does occure aboard, stop motor, disconnect the batteries immediatly, check to see if it is an electrical component or any
case a small-scale fire that does not involve flammable liquids, in which case use a suitable fire extinguisher to try and put the fire out completely.
Easly flammable products must not be kept aboard.
BATTERY: the battery may cause sparks op explosions. It must be stored in an appropriate
container, easly reached and well aired, AWAY FROM FUEL OR INFLAMMABLE PRODUCTS.
Periodically check that the clips are tight and protect them with appropriate insulation in order
to prevent sparks or the spread of current.
Extinguisher or any other fire-fighting equipment must not be kept in compartments with key
lock, but in easily accessible and clearly indicated locations.
Extinguisher or any other fire-fighting equipment should be checked periodically and replaced with
the same or superior types if expired or inefficient.
Equip the boat with fire-fighting equipment before launch and use.

— 9 —
2384.01 -2020
TECHNICAL SPECIFICATIONS.
The basic parameters and dimensions of the "FALCON" boat F570 (F570H) comply with the data specified in the following
table. All dimensions measurments indicated have a tolerance of +/- 3%, weight measurments indicated have a tolerance of
+/- 5%.
* When the boat is fitted with an engine with maximum recommended power it must be use with extreme care.
This application is directed at experienced users using their boats for very specific purposes.
** For American market only
Parameter Unit of measure F570 F57 0L F570S
Length (without engine) m
Beam m
Height m
Cockpit dimensions: - length m
- width m
Inflatable tube diameter (max) m
Number of independent air-tight chambers pcs.
Nominal pressure BAR (psi)
Passengers capacity persons
Built-in fuel tank capacity liter
Recommended engine power HP
Max engine power* HP / kW
Max engine weight (including controls and battery) kg
Engine shaft length inches
Weight of empty boat (without: consoles, arc, seat, fuel, engine) kg
Weight of boat with equipments (without engine and fuel) kg
Maximum load capacity of empty boat (ISO method) kg
Displacement in Light Craft Condition (LCC) kg
Maximum total load kg
Maximum transportable mass kg
Maximum recommended load (is including weight of the max
engine(s), passengers and cargo onboard, but excluding
the mass of the contents of fixed fuel tank when full) kg
Loaded displacement mass kg
5. 70
2. 30
1. 75
4 . 5 0
1. 30
0. 50
5
0.15 (2.2)
8 (10**)
9 8
9 0
120 / 88.3
2 8 0
long / 20"
3 3 0
3 3 0 4 4 5 38 5
1 2 7 0
7 3 0
8 7 0
8 5 0
1 0 7 5
1 6 0 0

— 10 —
Foot pump
Paddles
Set of spare parts and repair kit
Kit bag
Owner's manual
"SPORT" console
"DELUXE" console
Double seat with stowage
Steering system
Steering cable
Steering wheel
Optional equipments
Front step plate
Stainless steel arc with navigation lights
Front locker removable cushion
Collapsible s un-top
Overall cover
COMPLETE SET F570 for Deluxe, Sport and Base versions.
Note. Perfection of the design and improvement of quality of our products is the fundamental production policy of our company.
Therefore, alternations may be made to the complete set (and as the components become available).
F 5 7 0 F 57 0 L F 57 0 S Parameter
+++
+++
+++
+++
+++
––+
– + –
– + –
– + +
– + +
– + +
+++
+++
+++
+++
+++
In the table shows the maximum possible complete set, which may differ from your boat.

— 11 —
2384.01 -2020
BOAT DESIGN.

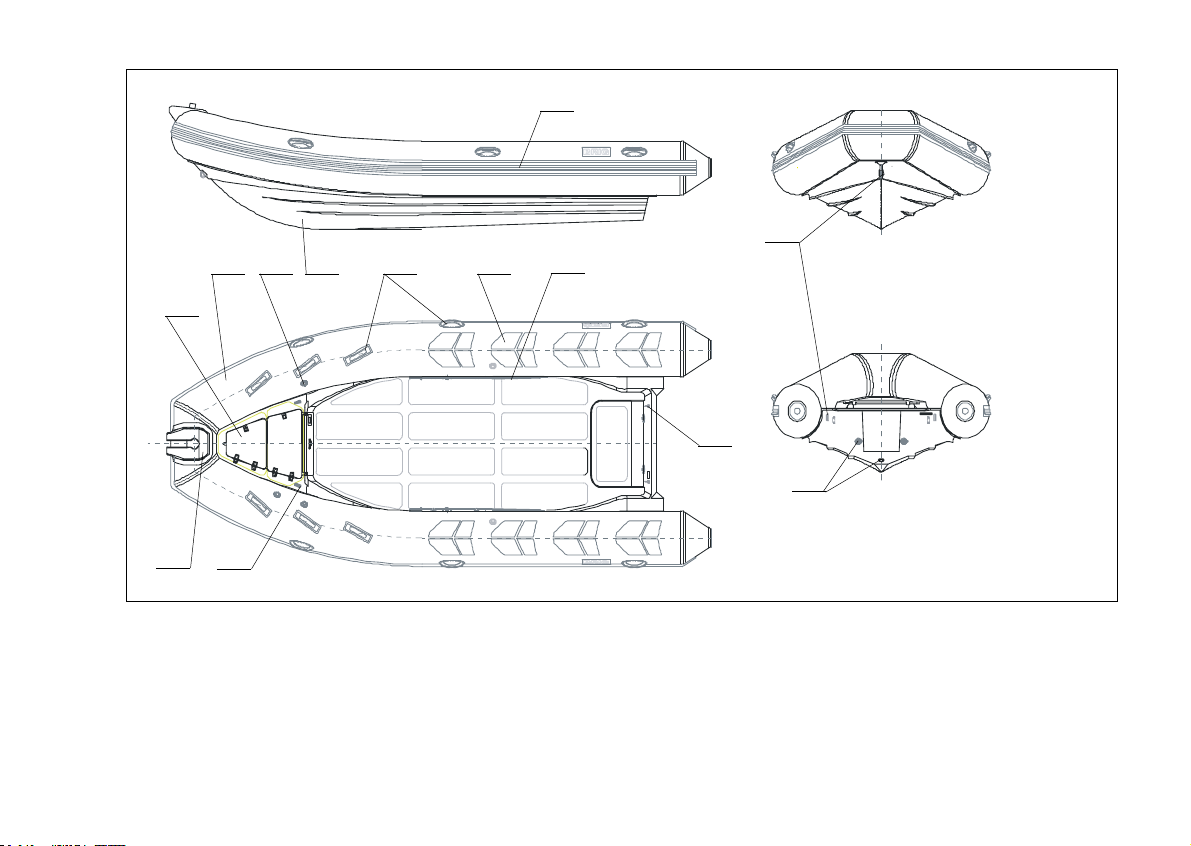

BASE version Boat General View (see Fig.1).
1 - Inflatable tube
2 - Tube inflate valves
3 - Rigid bottom with transom
4 - Front lockers
5 - Ha nd l es
6 - Anti slip patches
7 - Rubbing strake
8 - Paddles
9 - Drain valves
1 0 - Towing bow eye
1 1 - Lifting eye
1 2 - Front step plate
Fig.1
123
4
568
7
10
11
11
9
12

— 12 —
"DELUXE" console.
Steering console is located in the central part of the boat. The console consists of the following components (Fig. 3):
– console base (1); – console upper part (2);
– windscreen (3); – stainless steel railing (4);
– front soft seat (5); – soft seat-back (6);
– hatch (7); – stainless steel handrail (8).

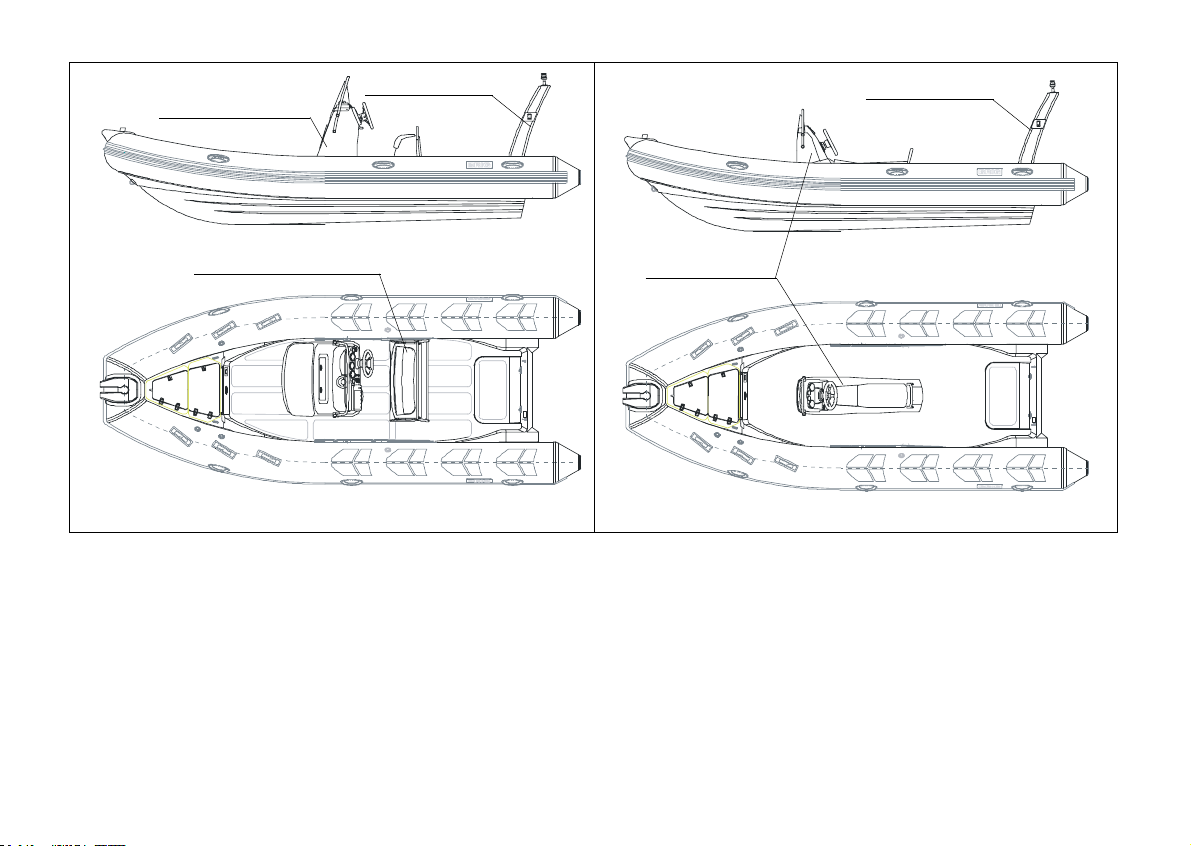

DELUXE version Boat General View (see Fig.2A) and SPORT version Boat General View (see Fig.2B)
F ig . 2A
"SPORT" console
F ig . 2B
"DELUXE" console
Double seat with stowage
Stainless steel arc Stainless steel arc

— 13 —
2384.01 -2020
D5
8
9
2
6
5 5
3
4 1
5
7
Fig.4

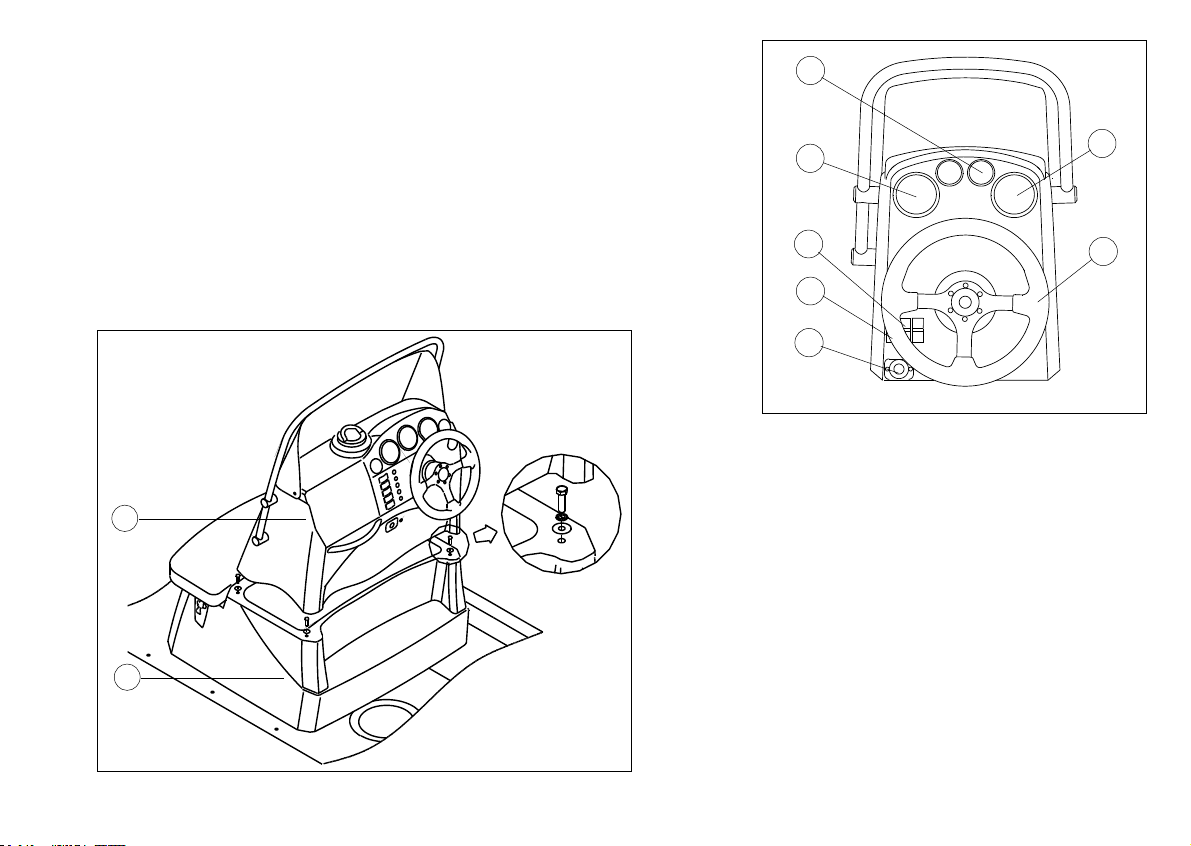

Console equipment (Fig. 4):
– steering system;
– steering cable;
– steering wheel (6);
– compass (1);
– fuel level clock (2);
– speedometer (3);
– tachometer (4);
– additional equipment (5) (trimmer, voltmeter, clock);
– socket 12V with fuse (7).
– switches and fuses:
– masthead light switch (8);
– navigation lights and meter lamp switch (9).
"DELUXE" console equipment.
1
3
8
2
4
5
4
3
6
1
7
2
Fig.3

— 14 —
Double seat general view is shown in the Fig.5:
1 – hull
2 – soft seat
3 – S.S.railing
4 – recess
Double seat.
Fig.6
2
11
2
33
44
55
66797
8
9
"SPORT" console.
Console SPORT general view is shown in the Fig.6:
1 – The console body (base part).
2 – The console body (upper part).
3 – The bow handrail.
4 – The windglass.
5 – Steering system (OPTION).
6 – The bow part of the seat (removable).
7 – The rear part of the seat (hinged).
8 – The lever lock.
9 – The rear handrail.
The internal volume of the console body, access to which provides the hinged seat, may be used for installation of the storage battery
and the 43 litres fuel tank (OPTION).
34
1
2
Fig.5

— 15 —
2384.01 -2020
Console equipment (Fig. 7):
– steering system
– steering cable
– steering wheel (1)
– speedometer (2)
– tachometer (3)
– fuel level clock (4)
– socket 12V with fuse (5)
– switches and fuses:
– navigation lights and meter lamp switch (6)
– masthead light switch (7).
"SPORT" console equipment.
– connect electric cable harness of outboard engine with corresponding
console wires in accodance with WIRING DIAGRAM;
– install the remote control cable and steering cable (Box side). Follow
the instructions manual provided with the remote control box;
– install the steering system cable and the throttle cable (engine side).
Follow the instructions manual provided with the outboard engine;
– double-check that the remote control cables (i.e., the throttle cable and
shift cable) have been connected correctly. For checking follow the
instructions manual provided with the outboard engine and
remote control box;
– put upper part of the steering console (2) onto console
base (1), (Fig. 3 and Fig. 8);
– open front hatch of the console locker.
– fix steering console with the help of bolts M8 with washers from the
steering console complete set;
– close the hatch.
"DELUXE" console installation.
2
1
Fig.8
2
1
4
3
7
6
5
Fig.7

— 16 —
In order to install pilot seat, perfom the next operations (Fig. 9):
– put seat (1) on the deck of the boat;
– aligne the holes in the bottom of the seat with the thread bushings
in the deck and fix the seat with the help of bolts M8 with washers from
the pilot seat complete set;
– tighten all the bolts.
Do not begin navigation without checking that the bolts of the steering console are
tightened correctly.
Double seat installation.
Do not begin navigation without
checking that the bolts of the
seat are tightened correctly.
1
Fig.9

— 17 —
2384.01 -2020
1.Take off bow part of the seat from the console (see. Fig.10). The bow seat
is fixed by the press-button and the “bur”.
2.Turn off four nuts M8 (with washers and arrester washers) and take off the
upper part of the console body.
3.Install windglass 4 on the upper part of the console body 1 with the help of
bolts 5 (M6x40), polyethylene washers 6 and 7, washers 8, arrester washers
9 and nuts 10 (M6) (See Fig.11, 12). Tighten all the nuts.
4. Tu rn the h an dr ai l to t he v er ti ca l p o s i ti on ( Se e F i g . 10 , 12 ).
Align the holes in the handrail bearings with the holes in the console body
(upper part) 2, fix the handrail 3 from the inner part with the help of bolts
M8x30 (pipe bearing) and M8x50 (end baring), washers 8x24 and arrester
washers. Tighten all three bolts.
5.Put the base part of the console on the deck of the boat. See the
recommendation for console installation (see page 7). Fix the console with
the help of bolts M8x30, arrester washers and washers 8x24 from the
completeset.Tighten all the bolts.
6.Install the upper part of the console 2 on the base part 1. Fix the upper part
of the console with the help of nuts M8, washers 8x24, arrester washers
(see point.2). Tighten all nuts.
7.Put bow part of the seat on the console. Fix the bow seat by the press-
button and the “bur”.
"SPORT" console installation.
Fig.10
4
6
5
79
2
8
Fig.11
42
5+6
7
Fig.12
3

— 18 —
Do not begin navigation without checking that the bolts of the SPORT console are
tightened correctly.
Stainless steel arc assembling and installation.

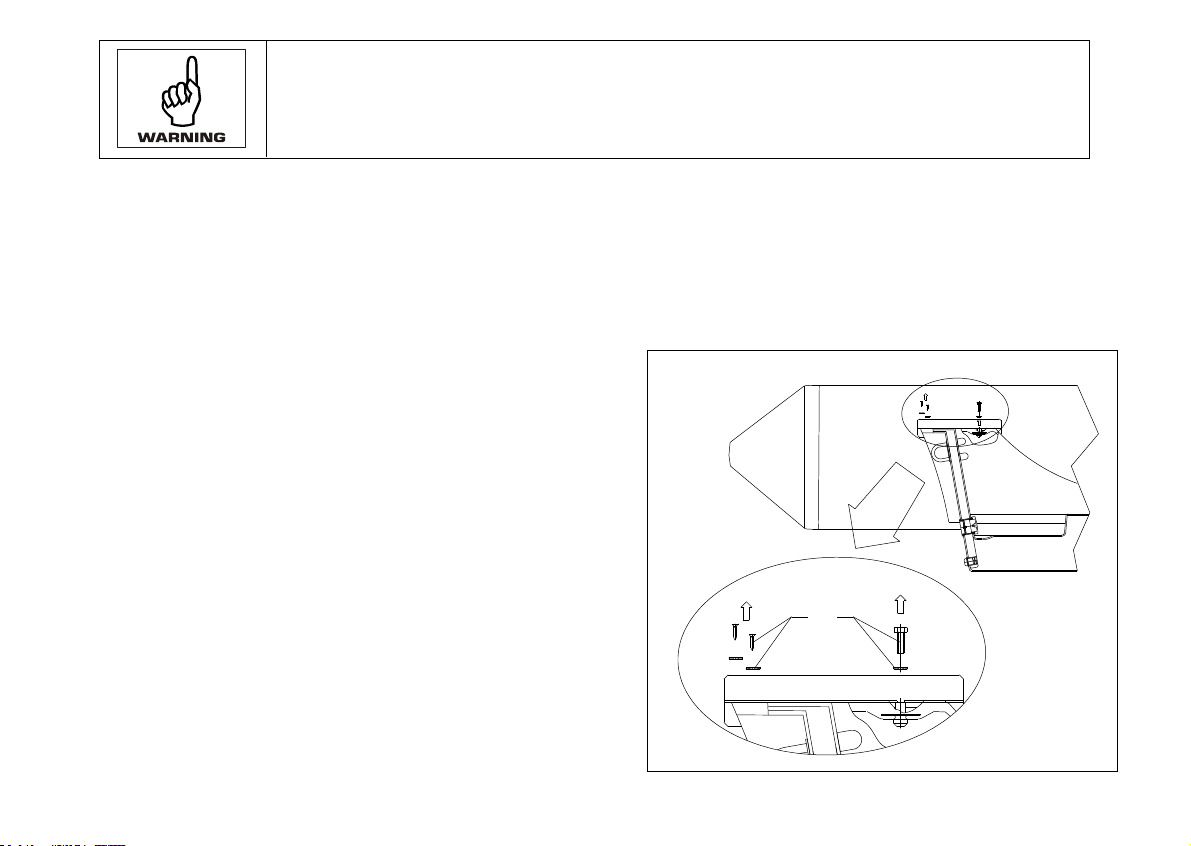

1.Turn off two bolts M8x25 with arrester washers (Pos.1 and 1A), (Fig.13).
2.In order to assemble the stainless steel arc perform the next operations
(Fig. 14):
- join electrical cable clamps (Pos.2), (Fig. 14);
- couple left supports of the arc (Pos.3), (Fig. 14) with right supports
(Pos.4), (Fig. 14);
- align holes in the arc supports with the holes in tube imbeddings (Pos.5),
(Fig. 14). It's necessary take into account that the distance between left
and right brackets of the arc (Pos.6), (Fig. 14) must be 1130mm.
- fix the arc supports together through the upper plate (Pos.7), (Fig. 14)
with the help of bolts M6x40, washers 6x12, self-locking nuts M6 (Pos.8),
(Fig. 14).
3.Mount the arc brackets onto the stern plates. Previously pull the electri-
cal cable clamps, outgoing from the right support (Pos.9), (Fig. 14),
through the hole, 12 mm in diameter, in the right stern plate beading.
Fix the arc brackets with the help of two bolts M8x25, two arrester washers
8 (Pos.10), (Fig. 14), four bolts M6x40, four washers 6x24, four self-
locking nuts M6 (Pos.11), (Fig. 14).
4.Set arch on transom platforms. Fix arch with the help of bolts M8 with
washers (pos.10 Fig.14) and bolts M6x40 (pos.11 Fig.14) with with
washers 6x24 and nuts M6 (pos.12 Fig.14).
Fig.13
11A

— 19 —
2384.01 -2020
To avoid the water penetration
into the boat hull please tight all
the holes with any waterproof filler.
The S.S. arc ie designed to withstand the stresses of
navigation and act as a support for the lights and horn. Do
not use it inappropriately to rest your weight on it.
Do not begin navigation without checking that the bolts of
the arc are tightened correctly.
2
3
5
6
9
10 11
4
7
8
6
8
12
Fig.14

— 20 —
WIRING DIAGRAM.
DESCRIPTION:
1 — Battery 12V.
2 — Battery disconnector.
3 — Outboard engine.
4 — Port light (red).
5 — Masthead light (white).
6 — Starboard light (green).
7 — Fuel level gauge
8 — Fuel level clock
9 — Tachometer
10 — Speedometer.
11 — Compass.
12 — Switch with automatic circuit breaker — masthead light (white).
13 — Switch with automatic circuit breaker — Port light (red) and Starboard light (green).
ARC
STEERING CONSOL
Outboard
engine
Masthead light
Navigation lights
Fuel level gauge
FUEL TANK
2
6
54
7
13
12
11
10
9
8
1
3
