BRIG N350 User manual

2384D.01
OWNER'S MANUAL
H* – boat tube is made of HYPALON (Du Pont registered trademark) coated fabrics.
English
SERIES: "NAVIGATOR"
MODELS: N350 N485
complete set: N350 N485
N350H* N485H*
Design category: C
ISO6185-3:Type VII

— 2 — "BRIG" inflatable boats
CONTENTS:
DANGER LEVELS 5
INTRODUCTION 5
IDENTIFICATION PLATE 6
SAFETY REGULATIONS 7
BEAUFORT Wind Scale and Corresponding State of the Sea, After Few Hours of Wind,
Away From the Coast. 8
Boat Design Categories 8
REMEMBER FIRE DANGER ALWAYS 9
TECHNICAL SPECIFICATIONS 10
COMPLETE SET 11
THE MAIN DIMENSIONS 13
BOAT DESIGN 15
BUOYANCY TUBE 16
STEERING CONSOLE 17
FUEL SYSTEM 20
DRAIN SYSTEM 22
Care & Maintenance of your Sunbrella® Fabric 24
WIRING DIAGRAM 25
PREPARATION FOR EXPLOITATION 27
INFLATION/DEFLATION BOAT TUBE 27
STORAGE BATTERY INSTALLATION 28
BOAT TRANSPORTATION BY TRAILER 28
HOW TO INSTALL SUNDECK 30
MAINTENANCE 31
OPERATING REGULATIONS 32

— 3 —
Series "NAVIGATOR" N350 N485 2384D.01
For you safety and for the validity of the guarantee expert and authorised personnel
must install the motor and inspect and check the systems. All onboard systems must
be completed and inspected.
CHECK, THAT THE CHECKS HAVE BEEN MADE AND THAT THE PLANTS HAVE
BEEN COMPLETED BEFORE DELYVERY.
BRIG Ltd declines any responsibility for systems and accessories that have not
been installed and checked by expert and authorised personnel.
The manual and all its enclosures should be stored carefully, and the manual should
always be kept aboard. If the craft is resold, the manual and all its enclosures must
be handed over to the new owner.

— 4 — "BRIG" inflatable boats
CE Certification and Main Features
The CE marking indicates that the inflatable boat was built in compliance with the DIRECTIVE
2013/53/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL applied to recreational
craft
Name of Manufacture:
BRIG Ltd.
Lozovskaya 88, Dergachy 62303
Kharkovskaya obl.
UKRAINE
www.brig-ribs.com

— 5 —
Series "NAVIGATOR" N350 N485 2384D.01
INTRODUCTION.
This manual was written to help you to use your boat safely. It contains information on the boat, its equipment (supplied
or installed),operation and maintenance.
DANGER LEVELS.
The manual contains warnings, identified as follows:
A note like this indicates that there is serious risk, that is likely to cause death or
permanent serious injury, if appropriate precautions are not taken.
A note like this indicates the existence of risk that may cause death or injury, if
appropriate precautions are not taken.
A note like this indicates reference to the application of safety or environmental
protection practices,or draws attention to unsafe behaviour that might cause injury to
persones or damage to the craft, its components or the environment.
Before using your boat, read this MANUAL carefully and ensure that you have
understood all the procedures it describes. Before taking command of your boat, be
sure to have acquired experience and confidence in its operation.

— 6 — "BRIG" inflatable boats
It is fundamental for the plates to be aboard the boat, since they are only form of
recognition and identification. Without them the boat does not comply with the legislation
in effect. The plates must never be removed. Any tampering or removal not authorised by
the manufacturer is the full responsibility of the owner.
IDENTIFICATION PLATE.
Builder's Plate:
Maximum propulsion
power rating for the
boat
Boat Design Categories
according to
Directive 2013/53/EU
The rated tube
pressure value
Passengers capacity
Maximum load
capacity
Plate with identification number:
UA-QRK12345A000
VII
C
N350
30 40 5
600 1323
Boat Type
according to
ISO 6185
Model
for the boat

— 7 —
Series "NAVIGATOR" N350 N485 2384D.01
SAFETY REGULATIONS.
This manual contains recommendations and basic rules of conduct for using the boat in complete safety.Although it is not
possible to offer safety information for all potential situations, in general it is recommended that you :
Regularly check which safety requirements are in force.
Maintain the boat and the onboard plants in optimum condition.
Have the boat inspected by the dealer where it was purchased or by an authorised
mechanic at least once every year for your own safety and for maintaining the guarantee.
Always check weather and seagoing conditions before setting out.
For safe navigation, compare the design category of your boat with the table below.
When the tank is installed by the yard, the plant is prepared with a ground plait. The
installation of the motorMUST FORESEE A PLAINT CONNECTION to the boat ground plait.
Failure to connect (or failed maintenance) can result in the tank perforating leading to a
serious risk of fire / explosion caused by leaking fuel.
Max number of transportable persones is referred to an established weight of 75 kg per
person (ISO 6185), so always make reference to total maximum transportable weight.
The max weight of the installable motors indicates the maximum overall weight applicable
on the stern board, including any emergency motors. NEVER exceed the stated value.

— 8 — "BRIG" inflatable boats
BEAUFORT Wind Scale and Corresponding State of the Sea, After Few Hours of Wind, Away From the Coast.
Boat Design Categories :
NOTE: The significant wave height is the mean height of the highest one-third of the waves, which approximately
corresponds to the wave height estimated by an experienced observer. Some waves will be double this height.
State of the sea
Force Denomination Knots Km/h m/sec and wave height in meters
0 Calm <1 <1 0-0.2 Calm 0
1 Light Air 1-3 1-5 0.3-1.5 Calm 0
2 Light Breeze 4-6 6-11 1.6-3.3 Almost calm 0.2
3 Gentle Breeze 7-10 12-19 3.4-5.4 Almost calm 0.2
4 Moderate Breeze 11-16 20-28 5.5-7.9 Small waves 0.5
5 Strong Breeze 17-21 29-38 8.0-10.7 Large waves 1.25
6 Fresh Wind 22-27 39-49 10.8-13.8 Large waves 2.0
7 Strong Wind 28-33 50-61 13.9-17.1 Very large waves 2.5
8 Gale 34-40 62-74 17.2-20.7 Rough sea 4
9 Strong Gale 41-47 75-88 20.8-24.4 Very rough sea 6
10 Storm 48-55 89-102 24.5-28.4 Heavy 9
11 Violent Storm 56-63 103-117 28.5-32.6 Very heavy 14
12 Hurricane 64 and over 118 and over 32.7and over Stormy 14 and over
Design category
"A" - "Ocean"
"B"- "Offshore"
"C"- "Inshore"
"D"- "Sheltered waters"
Wind force
(Beaufort scale)
exceeding 8
up to,and including, 8
up to,and including, 6
up to,and including, 4
Significant wave height
exceeding 4
up to,and including, 4
up to,and including, 2
up to,and including, 0.3

— 9 —
Series "NAVIGATOR" N350 N485 2384D.01
ALWAYS REMEMBER ABOUT FIRE DANGER .
Fire may be caused by:
Crew negligence when smoking, the presence aboard of flammable liquids, electrical contacts, propulsion motor, errors in fueling, or if
maintenance has not been performed as required.
Once again, it is important that the crew behave correctly and that the boat is kept in order to avoid serious damage to it and to persons.
However, if a fire does occur aboard, stop motor, disconnect the batteries immediately, check to see if it is an electrical component or any case
a small-scale fire that does not involve flammable liquids, in which case use a suitable fire extinguisher to try and put the fire out completely.
Easily flammable products must not be kept aboard.
BATTERY: the battery may cause sparks or explosions. It must be stored in an appropriate
container, easily reached and well aired, AWAY FROM FUEL OR INFLAMMABLE PRODUCTS.
Periodically check that the clips are tight and protect them with appropriate insulation in
order to prevent sparks or the spread of current.
Extinguisher or any other fire-fighting equipment must not be kept in compartments with
key lock, but in easily accessible and clearly indicated locations.
Extinguisher or any other fire-fighting equipment should be checked periodically and
replaced with the same or superior types if expired or inefficient.
Equip the boat with fire-fighting equipment before launch and use.

— 10 — "BRIG" inflatable boats
TECHNICAL SPECIFICATIONS.
The basic parameters and dimensions of the "NAVIGATOR" boats comply with the data specified in the following table. All
dimensions measurements indicated have a tolerance of +/- 3%, weight measurements indicated have a tolerance of +/- 5%.
* When the boat is fitted with an engine with maximum recommended power it must be use with extreme care.
This application is directed at experienced users using their boats for very specific purposes.
Parameter N350 (N350H) N485 (N485H)
Length (without engine)
Width
Height
Inflatable tube diameter, max.
Cockpit dimensions: - length
- width
Deadrise angle on transom
Deadrise angle in middle section
Transom height
Number of independent air-tight chambers
Nominal pressure
Passengers capacity
Recommended engine power
Maximum engine power*
Maximum engine weight
Engine shaft length
Built-in fuel tank capacity
Weight of fully empty boat (without: steering console, arc,
seat, fuel, engine)
Weight of empty boat with equipments (with steering console,
with S.S.arc, with seat, without engine, without fuel)
Maximum load capacity of fully empty boat (ISO method)
Displacement in Light Craft Condition (LCC)
Maximum total load (ML)
Maximum transportable mass
Loaded displacement mass (LDC)
4.85 m
2.30 m
1.85 m
0.50 m
3.05 m
1.30 m
19°
22°
500mm
5
0.15 bar (2.2 psi)
8
50 hp ( 37 kW )
75 hp ( 55 kW )
190kg
20" (Long)
67L
295kg
380kg
1050kg
580kg
765kg
745kg
1345kg
3.50 m
1.80 m
1.15 m
0.44 m
2.10 m
0.90 m
19°
21°
500mm
3
0.15 bar (2.2 psi)
5
30 hp ( 22 kW )
40 hp ( 30 kW )
145kg
20" (Long)
33L
125kg
155kg
600kg
310kg
415kg
350kg
725kg

— 11 —
Series "NAVIGATOR" N350 N485 2384D.01
COMPLETE SET .
1Inflatable boat pcs. 1 1
2Foot pump pcs. 1 1
3Paddle pcs. 2 2
Set of spare parts and repair kit:
4 - mooring line m 10 15
5 - coated fabric for repair m
20.06 0.06
6 - glue set for repair set 1 1
7Bag pcs. 1 1
8Owner's manual pcs. 1 1
9Built-in fuel tank pcs. 1 (33L) 1 ( 67L )
10 Steering console pcs. 1 1
Steering console equipment:
11 Mechanical steering system pcs. 1 1
12 Mechanical steering system cable pcs. 1 1
13 Hydraulic steering system set -- 1 (variant)
14 Steering wheel pcs. 1 1
15 Fuel level clock pcs. 1 1
16 Switches of electrical equipment pcs. 4 4
17 Socket 12V with fuse pcs. 1 1
18 Compass pcs. 1 1
19 Speedometer pcs. 1 1
20 Tachometer pcs. 1 1
21 Electric horn pcs. -- 1
22 Soft seat in front (left) of the console pcs. 1 1
23 Front step-palte pcs. 1 1
24 Front removable cushion pcs. 1 1
No Description Unit of N350 N485
measure
In the table shows the maximum possible complete set, which may differ from your boat.

— 12 — "BRIG" inflatable boats
Note. Perfection of the design and improvement of quality of our products is the fundamental production policy of our company.
Therefore, alternations may be made to the complete set (and as the components become available).
25 Stainless steel arc pcs. -- 1
26 Navigation lights set. 1 1
27 Drain automatic bilge pump pcs. 1 1
28 Towing eye pcs. 2 2
29 Soft back of stern-part seat pcs. 1 1
Additional options:
30 Bow sun deck with cushions set -- 1
31 Overall cover set 1 1
32 Steering console cover set 1 1
33 Collapsible sun-top set -- 1
34 Battery container pcs. 1 1
35 Air pressure gauge pcs. 1 1
No Description Unit of N350 N485
measure

— 13 —
Series "NAVIGATOR" N350 N485 2384D.01
The main dimensions of N350, N485 have tolerance of +/- 3%.
The length of the boat with the engine(L1) can vary depending on the model of the engine and the angle of its deviation. (See Fig. D0)
THE MAIN DIMENSIONS.
L
B
L1
H
H1
H2
N350
3.5 m
1.8 m
3.9 m
1.15 m
0.85 m
---
N485
4.85 m
2.3 m
5.3 m
1.55 m
1.2 m
1.85 m
Fig. D0
B
L
L1
H
H1
H2

— 14 — "BRIG" inflatable boats

— 15 —
Series "NAVIGATOR" N350 N485 2384D.01

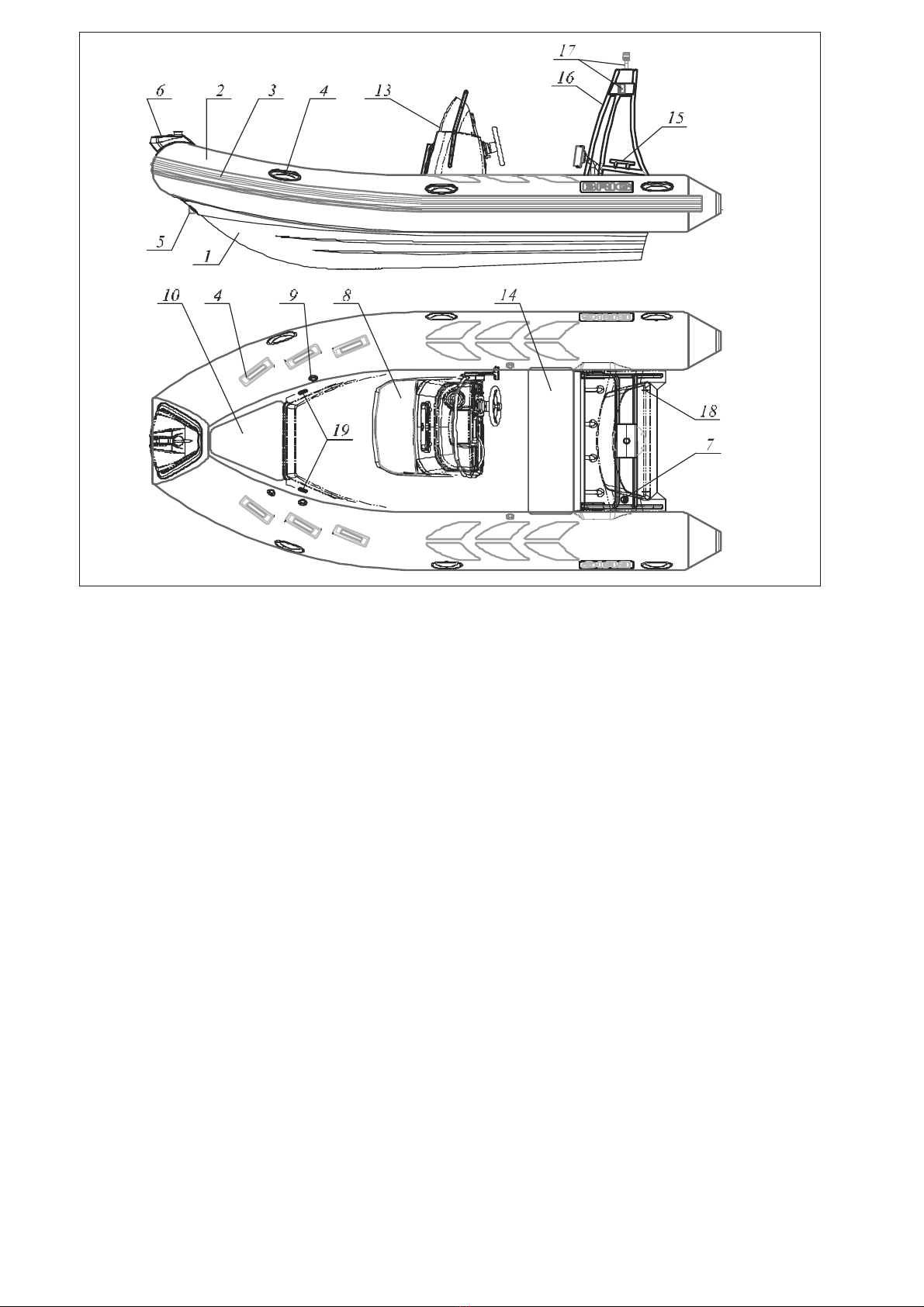

Fig.D1
1 — Fiberglass hull.
2 — Buoyancy tube.
3 — Rubbing strake.
4 — Safety handles.
5 — Towing bow eye.
6 — Bow step-plat.
7 — Fuel fil Neck.
8 — Steering console seat.
9 — Inflation valves.
10 — Front locker removable cushion.
12 — Cockpit drain system socket.
13 — Steering console.
14 — Stern seat with soft back.
15 — Mooring cleats.
16 — Stainless steel arc (not for N350).
17 — Navigation lights(may be installed on the front step-plate).
18 — Stern lifting eye.
19 — Bow liftig eye.
20 — Bilge valve.
21— CIN code plate.
The boat series "NAVIGATOR" consists of the next main components
(Fig. D1):
BOAT DESIGN.

— 16 — "BRIG" inflatable boats
zBUOYANCY TUBE.
The boat buoyancy tube has U-shaped form. The tube is separated by
means of inner elastic partitions into five chambers of a similar volume,
each being provided with an air fill valve.
The air fill valve is intended for:
— filling the compartment with air from a standard pump or filling system
and maintaining pressure in the tube for prolonged time,
— adjustable drop of pressure in compartment.
The air fill valve is designed as a tab-type non-return valve and consists
of the following components (Fig. D2):
— housing (1);
— cup (2) with strap (3);
— washer with gasket (4);
— nut (5);
— spindle (6) with spring (7) and cup diaphragm (8).
Also there are the following elements fitted on the tube (Fig. D1):
— doubled rubbing strake (3, Fig.D1);
— safety handles (4, Fig.D1);
— bow step-plate with a special moulded antiskid coating (6, Fig.D1).
5687
41 23
D2

— 17 —
Series "NAVIGATOR" N350 N485 2384D.01
D3
zSTEERING CONSOLE.
Steering console is located in the central part of the boat. The console consists of the following components (Fig. D3):
— console base (1);
— console upper part (2);
— windscreen (3);
— stainless steel railing (4);
— soft seat (5);
— inner compartment (6);
— place for installation speedometer, tachometer, trim-meter, fuel-level meter, multipurpose meters, GPSmap, etc. (7);
— electric horn (may be installed if necessary).
STEERING CONSOLE
N350
STEERING CONSOLE
N485
1
1
2
2
4
33
4
5
5
6
7
6
7

— 18 — "BRIG" inflatable boats

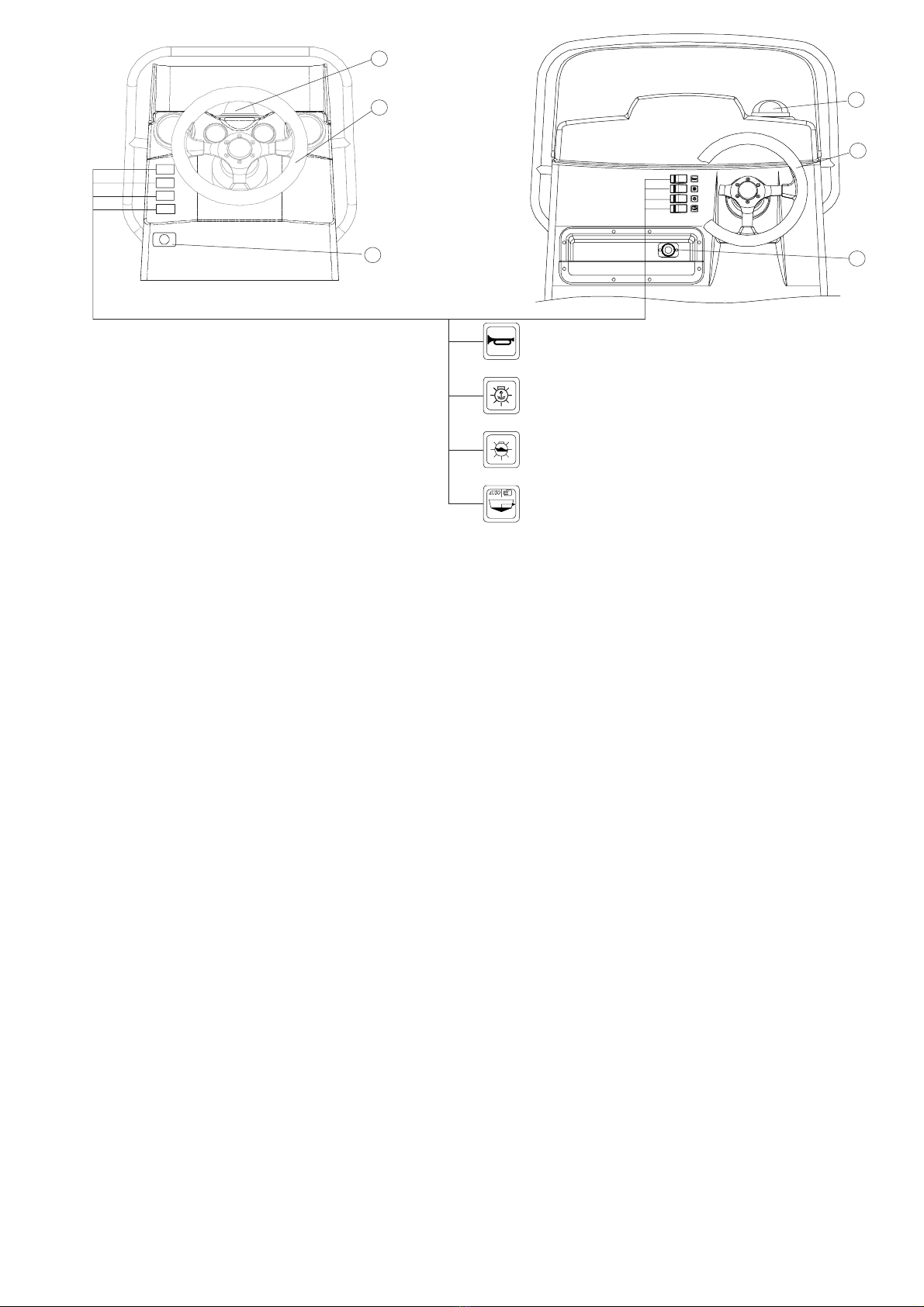

Console equipment (Fig. D5):
— mechanical or hydraulic steering system;
— steering wheel (1);
— compass (2);
— fuel-level meter;
— speedometer;
— additional equipment (tachometer or multi-purpose meter,
trimmer, voltmeter);
— socket 12V with fuse (3);
— fuse holding box with warning lights (inside of the
steering console)(Fig.D4)
— switches (Fig. D5):
— electric horn switch (4);
— anchor light switch (5);
— running lights and meter lamp switch (6);
— bilge pump switch (7);
Fuse holding box with
warning lights
Fig.D4
2336.13
4
5
6
1
2
3
Always keep a spare set the fuse in
an easily-accessible location.
Always check the fuse. Burning red
LED display on the fuse box warns of
faulty fuse
LED

— 19 —
Series "NAVIGATOR" N350 N485 2384D.01
Fig.D5
3
2
1
5A
5A
5A
10A
5A
5A
10A
5A
5
6
7
4
3
1
2
STEERING CONSOLE
N350
STEERING CONSOLE
N485

— 20 — "BRIG" inflatable boats
zFUEL SYSTEM.
Fuel system consists of the following components (Fig. D6):
1 — Built-in fuel tank (67L for N485 and 33L for N350) ;
2 — Filling hose and fuel filling neck;
3 — Fuel level sensor;
4 — Ventilation holes ;
5 — Drain fuel hose with drain pipe;
6 — Inspection hatch;
7 — Fuel level instrument;
8 — Feeding fuel hose (to engine).
FUEL SYSTEM N485 FUEL SYSTEM N350
Fig. D6
