Bristan WMNT12 Mounting instructions

Installation Instructions
& User Guide
Please leave these instructions
with the end user
Maximum Static Pressure: 10.0 bar
Max: 5.0 bar
Hot
Cold
On -
Handset
On -
Prior to Installation Spares
Pack Contents Operation
Dynamic Water Pressure
Specifications
25°C
5°C
Min 5°C; Max 25°C
Inlet Water Temperature Inlet Connections
Tools Required
All products manufactured and supplied by Bristan are safe to use provided that they are installed,
operated and receive regular maintenance in accordance with these instructions.
This product needs to be installed in accordance with, and meet the requirements of The
Water Supply (Water Fittings) Regulations (Northern Ireland) 2009 and The Water Supply (Water Fittings)
(Scotland) Byelaws 2014. For full Installation Requirements & Notes (IRN) please visit www.wrasapprovals.
co.uk/approvals-directory
Before installing this product the water supply must be thoroughly flushed in order to remove any swarf,
solder etc. Full access must bemade available for future maintenance/servicing purposes. Isolation valves
must be fitted to the inlet water supplies to ensure ease of future maintenance.
Before drilling into walls, check that there are no hidden electrical wires, cables or water supply pipes. This
can be checked with the aid of an electronic detector. If power tools are used do not forget to:
- Wear eye protection - Unplug equipment after use
This product must not be modified in any way as this will invalidate the guarantee.
Min: 1.0 bar
BUZ2 SHXDIVCTFF C (D5)
65°C
60°C
Recommended 60°C;
Max 65°C
IMPORTANT
The inlet hot water must
be at least 10°C above the
required blend temperature.
Factory
pre-set 38°C
150mm
Centres
1/2”
Compression
Inlet Dimensions
Flat head Screwdriver Cross head Screwdriver Hexagonal Keys Socket SpannerPipe CutterPencil Drill Spanner
0
1.0
2.0
5.0
4.0
3.0
Pressure
BAR
x1
x2 x2
x2
x2
x8
x8
x2
x2
x2
x2
x1
x1
x2
x1
x1
x1
x1
x1
x1
x1
x1
To replace any spare parts
for your shower, why not
scan the QR Code or visit
www.bristan.com and
search for your product.

Please keep this booklet for future
reference.
Installer, when you have read these
instructions please ensure you leave
them with the user.
Installation Instructions
and User Guide
Bar Showers with Wallmount
12 Fixing Kit (WMNT12)

Contents
• Important Safety Information 3
• Installation Requirements 4-6
• Installation 7
• Isolation 8
• Temperature Setting 8
• General Cleaning 9
• Notes 9
• Maintenance - Cartridege/Valve Cleaning 10
• Troubleshooting 11
2Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Contents
Thank you for choosing Bristan, the UK’s leading taps and showers expert. We have
designed this product with your enjoyment in mind. To ensure that it works to its
full potential, it needs to be fitted correctly. These fitting instructions have been
created to give you all of the information you need and, if you need any further help,
please do not hesitate to give us a call on 0330 026 6273.

Please make sure you read these instructions and retain for future use.
All products manufactured by Bristan are safe, providing they are installed and used
correctly and also receive maintenance when needed.
These fittings, including the connecting water and waste system need to be installed
in accordance with and meet the requirements of the Water Supply Regulations 1999
(Water Fittings) and current by-laws. If you are in doubt about your ability to install
this product correctly or safely, you should employ the services of an experienced
qualified plumber.
This product must not be modified in any way otherwise this will invalidate the
guarantee. Remove all packaging and check the contents for damage before starting
installation.
Warning: Before installing the new mixer valve it is essential that you thoroughly
flush through the pipework in order to remove any remaining swarf,
solder, etc. Failure to carry out this procedure could cause problems or
damage to the workings of the mixer tap.
Fitting isolating valves to the inlet feeds is required for ease of maintenance.
Warning: Do not operate the mixer if you suspect it is frozen. Do not site the mixer
valve where it might be subjected to freezing conditions.
Consider the following whilst using power tools:
• Prior to drilling into walls, check there are no hidden electrical cables or
wires and there are also no water pipes. These can potentially be found
using an electrical or metal detector. You may also need to know some
of the schematics of previous installations to determine the suitability
and accommodation of the installation.
• Wear the correct PPE, especially ear, eye and hand protection
when using power tools. Unplug any mains equipment after use.
• Keep electrical equipment away from sources of water.
• If a blow-lamp is used when plumbing, the flame must be kept well away from
the product otherwise damage may occur.
If in doubt, contact a registered plumber, your Local Water Authority or the
Secretary of The Institute of Plumbing, address as follows;-
The Institute of Plumbing,
64 Station Lane,
Hornchurch,
Essex, RM12 6NB
Tel:[phone]
3
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Important Safety Information

Please refer to your specific shower
contents page for specification
information.
These showers are designed to be used
in conjunction with the kit supplied, or
Bristan shower kits where not supplied.
We cannot guarantee compatability or
adequate performance when used with
other kits. This would also invalidate your
guarantee. Please refer to the installation
manual supplied with your Bristan
shower kits for their specification
information.
This shower valve must be installed
in compliance with current water
regulations. If you have any doubts
about the water regulation requirements
contact your local water services
provider or use the services of a
professional plumber.
This shower valve is suitable for use with
the following water supply systems:
• Gravity Fed Hot and Cold
(pressure imbalance should not exceed
a ratio of 5:1 - see Specification section)
• Gravity Fed Hot and Mains Cold
(pressure imbalance should not exceed
a ratio of 5:1 - see Specification section)
• Instantaneous water heater
(combination boiler)
• Unvented System
• Pumped System
Important: If you install this shower valve
with a gravity fed system, there must be a
minimum head (vertical distance) from the
underside of the cold water storage tank
to the outlet of at least 1 metre for every
0.1 bar of minimum pressure required.
Note: Pumped system (with Essex flange)
If you install this shower valve to a pumped
gravity fed system where the minimum
head (vertical distance) from the underside
of the cold water storage tank to the top
of the hot water cylinder is less than 1
metre we recommend an Essex flange is
used as shown.
Flushing Pipe-work
Important: Before connecting the shower
valve (see ‘Installation’ on page 7), the
supply pipe-work must be flushed to clear
debris before connecting the shower.
Debris will reduce the performance and life
of the bar shower and Wall Mount.
4Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.

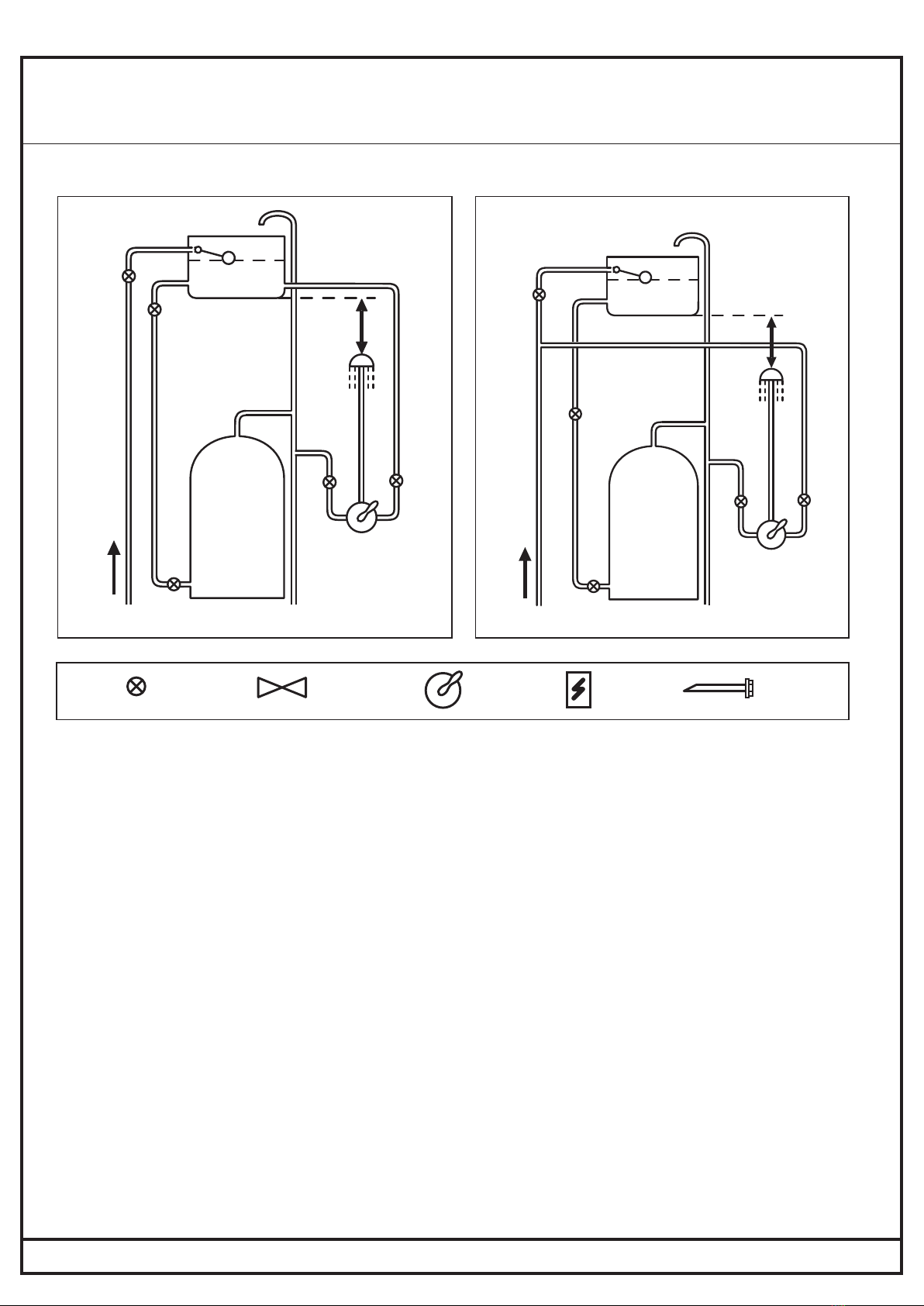

Installation Requirements

Gravity Fed Hot and Cold Gravity Fed Hot and Mains Cold
cold mains supply cold mains supply
1m min.
1m
min.
Key: Isolating
Valve
Reducing
Valve
Shower
Valve Pump Essex
Flange
5
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Installation Requirements

Unvented System
Instantaneous Water Heater
Pumped System
cold mains supply
cold mains supply
cold mains supply
Pumped System (with Essex flange)
cold mains supply
1m min.1m min.
50mm
If less
than
1m see
note.
Key: Isolating
Valve
Reducing
Valve
Shower
Valve Pump Essex
Flange
6Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Installation Requirements

Installation
2
5
Identify the
required position of
the valve and prepare
the water supply pipes.
Supply pipes should be
150mm apart.
Using the rubber fixing
plate supplied with the
wall mount, mark and
drill holes.
Secure the isolatorSecure the isolator
onto the backplateonto the backplate
ensuring the olive isensuring the olive is
positioned over thepositioned over the
pipework correctly.pipework correctly.
Push shrouds to thePush shrouds to the
back of the wall outlet,back of the wall outlet,
securing them againstsecuring them against
the rubber fixing plate.the rubber fixing plate.
4
3
1
150mm Centres
Secure the rubber backplateSecure the rubber backplate
and backplate into place.and backplate into place.
Secure the shower toSecure the shower to
the wall mount.the wall mount.
21mm21mm
REMEMBER
To service
your
product!
REMEMBER
hot on the left,
cold on the
right
PLEASE NOTE - Wall Mounts shown in these instructions are for illustration purposes
only. WMNT12 and WMNT12 SQ can be fitted using these instructions.
Now refer to your kit instructions to install your shower kit if supplied. If
your shower is TMV approved, please refer to the TMV manual supplied to
commision your shower.
7
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.

PLEASE NOTE - Wall Mounts shown in these instructions are for illustration purposes
only. WMNT12 and WMNT12 SQ can be fitted following these instructions. Check your
contents page for more details specific to your shower.

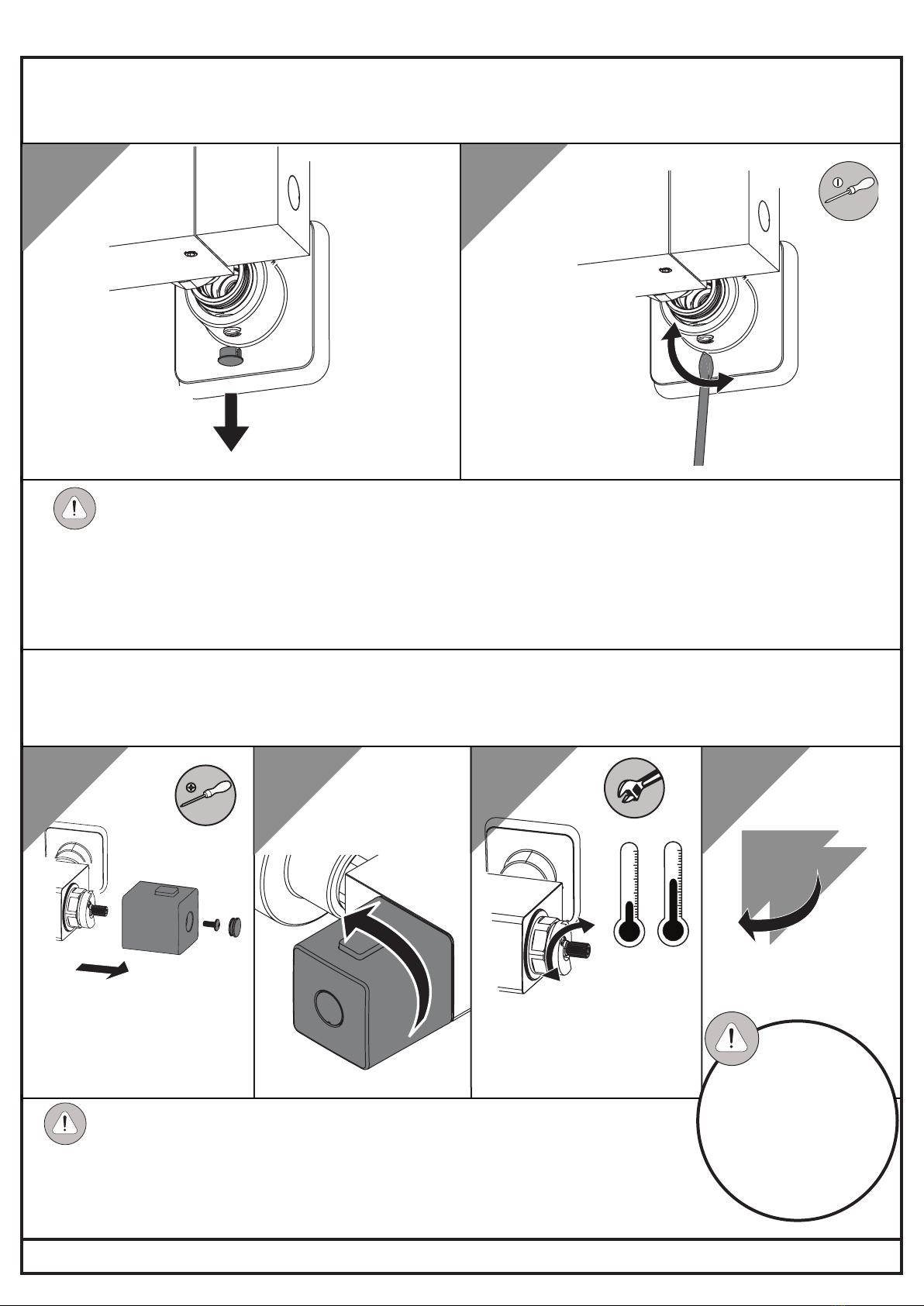

Temperature Setting
4
12
Reverse steps 1-2 to
reinstall the cartridge
and handle.
PLEASE NOTE - Bar showers shown in these instructions are
for illustration purposes only. All bar showers can be
fitted/maintained following these instructions. Check your contents
page for more details specific to your shower.
Turn the temperature handle
to the max. setting and
remove the temperature
handle.
23
Turn cartridge spindle clockwise
to decrease the temperature.
Turn cartridge spindle
anti-clockwise to increase the
temperature.
IMPORTANT
TMV showers are pre-set to
41˚C as per TMV standards.
If the maximum
temperature is increased
the shower will no longer
comply with the TMV
scheme.
Turn flow handle to
‘on’ position, letting
the temperature
stabilise.
1
8Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.

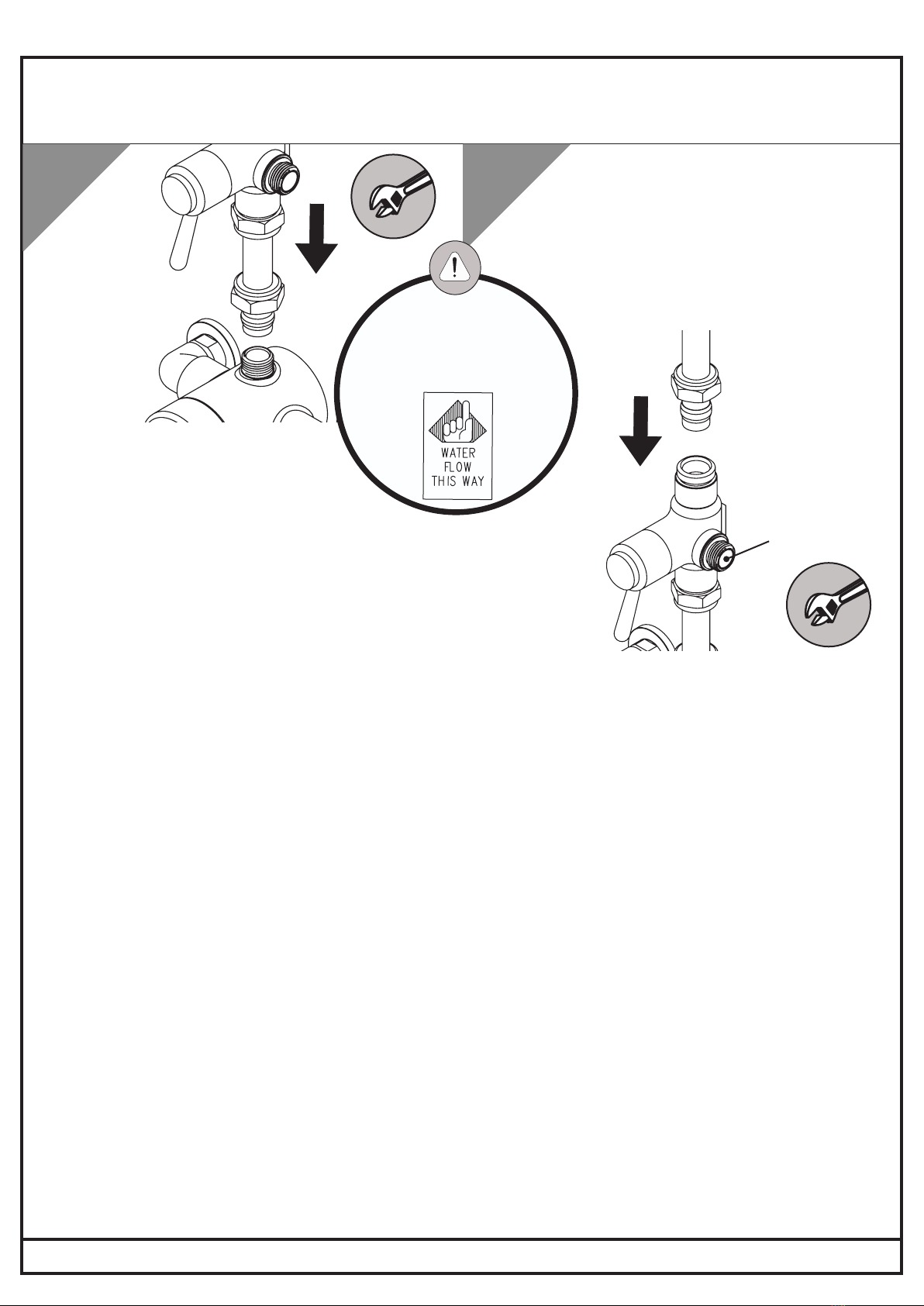

Isolation
2
1
Remove theRemove the
concealing capconcealing cap
from the shroud.from the shroud.
Rotate the shroudRotate the shroud
until the openinguntil the opening
aligns with thealigns with the
isolatisolatiion screw.on screw.
Turn the screwTurn the screw
to isolate theto isolate the
water. Reversewater. Reverse
the process whenthe process when
turning the waterturning the water
back on.back on.

Bristan products are made from premium materials, with hand polished, PVD, EPD or
electroplated finishes.
Your bar shower should be regularly cleaned with warm water, a mild pH-neutral liquid
soap, and polished with a soft cloth. Any residues from soap, toothpaste, shampoos and
shower gels can cause blemishes if not rinsed o straight after use.
Household bleaches and cleaners contain harsh chemicals and may damage the surface
finish. Avoid using abrasive cloths, scouring pads, scrub sponges, steel wool or anything
similar. Some surfaces such as nickel and pewter may be aected by the dye found in
some cloths, so it is also important to avoid hanging cloths on fittings/barshowers etc.
Notes
9
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
General Cleaning

PLEASE NOTE - Bar showers shown in these instructions are for illustration purposes
only. All bar showers can be fitted/maintained following these instructions.
1
To reduce the build up of limescale and to ensure
this shower works to its maximum performance we
recommend this shower is serviced every 6-12
months depending on the hardness of your water.
To replace any spare parts for your
shower why not scan the below QR Code
and search for your product.
8
7
6
4
3
2
5
Spare Parts
Servicing Intervals
Remove O-rings and
soak all
components in
de-scaler and wash o
in clean water. Examine
all seals and replace if
needed.
Use WRAS
approved silicon based
grease on all seals.
Remove adaptor, nut and
cartridge. Depending
on your shower you may
need a specific cartridge
tool (not supplied), or
check for the grub screw
underneath the bar valve
to remove
Remove temperature and
flow handle.
Unscrew the flow
valve.
Replace nut and
temperature stop.
Ensure the raised
side is facing
towards the back of
the valve.
Turn cartridge spindle clockwise to
decrease the temperature. Turn
cartridge spindle anti-clockwise to
increase the temperature.
Slide handle
onto adaptor
and turn
clockwise
until you meet
resistance.
Reverse steps 1-2 to
reinstall the valve/
cartridge and secure
handles. Refer to the
‘Temperature Setting’
maintenance steps to
re-calibrate the max.
temperature.
REMEMBER
To service
your
product!
Remove the
cartridge retaining
nut and diverter
cartridge
DEPENDING ON YOUR
SHOWER TYPE:
OR
30mm
12
10 Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Maintenance - Cartridge/Valve Cleaning

Symptom Cause Remedy
No flow or
low flow
rate
Partially closed isolation valve. Open isolation valve.
Instantaneous water heater cycles on and
o as flow rate or pressure is too low.
Increase water flow rate or
pressure through system.
Head of water is below the
minimum distance required.
Refer to the specification for the
minimum distance required.
Are the water supply pressures balanced?
If pressures are unbalanced, a pressure
reducing valve should be used for
optimum performance.
Hot or cold water being drawn o else-
where causing pressure changes or instan-
taneous boiler temperature changes.
Do not use other water outlets when
using the shower.
Airlock or partial blockage in the
supply pipework.
Flush through pipework and filters to ensure
removal of debris and any airlocks.
Hot/Cold water supply has failed Check the hot and cold feeds. The shower
will not work if either fails.
Outlet
Water
Tempera-
ture too
Hot/Cold
Maximum Water Temperature
needs adjusting.
Refer to the Temperature Setting section to
set your desired maximum temperature.
Filter/pipe blockage Flush through pipework and filters to ensure
removal of debris and any airlocks.
Installation conditions outside
operating parameters.
Refer to the specification for the
minimum distance required.
Hot water temperature is less than 10°C
above the required blend temperature
Adjust hot water temperature or wait
for water to reheat if a stored water
system is used.
Instantaneous water not igniting because
the water flow rate is too low.
Increase water flow rate through the system.
Refer to the Maintenance section to clean/
check the cartridge and filters for any
damage. Contact your boiler manufacturer.
Instantaneous water not igniting because
the water pressure is too low.
Refer to the specification for system
requirements. Increase water pressure
through the system.
Contact your boiler manufacturer.
Only
hot/cold
water from
Shower
Valve
Inlet water supplies are reversed.
Check the water inlet connections are the
correct way around: Hot on the left, Cold on
the right when viewed from the front.
Rework pipework as necessary.
Filter/pipe blockage Flush through pipework and filters to ensure
removal of debris and any airlocks.
Water
dripping
from
shower
This is normal for a short time after
using the shower.
This is caused by residual water tension,
the build up of water in the shower.
If water continues to drip,
possibly due to the cartridge
Remove cartridge and clean, refer to
'Maintenance' section before starting
any maintenance.
Shower
does not
turn on
Closed isolation valve. Open isolation valve.
Mains water supply turned o. Turn on mains water supply.
11
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Troubleshooting

At Bristan, we want to make things as easy as possible for our customers. That’s why we oer solid
guarantees on all our products, eective from the date of purchase, to give you peace of mind.
To start your free guarantee simply scan the QR code and register your product.
Alternatively visit www.bristan.com/register.
For any other queries, please call our Customer Service on 0330 026 6273 where our expert team
of advisors will be able to oer you any help and advice.
For full guarantee terms and conditions visit www.bristan.com/service-centre/guarantees.
Bristan Group Ltd.
UK: Bristan Group, B78 1SG.
EU: Masco Europe S.à.r.l.
14 Rue Strachen
6933 Mensdorf
Luxembourg
Customer Service: [phone]
Web: www.bristan.com
Email: [e-mail]
A Masco Company
Issue: D1
Part Number: Bar SHWR WMNT

Please keep this booklet for future
reference.
Installer, when you have read these
instructions please ensure you leave
them with the user.
Installation Instructions
and User Guide
Rigid Riser &
Telescopic Riser Kits

2Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Contents
Thank you for choosing Bristan, the UK’s leading taps and showers expert. We have
designed these products with your enjoyment in mind. To ensure that they work to
their full potential, they need to be fitted correctly. These fitting instructions have
been created to give you all of the information you need and, if you need any further
help, please do not hesitate to give us a call on 0330 026 6273.
Contents
• Important Safety Information 3
• Prior to Installation 4
• Installation - Inline Diverter 5
• Installation - Rigid Risers 6-8
• Installation - Telescopic Round Risers 9
• Installation - Telescopic Square Risers 10
• General Cleaning 11
• Troubleshooting 11

All products manufactured and supplied by Bristan are safe to use provided that
they are installed, operated and receive regular maintenance in
accordance with these instructions.
This product needs to be installed in accordance with, and meet the requirements
of the Water Supply (Water Fittings) Regulations 1999 and current by-laws.
For full Installation Requirements & Notes (IRN) please visit
www.wrasapprovals.co.uk/approvals-directory
This product must not be modified in any way as this will invalidate the guarantee.
Full access must be made available for future maintenance/servicing purposes.
Before drilling into walls, check that there are no hidden electrical wires, cables or
water supply pipes. This can be checked with the aid of an electronic detector.
If power tools are used do not forget to:
- Wear eye protection
- Unplug equipment after use
If in doubt, contact a registered plumber or your
Local Water Authority or the Secretary of the
Institute of Plumbing, address as follows:-
The Institute of Plumbing,
64 Station Lane,
Hornchurch,
Essex,
RM12 6NB, Tel: [phone]
3
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Important Safety Information

4Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Prior to Installation
The installation images are for illustrative purposes only, and your product may
slightly dier in installation, depending on specification. Please refer to your specific
shower kit contents page for specification information.
These kits are designed to be used in conjunction with Bristan showers. We cannot
guarantee compatability or adequate performance when used with other showers.
Please refer to the installation manual supplied with your Bristan shower kits for
their specification information. Your kit could also have adjustability at the wall arm
as a telescopic riser, or come with an in-line diverter kit.
This shower kit must be installed in compliance with current water regulations.
If you have any doubts about the water regulation requirements contact your local
water services provider or use the services of a professional plumber.
Loosely assemble the riser, making
sure it can reach the connection point
on your fitting and the bracket will
stay flush to the wall.
Plan your installation to accommodate
for the tallest user, and measure
the crucial dimensions for your
installation. Use the diagram
to take notes.
Crucial Dimensions

Compression
Nut
Olive
NRV
Fit the rigid riser to the diverter valve.
Tighten the compression nut fully using a
suitable spanner to ensure a
watertight seal. Connect your chosen
hose and handset.
Check your rigid riser kit bracket
type to move to the next stage
of installation.
5
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Installation - Inline Diverter
1 2
Compression
nut Olive
Push the short connecting
tube into the top outlet on the
shower valve (not supplied). If your
outlet connection is 15mm, please use the
adaptor supplied before attaching the riser
tube. Ensure the nut and olive are fitted to the
connecting tube. Tighten the compression nut
fully using a suitable spanner.
IMPORTANT
Check for a label on
the diverter. It must be
pointing upwards to
ensure correct operation.
Important: If using this product on a low
pressure system (0.2 - 0.5bar) we recommend
the NRV in the diverter to be removed to
ensure maximum flow.

Where necessary, assemble the
riser rail using the fixings supplied.
Slide any adjustable fittings, nuts and
brackets on to the rail if supplied.
Attach the wall
arm using the
fixings supplied.
Ensuring
the riser is
straight, adjust
the bracket
position if
applicable and
mark the
position of
the bracket(s)
on to the wall.
Adaptor for
Threaded
Connection
6Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Installation - Rigid Risers
1
2b
2a
3
Fit the rigid riser to the top
outlet. If attaching directly
to a threaded connection,
use the threaded adaptor
where supplied. Ensure the
olive is fitted and tighten
the compression nut fully.
Your riser rail could also be
attached via grub screws.
Check around the back or sides
for grub screw placement.
IMPORTANT
Do not over
tighten fixings.
Wrap pipes in cloth
when tightening to
prevent damage
to the finish.

5
4
Disassemble the
bracket to reveal the
fixings/fixing holes.
Align in the marked
area on the wall
and mark up the
fixing holes.
Re-locate riser rail back on to the
bracket/bracket fixings. Secure in place.
Re-attach the wall arm if necessary.
Drill the
fixings holes
and secure
the bracket/
bracket
fixings to the
wall using
the fixings
supplied.
REMEMBER
Check for
hidden pipes and
cables before
drilling!
7
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Installation - Rigid Risers
6
