Bristan Z TC 1/2 C User manual

Please keep this booklet for future
reference.
Installer, when you have read these
instructions please ensure you leave them
with the user.
Installation Instructions
Temperature Controlled
Time Flow Tap
Models covered: Z TC 1/2 C

2
Contents
Thank you for choosing Bristan, the UK’s leading taps and showers expert.
We have designed this product with your enjoyment in mind. To ensure that it works
to its full potential, it needs to be fitted correctly. These fitting instructions have been
created to give you all of the information you need and, if you need any further help,
please do not hesitate to contact us.
Important Safety Information................................................... 3
Specifications ........................................................................... 4
Dimensions............................................................................... 5
Pack Contents .......................................................................... 6
Prior to Installation .................................................................. 7
Installation................................................................................ 8
Operation .................................................................................. 9
Maintenance ............................................................................. 10-11
Troubleshooting........................................................................ 12-13
Guarantee ................................................................................. 14-15
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

3
Important Safety Information
•Please read these instructions thoroughly and retain for future use.
•All products manufactured and supplied by Bristan are safe provided they are
installed, used correctly and receive regular maintenance in accordance with these
instructions.
•If you are in any doubt about your ability to install this product safely you must
employ the services of an experienced qualified plumber.
•This fitting needs to be installed in accordance with, and meet the requirements of the
Water Supply (Water Fittings) Regulations 1999 and Scottish Byelaws 2004.
•Remove all packaging and check the fitting for damage before starting installation.
•Warning: Before starting any installation please consider the following: before
drilling into walls, check that there are no hidden electrical wires, cables or water
supply pipes. This can be checked with the aid of an electronic detector.
•If power tools are used do not forget to: - Wear eye protection
-
Unplug equipment
after use
•Important: Remember to turn off the mains water supply before connecting to any
existing pipe work. Fitting isolating valves to the inlet feeds is recommended for ease
of maintenance.
•Warning: Before installing the new fitting it is essential that you thoroughly flush
through the pipework in order to remove any remaining swarf, solder, etc.
Failure to carry out this procedure could cause problems or damage to the workings of
the fitting.
•Take care when handling the ‘flexible connecting pipes’, do not bend, twist or crush
them. Only tighten the pipes by hand.
•Your fitting has a high quality finish and should be treated with care to preserve the
visible surfaces. All surfaces will wear if not cleaned correctly, the only safe way
to clean your fitting is to wipe with a soft damp cloth. Stains can be removed using
washing up liquid. All bath cleaning powders and liquids will damage the surface of
your fitting, even the non-scratch cleaners.
Note: Never use abrasive detergents or disinfectants or those containing alcohol,
hydrochloric acid or phosphoric acid.
•This product must not be modified in any way as this will invalidate the guarantee.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

4
Specifications
Inlet Connections: 15mm Compression flexible connecting pipes
Minimum working pressure: 1.0 bar
Maximum working pressure: 5.0 bar
Maximum static pressure: 10.0 bar
System Requirements:
Gravity fed hot & cold (Equal pressures)
Gravity fed hot & cold (Differential pressure, maximum ratio 5:1)
Unvented systems
Instantaneous water heater (Combination boiler)
Timed Flow: 15 Seconds ±5 Seconds
This product has been tested to the Water Regulations Advisory Scheme (WRAS) and
satisfies the requirements of the Water Supply (Water Fittings) Regulations 1999 and
current bylaws.
For full Installation Requirements & Notes (IRN) please visit www.wras.co.uk/directory.
Designed to comply with and to be used within systems designed to BS 6700.
BS 6700 recommends the temperature of stored water should never exceed 65°C.
A stored water temperature of 60°C is considered sufficient to meet all normal
requirements and will minimise the build up of lime scale in hard water areas.
If the fitting is installed at low pressure (tank fed), then the minimum distance from the
highest installed position of the outlet to the underside of the cold tank should be at
least 10 metres to ensure adequate performance.
These taps and mixers should be installed in compliance with the Water Regulations.
Where the supplies are unbalanced, i.e. Hot water from cylinder tank / cold from the
mains, approved check valves must be fitted in the supply pipes.
For further details contact your Local Water Authority.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

5
Dimensions
Dimensions are in millimetres.
360
146
124
63
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

6

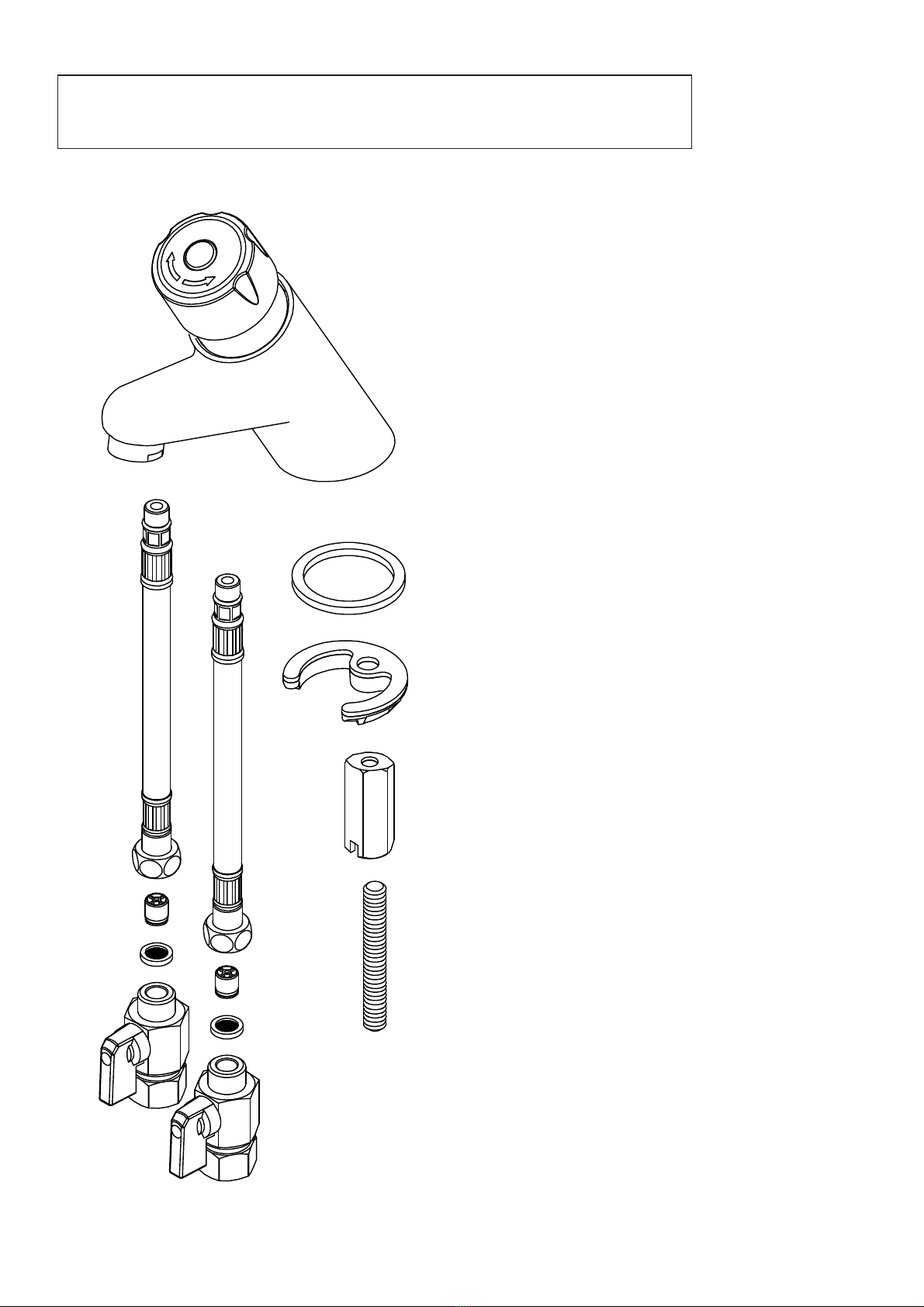

Pack Contents
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
1 Tap Body x1
2 3 l/p/m Flow Regulator (Fitted) x1
3 Flexible Connecting Pipes x2
4 Non Return Valves (Pre-fitted) x2
5 Filter Washers x2
6 Isolation Valves x2
7 Base Washer x1
8 'C' Shaped Plate x1
9 Fixing Nut x1
10 Fixing Rod x1
1
2
6
9
4
5
7
8
10
3

7
Prior to Installation
Flexible Connecting Pipes
Care must be taken when connecting the
flexible connection pipes to the household
pipework to ensure they do not bend sharply
and kink or twist.
The Integral Isolation Valves
The integral isolation valves must be
accessible for turning on / off and for future
servicing purposes.
See below for recommended ways to fit the
flexible connecting pipes.
See below for the on and off positions of the
isolation valves.
Slight
bend
90°
Angle
Kink Curved
round
Twists
Closed / Off
position
Open / On
position
Important: Failure to follow these guidelines may result in poor performance and damage
to the flexible connecting pipes.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

8
Before installation
Flush through the pipework to ensure
removal of debris. Turn off both water
supplies or close any isolating valves.
1. Fit the tap to sink
Thread the fixing rod into the bottom of the
tap (if not aleady fitted). Fit the tap to the
basin / sink / work surface ensuring the
washer is fitted to the bottom of the tap to
ensure a water tight seal between the tap
and mounting surface.
Thread the 'C' shaped fixing plate on to the
fixing rod up to the underside of the basin /
sink / work surface.
Secure the tap in place by screwing the
fixing nut onto the fixing rod.
Tighten the fixing nut fully using a suitable
spanner.
2. Connect water supplies
Screw the flexible connecting pipes into
the bottom of the tap body, ensuring they
are tightened fully (hand tighten only, do
not over tighten).
Screw the isolating valves onto the
flexible connecting pipes ensuring the
filter washers are fitted in the flexible
connecting pipe nuts.
Connect the isolating valves onto the water
supply pipework using the compression
nuts and olives supplied and tighten
securely using a suitable spanner.
Turn on both water supplies and operate
the tap by pushing down and releasing
the handle to ensure the tap is working
correctly.
Installation
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
Tap
Body
Washer
Sink/Work
Surface
Fixing
Rod
Fixing
Rod
Flexible
Connecting
Pipes
Fixing
Nut
'C' Shaped
Plate
Flexible
connecting
pipes
Filter
washer
Isolation
valve

9

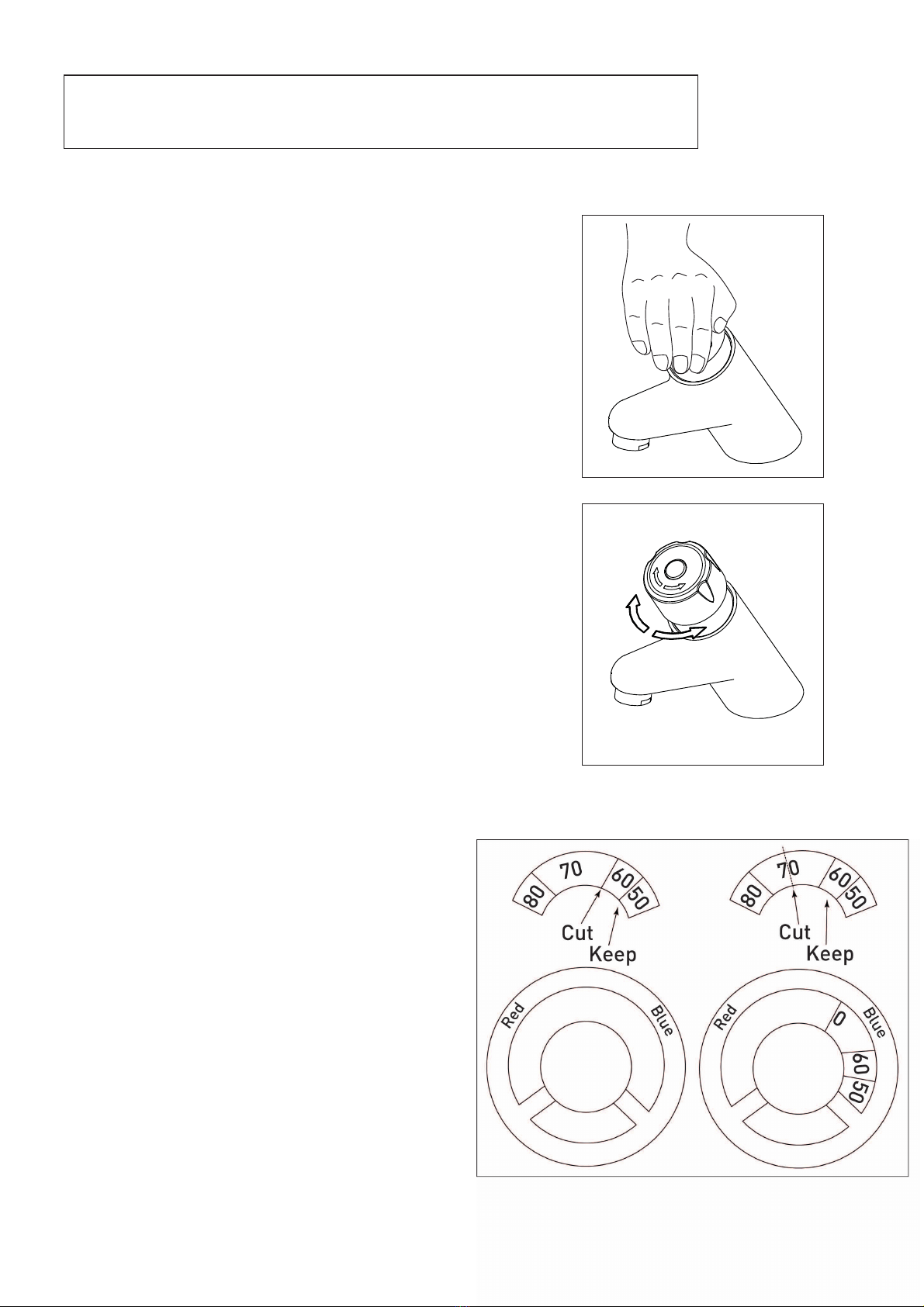

Operation
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
Colder
Hotter
Push and
release
)ORZ&RQWURO
To operate the flow of water push down fully and
release the control knob.The water will flow for
approximately 15 seconds ± 5 seconds.
Important: If the user pushes and holds down
the control knob the water will not flow.
7HPSHUDWXUH&RQWURO
Rotate the control knob clockwise for a cooler
temperature.
Rotate the control knob anti-clockwise for a
hotter water temperature.
0D[LPXPWHPSHUDWXUHOLPLWLQJ
$WHPSHUDWXUHUHJXODWRUGHYLFH LVVXSSOLHGZLWK
HDFKPL[HU 2QFHILWWHGLQVLGHWKHGLVSOD\ULQJLW
UHGXFHVWKHURWDWLRQRIWKHNQREDOORZLQJWR
NHHSWKHPD[LPXPZDWHUWHPSHUDWXUHDWr
HYHQLIWKHKRWZDWHUVXSSO\LVDVKLJKDVr
&XWWKHHODVWRPHUUHJXODWRUGHYLFHZLWKDEODGH
DVVKRZQ 3ODFHWKHUHJXODWRUGHYLFHLQWKH
JURYHRIWKHGLVSOD\ULQJEOXHVLGHWREH
positionedDVVKRZQ.
Hot water temperature 75°
(expected temperature)
Hot water temperature 60°
(expected temperature)
Display Ring

10
Maintenance
Your fitting has a high quality finish and
should be treated with care to preserve
the visible surfaces. All surfaces will
wear if not cleaned correctly, the only safe
way to clean your mixer is to wipe with a
soft damp cloth. Stains can be removed
using washing up liquid. All bath cleaning
powders and liquids will damage the
surface of your fitting, even the non-
scratch cleaners.
Note: Never use abrasive detergents or
disinfectants or those containing alcohol,
hydrochloric acid or phosphoric acid.
General Cleaning
Before carrying out this maintenance,
turn off both isolating valves and operate
the tap to release any built up water
pressure within the tap.
Unscrew the flexible connecting pipes
from the isolation valves. Remove the
filter washers to reveal the non return
valves inside the bottom of the flexible
connecting pipes.
Pull the non return valves out from the
flexible connecting pipes using suitable
long nose pilers and clean under running
water.
Check the non return valve opens freely,
replace with new NRV's from Bristan if
faulty.
Replace the non return valves in the
bottom of the flexible connecting pipes
pushing them in fully.
Reconnect the flexible connecting pipes
to the isolation valves ensuring the filter
washers are refitted.
Cleaning the Non Return Valves
(NRV)
Turn on both isolation valves and operate
the tap to ensure the non return valves
open freely.
Closed / Off
position
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
Flexible
Connecting
Pipe
Fixing
Nut
Non return
valve
Filter
washer
Isolation
valve
Water
supply
pipework

11

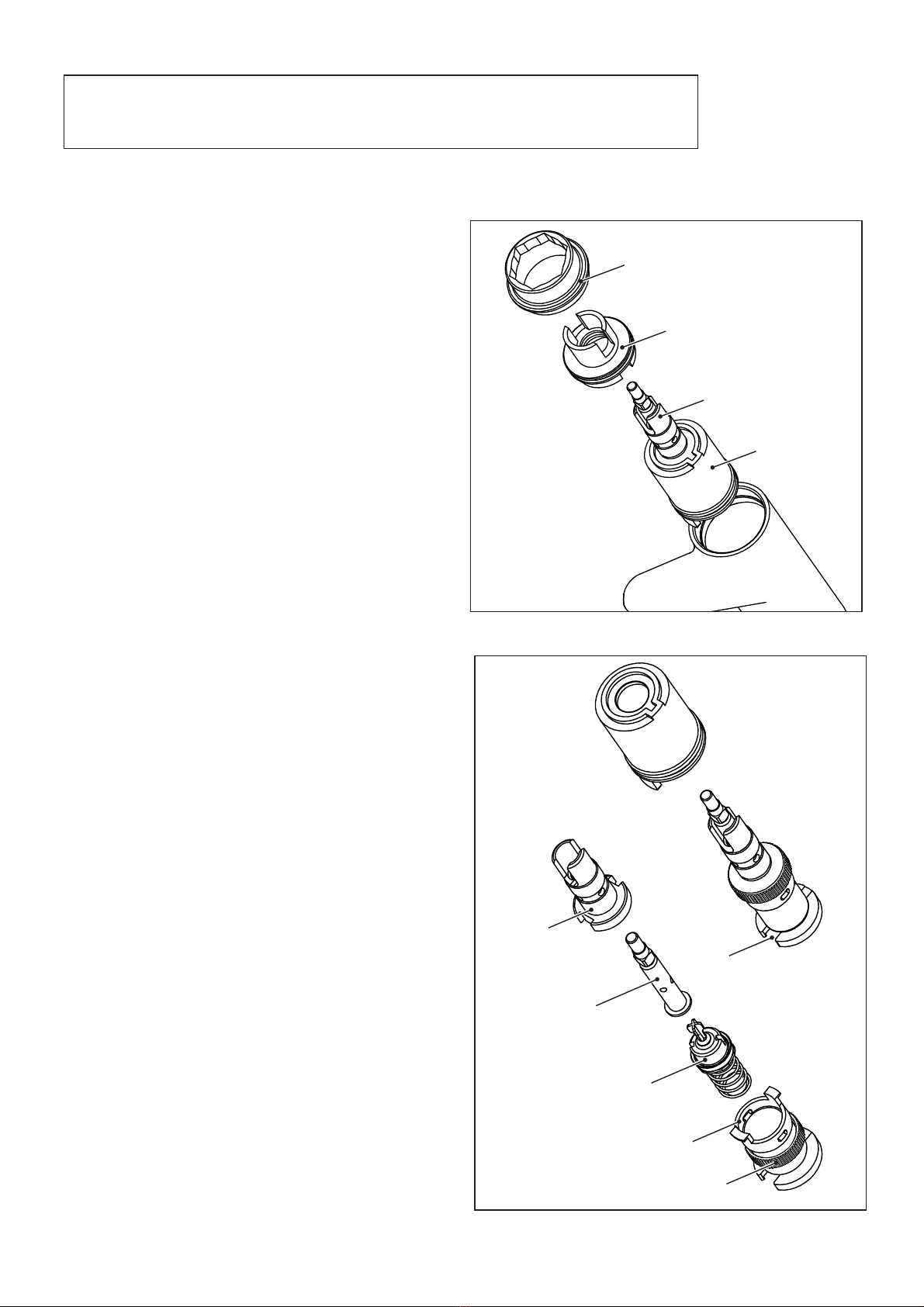

Before carrying out any maintenance,
turn off both water supplies and close any
isolating valves.
Prise out the handle cover cap, loosen the
grub screw and remove the handle.
Remove the temperature limiter and
spring.
Unscrew the locking nut using a suitable
box spanner. Using suitable grips pull the
cartridge retaining shroud out from the
body. The cartridge assembly will come
out attached to the cartridge retaining
shroud.
Pull the cartridge retaining shroud away
from the cartridge assembly.
Remove the cartridge assembly cover
and unscrew the locking ring. Push the
cartridge spindle out from the spindle
housing and clean all parts under clean
running water.
Reassemble the cartridge (ensuring the
cut out in the bottom of the cartridge is
pointing towards the front when refitted)
and grease all 'O'rings with a suitable
silicon grease.
Replace the cartridge assembly and push
the cartridge retaining shroud into the tap
body. Secure the cartridge assembly by
screwing the locking nut onto the tap body
using a suitable box spanner.
Replace the spring and temperature
limiter and push the handle back onto
the spindle. Tighten the grub screw and
push-fit the cap into position.
Cleaning the Cartridge
Maintenance
Remove cartridge
assembly cover
Disassemble and
reassemble
Cartridge Retaining
Shroud
Cartridge
Assembly
Cartridge
Assembly
Cover
Spindle
housing
Spindle
Piston
assembly
Piston
housing
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
Cut
Out
Locking Ring
Locking
Nut

12
Troubleshooting
Symptom Cause Remedy
Tap will not
operate when
control knob is
fully pushed in.
Isolation valves closed. Open Isolation valves.
User is holding in control knob. Release control knob.
The water will not flow if the
control knob is held in by the
user.
Head of water is below the
minimum required.
Refer to 'Specification' section
on page 4.
Airlock or blockage in water
supply pipework.
Flush through the water supply
pipework to ensure removal of
any debris or airlocks.
Instantaneous water heater (if
being used) cycles on and off as
flow rate or water pressure is
too low.
Increase water flow rate or
water pressure through system
to meet required minimum
working pressure of tap.
Tap will not
shut off.
Cartridge assembly faulty or
requires servicing / cleaning.
Remove cartridge assembly and
clean / replace.
Refer to 'Maintenance' section
on pages 10-11 before
dismantling the tap.
Tap does not
run for long
enough.
Isolation valves partially closed. Open isolation valves fully.
Insufficient water pressure Check water supply pressure.
Refer to 'Specifications' section
on page 4.
Tap cartridge assembly faulty or
requires servicing / cleaning.
Remove tap cartridge
assembly and clean / replace.
Refer to 'Maintenance' section
on pages 10-11 before
dismantling the shower valve.
Flow regulator blocked. Remove flow regulator and
clean.
Unscrew flow regulator housing
from spout, remove flow
regulator clean and replace.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

13
Troubleshooting
Symptom Cause Remedy
Flow regulator blocked. Remove flow regulator and
clean.
Turn off the mains water supply
or close any isolation valves
before removing the riser / flow
regulator.
Insufficient water pressure. Check water supply pressure.
Refer to 'Specification' section
on page 4.
Isolation valves partially closed. Open isolation valves.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

14
Guarantee
At Bristan, we want to make things as
easy as possible for our customers. That’s
why we design products that are easy to
fit and use, and that are quality tested to
make sure they won’t let you down. It’s
also why we offer solid guarantees on all
products, effective from the date of
purchase, to give you peace of mind.
Bristan’s Commercial Taps are covered by
a 1 year guarantee. This also includes 1
year labour cover *(subject to
registration) which means that, in the
unlikely event that there is a problem in
the first year
after purchase, we’ll send one of our
expert engineers to fix it.
*Labour is provided by an approved
Bristan Care engineer or appointed
representative. The guarantee only applies
to products with a manufacturing fault.
There will be a call out charge for any
incidents where no fault has been found
with the product, or if the issue is due to
poor installation or maintenance.
Guarantee Terms and Conditions
This guarantee is in addition to your
statutory and other legal rights and is
subject to the following conditions:
• The product was purchased within
the United Kingdom or Republic of
Ireland.
• The guarantee applies solely to the
original purchaser with proof of
purchase.
• The installation must allow ready access
to all products for the purpose of
inspection, maintenance or replacement.
• Repair under this guarantee does not
extend the original expiry date. The
guarantee on any replacement parts or
product ends at the original expiry date.
• Any part found to be defective during
the guarantee period will be replaced
without charge, providing that the product
has been installed in accorance
with the instructions given in this guide
and used as the manufacturer intended.
The guarantee does not cover:
• Damage or defects caused by;
- General wear and tear (including
special non-chrome finishes;
components such as filters, seals, ‘O’
rings and washers)
- Incorrect installation
- Repair using non-Bristan parts
- Accidental or wilful misuse
- Corrosion and the use of
inappropriate cleaning products
- System debris including the build
up of limescale (which can be
controlled through regular servicing
and maintenance)
• Compensation for loss of use of the
product or consequential loss of any
kind.
In the interests of continuous product
improvement, Bristan reserves the right to
alter product specifications without notice.
The Bristan Product Guarantee does not
affect your statutory rights as a consumer.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

15
Guarantee
• Need help?
If this product does not function cor-
rectly when first used, contact Bristan
Care Customer Service on 0844 701 6273
where our expert team of advisors will be
able to offer you help and advice.
• Problems during the guarantee period
In the unlikely event that you encounter
any problems with the product during the
guarantee period, contact Bristan Care
Customer Service on 0844 701 6273 with
your proof of purchase and we will work to
resolve the problem quickly.
Bristan Care Customer Support
Bristan customers also benefit from the
support of Bristan Care, our
comprehensive customer support package
which offers:
Technical support hotline
(Tel: [phone]) with access to fully
trained advisers who can offer installation
advice, talk you through quick
maintenance checks, or recommend the
best course of action to fix any problems
with a product.
Expert advice
Find easy to follow ‘how to’ video guides
and technical FAQs online at
www.bristan.com. Our guides take you
step-by-step through many product instal-
lations and you can find plenty of easy
guides to quick product fixes and servic-
ing.
Spare parts
We hold thousands of spares and we keep
them for discontinued products for over
seven years. Spares can easily be ordered
online at www.bristan.com and are
dispatched the same day.
Expert plumbing engineers
If we can’t solve the problem over the
‘phone or with a spare part, then we’ll
send out one of our Bristan Care
engineers to take a look. Bristan Care
engineers provide free support for
products that are within guarantee, but
are also available to service products that
are out of guarantee for a small charge.
For details, please call Bristan Care
Customer Service on 0844 701 6273.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

16
Bristan Group Ltd.
Birch Coppice Business Park
Dordon
Tamworth
Staffordshire
B78 1SG
Web: www.bristan.com
Email: enquir[email protected]
A Masco Company
Part Number: FI Z TC 1/2 C
Issue: D3
Useful contact details:
Customer Service:
0844 7016273
Customer Service Email:
Customercar[email protected]
Customer Service Fax:
0844 7016275
Reception:
0844 7016274
Join us on...
