Bristan VAL2 BAS C CD (D2) Wiring diagram

5
3
1
4
Pack Contents
Installation Instructions
& User Guide
Prior to Installation
Installation
Please leave these instructions
with the end user
Product Code: VAL2 BAS C CD (D2)
All products manufactured and supplied by Bristan are safe
provided they are installed, used correctly and receive regular
maintenance in accordance with these instructions.
This product has been tested to the Water Regulations Advisory
Scheme (WRAS) and satisfies the requirements of the Water
Supply (Water Fittings) Regulations 1999 and current bylaws.
For full Installation Requirements & Notes (IRN)
please visit wras.co.uk/directory.
We recommend isolation valves to be fitted to the inlet water
supplies to ensure ease of future maintenance.
Before installing these taps the water supply must be thoroughly
flushed in order to remove any swarf, solder etc.
This product must not be modified in any way as this will
invalidate the guarantee.
2
Adjust so the
horizontal rod
sits comfortably
straight. Tighten
the screws to
secure in place.
Fit the waste
body to the
basin, ensuring
the washers are
in place.
6
To replace any spare parts
for your tap, why not
scan the QR Code or
visit www.bristan.com
and search for your product.
Spare Parts
Flexible Tail Positions
1/2” BSP
Flexible Tails
Screw the
flexible tails and
fixing kit rod to
the tap base by
hand only.
DO NOT
OVERTIGHTEN.
Connect the
flexible tails
to the hot and
cold water
supplies.
x1
x1
x1 x1
x2
x1
x1
x1
x1
x1
Feed the tap
body through
the basin hole,
ensuring the
plinth is in place.
IMPORTANT
Turn on water
supply for a few
minutes and check
all joints and
connections for
any leaks.
Secure the tap
body using
the fixing kit.
Push the vertical rod through
the back of the basin tap.
Connect the lower rod to
the vertical rod.
Screw the horizontal arm on
to the waste body, ensuring
the washer is in place.
Use the
pop-up link to
connect the
vertical and
horizontal rods.
Slight
bend
90 °
angle
Kinks
Curved
round Twists
1.0
5.0
Pressure
BAR
0.2
4.0
2.0 3.0
Pressure
BAR
1.0
5.0
0.2
4.0
2.0 3.0
Specifications
Maximum Static Pressure: 10.0 bar
Inlet Water Temperature
Inlet Connections
Min: 0.2 bar Max: 5.0 bar
Dynamic Water Pressure
Tools You’ll Need
Crosshead
Screwdriver
Flat Head
Screwdriver
Adjustable
Spanner
Long-Nosed
Pliers
Pipe Cutter
60°C
65°C
60-65°C Recommended
REMEMBER
Use flat-faced
isolation valves
to isolate the
water supplies.
REMEMBER
Hot on the
left, cold on
the right!

Check any seals for damage;
replace if necessary.
Place outlet in a suitable solution
and soak until fully de-scaled.
23
1
At Bristan, we want to make things as easy as possible for our customers.
That’s why we oer solid guarantees on all our products, eective from the date of purchase,
to give you peace of mind.
To start your free guarantee simply scan the QR code and register your product.
Alternatively visit www.bristan.com/register to register your product via a computer.
For full guarantee terms and conditions visit www.bristan.com/guarantees.
Operation General Cleaning
Troubleshooting
Notes
Symptom Cause Remedy
No flow or
low flow
rate
Partially closed isolation valve. Open isolation valve.
Instantaneous water heater cycles on
and o as flow rate or pressure is too
low.
Increase water flow rate or pressure through system.
Head of water is below the
minimum distance required.
Refer to specification for minimum distance required.
Hot or cold water being drawn o
elsewhere causing pressure changes or
instantaneous boiler temperature
changes.
Do not use other water outlets when using the taps.
Airlock or partial blockage in the supply
pipework.
Flush through pipework to ensure removal of debris
and any airlocks.
Water
dripping
from taps
This is normal for a short time after using
the taps.
This is caused by residual water tension, the build up
of water in the tap body.
If water continues to drip,
possibly due to the ceramic disc valves
Remove valves and clean, refer to 'Maintenance'
section before starting any maintenance.
Taps do not
turn on
Closed isolation valve. Open isolation valve.
Mains water supply turned o. Turn on mains water supply.
Please use this space for any notes you or your installer may have regarding the
installation/plumbing of this product.
Bristan products are made from premium
materials, with hand polishing and
electroplated finishes.
Your taps or shower should be regularly
cleaned with warm water, a mild pH-neutral
liquid soap, and polished with a soft cloth.
Any residues from soap, toothpaste, shampoos
and shower gels can cause blemishes if not
rinsed o straight after use.
Household bleaches and cleaners contain harsh
chemicals and may damage the surface finish.
Avoid using abrasive cloths, scouring pads,
scrub sponges, steel wool or anything similar.
Some surfaces such as nickel and pewter may
be aected by the dye found in some cloths,
so it is also important to avoid hanging
cloths on spouts.
3
2
1
4

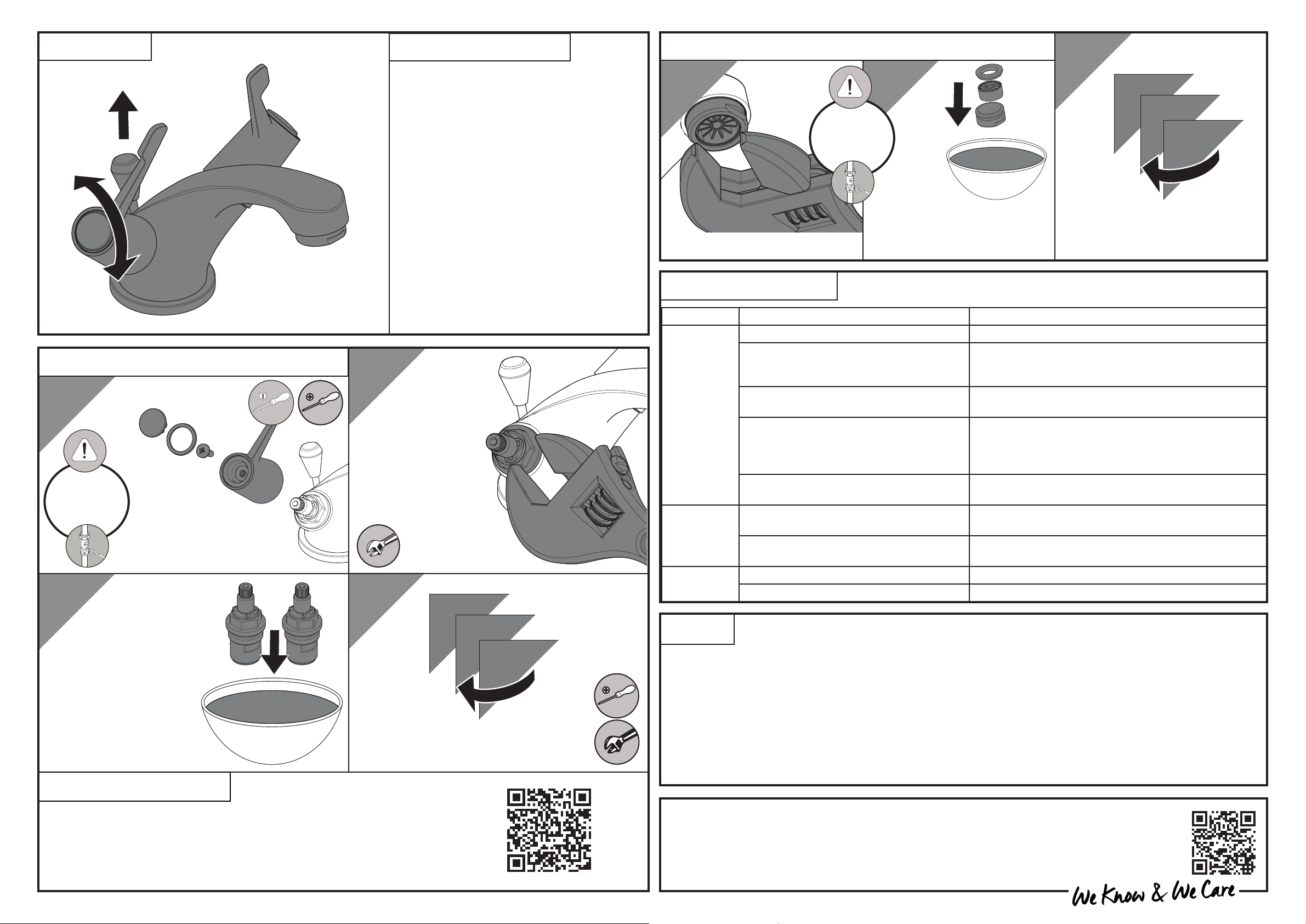

Maintenance - Valve Cleaning
Pull the rod up to
seal the plug. Push it
down to release.
Maintenance - Clean/Replace Outlet
On
O
Isolate
the water
supply before
starting!
Place valves in a suitable
solution and soak until
fully de-scaled.
Love Your Chrome
Bristan oers an eective chrome-friendly cleaning kit
for use with your taps and showers. Scan the QR Code
or search for ‘CLEAN KIT01’ on www.bristan.com.
Prise o the caps and
indices. Undo the screws
to remove the handles.
Reverse the steps to replace the
valves and handles.
Reverse the steps to
replace the outlet.
1
1
2
2
3
3
Isolate
the water
supply before
starting!
Unscrew the
valves using an
adjustable spanner.
Check any seals and
O-rings for damage.
Replace valve if
necessary.
Remove the outlet using a
suitable spanner.
