Brother DesignNCut DC200 User manual

Be sure to read this document before using the machine.
Operation Manual
Cutting Machine
Product Code: 891-Z08

1
Thank you for purchasing this machine.
Before using this machine or attempting any maintenance, carefully read the “IMPORTANT SAFETY
INSTRUCTIONS” on the Product Safety Guide, and then study the Operation Manual for the correct operation
of the various functions. In addition, after you have finished reading this manual, store it where it can quickly be
accessed for future reference. Failure to follow these instructions may result in an increased risk of personal
injury or damage to property, including through fire, electrical shock, burns or suffocation.
●This machine is intended for household use.
●This machine is approved for use in the country of purchase only.
●Due to product quality improvements, the specifications or appearance of this machine may change without notice.
●The contents of this document are subject to change without notice.
●The actual operations and screens may differ, for example, after the application has been upgraded.
●The contents of this document may not be duplicated or reproduced, partially or in full, without permission.
●We assume no responsibility for damages arising from earthquakes, fire, other disasters, actions of third parties, the user’s
intentional or negligent operation, misuse or operation under other special conditions.
●For additional product information, visit our website at www.brother.com
Symbols Used in This Document
The following symbols are used in this document.
IBM is a registered trademark or a trademark of International Business Machines Corporation.
Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation.
Wi-Fi Protected Setup(WPS) is a trademark of Wi-Fi Alliance.
WPA™ and WPA2™ are trademarks of Wi-Fi Alliance®.
Mac, OSX, and Apple are trademarks of Apple Inc., registered in the United States and other countries.
App Store is a service mark of Apple Inc., registered in the United States and other countries.
Each company whose software title is mentioned in this manual has a Software License Agreement specific to its
proprietary programs.
All other brands and product names mentioned in this manual are registered trademarks of their respective
companies. However, the explanations for markings such as ® and ™ are not described within the text.
INTRODUCTION
IMPORTANT NOTICE
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
Failure to observe instructions with this marking may result in serious
injuries.
TRADEMARKS

2
INTRODUCTION .......................................... 1
IMPORTANT NOTICE ................................... 1
IMPORTANT SAFETY INSTRUCTIONS ......... 1
Symbols Used in This Document........................... 1
TRADEMARKS ............................................... 1
MACHINE FEATURES .................................... 3
Devices That Can Connect to This Machine.......... 3
About This Manual ................................................. 3
1 GETTING STARTED............4
PARTS AND FUNCTIONS ............................. 4
Unit Descriptions - Front........................................ 4
Unit Descriptions - Rear......................................... 4
Unit Descriptions - Operation Panel ...................... 5
Included Accessories ............................................. 5
TURN ON THE MACHINE ............................ 6
Removing the Transport Packing Materials ........... 6
Turning On/Off the Machine................................... 6
DesignNCut Manager WINDOWS ................ 7
SETTINGS SCREENS ...................................... 9
Machine Settings.................................................... 9
Auto Shut Down ..................................................... 9

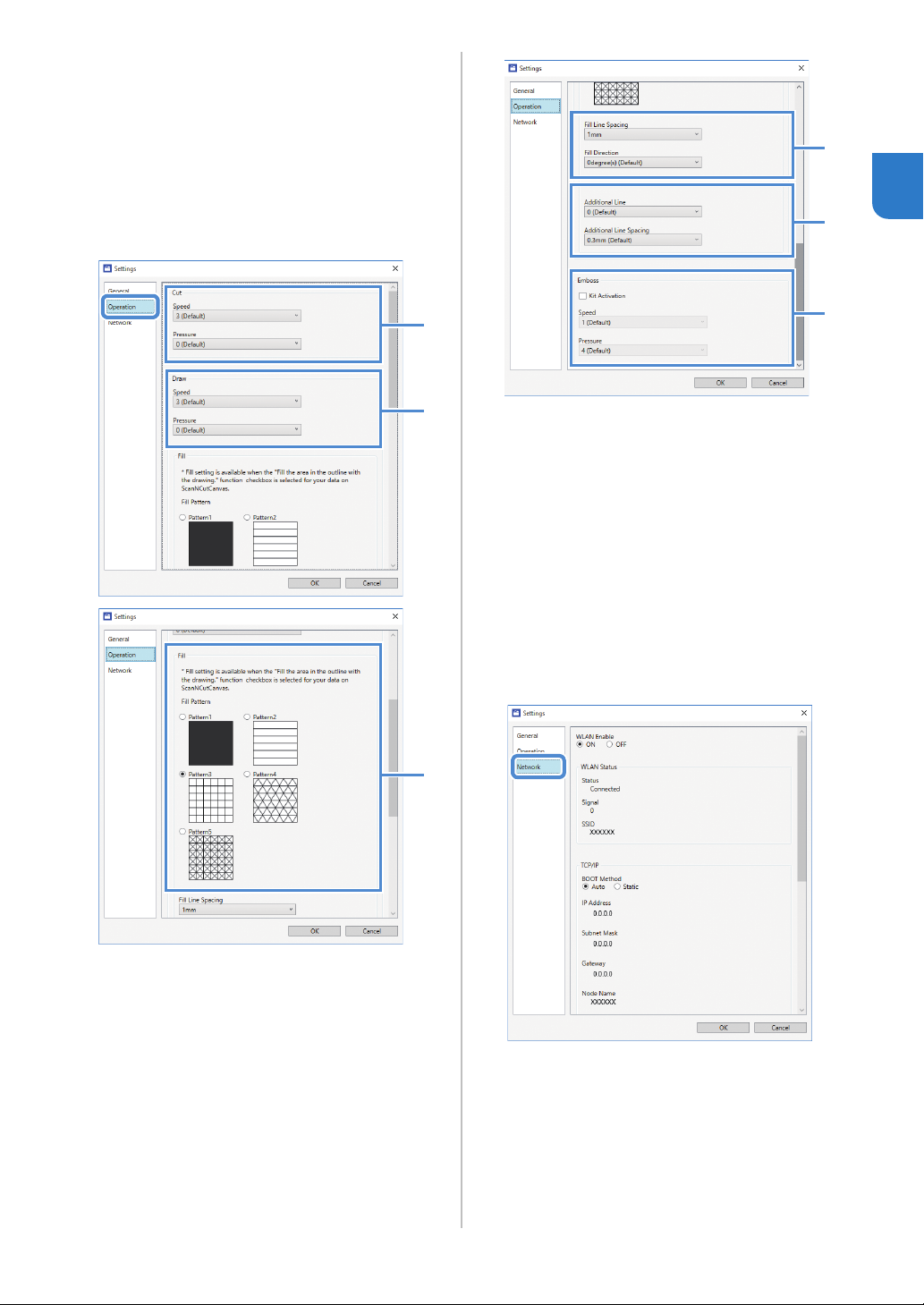

DesignNCut Manager Settings............................. 10
CONNECTING THE MACHINE AND
COMPUTER................................................. 12

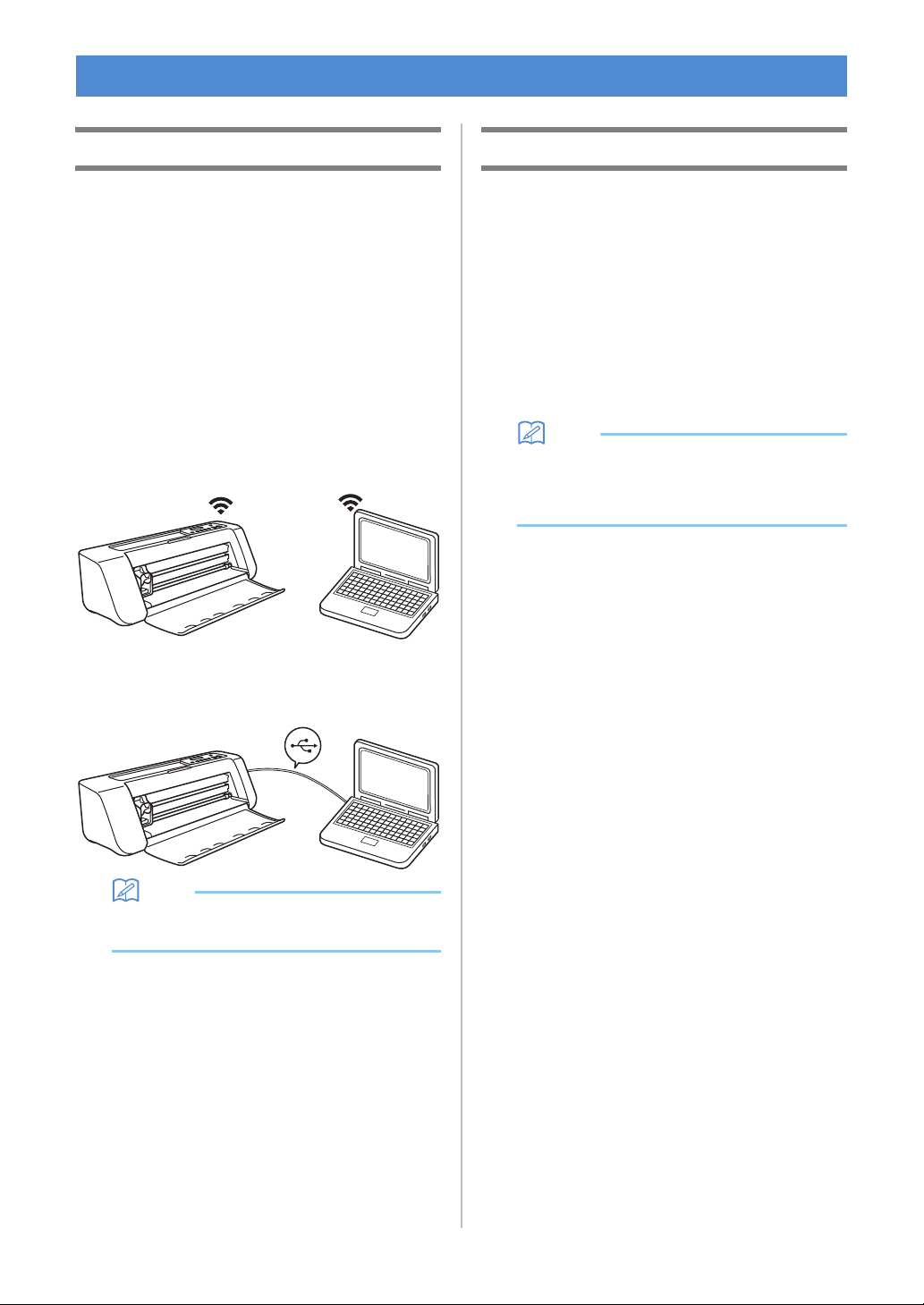

Selecting the Connection Method........................ 12
Wireless Connection ............................................ 12
Direct PC Connection Using USB Cable (Windows
Only) ..................................................................... 18
Resetting the Wireless Connection Setup ........... 20
Checking the Wireless LAN Settings/Connection
Status ................................................................... 20
Setting Up Manually............................................. 21
REGISTER DesignNCut ON
ScanNCutCanvas ......................................... 22
FIRST STEPS................................................. 24
Mat and Material Combinations........................... 24
Attaching the material to the mat......................... 26
Adjusting the Blade Extension ............................. 32
Installing and Uninstalling the Holder................... 34
2 BASIC OPERATIONS........35
PATTERN CUTTING .................................... 35
Tutorial 1 - Cutting Patterns................................. 35
3 ADVANCED OPERATIONS
.........................................41
DRAWING FUNCTIONS............................. 41
Drawing ................................................................ 41
Using Drawing Functions to Fill Patterns/Make
Outlines Thicker ................................................... 43
Cutting Around Drawings..................................... 45
CaptureMat FUNCTION .............................. 48
Tutorial 2 - Cutting Photographed Material ......... 48
4 APPENDIX ....................... 51
CONSUMABLES...........................................51
Replacement Criteria............................................ 51
Replacing the Blade ............................................. 51
CARE AND MAINTENANCE ........................53
Cleaning ............................................................... 53
Adjusting the Mark Sensors ................................. 55
TROUBLESHOOTING ................................. 56
Finding the Wireless LAN Security Information
(Network Name (SSID) and Network Password
(Key)) .................................................................... 56
If the Machine Stops Operating Correctly............ 56
ERROR MESSAGES....................................... 59
Cutting Machine Error .......................................... 59
DesignNCut Manager Error.................................. 61
UPDATING THE SOFTWARE.......................66
Update Procedure Using DesignNCut Manager .... 66
Update Procedure Using Computer .................... 66
OPTIONAL ACCESSORIES...........................67
PRODUCT SPECIFICATIONS.......................67
INDEX..........................................................68
CONTENTS

3
With this machine, you can cut out or draw patterns created in ScanNCutCanvas and sent to it using
DesignNCut Manager (DesignNCut application for operation options). ScanNCutCanvas is an online service
that allows you to use a Web browser to download, edit and create cutting or drawing pattern data for the
ScanNCut and DesignNCut cutting machines.
1. Install DesignNCut Manager (DesignNCut application for operation options).
If you haven’t downloaded the DesignNCut Manager application please go to:
Windows, OS X (Mac): http://s.brother/caqaa/
iOS (App Store): http://s.brother/caqab/
Android (Google Play): http://s.brother/caqac/
2. Machine network settings
Wireless network connection.....P. 12
USB cable connection.....P. 18
3. Register the cutting machine with ScanNCutCanvas......P. 22
* You must register with ScanNCutCanvas first.
4. Send patterns to the machine and cut them out......P. 35
ScanNCutCanvas website: http://ScanNCutCanvas.Brother.com/
Devices That Can Connect to This
Machine
■Computers
• Compatible operating systems:
Windows 7 SP1, Windows 8.1, Windows 10
OS X 10.10 or later
* For additional operating system information, visit
our website (http://s.brother/cpqaa/).
• Compatible models:
IBM PC or compatible computer that is wireless
LAN-compatible or originally equipped with a USB
port
■Mobile Devices
Compatible operating systems:
iPhone, iPad : iOS 9 or later
Android : 5 or later
* For additional operating system information, visit our
website (http://s.brother/cpqaa/).
About This Manual
The icons at the beginning of each step indicate the
following operation information.
: Operation performed on the machine
: Operation performed in DesignNCut
Manager (DesignNCut application for
operation options)
: Operation performed in ScanNCutCanvas
: Message displayed on the machine
Memo
• The machine and screens shown in this manual
may differ from the actual ones.
• This manual provides descriptions for using the
computer version of the application.
MACHINE FEATURES

4
Chapter 1 GETTING STARTED

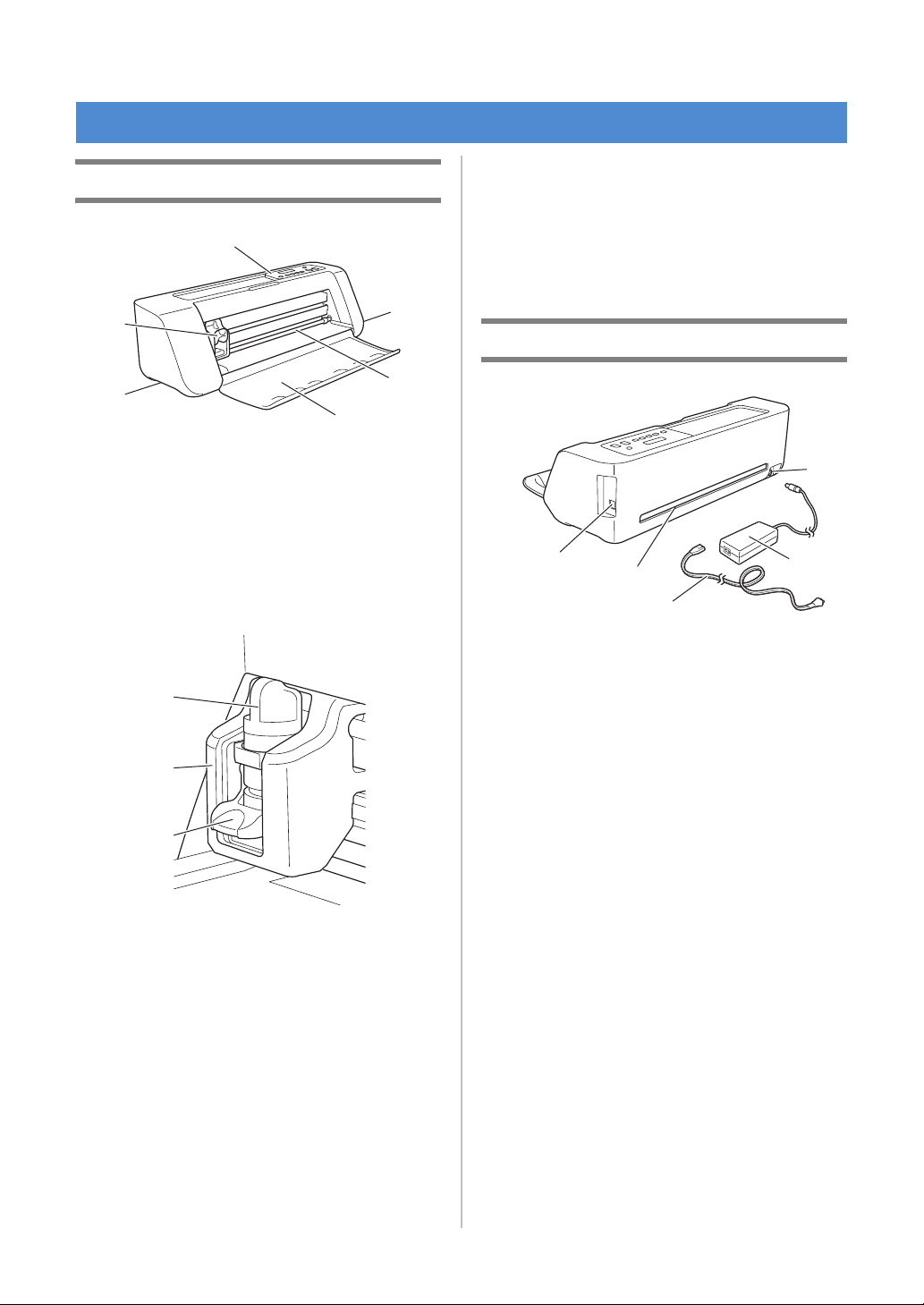

Unit Descriptions - Front
aOperation Panel
Allows you to view the current status of the machine
and the various menus. Press a button on the
operation panel to change the information displayed
in the LCD panel. In addition, if there are problems
with this machine, the error message relating to the
problem is displayed. For details on the error
messages, see “ERROR MESSAGES” on page 59.
bCarriage
Moves the installed holder for cutting or drawing.
1Holder
Installs in the carriage to cut or draw on craft paper
or fabric. Use the holder designed specifically for
cutting or drawing.
2Holder Guide
The guide secures the holder.
3Holder Lock Lever
Releases the holder when the lever is raised. Locks
the holder when the lever is lowered.
cGrips
Grasped when moving the machine.
dFeed Slot Roller
Feeds in or out a mat. The mat is fed by the feed
rollers on both sides.
eFront Tray Cover
Protects the feed rollers, carriage and holder. Open
the cover while the machine is operating.
Unit Descriptions - Rear
aUSB port (for PC Connectivity)
When a wireless network is not available, use a USB
cable to connect the machine to the computer. For
Computers and Operating Systems, see “Devices
That Can Connect to This Machine” on page 3.
bSlot
Allows a mat to be fed back and forth during an
operation. Do not place any objects near the slot that
would prevent the mat from being fed out.
cDC Power Jack
dAC Adapter
eAC Power Cord
PARTS AND FUNCTIONS
d
e
a
b
c
c
1
2
3
a
b
c
d
e

5
1
Unit Descriptions - Operation Panel
aLCD Panel
Displays the current settings, instructions for
performing operations and error messages.
Long messages scroll in the LCD.
bPower indicator
Lights up when the machine is turned on, and flashes
when the machine enters the sleep mode (power-
saving mode).
cPower Button
Turns the machine on/off.
dFeed Button
Feeds the loaded mat in to or out from the feed slot.
Be sure to press this button to feed the mat when
loading or unloading it.
ePause/Stop Button
Stops cutting, drawing and other operations.
fOK Button
Applies the displayed setting or finishes the operation.
gSelect Button
Display a menu or make a selection.
hBack Button
Cancels the changes made to a setting or returns to
the previous screen.
iWireless LAN Connect Button
Used to connect to a wireless network when using the
push button method.
jWireless LAN Connect light
Lights up when connected to a wireless network.
Memo
• For Wireless LAN Connection, once the
machine has an established wireless network
connection, the machine will automatically
reconnect to the same access point/router that
has been established. It will take about few
seconds to few minutes depending on network
environment before the wireless LAN connect
light turns on.
Please wait until the connect light turns on
without pressing any buttons on the machine.
Included Accessories
For details on the included accessories, refer to the
“Included Accessories” insertion.
2
a
3
4
56789
0

6
Removing the Transport Packing
Materials
Before turning on the machine, remove the shipping
tape and the cardboard shock-absorbing material.
aShipping tape
bCardboard shock-absorbing material
Note
• If the packing materials were removed after the
machine was turned on, turn the machine off,
then on again. Continuing to use the machine
without restarting it may result in incorrect
operation.
Turning On/Off the Machine
aConnect the power cord to the AC adapter, and
then connect the AC adapter to the machine.
aPower cord
bAC adapter
Memo
• When using the AC adapter, untie the bundled
cord.
bPlug the power cord into an electrical outlet.
cPress in the operation panel.
Note
• The carriage and mat move to their initial
positions. Be sure to keep your hands away
from the carriage.
dTo turn off the machine, press in the
operation panel.
eUnplug the power cord from the electrical
outlet.
fDisconnect the AC adapter from the machine,
and then disconnect the power cord from the
AC adapter.
Note
• Do not wind the AC adapter cable around the
adapter or bend the cable, otherwise the cable
may be damaged.
TURN ON THE MACHINE
a b
b
a

7
1
This section describes the windows of the dedicated
control application used to cut out or draw patterns.
■Main Window
Computer
Mobile device
1. No.
Displays the machine number of the connected
machine.
2. Search
Searches for connected machines.
* With the mobile device version, tap [No.] (1) to
search for a machine.
3. Login ID
Displays the ScanNCutCanvas user ID used for
connecting to ScanNCutCanvas.
4. ScanNCutCanvas
Displays the window for registering with
ScanNCutCanvas.
5. Load data
Selects the method for importing pattern data. Click
to display a window for selecting how to import the
data.
* With the mobile device version, a preview screen
for the pattern sent to ScanNCutCanvas appears.
6. CaptureMat
Using ScanNCutCanvas create pattern data from an
image taken with a camera.
DesignNCut Manager WINDOWS
1
3
2
4
5
6
5
1
5
3
6

8
■Preview Window
Computer
Mobile device
1. Load data
Imports cutting/drawing patterns from
ScanNCutCanvas or a computer.
2. Operation
Select [Cut] or [Draw] from the drop-down list.
* Other settings may appear in the drop-down list if
a separately sold accessory kit is detected.
* With the mobile device version, tap [Operation] to
display a screen for selecting [Cut] or [Draw].
3. Speed
With the slider, adjust the speed for cutting or
drawing.
* With the mobile device version, tap [Settings] to
display a settings screen.
4. Pressure
With the slider, adjust the pressure for cutting or
drawing.
* With the mobile device version, tap [Settings] to
display a settings screen.
5. Setting Reference
Displays a list of various settings. Refer to this table
before changing the settings.
6. Test Cut
Select [ON] or [OFF].
If [ON] is selected, [Test cut settings] will be available
and can be clicked to display a window allowing
detailed settings for trial cutting to be selected. For
details on displaying the window, see “Trial Cutting”
on page 37.
* With the mobile device version, tap [Test Cut] to
display a settings screen.
7. Apply
Applies the settings that were either selected or
changed.
8. Start
Starts cutting or drawing. To stop the operation, see
“Cutting the Pattern” on page 39.
9. min.
Displays the cutting/drawing time.
9
1
2
3
4
5
6
7
8
9
2
6
8
3,4
5
3
4

9
1
Settings for various functions can be selected or
changed.
Machine Settings
Press or in the operation panel to display
the settings screen. After changing the settings, press
to apply.
■1. Network
1. WLAN Enable
Select whether or not to connect to the wireless
network.
2. Setup Wizard
Uses a wizard for manually entering the network
password (key) for the detected network name (SSID)
to connect to the wireless network from this machine.
3. WAW
Uses the dedicated application “WLAN Assistant
Wizard” to connect to the wireless network from a
computer.
4. WAW <USB>
Uses the dedicated application “WLAN Assistant
Wizard” to retrieve the wireless LAN settings file from
the computer connected by the USB cable, then
connect to the wireless network.
5. Others
Displays the following parameters for other wireless
network settings.
1. TCP/IP: TCP/IP settings can be manually entered.
2. MAC Address: Displays the MAC address.
3. SSID: Displays the network SSID when a wireless
network connection is established.
4. Network Reset: Resets all network settings to their
defaults. When the following message appears, press
to select [Yes], and then turn the machine off,
then on again.
■2. Machine Info
1. No.
Displays the machine number for this machine.
2. Ver.
Displays the version of this machine’s software.
3. Name
Displays the name that was specified for the machine
connected to DesignNCut Manager (DesignNCut
application for operation options).
■3.Basic Setup
1. Language
Select the machine’s display language.
2. Panel Contrast
Adjust the brightness of the LCD.
3. Mark Sensor
In CaptureMat function, the cutting position can be
manually adjusted if it has shifted.
Memo
• “*” appears to the right of the selected item.
■4. Machine No.
Displays the machine number for this machine.
Auto Shut Down
If the machine is not used for a specified length of
time, it will automatically turn off. The length of time
until the machine turns off can be specified in the
Settings dialog box of DesignNCut Manager
(DesignNCut application for operation options).
For details on specifying the settings, see
“DesignNCut Manager Settings” on page 10.
SETTINGS SCREENS
Reset Network?
▼Yes ▲No

10
DesignNCut Manager Settings
Click [Application] or [DesignNCut] in the main
window to display the corresponding menu.
■[Application] Menu
Settings for displaying DesignNCut Manager can be
specified.
Memo
• With the mobile device version, tap in the
upper-right corner of the screen to display the
menu.
1. Support Page
Displays the website for the Brother Solutions Center.
2. Connect DesignNCut
Displays the connection procedures.
3. Guidance
Displays the setup procedures, from specifying
network connection settings to registering with
ScanNCutCanvas.
4. How to Use
Displays overview how to use DesignNCut Manager
and the machine.
5. Operation Manual (PC only)
Displays the Operation Manual.
6. Proxy Settings (PC only)
Manually specify the proxy settings.
7. Language (PC only)
Displays the application's language selections.
8. About DesignNCut Manager (PC only)
Displays information on the control application.
9. Check version
Displays the version information.
10.Usage Information
Displays the usage information.
11.License
Displays information on the software license.
■[DesignNCut] Menu
Settings can be specified for the various operations
available when DesignNCut Manager and the machine
are connected.
Memo
• With the mobile device version, tap in the
upper-left corner of the screen to display the
menu.
1. Settings (General)
Click [Settings], then [General]. After specifying the
desired settings, click [OK] to apply the settings.
aYou can specify a name for the connected
machine.
bSelect the machine’s display language.
cSelect the measurement units displayed in the
windows.
dSelect whether or not an operation sound is
produced, for example, when a button on the
machine is pressed.
eSelect the length of time that the machine is not
used until it automatically turns off. If the
machine is not used for 20 minutes, regardless
of the specified length of time, it will enter the
sleep mode, and the power indicator flashes.
1
2
3
4
5
6
7
8
9
10
11
1
2
3
a
b
c
d
e
f
g

11
1
fSelect from 1/4, 2/4, 3/4 or all of the cutting
area to be used for blade adjustment.
Before cutting out a pattern, this machine
performs an automatic blade adjustment, which
adjusts the direction of the blade outside of the
adhesive area of the mat.
gDisplays the version of this machine’s software.
1. Settings (Operation)
Click [Settings], then [Operation].
After specifying the desired settings, click [OK] to
apply the settings.
aAdjust the speed and pressure for cutting. For
details on the appropriate cutting pressure, see
“Cutting Settings” on page 32.
bAdjust the speed and pressure for drawing. For
best results, adjust the drawing pressure to the
appropriate setting. Drawing with pressure that
is too strong may damage the pen tip.
cSelect the design that will be used to fill
patterns. For details, see “Using Drawing
Functions to Fill Patterns/Make Outlines
Thicker” on page 43.
dWith [Fill Line Spacing], adjust the spacing of
the lines filling the pattern. With [Fill Direction],
adjust the direction of the lines filling the
pattern.
eWith [Additional Line], specify the number of
lines to be added. With [Additional Line
Spacing], specify the spacing of the lines to be
added.
fWhen a separately sold accessory kit is used,
select this check box to enable its functions.
1. Settings (Network)
Click [Settings], then [Network].
After specifying the desired settings, click [OK] to
apply the settings. For details on the network settings,
see “Setting Up Manually” on page 21.
2. Check version
Displays the status of the machine’s software.
* This does not appear when the machine is
connected with a USB cable.
3. Network reset for DesignNCut
Initializes the wireless network settings. For details on
specifying the settings, see “Resetting the Wireless
Connection Setup” on page 20.
a
b
c
d
e
f

12
Selecting the Connection Method
■Step 1
Open DesignNCut Manager (DesignNCut
application for operation options), installed on the
computer.
■Step 2
Connect the machine and the computer with the
DesignNCut Manager (DesignNCut application for
operation options).
When using a wireless connection
Continue to “Wireless Connection” on
page 12.
When using a USB cable
Continue to “Direct PC Connection Using
USB Cable (Windows Only)” on page 18.
Memo
• For the mobile device version, follow the on-
screen instructions to specify the settings.
Wireless Connection
Select the connection method to the wireless
network.
• Using Wireless Network Name (SSID) & Network
Password (Key).....13
• Using Router's WPS button.....15
• Using WLAN Assistant Wizard.....16
• Using WLAN Assistant Wizard with USB
Cable.....17
■Wireless Connection Conditions
The wireless network connection complies with IEEE
802.11 n/g/b standards and uses the 2.4 GHz frequency.
Memo
• A wireless network cannot be set up with WPA/
WPA2 Enterprise. For the authentication
methods that this machine is compatible with,
refer to “Err-03” on P. 60.
CONNECTING THE MACHINE AND COMPUTER

13
1
■Using Wireless Network Name
(SSID) & Network Password (Key)
Select your Wireless Network Name (SSID) and input
the Network Password (Key) of your wireless LAN
access point/router on your DesignNCut machine.
In order to connect the machine to a wireless network,
the security information (SSID and network password)
for your wireless LAN access point/router will be
required. The network password may also be called a
network key, security key or encryption key. First, find
your security information and note it below.
Memo
• The wireless connection cannot be set up if you
do not have the security information.
• Where to find the security information:
1) Check your wireless LAN manual for your
wireless LAN access point/router.
2) The default SSID may be the manufacturer’s
name or the model name.
3) If you cannot find the security information,
contact the manufacturer of the router, your
network administrator or your Internet
provider.
4) Some Wireless Network Name (SSID) and
Network Password (Key) are case (upper
case and lower case) sensitive. Please
properly record your information.
If you have already selected the
connection method, please go to step e
: Operation performed in DesignNCut
Manager
aClick [Start Setup].
bClick [Connect].
cSelect [Wireless LAN], and then click [Next].
* Skip this step for mobile and Mac version.
dSelect [Use Wireless Network Name (SSID) &
Network Password (Key)], and then click
[Next].
* Mobile version will automatically go to the next
screen.
: Operation performed on the machine
eTurn off the DesignNCut machine, by pressing
.
fPress and the at the same time, once
the power comes on release while still
pressing down .
gWhen the message [Machine mode?] appears
on your LCD, press to select [WLAN].
hThe message, [Turn the machine off, then on
again.] will appear on your LCD.
Follow the machine's instruction.
Once your machine is back on, the text [Standby
(WLAN)] should display on your LCD.
iPress to go to [1. Network] and press
.
jPress to go to [2. Setup Wizard] and press
.
kWhen the message [Enable WLAN?] appears on
your LCD, press to select [Yes].
The machine will search for SSID.
* Give your machine time to search for SSID.
lIf you have multiple network names press
to select the SSID (network name) of the
wireless network that your PC/Mobile is
connected and press .
* Your network name selection should match the
wireless network that your PC is connected.
Network Name (SSID) Network Password
(Network Key)

14

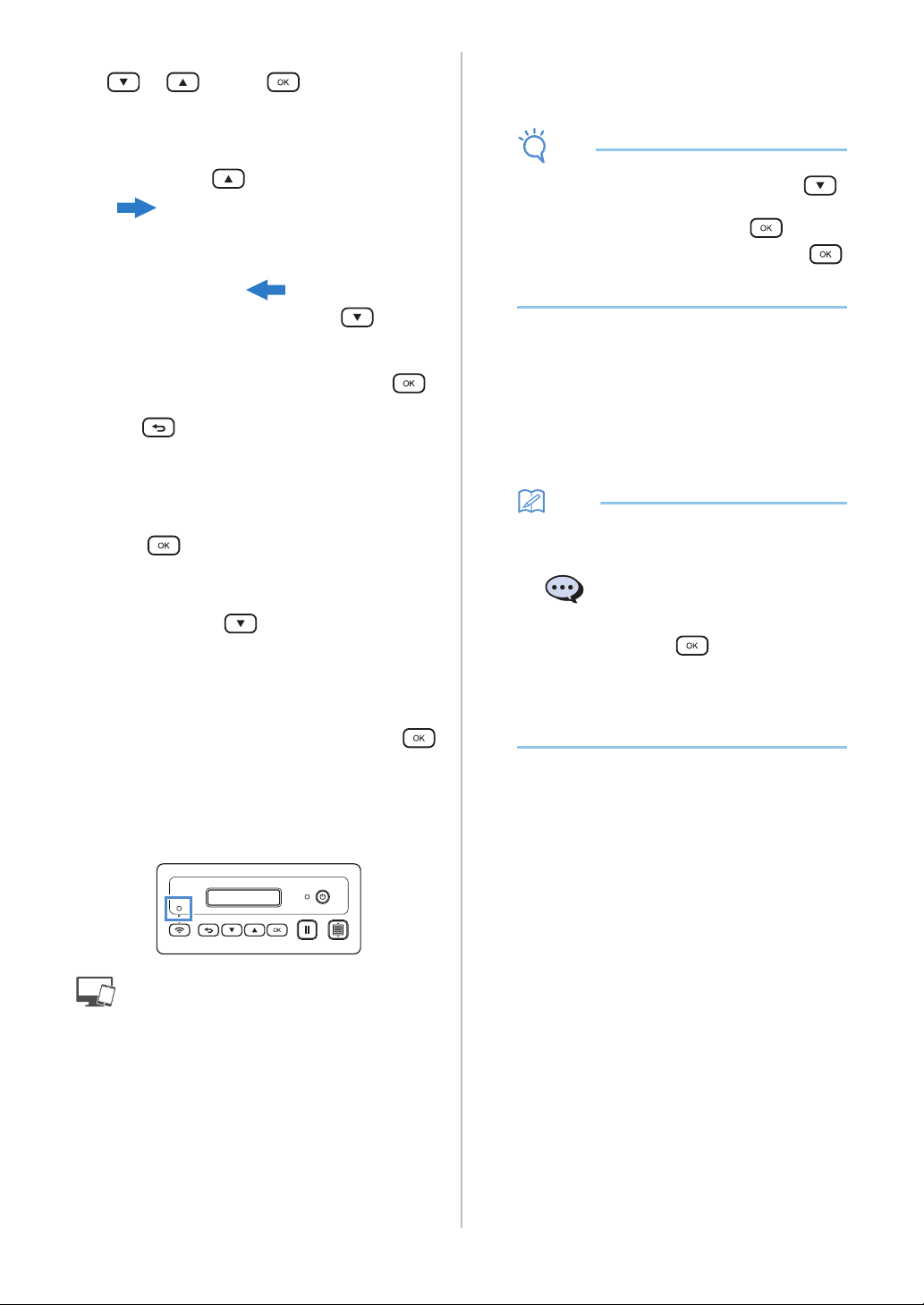

mEnter your network password (key) using the
or pressing after each
character. The characters on the DesignNCut
LCD are listed in the order below.
You must go through each one of these until your
desired character shows up on the LCD. Press
after each character. To erase an entered character,
press .
Make sure that you have the right password and note
some password are case (upper case & lower case)
sensitive.
Your DesignNCut machine and PC connection must
be on the same network.
nPress once you completed entering your
password.
oWhen the message [Apply Settings?] appears on
your LCD, press to select [Yes]. Your
machine will connect to WLAN.
* Give your machine time to connect to your
wireless network.
pWhen the message [Connected to WLAN. Press
[OK] button.] appears on your LCD, press
button on your machine.
qThe Wireless LAN Connect light will turn on.
* Give the Wireless LAN Connect light time to turn
on.
: Operation performed in DesignNCut
Manager
rGo back to DesignNCut Manager and click
[Connect].
sSelect the machine number and then click
[OK].
* For mobile version, tap [Done].
Note
• To check your machine's number, press
to display the [2. Machine Info] on the
machine's LCD, and then press .
When [1. No.] appears on the LCD, press .
Your machine's number will be displayed on the
machine's LCD.
tWhen [DesignNCut connection is successful.]
appears in the dialog box, click [OK].
* For mobile version, this dialog box will not appear.
Continue the guidance instruction to register a
new account on ScanNCutCanvas.
Go to “REGISTER DesignNCut ON
ScanNCutCanvas” on page 22 to connect your
machine to ScanNCutCanvas.
Memo
• If Wireless LAN connection failed and the
following message appears:
an incorrect network password (key) may have
been entered. Press , and then perform
the procedure again starting with step iof
“Using Wireless Network Name (SSID) &
Network Password (Key)” on page 13.
- For details on other causes, see “ERROR
MESSAGES” on page 59.
When pressing
0123456789abcdefghijklmnopqrstuvwxyz
ABCDEFGHIJKLMNOPQRSTUVWXYZ
!"#$%&'()*+,-./:;<=>?@[]^_
When pressing
Network Password (Key) error
(Err-04). Press [OK] button.

15
1
■Using Router's WPS button
Use this connection method if your wireless LAN access
point/router has a WPS button.
Memo
• For details on the WPS button, check your
wireless LAN manual for your wireless LAN
access point/router.
If you have already selected the
connection method, please go to step e
: Operation performed in DesignNCut
Manager
aClick [Start Setup].
bClick [Connect].
cSelect [Wireless LAN], and then click [Next].
* Skip this step for mobile and Mac version.
dSelect [Use Router's WPS button], and then
click [Next].
* Mobile version will automatically go to the next
screen.
: Operation performed on the machine
eTurn off the DesignNCut machine, by pressing
.
fPress and the at the same time, once
the power comes on release while still
pressing down .
gWhen the message [Machine mode?] appears
on your LCD, press to select [WLAN].
hThe message, [Turn the machine off, then on
again.] will appear on your LCD.
Follow the machine's instruction.
Once your machine is back on, the text [Standby
(WLAN)] should display on your LCD.
iPress your router's WPS button.
Make sure your DesignNCut machine and PC
connection are on the same network.
aWPS button
Memo
• The location of the WPS button differs
depending on your device.
jPress on your DesignNCut machine.
kWhen the message [Enable WLAN?] appears on
your LCD, press to select [Yes].
* Give your machine time to connect to your
wireless network.
lWhen the message [Connected to WLAN. Press
[OK] button.] appears on your LCD, press
button on your machine.
mThe Wireless LAN Connect light will turn on.
: Operation performed in DesignNCut
Manager
nGo back to DesignNCut Manager and click
[Connect].
oSelect the machine number and then click
[OK].
* For mobile version, tap [Done].
a

16
Note
• To check your machine's number, press
to display the [2. Machine Info] on the
machine's LCD, and then press .
When [1. No.] appears on the LCD, press .
Your machine's number will be displayed on the
machine's LCD.
pWhen [DesignNCut connection is successful.]
appears in the dialog box, click [OK].
* For mobile version, this dialog box will not appear.
After completing the network connection, see
“REGISTER DesignNCut ON ScanNCutCanvas”
on page 22 to connect your machine to
ScanNCutCanvas.
■Using WLAN Assistant Wizard
Apply wireless LAN settings of your computer to
DesignNCut machine by using the wizard to connect
your computer to WLAN.
If you have already selected the
connection method, please go to step e
To perform this setting, your computer's firewall
must be turned off.
: Operation performed in DesignNCut
Manager
aClick [Start Setup].
bClick [Connect].
cSelect [Wireless LAN], and then click [Next].
dSelect [Use WLAN Assistant Wizard], and then
click [Next].
: Operation performed on the machine
eTurn off the DesignNCut machine, by pressing
.
fPress and the at the same time, once
the power comes on release while still
pressing down .
gWhen the message [Machine mode?] appears
on your LCD, press to select [WLAN].
hThe message, [Turn the machine off, then on
again.] will appear on your LCD.
Follow the machine's instruction.
Once your machine is back on, the text [Standby
(WLAN)] should display on your LCD.
: Operation performed in DesignNCut
Manager
iGo back to DesignNCut Manager and click
[Wizard] and how to use WLAN Assistant
Wizard dialog box appears.
Follow the on-screen instruction to complete
the setup.
: Operation performed on the machine
jWhen the message [Connected to WLAN. Press
[OK] button.] appears on your LCD, press
button on your machine.
kThe Wireless LAN Connect light will turn on.
* Give the Wireless LAN Connect light time to turn
on.
: Operation performed in DesignNCut
Manager
lGo back to your PC and then click [OK] to
complete the setup.
mSelect the machine number and then click
[OK].
Note
• To check your machine's number, press
to display the [2. Machine Info] on the
machine's LCD, and then press .
When [1. No.] appears on the LCD, press .
Your machine's number will be displayed on the
machine's LCD.

17
1
nWhen [DesignNCut connection is successful.]
appears in the dialog box, click [OK].
After completing the network connection, see
“REGISTER DesignNCut ON ScanNCutCanvas”
on page 22 to connect your machine to
ScanNCutCanvas.
■Using WLAN Assistant Wizard with
USB Cable
Apply wireless LAN setting to DesignNCut machine
with the wizard by temporarily connecting your
machine and your computer with a USB cable*.
*USB cable (sold separately)
• We recommend using a USB 2.0 cable (Type A/B)
of 2.0 m or less.
Note
• The connectors on the USB cable can only be
inserted into a port in one direction. If it is
difficult to insert the cable connector, do not
insert it with force and check the orientation of
the connector.
If you have already selected the
connection method, please go to step e
: Operation performed in DesignNCut
Manager
aClick [Start Setup].
bClick [Connect].
cSelect [Wireless LAN], and then click [Next].
dSelect [Use WLAN Assistant Wizard (USB)],
and then click [Next].
: Operation performed on the machine
eTurn off the DesignNCut machine, by pressing
.
fPress and the at the same time, once
the power comes on release while still
pressing down .
gWhen the message [Machine mode?] appears
on your LCD, press to select [WLAN].
hThe message, [Turn the machine off, then on
again.] will appear on your LCD.
Follow the machine's instruction.
Once your machine is back on, the text [Standby
(WLAN)] should display on your LCD.
iPlug the USB cable connector into the
corresponding USB ports on the computer and
on the machine.
aUSB port for a computer
bUSB cable
Note
• USB Cable is sold separately.
: Operation performed in DesignNCut
Manager
jGo back to DesignNCut Manager and click
[Wizard].
kThe WLAN Assistant Wizard starts up. Follow
the on-screen instructions to complete the
setup.
Note
• The default settings for Authentication/
Encryption methods are as follows:
Authentication methods: WPA/WPA2-PSK
Encryption Mode: AES
To select the correct method, please check the
wireless security information of your wireless
access point/router.

18
: Operation performed on the machine
lWhen the message [Connected to WLAN. Press
[OK] button.] appears on your LCD, press
button on your machine.
mThe Wireless LAN Connect light will turn on.
* Give the Wireless LAN Connect light time to turn
on.
: Operation performed in DesignNCut
Manager
nGo back to your PC and then click [OK] to
complete the setup.
oSelect the machine number and then click
[OK].
Note
• To check your machine's number, press
to display the [2. Machine Info] on the
machine's LCD, and then press .
When [1. No.] appears on the LCD, press .
Your machine's number will be displayed on the
machine's LCD.
pWhen [DesignNCut connection is successful.]
appears in the dialog box, click [OK].
After completing the network connection, see
“REGISTER DesignNCut ON ScanNCutCanvas”
on page 22 to connect your machine to
ScanNCutCanvas.
Direct PC Connection Using USB
Cable (Windows Only)
With a USB cable, directly connect the machine and
the computer with DesignNCut Manager
(DesignNCut application for operation options).
If you have already selected the
connection method, please go to step d
: Operation performed in DesignNCut
Manager
aClick [Start Setup].
bClick [Connect].
cSelect [USB Cable], and then click [Next].
: Operation performed on the machine
dPlug the USB cable connectors into the
corresponding USB ports on the computer and
on the machine.
aUSB port for a computer
bUSB cable
Note
• USB Cable is sold separately.
• This connection is for Windows PC only and not
available for Mac computers.

19
1
eTurn off the DesignNCut machine, by pressing
.
fPress and the at the same time, once
the power comes on release while still
pressing down .
gWhen the message [Machine mode?] appears
on your LCD, press to select [USB].
hThe message, [Turn the machine off, then on
again.] will appear on your LCD.
Follow the machine's instruction.
Once your machine is back on, the text [Standby
(USB)] should display on your LCD.
: Operation performed in DesignNCut
Manager
iGo back to DesignNCut Manager and click
[Connect].
jWhen [DesignNCut connection is successful.]
appears in the dialog box, click [OK].
kClick [ScanNCutCanvas] to access to
http://ScanNCutCanvas.Brother.com to register
a new account.
lAfter registering, click [Next].
All settings have been completed.
Click [How to Use] on the DesignNCut Manager
to see tutorial for the basic usage.
mClick [Close].
Note
• When connecting the machine and computer
with a USB cable, the AutoPlay dialog box may
appear repeatedly. To not display the dialog
box, change the AutoPlay settings as described
below.
-Windows7
Click > [Control Panel] > [Hardware and
Sound] > [AutoPlay]. Uncheck [Use AutoPlay
for all media and devices], then click [Save]
to apply the settings.
- Windows 8.1
Move your mouse to the lower right corner
of your desktop. When the menu bar
appears, click [Settings] > [Control Panel] >
[Hardware and Sound] > [AutoPlay]. Select
[Take no action] from the [Removable drive]
drop-down list, then click [Save] to apply the
settings.
- Windows 10
Click > [Windows System] > [Control
Panel] > [Hardware and Sound] > [AutoPlay].
Select [Take no action] from the [Removable
drive] drop-down list, then click [Save] to
apply the settings.
