Bticino Classe 300X User manual

User manual
Classe 300X
www.bticino.com

Classe 300X
User manual

3
Classe 300X
User manual
Your Classe 300X Video Internal Unit, use it now! 5
Answer a call 5
Listen to the answering machine 7
Auto-switching on and camera scrolling 10
Write or record a memo 12
Call another room or apartment (Intercom) 16
Disconnect a smartphone from the system 18
Dissociate a user from the system 20
General information 22
Function keys and status LEDs 22
Home page 23
Enabling functions 24
Quick actions 24
Function status 25
Call forward enabling to the smartphones 26
Enabling to all the smartphones 26
Enabling call forwarding only to the smartphones connected
to the network in “at home” mode. 28
Block calls to all the smartphones 30
Functions 32
Functions 33
Answering machine 34
Cameras 38
CCTV 40
Memo 42
Text memo 44
Audio memo 45
Intercom 46
Activations 48
Quick actions 49
Settings 50
General settings 51
Wi-Fi 51
Associated accounts 56
Time and date 58
Language 58
Information 59
Ringtones 60
Display 61
Clean monitor 61
Background 62
Calibration 62
Answering machine 63
Quick actions 65
Configuration 68
Contents

Classe 300X
User manual
4
Services 70
Inductive loop 70
Door status 71
Office 72
Paging 73
Door Entry App 75
Introduction 75
Account registration 75
Authentication 78
Forgotten password 79
Account cancellation 80
Association of the device 82
Home page 84
Display the cameras or Entrance Panels 84
Open door locks 86
To receive a video door entry call 86
Call home: Call your Classe 300X 88
Menu 89
Activations 90
Users 91
Settings 93
Account 95

Classe 300X
User manual
5
Quick guide

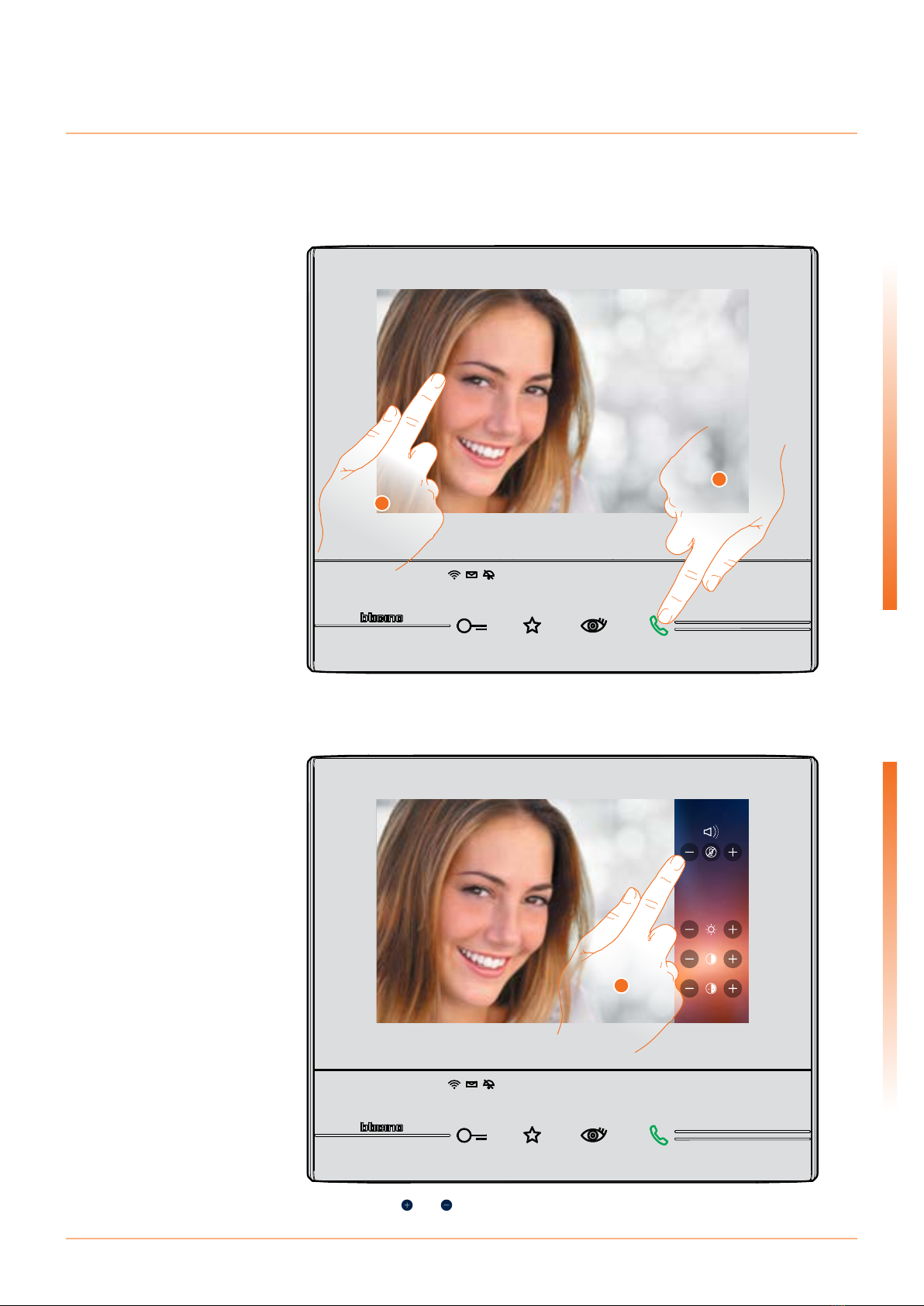

Answer a call
1. Touch to answer the call, the LED comes on steady. To end the call touch the connection key
again.
2. If necessary, during the call touch the screen to display the audio/video adjustment icons.
3. Touch the icons and to adjust the parameters.
Your Classe 300X Video Internal Unit, use it now!
1
2
3

Classe 300X
User manual
6
Quick guide
A. Adjust the volume.
B. Disable the microphone.
C. Adjust the image brightness.
D. Adjust the image contrast.
E. Adjust the image colour.
4. Touch to open the Entrance Panel door lock.
The door lock key lights up briefly, to indicate that the door lock has been released.
4
B
A
C
D
E

Classe 300X
User manual
7
Quick guide
Listen to the answering machine
1. Touch to enter the answering machine and display the message.
2. Touch to open the message.
When there are one or more unread messages in the answering machine, the home page that
opens when clicking the answering machine icon shows a numeric indication, and the memo LED
flashes.
Answering machine
22/10/2013
19:34
22/10/2013
16:30
22/10/2013
17:02
21/10/2013
11: 25
21/10/2013
15:00
20/10/2013
17:59
19/10/2013
14:20
15/10/2013
20:03
2
Back
Quick Actions
10:36
Tuesday, 22 April
Activations
Answering machine Cameras Memo
Settings
Intercom
Private camera
Lock
External intercom
Pager
1
1
Download the Door Entry App

Classe 300X
User manual
8
Quick guide
3. Touch to pause or restart playback.
The message is played back automatically
The message can be managed using the appropriate icons:
A. Adjust the volume.
B. Delete the message.
C. Beginning and end of message.
D. Return to the answering machine screen.
Back
Volume
22/10/2013
18:34
3
Back
Volume
22/10/2013
18:34
C
A
D
B

Classe 300X
User manual
9
Quick guide

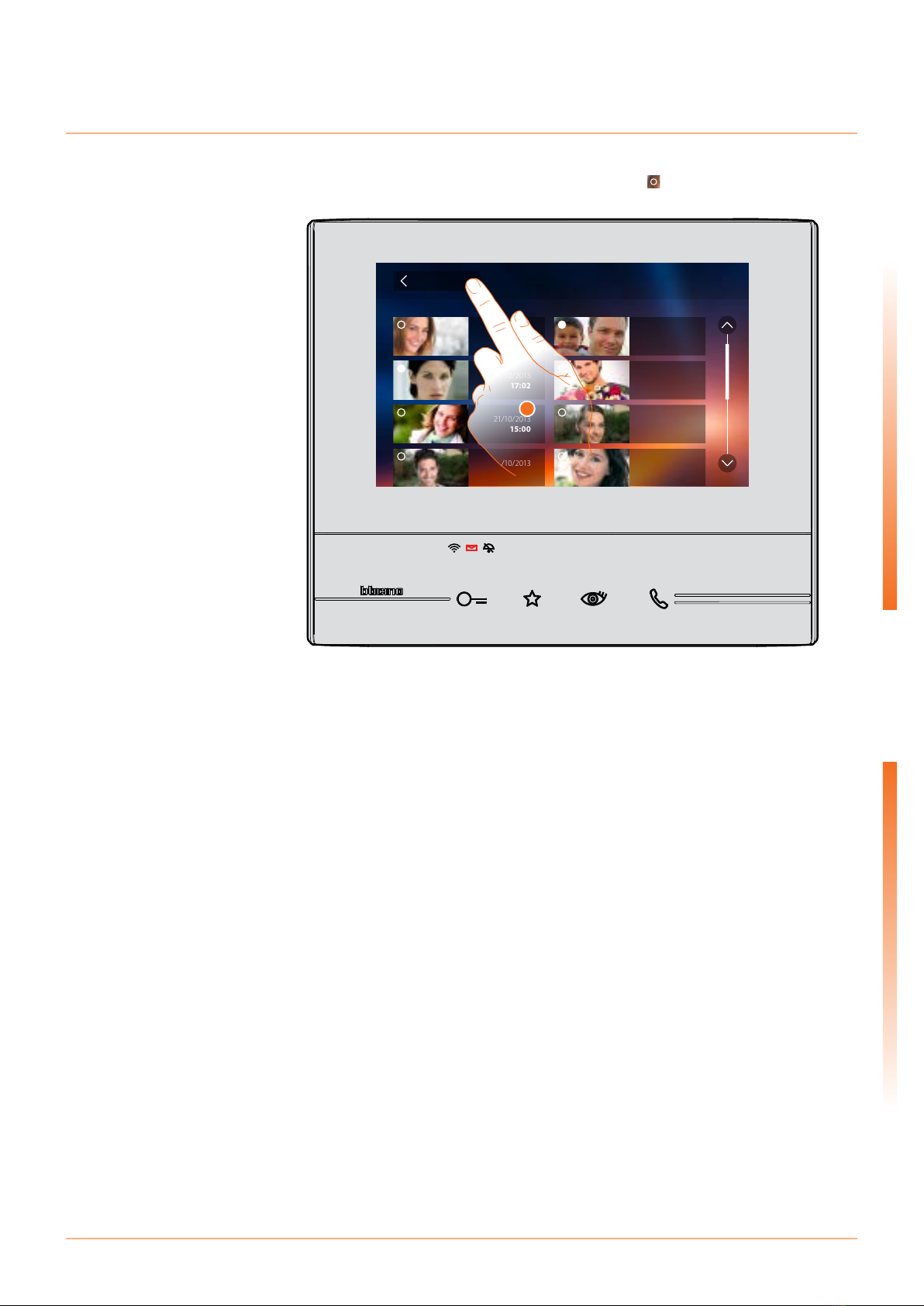

the message status indication automatically switches to “read” , and the numeric indication
disappears from the home page
5. Touch to return to the home page.
Answering machine
22/10/2013
16:30
22/10/2013
17:02
21/10/2013
11: 25
21/10/2013
15:00
20/10/2013
17:59
19/10/2013
14:20
15/10/2013
20:03
Back
22/10/2013
18:34
4

Classe 300X
User manual
10
Quick guide

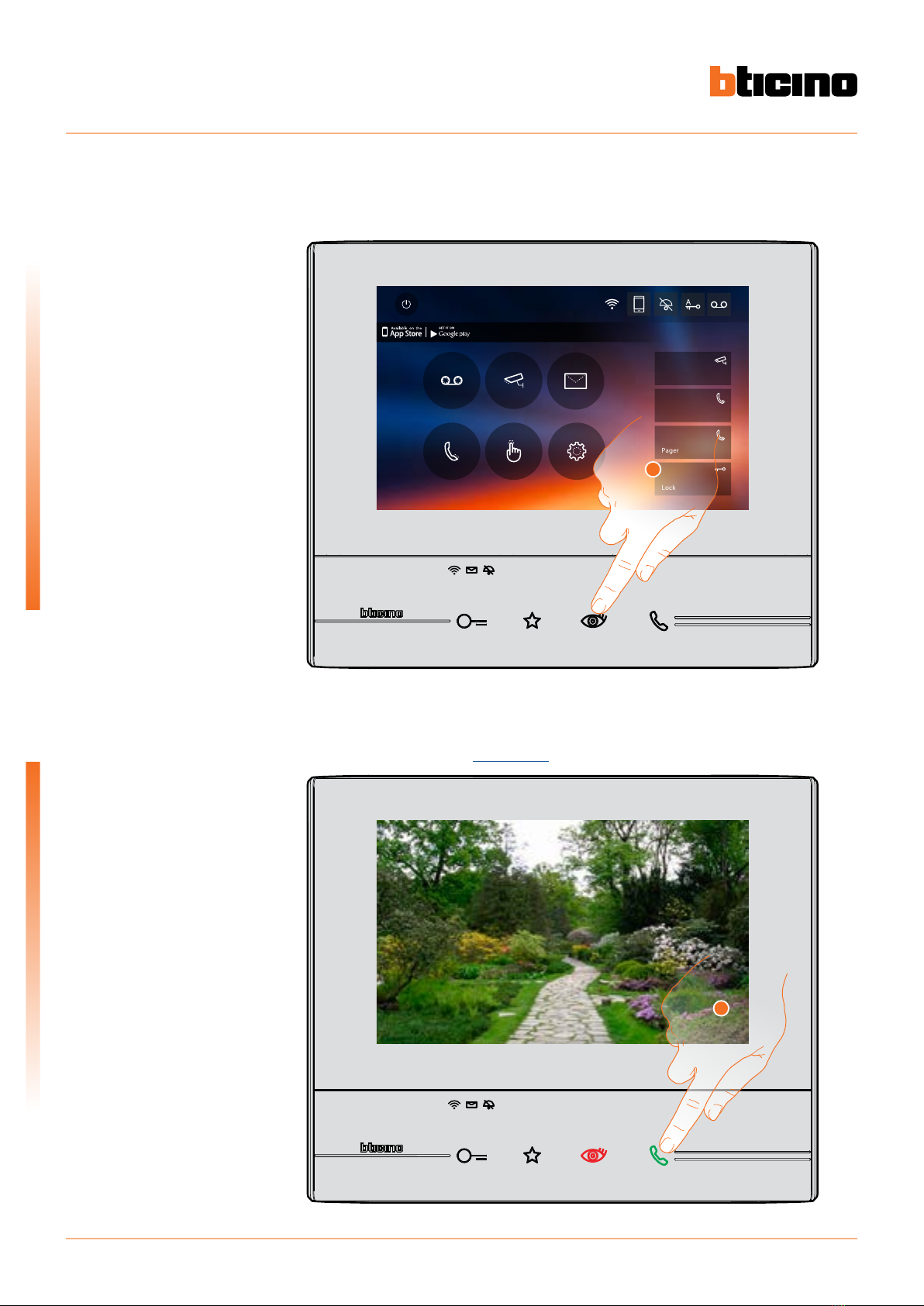

Auto-switching on and camera scrolling
1. Touch to display the cameras in your system.
2. The connection key flashes; touch this key to enable audio communication.
Any cameras installed in the system can be accessed using the dedicated section, or using the
automatic switching on key.
The corresponding key comes on and the display shows the images recorded by the camera of the
associated Entrance Panel.
For the camera adjustments see Answer a call.
2
Quick Actions
10:36
Tuesday, 22 April
Activations
Answering machine Cameras Memo
Settings
Intercom
Private camera
Lock
External intercom
Pager
Download the Door Entry App
1

Classe 300X
User manual
11
Quick guide

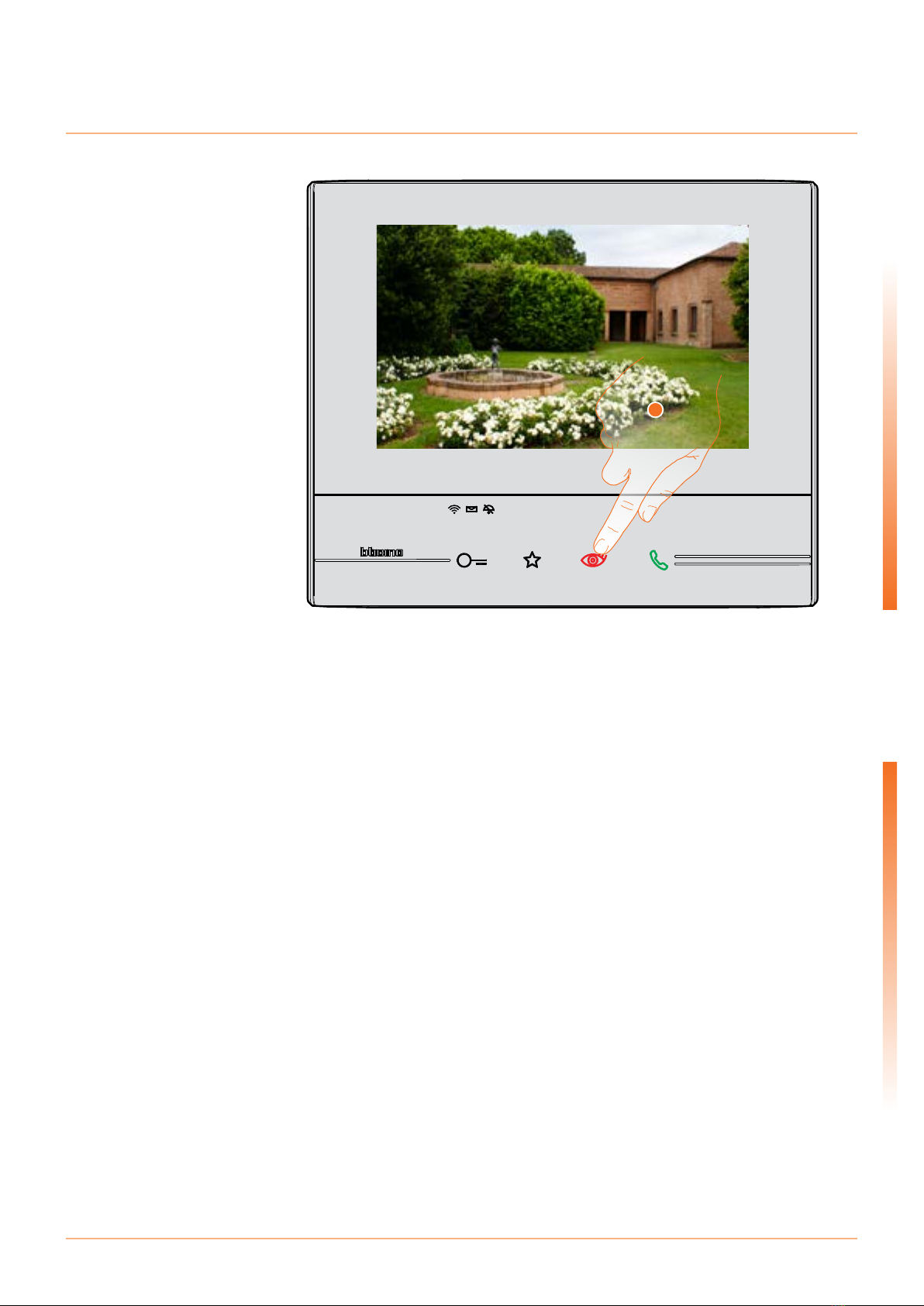

3. Touch to display another camera (scrolling). When switching from one camera to the next, the
key lights up.
To end camera display mode wait for the switching off time to elapse.
3
Note: switching from one camera to another is also possible without enabling the audio.

Classe 300X
User manual
12
Quick guide
Write or record a memo
1. Touch to write and/or record a memo.
2. Touch to write a memo.
It is possible to type a memo, or record a voice message for another user.
Typed memos may then be modified by the recipient, or the same can enter a new one.
Memo
Audio memo recording Write memo
Back
2
Quick Actions
10:36
Tuesday, 22 April
Activations
Answering machine Cameras Memo
Settings
Intercom
Private camera
Lock
External intercom
Pager
Download the Door Entry App
1

Classe 300X
User manual
13
Quick guide
3. Use the keypad to write.
4. Touch to save the text memo.
5. Touch to record an audio memo.
To go to the grocery store
Write memo
Cancel Save
.
q
a
z cx v b n m
s d f g h j k l
y u i o pw e r t
?123
3
4
Memo
Audio memo recording Write memo
10 october, 18:34
To go to the grocery store
Back
5
Note: any unsaved memos will be lost.

Classe 300X
User manual
14
Quick guide
6. Press record and record the audio memo.
7. Touch to stop recording, or wait for the set time to elapse.
Audio memo recording
Press to record
6
Back
Audio memo recording
0:22
Press to stop recording
7
Back

Classe 300X
User manual
15
Quick guide
8. Touch to listen to the audio memo.
9. Touch to save the audio memo.
Note: any unsaved memos will be lost.
Audio memo recording
0:08
Press to listen recording
Cancel Save
9
8

Classe 300X
User manual
16
Quick guide
Call another room or apartment (Intercom)
1. Touch to display the available intercoms.
2. Touch to activate the communication with the desired intercom.
It is possible to communicate with another device installed in another room of the apartment or
with a device of another apartment.
Intercom
Back
External intercom
Intercom 4
Intercom 8
Intercom 1 Intercom 2 Intercom 3
Intercom 7Intercom 6Intercom 5
Intercom 9 Intercom 10
2
Quick Actions
10:36
Tuesday, 22 April
Activations
Answering machine Cameras Memo
Settings
Intercom
Private camera
Lock
External intercom
Pager
Download the Door Entry App
1

Classe 300X
User manual
17
Quick guide
3. Touch to end the call.
When the recipient answers the call, the audio adjustment icons appear; see Answer a call.
Key (A) lights up to indicate that the call is active.
Note: when a call is received from the Entrance Panel while the internal unit is in “intercom” mode, the
system follows the priority rules and ends the active call.
Call to
External intercom
A
Call active
Volume
3

Classe 300X
User manual
18
Quick guide
Disconnect a smartphone from the system
1. Touch to display the smartphones connected to the user.
2. Touch to disconnect the smartphone.
When you want to make it impossible for a smartphone connected to a user to be able to continue
to interact with your Classe 300X (e.g. smartphone fault), you must disconnect it from the user
itself.
Settings > General > Associated accounts
Associated accounts
This is the list of users associated to the video internal unit; press on a user to
see the connected smartphones.
[email protected]om
[email protected]om
Back
1
[email protected]
Press on the bin to disconnect the smartphone.
Press on delete user to dissociate the user and all his smartphones.
smartphone 1
smartphone 2
Delete User
Back
2

Classe 300X
User manual
19
Quick guide
Note: to connect the smartphone to the Classe 300X again, authenticate using the DOOR ENTRY APP.
3. Touch to save it.
[email protected]
Press on the bin to disconnect the smartphone.
Press on delete user to dissociate the user and all his smartphones.
Delete User
smartphone 2
Back
[e-mail]
Press on the bin to disconnect the smartphone.
Press on delete user to dissociate the user and all his smartphones.
smartphone 1
smartphone 2
Delete User
Back
You are disconnecting the smartphone,
it can no longer interact with the video
internal unit connected functions. Are you
sure you want to proceed?
Yes No
3

Classe 300X
User manual
20
Quick guide
Dissociate a user from the system
When you want to make it impossible for a user to be able to continue to interact with your Classe 300X
(e.g. smartphone stolen), you must disconnect it from the system.
You can carry out this procedure either from the Classe 300X or if not available from the DOOR ENTRY APP.
Using the Classe 300X:
Settings > General > Associated accounts
1. Touch to manage the user.
2. Touch to dissociate the user.
Associated accounts
This is the list of users associated to the video internal unit; press on a user to
see the connected smartphones.
[email protected]om
[email protected]om
Back
1
[email protected]
Press on the bin to disconnect the smartphone.
Press on delete user to dissociate the user and all his smartphones.
smartphone 1
smartphone 2
Delete User
Back
2
