Bullet tools Magnum 626 User manual

Applies to Model Numbers: 620 & 626
Read Before Use!
USER GUIDE
Read Before Use!
PRT-INS-0600Rev.D.8.19 ©2019 Bullet Tools
www.BulletTools.com • 208-772-0175
620
626

2
WARNING Very Sharp Blade
!
WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS INJURY!
Using this machine with respect and caution
will considerably reduce the risk of personal injury.
SAFETY RULES FOR THE MAGNUM™ SIDING SHEAR
1. Read and understand this instruction manual before operating the Magnum™ Siding Shear.
2. If you are not thoroughly familiar with the operation of the Magnum™ Siding Shear, obtain
advice from a qualied instructor or call Bullet Tools™ at 1-208-772-0175.
3. Stay alert. Do not operate while under the inuence of drugs, alcohol, or medication.
4. Always wear safety approved eye protection with side shields (ANSI Z87.1).
5. Keep work area clean and free of debris.
6. Keep children and unauthorized persons away from the Magnum™ Siding Shear and work area.
7. Make sure tool is secure. Operate only on a rm substrate or solid stand.
8. Use the right tool. Do not force the Magnum™ Siding Shear or use it for a job for which it was not
designed; use only on approved materials.
9. Keep blade sharp. A dull blade will not perform properly.
10. Always keep hands away from blade while operating or carrying.
11. Do not alter or misuse this tool. The Magnum™ Siding Shear is precision built; modications not
specied in this manual may result in a dangerous condition.
12. Maintain Magnum™ Siding Shear with care. Keep blade sharp and clean. Follow instructions for
lubricating and changing accessories.
13. Use only recommended accessories. The use of improper accessories may cause hazards or
injury.
14. Never leave the Magnum™ Siding Shear unattended. Secure the handle with the safety lock
when not in use.
15. Warning: The dust generated by cutting certain wood, wood ber, ber cement, and/or PVC
products can be injurious to your health.
16 Bullet Tools™ does not endorse or warrant inferior "knock o" imitations of our designs. Using
these may be dangerous — please contact the manufacturer about any defects with these.

3
1. Power Assembly
2. Handle Assembly
3. Fences (2)
4. Table
5. Tail
6. Rails (2)
7. Hone Stone
8. Angle Bracket
9. Mount Bracket
10. HARDWARE KIT
Item A. (4) 8mm x 60mm PH Phillips Machine Screws
Item B. (4) M8 Star Washers
Item C. (4) 8mm x 25mm PH Phillips Machine Screws
Item D. (6) 6mm x 16mm PH PHillips Machine Screws
Item E. (5) #10 x 1 PH Phillips Self Tapping Screws
Item F. (1) M16 x 50 BHCS (Pre-Installed in Cam)
Item G. (1) 10mm Hex Wrench (Not Shown)
SET UP
ASSEMBLY
1. ATTACH RAILS
Attach rails to base using Item A machine screws
fitted with star washers, Item B. Do not tighten
screws until after step 3.
Please Review and Verify Parts Included in Box:
HARDWARE KIT*:A E F
D
C
B
2
3
48
5
6
9
A
B
1
7
2. ATTACH TAIL
Attach tail and angle bracket(s) to rails using
Item C machine screws. Make sure holes in tail are
facing up. Do not tighten screws until after step 3.
1 2
*The Hardware Kit is used in
multiple models. Your Shear may
not use all of the items listed.
START ALL SCREWS BY HAND TO AVOID CROSS-THREADING
620
626

4
Back Stroke Stop
M16 x 50 Bolt
Cam Shaft
Handle
Assembly
SET UP

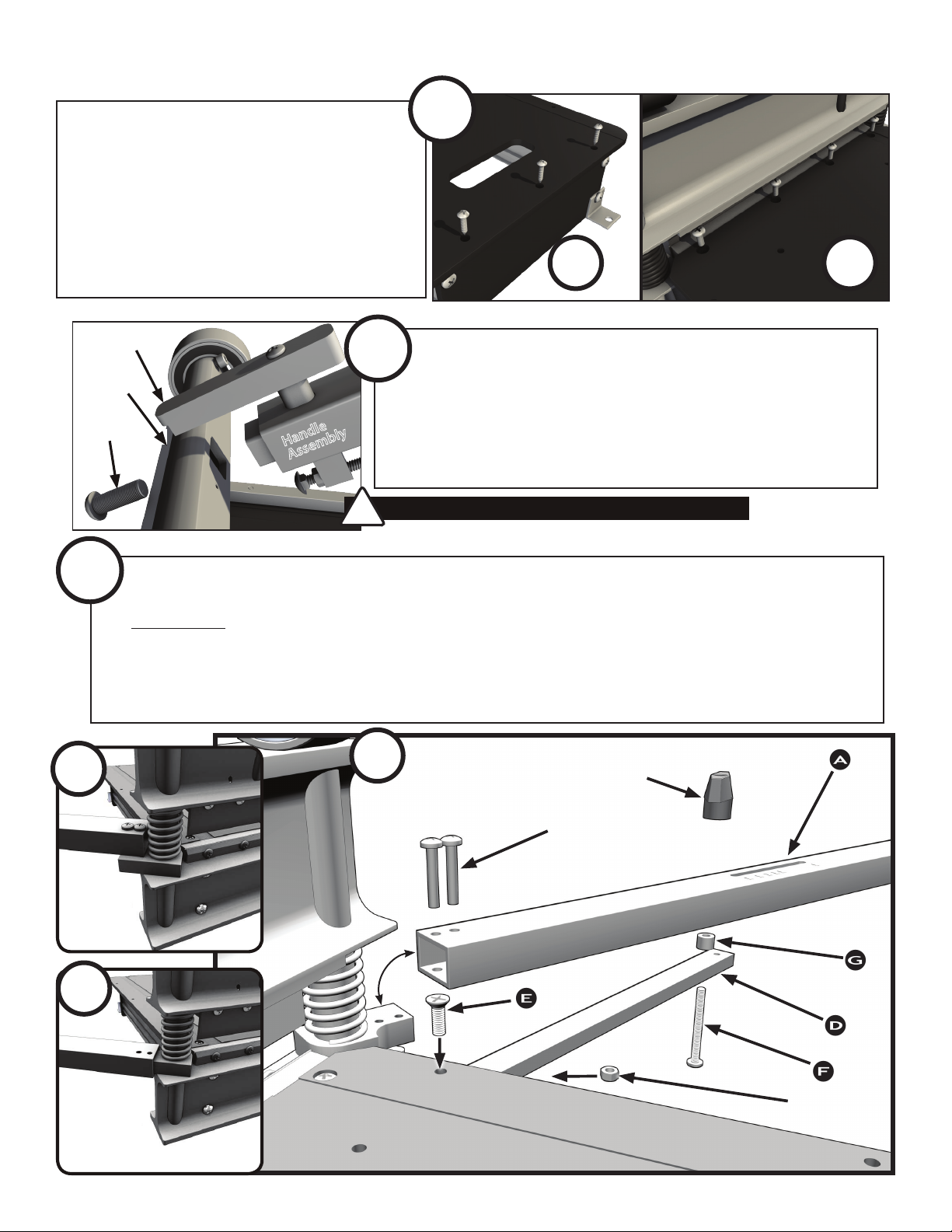

3. ATTACH TABLE
A. Attach table to tail using Item E self
tapping screws. Do not tighten screws until
after step B.
B. Attach table to base working outward
from center. Start all screws by hand, using
Item D machine screws. Tighten Item D
machine screws from center out.
3
3B3A
4. ATTACH HANDLE:
Insert handle into cam shaft.
Note: Backstroke Stop must face upward!
Tighten Item F Bolt (pre-installed in cam shaft)
with 10mm hex wrench Item G (Included).
Note: Do not remove plastic tie and orange tag until handle is bolted in place.
Handle under extreme pressure - do not allow to slam back!
!
4
b
c
d
e
f
j
g
ha
Fence
mounts on
top oF pivot
PIVOT
FENCE
Y
YES
pivot Does not
inseRt into Fence
THIS IS WRONG!
Z
NO!
INSTALLING THE ANGLEMASTER™ FENCE SYSTEM
1. Swing corner pivots out to align parallel with head beam. Fasten both fencesa
ON TOP OF corresponding corner pivots b(See picture Y below) using screws M6 x 35 PHP
screws c. Orient fence aso that the slot is away from the table.
2. Attach struts dto table using ¼-20 x 1¼ FHP screws eand locknuts e. Thread ¼-20 x 2¾ PHP
screws finto struts dand up through spacer gand slots in fences a.
3. Thread knobs honto screws fand tighten at desired angle.
5
5A
5B
5C

5

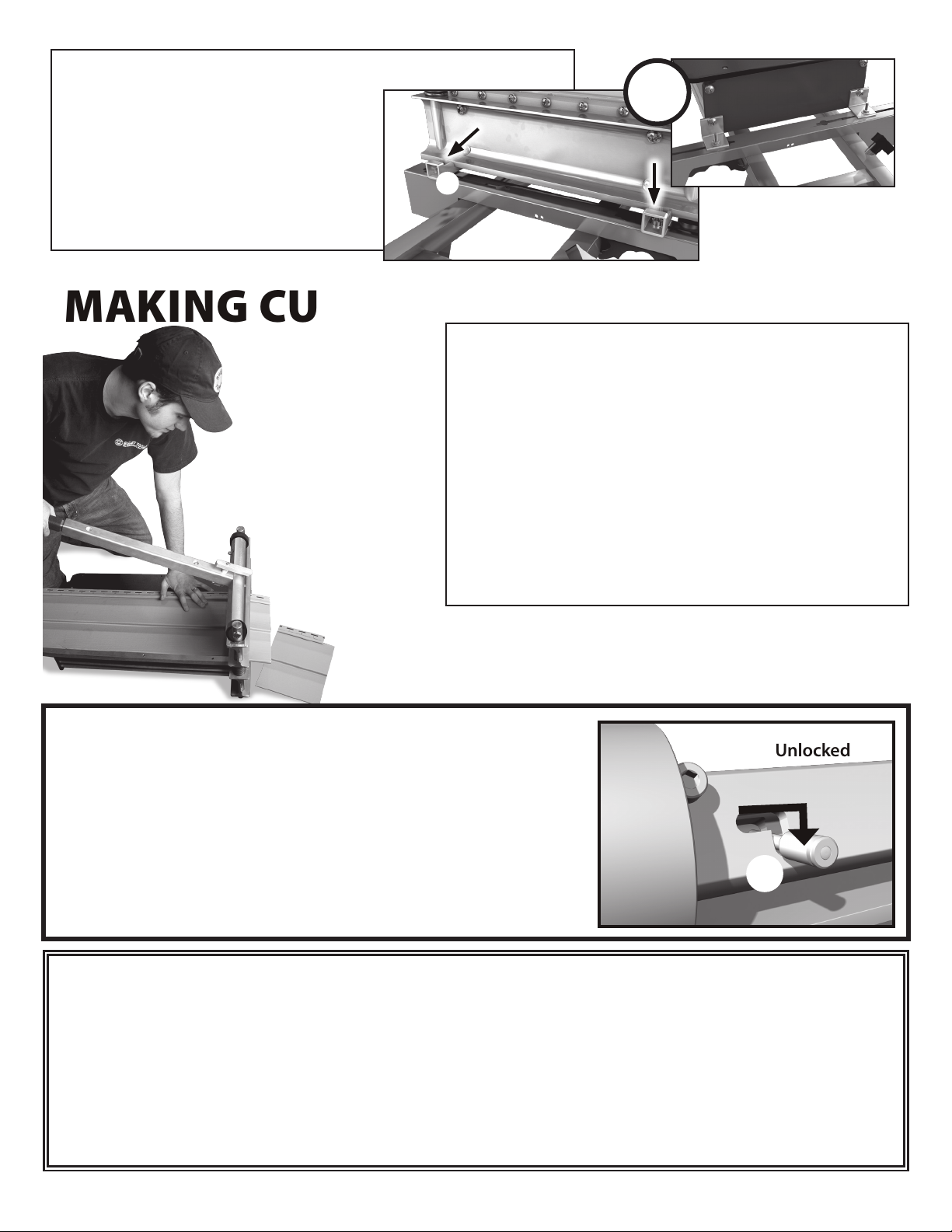

6. MOUNT TO STAND OR CUTSTATION
Hook square bracket kunder the
lower flange of the base. Set shear in
place on chopsaw-stand or on a pair
of (fastened) 2x2s (38mm X 89mm)
spaced 24.5” (622mm) apart and bolt
or lag into place. Bolts and lag-screws
not included.
6
k
MAKING CUTS
Your Magnum™ Siding Shear is operated manually.
The handle is grasped by the operator and pushed
down to make a cut.
1. Unlock safety lock (see l).
2. Insert material. It is recommended that you hold
material in place until the cut is complete.
3. PUSH HANDLE DOWN TO CUT. Some effort may be
required depending on hardness of material.
4. CAUTION: Handle is spring loaded. DO NOT ALLOW
HANDLE TO SLAM BACK AFTER MAKING A CUT.
TIP: Double CuTTIng
Most materials (listed on p. 10) shear very well with just one cut. However, some brands of fiber cement
siding and other products may require cutting twice to produce a better cut.
Simply make your first cut 1/8" to 1/4" (3 to 6mm) longer than your mark, then go back and make your
second cut on your mark. This is very useful to create a cleaner cut when a trim molding or transition
cannot be used to cover your cut end.
SAFETY LOCK
For maximum security, the safety lock will automatically reset in
the "locked" position unless disengaged. The safety lock can be
disengaged by sliding the knob lover and down into slot.
TRANSPORT
It is important to re-engage lock and secure unextended handle
in down position while storing, carrying, or transporting your
Magnum™ Siding Shear.
Unlocked
l

6

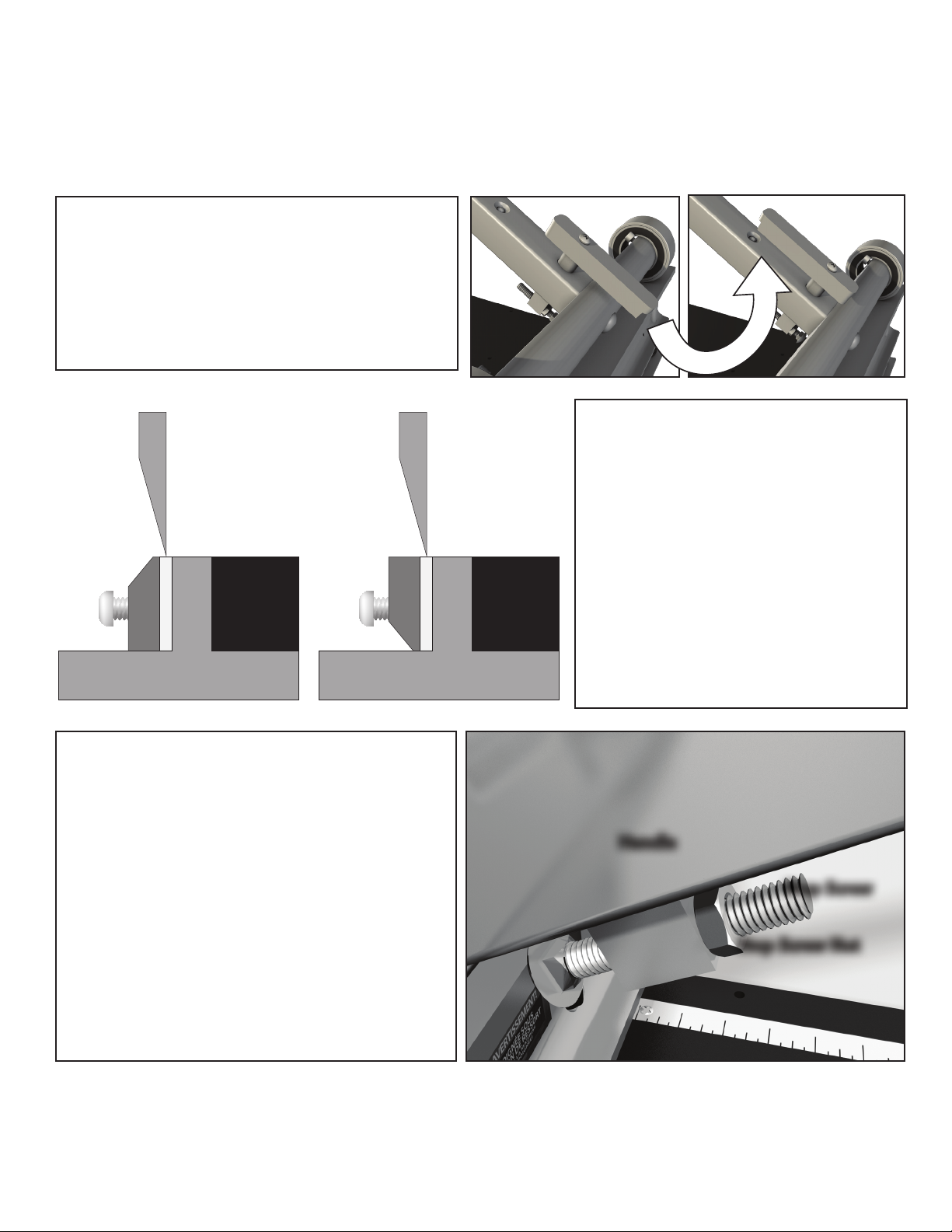

CUSTOM SETTINGS
BACKSTROKE STOP
To cut approved products over 3/4" / 19mm
thick, loosen Phillips head screw on the
Backstroke Stop; turn the Backstroke Stop 180º
and tighten screw. For more convenience when
cutting thinner products, restore factory setting.
THE ANVIL
The Anvil has two edges: a 1/32"
(0.75mm) narrow edge and a 3/16"
(4.5mm) wide edge. Either edge can be
used according to the support needed
to make a clean cut. (Some soft-backed
products require the wider anvil edge).
TO CHANGE BETWEEN
ANVIL EDGES
Simply remove the anvil screws and flip
the anvil over. Ensure blade stop is in
place.
CUTTING DEPTH
You may need to adjust the height of the blade
to cut all the way through your product. You can
do this by:
ADJUSTING THE STOP SCREW
1. Loosen the stop screw nut and turn stop screw
until it is loose. Release handle to open blade.
2. Push the handle down until the blade is resting
on the "blade stop"
3. Adjust the stop screw until it makes contact
with the power assembly.
Set to cut over 3/4"
or 19mm
Factory Setting
Turn 180º
Handle
Stop Screw
Stop Screw Nut
TABLE
I-BEAM
ANVIL
BLADE
BLADESTOP
TABLE
I-BEAM
ANVIL
BLADE
BLADESTOP
TABLE
I-BEAM
ANVIL
BLADE
BLADESTOP
TABLE
I-BEAM
ANVIL
BLADE
BLADESTOP

7
MAINTENANCE
WHEN TO HONE
There are three situations when it isvery important
to hone the blade (remove burrs) on the flat side
of the blade.
1. After the first 30-100 cuts on a new blade
2. Every 100+ cuts on the job
3. When the blade has been re-sharpened
SHARPENING THE BLADE
The blade can be sharpened to restore a one-side, 21º - 22º knife edge. It is important to note that the
blade must be sharpened only on the beveled side, leaving the flat side flat.
We recommend that power grinding only be done professionally, as the blade must be fluid cooled during this process.
ADJUSTING THE BLADE
Your Magnum™ Siding Shear is equipped with adjustment "jack" screws (see pic on next page) for fine
tuning the angle of your blade or compensating for small blades (Blades shrink every time they are
re-sharpened). To tilt your blade, turn the machine upside down as when removing the blade - loosen
(but don't remove) the Item D screws. Adjust the jack screws to desired position with 5/32" or 4mm
Allen wrench.
TO HONE
With the blade in the machine, it is quick and
easy to hone; Simply pull the Magnum™ Siding
Shear handle down until the blade is just above
the blade stop (approximately 1/8"). Then, lay
the wide flat side of the hone stone against
the flat side of the blade and move hone stone
from end to end 2 to 3 times to remove any
burrs.
Use Hand Protection! Blade is very sharp!
Note: It is not necessary to remove the small nicks or chips from
the blade edge when sharpening or honing.
!
Beveled Side Flat Side
(Table Side)

8
MAINTENANCE

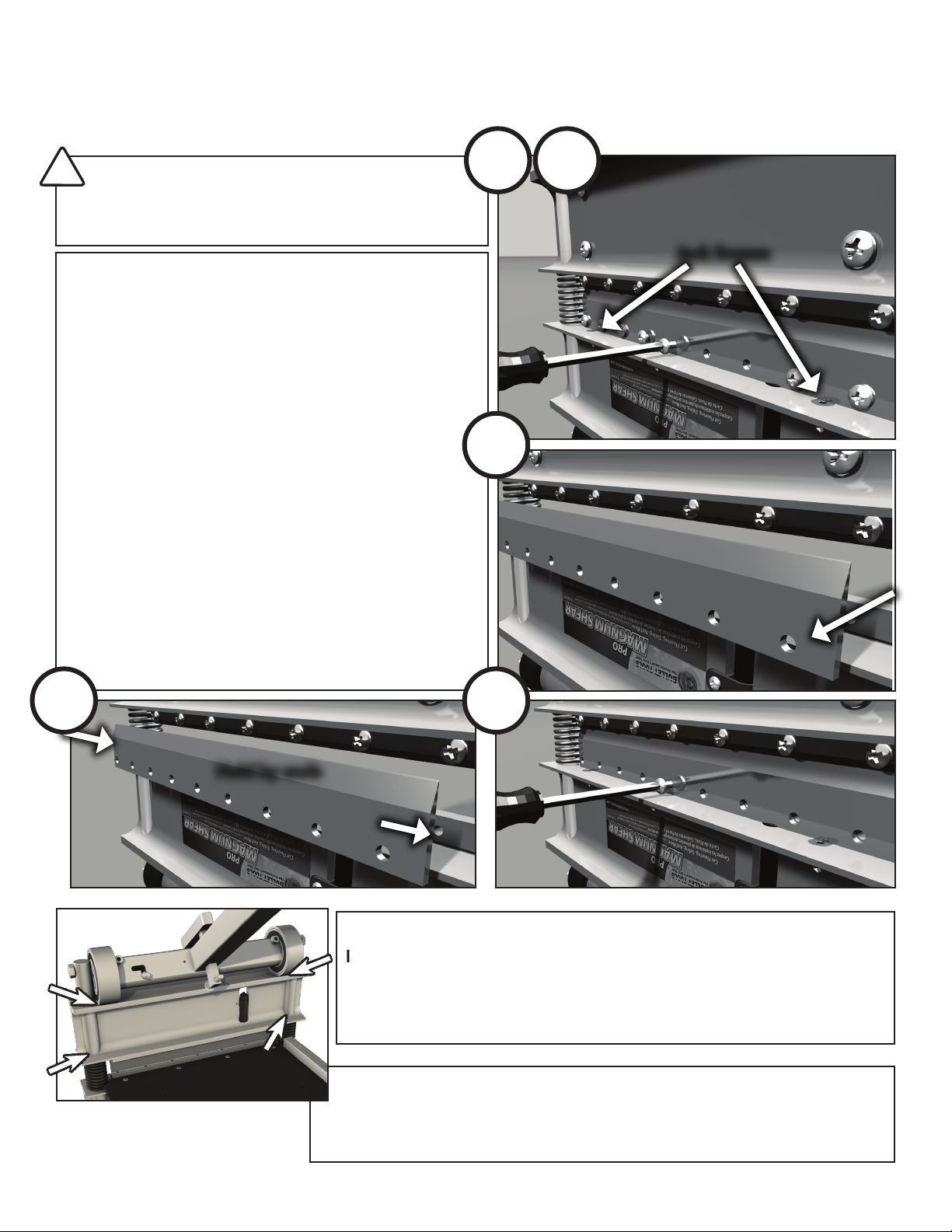

CHANGING THE BLADE
WARNING
Blade is extremely sharp! Use hand protection when
removing, honing, or sharpening blade!
LUBRICATING
It is important to spray a fine layer of Slick Shot™ lubricant over the
power assembly at the points indicated (Shown Left) once every
month. Wipe down with WD40™ or a light machine oil to prevent
corrosion.
THE BLADE STOP
The blade stop may become worn. Remove anvil, turn blade stop
over for more use. Replacements can be purchased at your dealer.
1. TURN SHEAR UPSIDE DOWN
Tip: put the shear on the edge of a sturdy table.
2. LOOSEN BLADE
Using a Phillips screwdriver, remove the Item D
screws.
3. REMOVE BLADE
Hold blade by each end and carefully lift out
of pocket.
4. INSTALL BLADE
Hold blade by each end and carefully place into the
blade pocket in the head, with the flat side of the
blade facing the table. Be sure that it is firmly seated
and the pocket is clear of debris.
5. TIGHTEN THE BLADE
Using a Phillips screwdriver, replace & tighten the
screws, starting with the center screw.
!12
3
4 5
Hold by ends
Jack Screws

9

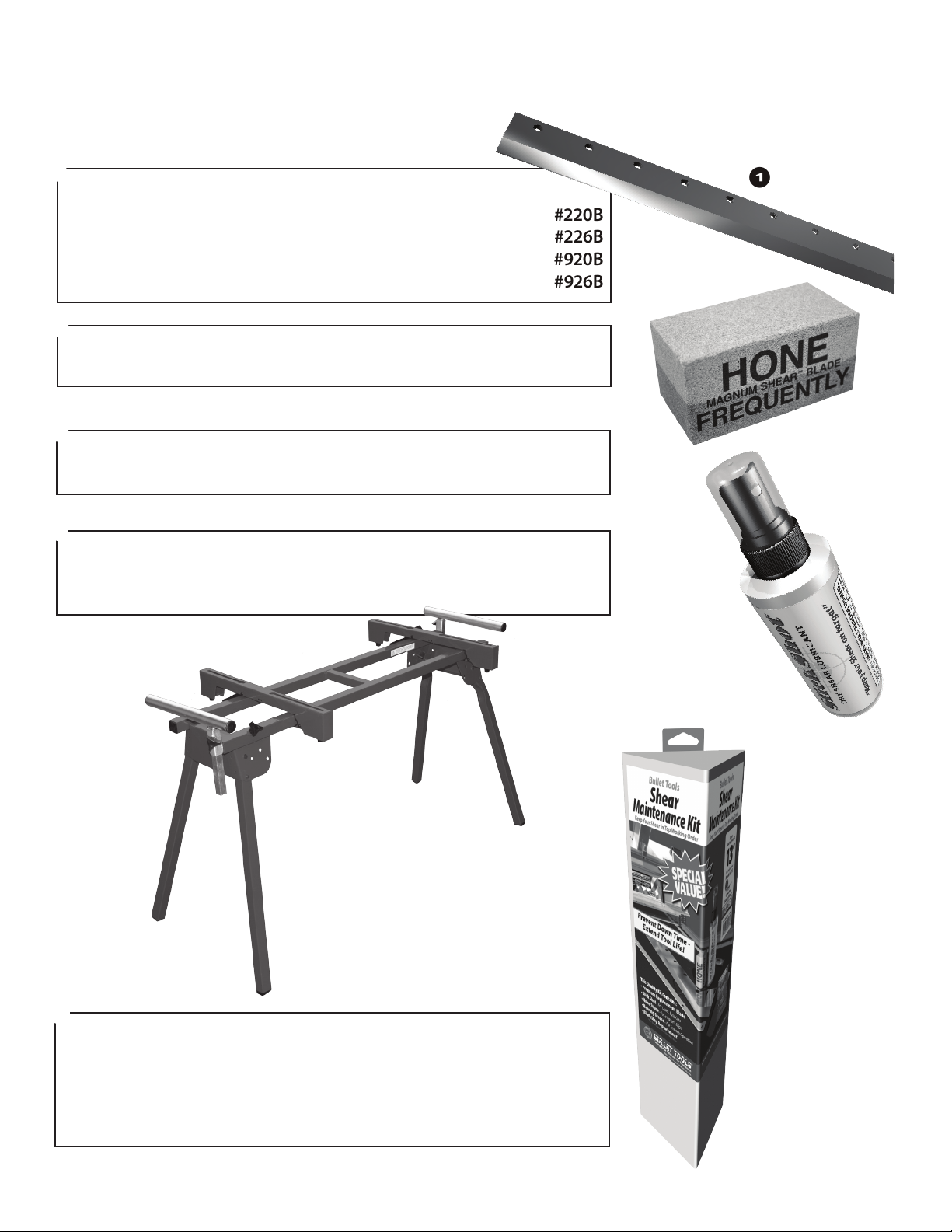

AVAILABLE ACCESSORIES
REPLACEMENT BLADES
20" Siding Blade #220B
26" Siding Blade #226B
20" All-Purpose Premium Blade #920B
26" All-Purpose Premium Blade #926B
HONE STONE #701S
Keep your blade honed for longer use!
SLICKSHOT #701SL
Dry lubricant for the Magnum™ Siding Shear.
11
2
2
3
3
SHEAR STAND #709
Provides a sturdy, raised platform for use or display. Mounting
bracket included with your Magnum™Siding Shear.
4
4
SHEAR MAINTENANCE KIT
An essential tool care product engineered to extend the life of any
Bullet Tools shear. Each kit is specially designed and assembled for
your shear. Features a 1-year extended warranty on new and current
Bullet Tools warranty. Includes replacement blade.
5
5

10
WARRANTY
30 Day Satisfaction Guarantee
Bullet Tools™is condent that you will be absolutely pleased
with the purchase of our product. If, for any reason, you are
not completely satised with your tool, we will refund your
purchase price at any time within 30 days of your original
purchase (receipt required). If you want to return your
product under our 30-day no risk trial oer (valid only for
purchases made in the US), please contact us at 208-772-
0175 for return instructions.
BULLETPROOF WARRANTY GOLD (5 Year)
Bullet Tools warrants only to the original purchaser of
this product, when purchased from an authorized North
American reseller or distributor, that this product will be free
from defects in material and workmanship under normal
use and service for ve (5) years from initial purchase. This
warranty includes all parts except the blade and cosmetic
appearance (chips, dings, scratches) caused by normal use
and wear. This warranty does not cover any damage due
to accident, misuse, abuse or negligence. Further, it is valid
only if the product is used with the cut products specied
in the cut guide. Please refer to the User Guide for details or
call Bullet Tools technical support. In order to recover under
this limited warranty, the purchaser must make claim to
Bullet Tools within 60 days of occurrence and must present
acceptable proof of original ownership (such as original
receipt, warranty card registration, on-line registration,
or other documentation Bullet Tools deems acceptable)
for the product. Bullet Tools, at its option, shall repair or
replace the defective unit covered by this warranty.
Bullet Tools disclaims all warranties, express or implied,
including all warranties of merchantability and/or tness
for a particular purpose. Additional rights may be available
under the laws of your state or province. Any and all
warranties, written or implied, are void with any alterations
to the product. Note: Bullet Tools shall not be liable for any
special, incidental or consequential damages, including
but not limited to lost revenue, lost prots, rental or
replacement equipment, downtime, damage to property
and third-party claims, arising out of any theory of recovery,
including warranty, contract, statutory or tort.
Your Magnum™Siding Shear cuts a wide variety of
products. Please refer to this cut guide for
recommended products and thicknesses.
Please note: Approved materials may vary
in density and hardness. If extreme pressure
is required to cut a product, it may result in
damage to your machine. Please contact Bullet
Tools™before proceeding. Warranty is void if an
unapproved product damages the machine.
Magnum Siding Shear
CUT GUIDE
Maximum Thickness = 25mm or 1”
Material
Siding, Fiber Cement Board
Siding, Pressboard Lap
Siding, Vinyl
Siding, Wood
Trim, OSB
Trim, Fiber Cement
Trim, Vinyl
Shingles, Tar or Wood
Commercial Vinyl
Luxury Vinyl Tile
Parquet
Laminate Flooring
PVC Tile
Rubber Cove Base
Rubber Tile
Soft Plastic
To obtain warranty service,
contact Bullet Toolsat 1-208-772-0175, or go to
www.BulletTools.com/support/warranty-claim/
for pre-authorization and further instructions.
