Bullet tools Vinyl Glider Instruction Manual

A
B
D
C
E

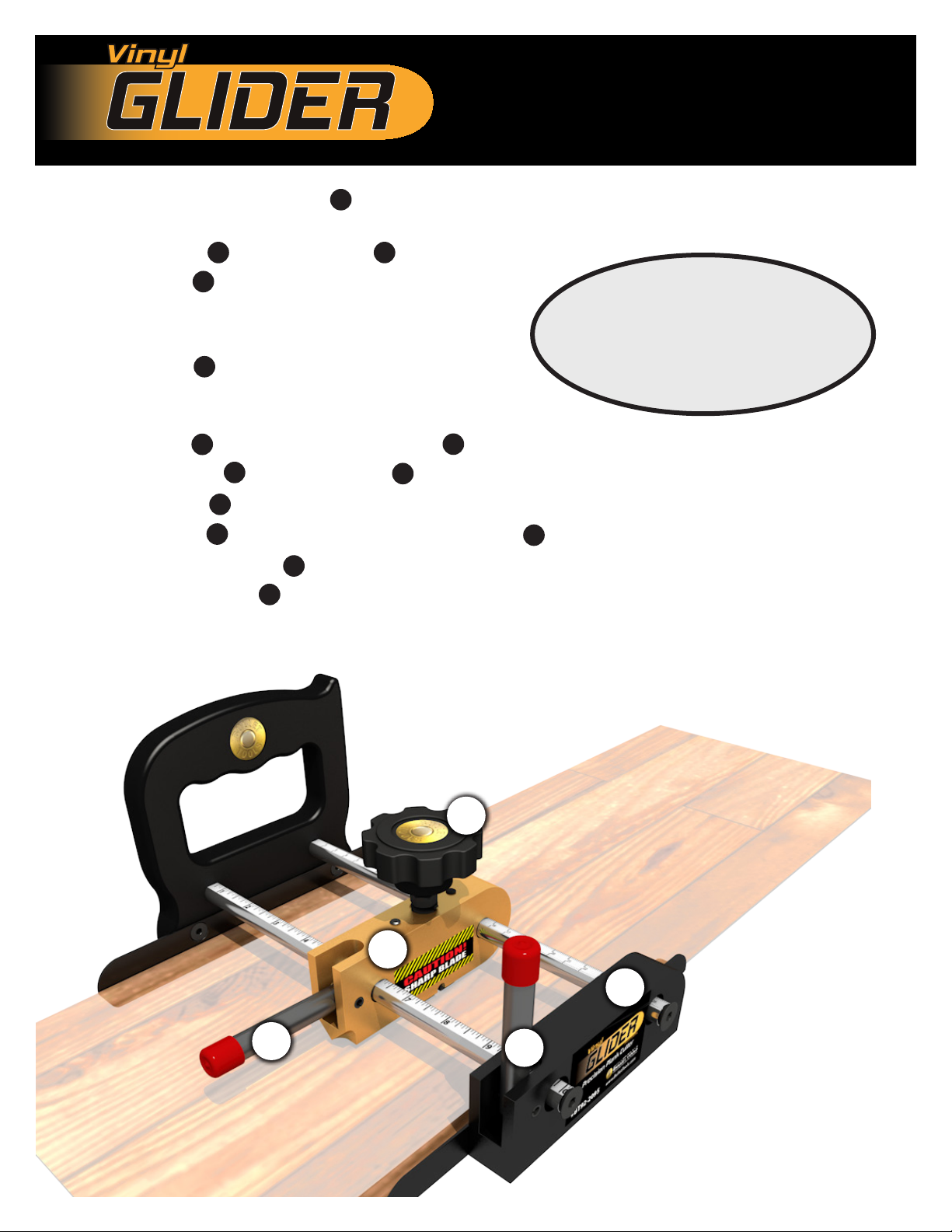

1. Retract blade by turning depth knob ➊counterclockwise. You can stop when blade is fully retracted into the receiver.
Continue to rotate knob if you would like to remove it completely.
2. Unlock guide fence ➋by lifting latch lever ➌.
3. Slide guide fence ➋to the widest position.
4. Place the Bullet Vinyl Glider over an LVP plank.
a. Set the LVP plank onto the handle side runner.
5. Slide guide fence ➋up to the plank
a. Set the LVP plank onto the fence side runner.
b. Vinyl plank should be captured on both sides.
6. Lock guide fence ➋by pressing down on latch lever ➌.
7. Unlock blade receiver ➍by lifting latch lever ➎.
8. Slide blade receiver ➍to the desired position (the right side is calibrated to the scale).
9. Lock blade receiver ➍by pressing down the receiver latch lever ➎.
10. Extend blade by turning knob ➊clockwise. Blade should cut into LVT by about 1/16” (1.5mm).
11. Press firmly down on knob ➊and slide glider along the full length of your vinyl plank.
a. If needed, extend blade further and slide the glider back along the vinyl plank.
12. Slide the glider off the end of the plank.
13. Flex the vinyl plank up, then down - to snap it along the line.
A
A
A
B
B
B
B
D
D
D
E
E
C
C
ALWAYS OPERATE OVER A
SOLID AND SECURE SURFACE
(such as a concrete or wood oor)
#BT92-2095
TM
The
PATENT PENDING
PATENT PENDING
Operation

For easier adjustment, apply grease or teflon spray
(such as Bullet Tools Slick Shot ™) to the slide shafts at the start of every work day.
Clean all glue residues from the runners and blade cartridge
with mineral spirits or similar solvent before storing.
F
K
G
J
H
J
Extend the blade cartridge fully by turning the handle knob clockwise until it
stops. Do not force the knob further.
Use a pen or small screwdriver to push the axle pin Z out of the blade cartridge.
Slide the blade and spacers out of the blade cartridge.
Discard the old blade and place a new one onto the axle pin , sandwiched between
the two spacers.
Apply a film of grease to the small steps on the sides of the spacers and to the axle
pin.
Slide the blade and spacers back into the blade cartridge and center the
axle pin.
G
G
G
G
F
F
K
H
H
J
J
J
J
F
Blade Change
Maintenance
PRT-INS-5201.R1.2.17 ©2017 Bullet Tools
