Bully dog 40417 User manual

GT Platinum

Part #40417

Doc. 40417-99 v1.0

Not legal for sale or

use in California on

pollution-controlled

vehicles.

40417 GT PLATINUM

CONTENTS

About the GT ......................................................... 2-22

Preview of Basic Installation Steps.............................................2

Tuning Information....................................................................2

Vehicle Applications...................................................................3

Parts List....................................................................................4

Parts Description.....................................................................5-6

Button Navigation .....................................................................7

The Main Screen.........................................................................8

Available Options – All Models .............................................9-22

ChangeVehicle..............................................................................................9

Install Download...........................................................................................9

Gauge Setup............................................................................................9-11

User Options................................................................................................12

Reset Average Economy..............................................................................12

PerformanceTesting....................................................................................12

Driving Coach Setup..............................................................................13-15

Vehicle Settings...........................................................................................16

Special Functions ........................................................................................16

Diagnostics..................................................................................................22

Show Settings .............................................................................................22

Uninstall GT.................................................................................................22

Update GT Software....................................................................................22

Important Warranty Information ...............................22

Updating the GT ..................................................23- 30

Overview ............................................................................23-24

FAQs about Updating ..................................................................................23

Basic Steps to Update (Short Version)........................................................24

WhatYou Need to Update the GT...............................................................24

Updating your GT (Detailed Steps for Windows) .................25-28

Troubleshooting Updating Problems........................................29

UpdatingYour GT (Detailed Steps for Apple/Mac)....................30

Physical Installation .............................................31-34

Brief Preview ...........................................................................31

Detailed Instructions...........................................................32-33

Using the UniversalWindshield Mount ....................................33

Additional GT Mounting Options..............................................34

Installing the Tune ...............................................35-40

Important Preparation Steps...............................................35-38

How to Install theTune ............................................................39

Troubleshooting Installation Problems ....................................40

Uninstalling - Returning to Stock ..........................58-60

What does this mean? .............................................................58

When to Return to Stock..........................................................58

How to Return to Stock............................................................58

What if I Don’t Return to Stock? ...............................................60

How Do I Know if the GT is (Still) Installed?..............................60

More Information.................................................62-50

Changing the Power Level........................................................62

Reset Fee .................................................................................62

Performance Testing Software .................................................62

Windows Update ................................................................40-46

Contacting Technical Support...................................................66

USB Mode ................................................................................66

Pyrometer Calibration..............................................................63

FAQs/Troubleshooting.........................................................64-50

40417 GT PLATINUM

ABOUT THE GT PLATINUM

Preview of Basic Installation Steps

1. Update the GT Platinum. This step is very important!!!

2. Physically install the GT Platinum.

3. Install the tune to your vehicle.

IMPORTANT NOTE: You MUST uninstall your Bully Dog engine tune before taking your vehicle in for ANY type of

service.

Check the GT Platinum product page at www.bullydog.com to check for new applications.

40417 GT PLATINUM

MANUAL OVERVIEW

This product is a combination of previous gas tuners sold by Bully Dog.To make a more expedient

product for our dealers and a more ecient product for end users, we have combined all previous gas

tuners into one amazing unit. Since particular tuners support a wider feature set but are for the most

part the same in operation, make sure that as you go through this instruction manual, you READ

CAREFULLY the sections that are intended for you when directed to do so.

Example: when you get to the physical install, follow the section devoted to your vehicle make

whether it is Toyota®, Jeep® or other.

There are a few dierent sections in this manual that are dierent according to the make of the

vehicle you are tuning. You will see directions and headings guiding you to the appropriate section

when this is the case.

40417 GT PLATINUM

PARTS LIST

Your GT Platinum package should include the following items:

4. Power Wire

Part Number: 40400-101

4. Mini USB

Part Number: 40400-103

1. The GT Platinum Head Unit

Part Number: 40415-1

5. Fuse Tap

6. Fuse Spade

7. Micro SD Card

Part Number: 40410-10

8. Micro SD Card Reader

Part Number: 40410-10

8. Windshield Mount

Part Number: 40400-102

2. OBDII Adapter Plug

Part Number: 40400-105

3. HDMI Cable

Part Number: 40400-100

You may also want to have the items listed below available when you are installing the GT Platinum:

Tools Needed

• Fuse Puller

• Voltage Meter (optional)

Extra Parts (Optional)

• Battery Charger

• Alternative Mounting Solution

40417 GT PLATINUM

PARTS DESCRIPTION

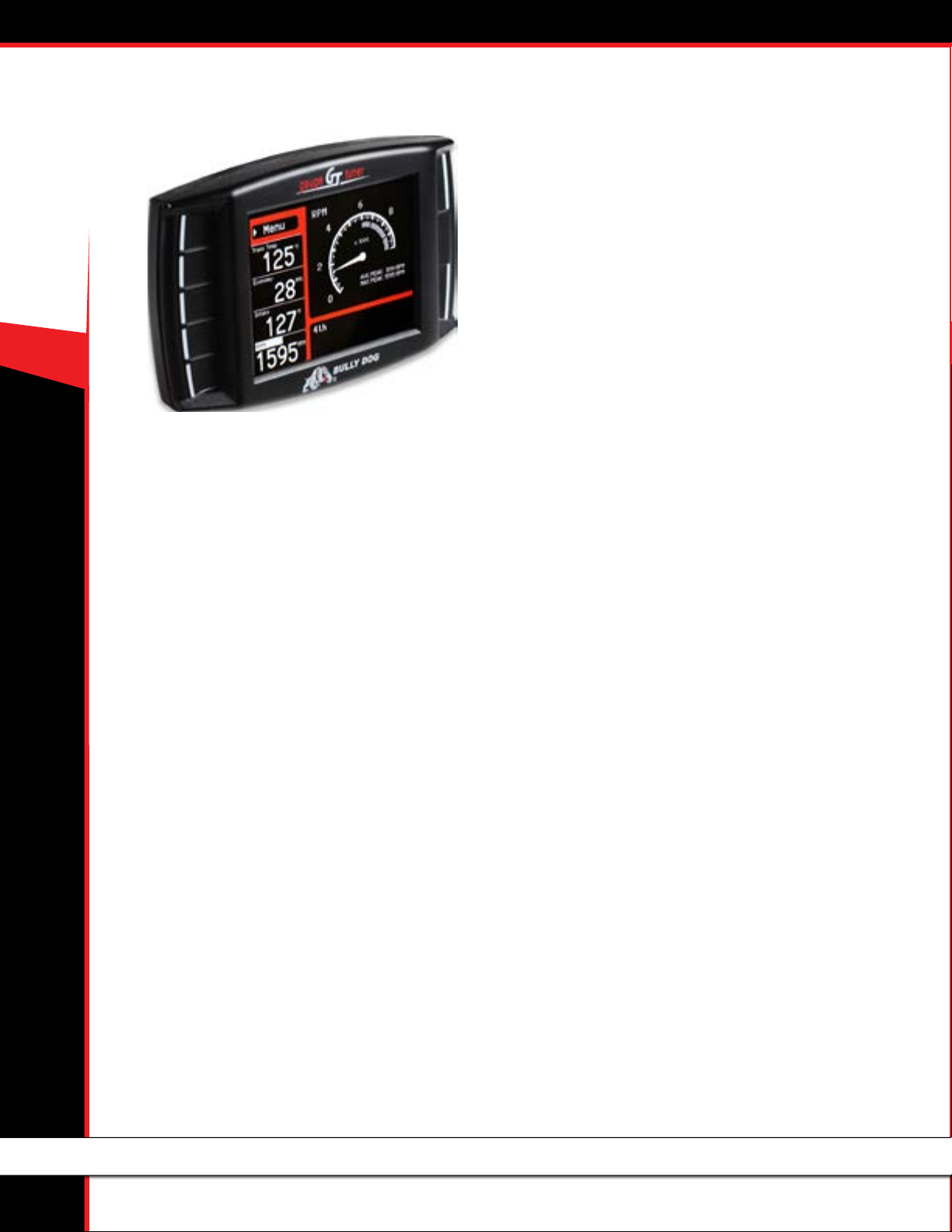

GT Platinum Head Unit

The main component of the Gauge Tuner is the head unit. It has the screen and the buttons that allow you to access all of the

functions and features of the tuner.

GT Platinum Front Side:

The GT Platinum has seven capacitive

touch buttons. Capacitive touch is a but-

ton style that is sensitive to the presence

of your nger. Capacitive buttons do

not need to be pushed, only touched to

activate. The front of the GT Platinum

head unit features a 2.4”LCD screen.

GT Platinum Back Side:

1. T-Slot Mount Socket, which allows you to use the GT Platinum with

dierent mounting options.

2. HDMI port

3. Micro SD card port

4. Mini-USB port

40417 GT PLATINUM

PARTS DESCRIPTION

The OBDII Adapter Plug

The GT Platinum assembly connects to your vehicle through the diagnostic port, which is located under the dash on the driver’s side. The

OBDII Adapter Plug connects to the diagnostic port on your vehicle and has a connection for the HDMI cable that plugs into the back of the

GT Platinum Head Unit. The illustration and numbered list below contain more information about the other parts of this important piece

of the GT Platinum assembly.

1. OBDII Male End: Connects to the vehicle diagnostic port.

2. Power Wire Port: Connects the GT Platinum to the power wire and the vehicle fuse box.

Allows the GT Platinum to turn on and o with the key.

3. Fuse: The adapter plug fuse protects the GT Platinum from being damaged by unexpected power surges.

4. Power Switch: Changes the active power source of the GT Platinum.

The two options are: 1) KEY: this pulls energy from the fuse box through the power wire and allows the GT Platinum to automatically turn

on and o based on the vehicle’s ignition key position; and 2) BATT: This provides continuous battery power to the GT Platinum directly

through the vehicle’s diagnostic port.

5. HDMI Port: Connects the OBDII adapter plug to the GT Platinum Head Unit.

6. Pyrometer/Sensor Docking Station Port: Connects the GT Platinum to optional sensors including pyrometers or the Bully Dog Sensor Docking

Station.

7. Future Peripherals: Not currently in use – may be used to connect additional devices in the future

40417 GT PLATINUM

Coolant

RPM

Intake

Economy

rpm

0.0

mpg

Wasted Energy

Acc.

Average M PG Gallons Grade

B17 11.8

BUTTON NAVIGATION

FUNCTION 1: Press the top left button to enter the Main Menu, also use this button to exit menus.

FUNCTION 2: Press any of the four buttons on the

left side of the GT Platinum adjacent to one of the

vehicle parameters on the screen will display that

parameter in the large gauge area.

FUNCTION 5: Use these buttons to scroll up and

down when GT Platinum is in a menu screen.

FUNCTION 3: Continuously hold any of the four

buttons to change the Large Gauge style, there are

four dierent styles that pop up.

NOTE: The GT buttons are Capacitive Touch. This means that a light touch is all that is needed to choose diﬀerent options.

You do not need to push hard or get the buttons to move down or in for the GT to work for you.

Dec.

40417 GT PLATINUM

THE MAIN SCREEN

This picture of the GT Platinum main screen has the Driving Coach selected for the Large Gauge option. You can change which gauge

is featured in the upper right corner of the main screen by holding down one of the buttons on the left side of the GT Platinum until

the gauge type that you want is shown.

Coolant

RPM

Intake

Economy

rpm

0.0

mpg

Wasted Energy

Acc.

Average MPG

Instant MPG

Trip MPG

Trip Grade

Gallons Grade

B17

11.8

Menu button: Press to enter the Main Menu.

Vehicle parameters: To change which vehicle parameter is displayed in the large gauge area,

simply press one of the four buttons next the preferred vehicle parameter.

Large Gauge area

1. 2.

3. 4.

Analog gauge

with mini graph

Analog gauge

with average

and max peaks

The Driving

Coach

Large real time

graph

Dec.

Wasted Energy

Acc.

Average MPG Gallons Grade

B17 11.8

Dec.

40417 GT PLATINUM

AVAILABLE OPTIONS – ALL MODELS

In general these options are presented in the order they appear on the Main Menu but there are some menus that change

according to the speciﬁc vehicle. If options are missing in your Main Menu, update your GT Platinum.

Change Vehicle

This option allows you to choose the type of vehicle that the GT Platinum will be used with. If the tune has already been installed, the

Change Vehicle option cannot be used. Read the "Show Settings" section in this manual for more information about checking to see if the

tune is already installed and, if so, how to uninstall the tune.

Install Download

This option allows you to install the tune to the engine computer in your vehicle. If the tune is already installed, this option will allow you to

return to stock (basically uninstall the tune) or change certain settings that can only be changed by writing a new tune to the ECM. Read the

"Uninstalling - Returning to Stock" section in this manual for more information about the download options and returning to stock.

Gauge Setup

This option will allow you to change which gauges are being displayed on the main gauge screen. Denitions for each type of gauge option

available are listed on the next page.

Changing the Information on the General Display

1. Choose Gauge Setup from the Main Menu.

2.Press the button on the left side of the GT Platinum to highlight the gauge slot you would like to change.

3.Use the buttons on the right side of the GT Platinum to scroll through the dierent functions and highlight the one you want shown on

the General Display.

4.When you are done, use the top left button to go back to the Main Menu and General Display.

NOTE: All of the gauge types may not be available through your vehicle’s diagnostic port (OBDII port). This fact is out of the control of Bully Dog; however, Bully

Dog oﬀers a range of add-on automotive sensors and sensor docking station. Contact Bully Dog or a Bully Dog dealer to learn more.

Go Back

Speed

Boost

RPM

Coolant

GAUGE SETUP

Gauge 1

Use the Up & Down Arrows to

Change the Tranny Tune

Pyro 2

Speed

Boost

Set Gauge 1

Set Gauge 2

Set Gauge 3

Set Gauge 4

40417 GT PLATINUM

Gauge Setup (continued)

These gauge options may not be available for all vehicles.

Pyro 1 & 2 (Sensor Docking Station may be required)

Both pyro 1 and pyro 2 measure exhaust gas temperature. The only

dierence between them is the location of the temperature sensor.

Used for defuel level settings, which protect the engine from

heat damage.

Availability and location of factory installed pyrometers vary

according to vehicle make and year. For all other vehicles,

pyrometer kits are available for purchase from www.BullyDog.

com. Bully Dog and factory OEM sensors are the only pyrometers

which will work with the GT Platinum. If pyro 1 & 2 are

unavailable through the OEM, go through the Sensor Docking

Station.

Speed

This option shows the current vehicle speed.

Monitoring this information can help you ensure that the speed

displayed on the GT Platinum and the vehicle speedometer

match the actual vehicle speed. Other important numbers, like

the odometer and fuel eciency, are based on this information.

RPM

This option shows the number of revolutions per minute of the

engine.

This will help you protect your vehicle and improve performance by

watching and ensuring that the RPMs stay within a certain range.

Coolant Temperature

This option shows the coolant temperature.

Used in defuel settings to prevent damage to the engine.

Not available on all vehicles.

Throttle Position

This option shows the throttle position measurement – it is

displayed as the percent open.

Used by the Driving Coach to indicate where changes can be

made to driving habits to maximize fuel eciency.

Intake Temperature

This option shows the intake air temperature.

Air temperature aects combustion temperature and engine

performance. Adding a Bully Dog Rapid Flow Intake (RFI) closed

air system will lower this temperature, improve performance,

and increase horse power. The GaugeTuner (GT Platinum) is

designed to work with the RFI to get the most out of your engine.

Transmission Temp

This option shows the transmission temperature.

Used in defuel settings to prevent damage to the transmission.

Not available on all vehicles.

Load

This option shows a real-time measurement of the work that the

truck is doing.

Timing

This option shows a real-time reading of the timing position as

the truck is running.

MAF

This option displays information from the Mass Airow Sensor.

Used by the Engine Control Module (ECM) to determine how

much air is going into the engine. The ECM then sends the

correct amount of fuel for optimum engine performance.

Fuel Econ.

This option displays a real-time measurement of the vehicle’s fuel

economy, shown in miles per gallon.

Determine when your fuel eciency peaks or dies to improve

your driving habits and your bottom line when visiting the pump.

Fuel Flow

This option displays the amount of fuel being used at any given

time; it is shown as a percentage.

Not available on all vehicles.

Boost (Turbo equipped vehicles only)

Current turbo boost pressure.

Barometer

Current atmospheric pressure.

Injection Pulse Width (IPW)

The time the injector stays open for each injection event; usually

displayed in milliseconds (ms).

Battery Voltage

This option shows the current battery voltage.

Additional features listed on the next page.

40417 GT PLATINUM

Gauge Setup (available with purchase of additional products)

A/F Ratio 1 & 2

This gauge option shows the ratio of air to fuel. The GT Platinum

will use this information to ensure that your engine is using the

correct ratio to completely burn all of the fuel being used and

maximize performance and eciency.

Only available on Bully Dog Sensor Docking Station part number

40385.

AUX 1, 2 & 3

This gauge option shows the information from sensors connected to

the 0-5V auxiliary inputs on the Bully Dog Sensor Docking Station.

AUX Temp

This gauge option shows the information returned to the Sensor

Docking Station by an optional temperature sensor. The port for

this sensor is marked as 5V out.

Frequency

This gauge option shows the information from a pulsing type of

sensor, like an on-board speed sensor or another optional sensor

that operates on the 0-5kHz 5V pulse range. The port on the Bully

Dog Sensor Docking Station for this gauge option is marked as FN.

The following gauge options are provided to allow the GT Platinum to monitor additional sensors that are only available with

the Bully Dog Sensor Docking Station.

40417 GT PLATINUM

User Options (Set User Options)

Set Background Theme

Change the display colors on your GT Platinum.

Adjust Backlight

Change the brightness for both the day and the night operating

modes of the GT Platinum.

To change between night and day mode, hold both the right

buttons (the up and down buttons) while you are in the general

gauge display.

Set Animation Preferences

Turn the Wave Eect on or o. This eect creates a ripple on the

screen whenever you press a button.

English/Metric Units

Switch between miles/kilometers and gallons/liters.

Reset to Default

Change the user preferences back to the original Bully Dog

default settings. This option does not change other GT Platinum

features to default settings.

Reset Average Economy

This option resets the saved values on the GT Platinum for average fuel economy, the number of gallons used, and the fuel eciency grade

displayed by the Driving Coach.

Performance Testing

This feature oers drag racers the ability to complete the 1/4 Mile and 0-100 KPH performance tests.

You can also download saved tests from your GT Platinum to your computer and analyze it using the Bully Dog PerformanceTesting Software. The

software is available by free download from www.bullydog.com.

There are two dierent styles available for both tests. The GT Platinum will show dierent test screens based on the style of test that is cur-

rently selected in the Performance Testing Setup Menu.

Speed Sensitive Performance Test

Once this test is begun, the GT Platinum will show instructions to the user to rst bring the vehicle to a stop. Once the vehicle is at zero miles per hour,

the test is ready. The test will automatically start once the vehicle begins to move.

Race Tree Performance Test

Before initiating the RaceTree style performance test it is important that the vehicle should already be at a complete stop. Once the test is begun, the

GT Platinum will display a classic race tree on the screen. As soon as the lights on the tree turn green, the GT Platinum will begin to record the vehicle’s

time. In this style of test, the GT Platinum will not wait for the vehicle to start moving before it starts recording performance data.

SPECIAL NOTE: Street racing is illegal and extremely unsafe. The performance testing feature should only be used on a sanctioned 1/4 mile drag racing track.

1/4 Mile Performance Test

This option will test the vehicle’s performance until the vehicle has

traveled 1/4 mile.

- View Test Results

View the results for the last performance test that was run.

- Save Previous Test to SD Card

Save the results of the last run to the SD card in the GT Platinum.

All runs that are saved to the SD Card can be transferred to your

computer using our PerformanceTesting Analysis Software. For

more information on our PerformanceTesting Analysis software,

see page 41 or visit our website: www.bullydog.com

- Fastest Times

View the results for the quickest 1/4 mile ever recorded.

0-100 KPH Test.

This option will test the vehicle’s performance until the vehicle has

reached a speed of 100 kilometers per hour, which is about the same

speed as 62 miles per hour.

40417 GT PLATINUM

Driving Coach Setup

The Driving Coach is a special feature designed to be your fuel economy dashboard and information center. It provides real-time visual and audio

feedback about driving eciency and where energy is being lost. The driving coach will help you understand the optimal conditions for your

particular vehicle through real-time observation, giving you the power to maximize your vehicle’s fuel economy.

Two hidden bonuses of driving more eciently are: saving money on fuel and helping the environment!

Before the Driving Coach can give you accurate information, it is important to make sure that the GT Platinum is showing the correct speed.

In the sections below, you will nd specic instructions for using the Driving Coach to become the best driver you can be.

Set Economy Goal

This option will allow you to select a fuel economy goal. The Driving Coach will use the economy goal to calculate your driving grade.

It is very important to select an economy goal that is realistic for both your vehicle and the kind of driving you will be doing. If you will be driving mainly

in the city or on the highway, choose a goal that is very close to the advertised fuel eciency for your vehicle in that type of environment. If you will be

doing a mixture, choose an economy goal between the advertised city and highway mileage for your car.

Reset Average Economy

This option will clear the values stored in the GT Platinum for the average fuel economy, the number of gallons used, and the grade in the Driving Coach.

Adjust Acceleration

This option will allow you to select the GT Platinum sensitivity for the acceleration and deceleration in the Driving Coach; this aects the driving grade

assigned by the Driving Coach.

Coach Sound Setup

This option will allow you to turn the Driving Coach sounds on or o.

Showing/Hiding the Driving Coach

The driving coach is always running, even if you choose not to have the information displayed. You can show or hide the driving coach on the Main

Display by holding one of the four bottom left buttons until the display cycles through to the gauge style that you want.

40417 GT PLATINUM

Driving Coach Setup (continued)

Checking Speedometer Accuracy

First: Change the Gauge Setup to have the Speed displayed on the main display screen. See page 8 for more information about changing the

information displayed on the main display screen.

Next: Go to a safe place with little to no trac where you can perform a speed test. Make sure the speed limit is at least 60 mph. Here are two dierent

ways to nd out your vehicle’s actual speed:

Method 1: GPS

1. Use a GPS device to compare your actual speed and the speed displayed on the Bully Dog.

2. Calculate the Percent Difference by using

this formula:

Method 2: Stopwatch

1. Use a Stop Watch to measure how long it takes to travel one mile while traveling at 60 mph according to the GT Platinum.

Accelerate up to a speed of 60 mph (as shown on the GT Platinum)

While traveling at that constant speed, record the amount of time in seconds that it takes to travel exactly one mile.

*Use highway mile markers to ensure that your one mile measurement is correct.

2. Record the time.

3. Calculate the Percent Difference.

If it takes 60 seconds to travel one mile

at 60 mph, then the GT Platinum is ac-

curately reading your vehicle speed.

If it takes 2 seconds more or less than

60 seconds to travel one mile, then use

the formula to the right to calculate the

Percent Dierence.

Once you have calculated the Percent Dier-

ence, you can use that information to adjust

the speed display as described below

Adjusting the Speed Display

1. Use one of the methods described in the previous section to determine the exact percentage dierence between the GT Platinum and your actual

speed.

2. Choose the opposite percentage in the Adjust Speed Display menu.

For example, if the dierence between your actual speed and the speed displayed on the GT Platinum was 5%, you should choose -5% (negative ve

percent).

To calculate the percent dierence use this formula:

RecordedTime - 60 seconds

60 seconds

Example 1: Using a stop watch the actual time it took to drive one mile while traveling at

60 mph according to the GT Platinum was 63 seconds.

63 - 60

.05 or 5.0%

Percent dierence =

Step 1. Percent dierence =

Step 2. Percent dierence =

Step 3. Percent dierence =

GT Platinum speed - GPS Speed

GPS Speed

Example 1: A GPS device reads 65 mph and the GT Platinum reads 62 mph for one single

moment.

62 - 65

-3

Step 3. Percent dierence = .046 or 4.6% then round up 5%

Percent dierence =

Step 1. Percent dierence =

Step 2. Percent dierence =

40417 GT PLATINUM

Driving Coach Setup (continued)

Checking Average Fuel Economy

It is important to check the accuracy of the average economy readout on the GT Platinum at least once every changing season. There are many reasons

to check and adjust the average fuel economy, here is one example: The fuel delivered to gas stations during the winter contains an average of 1.3% less

energy than the fuel delivered in warmer seasons. That means that the same amount of liquid is going into the tank, but it is 1.3% less eective, on

average. There are many similar factors that aect your fuel eciency that you cannot control and the GT Platinum cannot sense or adjust for. That is

why it is important to adjust the fuel economy of the GT Platinum every once in a while.

To adjust the Average Fuel Economy displayed by the GT Platinum, follow these steps:

1. Go to the gas station and get a full tank of gas.

2. Reset both of the following gauges before driving away from the gas station:

- The Average Economy on your GT Platinum.

- The trip odometer on your vehicle.

4.Drive the vehicle for an entire tank (or two)

5.Calculate your vehicle’s average fuel economy by hand using the following equation:

6.Use the equation below to calculate the Percent Difference between the average fuel economy that you have calculated and the

average fuel economy that is displayed by your GT Platinum.

Adjust the Average Fuel Economy

Follow the steps listed below to change the average fuel economy that is displayed by the GT Platinum:

1. Go to the Main Menu

2. Choose Vehicle Setup

3. Choose Adjust Economy Display

4. Use the buttons on the right to move up and down the percentages

5. Choose a percent value that is the opposite sign of the Percent Difference that you calculated using the equation above.

- For example, if you determine that the Percent Difference is 14%, you should choose -14%.

• NOTE: If the speedometer on the vehicle is not accurate,

then the odometer will also be incorrect. You will need

to be able to calculate the exact number of miles driven

before your next reﬁll.

40417 GT PLATINUM

Vehicle Settings

Set Engine Size

This is automatically determined when you choose your vehicle make and year during installation of the tune. You would only need to access this option

if you do not have a stock engine displacement size.

Set Vehicle Weight

Select your vehicle weight. You would only need to access this option if you do not have a stock gross vehicle weight.

Select Pyro Source

Choose either factory installed or Bully Dog pyrometers.

(Only available on 07.5 and newer vehicles that come equipped with a factory pyrometer)

Set Warning Levels

Set the temperature level at which the GT Platinum Platinum will provide a warning to help you protect your engine from heat damage.

It is also possible to turn each of these settings completely o. This is appropriate if the sensor for that setting is not available or if you do not wish to

have that setting monitored by the GT Platinum Platinum.

See the Pyrometer Calibration section for help in determining warning temperatures.

Adjust Economy Display

Change the miles per gallon shown by the GT Platinum.

This setting should be changed if the GT Platinum is showing incorrect fuel mileage.

Adjust Speed Display

Change the vehicle speed shown by the GT Platinum.

This setting should be changed if the GT Platinum is showing an incorrect vehicle speed.

Special Functions

The same special functions are not available for all vehicles. You can check out which features are available for your model

car by visiting the Bully Dog website and downloading the GT Platinum Gas Vehicle Feature Matrix.For deﬁnitions, check

out the Glossary.

These options cannot be adjusted On the Fly (OTF). This means that they are set when you install the tune.

The only way to change these settings is to start the Install Download process and choose Change Settings

when you are prompted by the GT Platinum.

Pyro 1 Temperature Level

Pyro 2 Temperature Level

Engine Coolant Temp Level

Transmission Temperature

Turn this setting o or add a Bully Dog boost sensor if your vehicle does not have a factory transmission temperature sensor.

40417 GT PLATINUM

Special Functions (available for some Toyota® vehicles only)

Display and Lighting

Display Ex Oﬀ

This changes the brightness when canceling the lights for the

indicator light of the combination meter, A/C indicator light

and clock.

Display Ex On

This changes the brightness when dimming the indicator light

of the combination meter, A/C indicator light and clock.

Foot Light

This sets the time the Outer Foot Light is on.

Interior Lighting

This will turn the interior light on when the ignition switch is

turned from "ACC" to "LOCK". This will also turn on the interior light,

ignition light and step light on when the door is unlocked by the

door key cylinder.

Light Sensitivity

This adjusts the sensitivity of the lights .

Light Auto OFF

This will light the headlight for a time after the doors are closed

with the ignition switch turned ON and the light control switch is at

HEAD or AUTO and the headlight is ON.

Light Time On

This function changes the time between when the doors are closed

and the lights go o when the light control switch is at HEAD or

AUTO, and the headlight is on.

Door Lock Functions

Auto Lock

Doors on the vehicle lock automatically after the vehicle reaches a

certain speed.

Wireless Auto Lock on Shift

This locks the door when the lever shifts out of the P range.

Auto Unlock on Shift

This unlocks the door when the lever is shifted into the P range with

the ignition ON.

Unlock All Doors on Shift

This unlocks every door but the driver door when the driver door is

opened after the ignition is switched o after a certain time.

Key Cylinder Functions

Power Windows

This makes the driver window (and all windows, depending on

vehicle grade) and sunroof close if the driver window control is held

closed. If the driver door window control is held open, the driver's

door window (and all the windows, depending on vehicle grade)

and the sunroof will open.

2 Turns Open All Doors

This unlocks only the driver door when the key UNLOCK button is

pushed twice.When this setting is switched OFF, the key UNLOCK

button will unlock all the doors.

Sunroof Operation

This will open the sliding roof if the door switch is held to UNLOCK

and the ignition switch is OFF.This will also close the sliding roof if

the door switch is held to LOCK and the ignition switch is OFF.

Sunroof Action

This selects the opening direction of the sliding roof when holding

the driver side door key unlocked for a certain time when the

ignition switch is OFF.

Key Fob Functions

Wireless Control

This is used to turn the wireless door lock ON or OFF.

Horn Chirp on Lock

This turns the wireless buzzer response function ON or OFF.

Open Door Warning

If a door is open when vehicle is being locked by the wireless door

lock, a buzzer will sound.

Panic Function

The "ON" setting will enable theTheft Deterrent System by pressing

and holding the Panic Button. Use the Lock Button if the Panic

Button is unavailable.

Wireless Auto Lock

This automatically locks doors after they are unlocked with the

wireless key.

Wireless Auto Lock Time

This will change the amount of time from unlocking the door(s)

with the wireless key to re-locking them automatically.

Optical Flash on Lock

This is used to turn ON or OFF the hazard answer back of the

wireless door lock.

Unlock Driver Door

Use the GT to disable this feature so all of your vehicle doors will

unlock with one press of the button on a remote door lock unit.

40417 GT PLATINUM

Special Functions (available for some Toyota® vehicles only)

Power Back Door

Wireless PBD Operation

This function changes the operation of the PBD by transmitter.

PBD Buzzer

This function will adjust the volume of the buzzer while the PBD

operates.

Security

Entry Delay

This will change the Entry DelayTime, or the period before starting

the warning, by the Passive Mode.

Passive Mode

This will set theTheft Deterrent System in 30 seconds after the

Driver door is closed and the Key is removed from the Ignition Key

Cylinder.

Warning Broken Glass

This will turn the Glass Break Sensor ON or OFF.

Warn by Horn

This turns the glass break sensor ON or OFF. It is only functional

when the vehicle has a glass break sensor.

Warnings

Key Reminder Sound

This function changes the times at which the key reminder buzzer

will continue to sound.

Key Reminder Volume

This changes the volume of the key reminder buzzer.

Seat Belt Chime

This changes the seat belt reminder chime.

Other

Traction Control

This function will disableTraction Control.

Zero Point Calibration

This function is used to calibrate theYaw Rate Sensor.

ECT Reset

This function is used to delete what the Electronic Controlled

Transmission has learned.

40417 GT PLATINUM

Engine Fan

Turn the engine fan o for water crossings or run it in high speed mode at any temp.

NOTE: The coolant temperature light will not indicate if the vehicle begins to overheat when the fan is disabled.

Idle Adjust

Set the engine speed (in RPMs) to increase the voltage and provide additional power to the winch.

(This feature does not take eect until the GT Platinum is at the Main Screen.)

NOTE: This feature only works in park or neutral. It will automatically turn o as soon as the vehicle is put into gear. It will automatically turn back on

the next time the vehicle is put into park or neutral.

Tire Pressure Limit -- Tire Pressure Monitoring System (TPMS)

Eliminate the dash light so the tires can be aired down for increased traction.

GT Platinum Setting: Chance the stock preset value to a number between 10 and 60 PSI. Once the setting is changed, the stockTPMS system will

still allow for a + or - 6 PSI variation, so the tire pressure could be reduced to as low as 4 PSI.

(The sensors in the tires and the value on a manual pressure tester will not necessarily match.)

(This feature does not take eect until the GT Platinum is at the Main Screen.)

Electronic Sway Bar -- Sway Bar Disconnect

Rubicon Only

Disconnect the sway bars in 4WD-Low, 4WD-Hi and 2WD up to 30 mph.To use this feature, choose Enable and return to the Main Screen, then press the

sway bar button on the vehicle dash.

• At 30 mph and above, the sway bar will automatically reconnect.

• If the vehicle returns to a speed lower than 30 mph, the sway bar will automatically disconnect (if the dash button is still activated).Accessory

Delay

Control how long accessory items will remain on after the engine has been turned o and the doors remain closed. Accessory items include the radio,

cigarette lighter, etc.

Headlight Delay

Set the amount of time that the headlights remain on after the engine has turned o.

Horn Chirp on Lock

The vehicle horn will sound each time the doors are locked by a remote control unit while this feature is enabled.

Optical Flash on Lock

The hazard lights will ash each time the doors are locked by a remote control unit when this feature is enabled.

Auto Door Lock

The vehicle will automatically lock all the doors when it reaches a speed of 15 mph.

Unlock Driver Door

When this stock feature is disabled by the GT Platinum, all of the vehicle doors will unlock with one button press on a remote door lock unit.

Seatbelt Reminder

Use the GT Platinum to turn o the seat belt reminder chime.

Axle Lockers

Rubicon Only

Increase traction by engaging the axle lockers in 2WD, 4WD-Hi and 4WD-Low up to 30 mph.

To use this feature, choose Enable and return to the Main Screen, then press the locker button on the dash once for front and twice for front and rear.

• The front locker will automatically unlock above 30 mph.

• The rear locker will automatically unlock above 30 mph.
