BYD EPS14P User manual

EPS14P
OPERATOR MANUAL
< OM-EPS14P2019001-EN >

EPS14P
OPERATOR MANUAL
< OM-EPS14P2019001-EN >

TABLE OF CONTENTS
OPERATOR MANUAL 4
EPS14P
5OM-EPS14P2019001-EN
TABLE OF CONTENTS
FOREWORD
FOREWORD
Operation Notice 9
Forklift Delivery 9
OPERATOR NOTICE
Notice
Operator Qualification 11
Warning decals and signs 12
INTRODUCTION
View, Technical Specifications and Operating Environment
General View 14
Technical Specifications 15
Vehicle Drawing 15
Technical Specifications 16
Working Environment 17
Nameplate and decals
Forklift nameplate 18
Battery Nameplate 19

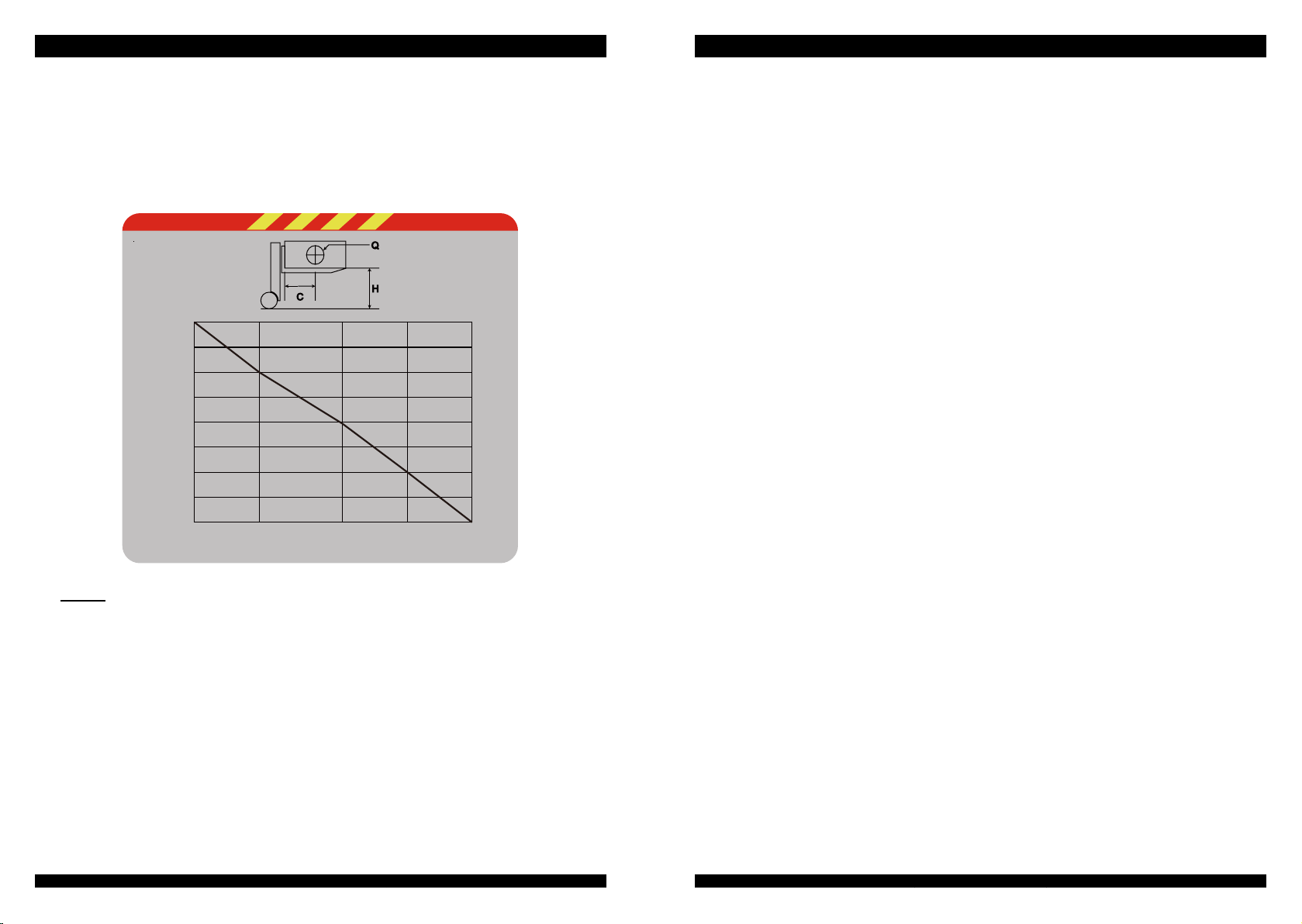

Loading Capacity Chart 19
Other decals 20
OPERATING
Startup and Control
Key Switch 22
Emergency Disconnect Switch 22
Fork carriage and pedal
22
Tiller 23
Travel, Steering and Braking 23
Low Speed Control 25
Fork Lifting and Lowering 25
Horn 26
Emergency Reversal Switch 26
Display
Display 27
Transporting Loads
Loading 28
Travelling 29
Unloading 30
Exiting 30
Battery
Charging 30
TRANSPORTATION AND STORAGE
Loading, Transportation and Unloading
Hoisting 32
Driving into the Transport vehicle 32
Transporting and Unloading 33
Store and Restart
Procedures of Store 34
Procedures to Restart 34

TABLE OF CONTENTS
OPERATOR MANUAL 6
EPS14P
7OM-EPS14P2019001-EN
MAINTENANCE
Daily Maintenance
Period and Items 36
Content Description 36
Regular Maintenance
Period and Items 39
Content Description 39
Consumable Items
Type and Parameters of Consumable Items 41
Before Maintenance
Before Maintenance 42
Emergency Lowering 42
Move the Vehicle with the Electric Fault 42
Chassis System Maintenance
Balance Inspection and Adjustment 44
Load Wheel Replacement 45
Caster Wheel Replacement 46
Driving Wheel Replacement 46
Gear Oil Level Checking 47
Gear Oil Replacement 48
Mast Maintenance
Chains Adjustment 49
Chains Lubrication 51
Mast Cleaning 51
Mast Clearance Adjustment 52
Hydraulic System Maintenance
Hydraulic Oil Filling 54
Hydraulic Oil Replacement 55
Electric System Maintenance
Electrical Wiring Inspection 57
Main Controller Inspection 57
Low Voltage Fuse and Relay Inspection 58
Torque Inspection on Critical Fasteners
Torque Inspection on Wheel Fasteners 59
Mast Fasteners Torque Checking 60
Schematics
Hydraulic Schematic 61
Schematic of Electrical System 62
Fault Code Table
Fault Code Table 63
OTHER INFORMATION
OTHER INFORMATION 72

FOREWORD
OPERATOR MANUAL 8
EPS14P
9OM-EPS14P2019001-EN
FOREWORD
Thank you for choosing BYD electric forklifts.
These operating instructions explain in detail how to correctly operate the BYD electric
forklifts, as well as the procedures that you should follow when conducting checks, maintenance
and repairs on the forklifts.
Read through every chapter in the manual before operation for the correct use and
maintenance of the forklifts. When the forklift is out for rental or transportation, keep this operation
instruction together with the forklift and make sure that operators can use the manual whenever
necessary.
Pay attention to the following signs：
Danger
（Indicates an imminent extremely hazardous situation. Failure to avoid it will cause severe
injuries, major property damage or even death）
Warning
（Indicates a potential extremely hazardous situation. Failure to avoid it might cause severe
injuries, major property damage or even death）
Caution
（Indicates a potential hazardous situation. Failure to avoid it might cause slight to medium
injuries, or property damage）
Note
（Note for detailed operation. Complying with the instructions will ensure a better operation of
the BYD forklift）
DESCRIPTIONS
Operation Notice
BYD industrial vehicles can only be operated in the designated areas in the factory or in other
specific environments, in compliance with Regulations on safety supervision of special equipment.
Inappropriate use of the BYD forklift might cause damages and losses, which the operators
or proprietor instead of BYD should be held liable for. If the forklift needs to be operated in the
environments other than those mentioned in this manual, contact with your local BYD dealer first
for confirmation.
Any modification to the forklift is not allowed unless BYD's written consent is granted. Contact
with BYD first before modifying the forklifts.
If you have ordered other auxiliary attachments besides forks, please handle the loads in
compliance with the loading capacity of the attachments. All the attachments are provided with
operation instructions. Read through the manuals before operation.
This manual is devised based on the standard forklifts. For other questions not covered in the
manual, please check with BYD after sales service.
BYD forklift is subject to ongoing development and optimizing the design of products.
BYD Forklift reserves the right to alter the design, equipment, technical features, and technical
specifications and so on. No guarantee of particular features of the forklift should therefore be
assumed from the present operator manual.
Forklift Delivery
Every BYD forklift has passed through thorough performance tests before shipment. Although
proper protection has also been adopted during transportation, it is advised to conduct a thorough
inspection when the forklift arrives. Before delivering the forklift to end customers, to guarantee
that the forklift is in perfect condition, the followings checks should be conducted at BYD dealers：
(1) Check if the wheel nuts are securely fastened
(2) Check the hydraulic oil level
(3) Check the braking function
(4) Check the travelling function
(5) Check the steering function
(6) Check the operation of mast and attachments
(7) Check the high voltage connectors (transportation might have loosened the connectors)
To avoid inconveniences in future warranty claims, please check the functions of the forklift
and check if the forklift is complete.

OPERATOR NOTICE
OPERATOR MANUAL 10
EPS14P
11 OM-EPS14P2019001-EN
OPERATOR NOTICE
This chapter instructs on safety operation procedures that should followed during the use of
the BYD forklift.
The operator of the forklift should have obtained the driving permit in accordance with local
regulations.
Before operating the forklift, check the nameplate and capacity chart to know the loading
capacity of the forklift and avoid the overloading during operation.
Warning signs and decals are pasted on the forklift. Get familiar with the decals and its
contents.
NOTICE
Operator Qualification
Industrial vehicle can only be allowed to be operated by people with the qualification regulated
by local laws. The operators should be those who have been specially trained and have experience
in operating the vehicles. The user or other entrusting part must confirm the qualification of the
operators and make use of the tests before authorizing the person to operate the forklift.
The operating company must make sure that the operators understand all the safety
messages on the forklifts.
For the proprietor, make sure following safety instruction on your industrial vehicles are
observed.
Please abide by relevant regulations and guide-principles, such as：
(1) Operation of industrial vehicle
(2) Lane and operative area regulation
(3) Diver’s right, responsibility and standard of behavior
(4) Special operation area
(5) Daily maintenance and repair
(6) Regular maintenance and repair
Danger
(1) Unauthorized persons are not allowed to operate the forklift.
(2) Safety devices and features will provide extra safety. Do not deactivate these safety
device and features.
(3) Make sure that the load is well palletized and trimmed to avoid its protruding the loading
surface of forklift and thus slipping, collapsing and falling over.
(4) Any modification on the forklift is not allowed. Contact with BYD before making any
modification.
(5) Do not overload. Before operation, please check the rated loading capacity and loading
center on the capacity chart. When an attachment has been installed, abide by the rated
loading capacity given on the attachment.
(6) Do not operate the forklift after drinking. It might cause severe human injuries.

OPERATOR NOTICE
OPERATOR MANUAL 12
EPS14P
13 OM-EPS14P2019001-EN
Caution
(1) Read through the operation instructions before operating the forklift.
(2) Operators should wear working boots and working clothes.
(3) Do not operate the forklift with wet or greased hands.
(4) Conduct the daily checking and regular maintenance on the forklift.
(5) Stop operating the forklift when the abnormalities and damages are found on the forklift.
Do not use the forklift until the forklift is fully repaired.
Warning decals and signs
The BYD forklifts have warning decals and signs to remind the operators of potential risks, as
well as safety notices. Find and read all these decals and signs.
If the warning decals and signs are missing or difficult to read, please contact your local BYD
dealer for immediate replacement.
INTRODUCTION
This chapter instructs on the general view and technical specifications of the forklift.

INTRODUCTION
OPERATOR MANUAL 14
EPS14P
15 OM-EPS14P2019001-EN
VIEW, TECHNICAL SPECIFICATIONS AND O P E R AT I N G
ENVIRONMENT

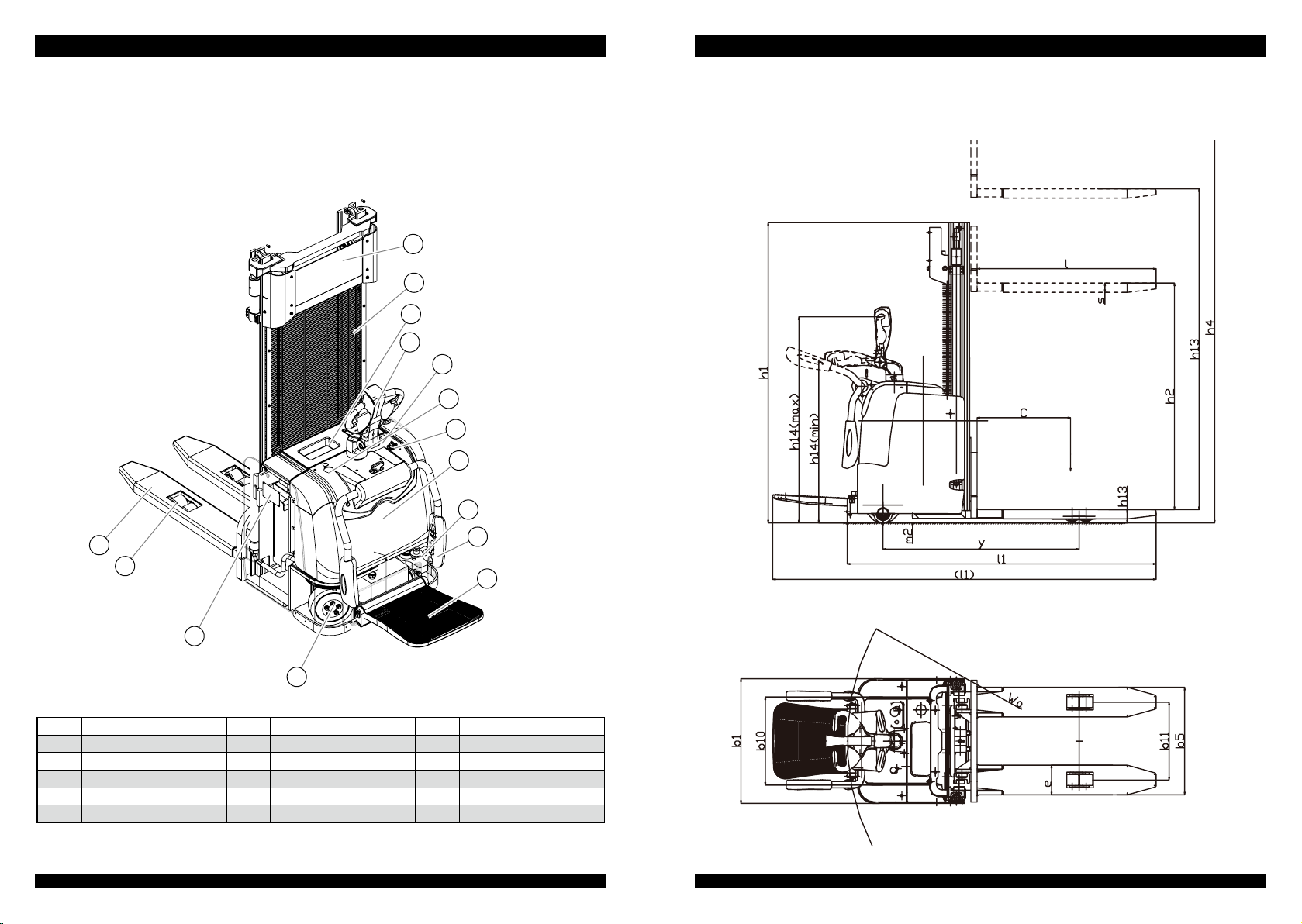

General View
3
1
12
14
13
6
8
5
10
15
2
11
9
7
4
No. Name No. Name No. Name
1 Fork Load Wheel 6 Battery Cover 11 Cover
2 Forklift nameplate 7 Tiller 12 Castor Wheel
3 Fork 8 Emergency Disconnect Switch 13 Drive Wheel
4 Mast 9 Display 14 Fork Carriage
5 Protection Mesh 10 Key Switch 15 Pedal
Technical Specifications
Vehicle Drawing

INTRODUCTION
OPERATOR MANUAL 16
EPS14P
17 OM-EPS14P2019001-EN
Technical Specifications
Identification
Manufacturer BYD
Model S14PS
Load capacity Q（kg) 1400
Load center distance C(mm) 600
Axle centre to fork face X(mm) 672
Wheelbase y(mm) 1260
Weight
Weight ,with/without load kg 2600/1180
Axle load with load, drive/load side kg 1000/1600
Axle load without load, drive/load side kg 800/380
Wheel
Tyre, operator/load side Polyurethane
Tyre size, drive side Φ230X82
Tyre size, load side 4XΦ85X70
Auxiliary wheel, size 2Xφ120X50
Wheels number (x=driven), drive/load side 1X+1/4
Track width, drive side b10(mm) 520
Track width, load side b11(mm) 370
Basic
Dimensions
Height of mast, lowered h1(mm) 2104
Free lift h2(mm) 136
Lift height h3(mm) 3200
Height of mast, extended h4(mm) 3717
Height of tiller arm in operation position, min./max. h14(mm) 1040/1330
ork height, lowered h13(mm) 90
Overall length l1(mm) 1910/2450
Overall width b1(mm) 800
Fork dimensions s/e/l(mm) 60/180/1150
Width over forks b5(mm) 560
Ground clearance, center of wheelbase m2(mm) ≥25
Aisle width, 800x1200mm pallet lengthwise Ast(mm) 2352
Aisle width, 1000x1200mm pallet lengthwise Ast(mm) 2372
Turning radius (LH/RH) Wa(mm) 1490/1970
Performance
Data
Travel speed, with/without load km/h 6/6
Lift speed, with/without load mm/s 180/240
Lower speed, with/without load mm/s 300/240
Climbing ability, with/without load % 5/10
Stopping distance, with/without load m 2.17/2.17
Drive
Drive motor output kw 1.3
Lift motor output kw 3
Battery voltage/capacity V/Ah 24/130
Battery weight kg 70
Other Sound level at driver's ear dB（A）75
Working Environment
Temperature：-5 ~ 40°C
Working humidity：≤90%
Operating Altitude：≤2000m
Road: dry, hard, level and flat
Storage: in airy storehouse
Caution
If the working environment is harsh, decrease the goods or reduce the speed.
Dange
(1) No sharp obstacle.
(2) No strong acid or base on the road.
(3) Do not soak the tire in the water for a long time.
(4) Do not expose the truck to the burning sun.
(5) No flammable gas, no flammable dust and no volatile flammable liquid.
Note
Contact with your BYD local dealer if the forklift is intended to be used in the following
environments：
(1) in places where explosives are stored
(2) in dusty areas
(3) in ports or water front with corrosive salt hazards
(4) in chemical factories with acid and other chemical hazards
(5) in potential explosive environments with dust or other explosive gas
(6) in toxic environment
(7) in radioactive environment
(8) in other special environment

INTRODUCTION
OPERATOR MANUAL 18
EPS14P
19 OM-EPS14P2019001-EN
NAMEPLATE AND DECALS
Forklift nameplate
Electric Pallet Stacker
Model
Serial No.
Rated capacity
Max.lift height
Service weight
Net weight
(w/o battery)
Battery voltage
Battery capacity
Battery weight(min.)
Battery weight(max.)
Add.: No.1, BYD Road, Zhenjiang Industrial Park, Shaoguan, Guangdong, China
Note
(1) The nameplate is placed on the left of the forklift.
(2) After receiving the forklift, check the information on the nameplate and confirm if it
complies with the one you've ordered.
Caution
(1) Every forklift might have different specification. Check the nameplate before operation to
confirm the forklift specification.
(2) When transporting the load, it should not exceed the rated loading capacity of the forklift.
Check and confirm the load of the forklift.
Battery Nameplate
ӝ૷ֵ⭞⧥ູ
Operang
Condions
⧥ູ⑟ᓜ
䫷⭫⊖/Iron-Phosphate Battery
Ambient Temperature
⴮ሯ⒵ᓜ
Relave Humidity
⭫⊖ශ
Cell Model
ḽ߼ᇯ䠅
Nominal Capacity
ḽ〦⭫ু
Nominal Voltage
ᐛ֒⭫ু
Operang Voltage
仓ᇐᐛ֒⭫⍷
Rated Operang Current
ѣള࡬䙖
Made in China
⭫⊖䠃䠅
Weight
ӝ૷ะᵢᙝ㜳
Basic
Performance
Caution: Before operation, you must be familiar with specific requirement
for output configuration by referring to the instruction manual.
࠰স㕌
Serial No.
ශ
Model
Note
(1) The battery nameplate is placed on the battery.
(2) After receiving the forklift, check the information on the nameplate and confirm if it
complies with the one you've ordered.
Loading Capacity Chart
When the lifting height exceeds, the loading capacity of the truck is reduced. The Loading
capacity chart indicates the rated loading capacity the forklift has corresponding to the different
lifting height.

INTRODUCTION
OPERATOR MANUAL 20
EPS14P
21 OM-EPS14P2019001-EN
Suppose the expected lifting height is 4300mm.
(1) Draw the horizontal line at the coordinate of lifting height 4300 mm and find the crossing
point of this horizontal line and the curve line of the loading capacity.
(2) The ordinate on the X-axis of the crossing point reads 750kg, which is the ratedlifting load.
(3) If you want to increase the lifting height, decrease the weight of the cargo.
S14PS
Q (kg)
H (mm) C =600(mm)
2800
3300
3800
4300
4800
550 750 1000 1200 1400
Caution
(1) Forklift specification varies depending on customer requirements. Refer to the load
capacity chart for confirmation on the maximum allowed load.
(2) The load capacity chart reflects only compact, well palletized and evenly centered loads
within the load limit. Otherwise the stability of the forklift and the rigidity of the related
parts will be impaired.
Other decals
Please pay attention to notes or warning decals and signs before using.
OPERATING
This chapter explains how to operate BYD electric forklift correctly.

OPERATING
OPERATOR MANUAL 22
EPS14P
23 OM-EPS14P2019001-EN
STARTUP AND CONTROL
Key Switch
After the key is inserted into the key switch, Rotate the key clockwise to the start position
and start the vehicle, and the key will automatically return to the on position. When the vehicle is
powered on for a period of time, the vehicle will automatically power off; at this time, rotate the key
to the start position to continue working.
Rotate the key anticlockwise to off position and take it out to turn off the forklift.
Note
Before starting the forklift, pull up the emergency disconnect switch on the right side.
Emergency Disconnect Switch
Press down the emergency disconnect switch to shut off the power. Rotate and pull up it to
resume the power.
Fork carriage and pedal
Fork carriage
Before using the forklift, open the fork carriage to protect
the operator during turning
Pedal
Open the pedal downward for use
Tiller
1
2
3
4
5
6
1
2
3
4
5
6
No. Name No. Name No. Name
1 Lower Control Button 3 Horn Button 5 Direction Control
2 Lift Control Button 4 Emergency Reversal Switch 6 Low Speed Control
Travel, Steering and Braking
1. Travel
Rotate the tiller to the area of A2. Rotate the direction control forward or backward to travel
forward or backward。
A1
A2
A3

OPERATING
OPERATOR MANUAL 24
EPS14P
25 OM-EPS14P2019001-EN
2. Steering
When travelling, turn the tiller right or left to steer.
3. Braking
Rotate the tiller to the areas of A1 and A3 to brake; Release the accelerator button B to brake;
when the vehicle speed is 0, apply the brake immediately.
A1
A2
A3
B

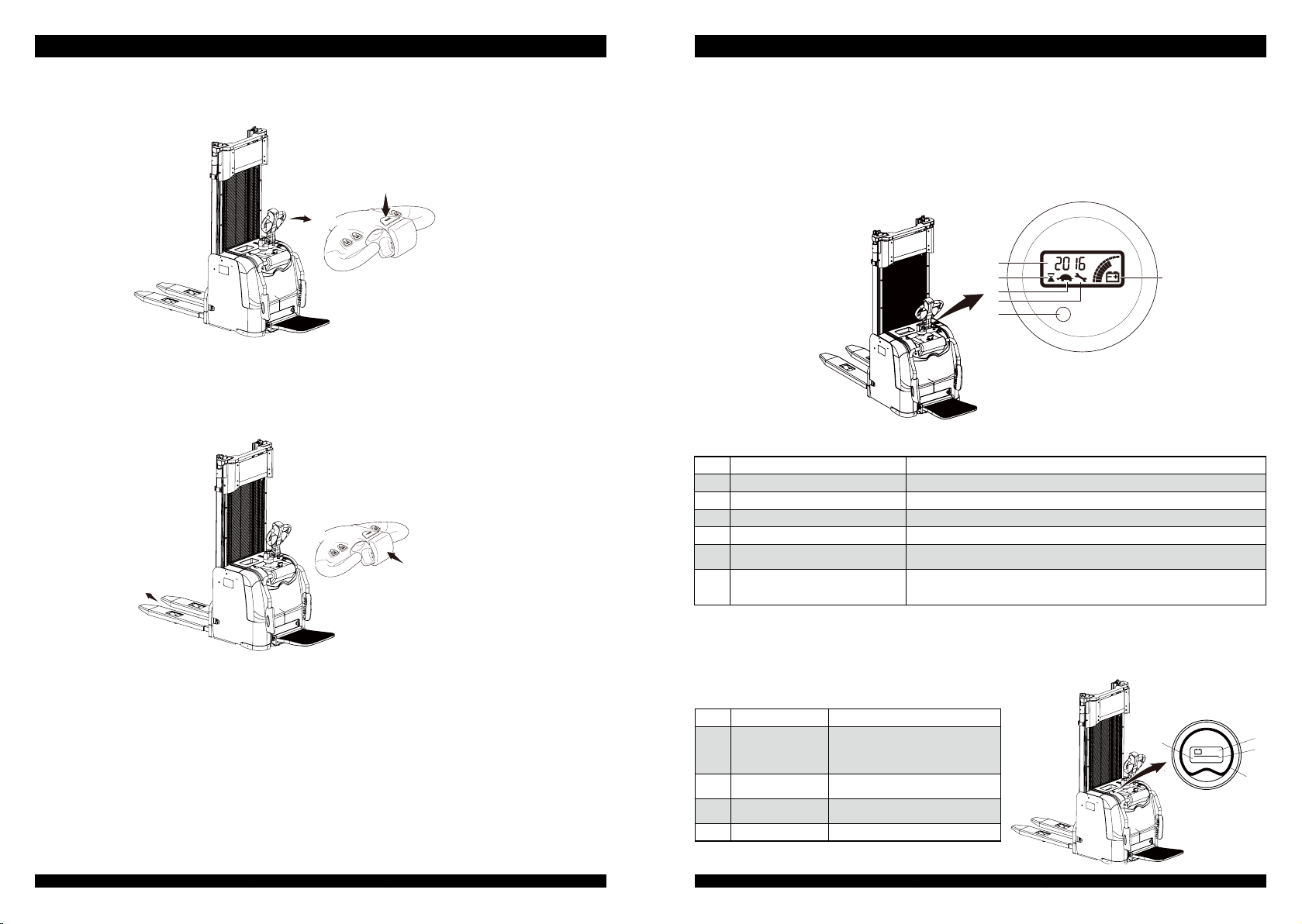

Low Speed Control
Press the low speed control below the tiller, and then the vehicle goes into low speed mode.
Fork Lifting and Lowering
Press the lift control button to lift the fork.
Press the lower control button to lower the fork.

OPERATING
OPERATOR MANUAL 26
EPS14P
27 OM-EPS14P2019001-EN
Horn
Press the horn button to send audible warning.
Emergency Reversal Switch
When the emergency reverse switch is striked, the vehicle will travel forward for some
distance until it's not striked.
DISPLAY USING
Display (A type)
There is a screen and an indicator in the display. The screen shows the battery level, repairing
sign, low speed sign, hour meter and fault code. The indicator light indicates low battery level or
repairing.
4
1
2
3
5
6
No. Name Descriptions
1 Warning Indicator The indicator twinkles when the vehicle breaks down or the battery level is low.
2 Repairing Sign The repairing sign appears when the vehicle breaks down.
3 Low Speed Sign The low speed sign appears after the low speed control being pressed.
4 Hour Meter Sign The hour meter sign appears after the vehicle being normally started.
5 Hours and Fault Code The time worked appears after the vehicle being normally started. The fault code
appears when the vehicle breaks down.
6 Battery state
The battery level is shown by ten notches, and each notch represent the 10% of
the battery charge. The number of notches displayed by the battery varies with the
actual battery level
Display (B type)
There is a screen and a light ring in the display (B type). The screen shows the battery level, hour
meter and fault code. When a certain controller of the vehicle has fault, the light ring displays red,
and the interface displays the current fault code.
No. Name Descriptions
1 Warning Indication
When the battery is low or the vehicle
has fault, the light ring displays red,
and the interface displays the current
fault code.
2 Speed Display It displays the current speed when the
vehicle being normally started.
3 Working Hour Display The time worked appears after the
vehicle being normally started.
4 Battery state Battery level is shown as a percentage




ΤΥ
α
NPK K

OPERATING
OPERATOR MANUAL 28
EPS14P
29 OM-EPS14P2019001-EN
TRANSPORTING LOADS
Loading
1. Load on the ground
(1) Drive the forklift carefully up to the load and brake the forklift to a stop.
(2) Lower the forks.
(3) Insert the forks under the load.
(4) Lift the forks.
(5) When transporting, drive with caution, pay attention to the route condition and to the
people ahead and maintain a proper driving speed. Transport the load to the designated
place.
2. Load on the high shelf
(1) Drive the forklift carefully up to the load and brake the forklift to a stop.
(2) Set the mast in the vertical position and raise the forks to the bottom of the load.
(3) Insert the forks under the load.
(4) Raise the load until it has left the shelf completely.
(5) Reverse the forklift with caution at a low speed until the forklift leaves the stacking area.
(6) Lower the forks.
(7) When transporting, drive with caution, pay attention to the route condition and to the
people ahead and maintain a proper driving speed. Transport the load to the designated
place.
Danger
(1) When approaching the load, do not travel at high speed to avoid crashing.
(2) Do not stay beneath the raised load.
Caution
When transporting the load, the load should be securely fastened on a pallet with the gravity
center well centered and proper stacking height. Do not damage the packaging of the goods and
the handling personnel should bear the responsibility of safe loading.
Travelling
(1) When travelling with load, make sure that the load is well centered on the forks.
(2) After the load is placed on the forks, keep the mast tilted backwards and raise the forks
above the floor.
(3) During the travelling of the forklift, do not tilt the mast forward or try raising the forks to
avoid the danger of forklift nose over and losing stability.
(4) If the stacked loads are high and affect the operator’s visibility of the route ahead,
operate the forklift in reverse except when the forklift is climbing the slope or inclines.
Warning
(1) When driving the forklift on a slope, keep the forks always facing the uphill direction and
downhill direction in contrast and drive in turtle speed mode.
(2) Do not cross or turn around on a slope.
Caution
Have a second person as lookout if the visibility of the operator is reduced.
Unloading
(1) Drive the forklift carefully up to the stacking destination and decelerate when approaching.
(2) Raise the forks to the proper height.
(3) Drive the forks and load into the shelf.
(4) Set the mast in the vertical position and lower the forks to the proper height until they get
separated from the forks.
(5) Slowly remove the forks from the bottom of the load.。
(6) After driving the forks out, start the next task.。
Exiting
(1) Lower the forks after unloading.
(2) Turn the key anticlockwise to OFF position and take it out.
(3) Press down the emergency disconnect switch.
(4) Exit.

OPERATING
OPERATOR MANUAL 30
EPS14P
31 OM-EPS14P2019001-EN

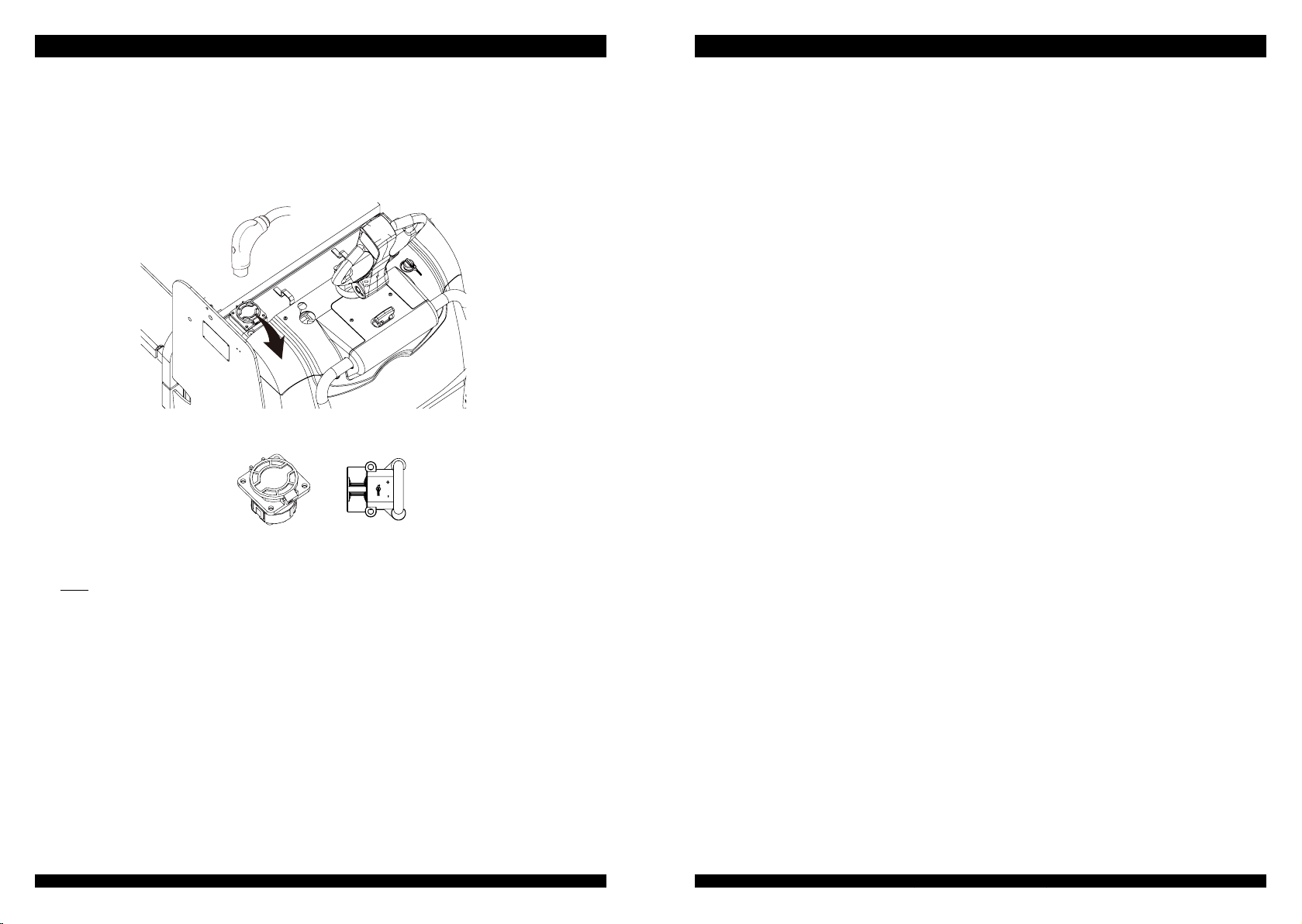

BATTERY
Charging
Open the charging door cover, open the charging door, and then connect the charger
connector. Follow the user manual of the charger to charge the forklift.
GB port REMA port (Optional)
Note
(1) If the charge port cover is opened, it is impossible to use the stacker. To use the stacker,
close the charge port cover.
(2) The environment temperature influences the charging time, it's suggested the forklift be
charged at room temperature.
TRANSPORTATION AND STORAGE
This chapter explains how to transport and store the forklift.

TRANSPORTATION AND STORAGE
OPERATOR MANUAL 32
EPS14P
33 OM-EPS14P2019001-EN

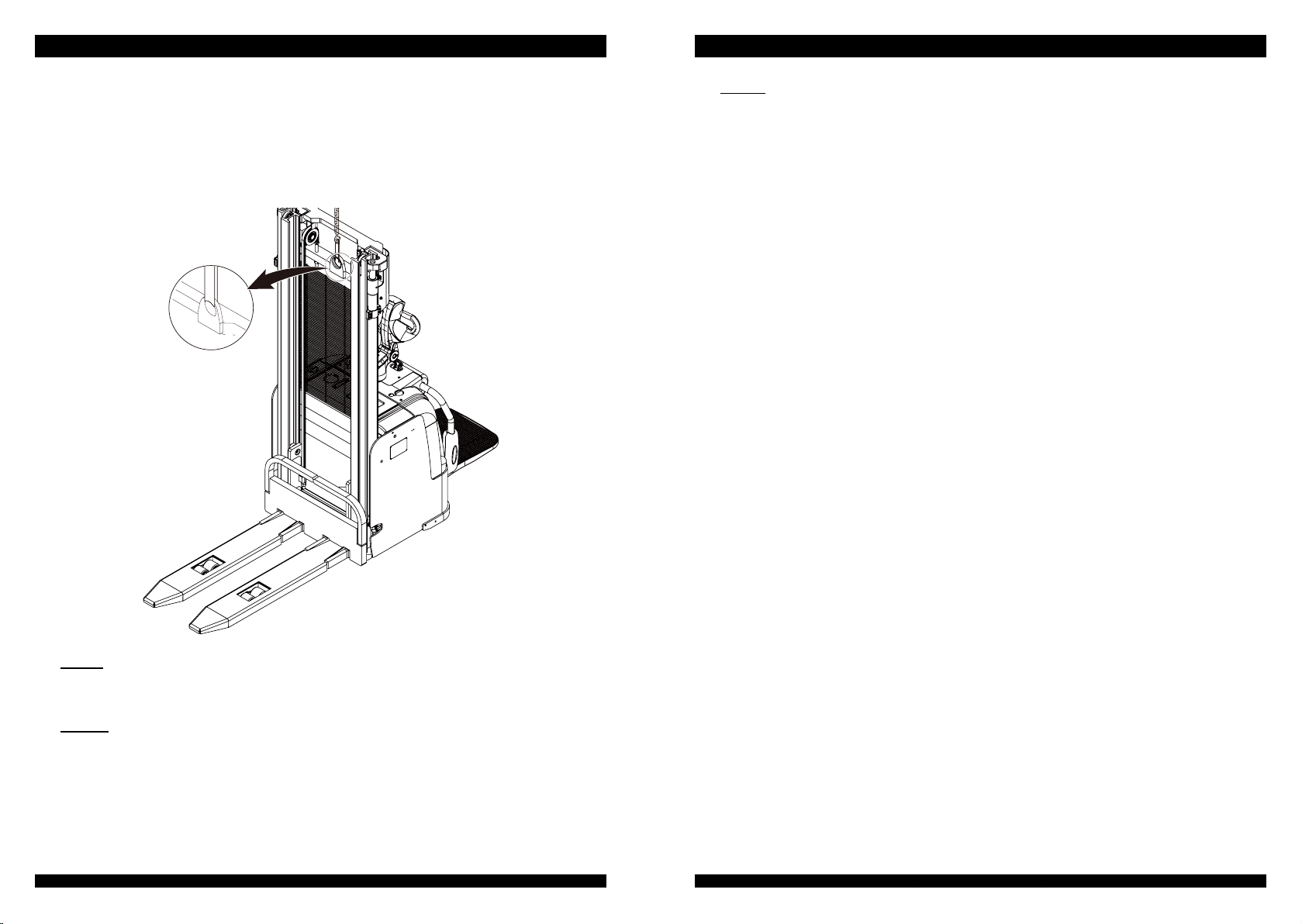

LOADING, TRANSPORTATION AND UNLOADING
Hoisting
(1) Lowering the fork fully.
(2) Hoist the truck by the hoisting hole on top side of the mast.
Danger
During the hoisting process, it must be ensured that no one is within the working range of the
hoist.。
Warning
Use only a hoisting equipment with sufficient loading capacity (Refer to the vehicle nameplate
in detail for the weight of the vehicle).
Driving into the Transport vehicle
Drive the forklift into the transport vehicle on turtle speed mode.
Caution
(1) Have a supervisor or a second person on site as a lookout.
(2) Make sure that the ground is strong enough to avoid the transport vehicle sinking into the
floor.
(3) Secure the transport vehicle with fixed block.
(4) During loading and unloading, constantly check the rigidity and the stability of the ramp.
Transporting and Unloading
(1) Use a transport truck or a low flat bed truck to transport the forklift
(2) Unloading the truck by hoisting follows the same procedure as the loading of the truck.
(3) When driving the forklift out of the transport vehicle, reverse the forklift with caution at low
speed. The rest of the procedure is the same as required for driving the forklift onto the
transport vehicle.

TRANSPORTATION AND STORAGE
OPERATOR MANUAL 34
EPS14P
35 OM-EPS14P2019001-EN
STORE AND RESTART
Procedures of Store
Clean and remove the dust on the forklift components and conduct the following procedures：
(1) Check forklift for any leakage and abnormal components. If yes, repair the forklift first.
(2) Fully lift and lower the forks several times.。
(3) Lower the forks.
(4) Spray a layer of lubricant over the parts left unpainted.
(5) Check the hydraulic oil level and add if necessary.
(6) Lubricate all the components.。
(7) Take off the key and make sure that forklift is disconnected from the battery power and
press down the emergency disconnect switch. Battery status of charge should be around
50% to avoid over-discharge or full charge for long-term storage.
(8) Use and operate the forklift for a while every month.
Procedures to Restart
Clean and remove the dust on the forklift components and conduct the following procedures：
(1) Lubricate all the components.。
(2) Fully lift and lower the forks and tilt masts several times.
(3) Check the status of charge of the traction battery.
(4) Check the hydraulic oil. Replace it if necessary.
Caution
The operator should repeatedly check the performance of the forklift brake when operating it
for the first time after the forklift has been restored to service.
MAINTENANCE
This chapter explains how to maintain the forklift.

MAINTENANCE
OPERATOR MANUAL 36
EPS14P
37 OM-EPS14P2019001-EN
DAILY MAINTENANCE
Period and Items
Daily (or every 8 hours) and weekly (or every 40 hours) for daily inspection items, whichever
comes first. If the forklift works less than 8 hours per day, conduct the inspection and checks on
a daily basis. if daily working hours exceed 8 hours, conduct the inspection and checks every 8
hours.
Inspection checklist：
No. Item
1 day 1 week
8 hours 40 hours
1 Exterior Check
2 Wheel Clean and tighten Clean and tighten
3 Mast Check
4 Hydraulic System Check
5 Display Check
6 Warning Equipments Check
7 Brake Check Check
8 Travel, Steering and Control Check
9 Connectors and Fuse Check
10 Clean Clean
11 Others Check
Caution
These inspections should be conducted before operating the forklift.。
Note
Before conducting the daily inspection, recheck for any fault and fault found earlier.
Content Description
1. Exterior
(1) Check the forklift body for damage and deformation.
(2) Check the floor where the forklift is parked for oil leakage.
(3) Check the condition of the nameplate and decals.
(4) Check if any parts loose or fall off.
Note
If oil leakage occurs, confirm the location of the oil leakage and contact the BYD after sales
service.
2. Wheel
(1) Check on a daily basis if the wheel fasteners are secured or loose. Fasten them if they
are loose.
(2) Take out debris embedded in the tire.
(3) If the four tires are unevenly worn, or the tires are found damaged, or the rims are bent,
then replace the wheels.
3. Mast
(1) Check the cylinders, oil pipes, and hoses for oil leakage.
(2) Check the working equipment for deformation and damage. check if the bolts are securely
fastened.
4. Hydraulic System
Check the hydraulic oil level in the oil tank
5. Display
(1) Check if the battery voltage and status of charger displayed are correct.
(2) Check if any fault indicator appears on the display.
6. Warning Equipments
(1) Press horn to see if it works.
(2) Check if other warning equipments work properly.
7. Braking System
Move the handle to the braking zone while the forklift is travelling, to check whether the brakes
operate efficiently.
8. Travel, Steering and Control Inspection
(1) Check for the operation of the tiller and abnormal sounds by rotating the tiller forward or
backward and turning the tiller right or left.
(2) Check for the operation of buttons.
(3) Check the fasteners for looseness or missing.

MAINTENANCE
OPERATOR MANUAL 38
EPS14P
39 OM-EPS14P2019001-EN
9. Electric System Inspection
(1) Check connectors and tighten the loose parts. Check electrical connectors for abnormality
(for example, sign of burning).
(2) Check fuses of main controller and replace them if necessary. Check whether the copper
busbar of the main controller is burnt. If so, replace it.
(3) Check whether low voltage fuse and relay work properly. Replace them if necessary.
Warning
Disconnect the battery before checking the electric system.
10. Clean
Clean the whole forklift with the compressed air.
11. Others
Check if there are others problems.
REGULAR MAINTENANCE
Period and Items
Period for regular inspection and maintenance, whichever comes first. For example, if the
forklift works less than 250 hours in 6 weeks, conduct the following inspection and checks every
6 weeks, otherwise conduct the following inspection and checks every 250 hours. Perform the
maintenance service accordingly
Category Item
6 (weeks) 3 6 12 Months
250 500 1000 2000 Hours
Chassis
System Gear Oil Level Checking First Check Check
Mast
Chains Adjustment Adjustment
Chains Lubrication Lubrication
Mast Cleaning Clean
Mast Clearance Adjustment Adjustment
Hydraulic
System
Hydraulic Oil Replacement Replacement
Oil Filter with Breather Filter Replacement
Electric
System Electric System Inspection Check
Others Torque Inspection on Critical Fasteners Check
Note
If the working environment is harsh, the maintenance interval should be reduced, and advice
from BYD after sales personnel should be sought.
Content Description
1. Chassis System
Check the gear oil level and add if necessary.
2. Mast
(1) Check the tension the lift chains, adjust them if necessary.
(2) Lubricate the chains
(3) lean the mast.
3. Hydraulic System
(1) Replace the hydraulic oil periodically.
(2) Replace the oil filler with breather filler periodically.
