Byte Brothers POWER PANEL User manual

Cable and Device Testers
Cable and Device Testers
7003 132nd Place SE, Newcastle, WA 98059 USA
+1.425.917.8380 ●FAX [phone] ●
[e-mail]
STANDARD UNIT FEATURES
P/N POE1000
Scans pins and displays:
PoE power: Volts, watts, cable
pair location, end / midspan.
Advertised data switch speed
(10,100,1000 MB/s), duplex.
Cable pair location.
Phones (digital, analog)
INTERACTIVE BUTTONS:
VoIP phone and IP camera
load simulator.
Link pulse transmit button.
OTHER FEATURES:
Tone generation
Port beacon, Auto shutoff
9V battery (included).
INLINE FEATURES
P/N POE1000IL
All of the features of the
Standard model plus:
POWER PASS THRU
Two jacks allow PoE power to
be passed to the PoE device
so it can be tested.
POWER MEASUREMENT
Placed INLINE between two
devices, the power draw of the
device can be measured in
watts. Too much power draw is
the number one reason for
IP/PoE network failure.
TONE STAR FEATURES
P/N POE1000ILT
All of the features of the
INLINE model plus:
AN ILLUMINATED PROBE
The Tone Star model includes
a full featured, filtered probe
for tracing tones (wire location).
The probe features an ultra-
bright LED lighted tip, filtering to
block fluorescent hum, volume
control, 2 status LEDs,
adapters for alarm wire, RJ11,
RJ45 and coax connectors.
CDV
DIMDNEEOP
ENOHP
01KNIL 00 DFDH
87654321
STANDARD VERSION DISPLAYING POE VOLTAGE
P/N POE1000
CONNECTED INLINE DISPLAYING POWER IN WATTS
P/N POE1000IL
CDV
DIMDNEEOP
ENOHP
01KNIL 00 DFDH
87654321
CDV
DIMDNEEOP
ENOHP
01KNIL 00 DFDH
87654321
INCLUDES FULL FEATURE ILLUMINATED PROBE
P/N POE1000ILT
OF TESTING
FOR VOLTAGE
AND POWER
OF TESTING
FOR VOLTAGE
AND POWER
MODEL POE1000
STANDARD POWER PANEL
“The power panel lets you know
what’s there before you plug in.”
“If you install VoIP or camera systems
this will become your main tool.”
Made in the USA
Patent pending
Copyright 2010
Byte Brothers, Inc.
POWER PANEL DVM MODELS TO CHOOSE FROM!
MODEL POE1000ILT
POWER PANEL TONE STAR
MODEL POE1000IL
3
OF TESTING
FOR VOLTAGE
AND POWER
TEDIOUS TASTELESS
OF TESTING
FOR VOLTAGE
AND POWER
SMART ACCURATE
Special pricing when you combine the
Power Panel with the Real World Certifier.
CPK1000 RWC1000K and POE1000
CPK1000IL RWC1000K and POE1000IL
CABLE AND POWER KITS
POWER SENSING INLINE MODEL
POWER PANEL
POWER PANEL
TM
CAT5/6 DVM (JACK AND POE TESTER)

POWER PANEL
POWER PANEL
TM

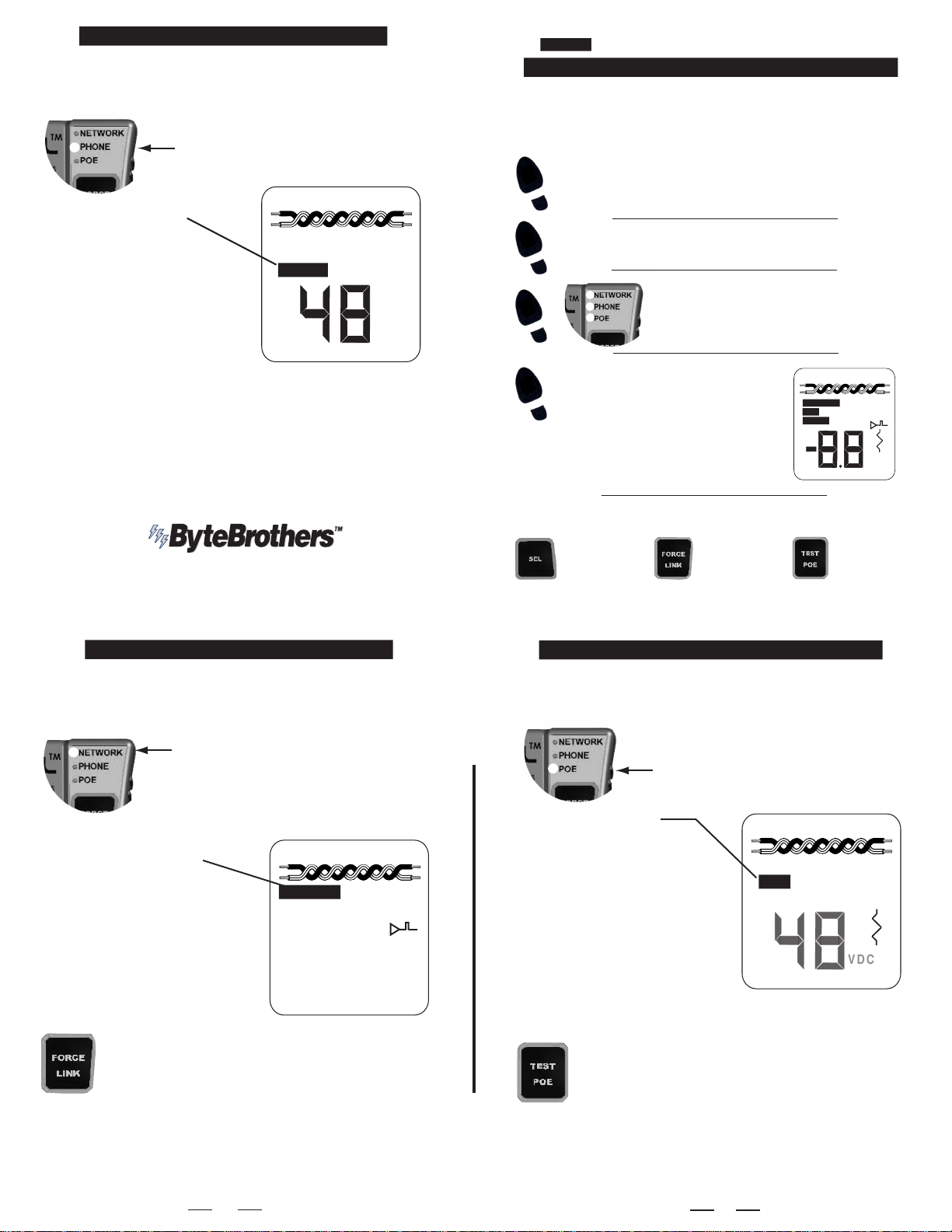

USER’S GUIDE
WATCH ALERT LEDS. They light if a
network device is ON or if a phone or PoE voltage
is present.
POWER ON: Press any button.
POWER OFF: Press and hold the SEL (select) button until off.
BATTERY SAVER: No activity for 5 minutes shuts the Power Panel OFF.
C
D
V
DIM DNE
8
7
6
5
4
3
2
1
INTERACTIVE BUTTONS
Simulates a Power
over Ethernet (PoE)
device, prompting full
PoE voltage.
See page 3.
Press to prompt
devices to talk to
you. Hold for 5
secs to turn on Port
Beacon. See page 2.
The Network LED indicates a active network device is present (switch, a PC NIC
card, access point, VoIP phone, IP security camera, etc.). The Power Panel detects
the link pulses, lights the ALERT LED and displays the pair(s), speed and duplex.
NETWORK DISPLAY
Speed of the device
Duplex of the device (half or full)
“FORCE LINK” button is pressed
WHAT IS POE: Power supplied to network devices over a CAT5/6 cable (no separate
AC power required). Many VoIP phones, IP cameras and access points are PoE devices.
WHAT IS PSE: Devices that supply PoE are “Power Sourcing Equipment”. PoE capable
switches and PoE injectors are examples of PSE devices.
PoE OPERATION: PoE standard IEEE 802.3af suggests that a PSE send a low power
“discovery voltage” and when a proper load is sensed, apply the full voltage (48VDC).
FORCE LINK BUTTON Press if you suspect a network device is present
but are receiving little or no link information (possibly an ALERT LED but
no display). Some network devices refuse to “talk” unless prompted. The
FORCE LINK button sends link pulses... prompting a dialog.
CAT5/6 DVM AND PoE TESTER + TONE
Pairs where PoE exist
Type of PoE device*
Tests the operation of the PoE voltage source by applying a load in
compliance with both IEEE and Cisco standards. This load should trigger
the full 48VDC PoE voltage.
Although not allowed by any standard, digital and analog phones and FAXs are on
CAT5/6 cables. These high voltage devices can damage other devices if you are not
aware of their presence. The Power Panel CAT5/6 DVM searches for them, lights the
ALERT LED and displays the phones’ voltages. Up to 4 phones can be displayed.
PHONE ALERT LED LIGHTS IF PRESENT
When a analog or digital phone or FAX machine is
present, the PHONE LED lights. Press SEL to locate display.
Pairs with activity
PHONE DISPLAY
Amplitude of voltage
Up to 4 phone devices are displayed
WARRANTY: The manufacturer warrants to the original consumer that this product is in good
working order for a period of one year from the date of manufacture or date of purchase. During this
period, the product will be repaired or replaced without charge for either parts or labor. Repair or
replacement as provided under this warranty is the exclusive remedy of the purchaser.
© 2011 Byte Brothers, Inc. Patent pending.
7003 132nd Place SE, Newcastle, WA 98059 USA
+1.425.917.8380 ● FAX [phone] ● [e-mail]
Use the SEL button to select between displays.
Note: Display is available only if LED is lighted.
SELECT A LCD DISPLAY. Each lighted LED has
a corresponding LCD display with information. Use
the SEL button to move between displays.
Go to www.bytebrothers.com for more information about the Power Panel CAT5/6 DVM.
23
NETWORK ALERT LED LIGHTS IF PRESENT
When a VoIP phone, IP camera, switch or other
network device is spotted, the
NETWORK LED lights. Press SEL to locate display.
Pair(s) with activity
(10,100,1000 MB/s). This is the
“Advertised” speed of the device. *A PSE at the end of a cable supplying power on
1,2 3,6 is an “endspan device” (typically a switch
with built-in PoE). A PSE placed in the middle of
a cable on pairs 4,5 7,8 is a ”midspan device”.
PoE ALERT LED LIGHTS IF PSE/PoE PRESENT
Press SEL to locate display.
The PoE LED indicates that PoE voltage is present on the cable. This lights the alert LED
and displays the pair(s) and amplitude of the PoE voltage. Further, pressing TEST PoE
prompts the full 48VDC voltage (see glossary below).
“TEST POE” button depressed
48VDC is typical central office voltage
LCD displays multiple phones automatically
NETWORK LED. See page 2.
POWER LED. See page 3.
PHONE LED. See back cover.
PoE DISPLAY
PoE Voltage (DC)
(available if LED is lit)
(available if LED lit)
LINK BEACON: When the FORCE LINK button is latched, transmitted link pulses
cause the link LED on the receiving device to blink. This helps locate ports in crowded
panels. To “latch”, hold the button for more than 5 seconds (link pulses will transmit
for 30 minutes them timeout to save the battery). Press any button to unlatch. When
latched, “Lb” displays on the LCD.
NOTE ON POWER (WATTS): The Power Panel inline version (P/N POE1000IL) has 2
jacks. It can be inserted in between the PSE and PoE device to measure power draw.
