ENGLISH
YOU HAVE MADE THE RIGHT CHOICE!
This device has been developed and manufactured to the highest quality standards to ensure
many years of trouble-free operation. Please read this user manual carefully to be able to quickly
put your new Cameo Light product to optimum use. Further information about Cameo Light is
available on our website CAMEOLIGHT.COM.
INFORMATION ON THIS USER MANUAL
• Carefully read the safety instructions and the entire manual before operating the device.
• Observe the warnings on the device and in the user manual.
• Always keep the user manual within reach.
• If you sell or pass on the device, it is important that you also include this user manual, as it is
an integral part of the product.
INTENDED USE
The product is a device for event technology!
This product has been developed for professional use in the field of event technology and is not
suitable for use as domestic lighting!
Furthermore, this product is only intended for qualified users with specialist knowledge of
event technology!
Use of the product outside the specified technical data and operating conditions is considered
improper use!
Liability for damage and third-party damage to persons and property due to inappropriate
use is excluded!
The product is not suitable for:
• Use by persons (including children) with limited physical, sensory or mental abilities or lack of
experience and knowledge.
• Children (children must be instructed not to play with the device).
DEFINITIONS AND SYMBOL EXPLANATIONS
1. DANGER: The word DANGER, possibly in combination with a symbol, indicates immediately
dangerous situations or conditions for life and limb.
2. WARNING: The word WARNING, possibly in combination with a symbol, indicates potentially
dangerous situations or conditions for life and limb.
3. CAUTION: The word CAUTION, possibly in combination with a symbol, is used to indicate situa-
tions or conditions that may lead to injury.
4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, refers to situations
or conditions that can lead to damage to property and/or the environment.

6
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
This symbol identifies hazards that can cause electric shock.
This symbol identifies hazardous areas or hazardous situations.
This symbol indicates hazards caused by hot surfaces.
This symbol indicates hazards due to laser beams.
This symbol indicates the laser exit port of the device.
This symbol indicates additional information on the operation of the product.
This symbol indicates additional information on the operation of the product.
This symbol indicates a device that may only be used in dry rooms.
SAFETY INSTRUCTIONS
DANGER:
1. Do not open the device and do not perform any modifications.
2. If your device no longer functions properly, if liquids or objects get inside it or if it
has been damaged in any other way, switch it off immediately and disconnect it
from the mains. The device may be repaired only by authorised repair technicians.
3. For devices of protection class 1, the protective earth conductor must be connected
correctly. Never disconnect the protective earth conductor. Devices of protection
class 2 do not have a protective earth conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the device fuse.
WARNING:
1. The device may not be operated if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the power cable of the device is damaged, do not operate the device.
4. Permanently connected power cables may only be replaced by a qualified person.

7
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
ATTENTION:
1. Do not operate the device if it has been exposed to large temperature fluctuations
(for example, after transport). Moisture and condensation can damage the device.
Switch on the device only when it has reached ambient temperature.
2. Make sure that the voltage and frequency of the mains supply correspond to the
values indicated on the device. If the device has a voltage selector switch, do not
turn the device on until it has been set correctly. Use only suitable power cables.
3. To disconnect the device completely from the power supply, unplug the power
cable or the power adapter from the socket. It is not sufficient to press the on/off
switch on the device.
4. Make sure that the fuse used corresponds to the type printed on the device.
5. Make sure that appropriate measures have been taken against overvoltage (e.g.
lightning strike).
6. Observe the specified maximum output current on devices with Power Out connec-
tion. Ensure that the total current consumption of all connected devices does not
exceed the specified value.
7. Replace pluggable power cables only with original cables.
8. Connect the device only to compliant, tested and undamaged power outlets.
DANGER:
1. Danger of suffocation! Plastic bags and small parts must be kept out of reach of
persons (including children) with reduced physical, sensory or mental capabilities.
2. Danger caused by falling device! Make sure that the device is securely installed
and cannot fall down. Only use suitable stands or mounts (particularly for fixed
installations). Ensure that accessories are properly installed and secured. Ensure
that all applicable safety regulations are observed.
WARNING:
1. Use the device only in the manner intended.
2. Operate the device only with the accessories recommended and intended by the
manufacturer.
3. During installation, observe the safety regulations applicable in your country.
4. After connecting the device, check all cable routes to avoid damage or accidents,
e.g. due to tripping hazards.
5. Always observe the specified minimum distance to normally flammable materials!
Unless explicitly stated, the minimum distance is 0.3 m.
CAUTION:
1. Moving components such as mounting brackets pose a jamming hazard.
2. In the case of devices with motor-driven components, there is a risk of injury from
the movement of the device. Sudden movement of the device can cause shock
reactions.

8
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
3. The exterior surface of the device can become very hot during regular operation.
Ensure that accidental touching of the housing is not possible. Always allow the
device to cool sufficiently before removal, maintenance work and charging etc.
ATTENTION:
1. Do not install and operate the device in the vicinity of radiators, heat accumulators,
ovens, or other heat sources. Ensure that the device is always installed in such a
way that it is sufficiently cooled and cannot overheat.
2. Do not place ignition sources such as lighted candles near the device.
3. Vents must not be covered and fans must not be blocked.
4. Use the original packaging or packaging provided by the manufacturer for trans-
port.
5. Avoid shock or impact to the device.
6. Observe the IP rating as well as the ambient conditions such as temperature and
humidity according to the specification.
7. Devices can always be further improved. In the event of any discrepancies between
the operating instructions and the device labelling with regard to operating condi-
tions, performance or other device characteristics, the information on the device
always takes precedence.
8. The device is not suitable for tropical climates and for operation at elevations high-
er than 2000 m above sea level.
9. Unless explicitly stated, the device is not suitable for operation in marine condi-
tions.
CAUTION! IMPORTANT INFORMATION REGARDING LIGHTING PRODUCTS!
Stroboscopic effects may cause epileptic seizures in susceptible individuals!

9
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
HAZARD! IMPORTANT NOTES REGARDING LASER PRODUCTS!
1. This product has been developed for professional use in the field of event technology and is not
suitable for use as domestic lighting.
2. This device contains a laser of the laser class marked on the housing and in the technical spec-
ifications according to EN 60825-1 classification.
3. DO NOT look directly into the laser beam. Risk of injury and blinding!
4. Do not expose to the laser beam. The laser beam can cause burns.
5. In this context, exercise increased caution when using optical instruments (e.g. magnifying
glass, camera, binoculars etc.)!
6. If installed or used incorrectly, laser radiation can be a fire and explosion hazard. Therefore,
commissioning may only be carried out by trained specialist personnel.
7. In some countries, the installation or operation of lasers is subject to authorisation. Please
contact the relevant authority.
8. Appointing a laser safety officer for commissioning is always advisable and even mandatory
in some countries. Please observe your country-specific safety regulations and guidelines for
operating the laser device.
9. The safety distances between the device and the public required at the place of operation and
the maximum permissible exposure (MPE) values must always be determined by trained spe-
cialist personnel and compliance with them must be ensured (MPE limits are country-specific).
10. Even if the laser diode does not appear to be lit, radiation that is harmful to the eye may be
emitted. Therefore, always disconnect the device from the mains at all poles when it is not in
use.
11. In order to ensure the device cannot be operated by unauthorised persons, lock the switch
and remove the key!
12. If the device has an interlock connection (from laser class 3B), it must be installed in such a
way that an emergency shutdown is possible at any time.
13. Before operating the device, the laser emission window must be checked for foreign ob-
jects (dust, dirt, nicotine deposits etc.), condensation, droplets of liquid and damage such as
scratches and cracks. If the window is not in perfect condition, laser beams could be deflected
in an uncontrolled manner. If this is the case, the show laser must not be used. Clean the laser
emission window regularly and in the event of damage, have it replaced by an authorised ser-
vice centre. The laser emission window must be in perfect condition to ensure safe operation of
the show laser.
NOTES ON PORTABLE INDOOR DEVICES
1. Temporary operation! Event equipment is generally only designed for
temporary operation.
2. Continuous operation or permanent installation can impair the functioning of the
device and cause premature ageing.

10
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
PACKAGING CONTENT
Remove the product from the packaging and remove all packaging material. Please check the
completeness and integrity of the delivery and notify your distribution partner immediately after
purchase if the delivery is not complete or if it is damaged.
Included with the product CLLLEYA2000RGB are:
X1 x LEYA 2000 RGB show laser
X1 x Mounting bracket (pre-assembled)
X1 x Power cable
X2 x Key (for KEY SWITCH)
X1 x XLR bridge plug (for INTERLOCK)
X2 x Replacement clamping lever
XUser manual
Included with the product CLLLEYA3000RGB are:
X1 x LEYA 3000 RGB show laser
X1 x Mounting bracket (pre-assembled)
X1 x Power cable
X2 x Key (for KEY SWITCH)
X1 x XLR bridge plug (for INTERLOCK)
X2 x Replacement clamping lever
XUser manual
INTRODUCTION
PROFESSIONAL RGB SHOW LASERS
CLLLEYA2000RGB
CLLLEYA3000RGB
CONTROL FUNCTIONS:
ILDA control
FEATURES:
2000 mW RGB laser (LEYA2000RGB). 3000 mW RGB laser (LEYA3000RGB). Professional show
lasers. Aluminium housing for minimal maintenance. 25 Kpps high speed galvo scanner @ 8°
ILDA. Analogue modulation for up to 16 million colour shades. Precise beams with extremely low
divergence for razor-sharp projections. Control via ILDA. Scan Fail Safety system with deactivation
function (prevents emission of a dangerous spot beam). Neutrik powerCON mains input and output.
Low-noise fan for controlled operating temperature. Operating voltage 100 - 240 V AC.

11
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
CONNECTIONS, OPERATING AND DISPLAY ELEMENTS
13
14
15
- The LEYA 2000 RGB and LEYA 3000 RGB models have identical connections, controls and displays -
1POWER IN
Neutrik powerCON mains input socket for power supply to the device. Operating voltage 100 -
240 V AC / 50 - 60 Hz. Use the included power cable.
2POWER ON/OFF
Illuminated rocker switch for switching the device on and off. As soon as the device is correctly
connected to the mains and switched on, both the switch and the associated power LED PWR
light up.
2
4
4
5
7
10
8
9
11
8
12
61 3
2

12
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
3POWER OUT
Neutrik powerCON mains output socket for supplying power supply to additional CAMEO products.
Ensure that the total power consumption of all connected devices does not exceed the value
specified on the device in amperes (A).
4ILDA IN
ILDA input with 25-pin D-sub connector for computer control. An ILDA interface and ILDA software
for show programming are not included with the device. The associated ILDA status LED lights
up as soon as an ILDA interface is connected to the ILDA IN input and the show laser is ready for
operation.
5ILDA OUT
25-pin D-sub connector for transmitting the ILDA control signal.
6KEY SWITCH ON / OFF
Lock switch for switching the built-in lasers on and off. The lasers are deactivated in the OFF
position and activated in the ON position. Two keys are included. In order to ensure the device
cannot be operated by unauthorised persons, lock the switch and remove the key!
7INTERLOCK
The interlock connection allows for the implementation of an emergency cut-off sys-
tem that enables the immediate, remote-controlled shutdown of any connected effect
lasers in the event of a hazardous situation. Cameo LEYA lasers can only be operated
if the interlock circuit is closed. Pressing the emergency cut-off switch opens the
contact, thereby interrupting the circuit.
INPUT: Male 3-pin XLR socket for connecting the optionally available CAMEO emergency cut-off
switch; use a standard microphone or DMX cable to connect to the XLR socket of the switch. If the
emergency off switch is not used, the included bridging plug must be inserted into the interlock
socket in order to be able to activate the laser. The bridging plug is intended for service
purposes only and must not be used at events with an audience!
OUTPUT: Female 3-pin XLR connector for connecting compatible laser products to the Interlock
emergency cut-off system.
8SCANFAIL MODE - BUTTON + INDICATOR LED ON / OFF
The ScanFail Safety system prevents the emission of a dangerous spot beam. Therefore, leave
the ScanFail Safety system permanently activated during operation! Only deactivate the Scan
Fail Safety system in exceptional cases (e.g. when adjusting the laser) and only if utmost care
has been taken to ensure that persons, animals and combustible materials cannot be hit by laser
beams (also take mirrors and other reflecting materials into consideration)!

13
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
Press the button to activate the ScanFail Safety system and again to deactivate it. The associat-
ed indicator LED lights up when the ScanFail Safety system is activated. If the ScanFail Safety
system is deactivated, the associated LED does not light up (LED switched off).
PLEASE NOTE
After a restart, the last selected state is activated.
9RGB BRIGHTNESS CONTROL
Use the brightness control to set the brightness of the R, G and B lasers as required (far left =
laser dimmed to zero, far right = laser at maximum brightness).
10 RGB DISPLAY LEDS
The LEDs indicate which of the three built-in lasers R, G and B are currently active.
11 ADJUSTING THE LASER PROJECTION
Horizontal rotation of projection, continuously variable from 0° to 180°.
Vertical rotation of projection, continuously variable from 0° to 180°.
Shift projection on the horizontal plane.
Shift projection on the vertical plane.

14
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
12 SAFETY
Safety eyelet for securing the device when mounted overhead.
13 LASER EXIT WINDOW
DO NOT look directly into the laser beam! Risk of injury and blinding! Do not expose yourself to
the laser beam!
14 BEAM CATCHER
Adjustable metal beam catcher with knurled screws for limiting the output range of the laser if
required. Check the position of the beam catcher regularly and make sure that it cannot change
even in the event of strong vibrations.
15 LASER EMISSION
The indicator LED on the front of the show laser lights up when the laser system is ready to emit
laser radiation.
PLEASE NOTE
The lasers are ready to use approximately 10 seconds after the device is powered up.
Likewise, it takes approximately 10 seconds after activating the lasers using the lock
or emergency cut-off switches before they are ready to use.
SETUP AND INSTALLATION
DANGER: Overhead mounting requires extensive experience, including the calcula-
tion of the load limit values of the installation material and regular safety inspection
of all installation materials and spotlights. If you do not have these qualifications, do
not attempt to perform an installation yourself. Refer instead to a qualified profes-
sional. There is a risk that devices that are incorrectly mounted and secured may
come loose and fall down. This can cause serious injury or death.
If installed or used incorrectly, laser radiation can be a fire and explosion hazard.
Therefore, commissioning may only be carried out by trained specialist personnel.
In some countries, the installation or operation of lasers is subject to authorisation.
Please contact the relevant authority. Appointing a laser safety officer for commis-
sioning is always advisable and even mandatory in some countries. Please observe
your country-specific safety regulations and guidelines for operating the laser device.
The safety distances between the device and the public required at the place of
operation and the maximum permissible exposure (MPE) values must always be de-
termined by trained specialist personnel and compliance with them must be ensured
(MPE limits are country-specific).

15
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI

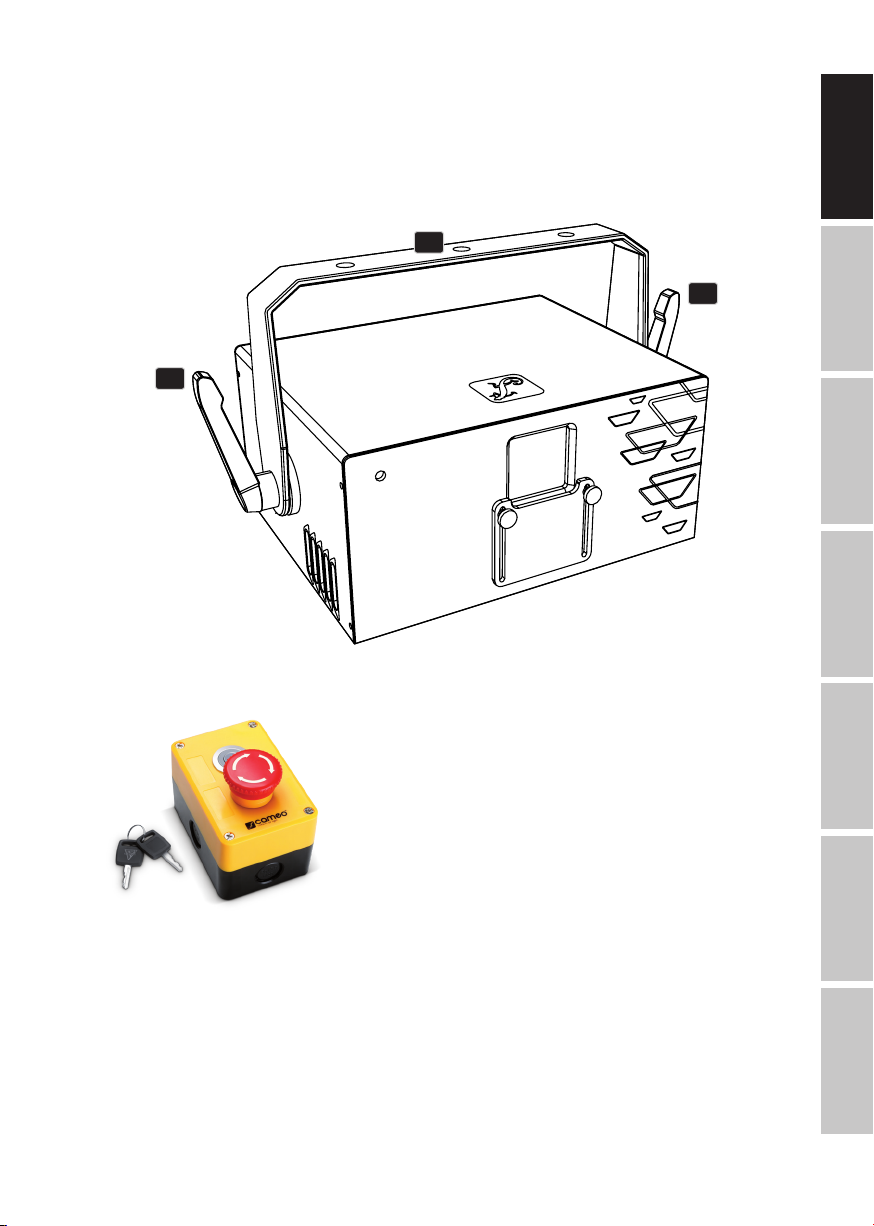

Thanks to its integrated rubber feet, the show laser can be positioned in a suitable location on
a flat surface. Truss mounting is possible with a suitable truss clamp, which is attached to the
mounting bracket (A). Truss clamps are available as an option. Ensure firm connections and
secure the show laser with a suitable safety rope to the safety eyelet provided on the back of the
device. Use the clamping levers (B) to adjust the radiation direction on a vertical plane.
A
B
B
OPTIONAL ACCESSORIES
CLLEKSXLR
Emergency cut-off switch with 3-pin XLR socket
CARE, MAINTENANCE AND REPAIR
In order to ensure the long-term, proper functioning of the device, it must be regularly cleaned
and, if necessary, serviced. The servicing requirement depends on the intensity of use and the
environment in which it is used.
We recommend a visual inspection before each operation. Furthermore, we recommend carrying
out all the applicable service measures specified below once every 500 operating hours or, in
the case of a lower intensity of use, at the latest after one year. Warranty claims may be limited
should defects result from inadequate service and maintenance.

16
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
CARE (carried out by user)
WARNING! Before carrying out any care or maintenance, the power supply – and, if
possible, all device connections – must be disconnected.
PLEASE NOTE! Improper care can lead to impairment of the device or even its
destruction.
1. Housing surfaces must be cleaned with a clean, damp cloth. Make sure that no moisture can
penetrate the device.
2. Air inlets and outlets must be regularly cleaned of dust and dirt. If compressed air is used, make
sure that damage to the device is prevented (e.g. fans must be blocked in this case, as they
could otherwise over-rev.).
3. Cables and connectors must be cleaned regularly and dust and dirt must be removed.
4. In general, no cleaning agents or abrasive agents may be used, otherwise the surface finish
may be damaged.
5. Devices must be stored in a dry environment and protected from dust and dirt.
6. To ensure correct and safe operation, all accessible or removable lenses and light-emitting
apertures must be cleaned regularly.
MAINTENANCE AND REPAIR (by qualified personnel only)
HAZARD! There are live components in the device. Even after disconnecting the
mains connection, there may still be residual voltage in the device, e.g. due to
charged capacitors.
PLEASE NOTE! Maintenance and repair work may only be carried out by sufficiently
qualified specialist personnel. If in doubt, consult a specialist workshop.
PLEASE NOTE! Improperly performed maintenance work may affect warranty claims.
PLEASE NOTE! For conversion or retrofit sets provided by the manufacturer, it is
essential to observe the enclosed installation instructions.

17
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
DIMENSIONS (mm)
114
126
238
193

18
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
TECHNICAL SPECIFICATIONS
Product number: CLLLEYA2000RGB CLLLEYA3000RGB
Product type: Effects spotlight Effects spotlight
Type: Show laser Show laser
Colour spectrum:
Red: 638 nm
Green: 520 nm
Blue: 450 nm
Red: 638 nm
Green: 525 nm
Blue: 450 nm
No. of diodes: 1 x Red, 1 x Green, 1 x Blue 1 x Red, 1 x Green, 1 x Blue
Diode types:
Red 400 mW (laser diode)
Green 600 mW (laser diode)
Blue 1000 mW (laser diode)
Red 600 mW (laser diode)
Green 800 mW (laser diode)
Blue 1600 mW (laser diode)
Stepper motors X/Y: 25kpps @ILDA 8° 25kpps @ILDA 8°
Dispersion: 40° 40°
Laser class: 4 4
Beam data: ≤1mrad (Full Angle) ≤1mrad (Full Angle)
Modulation: Analogue, 100 kHz Analogue, 100 kHz
Laser shutdown
(safety function):
Lock switch, interlock connec-
tor 3-pin XLR IN & OUT
Lock switch, interlock connec-
tor 3-pin XLR IN & OUT
ILDA input: 25-pin D-SUB connection, male 25-pin D-SUB connection, male
ILDA output: 25-pin D-SUB connection,
female
25-pin D-SUB connection,
female
Operating controls:
R, G, B, 4 controls for laser
projection, SFS ON/OFF, lock
switch, on/off switch
R, G, B, 4 controls for laser
projection, SFS ON/OFF, lock
switch, on/off switch
Display elements: 7 indicator LEDs,
illuminated on/off switch
7 indicator LEDs,
illuminated on/off switch
Power supply connection: Neutrik powerCON input
and output
Neutrik powerCON input
and output
Maximum power out
load rating: 4 A 4 A
Operating voltage: 100–240 V AC, 50–60 Hz 100–240 V AC, 50–60 Hz
Power consumption: 75 W 75 W
Protection class: IP20 IP20
Ambient temperature
(for operation): 10°C - 40°C 10°C - 40°C
Relative air humidity: 10% – 70%, non-condensing 10% – 70%, non-condensing
Housing material: Metal Metal
Housing colour: Black Black
Housing cooling: Fan Fan
Dimensions (W x H x D, with-
out bracket and rubber feet): 238 x 114 x 193 mm 238 x 114 x 193 mm
Weight: 4.3 kg 4.3 kg

19
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
Additional features:
Power cable, adjustable
mounting bracket, 2 x replace-
ment clamping levers, safety
eyelet, jumper plug, 2 keys for
lock switch included. Emergen-
cy off switch optional.
Power cable, adjustable
mounting bracket, 2 x replace-
ment clamping levers, safety
eyelet, jumper plug, 2 keys for
lock switch included. Emergen-
cy off switch optional.
DISPOSAL
PACKAGING:
1. Packaging can be recycled using the usual disposal methods.
2. Please separate the packaging in accordance with the disposal laws and recycling
regulations in your country.
DEVICE:
1. This device is subject to the European Directive on Waste Electrical and Electronic
Equipment as amended. WEEE Directive Waste Electrical and Electronic Equip-
ment. Electronic devices do not belong in household waste. The old device must
be disposed of via an approved disposal company or a municipal disposal facility.
Please observe the applicable regulations in your country!
2. Observe all disposal laws applicable in your country.
3. As a private customer, you can obtain information on environmentally-friendly dis-
posal options from the seller of the product or the appropriate regional authorities.
MANUFACTURER’S DECLARATIONS
Manufacturer's warranty & limitation of liability
Adam Hall GmbH | Adam-Hall-Str.1 | 61267 Neu-Anspach | Germany
E-mail: [email protected] / +49 (0)6081 / 9419-0
Our current warranty conditions and limitation of liability can be found at:
https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf
For service requests, please contact your distribution partner.
CE conformity
Adam Hall GmbH hereby confirms that this product meets the following guidelines (where applicable):
Low-Voltage Directive (2014/35/EU)
EMC Directive (2014/30/EU)
RoHS (2011/65/EU)
RED (2014/53/EU)

20
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
EC Declaration of Conformity
Declarations of conformity for products subject to the LVD, EMC, RoHS Directive can be requested
from [email protected]
Declarations of conformity for products subject to RED can be downloaded from www.adamhall.
com/compliance/
Subject to misprints and errors, as well as technical or other modifications!
