Cameo ZENIT W600i User manual

ZENIT®W600i
OUTDOOR LED WASH LIGHT FOR FIXED INSTALLATION
CLZW600i
USER´S MANUAL
BEDIENUNGSANLEITUNG
MANUEL D´UTILISATION
MANUAL DE USUARIO
INSTRUKCJA OBSŁUGI
MANUALE D´USO
MULTIPLE
ANGLES

CONTENTS / INHALTSVERZEICHNIS / TABLE DES MATIÈRES / CONTENIDO /
SPIS TREŚCI / CONTENUTO
ENGLISH
INFORMATION ON THIS USER MANUAL 6
INTENDED USE 6
DEFINITIONS AND SYMBOL EXPLANATIONS 6
SAFETY INSTRUCTIONS 7
INSTRUCTIONS FOR INSTALLATION EQUIPMENT 10
FEATURES 11
CONNECTIONS, OPERATING AND DISPLAY ELEMENTS 11
SIGNAL AND POWER CABLE 13
OPERATION 15
ADJUSTING LIGHT HEAD TILT 23
INSTALLATION AND TRUSS MOUNTNG 24
INSTALLATION OF OPTIONAL ACCESSORIES 25
INSTALL SPOTLIGHT WITH OPTIONAL MOUNTING PLATE 26
CARE, MAINTENANCE AND REPAIR 27
OPTIONAL ACCESSORIES 29
TECHNICAL DATA 30
EXPLANATION OF IP PROTECTION CLASS 32
EXPLANATORY NOTES ON IK IMPACT RESISTANCE RATING 33
MINIMUM DISTANCE TO ILLUMINATED SURFACE 33
MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS 33
DISPOSAL 34
MANUFACTURER’S DECLARATIONS 34
DEUTSCH
INFORMATIONEN ZU DIESER BEDIENUNGSANLEITUNG 36
BESTIMMUNGSGEMÄSSER GEBRAUCH 36
BEGRIFFS- UND SYMBOLERKLÄRUNGEN 36
SICHERHEITSHINWEISE 37
HINWEISE FÜR INSTALLATIONSGERÄTE 41
EIGENSCHAFTEN 41
ANSCHLÜSSE, BEDIEN- UND ANZEIGEELEMENTE 42
SIGNAL- UND NETZKABEL 43
BEDIENUNG 45
EINSTELLEN DER LEUCHTKÖRPERNEIGUNG 54
AUFSTELLUNG UND TRAVERSENMONTAGE 55
OPTIONALES ZUBEHÖR MONTIEREN 56
SCHEINWERFER MITTELS OPTIONALER MONTAGEPLATTE INSTALLIEREN 58
PFLEGE, WARTUNG UND REPARATUR 59
OPTIONALES ZUBEHÖR 61
TECHNISCHE DATEN 62
ERLÄUTERUNGEN ZUR IP SCHUTZART 64
ERLÄUTERUNGEN ZUM IK STOSSFESTIGKEITSGRAD 65
MINDESTABSTAND ZUR BELEUCHTETEN FLÄCHE 65
MINDESTABSTAND ZU NORMAL ENTFLAMMBAREN MATERIALIEN 65
ENTSORGUNG 66
HERSTELLERERKLÄRUNGEN 66

FRANÇAIS
INFORMATIONS CONCERNANT CE MANUEL D’UTILISATION 67
UTILISATION CONFORME 67
EXPLICATIONS DES TERMES ET DES SYMBOLES 67
CONSIGNES DE SÉCURITÉ 68
CONSIGNES POUR LES APPAREILS D’INSTALLATION 72
CARACTÉRISTIQUES 72
RACCORDEMENTS, ÉLÉMENTS DE COMMANDE ET D’AFFICHAGE 73
CÂBLES DE SIGNAL ET RÉSEAU 74
UTILISATION 76
RÉGLAGE DE L’INCLINAISON DU CORPS LUMINEUX 86
INSTALLATION ET MONTAGE SUR TRAVERSE 87
MONTAGE DES ACCESSOIRES EN OPTION 88
INSTALLATION DU PROJECTEUR À L’AIDE DE LA PLAQUE DE MONTAGE EN OPTION 90
ENTRETIEN, MAINTENANCE ET RÉPARATION 90
ACCESSOIRES EN OPTION 93
CARACTÉRISTIQUES TECHNIQUES 94
EXPLICATIONS RELATIVES À L’INDICE DE PROTECTION IP 96
EXPLICATIONS RELATIVES À L’INDICE DE RÉSISTANCE AUX CHOCS IK 97
DISTANCE MINIMALE PAR RAPPORT À LA SURFACE ÉCLAIRÉE 97
DISTANCE MINIMALE PAR RAPPORT AUX MATÉRIAUX NORMALEMENT INFLAMMABLES 97
ÉLIMINATION 98
DÉCLARATIONS DU FABRICANT 98
ESPAÑOL
INFORMACIÓN SOBRE ESTE MANUAL DE INSTRUCCIONES 99
USO PREVISTO 99
TÉRMINOS Y SÍMBOLOS 99
INSTRUCCIONES DE SEGURIDAD 100
INSTRUCCIONES PARA LOS EQUIPOS DE INSTALACIÓN 104
CARACTERÍSTICAS 104
CONEXIONES, ELEMENTOS DE MANEJO Y ELEMENTOS DE VISUALIZACIÓN 105
CABLE DE SEÑAL Y DE ALIMENTACIÓN 106
FUNCIONAMIENTO 108
AJUSTE DE LA INCLINACIÓN DE LA LÁMPARA 117
INSTALACIÓN Y MONTAJE EN TRAVESAÑO 118
MONTAJE DE LOS ACCESORIOS OPCIONALES 119
INSTALACIÓN DEL FOCO CON PLACA DE MONTAJE OPCIONAL 121
CUIDADO, MANTENIMIENTO Y REPARACIÓN 122
ACCESORIOS OPCIONALES 124
DATOS TÉCNICOS 125
EXPLICACIÓN SOBRE LA CLASE DE PROTECCIÓN IP 127
EXPLICACIÓN SOBRE EL GRADO DE RESISTENCIA A LOS IMPACTOS IK 128
DISTANCIA MÍNIMA CON RESPECTO A LA SUPERFICIE ILUMINADA 128
DISTANCIA MÍNIMA CON RESPECTO A MATERIALES NORMALMENTE INFLAMABLES 128
ELIMINACIÓN 129
DECLARACIONES DEL FABRICANTE 129
CONTENTS / INHALTSVERZEICHNIS / TABLE DES MATIÈRES / CONTENIDO /
SPIS TREŚCI / CONTENUTO

POLSKI
INFORMACJE DOTYCZĄCE NINIEJSZEJ INSTRUKCJI OBSŁUGI 130
UŻYTKOWANIE ZGODNE Z PRZEZNACZENIEM 130
OBJAŚNIENIA TERMINÓW I SYMBOLI 130
ZASADY BEZPIECZEŃSTWA 131
UWAGI DOTYCZĄCE URZĄDZEŃ SŁUŻĄCYCH DO MONTAŻU 135
CHARAKTERYSTYKA 135
PRZYŁĄCZA, ELEMENTY OBSŁUGI I WSKAŹNIKI 136
PRZEWÓD SYGNAŁOWY I SIECIOWY 137
OBSŁUGA 139
REGULACJA ODCHYLENIA ŚWIATŁA 148
USTAWIANIE I MONTAŻ NA KRATOWNICY 149
MONTAŻ OPCJONALNYCH AKCESORIÓW 150
INSTALACJA REFLEKTORA PRZY UŻYCIU OPCJONALNEJ PŁYTY MONTAŻOWEJ 152
CZYSZCZENIE, KONSERWACJA I NAPRAWY 153
AKCESORIA DODATKOWE 155
DANE TECHNICZNE 156
OBJAŚNIENIA DOTYCZĄCE STOPNIA OCHRONY IP 158
UWAGI DOTYCZĄCE POZIOMU ODPORNOŚCI NA WSTRZĄSY IK 159
MINIMALNA ODLEGŁOŚĆ OD POWIERZCHNI OŚWIETLONEJ 159
MINIMALNA ODLEGŁOŚĆ OD NORMALNIE ŁATWOPALNYCH MATERIAŁÓW 159
UTYLIZACJA 160
DEKLARACJE PRODUCENTA 160
ITALIANO
INFORMAZIONI SUL PRESENTE MANUALE D'USO 161
UTILIZZO CONFORME 161
SPIEGAZIONE DI CONCETTI E SIMBOLI 161
INDICAZIONI SULLA SICUREZZA 162
NOTE SUI DISPOSITIVI PER INSTALLAZIONI ELETTRICHE 166
CARATTERISTICHE 166
CONNETTORI, ELEMENTI DI COMANDO E DI VISUALIZZAZIONE 167
CAVI DI SEGNALE E DI ALIMENTAZIONE 168
UTILIZZO 170
REGOLAZIONE DELL'INCLINAZIONE DELLA LAMPADA 179
INSTALLAZIONE E MONTAGGIO SU TRAVERSA 180
MONTAGGIO DEGLI ACCESSORI OPZIONALI 181
INSTALLAZIONE DEL PROIETTORE CON LA PIASTRA DI MONTAGGIO OPZIONALE 183
PULIZIA, MANUTENZIONE E RIPARAZIONE 184
ACCESSORI OPZIONALI 186
DATI TECNICI 187
SPIEGAZIONI SUL GRADO DI PROTEZIONE IP 189
SPIEGAZIONI SUL LIVELLO DI RESISTENZA AGLI URTI IK 190
DISTANZA MINIMA DALLA SUPERFICIE ILLUMINATA 190
DISTANZA MINIMA DAI MATERIALI NORMALMENTE INFIAMMABILI 190
SMALTIMENTO 191
DICHIARAZIONI DEL PRODUTTORE 191
CONTENTS / INHALTSVERZEICHNIS / TABLE DES MATIÈRES / CONTENIDO /
SPIS TREŚCI / CONTENUTO

DMX
DMX CONTROL / DMX STEUERUNG / PILOTAGE DMX / CONTROL DMX /
STEROWANIE DMX / CONTROLLO DMX 192
CONTENTS / INHALTSVERZEICHNIS / TABLE DES MATIÈRES / CONTENIDO /
SPIS TREŚCI / CONTENUTO

6
DEUTSCHENGLISH DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
ENGLISH
YOU HAVE MADE THE RIGHT CHOICE!
This device has been developed and manufactured to the highest quality standards to ensure
many years of problem-free operation. Please read this manual carefully to be able to use your
new Cameo product quickly and optimally. Further information about Cameo Light is available on
our website CAMEOLIGHT.com.
INFORMATION ON THIS USER MANUAL
•Carefully read the safety instructions and the entire manual before operating the device.
•Observe the warnings on the device and in the user manual.
•Always keep the user manual within reach.
•If you sell or pass on the device, it is important that you also include this user manual, as it is an
integral part of the product.
INTENDED USE
This product is an outdoor spotlight for permanent installation! This spotlight is intended exclu-
sively for professional users and is not suitable for private households or third parties! Use of
the product outside the specified technical data and operating conditions, as well as incorrect
installation, is considered inappropriate! Liability for damage and third-party damage to persons
and property due to inappropriate use is excluded!
The product is not suitable for:
• Use by persons (including children) with limited physical, sensory
or mental abilities or lack of experience and knowledge.
• Children (children must be instructed not to play with the device).
DEFINITIONS AND SYMBOL EXPLANATIONS
1. HAZARD: The word HAZARD, possibly in combination with a symbol, indicates situations in
which there is an immediate danger or risk of potentially fatal injury.
2. WARNING: The word WARNING, possibly in combination with a symbol, indicates situations in
which there is an immediate danger or risk of potentially fatal injury.
3. CAUTION: The word CAUTION, possibly in combination with a symbol, indicates situations or
conditions that could result in injury.
4. ATTENTION: The word ATTENTION, possibly in combination with a symbol,
indicates situations or states that may lead to property damage and/or environmental damage
.

7
DEUTSCH ENGLISH
DMX FRANCAIS
ESPAÑOLITALIANO POLSKI
This symbol identifies hazards that can cause electric shock.
This symbol identifies hazardous areas or hazardous situations.
This symbol indicates hazards caused by hot surfaces.
This symbol indicates hazards caused by intense light sources.
This symbol indicates a device in which there are no user-replaceable parts.
This symbol indicates additional information on the operation of the product.
SAFETY INSTRUCTIONS
HAZARD:
1. Do not open the device and do not perform any modifications.
2. If your device no longer functions properly, if liquids or objects get inside it or if it
has been damaged in any other way, switch it off immediately and unplug it from
the power source. The device may be repaired only by authorised repair techni-
cians.
3. For devices of protection class 1, the protective conductor must be connected
correctly. Never disconnect the protective conductor. Devices of protection class 2
do not have a protective conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the device fuse.
WARNING:
1. The device may not be operated if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the device's power cable is damaged, the device may not be used.
4. Permanently connected power cables may only be replaced by a qualified person.

8
DEUTSCHENGLISH DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
CAUTION:
1. Do not switch on the device if it has been exposed to extreme temperature fluctu-
ations (for example, following transport). Moisture and condensation can damage
the device. Switch on the device only when it has reached room temperature.
2. Ensure that the voltage and frequency of the mains supply match the values
specified on the device. If the device has a voltage selector switch, do not connect
the device until it has been set correctly. Use only suitable power cables.
3. To disconnect the device from the mains on all poles, it is not sufficient to press
the on/off switch on the device.
4. Make sure that the fuse used corresponds to the type printed on the device.
5. Ensure that suitable measures have been taken against overvoltage (e.g. lightning
strikes).
6. Observe the specified maximum output current on devices with a Power Out con-
nection. Ensure that the total current consumption of all connected devices does
not exceed the specified value.
7. Replace pluggable power cables with original cables only.
HAZARD:
1. Choking hazard! Plastic bags and small parts must be kept out of reach of per-
sons (including children) with reduced physical, sensory or mental capabilities.
2. Risk of falling! Make sure that the device is securely installed and will not fall
down. Only use suitable stands or mountings (particularly for fixed installations).
Ensure that accessories are properly installed and secured. Ensure that applicable
safety regulations are observed.
WARNING:
1. Use the device in the prescribed manner only.
2. Operate the device using only accessories of the type recommended and supplied
by the manufacturer.
3. Observe safety regulations applicable in your country during installation.
4. After connecting the device, ensure that all cables are routed so as to avoid dam-
age or accidents, such as from tripping.
5. Always observe the specified minimum distance to normally flammable materials!
Unless explicitly stated, the minimum distance is 0.3 m.
6. Always observe the minimum distance to the illuminated surface that can be read
on the device!

9
DEUTSCH ENGLISH
DMX FRANCAIS
ESPAÑOLITALIANO POLSKI
CAUTION:
1. Moving components such as mounting brackets may become jammed.
2. In the case of devices with motor-driven components, there is a risk of injury due
to the movement of the device. Sudden movement of the device can cause shock
reactions.
3. The housing surface of the device can become very hot during regular operation.
Ensure that accidental touching of the housing is not possible. Always allow the
lamp to cool sufficiently before removal, maintenance work and charging etc.
CAUTION:
1. Do not install or use the device in the vicinity of radiators, accumulators, stoves,
or other heat sources Ensure that the device is always installed in such a way
that it is sufficiently cooled and cannot overheat.
2. Do not place any ignition sources, such as burning candles, near the device.
3. Ventilation openings may not be covered and fans may not be blocked.
4. For transport, use the original packaging or packaging provided by the manufac-
turer.
5. Avoid any impacts to or shaking of the device.
6. Observe the IP rating and the ambient conditions such as temperature and hu-
midity according to the specification.
7. Devices can be continuously further developed. In the event of deviating informa-
tion on operating conditions, performance or other device properties between the
user manual and the device labelling, the information on the device always has
priority.
8. The device is not suitable for tropical climate zones or for operation over 2,000m
above sea level.
9. Unless explicitly stated, the device is not suitable for operation under marine
conditions.
CAUTION! IMPORTANT INFORMATION REGARDING LIGHTING PRODUCTS!
1. Never look directly into the beam of light, not even for a short period of time.
2. Never look into the beam of light using optical devices such as a magnifying
glass.
3. Stroboscopic effects may cause epileptic seizures in those susceptible!

10
DEUTSCHENGLISH DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
4. A permanently installed lamp is installed in this lighting unit which must not be
replaced by the user. In the event of a fault, please contact your sales partner.
INSTRUCTIONS FOR INSTALLATION EQUIPMENT
1. Equipment for installation applications is designed for continuous operation.
2. Equipment for outdoor installation is largely weather-resistant. Depending on the design,
however, installed seals may be made of materials that deteriorate over time. These must be
checked regularly and replaced if necessary.
3. The correct condition of the housing parts and connections must be checked regularly.
4. Surfaces and plastic parts can also weather in installation equipment, e.g. due to UV irradia-
tion. This generally does not impair functionality.
5. Damage to the surface coating can impair the device's corrosion protection. Damaged sur-
face coating (e.g. scratches) must be promptly repaired by suitable measures.
6. Screw connections can be impaired in their freedom of movement (e.g. due to oxidation or
impurities). Here, appropriate measures for loosening are to be implemented.
7. Unless explicitly stated otherwise on the device or in the technical data, the devices are
intended for installation heights of less than 5 m.
NOTES FOR INSTALLATION DEVICES
1. units for installation applications are designed for continuous operation.
2. units for outdoor installation are largely weatherproof. However, depending on the design,
seals made of ageing materials are installed. These must be checked regularly and replaced if
necessary.
3. The correct condition of the housing parts and connections must be checked regularly.
4. Surfaces and plastic parts of installation units can also weather, e.g. due to UV radiation. This
does not usually lead to functional restrictions.
5. Damage to the surface coating can impair the corrosion protection of the unit. A damaged
surface coating (e.g. scratches) must be restored promptly by suitable measures.
6. The freedom of movement of screw connections can be impaired (e.g. by oxidation or contami-
nation). If necessary, appropriate measures must be taken to loosen them.
7. Unless explicitly stated otherwise on the unit or in the technical data, the units are intended for
installation heights of less than 5 m.

11
DEUTSCH ENGLISH
DMX FRANCAIS
ESPAÑOLITALIANO POLSKI
FEATURES
IP67 protection rating. Impact resistance rating IK08. 40 x 15 W high-power RGBW LEDs.
DMX-512. Strobe. 16-bit dimmer. 4 dimmer curves. Colour temperature correction. Adjustable
LED PWM frequency. Fast Access Feature. Plastic feet. 2 x Omega mounting brackets included.
Operating voltage 100–240 V AC. Power consumption 565 W. Diffusers, glare shield and mounting
plate optionally available.
The spotlight features the RDM standard (Remote Device Management). Remote device manage-
ment allows the user to view the status and configuration of RDM terminals via an RDM-capable
controller.
CONTROL FUNCTIONS
2-channel CCT, 3-channel colour macros, 3-channel RGB 8-bit, 4-channel RGBW 8-bit, 6-channel
RGB 16-bit, 8-channel RGBW 8-bit, 8-channel RGBW 16-bit, 10-channel full access 8-bit and
15-channel full access 16-bit DMX control
Master/slave operation
Standalone functions
DELIVERY CONDITION
15-channel full access DMX mode, DMX start address 001

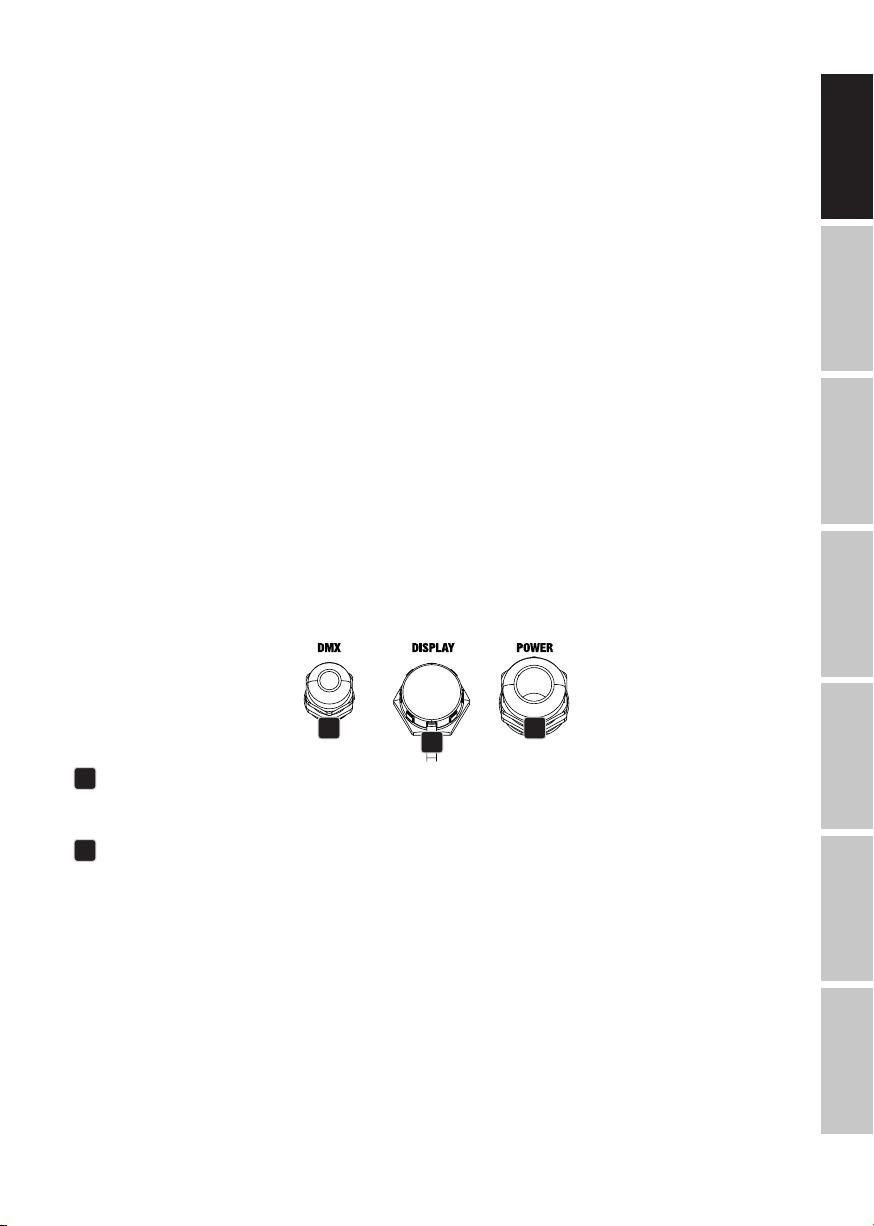

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS
123
1DMX
Cable gland with a fixed 5-pin signal cable for DMX input and output.
2CONNECTION FOR DISPLAY MODULE
Connection socket for an external module with display and touch-sensitive controls (optional). The
socket has a cover cap with seal. Ensure that the socket is securely closed with the cover cap
when the module is not connected.

12
DEUTSCHENGLISH DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
3POWER
Cable gland with a fixed power cable for power supply.
5 54

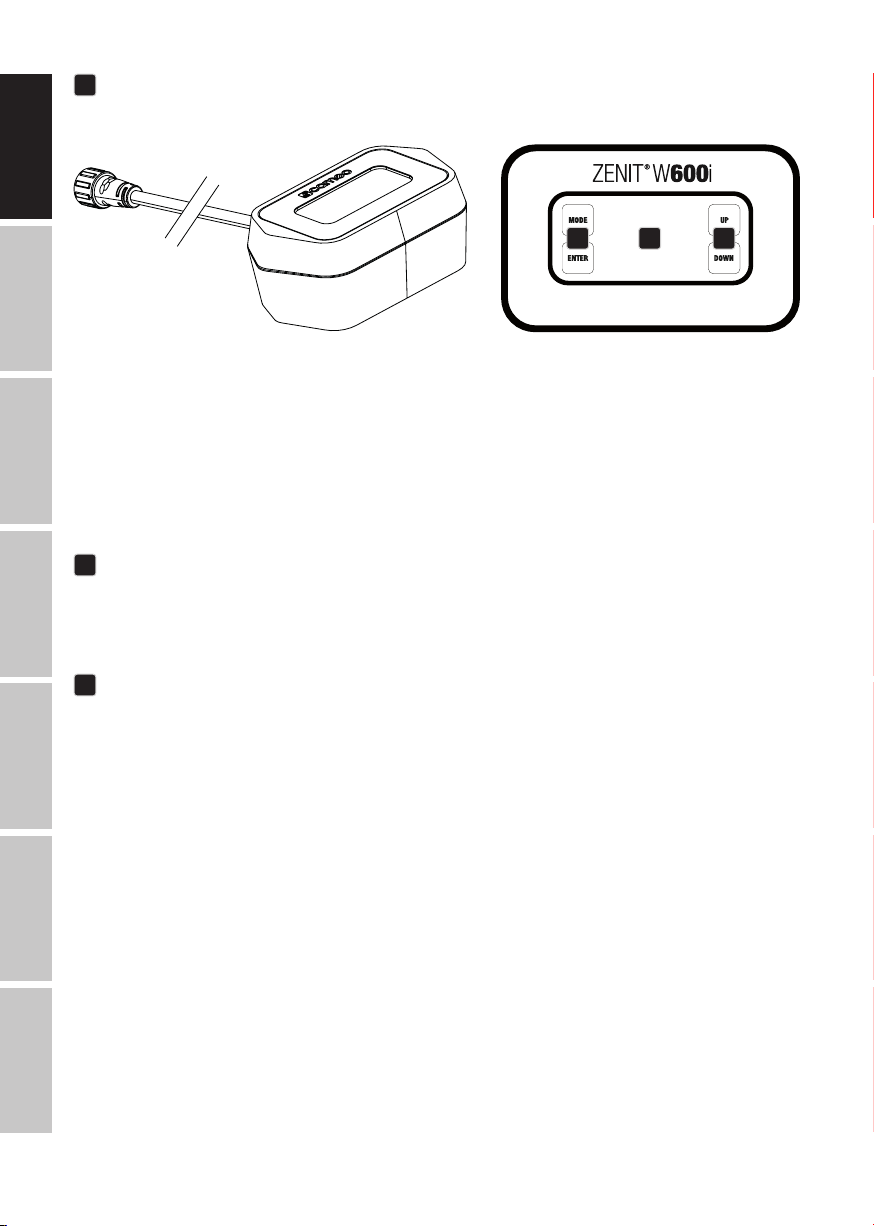

DISPLAY MODULE
A special external module with display and touch-sensitive controls is optionally available for
configuring the spotlight (product number CLZIEXDISP). The module is connected to the spotlight
using a special connecting cable. Ensure that the connections are tightly sealed and that moisture
cannot penetrate into the spotlight housing and the housing of the display module. Once the spot-
light configuration is complete, the module must be disconnected from the spotlight again and the
connection on the spotlight must be securely sealed using the cover cap. The module can now be
used to configure additional spotlights.
4OLED DISPLAY
The OLED display shows the currently activated mode (main display), the menu items in the
selection menu and the numerical value or
operational status in certain menu items.
5TOUCH-SENSITIVE CONTROLS
MODE
Press MODE to access the main menu. Press repeatedly to return to the main display.
ENTER
Press ENTER to access the menu levels to make value changes, and to access the sub-menus.
Confirm value changes by pressing ENTER.
UP and DOWN
Select individual menu items in the selection menu (DMX address, operating mode etc.) and in
the sub-menus. Allow changes to be made to a menu item setting such as the DMX address as
required.
PRESSURE EQUALISATION ELEMENT
The pressure equalisation element to prevent condensation forming inside the housing is located
in the base of the device. In order to ensure its proper function, the element must be protected
from contamination by regular cleaning.

13
DEUTSCH ENGLISH
DMX FRANCAIS
ESPAÑOLITALIANO POLSKI
HOUSING FAN
The three IP67-rated housing fans and heat sink are located on the rear of the LED unit. To ensure
air circulation,
do not cover the device and clean it regularly.
SIGNAL AND POWER CABLE
There are no plugs or sockets at the cable ends of the DMX signal cable and the cable for
the spotlight’s power supply. Therefore, the spotlight may only be wired by trained
specialist personnel. Extensive knowledge of handling data and power cables, as well
as the creation of waterproof connections and junctions according to protection class
IP67, is required.
If you do not have these qualifications, do not attempt to install cables yourself. Refer
instead to a qualified professional. Liability is excluded for damage resulting from
improper handling in all work steps necessary for safe operation. Ensure that no mains
voltage is present in cables and spotlights during all work steps that are necessary for
cabling.

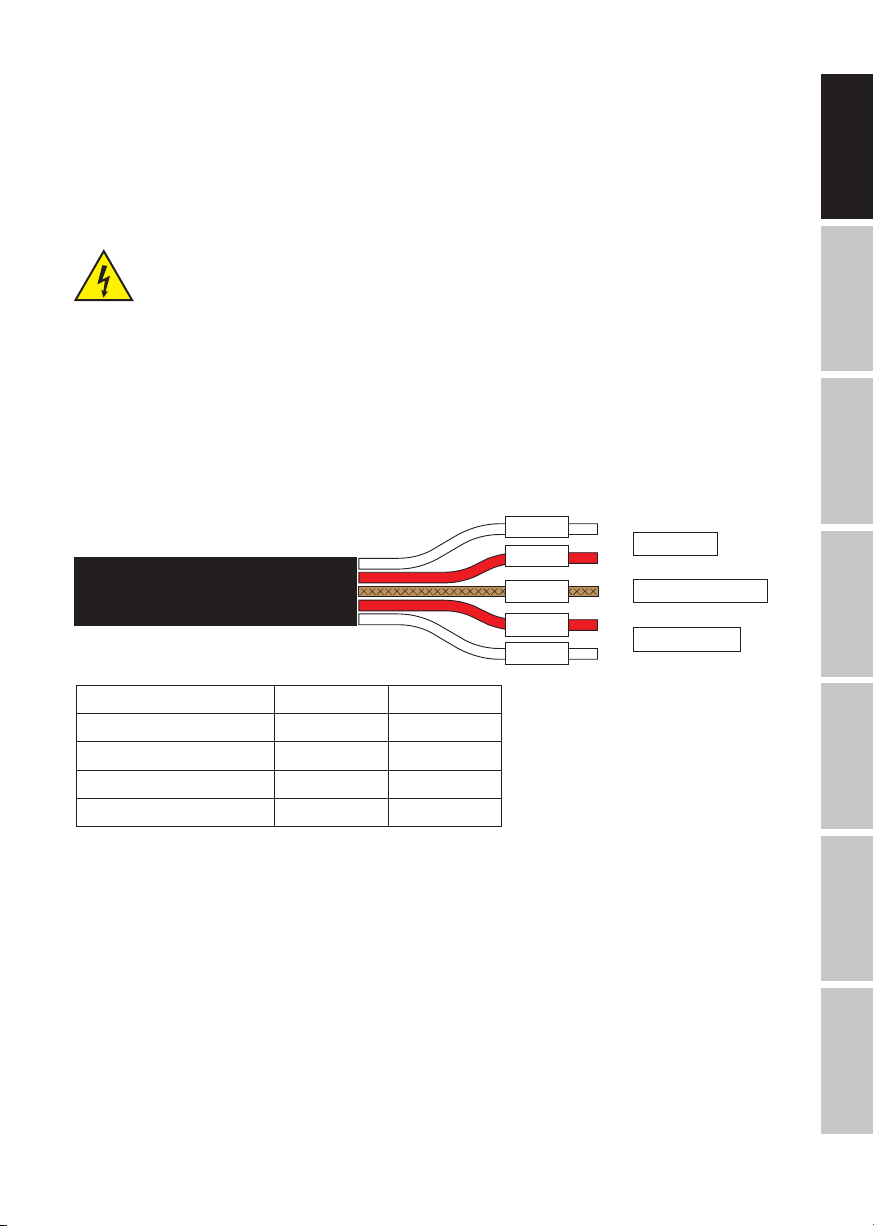

DMX SIGNAL CABLE
DMX input and output
white DMX IN minus (-)
red DMX IN plus (+)
shield DMX IN/OUT
red DMX OUT plus (+)
white DMX OUT minus (-)
-
-
+
+
white
red
red
white
DMX IN
DMX IN/OUT
DMX OUT
shield

14
DEUTSCHENGLISH DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS

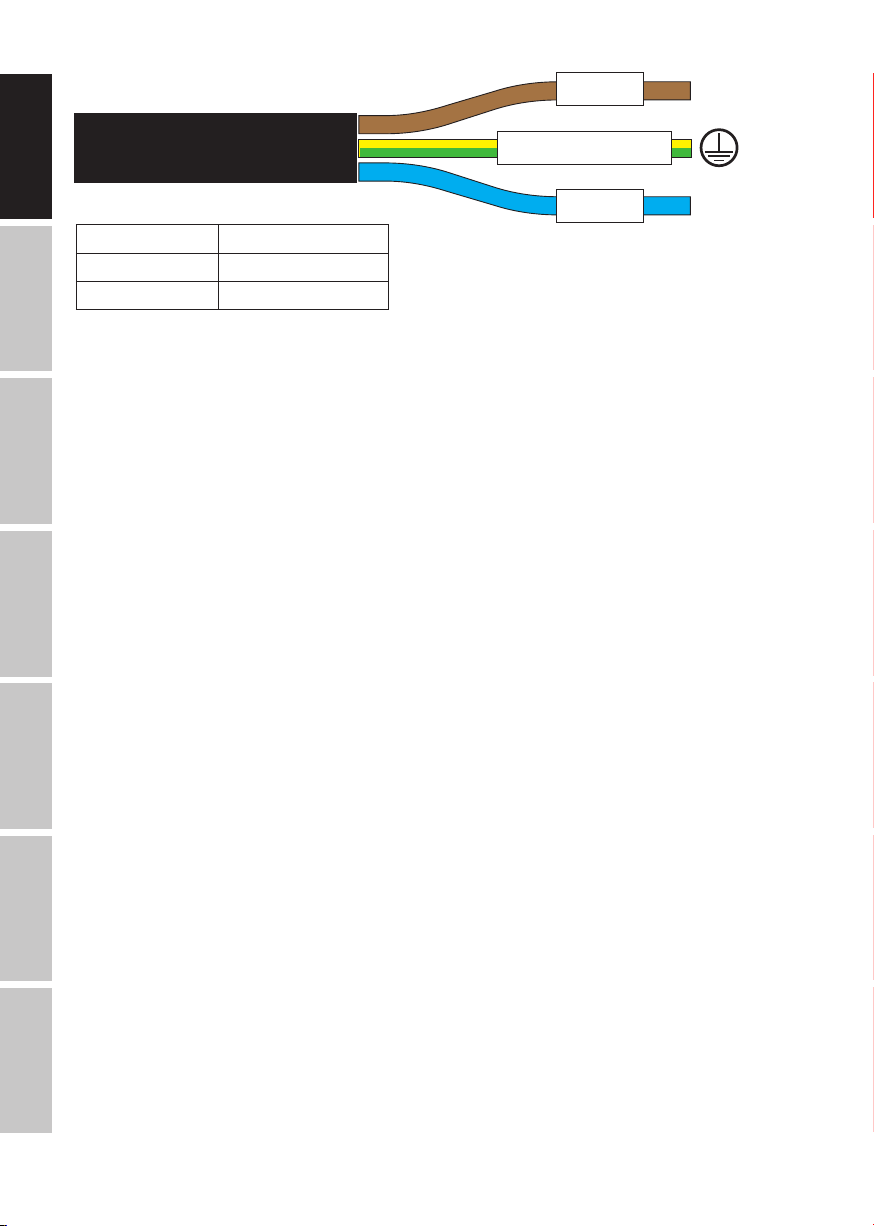

POWER CABLE
Power cable
brown Phase (L)
yellow/green Grounding conductor
blue Neutral (N)
L
N
brown
yellow/green
blue
PLEASE NOTE
No display module connected to the spotlight:
• When the spotlight is supplied with mains voltage, the start-up process begins. During the start-
up process, the previously selected operating mode is activated and the spotlight is operational
after a short time.
Display module connected to the spotlight:
• When the spotlight is supplied with mains voltage, the start-up process begins and the following
are displayed in succession: "Welcome to Cameo", the model name and the software version.
During the start-up process, the previously selected operating mode is activated and the spot-
light is operational after a short time.
• Before changing device settings, ensure that the control panel is dry and free of dust in order
not to impair its functionality.
• If one of the DMX operating modes is activated and there is no DMX signal to the DMX input, the
currently programmed DMX address is displayed and the characters on the display will begin to
flash.
• The main display is activated automatically if there is no input for a period of approximately one
minute.
Fast Access Feature: In order to simplify the menu guide, the device has an intelligent menu struc-
ture that allows direct access to previously selected menu items and submenu items.
1. Press MODE and ENTER simultaneously for direct access to the last-edited submenu item,
where you can make changes instantly as required (DMX starting address and all modes).
2. Press MODE to go directly to the last selected and edited menu item. If you now repeatedly
press ENTER, you can access the submenu items to make individual settings (DMX start
address and all operating modes).
• The display can be rotated through 180° by pressing UP when the main display is visible.
• To quickly change a value (e.g. DMX start address), press and hold the UP or DOWN controls.

15
DEUTSCH ENGLISH
DMX FRANCAIS
ESPAÑOLITALIANO POLSKI
OPERATION
MAIN DISPLAY
The main display shows the currently activated operating mode (in the example: DMX operating
mode with start address 001).
DMX Address
001
CONFIGURING DMX START ADDRESS (DMX Address)
Press MODE to access the main menu (--- Menu ---). Using the UP and DOWN controls, select
the menu item DMX address (observe arrow) and confirm with ENTER. The display will show a
three-digit number field and you can use the UP and DOWN controls to configure the desired DMX
start address. Confirm the entry with ENTER and press MODE to return to the main display (in the
example, "DMX address 001").
---------------- Menu ----------------
DMX Address
DMX Mode
Stand Alone
Slave
Settings
System Info
DMX Address
001
001
5xx
-
CONFIGURING DMX MODE (DMX Mode)
Press MODE to access the main menu (--- Menu ---). Using the UP and DOWN controls, select
the menu item DMX Mode (observe arrow) and confirm with ENTER. In the submenu, you can
now select from the different DMX modes with UP and DOWN. Confirm your selection with ENTER.
Tables with the channel assignments can be found in these instructions under DMX CONTROL.
---------------- Menu ----------------
DMX Address
DMX Mode
Stand Alone
Slave
Settings
System Info
------------ DMX MODE ------------
15CH Full Access
10CH Full Access
8CH 8-bit
8CH User-Calibrated
6CH Factory-Calibrated
4CH User-Calibrated
3CH Factory-Calibrated
3CH Color Macro
2CH CCT Factory-Calib

16
DEUTSCHENGLISH DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
CONFIGURE STANDALONE MODE
Press MODE to access the main menu (--- Menu ---). Use UP and DOWN to select the menu item
Stand Alone (observe arrow) and confirm with ENTER. In the sub-menu you can now select from
the standalone modes Auto, Color Macro, Static, Tunable White, und User Color and the timer
feature Timer with the UP and DOWN controls. Confirm your selection with ENTER.
---------------- Menu ----------------
DMX Address
DMX Mode
Stand Alone
Slave
Settings
System Info
------------ Stand Alone -----------
Auto
Color Macro
Static
Tunable White
User Color
Timer
AUTO MODE (Program 1 to Program 6)
The 6 different auto-programs each comprise non-editable colour-change sequences. Brightness
and speed are independently adjustable. Select auto mode as described above under "CONFIGURE
STANDALONE MODE" and confirm with ENTER. Now use UP and DOWN to select one of the 6 auto
programs (observe arrow) and confirm with ENTER. To adjust brightness, use UP and DOWN to
select the menu item Dim and confirm with ENTER, then use UP and DOWN to select the desired
value between 000 and 255. Confirm with ENTER. Set the run speed by selecting the menu item
Speed, confirm with ENTER, and then select the desired value between 001 and 100. Confirm
with ENTER. Press MODE four times to return to the main display (Mode Auto).
000
255
-
Dim
001
100
-
Speed
------------ Stand Alone ------------
Auto
Color Macro
Static
Tunable White
User Color
Timer
Mode
Auto
---------------- Auto ----------------
Program 1
Program 2
Program 3
Program 4
Program 5
Program 6
------------- Program x -------------
Dim <255>
Speed <100>
001
100
-

17
DEUTSCH ENGLISH
DMX FRANCAIS
ESPAÑOLITALIANO POLSKI
COLOUR MACROS (Color Macro)
15 different preset colour macros are available. Select Color Macro as described above under
CONFIGURE STANDALONE MODE and confirm with ENTER. Using the UP and DOWN controls, now
select the desired colour preset (observe arrow) and confirm with ENTER (Colour Off = blackout).
A three-digit figure is shown on the display, and you can set the desired brightness on a scale
from 000 to 100 using UP and DOWN. Confirm with ENTER. Press MODE three times to return to
the main display (Color Macro Mode).
Mode
Color Macro
------------ Color Macro ------------
Color O󰀨
Red <100>
Amber <100>
Yellow Warm <100>
Yellow <100>
Green <100>
Turquoise <100>
Cyan <100>
Blue <100>
Lavender <100>
Mauve <100>
Magenta <100>
Pink <100>
Warm White <100>
White <100>
Cold White <100>
------------ Stand Alone ------------
Auto
Color Macro
Static
Tunable White
User Color
Timer
000
100
-
STATIC MODE (Static)
Static mode allows the functions Dimmer, Strobe and R, G, B, W to be adjusted directly on the
device with values between 000 and 255, in a similar way to with a DMX controller. In this way,
an individual scene can be created without an additional DMX controller. Select the static mode as
per the procedure previously described in SETTING STAND ALONE MODE and confirm with ENTER.
Now use UP and DOWN to select the menu item you wish to edit (observe arrow) and confirm with
ENTER. The display will now show a three-digit number field, and you can use UP and DOWN to
configure the desired value between 000 and 255. Confirm with ENTER. Press MODE three times
to return to the main display (Static Mode).
Mode
Static
---------------- Static ----------------
Dimmer <255>
Strobe <255>
Red <255>
Green <255>
Blue <255>
White <255>
000
255
-
------------ Stand Alone ------------
Auto
Color Macro
Static
Tunable White
User Color
Timer

18
DEUTSCHENGLISH DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
COLOUR TEMPERATURE (Tunable White)
The colour temperature mode enables you to configure the colour temperature from cold white
to warm white (CCT) and the brightness (Dim) of the light directly on the device. Select the colour
temperature mode as per the procedure previously described in SETTING STAND ALONE MODE
and confirm with ENTER. Now use UP and DOWN to select the menu item you wish to edit (ob-
serve arrow) and confirm with ENTER. The display will now show a three-digit number field and
you can use UP and DOWN to configure the desired value. Confirm with ENTER. Press MODE three
times to return to the main display (Mode Tunable White).
------------ Stand Alone ------------
Auto
Color Macro
Static
Tunable White
User Color
Timer
Mode
Tunable White
000
100
-
Dim
000
255
-
CCT
------------- Program x -------------
Dim <100>
CCT <255>
USER PRESETS (User Color)
The operating mode "User Presets" allows the overall brightness and a colour mixture of R, G, B
and W to be saved directly in the device in five individual colour presets. Select the User Color
mode as per the procedure previously described in SETTING STAND ALONE MODE and confirm
with ENTER. Use UP AND DOWN to select one of the stored presets Color1 to Color5 and confirm
with ENTER and select the submenu item you want to edit (see arrows). Confirm with ENTER. The
display will show a three-digit number field and you can use the UP and DOWN controls to set the
value as required between 000 and 255. Confirm by pressing ENTER again. When all settings are
configured as required, press MODE four times to return to the main display (Mode User Colour).
Mode
User Color
------------ User Color ------------
Color1
Color2
Color3
Color4
Color5
------------ Stand Alone ------------
Auto
Color Macro
Static
Tunable White
User Color
Timer
000
255
-
------------ Color1 ------------
Dimmer <255>
Strobe <255>
Red <255>
Green <255>
Blue <255>
White <255>

19
DEUTSCH ENGLISH
DMX FRANCAIS
ESPAÑOLITALIANO POLSKI
TIMER FUNCTION (Timer)
The timer function allows the standalone modes “Colour Macro”, “Static”, “Tunable White” and
“User Colour” to be timer controlled in such a way that the fade-in time can be set from 0 to 60
minutes, the dwell time from 1 to 24 hours and the fade-out time from 0 to 60 minutes. Time
control starts immediately after activating the timer function in the previously activated stand-
alone mode and remains active even if the spotlight is switched off and restarted. Select Timer
as per the procedure described above under CONFIGURE STANDALONE MODE and confirm with
ENTER. Now select “Fade In”, “Dwell Time” or “Fade Out” for the individual settings (observe
arrow) and confirm with ENTER. The display will show a three-digit number field in each case. Use
UP and DOWN to set the value as required from 000 to 060 or 001 to 024. Confirm by pressing
ENTER again. Once all settings have been configured as required, activate the timer function by
selecting the submenu item “Timer On/Off” using UP and DOWN, confirm with ENTER, select “On”
and confirm again with ENTER (to deactivate the timer function, please select “Off” and confirm).
Press MODE three times to return to the main display .
------------ Timer ------------
Timer On/O󰀨
Fade In < 1 min >
Dwell Time < 1 h >
Fade Out < 1 min >
----------- Stand Alone -----------
Auto
Color Macro
Static
Tunable White
User Color
Timer
Please note: The timer function is suitable for use in master/slave mode via cable.
SLAVE MODE CONFIGURATION
Press MODE to access the main menu (--- Menu ---). Using UP and DOWN, select the menu item
Slave (observe arrow) and confirm with ENTER. Connect the slave and the master units (same
model, same software version) with a DMX cable and enable one of the standalone modes on the
master unit (Auto, Color Macro, Static, Tunable White, User Color). The slave unit will now follow
the master unit. If there is no control signal, the display characters will flash. Flashing stops as
soon as a control signal is present.
Mode
Slave
---------------- Menu ----------------
DMX Address
DMX Mode
Stand Alone
Slave
Settings
System Info

20
DEUTSCHENGLISH DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEVICE SETTINGS (Settings)
Press MODE to access the main menu (--- Menu ---). Using the UP and DOWN controls, select the
menu item Settings (observe arrow) and confirm with ENTER.
---------------- Menu ----------------
DMX Address
DMX Mode
Stand Alone
Slave
Settings
System Info
This will take you to the submenu for setting the following submenu items (see table, select with
UP and DOWN, confirm with ENTER, change value or status with UP and DOWN, confirm with
ENTER):
Settings (device settings)
Display
Reverse
=flip display On Rotate display by 180° (e.g. for over-
head installation)
Off No rotation of the display
Display
Backlight
=Display lighting On Permanently on
Off Deactivation after approximately 1
minute of inactivity
DMX Fail =Operating status with
DMX signal fault
Hold Last command is retained
Blackout Activates blackout
Emergency
Light
Spotlight changes to colour macro
"Cold White"
Dimmer
Curve
=Dimmer curve Linear Light intensity increases linearly with
DMX value
Exponential Light intensity can be finely adjusted
at lower DMX values and broadly
adjusted at higher DMX values
Logarithmic Light intensity can be broadly adjust-
ed at lower DMX values and finely
adjusted at higher DMX values
S-curve Light intensity can be finely adjusted
at lower and higher DMX values and
broadly adjusted at medium DMX
values.
