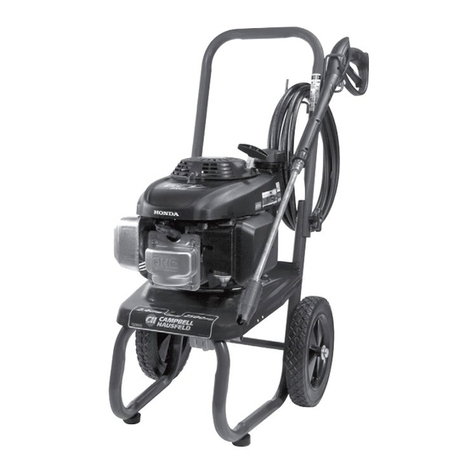

Gas Powered
Pressure Washer
PW2675
For replacement parts or technical assistance,
call 1-800-330-0712
IN170291AV 4/08
1
2
3
4
6
7
8
9
10
4
31 30
30 31
3
2
11
12
13
14
15
2
16
17
18
19
20
21
18
22
23
24
25
26
28
3
4
2008 © Campbell Hausfeld/ Scott Fetzer
5

Ref.
No. Description PW2675 Qty.
Replacement Parts List
www.chpower.com
1 Handle Tube PM343717AV 1
2 * 1/4” - 20 bolt (handle) PM001903AV 4
3 * Flat washer PM002000AV 18
4 * 1/4” - 20 nylon lock nut ST073808AV 9
5 * 1/4” - 20 bolt (base) PM001902AV 3
6 Left leg PM223620BH 1
7 Right leg PM223610BH 1
8 Rubber bumper MJ110304AV 2
9 * Flat washer — 2
10 * 1/4” - 20 x 3/4” self tapping screw MJ106205AV 2
11 Wheel WA005620AV 2
12 Pushnut AL066300AV 2
13 * 1/4” - 20 bolt (axle) MJ101104AV 2
14 Axle PM235601BH 1
15 Baseplate PM235710AV 1
16 Front guard tube PM242000AV 1
17 Detergent Basket PM242050AV 1
18 * 1/4” - 20 x 3/4” bolt (front guard tube) MJ101105AV 4
19 Gun PM243000AV 1
20 O-ring (gun) PM245800SV 1
21 Lance PM035120AV 1
Quick Connect Tips
22 0 (Red) PM039870AV 1
23 15 (Yellow) PM039880AV 1
24 25 (Green) PM039890AV 1
25 40 (White) PM039900AV 1
26 Detergent (Black) PM039820AV 1
27 Detergent tube PM013800AV 1
28 Hose (25’) PM344301AV 1
29 ** Pump assembly PM348315SJ 1
30 * Washer, star lock MJ105700AV 4
31 1/4” - 20 nut, double MJ104704AV 2
* Item available at local hardware store
** See separate pump breakdown sheet for replacement pump parts
Sold seperately
Item not shown
— Not Available
2
Please provide following information:
- Model number
- Serial number (if any)
- Part description and number as shown in parts list
Address parts correspondence to:
Campbell Hausfeld
Attention: Customer Service
100 Production Drive
Harrison, OH 45030 U.S.A.
