Quick Reference

1
The Useful Functions page in each chapter, such as“Useful Copy Functions,”shows the procedures to reach the screen where
you can set the functions introduced in that section.

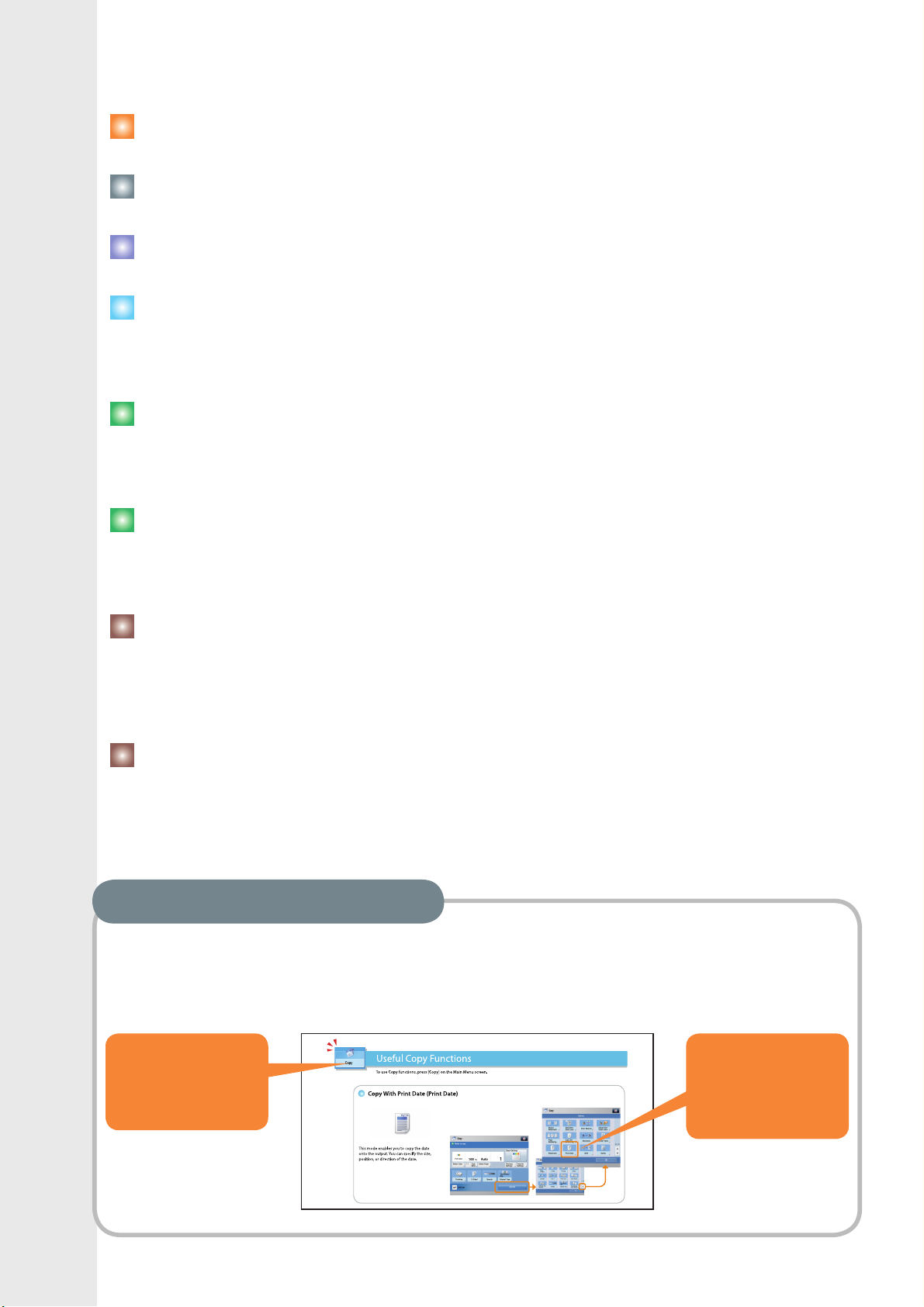

How to Use the Useful Functions Page
Press the button on the
Main Menu screen on the
touch panel display.
After pressing this key,
follow the procedures
displayed on the screen
to specify the settings.
Screen shots used in this manual may dier from the ones you actually see.*
Contents
Things You Can Do With This Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Displays Used in This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Copy
How to Make a Copy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Useful Copy Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Fax
Sending Fax. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Useful Fax Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Scan and Send
Send (E-mail/I-Fax/File Servers) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Useful Send Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Scan and Store
Storing Scanned Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Various Storages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Useful Scan Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Access Stored Files
Sending Stored Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Print Stored Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Useful File Operation Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Useful Print Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

2
Things You Can Do With This Device
Things You Can Do With This Device
Things You Can Do With This Device
The imageRUNNER ADVANCE C5051/C5051i/C5045/C5045i/C5035/C5035i/
C5030/C5030i incorporates a rich array of input and output features that can
greatly enhance your eciency. Equipped with features that meet the needs of
document work in a digitized oce, the imageRUNNER ADVANCE C5051/C5051i/
C5045/C5045i/C5035/C5035i/C5030/C5030i represents the ultimate in a colour
digital multitasking machines.
Some functions explained in this manual may require optional equipment.*
Copy
You can make two-sided copies from one-sided originals or copy two pages onto one side of
the paper to reduce printing cost. There are other modes such as Collate and Booklet mode. For
more information, see p. 9 to p. 20 on this manual.
Fax
Scanned documents as well as stored les and computer data can be sent by facsimile. You
can also send documents to multiple addresses and forward received facsimile to another
destination. Also, by using Remote Fax sending function, you can share the fax function on the
same network. For more information, see p. 21 to p. 30 on this manual.
Send Documents (E-Mail/Fax/I-Fax/File/Store in Mail Box)
You can send scanned documents by e-mail or I-fax, as well as store it in a network le server.
You can also store sent documents in the Mail box. For more information, see p. 31 to p. 42 on
this manual.

3
Things You Can Do With This Device
Use Mail Box (Store/Print/Send)
The Mail Box function enables you to store scanned documents or data from a personal
computer. You can send or print stored les. To store to Mail Box, press [Scan and Store] on the
Main Menu screen. To print from Mail Box, press [Access Stored Files]. For more information, see
p. 43 to p. 69 on this manual.
Use Advanced Space
You can set a le format to the scanned document so that it can be accessed from your
computer. You can share the data by accessing it via personal computer. To store to Advanced
Space, press [Scan and Store] on the Main Menu screen. To print from Advanced Space, press
[Access Stored Files]. For more information, see p. 43 to p. 69 on this manual.
Use Memory Media
You can scan and store documents in the Memory Media connected to the USB port. You can
also print stored les directly from the Memory Media. To store to Memory Media, press [Scan
and Store] on the Main Menu screen. To print from Memory Media, press [Access Stored Files].
For more information, see p. 43 to p. 69 on this manual.
Print Secured File
When you print a le by using printer drivers
from your computer, you can assign a
password to the le. You can print the le if the
password is entered on the machine. For more
information, see e-Manual.

4
Things You Can Do With This Device
Use Remote Scanner
You can use this machine as a remote scanner by
TWAIN compatible computer software. You can
scan up to A3 in size at a resolution of 600 x 600
dpi. For more information, see e-Manual.
View Web Page
You can use this device to browse Web pages
from the touch panel display of the machine
or print displayed information. For more
information, see e-Manual.
Printing a Fax/I-Fax le in the Memory RX inbox
If Memory RX is set, documents received by
Fax/I-Fax function are not printed but stored in
the Memory RX Inbox. For more information, see
e-Manual.
Some functions explained in this manual may require optional equipment.*

5
Control Panel
Control Panel
7
8
9
10
12
13
14 15
1
2
3
4 5
6
11
16
17
1 Main Menu key
Press to return to the Main Menu screen such as when you want to
switch functions.
2 Quick Menu key
Press to display previously registered function.
3 Status Monitor/Cancel key
Press to check the status of the jobs or cancel the print jobs.
4 Volume Settings key
Press to display the screen for adjusting settings such as the
transmission volume and fax sending/receiving alarm volume.
5 Brightness Adjustment Dial
Use to adjust the brightness of the touch panel display.
6 Touch Panel Display
Displays the setting screen for each function.
7 Control Panel Power Switch (Sub Power Supply)
Press to set or cancel the Sleep mode.
8 USB Port
Port for USB Memory Media.
9 Numeric keys
Press to enter numerical values.
10 Settings/Registration key
Press to register or specify function settings.
11 Counter Check key
Press to display the copy and print count totals on the touch panel
display.
12 Stop key
Press to stop the job in progress.
13 Edit Pen
Use when operating the touch panel display.
14 ID (Log In/Out) key
Press to set the login service.
15 Clear key
Press to clear entered values or characters.
16 Reset key
Press to restore the standard settings of the machine.
17 Start key
Press to start an operation.

6
Control Panel
If the touch panel display is turned OFF
If nothing is displayed on the touch panel display after the main power switch is turned ON,
press the control panel power switch.
If you want to check or change the job status
Press on the control panel to display the screen shown to the right, and then you can
check the job status or cancel print jobs. Also, you can check the status of the machine such as
the amount of paper remaining in the paper deck.
Use Quick Menu
If functions that are frequently used are set in the Quick Menu beforehand, you can recall the
function by pressing . If you are using a login service, Quick Menu screen set for each user
is displayed. If you want to register, register the settings →press →[Register to Quick Menu].

7
Displays Used in This Manual
Displays Used in This Manual
Logging In/Out
If you are managing the machine with a login service, such as Department ID Management or
SSO-H (Single Sign-On H), an authentication screen is displayed. If the authentication screen is
displayed, enter the Department ID and password or the user name and password → press
(Log In/Out) or [Log In] on the screen. Press (Log In/Out) or [Log Out] after you nish using
the machine to log out.
Selecting Each Function
If on the control panel is pressed, the Main Menu screen is displayed. Select a function
from the Main Menu screen.
Use Help
If is displayed on the top right of the function setting screen, advice is displayed when is
pressed. Press to check the explanation of the function or how to specify settings.
You can display a shortcut key for a function on the
top of the Main Menu screen. For more information
on storing the shortcut key for function, see p. 8 on
this manual.

8
Displays Used in This Manual
Customize Screen for Current Function
You can specify settings for the displayed screen from on the top right of the screen.
The items displayed when is
pressed may dier, depending on
the function.
If authentication function is used,
items displayed may dier or
may not be available, depending
on the login user’s privileges.
Change Main Menu Display
[Main Menu Button Display Settings]
You can set the number and layout of the button displayed on the Main Menu
screen.
[Main Menu Wallpaper Settings]
You can select the wallpaper for the Main Menu screen.
[Other Main Menu Settings]
You can display the [Display Language/Keyboard Switch] and [Display [Set/Regi.
Shortcut]] on the Main Menu screen.
■
●
●
●
Place Frequently Used Functions in a Visible Location
You can display up to two shortcut keys for functions on the top of the screen. To set, select
[Top Buttons Settings] from on the top right of the Main Menu screen.
■
Place Frequently Used Features For Easy Access
You can register shortcuts for frequently used function from [Options] for each function.
Registered shortcut is displayed on the basic features screen for that function.
■
Example of the Customized Screen
Example of Registration
Example of Registration

9
1 2
C o p y
How to Make a Copy
This section describes the ow of basic copy operations.
Selecting Function
Select [Copy] from the Main Menu screen.
Press [Copy].
Basic Features screen for [Copy] is displayed.
Placing Originals
Place the original on the feeder or the platen glass.
Placed in the feeder
Adjust the slide guides to t the size of your originals and neatly
place your originals with the side to be copied face up.
Placed on the platen glass
Place your originals face down.
Gently close the feeder/platen cover.
If a login service such as Department ID
Management or SSO-H has been set, you must
enter the ID and password. If the card reader
is installed, rst insert a control card. For more
information, see p. 7 on this manual.
You can set various copying functions. For more
information, see p. 11 to p. 20 on this manual.

10
Copy
3 4
Setting the Page Limits
Enter the number of copies.
Press the numeric keys to enter the desired copy quantity (1 to 999).
Start Copying
After selecting the settings, press .
Press .
When copying is complete, remove your originals.
If you make a mistake when entering values,
press and enter the correct value.
The specied copy quantity appears on the
screen shown below.
If the following screen is displayed, follow the
instructions on the screen →press to scan
the original sheet by sheet. After all originals are
scanned, press [Start Copying]
If a login service such as Department ID
Management or SSO-H has been set, press
(Log In/Out) to log out.

11
Quickly Make Settings and Copy
Select the Colour Mode
Useful Copy Functions
To use Copy functions, press [Copy] on the Main Menu screen.
You can set the settings on the Regular Copy
Basic Features screen quickly by using the
Express Copy Basic Features screen.
Select the Full Color/Black/Single Color/Two
Colors mode. You can also set the machine
to automatically select a colour mode
according to the original.
1
2
3
4

12
Copy
Changing the Copy (Zoom) Ratio
Selecting the Paper Source
Check Finishing of Copies Before Copying
Multiple Sets (Copy Sample)
You can specify the copy ratio for a copy job.
You can change the ratio of the standard
size or specify the copy ratio by entering a
number.
You can select the paper size/type and the
paper source. You can also set the machine
to automatically recognize the original size
and then copy.
You can check the copy result of one set
before making multiple sets of copies. You
can also copy a specied page.

13
Set Multiple Copy Features With Ease
(Favorite Settings)
Rush Copy Priority (Interrupt Mode)
Useful Copy Functions
To use Copy functions, press [Copy] on the Main Menu screen.
You can register frequently used copy
settings. You can recall the registered
frequently used settings for future use.
You can temporarily stop the current job and
give priority to a rush copy.
Recalling Previous Copy Jobs
You can recall the three most recent copy
jobs. You can make copies using the recalled
copy settings.

14
Copy
Collating Prints
Make Copies on Front and Back Sides of Paper (2-Sided)
Copy an Open Book onto 2 Sheets of Paper
(Book 2 Pages)
You can copy facing pages such as in a book
onto separate sheets of paper.
You can scan two-sided originals or print
two-sided copies.
You can collate copies in page order or into
groups of the same page.

15
Scan Multiple Documents Separately and
Copy Together (Job Build)
Make a Booklet (Booklet)
Useful Copy Functions
To use Copy functions, press [Copy] on the Main Menu screen.
You can layout the scanned documents to
make a booklet. You can also print a cover
sheet or make a saddle stitch booklet.
You can scan originals that are too many
to be placed at once, by dividing them
into multiple batches. After all originals are
scanned, copying is started.
Staple Copied Sheets (Staple)
You can staple printed pages. You can select
the location to staple or saddle stitch to
make a booklet.

16
Copy
Copy Photos Clearly (Original Type)
Copy Multiple Documents onto 1 Page (N on 1)
Copy Documents of Dierent Sizes at Once
(Dierent Size Originals)
You can reduce multiple pages of the
original to copy onto a single page. You can
also change the order of the layout.
You can make copies of dierent size
originals at the same time without
separating the documents. If the paper
setting is set to Auto, the machine
automatically selects the appropriate paper
size.
Image quality for scanning is adjusted
according to the type of original such as
[Text], [Text/Photo/Map], or [Photo Printout].
Some functions explained in this manual may require optional equipment.*

17
Print Page Numbers (Page Numbering)
Prevent Unauthorized Copying (Secure Watermark)
Useful Copy Functions
To use Copy functions, press [Copy] on the Main Menu screen.
You can embed hidden text such as
“CONFIDENTIAL” in the background of copies.
The embedded text appears when the copies
are copied.
You can copy with page numbers. You can
specify the size, position, or direction of the
page number.
Insert Paper Between Transparencies
(Transparency Cover Sheets)
The machine automatically interleaves a
sheet of paper between each transparency
when copying onto transparencies.

18
Copy
Erase Shading and Bindings From Documents
(Erase Frame)
Copy With Characters or Symbols (Watermark)
Copy With Clear Text and Illustrations
(Sharpness)
This mode enables you to adjust image
quality for copying. You can use this mode
when you want to adjust to make the text,
lines, or outline of the image sharp or make
the image soft.
This mode enables you to erase shadows
that appear when scanning various types of
originals. You can also erase shadows of the
punch holes.
This mode enables you to copy a watermark
and user-dened text onto the output. You
can specify the size, position, or direction.
Some functions explained in this manual may require optional equipment.*

19
Add Gutter (Gutter)
Shift Image and Copy (Shift)
Useful Copy Functions
To use Copy functions, press [Copy] on the Main Menu screen.
This mode enables you to make copies with
the entire image shifted to the centre or
a corner. You can use the numeric keys to
specify the location.
This mode enables you to make copies
with the entire original image shifted by a
designated width to create a margin on the
copies. You can set dierent width values for
the each side of the paper.
Copy With Print Date (Print Date)
This mode enables you to copy the date
onto the output. You can specify the size,
position, or direction of the date.
