Canon Paper Deck Unit-F1 User manual

SERVICE
MANUAL
COPYRIGHT © 2016 CANON INC. CANON Paper Deck Unit-F1 Rev. 2 PRINTED IN U.S.A.
September 2, 2016
Rev. 2
Paper Deck
Unit-F1

Introduction
Important Notices
Application
This manual has been issued by Canon Inc. for qualified persons to learn technical theory, installation, maintenance, and repair
of products.
This manual covers all localities where the products are sold. For this reason, there may be information in this manual that does
not apply to your locality.
Corrections
This manual may contain technical inaccuracies or typographical errors due to improvements or changes in products.
When changes occur in applicable products or in the contents of this manual, Canon will release technical information as the
need arises. In the event of major changes in the contents of this manual over a long or short period, Canon will issue a new
edition of this manual.
The following paragraph does not apply to any countries where such provisions are inconsistent with local law.
Trademarks
The product names and company names used in this manual are the registered trademarks of the individual companies.
Copyright
This manual is copyrighted with all rights reserved. Under the copyright laws, this manual may not be copied, reproduced or
translated into another language, in whole or in part, without the consent of Canon Inc.
Copyright CANON INC. 2015
Caution
Use of this manual should be strictly supervised to avoid disclosure of confidential information.
Explanation of Symbols
The following symbols are used throughout this Service Manual.
Symbols Explanation Symbols Explanation
Check.
1x
Remove the claw.
Check visually.
1x
Insert the claw.
Check a sound. Push the part.
Introduction

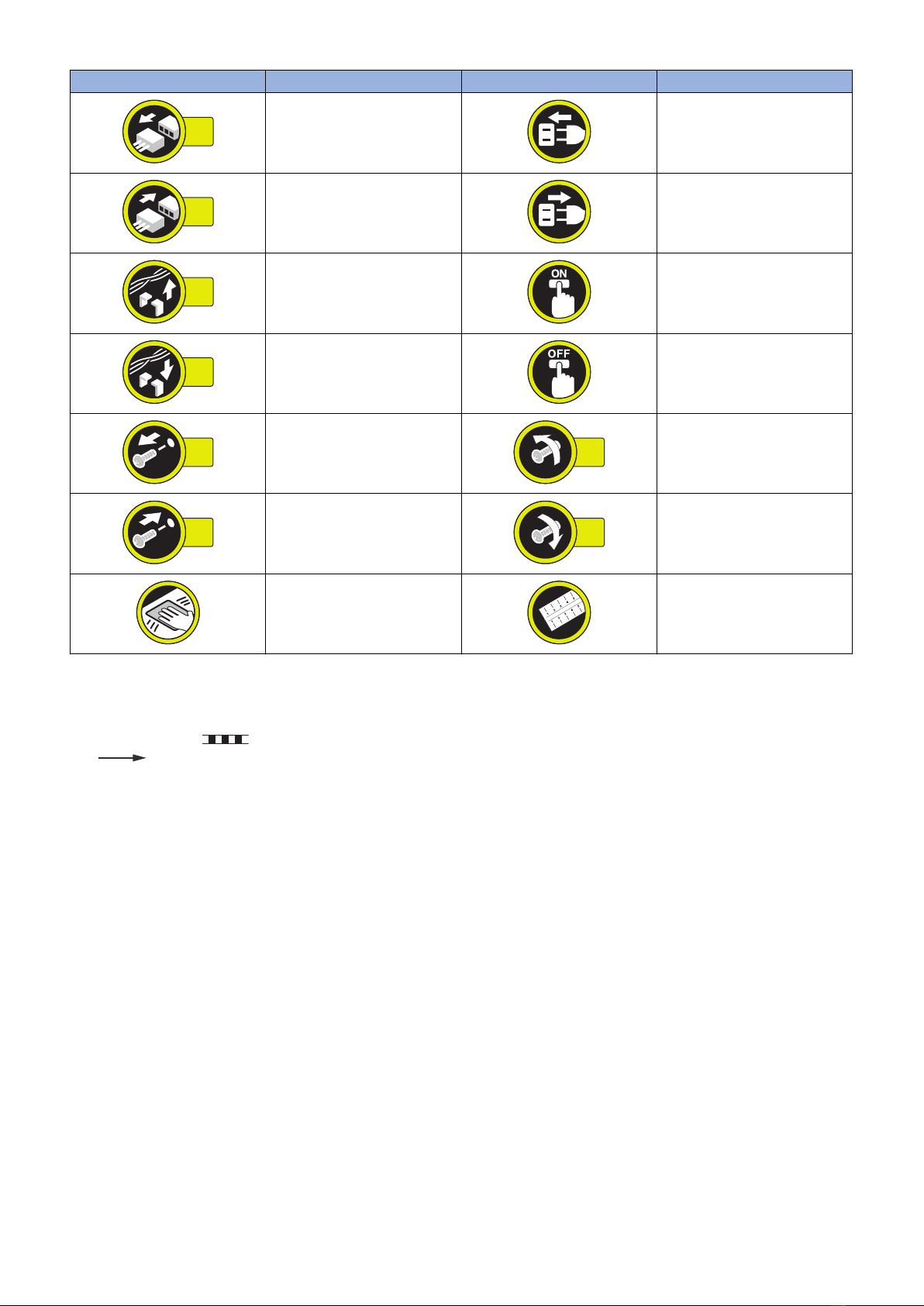

Symbols Explanation Symbols Explanation
1x
Disconnect the connector. Connect the power cable.
1x
Connect the connector. Disconnect the power cable.
1x
Remove the cable/wire from the
cable guide or wire saddle.
Turn on the power.
1x
Install the cable/wire to the cable
guide or wire saddle.
Turn off the power.
1x
Remove the screw.
1x
Loosen the screw.
1x
Install the screw.
1x
Tighten the screw.
Cleaning is needed. Measurement is needed.
The following rules apply throughout this Service Manual:
1. Each chapter contains sections explaining the purpose of specific functions and the relationship between electrical and
mechanical systems with reference to the timing of operation.
In the diagrams, represents the path of mechanical drive; where a signal name accompanies the symbol, the arrow
indicates the direction of the electric signal.
The expression "turn on the power" means flipping on the power switch, closing the front door, and closing the delivery unit
door, which results in supplying the machine with power.
2. In the digital circuits, '1' is used to indicate that the voltage level of a given signal is "High", while '0' is used to indicate "Low".
(The voltage value, however, differs from circuit to circuit.) In addition, the asterisk (*) as in "DRMD*" indicates that the DRMD
signal goes on when '0'.
In practically all cases, the internal mechanisms of a microprocessor cannot be checked in the field. Therefore, the operations
of the microprocessors used in the machines are not discussed: they are explained in terms of from sensors to the input of
the DC controller PCB and from the output of the DC controller PCB to the loads.
The descriptions in this Service Manual are subject to change without notice for product improvement or other purposes, and
major changes will be communicated in the form of Service Information bulletins.
All service persons are expected to have a good understanding of the contents of this Service Manual and all relevant Service
Information bulletins and be able to identify and isolate faults in the machine.
Introduction

Contents
Safety Precautions...............................................................................................1
Check Items when Turning OFF the Main Power............................................................................... 2
Notes Before Servicing........................................................................................................................2
Points to Note at Cleaning...................................................................................................................2
Notes On Assembly/Disassembly....................................................................................................... 2
1. Product Overview.............................................................................................3
Features.............................................................................................................................................. 4
Features...............................................................................................................................................4
Specifications...................................................................................................................................... 5
Specifications....................................................................................................................................... 5
Names of Parts....................................................................................................................................6
External View........................................................................................................................................6
Cross Section......................................................................................................................................9
Option Construction...........................................................................................................................10
2. Technology..................................................................................................... 11
Basic Configuration........................................................................................................................... 12
Functional Construction....................................................................................................................... 12
Overview of the Electrical Circuitry....................................................................................................... 12
Component Configuration.................................................................................................................... 13
Controls ............................................................................................................................................16
Overview............................................................................................................................................ 16
Pickup/Feed Control............................................................................................................................16
Paper Presence/Absence Detection Control..........................................................................................16
Paper Surface Detection Control.......................................................................................................... 17
Lifter Control.......................................................................................................................................17
Paper Level Detection Control..............................................................................................................18
Switching the Paper Size.....................................................................................................................20
Compartment Open/Close Control........................................................................................................20
Power Supply..................................................................................................................................... 21
Jam Detection.....................................................................................................................................21
Upgrading...........................................................................................................................................22
3. Periodical Service.......................................................................................... 23
List of Work for Scheduled Servicing................................................................................................ 24
4. Disassembly/Assembly................................................................................. 25
Removing from the Host Machine.....................................................................................................26
Removing from the Host Machine.........................................................................................................26
Parts List........................................................................................................................................... 27
External Covers.................................................................................................................................. 27
Consumable Parts and Cleaning Points................................................................................................28
Contents
i

Main Units.......................................................................................................................................... 29
Sensors..............................................................................................................................................30
Solenoids........................................................................................................................................... 31
Motors................................................................................................................................................32
PCBs..................................................................................................................................................33
Switches.............................................................................................................................................34
Others................................................................................................................................................ 35
External Covers.................................................................................................................................36
Removing the Left Upper Cover........................................................................................................... 36
Removing the Front Cover...................................................................................................................36
Removing the Right Cover .................................................................................................................. 36
Removing the Rear Cover ...................................................................................................................37
Removing the Upper Cover..................................................................................................................37
Consumable Parts and Cleaning Points............................................................................................38
Removing the Deck Feed Roller ..........................................................................................................38
Removing the Deck Pickup Roller ....................................................................................................... 39
Removing the Deck Separation Roller ................................................................................................. 40
Main Units......................................................................................................................................... 42
Removing the Pickup Assembly........................................................................................................... 42
Opening the Compartment ..................................................................................................................43
Removing the Compartment ............................................................................................................... 43
Solenoids ..........................................................................................................................................46
Removing the Compartment Open Solenoid ........................................................................................ 46
Removing the Deck Pickup Release Solenoid ...................................................................................... 46
Motors .............................................................................................................................................. 48
Removing the Deck Lifter Motor .......................................................................................................... 48
Lifter Wire .........................................................................................................................................50
Removing the Lifter Wire .................................................................................................................... 50
Installation of the Lifter Wire ................................................................................................................53
PCBs................................................................................................................................................. 60
Removing the Deck Driver PCB .......................................................................................................... 60
5. Adjustment..................................................................................................... 61
Adjustment........................................................................................................................................ 62
Overview............................................................................................................................................ 62
Actions when Replacing the Parts.....................................................................................................63
Front Cover........................................................................................................................................ 63
Pickup Assembly ................................................................................................................................64
Compartment .....................................................................................................................................70
Deck Driver PCB.................................................................................................................................70
Other Adjustment.............................................................................................................................. 72
Adjusting the Pressure of the Deck Separation Roller ........................................................................... 72
6. Installation...................................................................................................... 73
Checking before Installation..............................................................................................................74
Checking the Installation Space........................................................................................................... 74
Points to Note on Installation................................................................................................................74
Check Items When Turning OFF the Main Power..................................................................................74
Product Name.....................................................................................................................................74
Contents
ii

Unpacking......................................................................................................................................... 75
Unpacking Procedure..........................................................................................................................75
Unpacking and Checking the Contents.............................................................................................76
imageRUNNER ADVANCE C5500 Series.............................................................................................76
Connecting to the Host Machine of the imageRUNNER ADVANCE 4500 Series..................................... 77
Installation Procedure........................................................................................................................78
imageRUNNER ADVANCE C5500 Series.............................................................................................78
imageRUNNER ADVANCE 4500 Series...............................................................................................89
Checking after Installation...............................................................................................................100
Checking after Installation..................................................................................................................100
Paper Positioning Check / Adjustment Procedure.......................................................................... 101
Adjusting Left Edge Margin(L) of Image.............................................................................................. 101
Service Mode Adjustment.................................................................................................................. 101
Manual Adjustment............................................................................................................................102
Front Cover Positioning Adjustment....................................................................................................103
APPENDICES....................................................................................................104
Service Tools...................................................................................................................................105
Solvents and Oils.............................................................................................................................. 105
Special Tools.................................................................................................................................... 105
General Circuit Diagram..................................................................................................................106
General Circuit Diagram(1/1)..............................................................................................................106
Contents
iii

Safety Precautions
Check Items when Turning OFF the
Main Power........................................2
Notes Before Servicing......................... 2
Points to Note at Cleaning.................... 2
Notes On Assembly/Disassembly.........2

Check Items when Turning OFF the Main Power
The Paper Deck Unit is not equipped with the "main power switch". The power source is supplied by turning ON "the main power
switch" on the host machine.
Notes Before Servicing
CAUTION:
At servicing, be sure to turn off the power source according to the specified steps and disconnect the power plug.
CAUTION:
Do not turn off the power switch when downloading is under way. Turning off the main power switch while downloading is
under way can disable the machine.
Points to Note at Cleaning
CAUTION:
When performing cleaning using organic solvent such as alcohol, be sure to check that the component of solvent is
vaporized completely before assembling.
Notes On Assembly/Disassembly
Follow the items below to assemble/disassemble the device.
1. Disconnect the power plug to avoid any potential dangers during assembling/disassembling works.
2. If not specially instructed, reverse the order of disassembly to reinstall.
3. Ensure to use the right screw type (length, diameter, etc.) at the right position when assembling.
4. To keep electric conduction, binding screws with washers are used to attach the grounding wire and the varistor. Ensure to
use the right screw type when assembling.
5. Unless it is specially needed, do not operate the device with some parts removed.
6. Never remove the paint-locked screws when disassembling.
Safety Precautions
2

Product Overview
1Features................................................4
Specifications........................................5
Names of Parts..................................... 6
Cross Section........................................9
Option Construction............................ 10

Features
Features
• 2,700 sheets (80 g/m2) stacking for maximum.
• Easy replacement work of the consumable parts ( Deck Pickup Roller, Deck Feed Roller, Deck Separation Roller).
1. Product Overview
4

Specifications
Specifications
Item Specifications Remarks
Pickup method Retard separation Center reference
Paper accommoda-
tion
Front loading
Paper type Thin paper (52 to 63g/m2), Plain paper (64 to105 g/m2), Heavy paper
(106 to 256g/m2), Color paper, Recycled paper, Bond paper, Pre-
punched paper, Letterhead
Transfer from the host machine
Paper size A4, B5, LTR Cross feed only
Paper weight 52g/ m2 to 256g/ m2Transfer from the host machine
Stacking height 297mm (height to bottom of arrow on stack limit label)
Stacking capacity Approx. 2700 sheets (equivalent of 80 g/m2)
Size switching Switches the Guide Plates and sets on the service mode Supported paper size : A4, B5, LTR
Paper size detection None
Remaining paper lev-
el detection
Yes
Operation switch Compartment Open Button
Display None
Ecological consider-
ation
Paper Moisture Adjusting Heater (option)
Dimensions (W) 344.0mm × (D) 630.0mm × (H) 440.2mm
Weight Approximately 31 kg
Power supply None (DC24V/12V supplied from the host machine)
1. Product Overview
5

Names of Parts
External View
■ Front
[1]
[2]
[5]
[3]
[4]
No. Name
[1] Left Upper Cover
[2] Upper Cover
[3] Compartment Open Button
[4] Deck Release Lever
[5] Front Cover
1. Product Overview
6

■ Rear
[1]
[2]
No. Name
[1] Rear Cover
[2] Right Cover
1. Product Overview
7

■ Internal
[1]
[2]
[3]
No. Name
[1] Rear Edge Guide Plate
[2] Lifter
[3] Left/right Edge Guide Plates
1. Product Overview
8

Cross Section
[2] [4] [3][1]
No. Name
[1] Deck Pull-out Roller
[2] Deck Separation Roller
[3] Deck Feed Roller
[4] Deck Pickup Roller
1. Product Overview
9

Option Construction
The optional equipment is as follows.
[1]
No. Name
[1] Paper Deck Heater Unit-C1
1. Product Overview
10

Technology
2Basic Configuration.............................12
Controls ..............................................16

Basic Configuration
Functional Construction
The Paper Deck Unit is grouped into the following 3 blocks: Pickup/feed system[1],Compartment system[2],Deck control
system[3].
[2]
[3]
[1]
Overview of the Electrical Circuitry
The operating sequence for the Paper Deck Unit is controlled by the DC controller PCB in the host machine. The DC controller
PCB is equipped with CPU. The electric control for the Paper Deck Unit is controlled by the deck driver PCB. The deck driver
PCB is equipped with EEPROM.
NOTE:
The EEPROM stores the following adjustment value.
• Remaining paper level adjustment value (amount of up/down movement distance of the lifter)
• ID for model discrimination
2. Technology
12

Motor
Host
machine
Deck driver PCB
(PCB2)
Box driver PCB
(PCB3)
Sensor
Motor
Switch
Sensor
Switch
Solenoid
ASIC
Motor driver
DC/DC converter
Regulator
EEPROM
Component Configuration
■ Roller Layout
[2] [4] [3][1]
No. Name
[1] Deck Pull-out Roller
[2] Deck Separation Roller
[3] Deck Feed Roller
[4] Deck Pickup Roller
2. Technology
13

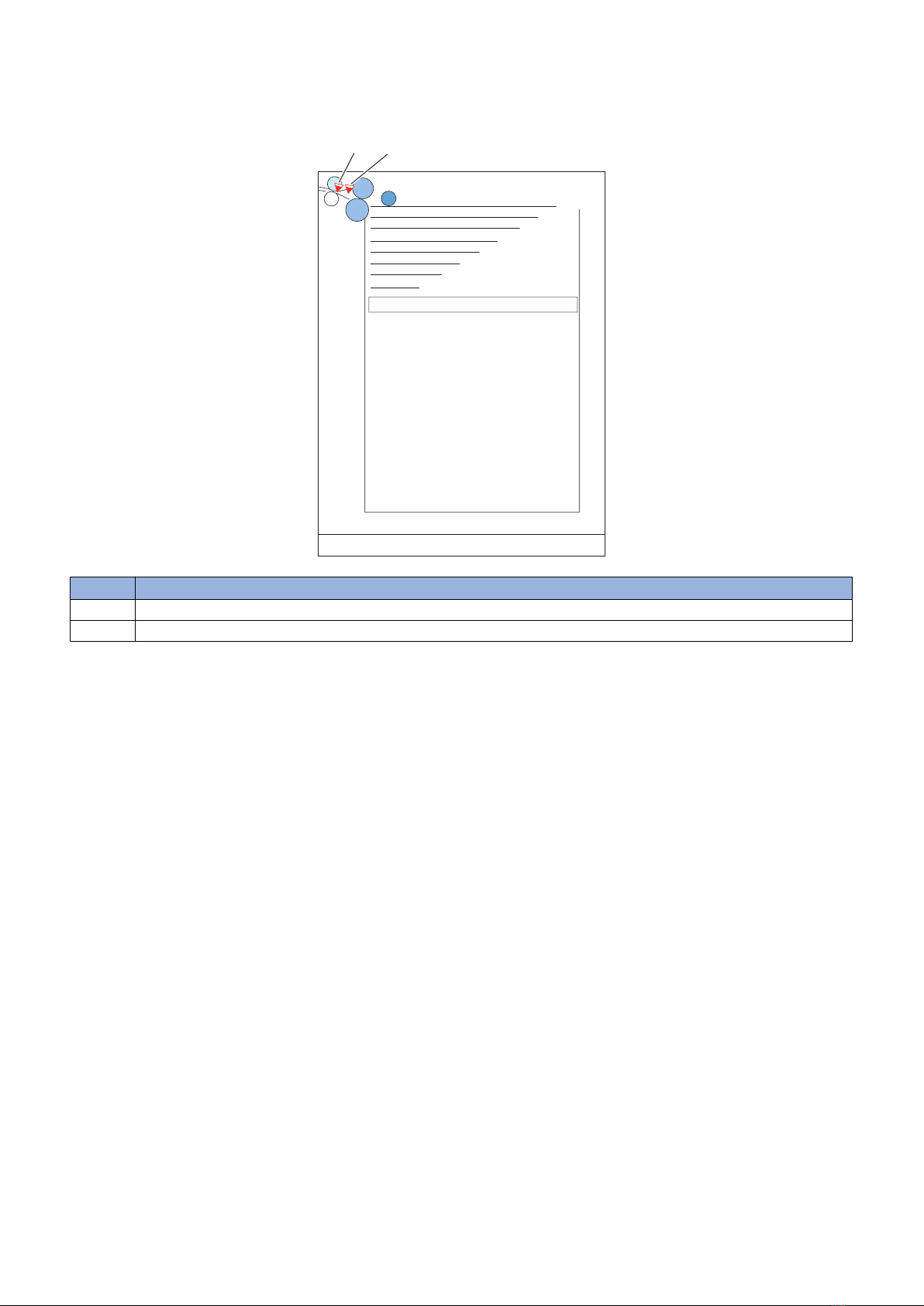

■ Sensor Layout
Only the optical sensors on the feed path are shown below.
PS2 PS1
No. Name
PS1 Deck Pickup Sensor
PS2 Deck Pull-out Sensor
2. Technology
14
