Canon Color imageCLASS MF8580Cdw User manual
Getting Started
Getting Started
Please read this guide before operating this product. The remarks for important safety instructions are described in the Basic
Operation Guide. After you nish reading this guide, store it in a safe place for future reference.
Preface
P. 2
Installing the Machine
P. 4
Conguring and
Connecting the Fax
P.
24
Connecting to a Computer
and Installing the Drivers
P. 12
1
2
3
4
2
Checking the Supplied Accessories
Conrm that all the supplied accessories are contained in the box. If an item is missing or damaged, please contact the Canon
Authorized Service Facilities or the Canon Customer Care Center.
User Software CD-ROM
The User Software CD-ROM contains the MF Drivers,
MF Toolbox, various software, Send Setting Guide, and
e-Manual.
Depending on the operating system you are using, some
functions of the driver software included in the CD-ROM may
not be usable. The newest software is posted on the Canon
web site. Please verify the operating environment etc. and
download the appropriate software if required.
The MF Driver contains the Network Scan Utility (to use
to scan over a network) as well as printer, fax, and scanner
drivers.
The MF Toolbox provides a group of commands for you,
such as to open a scanned image in an application, send it
as an e-mail attachment le, and store it on the hard disk.
The User Software CD-ROM contains Presto! PageManager.
Install it from the [Custom Installation] option.
See “Using the e-Manual” (P. 33).
Windows XP/Vista/7/8 only.
About the LAN and USB cables
The machine does not come with a LAN cable, USB cable,
or a hub. Have cables or a hub ready as necessary.
Make sure that the USB cable you use has
the following mark.
Please use LAN Cable of Category 5
twisted pair cable or higher for support.
When connecting the machine to a 100BASE-TX Ethernet
network, all the devices on the LAN must be compatible
with 100BASE-TX.
Wireless LAN Setting Guide
Basic Operation Guide
PRINTED IN KOREA
Power Cord
Shortcut key label
Limited Warranty Notice
Telephone Cable
Registration Card
Machine Unit
The toner cartridge is already installed.
Legal dust cover
Getting Started
Starter Guide
User Software CD-ROM (Windows)
User Software CD-ROM (Macintosh)
3
Checking the Supplied Accessories

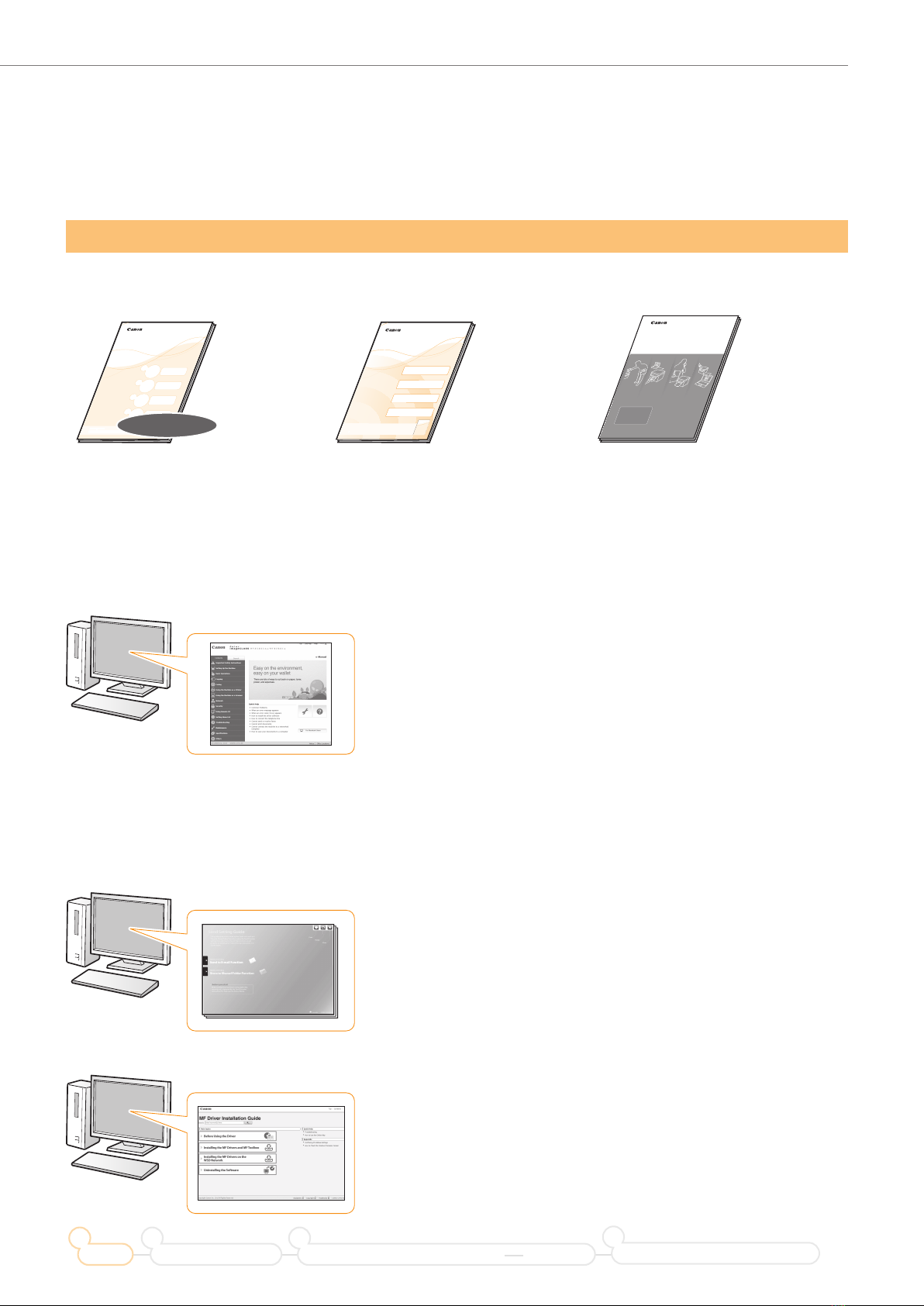

Printed Manuals
Starter Guide
PRINTED IN KOREA
This manual describes the
conguration and software installation.
This manual explains the wireless LAN
setup procedures and troubleshooting
during the setup.
This manual describes the basic use of
the machine.
Manuals Included in the CD-ROM
This manual explains all the features of the machine, and is
categorized by subject. For details about using the e-Manual, see
“Using the e-Manual” (P. 33).
Displaying the e-Manual from the CD-ROM
For Windows
Insert the User Software CD-ROM in your computer, click [Manuals],
and then click [e-Manual] in the displayed screen. If the User
Software CD-ROM has been already inserted in your computer and
[Manuals] is not displayed, remove the CD-ROM and insert it again.
For Macintosh
After installing e-Manual using the User Software CD-ROM, double-
click [index.html] in the saved [MF Guide] folder.
This manual describes how to use the Send Function Setting Tool
to set up the machine for scanning documents as e-mails (Send to
E-mail) and scanning documents to shared folders (Store to Shared
Folder).

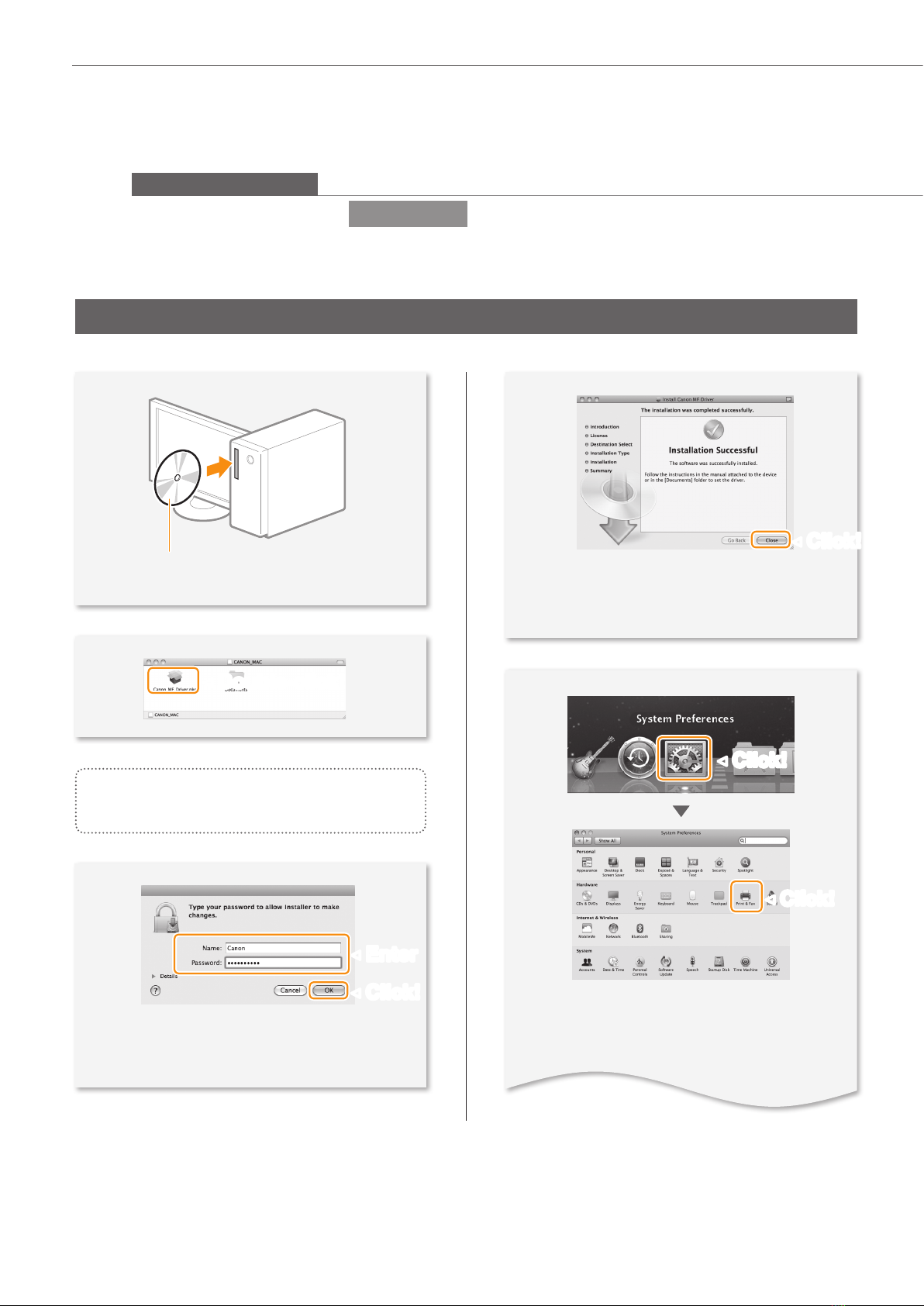

This manual describes how to install the MF Drivers, MF Toolbox, and
software included on the User Software CD-ROM.
Preface Installing the Machine
2
Connecting to a Computer and Installing the Drivers
31
Configuring and Connecting the Fax
4
4
Removing the Packing Materials

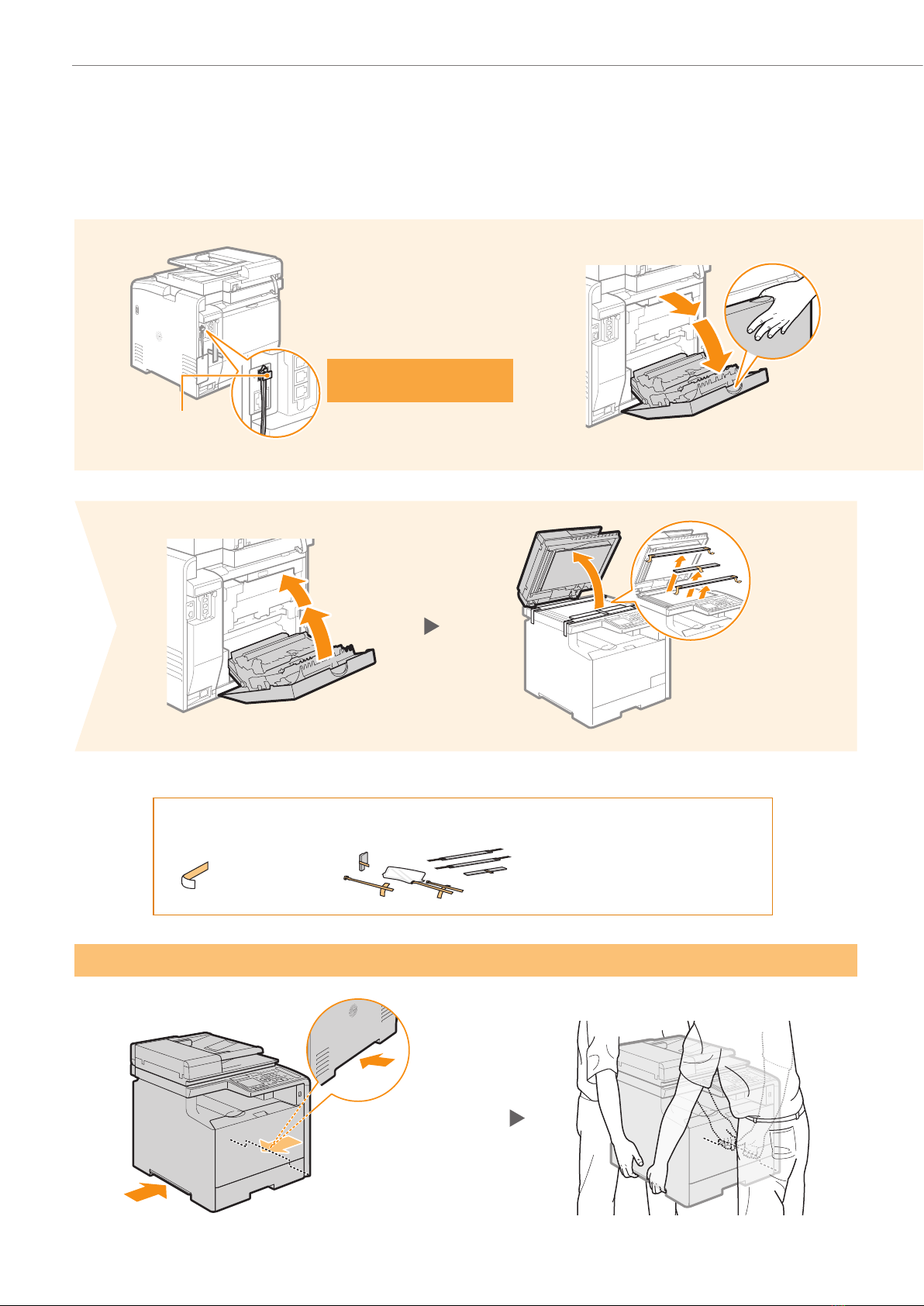

Remove all the packing materials, such as orange tape. Packing materials may change in form or placement, or may be added or
removed without prior notice.
1
Are all the packing materials removed?
4
Hold here.
Hold here.
3
Packing materials with tapeTape
Cap
5
Removing the Packing Materials
= 4" (100 mm)
52 1/4" (1,327 mm)
26 1/2" (674 mm)
33 1/2" (851 mm)
★
★ ★
★★
52 1/4" (1,327 mm)
26 3/4" (679 mm)
37 1/2" (951 mm)
★
★ ★
★
★
Preface Installing the Machine
21
Connecting to a Computer and Installing the Drivers
3
Configuring and Connecting the Fax
4
Do not place the machine near the following:
Alcohol, paint thinner, or other ammable substances ▶ If ammable substances come into contact with electrical
parts inside the machine, this may result in a re or electrical shock.
Any medical equipment ▶ Radio wave emitted from this machine may interfere with medical equipment.
Surfaces that are unstable, subject to excessive vibration, objects that could block the ventilation slot, dampness
or dust, in direct sunlight or exposed to the elements, subject to high temperatures, open ames, and poor
ventilation ▶ Installing the machine in locations with these characteristics may result in personal injury, re, or
electric shock.
Ozone from the Unit
Although ozone is generated from the machine during operation, it does not have any aect on the human body.
However, if you intend to use the machine for long periods of time, ensure that the installation location is well
ventilated for a comfortable working environment.
2
6
Preparing the Toner Cartridge
1
5
2
Supplied Toner Cartridges
The average yield is 1,200 sheets for the included K (Black) toner cartridge, and 1,400 sheets for the included
Composite C (Cyan), M (Magenta), and Y (Yellow) toner cartridges. The average yield of replacement toner
cartridges dier from the supplied toner cartridges.
To purchase replacement toner cartridges:
“About Replacement Toner Cartridges” in the e-Manual
The average yield is based on “ISO/IEC 19798” when printing A4 size paper with the default printing density.
Are all the packing materials removed?
Sealing Tape
7
Preparing the Toner Cartridge
Preface Installing the Machine
21
Connecting to a Computer and Installing the Drivers
3
Configuring and Connecting the Fax
4
3 4
Write down the serial number and purchase date on the back cover of the Basic Operation Guide enclosed in the
package. You need this information when contacting your local authorized Canon dealer or Canon Customer Care
Center.

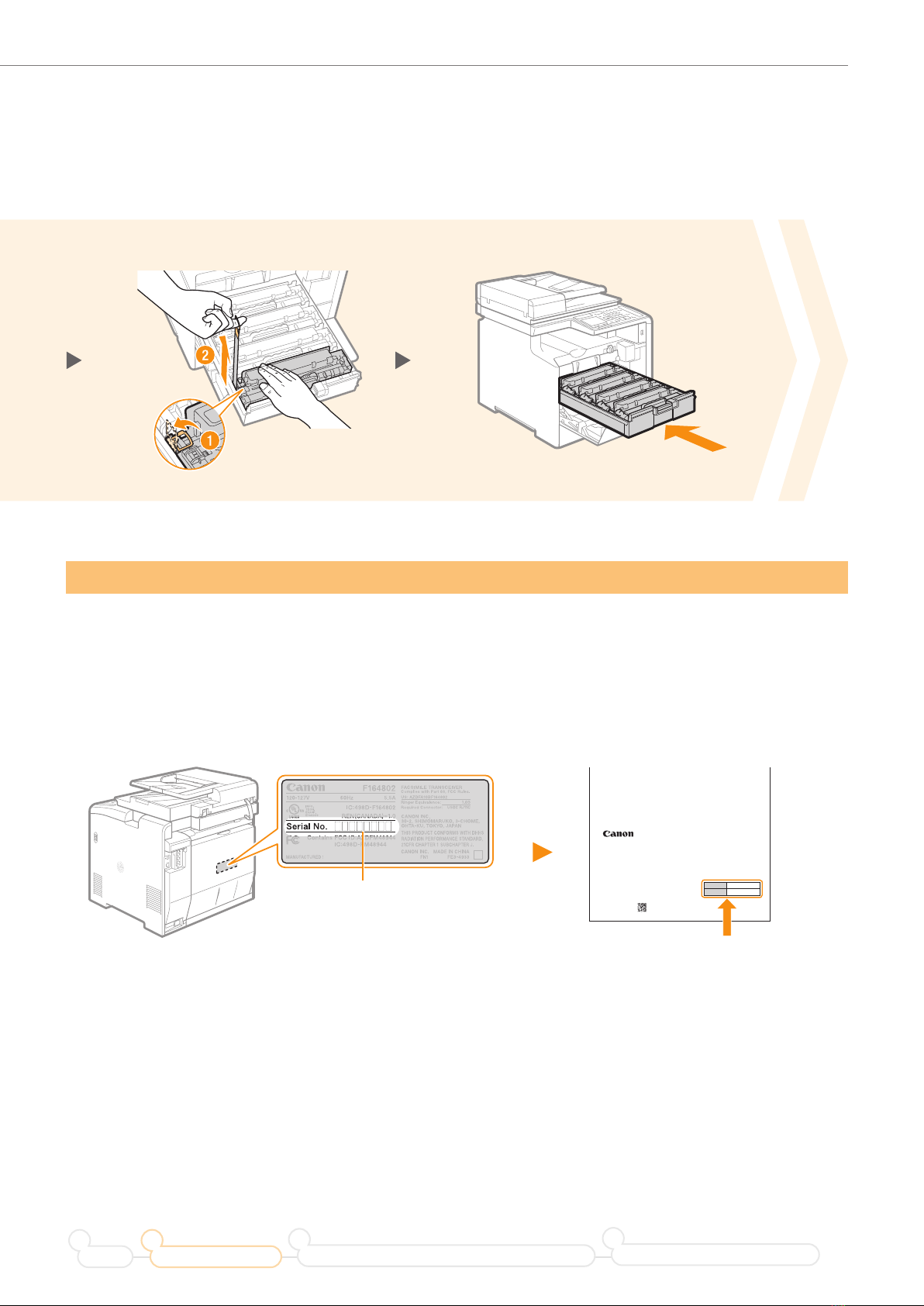

The serial number is indicated on the rating label
located on the back side of the machine (a character
string of 3 letters and a 5-digit number).
Write down the information here (on
the back cover of the Basic Operation
Guide).
FT6-0109 (000) XXXXXXXXXX © CANON INC. 2013 PRINTED IN CHINA
CANON INC.
30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
CANON MARKETING JAPAN INC.
16-6, Konan 2-chome, Minato-ku, Tokyo 108-8011, Japan
CANON U.S.A., INC.
One Canon Park, Melville, NY 11747, U.S.A.
CANON EUROPA N.V.
Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands
CANON CHINA CO. LTD.
15F Jinbao Building No.89, Jinbao Street, Dongcheng District, Beijing 100005, PRC
CANON SINGAPORE PTE LTD
1 HarbourFront Avenue, #04-01 Keppel Bay Tower, Singapore 098632
CANON AUSTRALIA PTY LTD
1 Thomas Holt Drive, North Ryde, Sydney NSW 2113, Australia
CANON GLOBAL WORLDWIDE SITES
http://www.canon.com/
Serial No.
Date of Purchase
Serial Number
8
Loading Paper
The procedure here is for loading Letter size paper. To load paper other than Letter size, such as Legal or
Statement, see “Loading Paper Other than Letter Size” (P. 28) after nishing the initial settings.
Press the lock release lever, and slide the
side paper guides inward until they are
aligned securely against the edges of the
paper.
Set the paper under the hooks. Make
sure that the paper stack does not
exceed the load limit mark.
Press the lock release lever and spread
the side paper guides a little wider than
the width of the paper.
1 2
65
9
Loading Paper
Preface Installing the Machine
21
Connecting to a Computer and Installing the Drivers
3
Configuring and Connecting the Fax
4
Press the lock release lever, and slide
the front-center paper guide inward
until it is aligned securely against the
edges of the paper.
Load paper so that its edge is
aligned with the rear side of the
paper drawer.
Press the lock release lever and
spread the front-center paper guide a
little wider than the length of the paper.
43
87
10
Connecting the Power Cord
Connect the cable when
installing the software.
Turn ON the machine.
Make sure that the machine is turned
OFF, and then connect the power cord.
Select whether or not to perform color correction.
It is recommended to perform color correction to obtain optimum copy or printout results.
Press <Next>.
1
8
5
2
“Performing Color Correction” (P. 30)
ON
OFF
11
Connecting the Power Cord
Preface Installing the Machine
21
Connecting to a Computer and Installing the Drivers
3
Configuring and Connecting the Fax
4
Press [▲] or [▼] to highlight a
language, and then press [OK].
Select whether or not to connect using wireless LAN immediately.
Press [▲] or [▼] to highlight a
region, and then press [OK].
3 4
9
Press [◀] or [▶] to move the
cursor to the left and right.
Press [▲] or [▼] to
change the numeric
value, or AM/PM.
The factory default settings for
time display is set as 12-Hour.
Enter the date and time, and then press <Apply>.
Press [▲] or [▼] to
highlight your time zone*,
and then press [OK].
76
• Select <No> if you want to connect the machine to a
computer via a wireless LAN later. When connecting,
refer to Wireless LAN Setting Guide.
• If you do not connect the machine to a computer,
proceed to fax conguration (P. 24).
Start from step on P. 4 in Wireless LAN Setting Guide.
The time zone setting indicates the time dierence between your local time zone and Coordinated Universal Time (UTC). The correct time
zone setting is required for Internet communications.
12
Connecting to the Computer
First, you need to decide on the method you would like to connect your machine to the computer. Choose from the
following three options.
P. 15
You can connect the machine to the computer
through a wired router. Use the LAN cables to
connect the machine to the wired router.
• Make sure that there is an available port in the router to connect
the machine and the computer.
• Have a LAN Cable of Category 5 twisted-pair cable or higher
ready.
LAN Cable
Wired Router
P. 21
You can connect the machine to the computer using
a USB cable. USB Cable
See “Wireless LAN Setting Guide”
You can connect the machine to the computer
through a wireless router. Since it is connected
wireless, no LAN cables are needed.
A wireless router which supports IEEE 802.11b/g/n is required.
Wireless Router
If you are not sure whether your router is wired or wireless:
See the instruction manual provided with your network device, or contact the manufacturer.
You can nd a video and written guides which will ensure a smooth setup of the machine into your existing wireless
environment at: .
P. 13
P. 19
13
Connecting to the Computer
Preface Installing the Machine
21
Connecting to a Computer and Installing the Drivers
3
Configuring and Connecting the Fax
4
Are the computer and the router properly
connected using a LAN cable?
For details, see the instruction manual provided with your
network device, or contact the manufacturer.
Has the network settings on the computer been
complete?
If the computer is not properly congured, you may not
use the wired LAN connection even after completing the
following settings.
You cannot connect both the wired LAN and wireless
LAN at the same time.
When you connect to a network environment that
is not security protected, your personal information
could be disclosed to third parties. Please use
caution.
If you connect through a LAN in the oce, contact
your network administrator.
If the IP address on this machine has been changed:
If the machine is on the same subnet as the computer,
the connection is maintained.
* If you want to manually congure the IP address:
If you have set a static IP address to the IP address of the
computer, manually congure a static IP Address.
“Setting IPv4 Address” in the e-Manual
“Setting IPv6 Address” in the e-Manual
The IP address will be automatically congured.*
Internet Router
LAN Cable
1Wired LAN Connection
2Wired LAN Connection
The machine does not come with a LAN cable, router, or a hub. Have LAN Cable of Category 5 twisted pair cable or
higher ready.
Router
LAN Cable
14
Connecting to the Computer
3Wired LAN Connection
Install the MF Drivers and the MF Toolbox. Make sure that the machine is turned ON, and log on to Windows as a
user with administrative privileges. Shut down all applications that are running. See MF Driver Installation Guide for
details about installation.
If you are operating in the IPv6 environment, you may not install the software following the procedures below. See “Installing
the MF Drivers on the WSD Network” in MF Driver Installation Guide.
You may not use the scan function in the IPv6 environment.
4
Follow the instructions
on the screen to continue.
Computer connection via the
wired LAN is now complete.
Take the CD-ROM out, if necessary.
Printer, fax, scanner drivers and MF Toolbox
will be installed.
Select [Custom Installation] to install Presto!
PageManager and the e-Manual.
If the screen is not correctly displayed:
Windows XP/Server 2003
[Start] Menu → [Run] → enter [D:\MInst.exe]
→ [OK]
Windows Vista/7/Server 2008
[Start] Menu → [Search programs and les]
(or [Start Search]) → enter [D:\MInst.exe] →
press the [Enter] key
Windows 8/Server 2012
Right-click the lower-left corner of the screen
→ select [Run] → enter [D:\Minst.exe] → [OK]
The CD-ROM drive name is indicated as "D:" in this
manual.
User Software CD-ROM
▲
Proceed to P. 24
to configure the fax.
▲✔
15
Connecting to the Computer
Are the computer and the router properly
connected using a LAN cable?
For details, see the instruction manual provided with your
network device, or contact the manufacturer.
Has the network settings on the computer been
complete?
If the computer is not properly congured, you may not
use the wired LAN connection even after completing the
following settings.
You cannot connect both the wired LAN and wireless
LAN at the same time.
When you connect to a network environment that
is not security protected, your personal information
could be disclosed to third parties. Please use
caution.
If you connect through a LAN in the oce, contact
your network administrator.
If the IP address on this machine has been changed:
If the machine is on the same subnet as the computer,
the connection is maintained.
* If you want to manually congure the IP address:
If you have set a static IP address to the IP address of the
computer, manually congure a static IP Address.
“Setting IPv4 Address” in the e-Manual
“Setting IPv6 Address” in the e-Manual
The IP address will be automatically congured.*
Internet Router
LAN Cable
1Wired LAN Connection
2Wired LAN Connection
The machine does not come with a LAN cable, router, or a hub. Have LAN Cable of Category 5 twisted pair cable or
higher ready.
Router
LAN Cable
Preface Installing the Machine
21
Connecting to a Computer and Installing the Drivers
3
Configuring and Connecting the Fax
4
16
Connecting to the Computer
5
3Wired LAN Connection
Install the MF Drivers for Macintosh. It requires Mac OS X 10.5.8 version or later. The installation screen varies
depending on the version of Mac OS X.
4
Depending on the system environment, the
dialog box may not be displayed. In this case,
proceed to next step.
Installing the drivers is now complete.
Continued with registratiion operations on the
desktop.
This operation is for Macintosh. If using Windows, see P. 14.
Insert the User Software CD-ROM and
double-click the CD-ROM icon.
▲
▼
▼
▼
▼
▼
Follow the instructions
on the screen to continue.
17
Connecting to the Computer
3Wired LAN Connection
Install the MF Drivers for Macintosh. It requires Mac OS X 10.5.8 version or later. The installation screen varies
depending on the version of Mac OS X.
6
7
Select a printer name for which [Bonjour] is
displayed in the [Kind] or [Connection] column.
If you are using Mac OS X 10.5.x, select the
corresponding driver from [Print Using].
An IP address is automatically congured by
the Bonjour function. If there is not the Bonjour
function or you want to set the IP address
manually, see “Setting IPv4 Address” or
“Setting IPv6 Address” in the e-Manual.
Connecting with the manual setting
4
▼
▼
▼
Proceed to P. 18
If you are using Mac OS X 10.5.8, click [+],
select [Canon MF8500] from the dialog box
displayed, and then proceed to next step.
▼
Preface Installing the Machine
21
Connecting to a Computer and Installing the Drivers
3
Configuring and Connecting the Fax
4
18
Connecting to the Computer

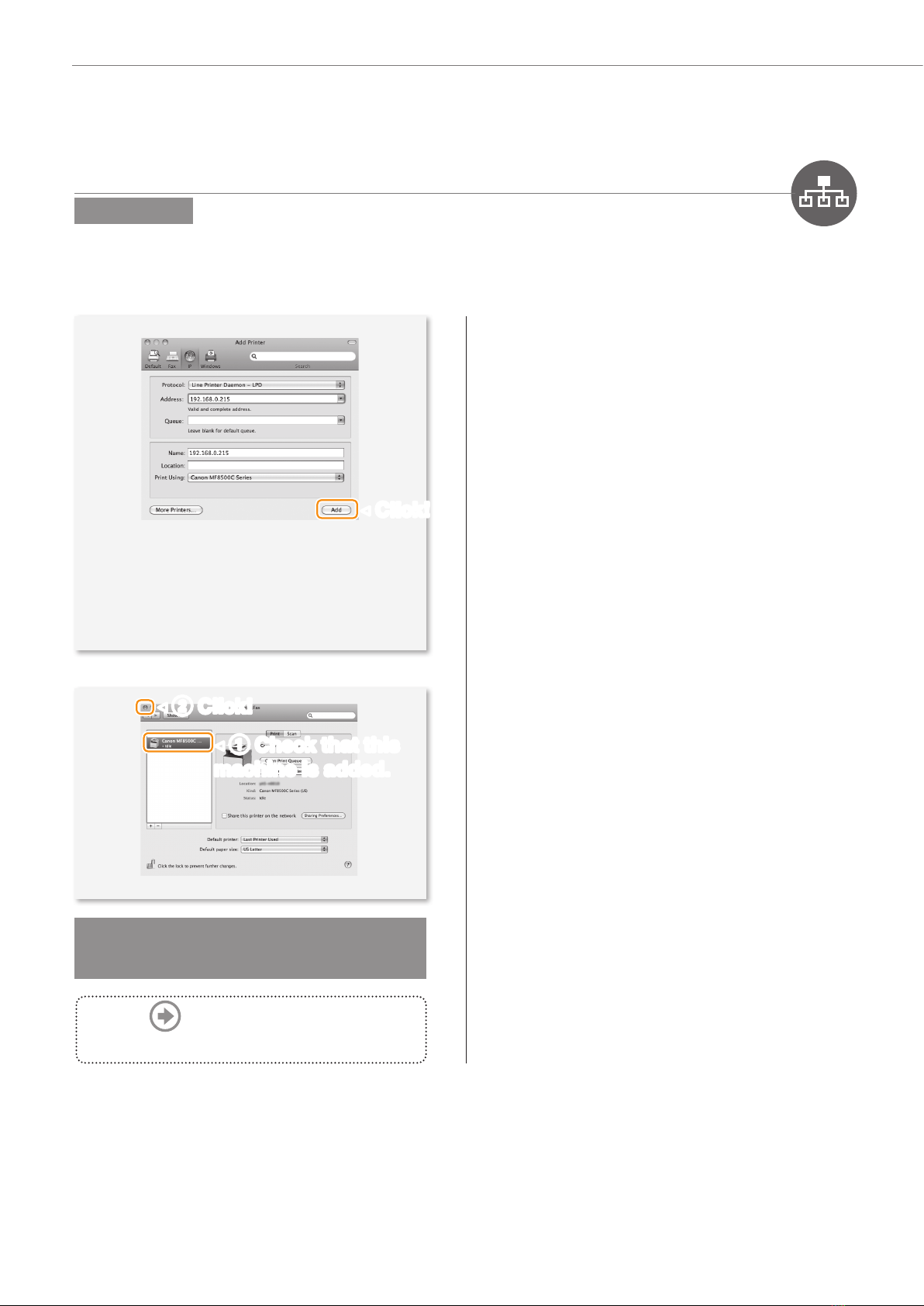

If you are using Mac OS X 10.5.x,
select [Select a driver to use] and the
corresponding driver from [Print Using], and
then click [Add].
▼
Proceed to P. 24
to configure the fax.
8
19
Connecting to the Computer
Preface Installing the Machine
21
Connecting to a Computer and Installing the Drivers
3
Configuring and Connecting the Fax
4
1USB Connection
Install the MF Drivers and the MF Toolbox. Make sure that the machine is turned ON, and log on to Windows as a
user with administrative privileges. Shut down all applications that are running. See MF Driver Installation Guide for
details about installation.
Do not connect the USB cable yet.
Connect the USB cable after installing the MF Drivers and the MF Toolbox.
If you already connected the USB cable:
Windows 7/8: Disconnect the USB cable from the computer, and then
proceed to step .
Windows XP/Vista: If the dialog box on the right appears, disconnect the USB
cable from the computer, click [Cancel], and then proceed to step .
If the USB cable is disconnected and the dialog box disappears, proceed to step .
Printer, fax, scanner drivers and MF Toolbox
will be installed.
Select [Custom Installation] to install Presto!
PageManager and the e-Manual.
If the screen is not correctly displayed:
Windows XP
[Start] Menu → [Run] → enter [D:\MInst.exe]
→ [OK] Remove the CD-ROM, if necessary.
Follow the instructions
on the screen to continue.
For Windows XP/Vista
User Software CD-ROM
▲
Windows Vista/7
[Start] Menu → [Search programs and les]
(or [Start Search]) → enter [D:\MInst.exe] →
press the [Enter] key
Windows 8
Right-click the lower-left corner of the screen
→ select [Run] → enter [D:\Minst.exe] → [OK]
The CD-ROM drive name is indicated as "D:" in this
manual.
Proceed to P. 20
▲✔
20
Connecting to the Computer
Connect to the computer.
Computer connection via the USB is now complete.
2USB Connection
After installing the software, such as MF Driver, connect the USB cable. Make sure the software is installed rst.
Connect to the machine.
Proceed to P. 24 to congure the fax.
Remove this.
Other manuals for Color imageCLASS MF8580Cdw
8
Table of contents
Other Canon Printer manuals
Canon
Canon iPF8400SE imagePROGRAF User manual
Canon
Canon imagePASS-A2 User manual
Canon
Canon PIXMA MX432 Instruction Manual
Canon
Canon BJC-3000 Series User manual
Canon
Canon imagePROGRAF iPF815 User manual
Canon
Canon Pixma iP110 series User manual
Canon
Canon PIXMA MX535 User manual
Canon
Canon imageRUNNER ADV Colour User manual
Canon
Canon MK5000 Assembly instructions
Canon
Canon BJ-W9000 User manual
Canon
Canon iP6700D - PIXMA Color Inkjet Printer User manual
Canon
Canon FAX-L900 Instruction Manual
Canon
Canon TS3500 Series Setup guide
Canon
Canon i550 User manual
Canon
Canon PIXMA MP160 User manual
Canon
Canon MX537 User manual
Canon
Canon Oce VarioPrint 6000 Ultra+ Series User manual
Canon
Canon BJC-S820D User manual
Canon
Canon 820D - S Color Inkjet Printer User guide
Canon
Canon TR7000 Series User manual
