Canon PIXMA TS702a User manual

Guía de inicio
Lea primero Información de seguridad e
información importante (apéndice).
Conguración en línea
Hay vídeos e instrucciones detalladas en
el sitio web de Canon.
Congurar un ordenador
Congurar un teléfono inteligente
Getting Started
Read Safety and Important Information
(addendum) rst.
Online Setup
Detailed instructions and videos are
available on the Canon website.
Setup a Computer
Setup a Smartphone

Go
Instalación de la impresora ...............................................................................................página 1
Conexión con un ordenador, teléfono inteligente o tableta.......................página 4
Vídeos instructivos

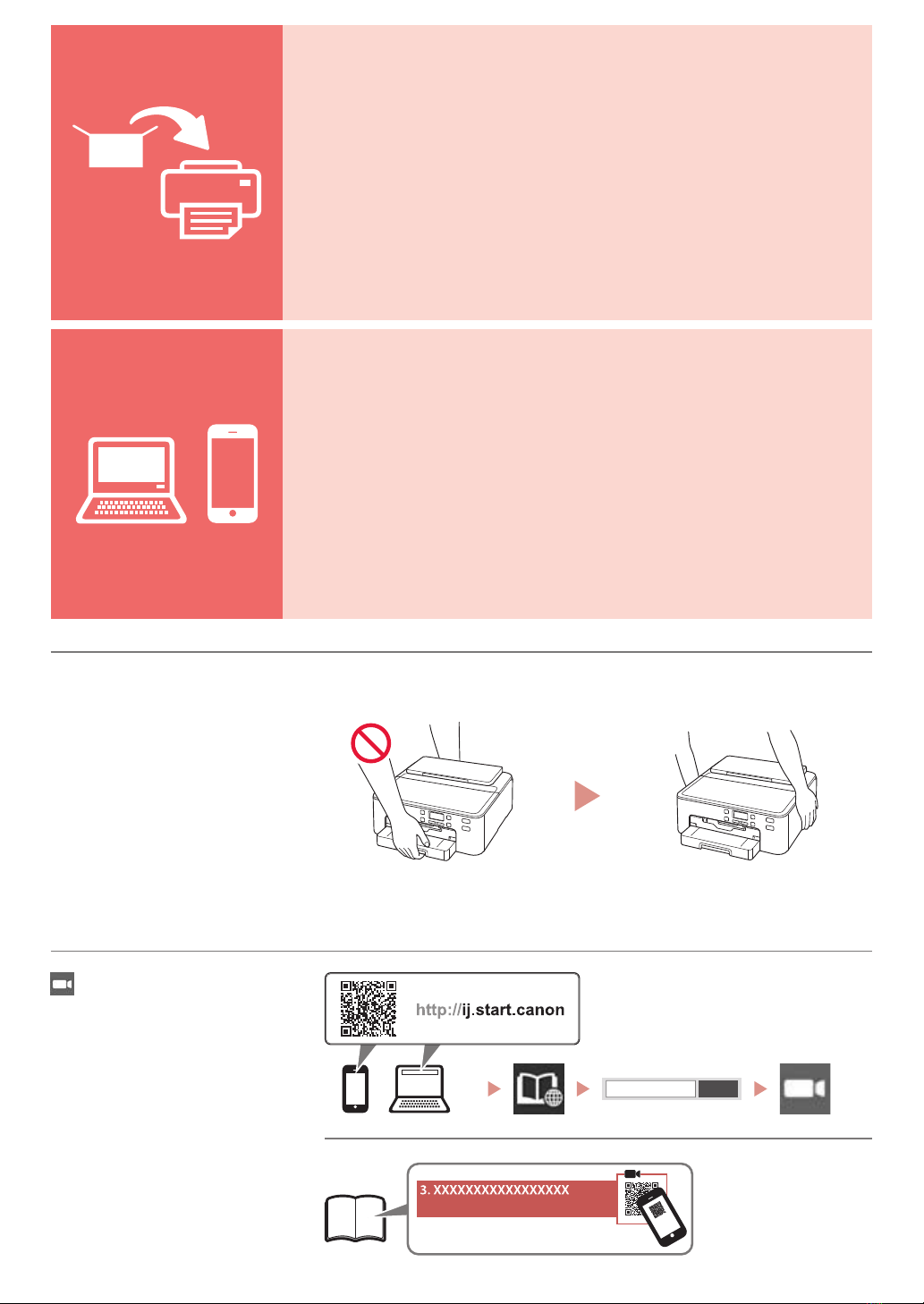

Cómo sujetar la impresora
Installing the Printer................................................................................................................... page 1
Connecting to a Computer, Smartphone or Tablet............................................... page 4
Holding the Printer
Instructional Videos

1
ENGLISH

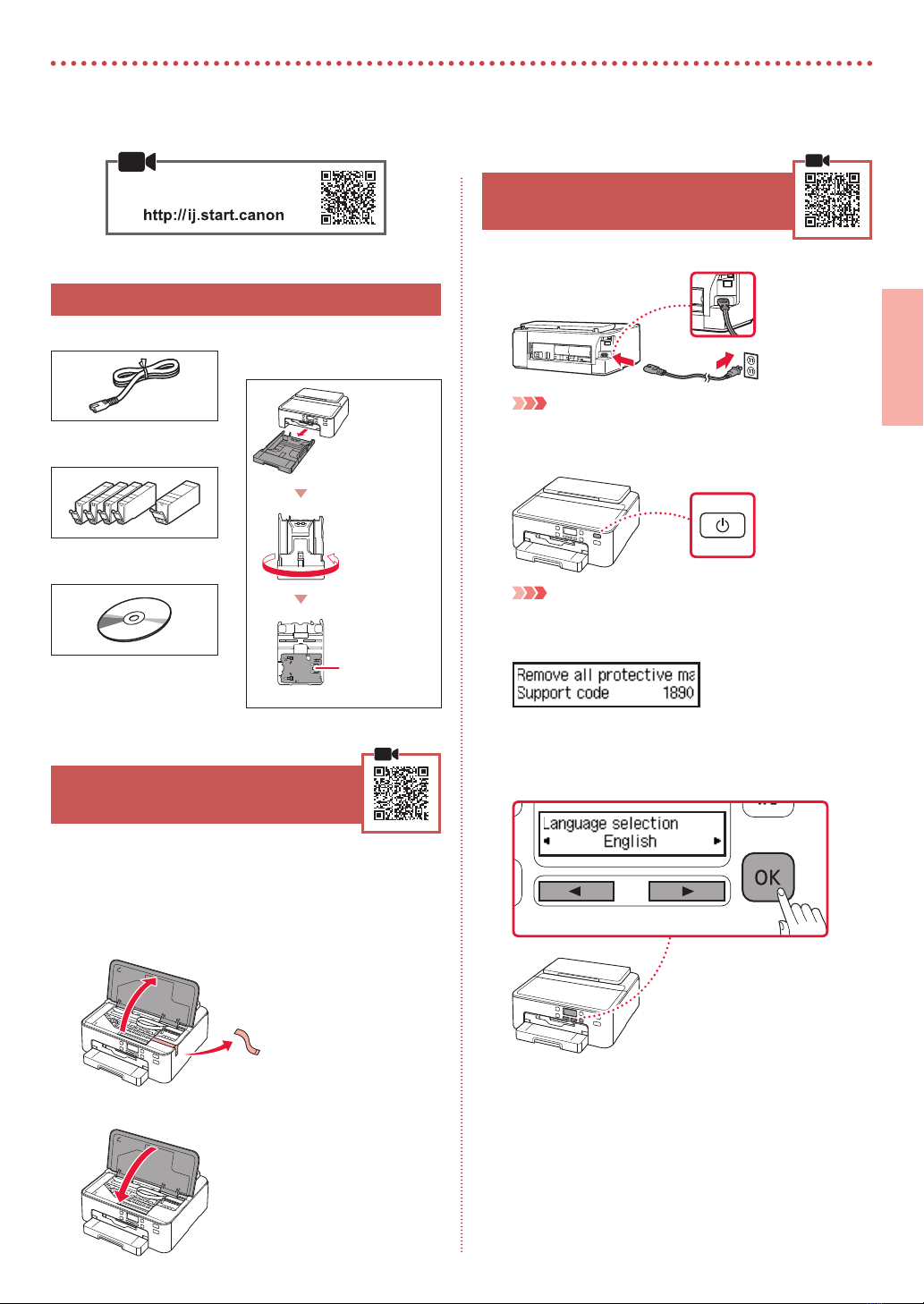

1. Box Contents
•
Power cord • Multi-purpose tray
(Attached to the underside of the
cassette.)
Pull out the
cassette.
Turn it over.
Multi-purpose tray
•
Ink tanks for setup
•
Setup CD-ROM
•
Safety and Important Information
•
Getting Started (this manual)
2. Removing Packing Materials
1 Remove and dispose of any packing materials
from the printer.
• Be sure to remove any orange tape.
2 Open the top cover and remove the orange tape
inside.
b
a
3 Close the top cover.
3. Turning on the Printer
1 Connect the power cord.
Back
Important
At this time, do not connect any other cables.
2 Press the ON button.
Important
If the following screen appears, press the ON button to turn o
the power, and redo the procedure from step 2 in "2. Removing
Packing Materials".
3 When the following screen appears, use the [
and ]buttons to select a language, and then
press the OK button.
Setting Up the Printer
Online Setup

2
Setting Up the Printer
4. Installing the Ink Tanks
1 Open the top cover.
Caution
Do not touch the print head holder until it stops moving.
2 Remove the tape and lm on the ink tanks.
b
a
• Check that no tape is left over.
3 Slowly remove the orange cap.
Important
• Do not squeeze the ink tank with the
Y-shaped air hole blocked.
• Do not touch the areas shown in red.
4 Install the ink tanks.
• Matching the color of the ink tank to the label on the
print head, insert the ink tank into the print head, and
press down until it clicks.
5 Check that the mark appears on the screen.
Important
If the mark is not displayed on the screen even though
you have installed the ink tank, the color of the ink tank may
be wrong or you may have installed an ink tank, such as one
with a dierent model number, that is not supported by this
printer. Either install an ink tank for the correct color or use the
provided ink tank for setup.
6 Repeat steps 2 through 5 to install all the ink
tanks.
• Check that a mark is displayed on the screen for
each color.
7 Close the top cover.
• The printer will start initializing.
8 When the following screen appears, press the
OK button.
5. Loading Paper
1 When the following screen appears, use the [
and ]buttons to select Yes , and then press the
OK button.
• The following screen appears.

3
ENGLISH

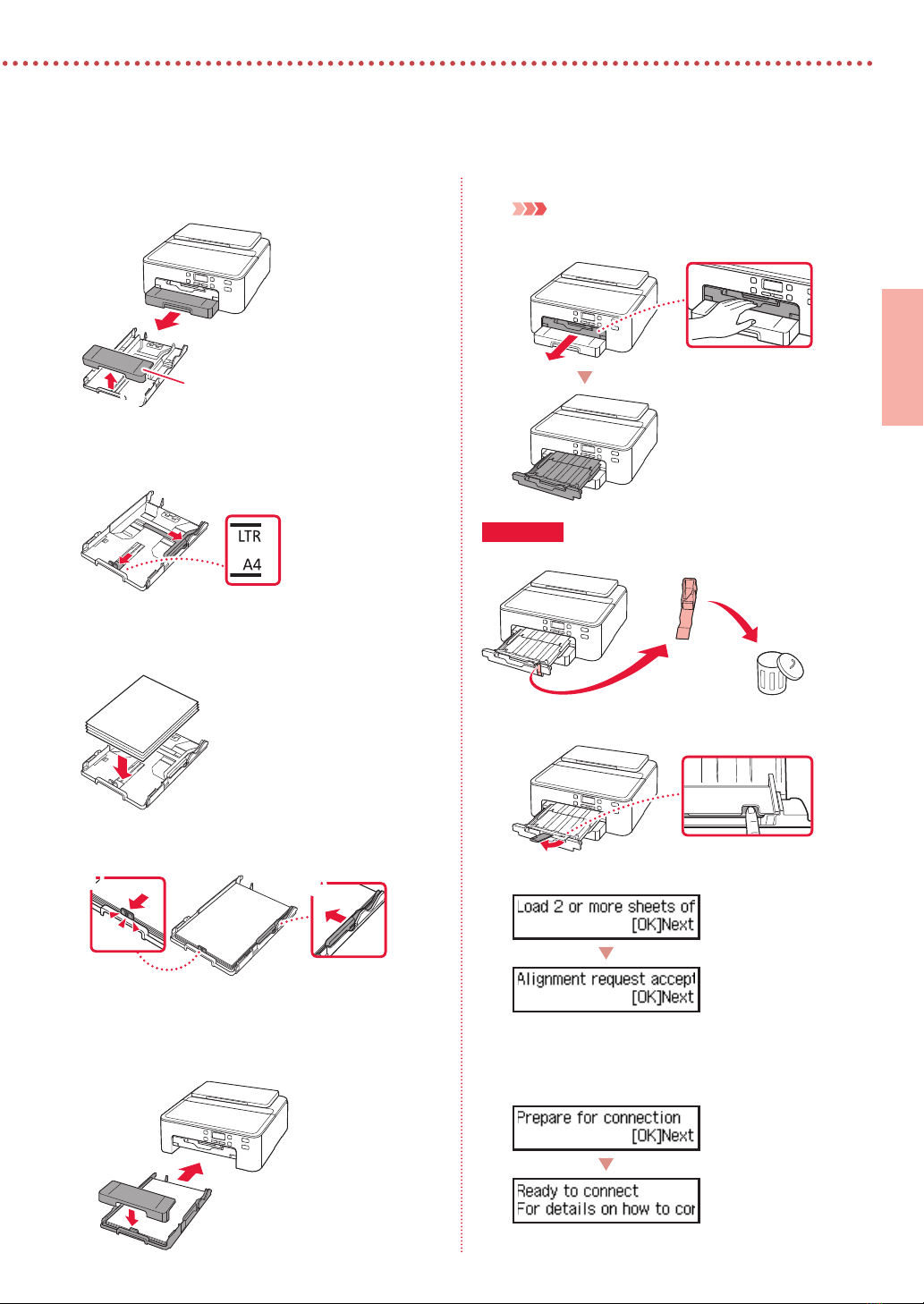

2 Remove the cassette from the printer and
remove the cassette cover.
b
a
Cassette cover
3 Slide apart the paper guides.
• Slide the right paper guide to the right edge. Align
the front paper guide with the LTR or A4 mark.
4 Load paper.
• Load 2 or more sheets of LTR or A4 sized plain paper
with the print side facing down.
• Place the paper against the front paper guide, and
align the right paper guide to the width of the paper.
b
a
5 Attach the cassette cover and replace the
cassette.
• When attaching the cassette cover to the cassette, t the
cassette cover to the shape of the front of the cassette.
ab
6 Pull out the paper output tray until it stops.
Important
If you do not pull out the paper output tray, an error will occur
when printing starts.
Check!
Remove and dispose of any orange protective material.
7 Pull out the paper output support.
8 Press the OK button.
9 Check that Prepare for connection appears
on the printer's screen, and then press the OK
button.

6-b
page 6
6-a
4
Setting Up the Printer
Press the Stop button,
and then select Do not
connect > Yes, in this
order.
Computer Computer and
smartphone
Smartphone
No device

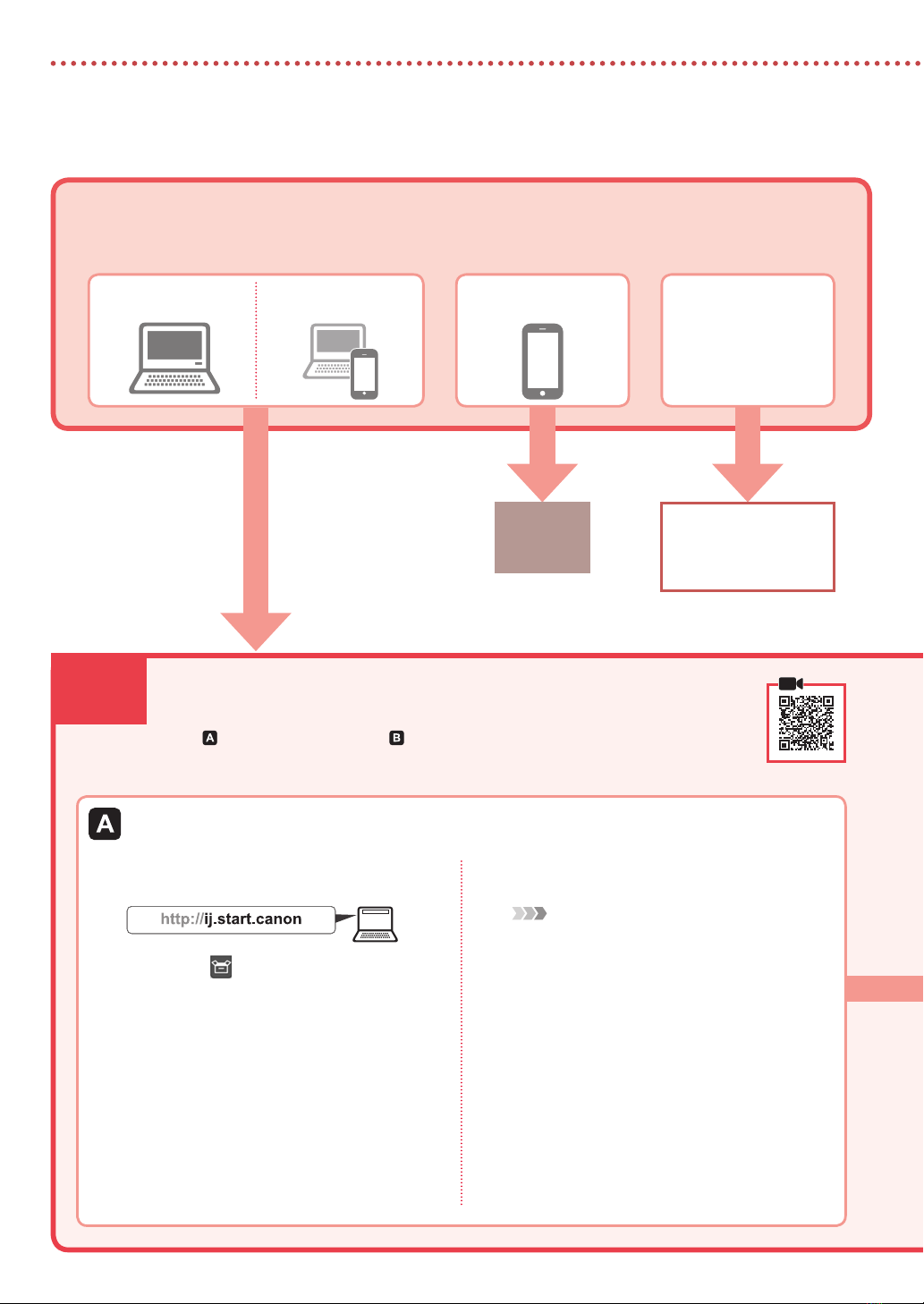

Connecting to a Computer
If you are using multiple computers, perform these steps on each computer. There are
two methods, " Online Setup" and " Using the Setup CD-ROM (Windows Only)
Provided".
1 Access the Canon website from a
computer.
2 Select Set Up.
3 Enter your printer's model name and click
Go.
4 Click Start.
5 Click If you have already prepared your
printer, go to Connect.
Note
The following steps are for Windows (except Windows
10 in S mode) and macOS users. For other operating
systems, continue setup by following the on-screen
instructions instead.
6 Click Download.
• The setup le is downloaded to your
computer.
7 Run the downloaded le.
8 Proceed to step 9 on page 5.
Online Setup
What device are you connecting?
Select a device and follow the instructions in the relevant section.

5
ENGLISH

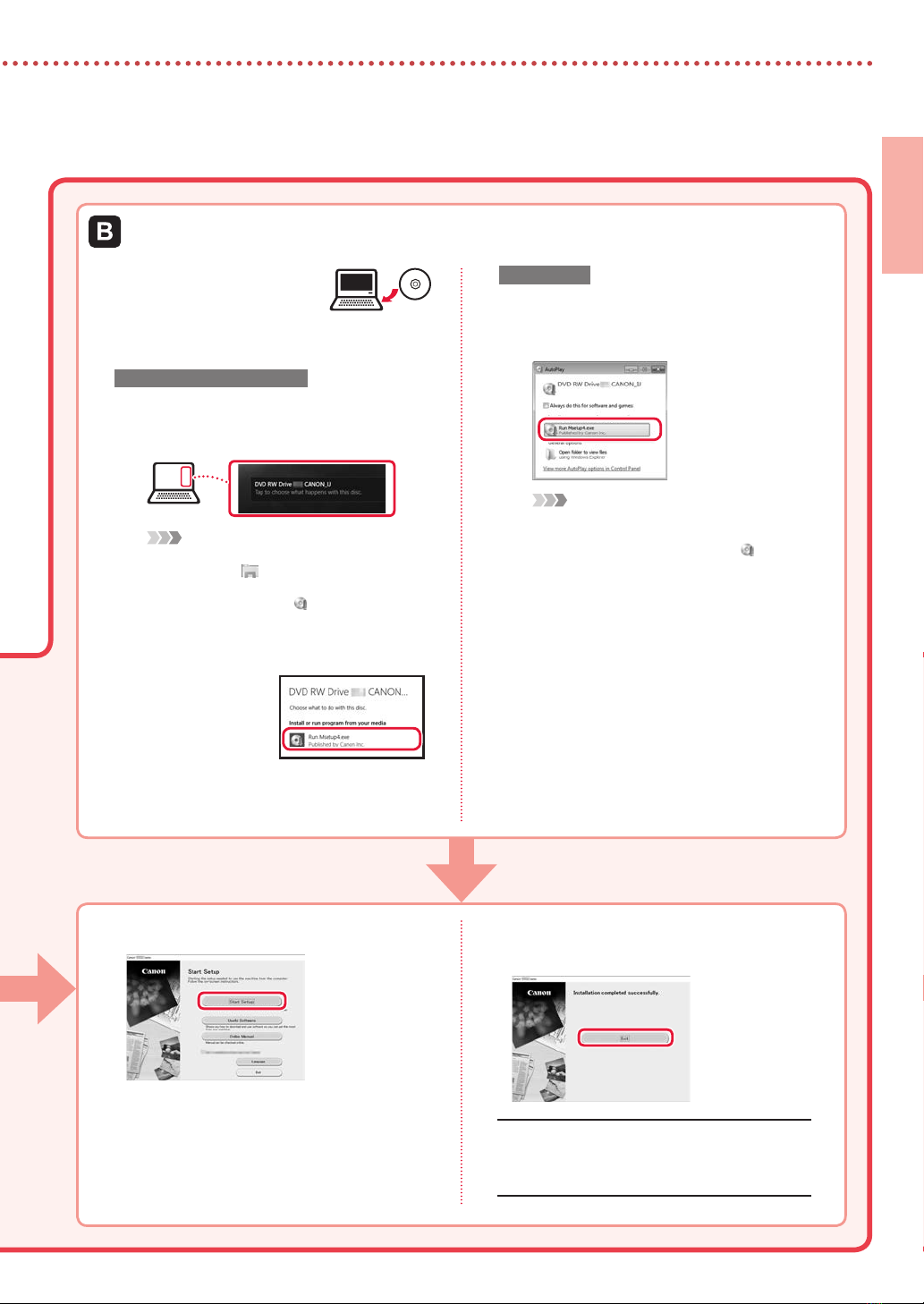

1 Insert the Setup CD-ROM
into your computer.
2 Follow the instructions for your version of
Windows.
Windows 10/Windows 8.1
aClick on the following message when it
appears on the right-hand side of your
computer screen.
Note
If the message does not appear (or is no longer
visible), click the File Explorer icon in the
taskbar. On the left-hand side of the window, click
This PC. Double click the CD icon that is
displayed on the right-hand side. When the
content of the CD is displayed, double click
Msetup4.exe. Proceed to c.
bClick Run
Msetup4.exe.
cIf the User Account Control dialog box
appears, click Yes .
Windows 7
aClick Run Msetup4.exe.
• When the AutoPlay screen appears, click
Run Msetup4.exe.
Note
If the AutoPlay screen does not appear, in the
Start menu, click Computer. On the right-hand
side of the window, double click the CD icon.
When the content of the CD is displayed, double
click Msetup4.exe.
bIf the User Account Control dialog box
appears, click Continue.
3 Proceed to step 9 below.
Using the Setup CD-ROM (Windows Only) Provided
9 Click Start Setup.
10 Follow the on-screen instructions.
• These operations may take some time.
11 When the following screen appears, click
Exit.
Your printer is now connected to your computer.
To connect a smartphone as well, see "6-b.
Connecting to a Smartphone" on page 6.

6-b
6
Setting Up the Printer

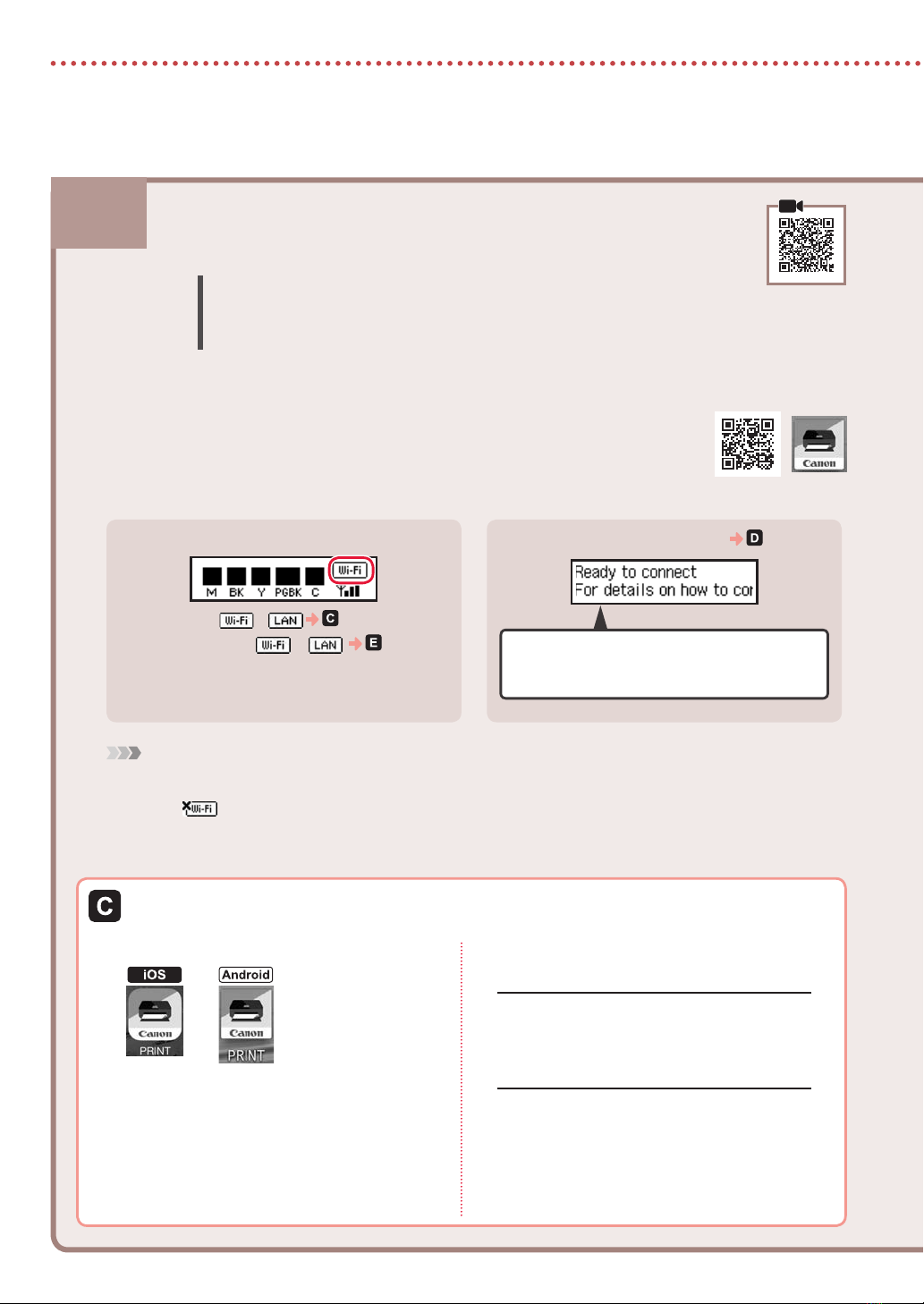

1 Install the "Canon PRINT Inkjet/SELPHY" app on your smartphone.
• Scan the QR code shown on the right to access the Canon website, and then download
the app.
2 Check the printer's screen and proceed to each step.
If the following screen is displayed,
Ready to connect
For details on how to continue, refer to
"Getting Started"
If the following screen is displayed
• If or is displayed,
• If or is not displayed,
Note
• The printer's screen turns o when the printer is idle for 10 minutes. Press a button (except the ON button) on the operation
panel to turn on the screen.
• If appears, the printer cannot communicate by Wi-Fi connection. For details, see "Frequently Asked Questions" at
"http://ij.start.canon".
Connecting to a Smartphone
If you are using multiple smartphones, perform these steps on each smartphone.
Prepare the following before starting.
aEnable the Wi-Fi setting on your smartphone.
bConnect your smartphone to the wireless router (if you have a wireless router).
See your smartphone and wireless router manuals for more details.
3 Open the installed app. 4 Follow the on-screen instructions to add
your printer.
Once you have added your printer, you can
print from the smartphone. To print photos, see
"Loading Photo Paper" on page 8.

7
ENGLISH

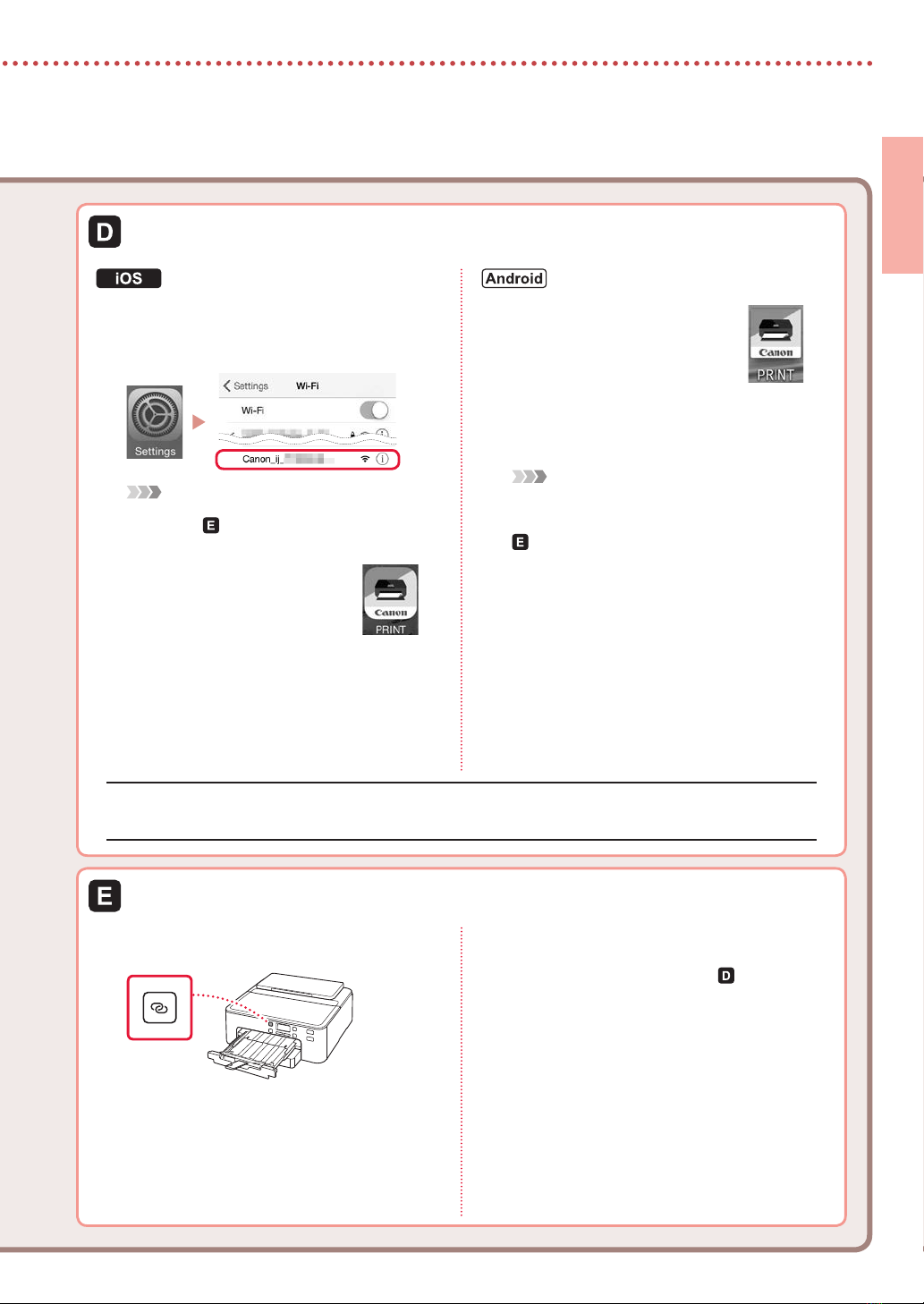

3 Tap Settings on your smartphone's home
screen, and tap Canon_ij_XXXX in the
Wi-Fi settings.
Note
If Canon_ij_XXXX does not appear, follow the
procedure in , and then search for Canon_ij_XXXX
again.
4 Tap the installed app, and
then follow the on-screen
instructions to add your
printer.
• The printer is added with the
most appropriate connection
method for the environment
you are using.
3 Tap the installed app, and
then follow the on-screen
instructions to add your
printer.
• The printer is added with the
most appropriate connection
method for the environment
you are using.
Note
If a message saying "No printer has been added.
Perform printer setup?" does not readily appear
after starting the application, follow the procedure in
, and then return to smartphone operations.
Procedures vary for iOS and Android. Follow the instructions for your operating system.
3 Press and hold the Wireless connect
button for about 3 seconds. 4 When Follow the instructions on the PC or smartphone, etc. appears on the
printer's screen, proceed to .
Once you have added your printer, you can print from the smartphone. To print photos, see "Loading Photo
Paper" on page 8.

8
Loading Photo Paper
1 Open the paper support and the paper support
extension.
a
b
2 Open the feed slot cover and slide the right-
hand side paper guide to the far right.
ab
3 Load several sheets of photo paper with the
print side facing up and slide the side paper
guide against the edge of the paper stack.
a
b
4 Close the feed slot cover.
5 When the following screen appears, press the
OK button.
6 Select the paper size and type, and press the OK
button.
7 Pull out the paper output tray and the paper
output support.
a
b
Printing a Disc Label Using the Multi-Purpose Tray
Photo paper can only be loaded in the rear tray.
You can print a label on a printable disc using the multi-purpose tray.
For details, open the Online Manual and click Basic Operation>Printing a Disc Label from a Computer.
Note
• The multi-purpose tray is attached to the underside of the cassette. "1. Box Contents" on page 1
• Refer to the back cover of this manual for how to open the Online Manual.
