Preface
■■ Shipping Materials ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
Thank you for purchasing a Canon Bubble Jet Printer.
Check that all the following items are in the box. If anything is missing or is damaged, contact
your Canon Authorised Dealer or Sales Representative.
❏Printer
❏Setup Software & User’s Guide CD-ROM
❏Quick Start Guide
❏Print Head
❏6 Ink Tanks
* Cables should be purchased separately according to your computer. For details on cable
types and specifications, refer to page 2.
■■ Introduction ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
This Quick Start Guide uses the following symbols to indicate important information. Always
observe the instructions indicated by these symbols.
Instructions that, if ignored, could result in death or serious personal injury caused by
incorrect operation of the equipment. These must be observed for safe operation.
Instructions that, if ignored, could result in personal injury or material damage caused by
incorrect operation of the equipment. These must be observed for safe operation.
Also read the Safety Precautions in the User’s Guide. Observe the warnings and cautions to
avoid personal injury or damage to the printer.
Trademark Notices
• Canon
®
is a registered trademark of Canon Inc.
• BJ™ is a trademark of Canon Inc.
• Microsoft
®
and Windows
®
are registered trademarks of Microsoft Corporation in the U.S.
and other countries.
• Apple, Mac and Macintosh are trademarks of Apple Computer, Inc., registered in the U.S.
and other countries.
• All other trademarks and registered trademarks appearing in this Quick Start Guide are
the property of their respective owners.
Copyright ©2002 CANON INC.
All rights reserved. No part of this publication may be transmitted or copied in any form
whatsoever without the express written permission.

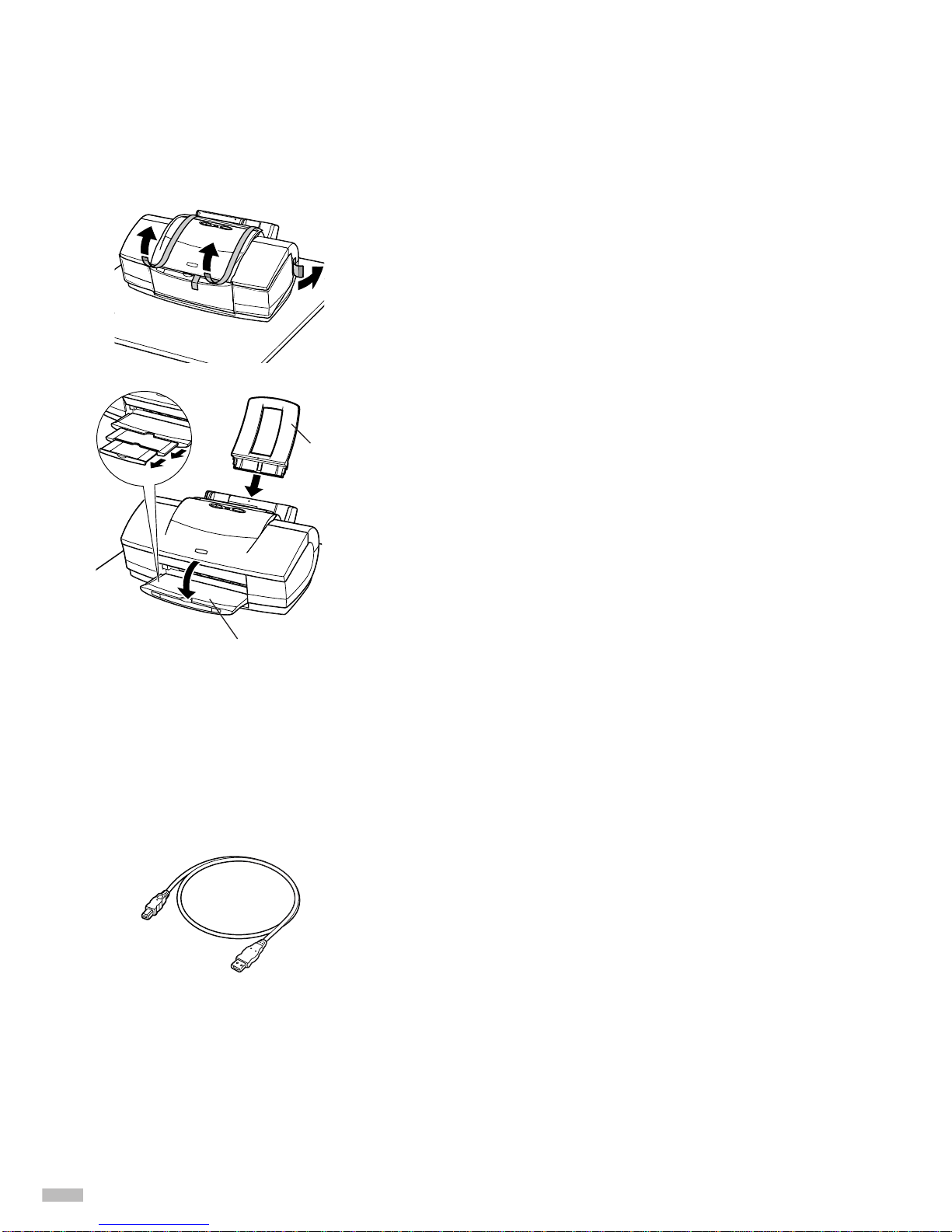

1 Place the printer on a flat surface.
2 Remove the packing material and tape
from the printer as shown.
3 Attach the paper rest to the sheet
feeder.
4 Lower and pull out the output tray as
shown.
2
Setting Up
■■ 1 ■ Preparing the Printer ■■■■■■■■■■■■■■■■■■■■■■■■■■■
■■ 2 ■ Connecting the Printer to the Computer ■■■■■■■■■■■
Use a USB cable.
USB cable
Recommended: Canon or other computer manufacturer cable, up to 2 meters in length.
output tray
paper rest

Follow the steps below to install the printer
driver correctly.

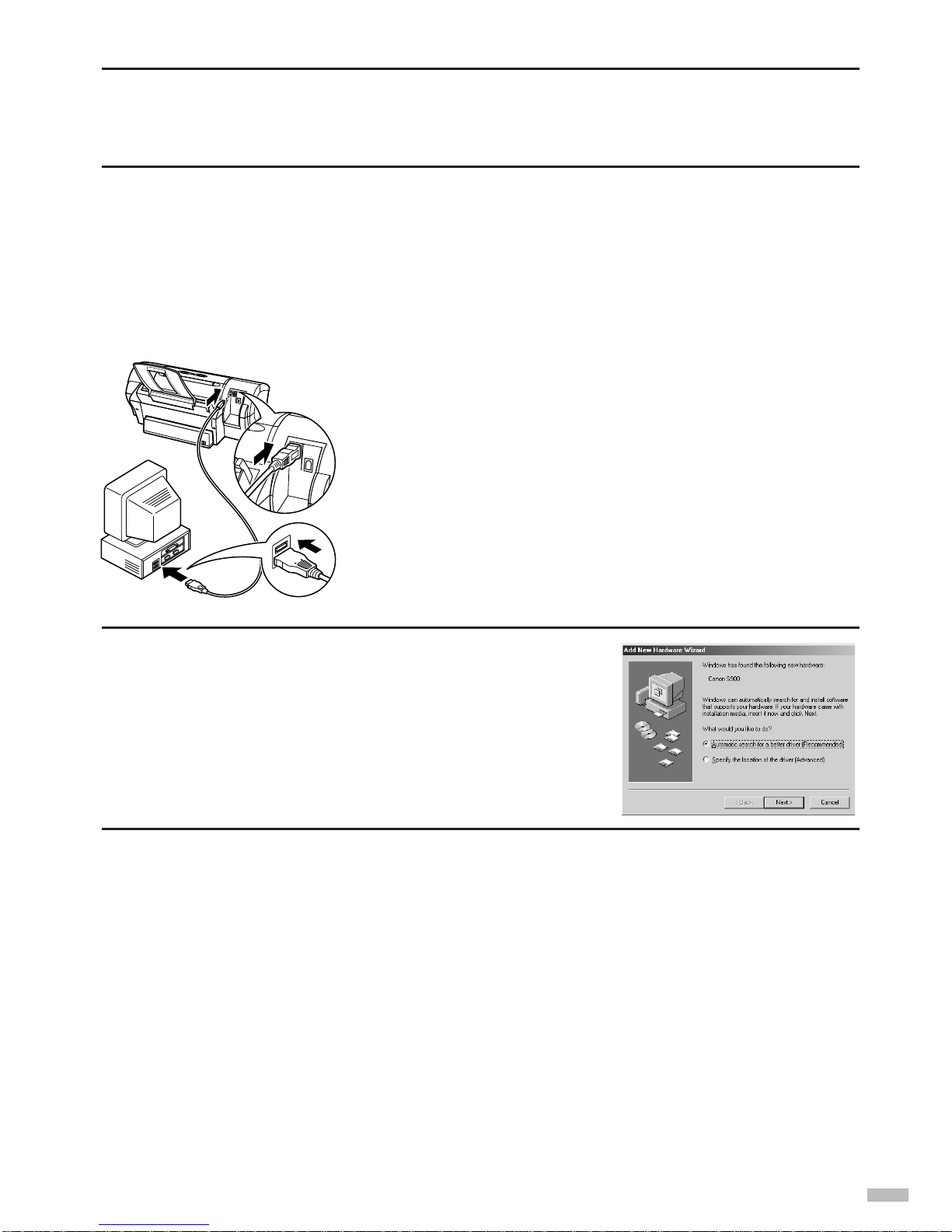

1 Ensure the printer and the computer
are switched off.
2 Connect the cable.
3
➥
Notes
• If your computer has an earth connection, make sure that this is attached.
• If you do not intend to use the printer for a long period of time, unplug the power cord
from the power outlet after turning off the printer.
➥
Note
If the Add New Hardware Wizard or Found New Hardware
Wizard screen appears when carrying out the following
operations, click Cancel and turn off the computer.

1 Plug the printer in.
2 Turn on the printer. Do NOT turn on
the computer yet.
The POWER lamp flashes and the printer begins
to operate. Wait until the POWER lamp remains
fully lit.
3 Open the front cover.
4 Remove the tape.
4
■■ 3 ■ Installing the Print Head ■■■■■■■■■■■■■■■■■■■■■■■■
• Never attempt to plug the power cord into the power outlet or unplug the power cord
when your hands are wet.
• Never damage, modify, stretch, or excessively bend or twist the power cord. Do not place
heavy objects on the power cord.
• Never use any power supply other than the standard power supply available in the
country of purchase. Using the incorrect voltage and frequency could cause a fire or
electric shock.
• Always push the plug all the way into the power outlet.
■Installing the Print Head
5 Raise the lock lever.
Do not touch internal parts other than the lock
lever.

6 Remove the protective cap from the
print head.
➥
Notes
• Do not touch the
print head nozzles or
electrical contacts.
• Do not attempt to
reattach the
protective cap once it
has been removed.
7 Place the print head in the holder.
5
8 Lock the print head into place by
lowering the lever.
Do not touch the lock lever once the print head
has been installed.
■Installing the Ink Tanks
• For safety reasons, store ink tanks out of the reach of small children.
• Do not drop or shake ink tanks.
1 Take out the yellow ink tank.
2 Pull the orange tape in the direction of
the arrow and remove the clear film.
print head
holder
print head
electrical contacts
print head nozzles

3 Hold the ink tank as shown in the
diagram and remove the protective
cap.
➥
Notes
• Do not squeeze the sides
of the ink tanks as this
may cause the ink to leak
out and stain your clothes
and hands.
• Do not touch the ink port.
• Do not attempt to reattach
the protective cap once it
has been removed.
4 Insert the yellow ink tank into the right-
hand slot. Press the top until it clicks
into place.
6
5 Use the same procedure to install the
other ink tanks in their appropriate
slots.
Check the labels to make sure that each tank is in
the correct position.
➥
Notes
• Only install the ink tanks in the positions
specified by the labels.
• If ink tanks are not installed in the right
position, colours will not be printed
correctly. Immediately reinstall the tank in
the correct position and carry out print head
cleaning. For details, refer to the User’s
Guide.
6 Close the front cover.
Wait until the POWER lamp remains fully lit.
ink port
Black
Yellow
Magenta
Cyan
Photo Cyan
Photo Magenta

1 Open the front cover.
2 Move the paper thickness lever at the
top of the print head holder to the left
position. Close the front cover.
➥
Note
Set the paper thickness lever to the left when
using plain paper, to the right when using
thick paper. Refer to the User’s Guide for
information on loading envelopes and other
media.
3 Load the paper, aligning it with the
right side of the sheet feeder.
You can load up to 100 sheets of plain paper. Do
not exceed this limit. After printing, do not stack
more than 50 sheets in the paper output tray.
4 Press the paper guide and slide it
against the left side of the stack of
paper.
You now need to install the printer driver:
Windows: Go to page 8
Macintosh: Go to page 10
7
■■ 4 ■ Loading Paper ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■Loading A4 (Letter) Size Plain Paper
print side
paper thickness lever

■■ 5 ■ Installing the Printer Driver ■■■■■■■■■■■■■■■■■■■■■■
■Installing the Printer Driver - Windows
➥
Notes
• Do not disconnect the cable or remove the CD-ROM during the installation. The driver
cannot be correctly installed.
• The screens below refer to Windows Me installation. Screen may differ depending on
the environment you are using.
• When installing the printer driver in Windows XP or Windows 2000, log on to the
system as a member of the Administrators group.
If the following screen appears automatically, click Cancel and follow steps 1 to 7 to install
the printer driver.
Special Notes for Windows 98 USB Users
Click Cancel to quit the screen and turn off the printer. Next, remove and replace the USB
cable connected to your computer.
1 Ensure the printer and computer are
switched off.
2 Turn on the computer and start
Windows. If any applications
automatically run, quit them.
Disable any virus detection programs.
Do NOT turn the printer on at this stage.
8
OFF

3 Place the Setup Software & User’s
Guide CD-ROM in the CD-ROM drive.
➥
Notes
• If the CD-ROM does not run automatically,
double-click My Computer in the Windows
screen, for Windows XP, click Start and
select My Computer, and then double-click
the CD-ROM icon.
• If the language selection screen appears,
select a language, then click the Next button.
4 Follow the instructions displayed on
the screen.When the screen shown on
the left is displayed, click Install.
5 When the screen shown on the left
appears, turn the printer on.
If the printer is recognised, the printer driver will
be automatically installed.
➥
Note
If the connection is not recognised, refer to the
section “Notes on Handling the USB Interface
(for Windows Users)” on page 21.
6 Click OK.
9
ON

7 When the screen shown on the left
appears, click Exit.
Before you can use the printer, you must carry out
print head alignment on page 12.
➥
Note
• To view the User's Guide, please refer to
page 21.
• If a message prompting you to restart the
computer appears, click Yes.
10
■Installing the Printer Driver - Macintosh
➥
Notes
• Do not remove or insert the USB cable during installation, as this may result in the
computer or printer not operating correctly.
• Before installing the driver, disable all virus detection programs and automatically
loading programs or remove them from your system folder.

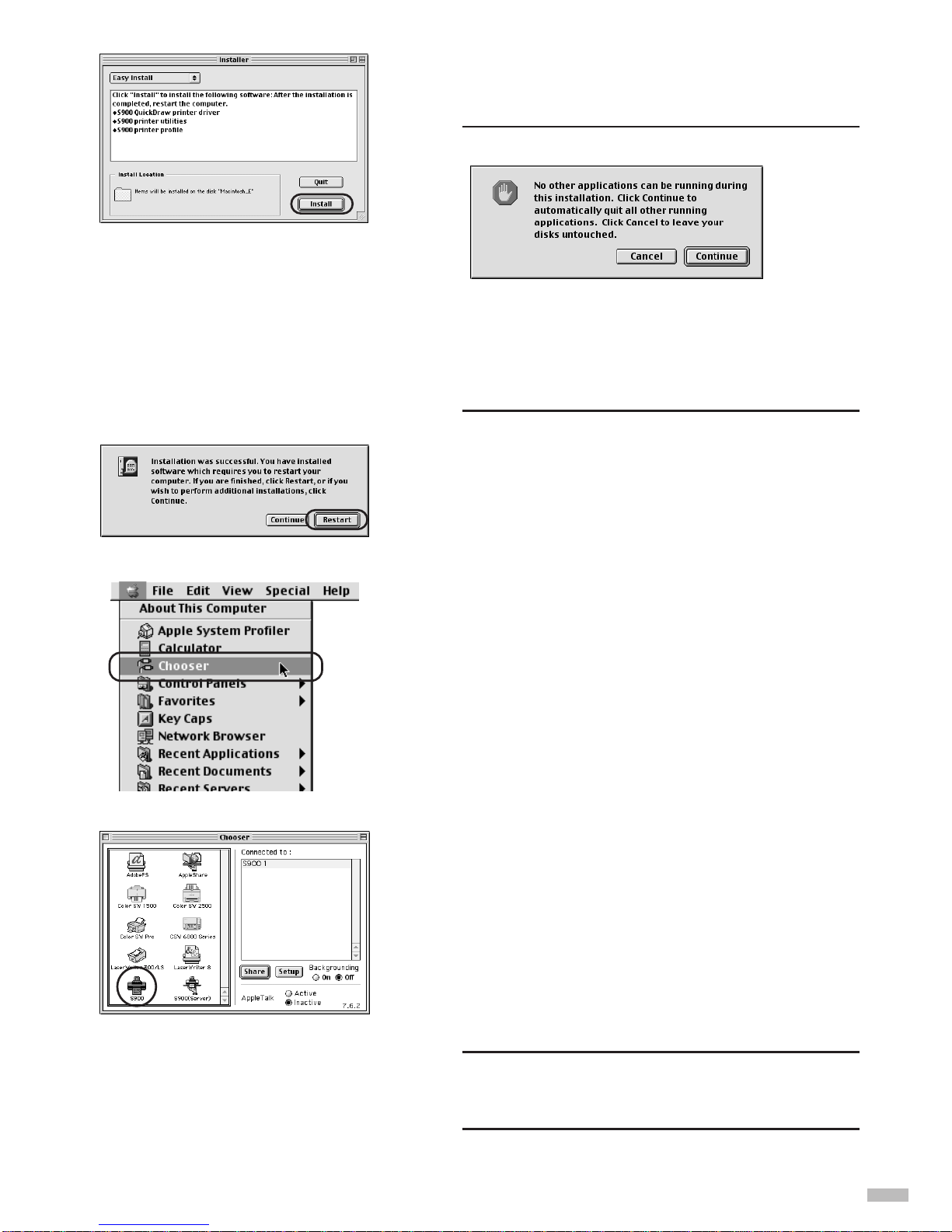

1 Turn on the Mac.
2 Place the Setup Software & User’s
Guide CD-ROM in the CD-ROM drive.
3 Double-click the printer driver folder,
then select a language.
4 Double-click Installer.
5 Read the Licence Agreement and click
Accept to continue.

6 Click Install.
Wait for the installation to finish.
➥
Note
If the above message appears, check that there
are no unsaved documents, then click the
Continue button. If a document needs to be
saved, click Cancel then save the document.
After saving the document, begin again from
Step 4.
7 Click Restart.
The computer restarts.
8 Select Chooser in the Apple Menu.
9 Click the icon for the printer you are
using and close Chooser.
Before you use the printer, you must carry out
print head alignment on page 14.
➥
Note
Refer to the User’s Guide when using this
printer as a network printer.
11

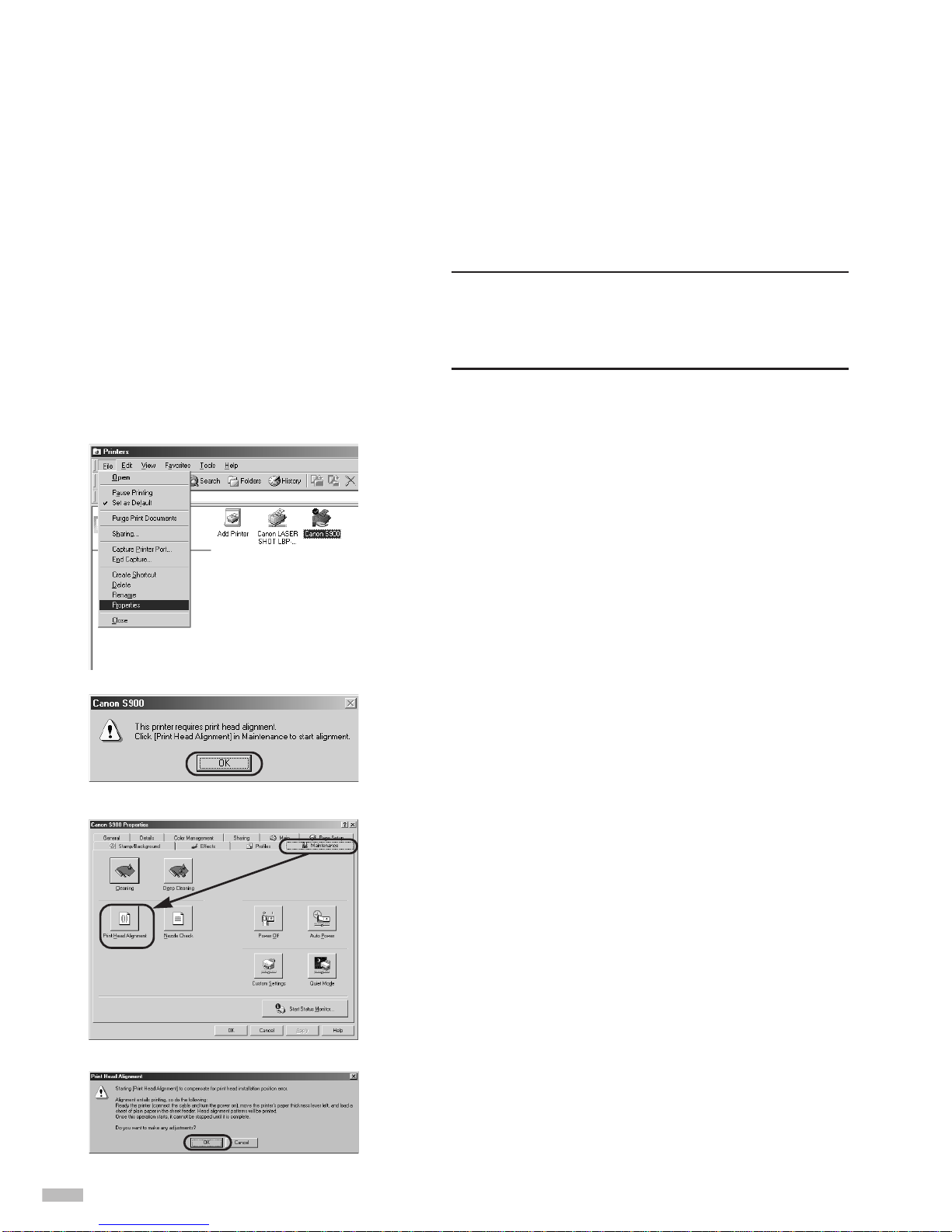

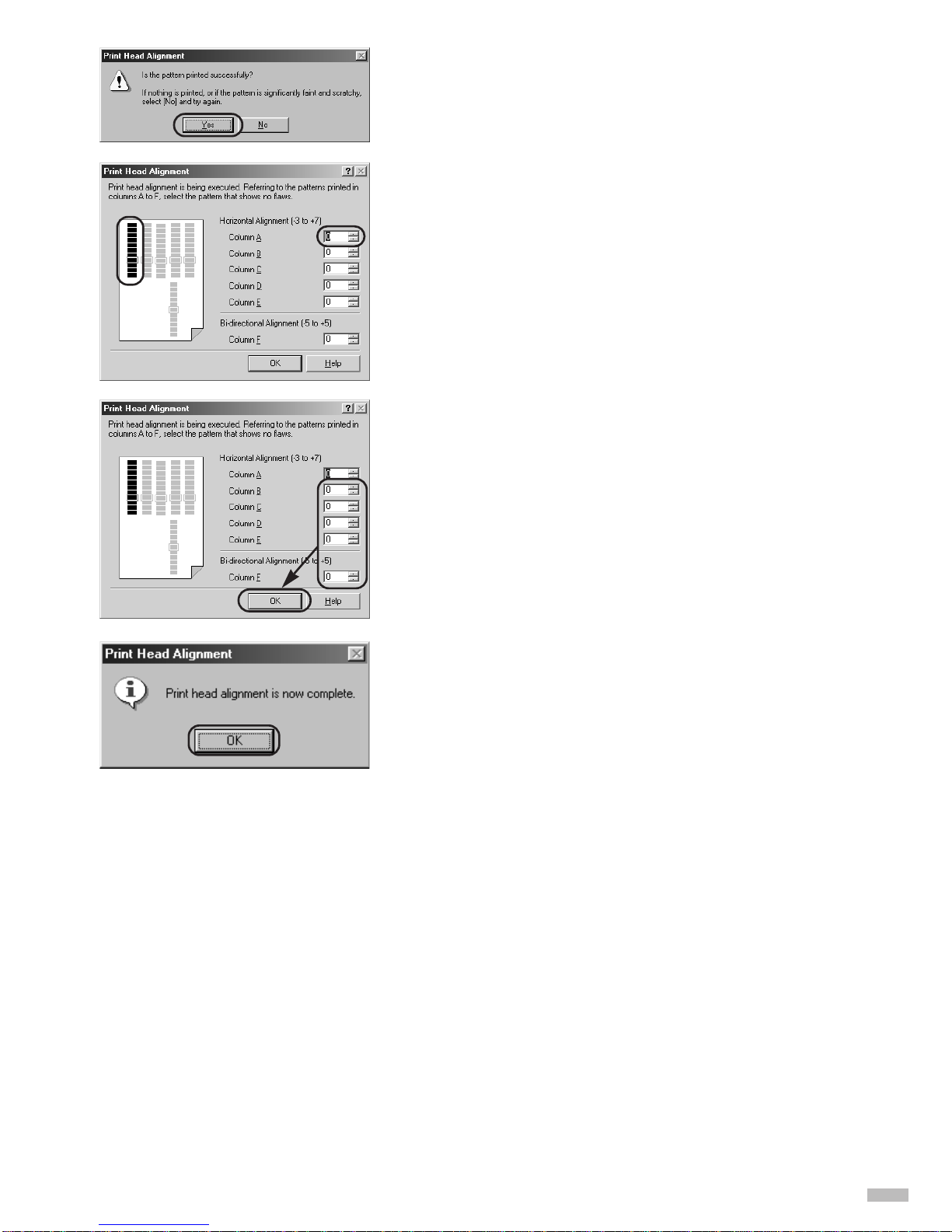

1 Click Start and select Printers in
Settings.
➥
Note
For Windows XP, click Start and select
Control Panel - Printers and Other Hardware
-Printers and Faxes.
2 Click the icon for your printer.
3 Open the File menu and select:
• Windows Me/Windows 98→[Properties]
• Windows XP/Windows 2000→[Printing
Preferences...]
to open the setting screen.
4 Click OK.
5 Click the Maintenance tab, and click
the Print Head Alignment icon.
6 Check that paper is loaded in the
printer and click OK. If a message
warning you not to perform other
operations appears, click OK.
12
■■ 6 ■ Aligning the Print Head ■■■■■■■■■■■■■■■■■■■■■■■■■
This operation must be carried out when using the printer for the first time. Aligning the
print head positions allows you to print without shifts in the colour registration.
■Aligning the Print Head - Windows

7 After the pattern is printed, click Yes.
If the pattern is not printed successfully, open the
front cover and ensure that the ink tanks are
correctly installed.
8 Look at the print-out. From the patterns
in Column A, select the most even,
least irregular pattern and enter the
number.
9 In the same way, one by one, select
the most even patterns printed with the
least irregularities from each of
Columns B to F, enter their numbers,
and click OK.
10 Click OK.
This completes the printer setup. The printer is
now ready to use.
13

1 Select Page Setup in the File menu.
2 Click Utilities.
3 Select Test Print from the menu and
click the Print Head Alignment icon.
4 Check that paper is loaded in the
printer and click OK.
If the pattern is not printed successfully, open the
front cover and ensure that the ink tanks are
correctly installed.
5 Look at the print-out. From the patterns
in Column A, select the most even,
least irregular pattern and enter the
number.
14
■Aligning the Print Head - Macintosh

6 In the same way, one by one, select
the most even patterns printed with the
least irregularities from each of
Columns B to F, enter their numbers
and click Send.
7 Click Close.
8 Click OK.
This completes the printer setup. The printer is
now ready to use.
15

1 Print the document from the
application.
On the File menu, click Print.
Check the application’s users manual for the
actual procedures.
2 Ensure your printer is selected, then
click Properties.
3 Specify the required settings and click
OK.
➥
Note
If you use anything other than plain paper,
please refer to “Basic Print Settings” on
page 17.
4 To start printing, click OK.
Printing will start in a few moments.
16
Basic Operations
• If you detect smoke, unusual smells or strange noises around the printer, immediately
switch the printer off and always unplug the printer. Contact your local Canon service
representative.
• To avoid injury, never put your hand or fingers inside the printer while it is printing.
■■ Printing with Windows ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
Adjusting the print settings according to your needs allows you to produce better quality prints.
In this section, we will use WordPad for the purpose of explanation. The procedures you use
and the screens that appear on your computer may differ according to the application that you
use.
■Printing

■Basic Print Settings
For the best print quality, specify the minimum requirement settings in the Main tab. To get
the best results, ensure you select the type of media loaded in the printer when printing on
paper other than plain paper.
(1) Media Type Select the type of media loaded in the printer.
(2) Print Quality Select one option from High, Standard and Draft. Select Custom to
set the print quality manually.
(3) Colour Adjustment If you wish to control the colour adjustment settings in more detail,
select Manual.
(4) Help Click this for more details on the functions in the tab. (This may not
appear if you are using Windows XP or Windows 2000. If this does
not appear in Windows XP, click Start, and then select All Programs
- Canon S900 - Guide. In Windows 2000, click Start, and then select
Programs - Canon S900 - Guide.)
(5) ? Click this to change the cursor shape to ?. By clicking on the item’s
name with this ? cursor, an explanation will be displayed.
➥
Notes
• Clicking the Print Advisor allows you to change to the most appropriate print settings
simply by answering questions when prompted.
• Use the application to set the paper size and paper orientation. Before printing, open
the settings screen and check that the Page Size in the Page Setup tab is the same as
that specified within application.
• Refer to the User’s Guide for more information about printer driver functionality.
17
(5)
(1)
(2)
(3)
(4)

1 Open the Page Setup dialog box in
your application.
On the File menu, click Page Setup. Check the
application’s user’s manual for the actual
procedures.
2 Specify the page setup.
For details, refer to “Page Setup” on page 19.
3 Open the Print dialog box in your
application to print the document.
On the File menu, click Print. Check the
application’s user’s manual for the actual
procedures.
4 Specify the print settings according to
your requirements.
For details, refer to “Basic Print Settings” on
page 19.
5 Click the Print button.
Printing will start in a few moments.
18
■■ Printing with Macintosh ■■■■■■■■■■■■■■■■■■■■■■■■■■■■
Adjusting the print settings according to your needs allows you to produce better quality prints.
■Printing
