Canvas MERCIER 399-4009-0 User manual

MERCIER 5-PIECE
CONVERSATION SET -
CHAIR
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Keep this manual for future reference.

Made in China. Imported by Trileaf Distribution Trifeuil Toronto, Canada, M4S 2B8
Warning! To reduce the risk of serious injury, read the following safety
instructions before assembling and using the chair.
• This product is intended for domestic, outdoor use only.
• The product should be placed on flat, horizontal ground.
• Any assembly or maintenance of the product must be carried out by adults only.
• Arrange necessary manpower when assembling or moving the product.
• Some parts may contain sharp edges. Wear protective gloves if necessary.
• Check all nuts and bolts periodically for tightness. When required, tighten them again.
•If the product will not be used for a long period of time (e.g., wintertime), it should be
stored in a clean, dry environment.
• Do not light any fires inside or near the product!
• Do not hang any weights on the frame.
• Retain the original package to store the product.
RETAIN FOR FUTURE REFERENCE, AND READ CAREFULLY.

2 people
• Do not place the product underneath electrical lines.
• Keep children away during assembly.
• This product contains small parts which can be swallowed by children.
• Keep fingers away from places where they can be pinched or trapped.
1-888-670-6684
If you have questions regarding your product, require warranty assistance,
or have damaged or missing parts, please call our customer service toll-free
helpline. Contact us for assistance; we're here to help.
Please read and understand this manual before any assembly. Before beginning
assembly of product, make sure all parts are present. Compare parts with packaging contents list.
If any part is missing, or if you have any questions, contact the service centre at
1-888-670-6684 (toll free).
Place all parts from the box in a cleared area and position them on the floor in front of you. Remove
all packing materials and place them back into the box. Do not dispose of the packing materials until
assembly is complete. Read each step carefully before beginning any assembly and make sure you
understand each step.
Needed for assembly:
Right arm -
Left arm -
Seat frame -
Back frame -
Seat cushion -
M6x15 Combination bolt and washer -
Hex key -

Requires

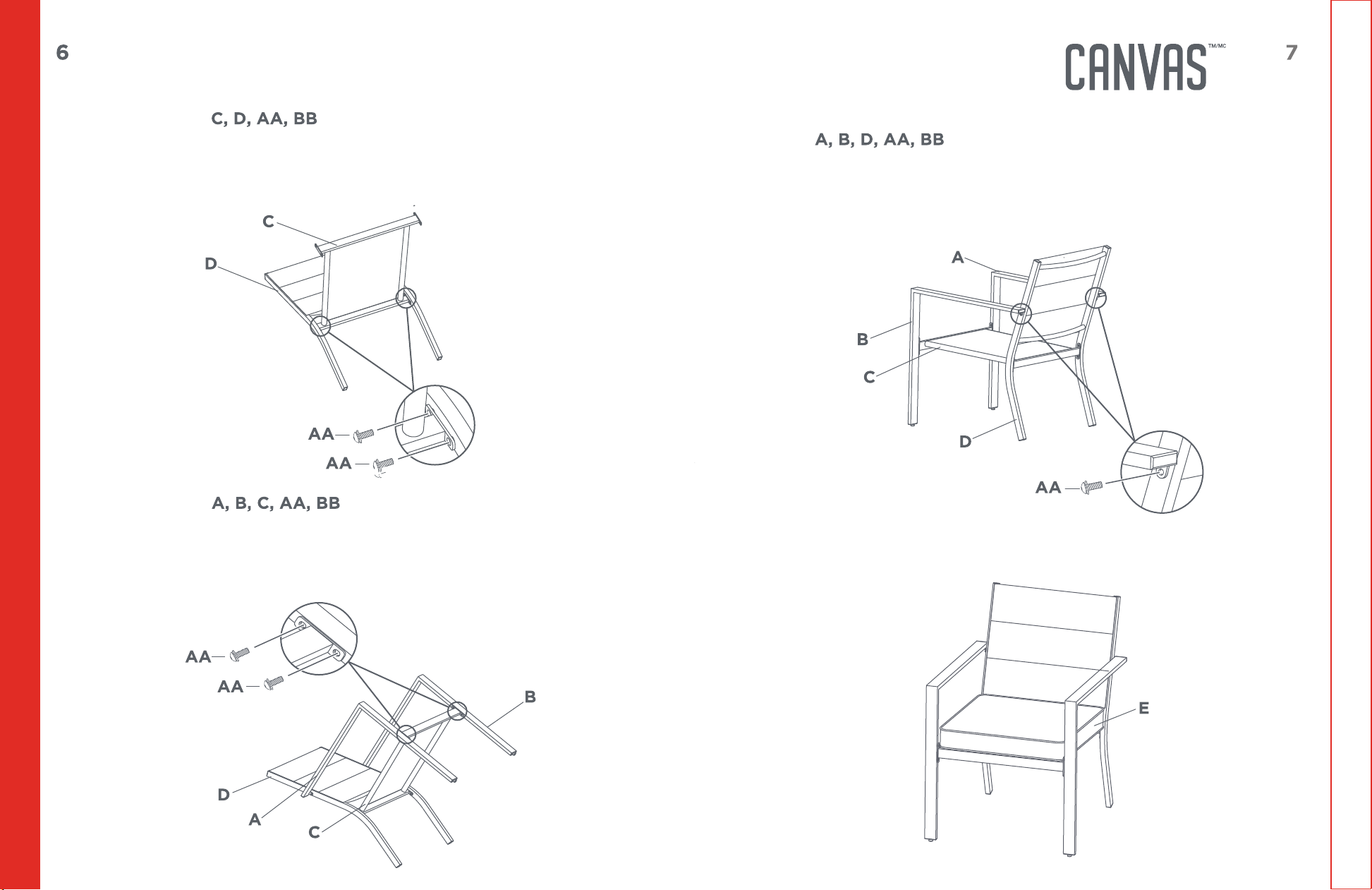

Place the back frame (D) on a soft, flat surface. Line up the bolt holes on the
back frame (D) with the corresponding bolt holes on the seat frame (C).
Insert M6x15 combination bolt and washer (AA) and lightly tighten the bolts
using the hex key (BB). Do not completely tighten until all assembly is
completed.
Requires
Attach the right arm (A) to the back frame (D). Line up the bolt holes on the right arm
(A) with the corresponding bolt holes on the back frame (D). Insert M6x15 combination
bolt and washer (AA) and lightly tighten the bolts using the hex key (BB). Do not
completely tighten until all assembly is completed. Repeat the same step for left arm (B).
Requires
Attach the right arm (A) to the seat frame (C). Line up the bolt holes on the
right arm (A) with the corresponding bolt holes on the seat frame (C). Insert
M6x15 combination bolt and washer (AA) and lightly tighten the bolts using
the hex key (BB). Do not completely tighten until all assembly is completed.
Repeat the same step for left arm (B).
Requires
Ensure all bolts are securely tightened using the hex key (BB). Turn the chair to the
upright position and place the seat cushion (E) on the chair.
Do not
completely tighten.
Do not
completely tighten.
Do not
completely tighten.

• Check all screws and nuts periodically for tightness, tightening them
again as required.
• Disassemble the chair in the reverse order of the assembly steps.
• Always disassemble the chair completely. A partially disassembled
chair is not stable enough to resist wind and bad weather, and
therefore can be damaged and/or cause damage.
• Clean the chair with mild soap and water. Rinse thoroughly, and wait
until the chair is completely dry before reassembling it.
• Always use a mildsoap—never detergent.
- Water should be cold to lukewarm—never more than 25°C (77°F).
• Steel components of garden accessories and furniture are treated with
rust-inhibiting paint. However, due to the nature of steel, surface oxidation (rusting)
will occur if this protective coating is scratched. This is a natural process. To minimize
this condition, it is recommended that care be taken when assembling and handling
the product in order to prevent the paint from being scratched. Surface rust can be
removed easily using a very light application of common cooking oil. If surface
oxidation (rusting) occurs and no measures are taken to correct it, the oxidation may
start dripping onto the assembly surface, which may cause damaging stains that may
be di cult to remove.
Dimensions (L x W x H)
Product weight
Weight capacity
This CANVAS product carries a one (1) year warranty against defects in
workmanship and materials.Trileaf Distributionagrees to replacea
defective product free of charge within the stated warranty period,when
returned by the original purchaserwithproof of purchase. This product is
not guaranteed against wear or breakage due to misuse and/or abuse.
27 3/4 x 23 1/4 x 31 7/8"
70.5 x 59 x 81 cm
14 lb
6.36 kg
220 lb
99.8 kg
CLEANING AND MAINTENANCE
SPECIFICATIONS

MERCIER 5-PIECE
CONVERSATION SET -
LOVESEAT
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Keep this manual for future reference.
MERCIER 5 PIECE
CONVERSATION SET -
LOVESEAT

Made in China. Imported by Trileaf Distribution Trifeuil Toronto, Canada, M4S 2B8
Warning! To reduce the risk of serious injury, read the following safety
instructions before assembling and using the loveseat.
• This product is intended for domestic, outdoor use only.
• The product should be placed on flat, horizontal ground.
• Any assembly or maintenance of the product must be carried out by adults only.
• Arrange necessary manpower when assembling or moving the product.
• Some parts may contain sharp edges. Wear protective gloves if necessary.
• Check all nuts and bolts periodically for tightness. When required, tighten them again.
•If the product will not be used for a long period of time (e.g., wintertime), it should be
stored in a clean, dry environment.
• Do not light any fires inside or near the product!
• Do not hang any weights on the frame.
• Retain the original package to store the product.
RETAIN FOR FUTURE REFERENCE, AND READ CAREFULLY.

2 people
• Do not place the product underneath electrical lines.
• Keep children away during assembly.
• This product contains small parts which can be swallowed by children.
• Keep fingers away from places where they can be pinched or trapped.
1-888-670-6684
If you have questions regarding your product, require warranty assistance,
or have damaged or missing parts, please call our customer service toll-free
helpline. Contact us for assistance; we're here to help.
Please read and understand this manual before any assembly. Before beginning
assembly of product, make sure all parts are present. Compare parts with packaging contents list.
If any part is missing, or if you have any questions, contact the service centre at
1-888-670-6684 (toll free).
Place all parts from the box in a cleared area and position them on the floor in front of you. Remove
all packing materials and place them back into the box. Do not dispose of the packing materials until
assembly is complete. Read each step carefully before beginning any assembly and make sure you
understand each step.
Needed for assembly:
Right arm -
Left arm -
Seat frame -
Back frame -
Seat cushion -
M6x15 Combination bolt and washer -
Hex key -

Requires
Place the back frame (D) on a soft, flat surface. Line up the bolt holes on the
back frame (D) with the corresponding bolt holes on the seat frame (C).
Insert M6x15 combination bolt and washer (AA) and lightly tighten the bolts
using the hex key (BB). Do not completely tighten until all assembly is
completed.
Requires
Attach the right arm (A) to the back frame (D). Line up the bolt holes on the right arm
(A) with the corresponding bolt holes on the back frame (D). Insert M6x15 combination
bolt and washer (AA) and lightly tighten the bolts using the hex key (BB). Do not
completely tighten until all assembly is completed. Repeat the same step for left arm (B).
Requires
Attach the right arm (A) to the seat frame (C). Line up the bolt holes on the
right arm (A) with the corresponding bolt holes on the seat frame (C). Insert
M6x15 combination bolt and washer (AA) and lightly tighten the bolts using
the hex key (BB). Do not completely tighten until all assembly is completed.
Repeat the same step for left arm (B).
Requires
Ensure all bolts are securely tightened using the hex key (BB). Turn the loveseat to the
upright position and place the seat cushion (E) on the loveseat.
Do not
completely
tighten.
Do not
completely tighten.
Do not
completely
tighten.

• Check all screws and nuts periodically for tightness, tightening them
again as required.
• Disassemble the loveseat in the reverse order of the assembly steps.
• Always disassemble the loveseat completely. A partially disassembled
loveseat is not stable enough to resist wind and bad weather, and
therefore can be damaged and/or cause damage.
• Clean the loveseat with mild soap and water. Rinse thoroughly, and wait
until the loveseat is completely dry before reassembling it.
• Always use a mildsoap—never detergent.
- Water should be cold to lukewarm—never more than 25°C (77°F).
• Steel components of garden accessories and furniture are treated with
rust-inhibiting paint. However, due to the nature of steel, surface oxidation (rusting)
will occur if this protective coating is scratched. This is a natural process. To minimize
this condition, it is recommended that care be taken when assembling and handling
the product in order to prevent the paint from being scratched. Surface rust can be
removed easily using a very light application of common cooking oil. If surface
oxidation (rusting) occurs and no measures are taken to correct it, the oxidation may
start dripping onto the assembly surface, which may cause damaging stains that may
be di cult to remove.
Dimensions (L x W x H)
Product weight
Weight capacity
This CANVAS product carries a one (1) yearwarranty against defects in
workmanship and materials.Trileaf Distribution agrees toreplace a
defective product free of charge withinthestated warranty period, when
returned by the original purchaserwith proof of purchase.This product is
not guaranteed against wear or breakage due tomisuse and/or abuse.
46 7/8 x 27 3/4 x 31 7/8"
119 x 70.5 x 81 cm
24 lb 3 oz
10.98 kg
220 lb per seat
99.8 kg per seat
CLEANING AND MAINTENANCE
SPECIFICATIONS

MERCIER 5-PIECE
CONVERSATION SET -
SIDE TABLE
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Keep this manual for future reference.

Made in China. Imported by Trileaf Distribution Trifeuil Toronto, Canada, M4S 2B8
Warning! To reduce the risk of serious injury, read the following safety
instructions before assembling and using the table.
• This product is intended for domestic, outdoor use only.
• The product should be placed on flat, horizontal ground.
• Any assembly or maintenance of the product must be carried out by adults only.
• Arrange necessary manpower when assembling or moving the product.
• Some parts may contain sharp edges. Wear protective gloves if necessary.
• Check all nuts and bolts periodically for tightness. When required, tighten them again.
•If the product will not be used for a long period of time (e.g., wintertime), it should be
stored in a clean, dry environment.
• Do not light any fires inside or near the product!
• Do not hang any weights on the frame.
• Retain the original package to store the product.
RETAIN FOR FUTURE REFERENCE, AND READ CAREFULLY.

2 people
• Do not place the product underneath electrical lines.
• Keep children away during assembly.
• This product contains small parts which can be swallowed by children.
• Keep fingers away from places where they can be pinched or trapped.
1-888-670-6684
If you have questions regarding your product, require warranty assistance,
or have damaged or missing parts, please call our customer service toll-free
helpline. Contact us for assistance; we're here to help.
Please read and understand this manual before any assembly. Before beginning
assembly of product, make sure all parts are present. Compare parts with packaging contents list.
If any part is missing, or if you have any questions, contact the service centre at
1-888-670-6684 (toll free).
Place all parts from the box in a cleared area and position them on the floor in front of you. Remove
all packing materials and place them back into the box. Do not dispose of the packing materials until
assembly is complete. Read each step carefully before beginning any assembly and make sure you
understand each step.
Needed for assembly:
Table rim -
Table leg -
Glass -
M6x20 Combination bolt and washer -
Hex key -

Requires
Place the table rim (A) on a soft, flat surface. Line up the bolt holes on
the table rim (A) with the corresponding bolt holes on the table leg (B).
Insert M6x20 combination bolt and washer (CC) and lightly tighten the
bolt using the hex key (BB). Do not completely tighten until all assembly
is completed. Repeat the above steps for the remaining table legs.
Your table is now ready to use.
Requires
Turn the table to the upright position. Carefully place the glass (C) into the
table rim (A).
Do not
completely tighten.

• Check all screws and nuts periodically for tightness, tightening them
again as required.
• Disassemble the table in the reverse order of the assembly steps.
• Always disassemble the table completely. A partially disassembled
table is not stable enough to resist wind and bad weather, and therefore
can be damaged and/or cause damage.
• Clean the table with mild soap and water. Rinse thoroughly, and wait
until the table is completely dry before reassembling it.
• Always use a mildsoap—never detergent.
- Water should be cold to lukewarm—never more than 25°C (77°F).
• Steel components of garden accessories and furniture are treated with
rust-inhibiting paint. However, due to the nature of steel, surface oxidation (rusting)
will occur if this protective coating is scratched. This is a natural process. To minimize
this condition, it is recommended that care be taken when assembling and handling
the product in order to prevent the paint from being scratched. Surface rust can be
removed easily using a very light application of common cooking oil. If surface
oxidation (rusting) occurs and no measures are taken to correct it, the oxidation may
start dripping onto the assembly surface, which may cause damaging stains that may
be di cult to remove.
Dimensions (L x W x H)
Product weight
Weight capacity
17 3/4 x 17 3/4 x 18 1/8"
45 x 45 x 46 cm
13 lb 4 oz
6.02 kg
55 lb
25 kg
CLEANING AND MAINTENANCE
SPECIFICATIONS
This CANVAS product carries a one (1) yearwarranty against defects in
workmanship and materials.Trileaf Distribution agrees toreplace a
defective product free of charge withinthestated warranty period, when
returned by the original purchaserwith proof of purchase.This product is
not guaranteed against wear or breakage due tomisuse and/or abuse.

ENSEMBLE DE DÉTENTE MERCIER,
5 PIÈCES – CHAISE
Nº de modèle : 399-4009-0
INSTRUCTIONS D’ASSEMBLAGE
Numéro sans frais : 1 888 670-6684
IMPORTANT : Veuillez lire attentivement ce guide avant de procéder à l’assemblage de cet article.

TABLE DES MATIÈRESCONSIGNES DE SÉCURITÉ IMPORTANTES
Consignes importantes en matière de sécurité
Avertissement! Pour réduire le risque de blessures graves, lisez les
consignes de sécurité suivantes avant d’assembler et d’utiliser la chaise.
• Cet article est uniquement destiné à un usage domestique et doit être utilisé à l’extérieur.
• L’article doit être placé sur une surface plane et horizontale.
• Au besoin, demandez à d’autres personnes de vous aider à assembler ou à déplacer l’article.
• Certaines pièces peuvent contenir des bords tranchants. Portez des gants de protection si nécessaire.
• Assurez-vous périodiquement que tous les écrous et boulons sont bien serrés. Au besoin, resserrez-les.
• Si l’article n’est pas utilisé pendant une longue période (p. ex. pendant l’hiver), il doit être entreposé dans
un environnement propre et sec.
• N’allumez pas un feu à l’intérieur ou près de l’article!
• Ne suspendez aucun poids sur le cadre.
• Conservez l’emballage original aux fins d’entreposage de l’article.
Attention! Surveillez toujours les enfants étroitement lorsqu’ils utilisent cet article ou
qu’ils se trouvent à proximité de celui-ci.
IMPORTANT : CONSERVEZ CE GUIDE AUX FINS DE CONSULTATION
ULTÉRIEURE, ET LISEZ-LE ATTENTIVEMENT.
Liste des pièces
Préparation à l’assemblage
Assemblage
Nettoyage et entretien
Fiche technique
Garantie
Fabriqué en Chine. Importé par Trileaf Distribution Trifeuil, Toronto, Canada M4S 2B8

Accoudoir droit -
Accoudoir gauche -
Cadre de siège -
Cadre de dossier -
Coussin de siège -
Boulon M6x15 avec rondelle -
Clé hexagonale -
Nº de modèle : 399-4009-0
LISTE DES PIÈCES
PRÉPARATION DE L’ASSEMBLAGE
•
•
•
•
POUR FACILITER L’ASSEMBLAGE, NE SERREZ PAS COMPLÈTEMENT LES
BOULONS DANS LE CADRE AVANT D’AVOIR INSÉRÉ TOUS LES BOULONS
POUR CETTE ÉTAPE DE MONTAGE. SERREZ TOUS LES BOULONS ET LES
AUTRES ÉLÉMENTS DE FIXATION SEULEMENT À LA FIN DE L’ASSEMBLAGE.
Ne placez pas l’article en dessous de lignes électriques.
Si vous avez des questions concernant votre article, des questions de garantie, ou
avez des pièces endommagées ou manquantes, communiquez avec notre service
à la clientèle en composant le numéro sans frais. Communiquez avec nous si vous
avez besoin d’assistance, nous sommes là pour vous aider.
1 888 670-6684
Requis pour l’assemblage :
2 personnes
Tenez les enfants à l’écart de l’article pendant son assemblage.
Cet article contient des petites pièces que les enfants peuvent avaler.
Tenez vos doigts éloignés des endroits où ils risquent d’être pincés ou pris.
ATTENTION!
IMPORTANT :
Veuillez lire et bien comprendre ce guide avant deprocéder à l’assemblage. Avant
de procéder à l’assemblage du produit, assurez-vous quetoutes les pièces sont présentes. Comparez
les pièces àla listede contenu del’emballage.
S’il manquedes pièces, ou si vous avez des questions, communiquez avec leserviced’assistance
téléphonique en composant le 1 888 670-6684 (sans frais).
Mettez toutes les pièces de laboîte dans une zone dégagée et positionnez-les surlesol devant vous.
Retirez tout lematériel d’emballage et remettez-ledans laboîte. Ne les jetez pas avant d’avoir terminé
l’assemblage. Veuillez lire attentivement chaque étape avant deprocéder àl’assemblage, et
assurez-vous de comprendretoutes les étapes.
Laissez-nous vous aider!
NE RETOURNEZ PAS VOTRE ARTICLE AU MAGASIN. APPELEZ-NOUS D’ABORD!

Nº de modèle : 399-4009-0
Pièces requises :
Pièces requises :
Placez le cadre de dossier (D) sur une surface douce et plane. Alignez les trous
de boulon du cadre de dossier (D) avec les trous de boulon correspondants du
cadre de siège (C). Insérez les boulons M6x15 avec rondelles (AA) et serrez
légèrement les boulons à l’aide de la clé hexagonale (BB). Ne serrez pas com-
plètement les boulons avant que l’assemblage ne soit terminé.
Fixez l’accoudoir droit (A) au cadre de dossier (D). Alignez les trous de boulon de
l’accoudoir droit (A) avec les trous de boulon correspondants du cadre de dossier
(D). Insérez les boulons M6x15 avec rondelles (AA) et serrez légèrement les boulons à
l’aide de la clé hexagonale (BB). Ne serrez pas complètement les boulons avant que
l’assemblage ne soit terminé. Répétez la même étape pour l’accoudoir gauche (B).
Pièces requises : E, BB
Assurez-vous que tous les boulons sont bien serrés à l’aide de la clé hexagonale (BB).
Redressez la chaise et placez le coussin de siège (E) sur la chaise.
Étape 1 Étape 3
Étape 4
Pièces requises :
Fixez l’accoudoir droit (A) au cadre de siège (C). Alignez les trous de boulon de
l’accoudoir droit (A) avec les trous de boulon correspondants du cadre de siège (C).
Insérez les boulons M6x15 avec rondelles (AA) et serrez légèrement les boulons à
l’aide de la clé hexagonale (BB). Ne serrez pas complètement les boulons avant que
l’assemblage ne soit terminé. Répétez la même étape pour l’accoudoir gauche (B).
Étape 2
REMARQUE : Ne serrez pas
complètement les
éléments de fixation.
REMARQUE : Ne serrez pas
complètement les
éléments de fixation.
REMARQUE : Ne serrez pas
complètement les
éléments de fixation.
REMARQUE : Ne serrez pas
complètement les
éléments de fixation.
ASSEMBLAGE ASSEMBLAGE

NETTOYAGE ET ENTRETIEN
DONNÉES TECHNIQUES
Nº de modèle : 399-4009-0
•
•
•
•
resserrez-les au besoin.
Nettoyez la causeuse avec du savon doux et de l’eau. Rincez bien, et attendez que
la causeuse soit entièrement sèche avant de l’assembler à nouveau.
•
Utilisez toujours du savon doux – jamais de détergent.
Désassemblez la causeuse en suivant les étapes d’assemblage dans l’ordre inverse.
Désassemblez toujours la causeuse entièrement. Lorsqu’elle est partiellement
désassemblée, la causeuse n’est pas assez stable pour résister au vent et aux
intempéries, et peut donc être endommagée ou entraîner des dommages.
ATTENTION!
Utilisez toujours du savon doux – jamais de détergent.
Les pièces en acier des accessoires et des meubles de jardin sont traitées
avec une peinture antirouille. Toutefois, en raison de la nature de l’acier, un
revêtement de protection rayé pourrait entraîner l’oxydation de la surface
(rouille). Ceci est un processus naturel. Afin de minimiser cette condition, il
est recommandé d’assembler et de manipuler l’article soigneusement afin
d’éviter d’égratigner la peinture. La rouille en surface peut être facilement
enlevée en appliquant un peu d’huile de cuisson. S’il y a présence
d’oxydation en surface (rouille) et qu’aucune mesure n’est prise pour
corriger la situation, l’oxydation peut commencer à couler sur la surface
– L’eau devrait être froide ou tiède – jamais à plus de 25 °C (77 °F).
•
•
Dimensions (long. x larg. x H.)
Poids
Capacité
27 3/4 x 23 1/4 x 31 7/8 po
14 lb
220 lb
70,5 x 59 x 81 cm
14 lb
99,8 kg
GARANTIE
Cet article CANVASMC comprend une garantie de un (1) an contre les
défauts de fabrication et de matériau(x). Distribution Trifeuil consent à
remplacer le produit défectueux sans frais lorsqu’il est retourné par
l’acheteur original, accompagné de la preuve d’achat, au cours de la
période de garantie convenue. Exclusion : usure ou bris causés par un
usage abusif ou inapproprié.
