Caraudio-Systems dvbLOGiC DVB-E65-TV User manual

Version 13.02.2013 DVB-E65-TV
dvbLOGiC DVB-T Tuner
DVB-E65-TV
Compatible with BMW E65 Professional
navigation systems
with 8.8” monitor
Vehicles with factory TV-tuner port
(Factory TV-tuner must be uninstalled)
Product features
• Full plug and play vehicle-specific dual DVB-T Tuner
• with two active DVB-T glass-mount antennas
• integrated into and controllable by vehicle infotainment
• AV-input with IR-control channel (optionally USB-AV-port DVBU-XXX instead AV-input)
• control of after-market devices, e.g. DVD-player, DVD-changer, USB/iPod devices, …
• after-market rear-view camera input
• automatic switching to rear-view camera input (only from dvbLOGiC mode)
• rear-view camera power (max 0.5A)
• rear-seat-entertainment AV-output for AV-sources connected to the dvbLOGiC
• optional remote control for full DVB-tuner functions/rear-seat-entertainment
• power on remote out trigger signal (+12V) to switch on connected devices

Version 13.02.2013 DVB-E65-TV
Page1
• video-in-motion
Contents
1. Prior to Installation
1.1. Delivery contents
1.2. Check compatibility of vehicle and accessories
1.3. Setting the dip switches of the CAN-box TV-436
1.4. Setting the dip switches of the tuner-box DVBC-M436
1.4.1. Automatic switching to rear-view camera
1.4.2. Deactivating dvbLOGiC AV input
2. Installation
2.1. Installation of CAN-box TV-436
2.2. Installation of tuner-box DVBC-M436
2.3. Antennas and optional IR-remote control set
2.4. Connecting peripheral devices
2.4.1. AV-source
2.4.2. Installing AV-source’s IR-sensor additionally
2.4.3. After-market rear-view camera
2.4.4. After-market rear-seat-entertainment
2.4.5. Factory nightvision, factory DVD-changer, factory rear-view camera
3. Operation
3.1. Activation of the video-in-motion function
3.2. Selecting the dvbLOGiC as current AV-source
3.3. Assigning device control for connected AV-source
3.4. Switching to internal DVB-T, AV-source or after-market rear-view camera
3.5. Button assignment table iDrive
4. Specifications
5. Technical support
Appendix A –Device control table
Appendix B –DVB-T function manual
Appendix C –Antenna positioning
Appendix D –DVBU optional USB-AV-port

Version 13.02.2013 DVB-E65-TV
Page2
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle’s software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
place of installation must be free of moisture and away from heat sources.

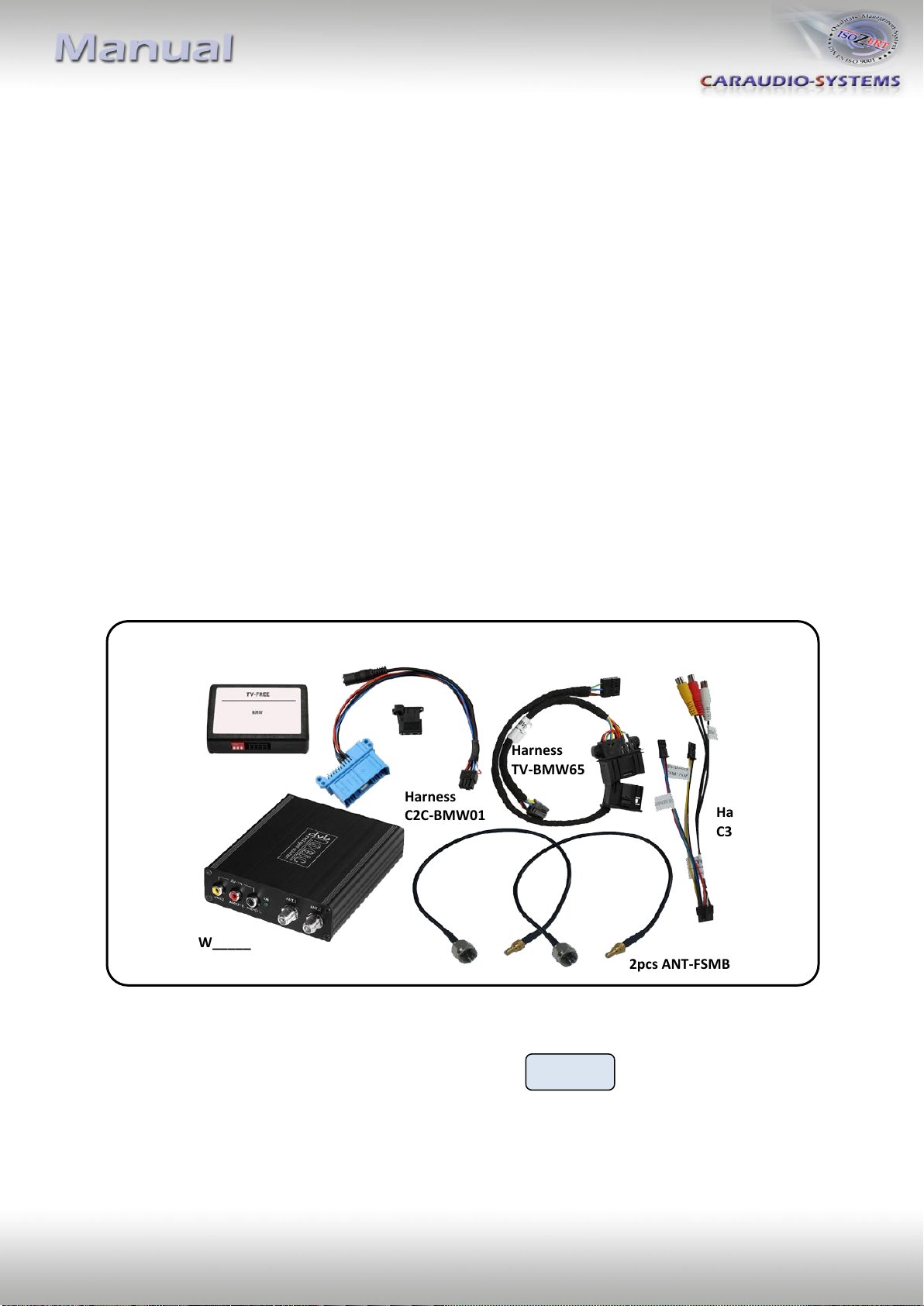

1.1. Delivery contents
If remote function for a peripheral device shall be used, additional an IR-
Remote cable and Y-adapter are needed, see chapter AV-source.
CAN-box
TV-436
HW_____
SW _____
Take down the SW-version and HW-version of the interface boxes, and store this
manual for support purposes.
Tuner-box
DVBC-M436
HW_____ SW_____
Harness
C2C-BMW01
Harness
C3C-AVIR
2pcs ANT-FSMB-P
Harness
TV-BMW65

Version 13.02.2013 DVB-E65-TV
Page3
1.2. Check compatibility of vehicle and accessories
1.3. Setting the dip switches of the CAN-box TV-436
1.4. Setting the dip switches of the tuner-box
The default dip switch settings of the tuner-box
need to be changed ONLY if a rear-view camera is
or shall be connected or if the AV of the dvbLOGiC
shall be deactivated. The dip switches are located
inside the tuner-box. For changes it is necessary
to open the box. Default settings are:
dip1 = ON, dip2 = OFF, dip3 = OFF
Requirements
Vehicle 7series (E65/E66)
Navigation Navigation system Professional E65 (older 1/2-button iDrive
or CIC (newer 8-button iDrive) with 8.8” monitor
Limitations
factory-TV-tuner Must NOT be installed.
factory DVD-changer After-market rear-view camera cannot be connected to
or factory nightvision the dvbLOGiC interface.
Teletext Teletext of the dvbLOGiC can only be used with the
optionally available DVB-IRSET remote control set.
factory Additional interface VL-RGB02-R is necessary
rear-seat-entertainment
After-market rear-view cam Only works from dvbLOGiC mode, not from OEM.
Factory PDC If an after-market rear-view camera should be connected by the
dvbLOGiC the visual PDC display must be deactivated
occasionally or permanently for camera picture.
All vehicles dip 1 ON, dip 2 OFF, dip 3 OFF

Version 13.02.2013 DVB-E65-TV
Page4

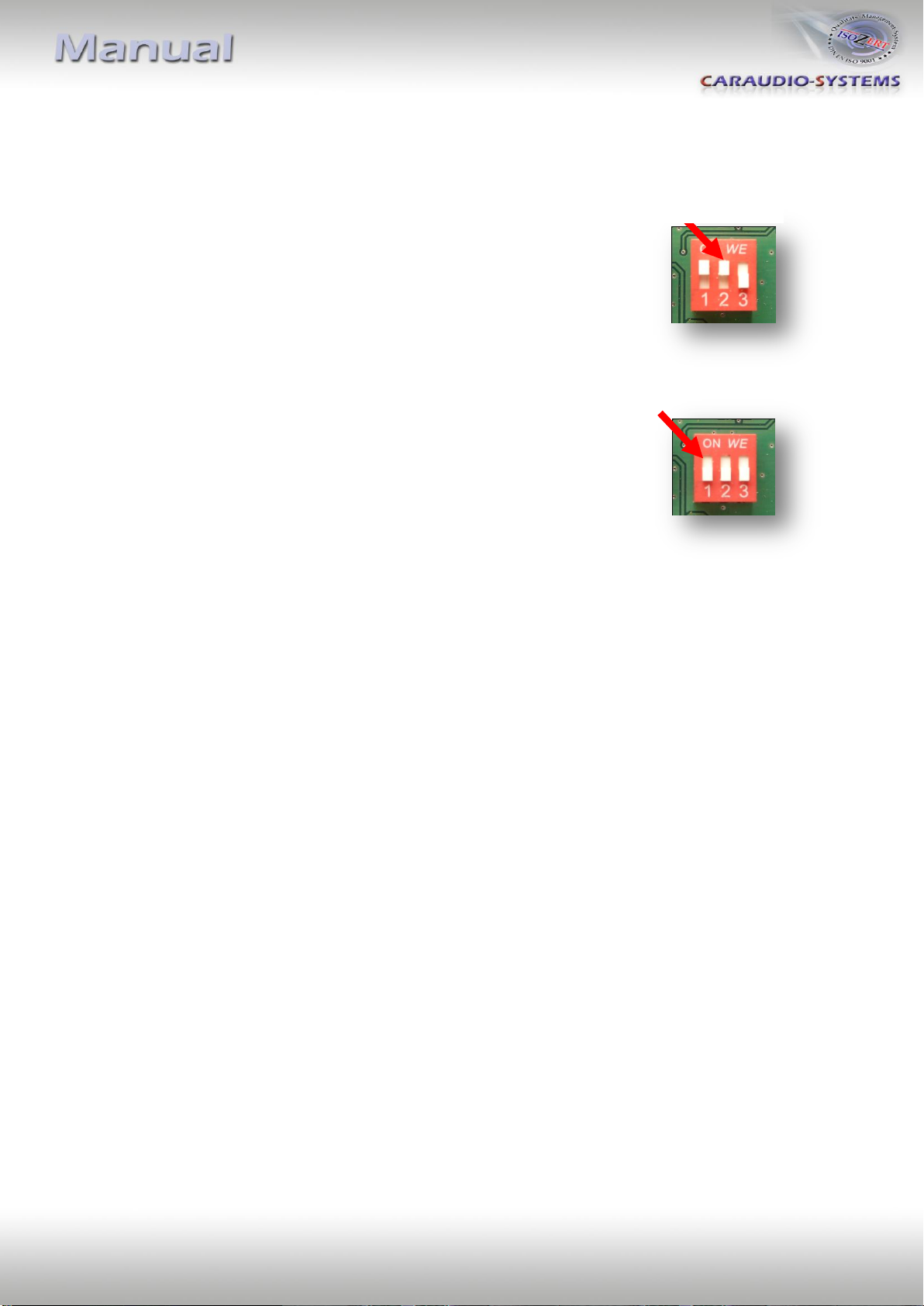

1.4.1. Automatic switching to rear-view camera
If an after-market rear-view camera shall be connected or a factory
rear-view camera is connected, in order for the dvbLOGiC to
automatically switch to its camera input, when reverse is engaged
set dip2 = ON (up).
Note: Automatic switching works only from dvbLOGiC mode.
1.4.2. Deactivating dvbLOGiC AV input
If no peripheral AV-source shall be connected to the dvbLOGiC, we
recommend to disable the AV-input, to avoid customers switching by
mistake to black/no picture of the AV-input. In order to disable the
AV-input of the dvbLOGiC,
set dip1 = OFF (down).
2. Installation
Switch off ignition and disconnect the vehicle’s battery! If according to factory rules
disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle in
sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a
resistor lead.
Complete and correct function of the interface is possible only when CAN and MOST®
(tuner) connections are made properly. On vehicles without TV-icon, it will be coded
automatically after installation.
Place of installation is at the rear of the navigation screen and at the rear of the navigation
computer.
Note: The loose white and green cable of harness TV-BMW65 are not required and must be
isolated.
Dip switches
of tuner-box

Version 13.02.2013 DVB-E65-TV
Page5

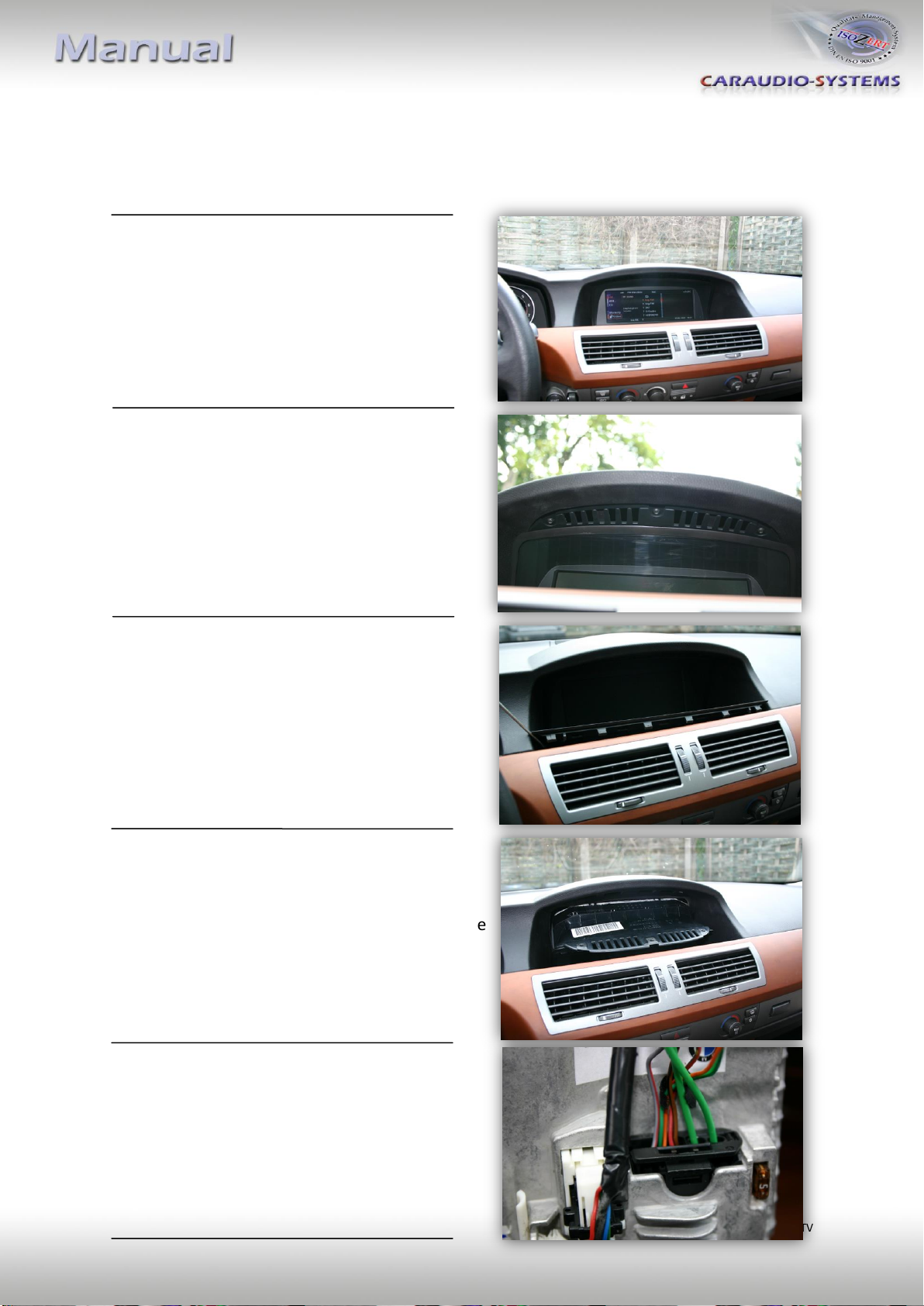

2.1. Installation of CAN-box TV-436
The CAN interface is connected to
the backside of the OEM screen.
Remove 3 TORX screws at the OEM screen.
Remove cover grill (only plugged). Place soft
towel beneath the navigation monitor
to avoid scratches
Flip down the board monitor. NOTE: The OEM
screen gets stuck with its connector at the upper
side of the cockpit. Insert a hard plastic sheet like
a credit card to prevent cockpit from
taking damage.
Remove the black connector at the backside of
the screen as shown below.

Version 13.02.2013 DVB-E65-TV
Page6

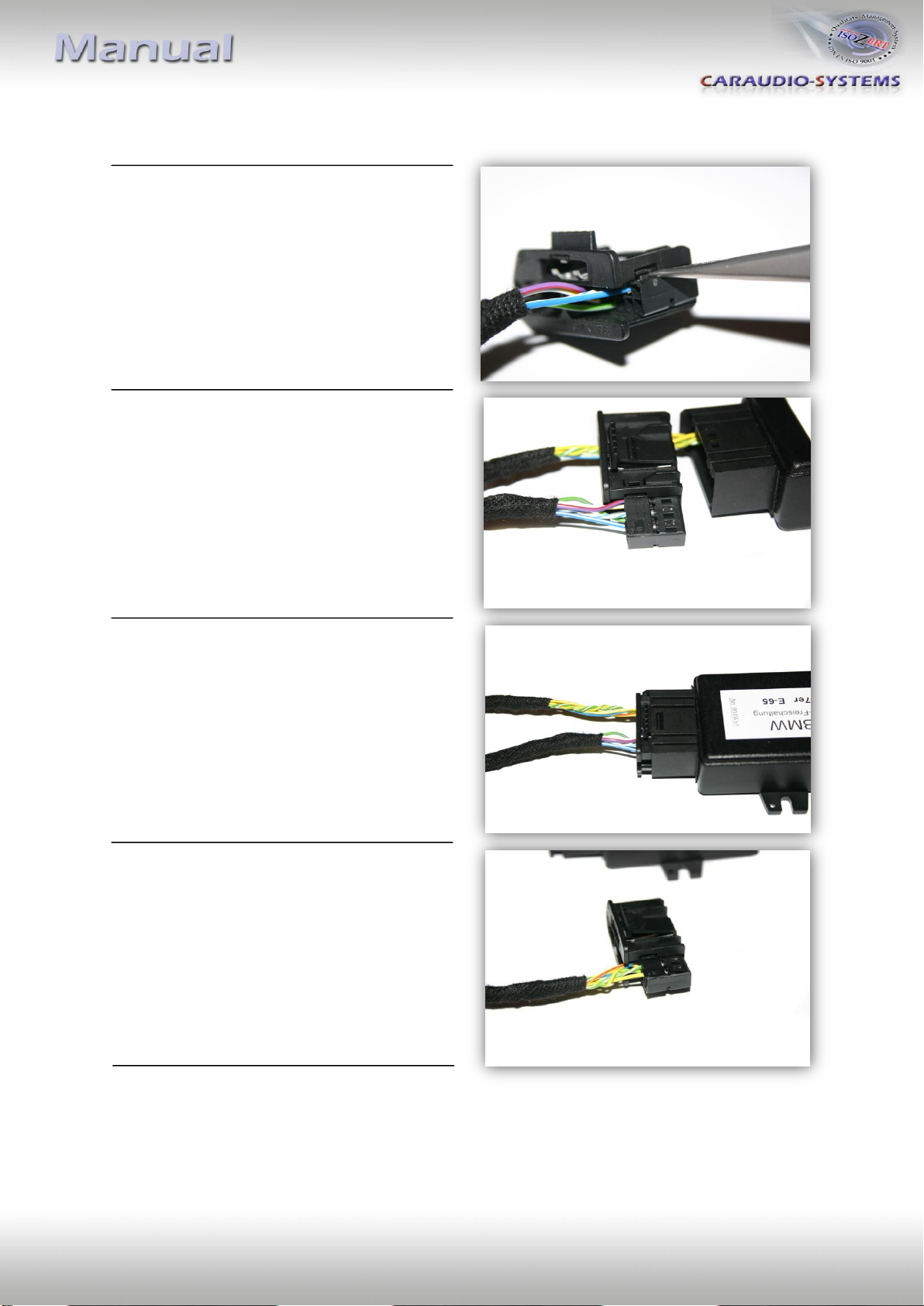

Remove 12-pin insert from black vehicle
harness connector.
Insert 12-pin insert into black connector
of the CAN interface harness TV-BMW65.
Insert the completed black connector into
CAN interface harness TV-BMW65.
Connect 12-pin insert from CAN interface
harness TV-BMW65 into black connector from
vehicle harness.
Insert completed connector into the plug on the backside of the navigation monitor.
Connect 8pin Molex connector of TV-BMW65 to CAN-box TV-436.
NOTE: Pictures do NOT show the fibre optics connected in car!

Version 13.02.2013 DVB-E65-TV
Page7
2.2. Installation of tuner-box DVBC-M436
The fibre optical interface installation is
made at the navigation computer, which
is located at the left side in the trunk
behind a cover and has to be removed.
The factory TV-tuner must be uninstalled.
Remove the factory optical leads of the factory
TV-tuner port (blue female connector) and connect
it to the black male MOST®-connector enclosed to
harness C2C-BMW01. Pay attention to the
directional arrow on the optical lead connectors.
Connect the black male MOST®-connector to the
female MOST®-connector on the rear of the
tuner-box DVBC-M436 (OPTICAL).
Connect the blue male connector of harness
C2C-BMW01 to the factory TV-tuner port
(blue female connector).
Picture exemplary

Version 13.02.2013 DVB-E65-TV
Page8
2.3. Antennas and optional IR-remote control set
Mount antennas ANT-12 and connect them to the female f-plug connectors on front
of tuner-box DVBC-M436.
We strongly recommend to first test the reception quality of the chosen mounting
position of the antennas before final installation! See “Appendix C –Antenna
positioning”for additional information.
The DVB-IRSET consists of the external C3C-SENSOR IR-sensor and the DVBC-RC
IR-remote control and can be used to control the dvbLOGiC’s internal DVB-T tuner
functions additionally to the control through the navigations buttons. Connect the
C3C-SENSOR to the female black/red/blue 3pin AMP connector of harness
C3C-AVIR and locate the sensor in an accessible place.
Note: To use the teletext function of the dvbLOGiC’s internal DVB-T tuner, the DVB-
IRSET is necessary to enter the page numbers.
2.4. Connecting peripheral devices
It is possible to connect an after-market AV-source, after-market rear-view camera and rear-
seat-entertainment to the dvbLOGiC Tuner. Also factory nightvision, factory DVD-changer or
factory rear-view camera must be connected to the dvbLOGiC-Tuner.
Before final installation of the peripheral devices, we recommend to test-run the
dvbLOGiC functions to detect incompatibility of vehicle, navigation, factory accessories or
peripheral devices as soon as possible.

Version 13.02.2013 DVB-E65-TV
Page9

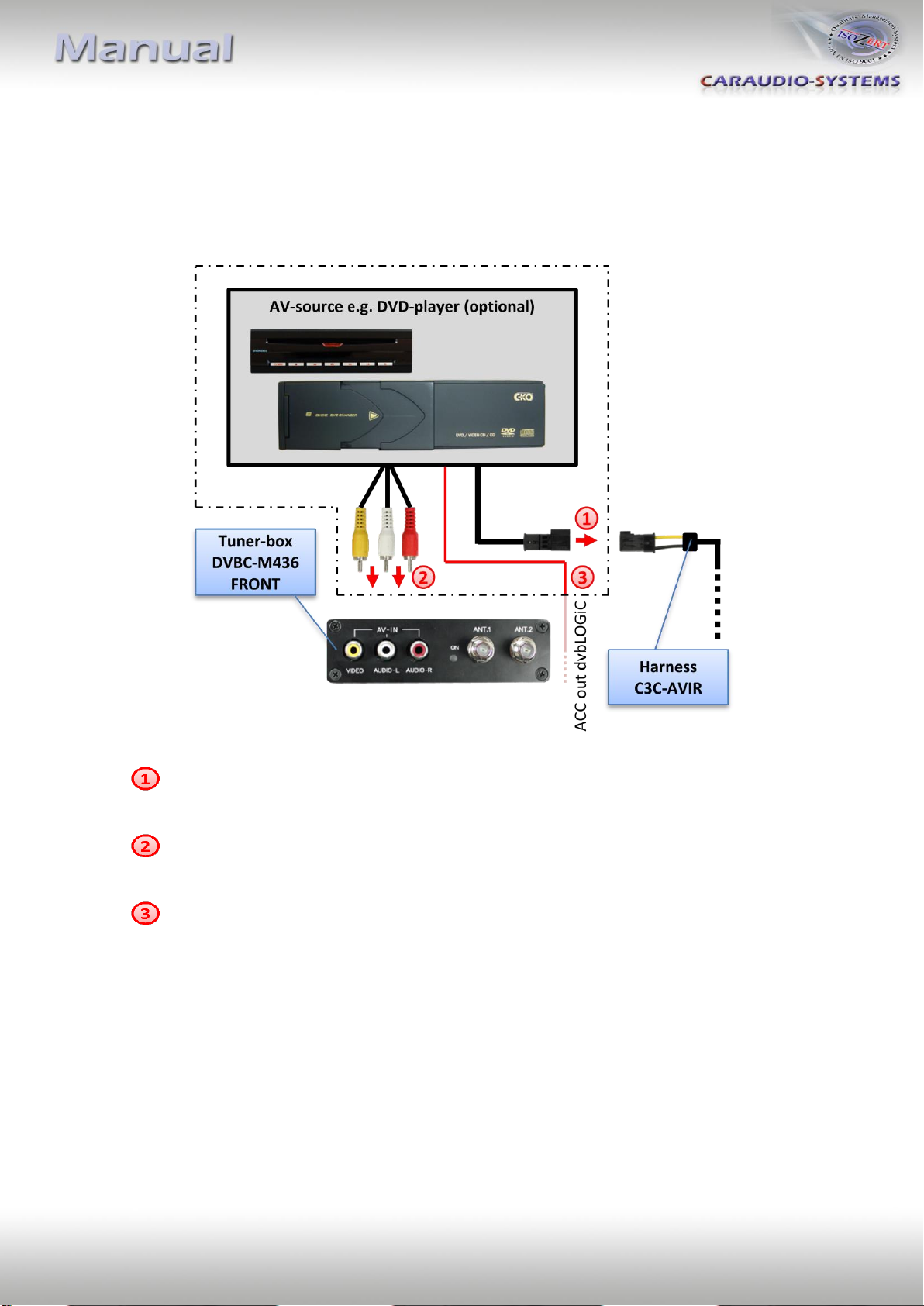

2.4.1. AV-source
The dvbLOGiC has the possibility to connect and remotely control by navigation buttons a
pre-programmed device. The device list in the device control table shows the pre-
programmed remote channels and the related IR-remote cables STA-xxx which must be
ordered separately for the control of the device.
Using the respective STA-xxx IR-control cable, interconnect the yellow female 3pin
AMP connector of harness C3C-AVIR and the IR-port of the AV-source.
Using an RCA-cable, interconnect the female RCA-port AV1 of the tuner-box
DVBC-M436 with the AV-output of the AV-source.
The pink ACC-output wire (+12V max 1A) of harness C2C-BMW02 can be connected
to the ACC-input wires of the connected device to switch it on. It carries +12V when
the navigation computer is running.
2.4.2. Installing AV-source’s IR-sensor additionally
Additionally to the control via OEM navigation, it is possible to install the original IR-sensor
of a connected device. By using the respective Y-adapter (e.g. STA-Y35MM or STA-RJ12) for
the IR-Port of the connected device, the controls of navigation AND device’s IR-sensor can be
connected and used simultaneously. Installation of the IR-sensor is recommended as the
controls via navigation are limited, and not all functions may be covered.

Version 13.02.2013 DVB-E65-TV
Page10
2.4.3. After-market rear-view camera
Connect the video RCA of the after-market rear-view camera to the female RCA
connector R-CAM IN of tuner-box DVBC-M436.
The green wire of harness C2C-BMW02 can be used as +12V power (max 1A) supply
for the rear-view camera.
Note: Automatic switching to the camera-input when reverse gear is
engaged works only in dvbLOGiC mode.
With an existing factory PDC the visual PDC display must be deactivated occasionally or
permanently by iDrive while operating in the vehicle settings for camera picture. If needed
the PDC display can be switched on by PDC button.

Version 13.02.2013 DVB-E65-TV
Page11

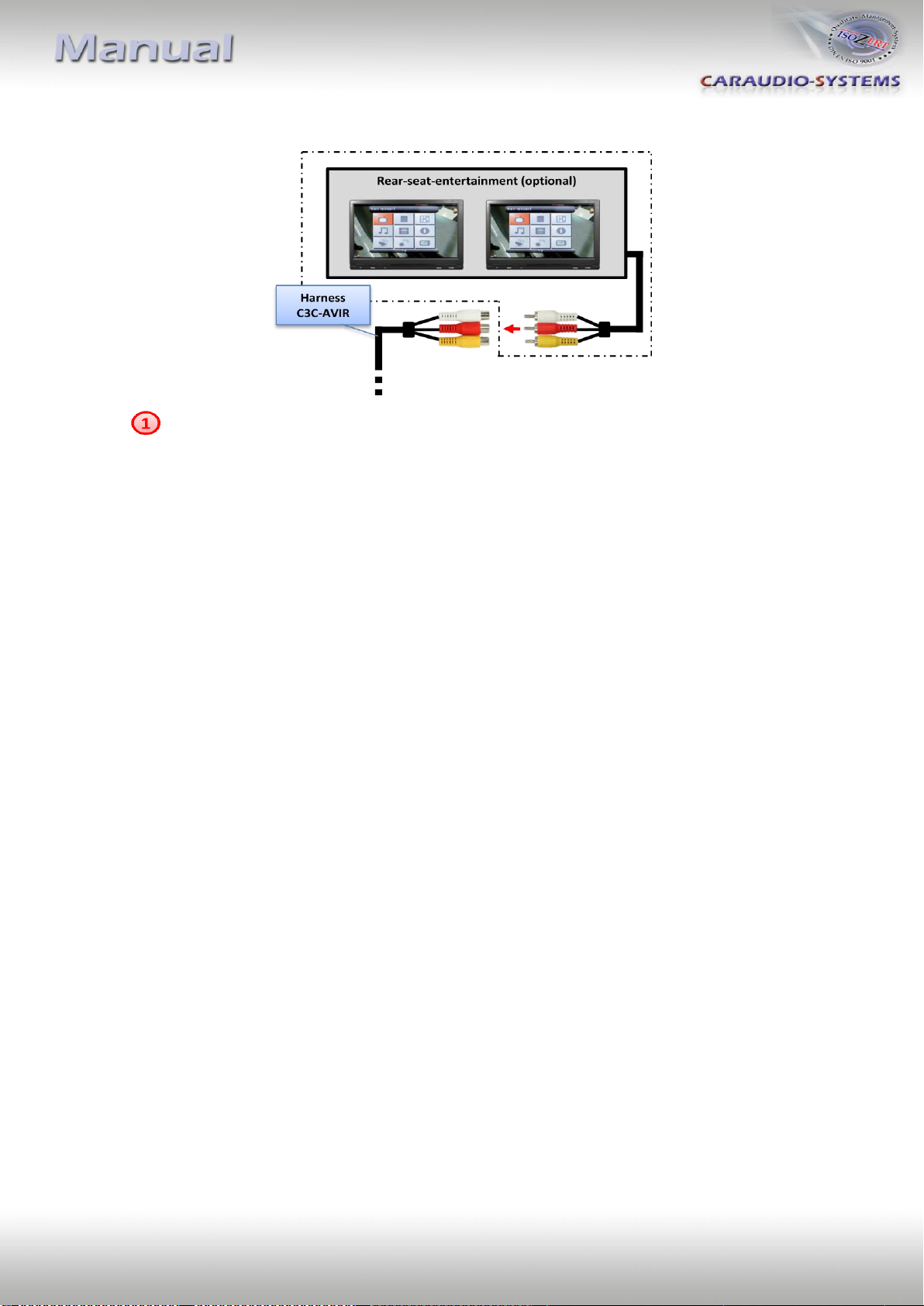

2.4.4. After-market rear-seat-entertainment
Using RCA-cables, connect the rear-seat-entertainment to the female RCA-connector
VIDEO OUT of tuner-box DVBC-M436.
Note: As the output is a full output, not shared with the video signal for the
navigation system, splitting the video with an RCA Y-cable might give a good enough
picture for two rear-seat-entertainment monitors. If not, or if connecting more than
two monitors, use a video splitter.
2.4.5. Factory nightvision, factory DVD-changer, factory rear-view camera
On vehicles with factory nightvision, factory DVD-changer or factory rear-view camera, pin
out the video-signal and video-signal ground from the white 18pin AMP connector of the
vehicles harness (rear of navigation computer) and connect them by male RCA-connector to
the R-CAM IN of tuner-box.
Navi Video-signal Video-signal ground
E65 Pin 1 (yellow-black) Pin 10 (green)
The factory component will work as before.

Version 13.02.2013 DVB-E65-TV
Page12
3. Operation
3.1. Activation of the video-in-motion function
The video-in-motion function is permanently active without disturbing the navigation
performance.
3.2. Selecting the dvbLOGiC as current AV-source
In the vehicle’s main menu, select Infotainment and then TV by iDrive to choose the
dvbLOGiC as current AV-source.

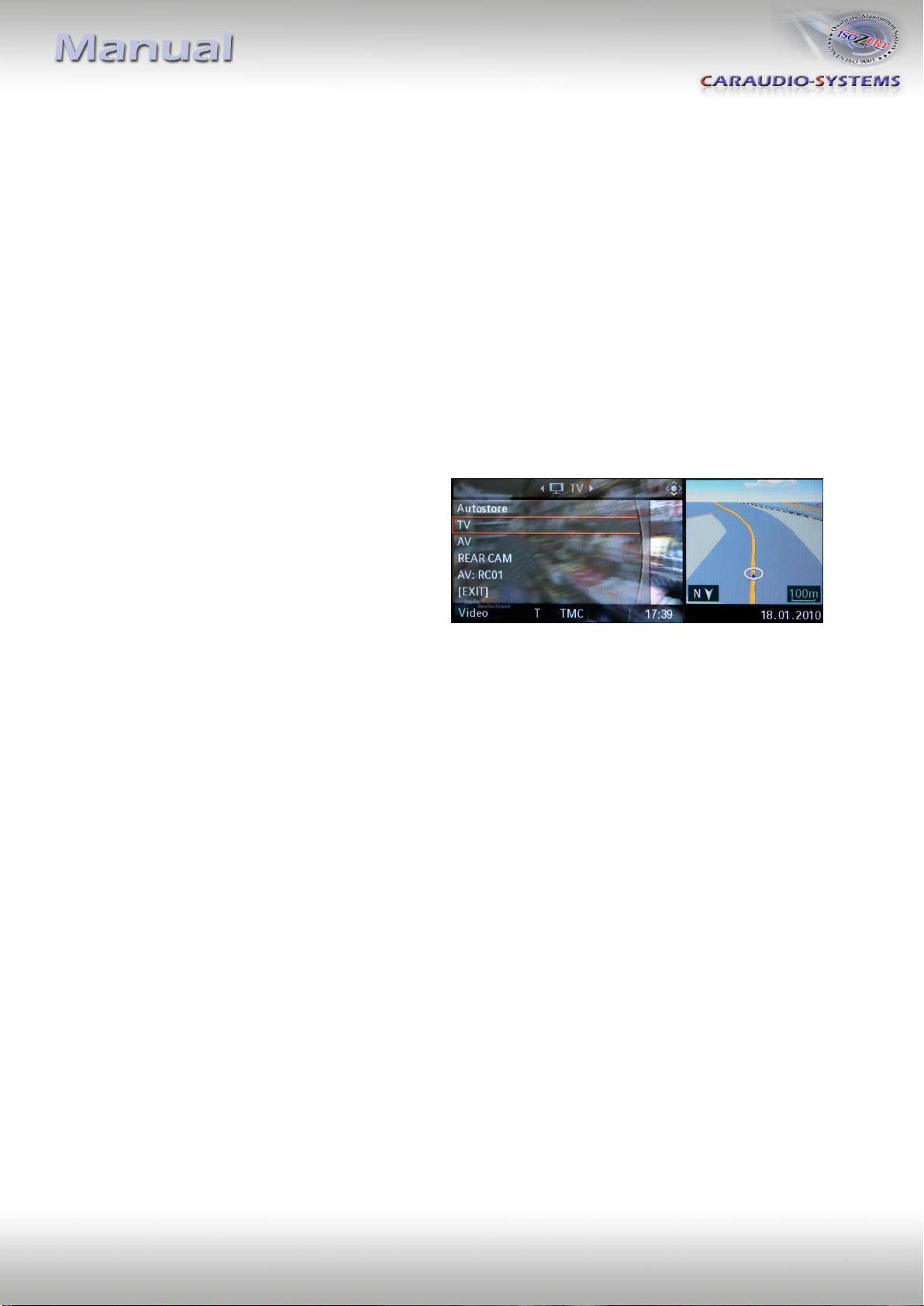

3.3. Assigning device control for connected AV-source
After selecting the dvbLOGiC as current AV
source, push iDrive knob to open the
dvbLOGiC control menu. Select control
levels setup “AV: RCxx”and assign related
IR-code as described in device control
table.
Note: The IR-control channel is preset to RC-Code 09 for the optional USB-AV-port (DVBU).
If the AV-input is deactivated (see chapter 1.4.2.), the menu items “AV” and “AV: RCxx” will
not be available.
3.4. Switching to internal DVB-T, AV-source or after-market rear-view camera
In the dvbLOGiC control menu, choose TV to enter internal DVB-T tuner mode, AV to enter
AV-input mode (not available if AV-input is deactivated, see chapter 1.4.2) or REAR CAM to
switch to the dvbLOGiC after-market rear-view camera-input (even if the automatic
switching to the camera input is disabled, see chapter 1.4.1.). After selection the menu will
close automatically and switch to the selected source. The iDrive knob, some multi-function-
steering wheel buttons (MFSW) and some navigation buttons (HU) are now available for
remote functions (see assignment table for iDrive below).
By pressing the iDrive-MENU-button, the system returns to the factory iDrive functions. By
pressing the iDrive knob again, the dvbLOGiC control menu will be re-entered.

Version 13.02.2013 DVB-E65-TV
Page13
3.5. Button assignment table iDrive
The button assignment table shows which functions of dvbLOGiC and additionally connected
devices can be executed by iDrive. Once DVB-T or AV-input mode are activated the iDrive
action in the left column will execute the function described in the corresponding device
column. The function description equals the remote control buttons of the optional
dvbLOGiC remote control or the additional device. On the additional device the writing may
vary (e.g. AV instead of Source).
iDrive Action
Device
Internal DVB-T
Internal USB
DVD on AV-input
DVC on AV-input
iPod interface on AV-
imput
MENU long
MENU
SETUP
Setup
Setup
Setup
MENU short
Return to factory
iDrive functions
Return to factory
iDrive functions
Return to factory
iDrive functions
Return to factory iDrive
functions
Return to factory
iDrive functions
OPTIONS long
*2
INFO
SOURCE
Audio
Audio
KCE: Light Bulb, Vlink:
Subtitle
OPTIONS
short *2
Signal strength
Subtitle
Subtitle
KCE: lower vol, Vlink:
Display
ENTER long
POWER
POWER
Power
Power
Power
ENTER short
OK
OK / PLAY
OK
OK
OK
NORTH long
EPG
EXIT
Menu/PBC *1
Menu/PBC *1
Shuffle
NORTH short
UP
UP
Up
Up
Previous chapter
WEST long
EXIT
MEDIA
Play/Resume
Play/Resume
Play/resume
WEST short
LEFT
LEFT
Left
Left
Left
SOUTH long
SOURCE
Source
Source
Source
SOUTH short
DOWN
DOWN
Down
Down
Next chapter
EAST long
AUTO
POWER
Zoom
Next DVD or DVD
selection menu
KCE: increase vol,
Vlink: ESC
EAST short
RIGHT
RIGHT
Right
Right
Right
Left turn
Previous channel
Previous Track
Previous chapter
Previous chapter
Up
Right turn
Next channel
Next Track
Next chapter
Next chapter
Down
UP long on
MFSW *3
SOURCE
Next DVD
Next DVD or DVD
selection menu
Next DVD or DVD
selection menu
UP short on
MFSW *3
Previous channel
Previous Track
Previous chapter
Previous chapter
Previous chapter
DOWN long
on MFSW *3
INFO
SOURCE
Next DVD
Next DVD or DVD
selection menu
Next DVD or DVD
selection menu
DOWN short
on MFSW *3
Next channel
Next Track
Next chapter
Next chapter
Next chapter
LEFT long on
HU *3
SOURCE
Next DVD
Next DVD or DVD
selection menu
Next DVD or DVD
selection menu
LEFT short on
HU *3
Previous channel
Previous Track
Previous chapter
Previous chapter
Previous chapter
RIGHT long
on HU *3
INFO
SOURCE
Next DVD
Next DVD or DVD
selection menu
Next DVD or DVD
selection menu
RIGHT short
on HU *3
Next channel
Next Track
Next chapter
Next chapter
Next chapter
*1 DVD title menu *2 not available on all vehicles *3 multi function steering wheel and head-unit

Version 13.02.2013 DVB-E65-TV
Page14
4. Specifications
Operation voltage 10.5 –14.8V DC
Stand-by power drain <1mA
Operation power drain ~500mA
Power consumption ~6W
Temperature range -30°C to +80°C
Weight 328g
Measurements (box only) B x H x T 140 x 30 x 105 mm
5. Technical Support
Caraudio-Systems Vertriebs GmbH
manufacturer/distribution
In den Fuchslöchern 3
D-67240 Bobenheim-Roxheim
email [e-mail]
Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered
trademarks ® of their corresponding legal owners.
