Cardo Systems S-800 User manual

CARDO SYSTEMS, INC. QUICK GUIDE
Cardo S-800™
Bluetooth®Headset

2
Cardo S-800™
Congratulations and thank you for choosing the Cardo S-800
Bluetooth®headset. This Quick Guide will help you learn about
the Cardo S-800’s many features, allowing you to make the best
use of your headset.
Cardo S-800 Overview
1 Microphone
2 Multi-Function Wheel (MFW)
3 LED Status Indicator
4 Power and Hot Dial
Button
5 Charging Jack
6 Control Button
(CTRL)
7 Speaker
8 Earloop
1 4 7
5
27
3
8

3
Cardo S-800™
Getting Started
To use your Cardo S-800 (“the headset”), please follow these
initial steps:
• Charge your headset
• Pair your headset with a Bluetooth®-enabled mobile phone.
1. Charging your Headset
The headset comes with a built-in rechargeable battery. Prior to
using the headset, make sure to charge the headset for at least 4
hours. Normally it takes approximately 2 hours to fully charge the
headset.
1. Connect the charger to an AC wall outlet and the charger plug to
the headset’s Charging Jack. The headset’s LED status indica--
tor will be red during charging.
2. When the battery is fully charged, the red LED will turn off.
3. Disconnect the charger from AC wall outlet and the headset.
NOTE: Charging indication may be delayed for a few seconds if the
headset has not been used for a long time or the battery is drained.

4
Cardo S-800™
The fully charged battery offers up to 8 hours talk time and up to
one week standby time.
2. Pairing your Headset
Before you can use your headset you must pair the headset to your
Bluetooth-enabled mobile phone. If you do not have a Bluetooth-enabled
mobile phone, please visit http://cardosystems.com/adapter2.php for
information on the Cardo BTA II Bluetooth Adapter.
1. Turn on your phone and turn ON its Bluetooth function.
2. Make sure the headset is turned OFF, then press and hold the
Power Button for approximately 8 seconds until the LED status
indicator begins alternating blue and red, indicating that the
headset is in Pairing Mode.
3. Set the phone to search for Bluetooth devices by following the
instructions in the phone’s user guide. This is usually found in the
phone’s Bluetooth menu and may referred to as “discover” or
“add” a device.
4. After a few seconds, the phone will list the “Cardo S-800” as a
discovered device. Select it from the list and press “OK” or “Yes”.

5
Cardo S-800™
5. When prompted, enter the passkey “0000” (4 zeros) and press
“OK” to complete the pairing.
6. When the pairing is complete, your phone will conrm that the
pairing was successful and the headset’s LED status indicator
will begin ashing slowly in blue.
You should now be able to make and receive calls using your
headset. To initially connect the headset to your phone, you may
need to tap the CTRL Button once on the headset.
IMPORTANT: If the pairing is not completed within 2 minutes while
the Pairing Mode is activated, the headset will return to Standby
mode, ashing blue once every three seconds and you must start
the Pairing process again from Step 2 above.
NOTE: Your headset can pair with up to 8 phones, and will
automatically connect to the last phone connected to the headset. To
connect to a different paired phone, go to the Bluetooth menu of the
active phone and disconnect the headset. Then go to the Bluetooth
menu of the phone you wish to connect and connect the headset by
selecting it from the list of Paired Devices.

6
Cardo S-800™
3. Wearing your Headset
The S-800 headset can be worn on either your left or right ear.
There are two ways in which you can wear the S-800 headset.
1. Without the earloop: Gently insert the headset without an earloop
into your ear, and it will hold itself in place securely.
2. With the earloop: Insert the straight portion of the pin of the ear--
loop to a suitable depth so that the speaker ts snugly in your ear.
The earloop is exible, and may be adjusted for
maximum comfort.

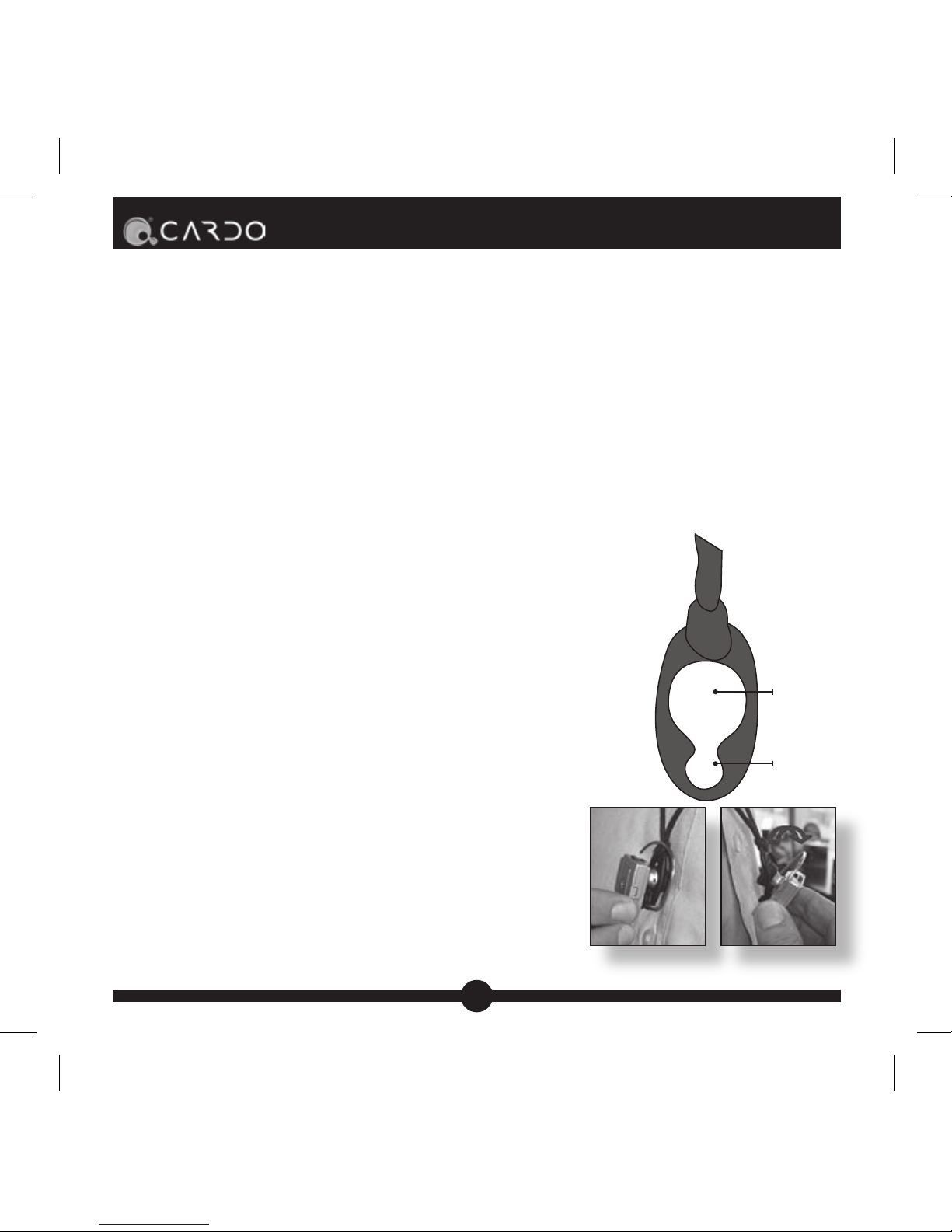

The lanyard for the S-800 provides an easy and
convenient way of carrying your headset while it is
not in use.
1. To attach the headset to the lanyard, insert
the speaker into the upper loop of the lanyard.
Then pull the headset downwards into the lower
loop, until it is held securely in place.
2. To release the headset from the lan--
yard, simply pull the headset upward.
Upper
loop
Lower
loop

7
Cardo S-800™
4. Using your Headset – Basic Functions
Function Required Action
Turn ON/OFF the
headset
Press and hold the Power Button for at
least 4 seconds
Answer a call Tap the CTRL Button*
End a call Tap the CTRL Button
Make a call from
your phone
Dial normally from your phone and the
call will be transferred to the headset
(subject to phone settings).
Make a call using
Voice Dial
During Standby, tap the CTRL Button,
wait for the tone and say the name
of the person you wish to call. (Your
mobile phone must support the Voice
Dial feature.)
Increase the volume Move the MFW up by steps. When you
hear a beep, it is at maximum.
Decrease the volume Move the MFW down by steps.When
you hear a beep, it is at minimum.
Mute the microphone During a call, tap the MFW inwards to
turn on/off mute.
* NOTE: Wait until you hear the incoming call on the headset (not
only on the phone)

8
Cardo S-800™
5. Using your Headset – Advanced Functions
1. Redial the last dialed number*
During Standby, press the MFW inwards to redial the last dialed number.
2. Reject an incoming call*
During an incoming call, press and hold the CTRL Button for 3 seconds.
3. Call waiting / Toggling between calls*
During an incoming call and one call on hold or waiting, tap the MFW
inwards to answer the incoming call or toggle between calls.
4. Conference call*
During an active call and one call on hold or waiting, tap the MFW
inwards for 3 seconds to combine both calls into a Conference call.
5. Transfer calls to/from headset*
During a call, press and hold the CTRL Button for 3 seconds to
transfer the call between the headset and the mobile phone.
NOTE: On some phones, transferring a call to the headset
requires just a tap of the CTRL Button.
* These features are only supported by mobile phones that include the Bluetooth
Handsfree prole.

9
Cardo S-800™
6. Hot Dial Function
The S-800 allows you easily call any of three different phone
numbers at the press of a button.
In order to use the Hot Dial function, you must rst congure
your mobile phone’s Speed Dial settings. Please refer to your
mobile phone’s user guide or our website (www.cardosystems.com)
for instructions on saving Speed Dial numbers.
To Hot Dial:
• Speed dial #2: Tap the Hot Dial Button once.
• Speed dial #3: Tap the Hot Dial Button twice rapidly.
• Speed dial #4: Tap the Hot Dial Button three times rapidly.
7. SWAP (Swapping connection between two active mobile
phones)
The S-800 allows you to swap, i.e. to alternately use one among
the last two phones to which it has been connected.
To SWAP between phones:
• While both phones are turned on and the headset is in
Standby mode, double-press the MFW inwards.

10
Cardo S-800™
• The headset will switch to the second phone.
• Each time you double-press the MFW, the alternate phone
connects to the headset.
NOTE: This feature may only be used when the headset
and both phones are in Standby mode.
8. Battery Status Indicator
To check the status of the headset’s battery, press and hold the CTRL
Button for at least four seconds while the headset is in Standby mode.
The LED Status Indicator will ash for two seconds as follows:
• Blue Full charged
• Red and Blue Medium charge
• Red Weak charge
9. Locating the Headset (Buzzer Function)
The S-800 allows you to locate the headset by activating an
audible buzzer.
To activate the Buzzer:
• Dial a number with the mobile phone and press Send/Talk.
• While the call is in progress (or even while still ringing), turn

11
Cardo S-800™
the mobile phone’s volume buttons up, then down, repeating
the up/down sequence ve or more times.
• The headset will start buzzing.
10. Call back the last incoming caller (Callback Function)
The S-800 allows you to place a call to the phone number of the
last incoming call. The headset will store the phone number of the
last answered, missed or rejected call.
To use the Callback function:
• While in Standby mode, rapidly move the MFW down twice
and release (double down-click).
NOTE: The Callback number memory will be cleared if:
1. The headset is disconnected from the current phone and
connected to a different phone.
2. The headset is turned off or has been charged.
3. The last incoming caller had a blocked or restricted number.
NOTE: This feature is not supported by some mobile phones.
11. Auto-Answer Function
The S-800 allows you to automatically answer all incoming calls

12
Cardo S-800™
using the Auto-Answer function. Please note that once this feature
is activated you are subject to unintended eavesdropping. Use of
this feature is at your own risk!
Learn more at www.cardosystems.com/faq/autoanswer
When Auto-Answer mode is enabled on an incoming call, the Headset
will ring for a few seconds and then automatically answer the call without
the need to press the CTRL Button. Auto-Answer is disabled by default.
To enable/disable Auto-Answer:
• While in Standby mode, press and hold the MFW upwards
for seven seconds.
• When the Auto-Answer function is enabled, the blue Status
Indicator will begin ashing rapidly.
NOTE:
• Auto-Answer will not answer an incoming call if you are
currently on a call (Call Waiting).
• Turning off the headset will disable the Auto-Answer
function.
• Auto-answer can be enabled again after turning on the
headset by following the instructions above.

13
Cardo S-800™
12. Button Lock
The S-800 allows you to lock its buttons, preventing the buttons
from being accidentally pressed.
To lock/unlock the buttons on the Headset:
• While in Standby mode, simultaneously press the MFW and
the CTRL Button for at least four seconds.
13. Disabling / enabling the LED Status Indicator
The S-800 allows you to turn off the ashing LED Status
Indicator. • While in Standby mode, move the MFW down and hold
for at least four seconds.
• The Status Indicator will stop/begin ashing, depending on
whether you are disabling/enabling the Status Indicator.
14. Changing the Wheel orientation
The default conguration of the headset is designed for use on
your right ear. This means that clicking up on the MFW towards
the small ‘+’ sign on the headset increases the volume one step
at a time, while clicking down towards the ‘-’ sign on the headset
decreases the volume one step at a time.

14
Cardo S-800™
If you wear the Headset on your left ear, the S-800 allows you to
change the MFW orientation from right to left ear, so that pressing
the MFW up still increases the volume, and pressing down
decreases the volume. Only volume orientation is affected.
To set the Headset for left ear orientation:
• Make sure the headset is turned off.
• Now turn it on by pressing the CTRL Button and the Power
Button simultaneously for 4 seconds.
• Once you see 3 blue ashes followed by a single simultane--
ous ash of the red and blue lights, the headset is powered
on and you may release the buttons.
NOTE: The headset will revert to its default right ear
conguration once it is turned off. In order to regularly use
the headset in left ear conguration, always turn on the
headset using the CTRL + Power Button procedure above.

15
Cardo S-800™
ADVANCED FUNCTIONS REFERENCE
Function Required Action
Redial the last dialed
number
During Standby, tap the MFW inwards.
Reject an incoming
call
During an incoming call, press and hold
the CTRL Button for 3 seconds.
Call waiting / Toggling
between calls
During an incoming call and one call on
hold or waiting, tap the MFW inwards.
Conference Call During an active call and one call on hold
or waiting, tap the MFW inwards.
Transfer calls to / from
headset
During a call, press and hold the CTRL
Button for 3 seconds.
Hot Dial Tap the Hot Dial Button 1, 2, or 3 times
rapidly to call Speed Dial #2, #3, or #4
respectively.
SWAP between active
phones
During Standby, double-press the MFW
inwards.
Battery Status
Indicator
Press and hold the CTRL Button for 4
seconds; Blue=Full, Red/Blue=Medium,
Red=Weak.
Locating the headset
(Buzzer)
Dial a call, then press VolUp/VolDn on the
phone 5 times.
Call back the last
incoming caller
(Callback)
During Standby mode, rapidly move the
MFW down twice and release (double
down-click).

16
Cardo S-800™
Function Required Action
Auto-Answer On/Off During Standby mode, press and hold the
MFW upwards for 7 seconds.
Button Lock On/Off During Standby mode, simultaneously
press the MFW and the CTRL Button for
at least 4 seconds.
Disabling / enabling the
LED Status Indicator
During Standby mode, move the MFW
down and hold for at least four seconds.
Changing the Wheel
orientation
Turn on the headset by pressing and
holding the CTRL Button and the Power
Button simultaneously for 4 seconds.
6. Status Lights
Missed Call Indicator
Whenever a call is missed or rejected, the red and blue Status
Indicator will begin ashing simultaneously, notifying you of the
missed call.
To clear this Missed Call Indicator, press any button on the
headset.
NOTE: This feature is not supported by some mobile
phones.

17
Cardo S-800™
The headset uses the following Status Indicators to display its
status:
Status Light Auto-
Answer Status
Single blue ashing
slowly (every 3 sec) Disabled Standby mode
Double blue ashing
slowly (every 3 sec) Disabled During a call
Red and blue
simultaneously ashing
slowly
Disabled Missed call
Red ashing slowly
(every 3 sec) Disabled Low battery
Single blue ashing
rapidly Enabled Standby mode
Double blue ashing
rapidly Enabled During a call
Red and blue
simultaneously ashing
rapidly
Enabled Missed call
Red ashing rapidly Enabled Low battery
Alternating red/blue
ashing Pairing mode
3 blue ashes Power ON

18
Cardo S-800™
Status Light Auto-
Answer Status
3 red ashes Power OFF
None
Headset is off or
Status Indicator is
disabled
7. Audio Tones
With the exception of the actions described in the following table,
all actions are followed by a single tone to conrm that the
headset has accepted the action. A double tone means that the
action has failed.
Action Tone
Mute On/off tone and mute reminder tone
every 20 seconds
Volume up Tone on maximum volume
Volume down Tone on minimum volume
Locate the headset Buzzing
Call back list is empty Two short beeps

19
Cardo S-800™
8. Troubleshooting
NOTE: For most problems, it is recommended as a rst step that
you turn the headset off for one minute and then on again. If that
fails, try pairing the headset and phone again.
Problem Action
Pairing fails 1. Delete S-800 from your paired device list in your phone
(if it is listed).
2. Turn off the mobile phone and Headset.
3. Take the battery out of the phone and put it back.
4. Repeat the pairing process as described in
Pairing your Headset section above.
Can’t
answer
phone calls
or perform
voice
dialing
(Assuming your mobile phone supports Voice Dialing) :
1. Make sure your Headset is turned ON and in Standby
mode while the blue light indicator ashes slowly.
2. Verify that the Bluetooth function on your phone is set
to ON.
3. Verify that the S-800 is the correctly paired Headset to
your mobile phone (refer to the phone manual).
4. Connect the headset to the phone as described above.
5. Check “Denitions” or “Settings” on your mobile phone
for Voice Dial Enablings.
6. Perform the pairing process as described in Pairing
your Headset section and check again.

20
Cardo S-800™
Problem Action
Battery does
not provide
at least six
hours of talk
time
Make sure your headset is fully charged.
Charging time is up to 2 hours for an empty battery.
When fully charged and charger is connected to
headset, the red light indicator turns off.
NOTE: You may have compromised the battery’s
capacity if you did not fully charge it prior to initial use.
Red Status
Light does not
light steady
when charger is
connected.
1. Make sure the wall charger is rmly plugged into
the Charging Jack.
2. Disconnect the charger from the Charging Jack,
wait a few seconds and plug it back in.
3. When the headset is fully charged, the
red light turns off.
Bad sound
quality
1. Possibly caused by nearby interference.
2. If you have a GSM phone and your
headset is too close to the phone, interference may occur.
3. Headset and mobile phone are more than 30 ft.
(10m) apart. Range will be shortened if there are major
obstacles between the Headset and mobile phone.
I press the
buttons and
nothing happens
Your headset is probably in key lock mode. Unlock the
Headset as described above.
