Carl Goldberg Products Laser 200 User manual

Laser 200
WARNING
A radio-controlled model is not a toy and is not intended for persons under 16 years old. Keep
this kit out of the reach of younger children, as it contains parts that could be dangerous. A radio-
controlled model is capable of causing serious bodily injury and property damage. It is the buyer's
responsibility to assemble this aircraft correctly and to properly install the motor, radio, and all other
equipment. Test and fly the finished model only in the presence and with the assistance of another
experienced R/C flyer. The model must always be operated and flown using great care and common
sense, as well as in accordance with the Safety Code of the Academy of Model Aeronautics (5151
Memorial Drive, Muncie, IN 47302, 1-800-435-9262). We suggest you join the AMA and become prop-
erly insured prior to flying this model. Also, consult with the AMA or your local hobby dealer to find an
experienced instructor in your area. Per the Federal Communications Commission, you are required
to use only those radio frequencies specified "for Model Aircraft."
LIMITED WARRANTY
Carl Goldberg Products, Ltd. has inspected and certified the components of this aircraft. The company urges the buyer to perform
his own inspection, prior to assembly, and to immediately request a replacement of any parts he believes to be defective for their
intended use. The company warrants replacement of any such components, provided the buyer requests such replacement with-
in a period of 30 days from the date of purchase and provided the defective part is returned, if so requested by the company.
No other warranty, expressed or implied, is made by the company with respect to this kit. The buyer acknowledges and under-
stands that it is his responsibility to carefully assemble the finished flying model airplane and to fly it safely. The buyer hereby
assumes full responsibility for the risk and all liability for personal or property damage or injury arising out of the buyer's use of the
components of this kit.
CARL GOLDBERG PRODUCTS, LTD.
P.O. Box 818 Oakwood GA 30566 Phone #[phone] Fax # [phone] www.carlgoldbergproducts.com

2
USING THIS INSTRUCTION MANUAL
Before you begin assembling your Laser 200 ARF, take
some time to read through this entire instruction book. It is
designed to take you step-by-step through the process and
to give you added information on motor and radio selection
and set-up, balancing your aircraft, and flying your model.
The time you spend will speed the assembly process and
help you avoid problems.
PREPARING FOR ASSEMBLY
You will need a work area of approximately 24 x 48" which has
been covered to protect it from adhesive, as well as cuts and
other damage. Many people cover their work area with a
sheet of dry wall (sheet rock) and/or waxed paper t o pre-
vent CAGlue and Epoxy from ruining the work surface.
CONSTRUCTION TIPS
IMPORTANT: ALWAYS READ A FEW STEPS AHEAD.
This will alert you to coming instructions and will help you
plan accordingly.
Using the Parts Identification section, familiarize yourself
with the various items included in your kit box.
Do not hesitate to ask questions. Your local hobby dealer
and area flyers will most likely be happy to help, as they
want you to have a successful flying experience.
ADHESIVES & GLUING TECHNIQUES
CA adhesives are specially formulated to firmly glue the
plywood, hardwood, and balsa used in your model and to
withstand the vibration and stresses of high performance
flight. However, there are times, such as when you are
installing the stabilizer and fin on the fuselage and want
more set-up time for careful alignment and positioning,
then you should use epoxy. Occasionally, you also will
want to use thin CA, which "wicks" into the surrounding
areas. Aliphatic resin glue or similar water-based glues can
also be used, but they will add to the assembly time
because they dry so much more slowly than CA glue.
Remember, when ever using any CA, you must be careful
to read instructions thoroughly, as you will have only sec-
onds for positioning of parts. Be sure to trial fit parts
together before gluing. Also, never use watery THIN type
CA glue for gluing plywood and hardwood parts. Thin CA's
do not adequately bond these areas.
CAUTION
Some people may experience an allergic reaction when
exposed to fumes from CA glue or epoxy. As with paints,
thinners, and solvents, it is always important to use glues
only where there is adequate ventilation to carry fumes
away. A fan is recommended. Also, special care must be
taken when using CA, as it will bond skin as well as other
surfaces. Before using any CA, carefully read all label pre-
cautions. When using CA, protective eye-wear and care in
keeping the glue away from the face is highly recommend-
ed. If CA does happen to get into the eye, hold lid open
and flush with water only. Seek immediate medical atten-
tion.
COVERING
The Laser 200 ARF is covered in a polyester film chosen
for its beauty, toughness, and ease of application and
repair. It is not uncommon for ARF's to develop a few wrin-
kles in transit. If this is true of your model, the situation is
easily corrected. Before you begin putting the pieces
together, run around the edge of the seams first then over
the surface of each section with an iron (either specially
designed for airplane use or the more cumbersome house-
hold iron). Apply the heat (set at about 300° F), following
along with a soft cloth and pressing down on the covering
as you go around. This will more firmly set the covering
adhesive into the wood and keep your aircraft covering
tight and smooth in the future. Once you have ironed the
seams stay away from them with the heat or the covering
will slide when you try to shrink the middle. If this happens
the wrinkles will not come out of the covering.
One of the great advantages of polyester film is that it can
be applied over itself without causing gas bubbles. This
allows you to repair your aircraft, as well as to customize it
in a number of ways. If, due to a flight mishap, you get a
hole or similar covering damage, simply trim away the
ragged edges and then apply a patch, following the direc-
tions that come with your covering , which is available at
your hobby dealer.
The Laser 200 covering can be closely matched
using
Oracover Deep Red #871
Oracover White #870
Oracover Gold #879
Important Information:
This is a 3D airplane and you
must use throttle control to
avoid over speeding the
plane and inducing flutter in
the large control surfaces.

3
ITEMS NEEDED TO COMPLETE THIS AIRCRAFT
1 4 CHANNEL RADIO WITH 4 MICRO SER-
VOS. (WE USED 4 CHANNEL FUTABA
RADIO WITH S3110 SERVOS AND
FUTABA RECEIVER )
1 6” SERVO “Y” HARNESS
2 6” SERVO EXTENSIONS
1 ELECTRONIC SPEED CONTROL
1 (1500mah three cell Li-Po battery).
1 BRUSHLESS MOTOR (We used a Rimfire
35-30-950 and a AXI 22I7-16 motor)
1 PROP ADAPTER
1 ELECTRIC PROPELLER (We used an 11-
4.7 prop)
1 ULTRA SET CA ACCELERATOR
1 ULTRA SET 1 OZ. BOTTLE CA MEDIUM
GLUE
1 ULTRA SET 1/2 OZ. BOTTLE CA THIN
GLUE
1 ULTRA SET 5 MINUET EPOXY
1 1/4” FOAM RUBBER
1 SHEET METAL SCREWS FOR
MOTOR(MIGHT BE REQUIRED FOR SOME
MOTOR INSTALLATIONS)
TOOLS AND SUPPLIES FOR ASSEMBLY.
MODELING OR UTILITY KNIFE
WORK SURFACE (24" X48")
SMALL STANDARD & PHILLIPS SCREW-
DRIVERS
MASKING TAPE
NEEDLE NOSE PLIERS
24” RULER
FLEXIBLE STRAIGHT-EDGE
30-60-90° x 6" TRIANGLE
SOFT PENCIL
A FEW STRAIGHT OR "T" PINS
WIRE CUTTER (DYKES)
OPTIONAL HEAT GUN/COVERING IRON
ACID BRUSH
5 FT. LENGTH OF STRING
Caution:
Before starting, carefully go
over all high stress areas
(Wing bolt mounting blocks,
Firewall,etc.) with an epoxy or
wood glue to confirm all
areas are well glued.
Warnings about Lithium
Polymer batteries
NEVER charge Lithium Polymer batteries with a
charger designed for NiCd, NiMH, or any
other type of battery chemistry. Use ONLY
the chargers listed under REQUIRES or
equivalent substitutes.
Do not allow Li-Po cells to overheat at any time. Cells
which reach greater than 140° Fahrenheit
(60C) will usually become damaged and
could catch fire.
Do not charge or discharge Li-Po cells on or near
combustible materials including paper, plastic,
carpets, vinyl, leather, wood, inside an R/C
model or full size automobile.
Do not expose Li-Po cells to water or moisture at any
time.
Do not store batteries near an open flame or heater.
Do not assemble Li-Po cells or pre-assembled packs
together with other Li-Po cells or packs.
Do not allow a Li-Po battery to be left unattended dur-
ing charging or discharging.
Always store Li-Po batteries in a secure location
away from children.
Always remove a Li-Po battery if model is involved in
any kind of crash. Carefully inspect the
battery and connectors for even the
smallest damage.
CAUTION, cells may be hot!
Do not allow the electrolyte to get into eyes or on
skin. Wash affected areas immediately if
they come into contact with electrolyte.

4
Installing Ailerons
1. Collect the following parts:
(1) Wing
(2) Ailerons ( Left & Right)
(6) Mini CA hinges
2. Locate the pre-cut aileron hinge slots in both
sides of the wing. Using a hobby knife (#11
blade), slide the blade into each slot to make
sure it is cleanly cut.
Repeat this process with the ailerons, making
sure all hinge slots are clean.
3. Insert the mini CA hinges half way into the
wing and the ailerons. (Use a pin inserted into
the middle of the hinge to help keep the hinge
in the middle.)
Make sure that the aileron is tight against the
wing and even with the wing tip.
Using Ultra Set thin CA glue, place one drop
on all hinges top and bottom.
Repeat for the second wing half.
1. Gather the following items:
(2) 6" Extension wires
(2) Wing
(2) Servos
(1) Electrical tape
2. Plug one 6" extension wire into one servo.
IMPORTANT! To ensure that any connections located
inside the wing will not come loose, either when the
wires are pulled, or during flying, always tape them
securely together with electrical tape.
Installing Aileron Servos
Aileron Control Horns
1. Gather the following items:
(2) Small Control Horns
(2) Wing
(2) Short pushrods
(2) EZ Connectors With Hardware
(2) Swivel Keeper
2. Cut the back plate off the side of the control
horn.
3. Locate the pre-drilled control horn holes in the
aileron.
Place glue on the control horn pins and insert
them in the holes.
Install the back plate on the control horn pins
on top of the aileron. Use glue to hold in place.
3. Insert the servo wire plug into the servo hole
in the bottom of the wing.
thread the servo wire through the wing and
out the center hole in the wing tube.
Mount the servo to the wing.
4. Repeat for the other wing half.

5
4. Mount the EZ connector hardware on the
aileron servo arm.
5. Find the small aileron pushrod wire.
Make a 90º bend (or a "z" bend, if preferred)
1/4” from the end of the wire
Insert the wire into the control horn.
Secure the wire with a nylon swivel keeper.
6. Insert the other end of the push rod through
the EZ connector.
Mount your servo arm on top of your servo.
7. Repeat for the other servo in the other wing.
Main Landing Gear
2. Mount the the main landing gear on to the bot-
tom of the fuselage using the 4-40 x 1/2” bolts.
Note: The flat side of the landing gear goes to the
front.
Caution:Use thread lock on the bolts
1. * COLLECT THE FOLLOWING PARTS:
(1) Fuselage
(1) Main Landing gear
(3) 4-40 x 1/2 Button Head Bolts
(2) 1/8” Axle with Locking nut
2. Install both axles on the landing gear.
Installing stabilizer
1. * COLLECT THE FOLLOWING PARTS:
(1) Fuselage
(1) Stabilizer
(2) Elevator
(1) Wire Elevator Joiner
2. Mount both wings to the fuselage by inserting
the fiberglass rod into the fuselage and sliding
both wings up tight to the fuselage.
Bolt the wing to the fuselage.

6
3. Place the the wire elevator joiner in the stabi-
lizer slot and slide it towards the rear of the
slot.
Slide the stabilizer into the slot.
Make sure the stabilizer is pushed up tight
against the front of the slot.
“X”
“X”

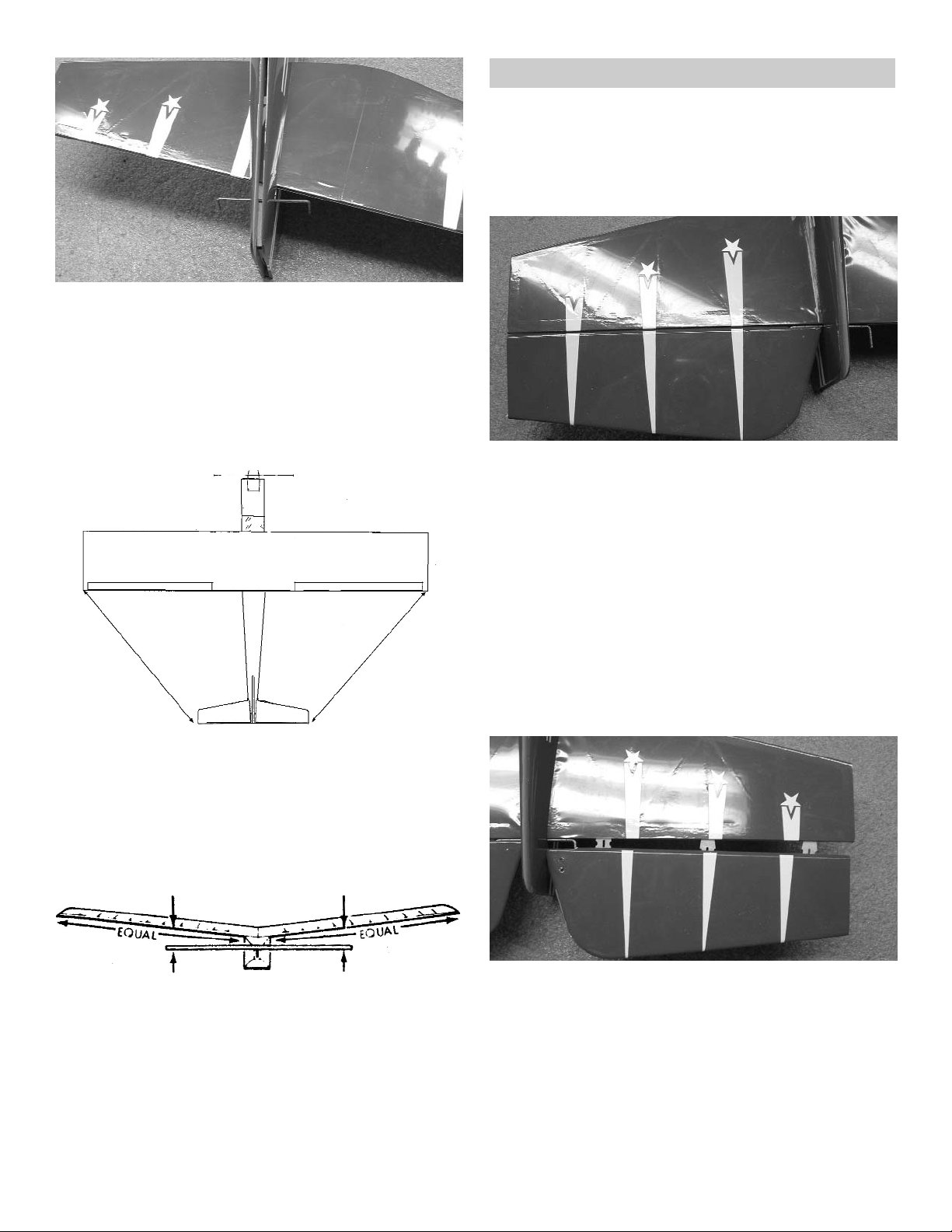

4. Measure from the end of the wing to the tip of
the stab. This measurement should be the
same for both sides.
Mark the stabilizer where it rest on the fuse-
lage
Remove the covering where the stab will be
glued to the fuselage.
Look down the length of the fuselage and
check that the stabilizer is parallel to the wing.
If it is not then shim the low side till they are
parallel.
When satisfied then glue the stabilizer in place
using Ultra Set 5 minute epoxy. Make sure the
stabilizer remains both perpendicular and par-
allel to the wing and fuselage while the epoxy
dries.
Elevator Installation
1. Collect the following parts:
(1) Fuselage With Stabilizer
(2) Elevator
(6) Mini CA Hinges
4. Repeat steps 2 and 3 for the second half of
the elevator.
2. Insert 3 hinges half way into the elevator.
Using a toothpick, insert a small drop of Ultra
Set epoxy into the elevator joiner hole on the
end of the elevator.
Place the the wire elevator joiner in the eleva-
tor.
Slide the elevator hinges into the stabilizer.
3. Make sure the elevator is pushed up tight
against the stabilizer and the end of the eleva-
tor is even with the end of the stabilizer.
Using Ultra Set thin CA, glue the elevator in
place.

7

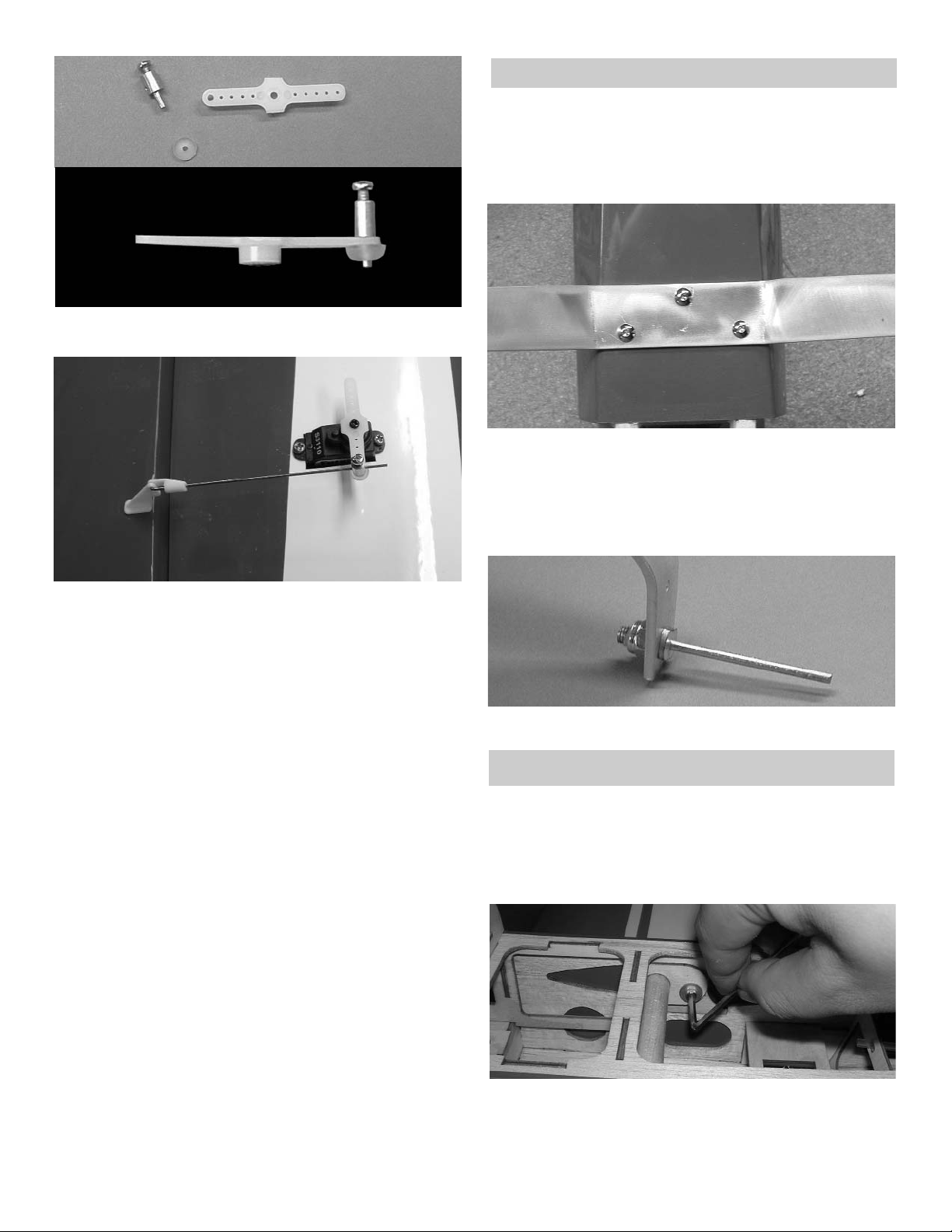

3. Place the wheel in the wire and insert the tub-
ing on the end of the wire.
Fin & Rudder Installation
1. Collect the following parts:
(1) Fuselage With Stabilizer
(2) Fin & Rudder
(2) Mini CA Hinges
(1) Nylon Control Horn
(1) Long Pushrod Wire
(1) Tail Wheel Wire
2. Find the tail wheel wire, wheel and the small
plastic tubing keeper.
Insert the tail wheel wire into the bottom of the
rudder.
Glue in place.
4. Slide the fin into the slot on the top of the fuse-
lage.
Mark the location of the fuselage on the fin.
Being very careful, remove the covering off
the fin where the wood is only.
5. Glue the fin into the fuselage using Ultra Set
epoxy.
6.. Place 3 hinges in the rudder half way.
Mount the rudder to the fin.
2. .Remove the back plate off the control horns.
1. Collect the following parts:
(2) Nylon Control Horn
(2) 20” Long Pushrod Wire
Pushrod Installation

8
Wheel Pants
1. Collect the following parts:
(2) Wheel Pants
(4) Wheel Collars with set screws
(2) 2mm x 3mm Sheet Metal Screw
(2) Wheels
Landing gear Wheel Pant
Wheel
Wheel Collar
2mm x 3mm Sheet
Metal Screw
3. With the fuselage upside down place a drop of
glue on the control horn and insert the eleva-
tor control horn in the left side elevator holes.
Insert the back plate onto the control horn pins
sticking out the top of the elevator.
Place a drop of glue on the pins to hold the
back plate in place.
4. Insert the pushrod into the tube in the fuse-
lage.
Make a 1/4” bend at the end of the pushrod
and place it in the control horn.
Place a swivel keeper on the end of the
pushrod.
5. Repeat steps 2 through 4 for the rudder
pushrod and control horn.
Cut-A-Way of wheel pants shown right
side up
Wheel Collar
2. Install the wheel pants as shown above.
3. Install the tail wheel.

Installing Motor & ESC
1. Collect the following parts:
(1) Fuselage
(1) Motor (Not Included)
(1) Electronic Speed Control (Not Included)
(1) Screw for motor installation (Not Included)
Note:
Read the instructions that come with your
motor and speed control for proper wiring.
Your Motor and Speed Control might be dif-
ferent than shown.
Caution:
Do not install the propeller at this time.
Electric motors can start turning at any time
during radio installation. This can cause
damage to the plane or bodily harm.
9
2. Mount the elevator and rudder servo as
shown above.
Attach the EZ connectors to the servo arms
the same way you did the aileron servos.
Insert the pushrod wires through the EZ con-
nectors and mount the two servo arms to the
top of the servos.
Cut off the excess pushrod wire.
3. Plug the elevator and rudder servos into your
receiver.
Attach the “Y” harness to the receiver and
plug in your aileron servos.
Plug in the speed control.
Cut foam and wrap around the receiver.
4. Put the receiver wrapped in foam in front of
the servos.

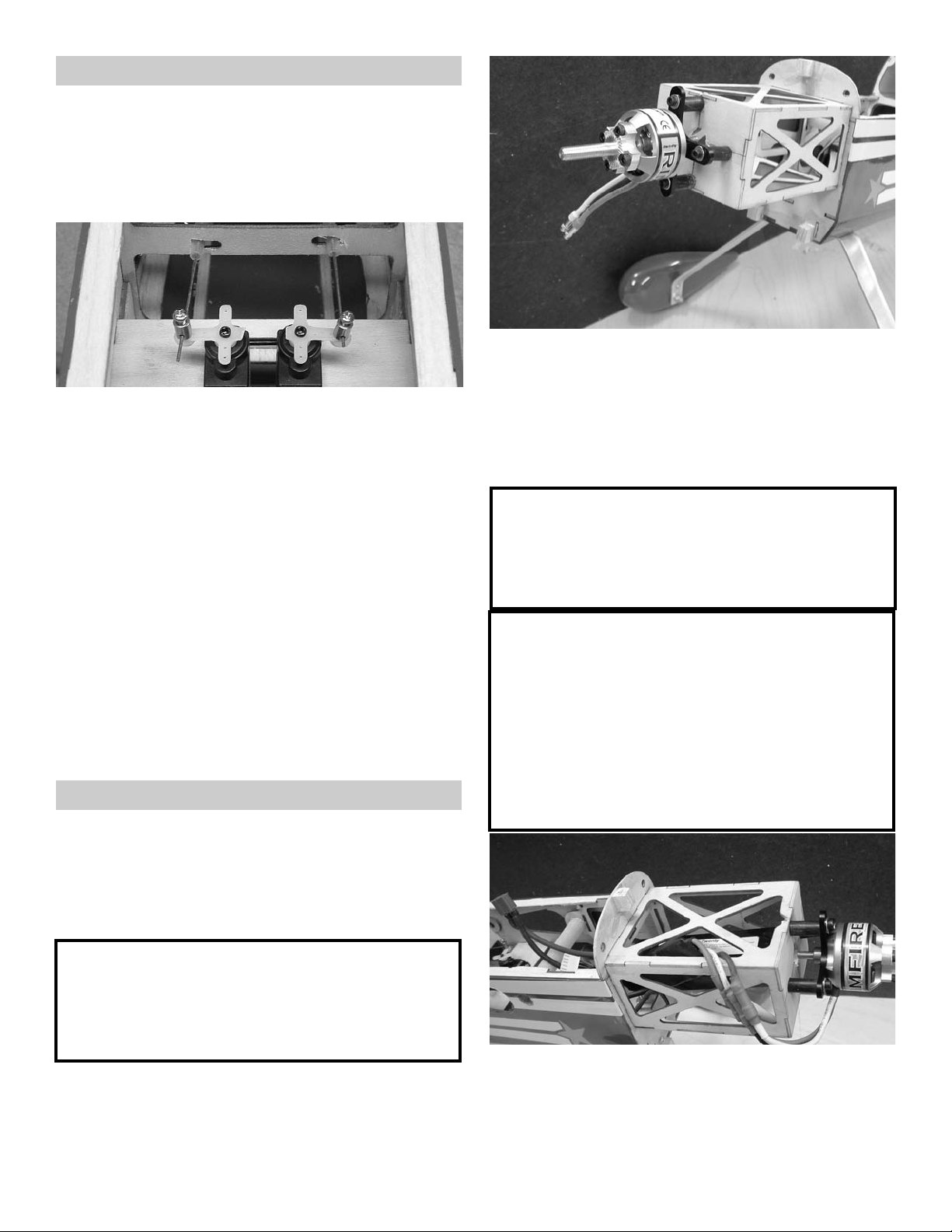

Radio Installation
1. Collect the following parts:
(1) Fuselage
(2) Micro Servos with Hardware (Not Included)
(1) Micro Receiver (Not Included)
(1) Servo “Y” Harness (Not Included)
(2) Mini- Pushrod Connectors
2. Mount your motor using the center lines on
the firewall. It may be necessary to space the
motor out. We used 1/4” carbon fiber rods cut
to the proper length.
3. Put about 4 washers under the mount on the
left side to provide 3 to 4 degrees of right
thrust.
Note:
We flew the 45” Laser 200 ARF with a Rimfire
35-30-950 and a AXI 22I7-16 motor. These
motors worked well and the vertical was
unlimited. We used an 11-4.7 prop and 1500mah
three cell Li-Po battery.
Caution:
Too much speed will cause flutter on the
control surfaces which can cause structural
failure in the airframe.
WE DO NOT WARRANTY FOR FLUTTER.
4. The battery and speed control can be mount-
ed in the nose of the plane.

10
Mounting Cowl
1. Collect the following parts:
(1) Fuselage
(1) Cowl
(3) #2 x 3/8 screws

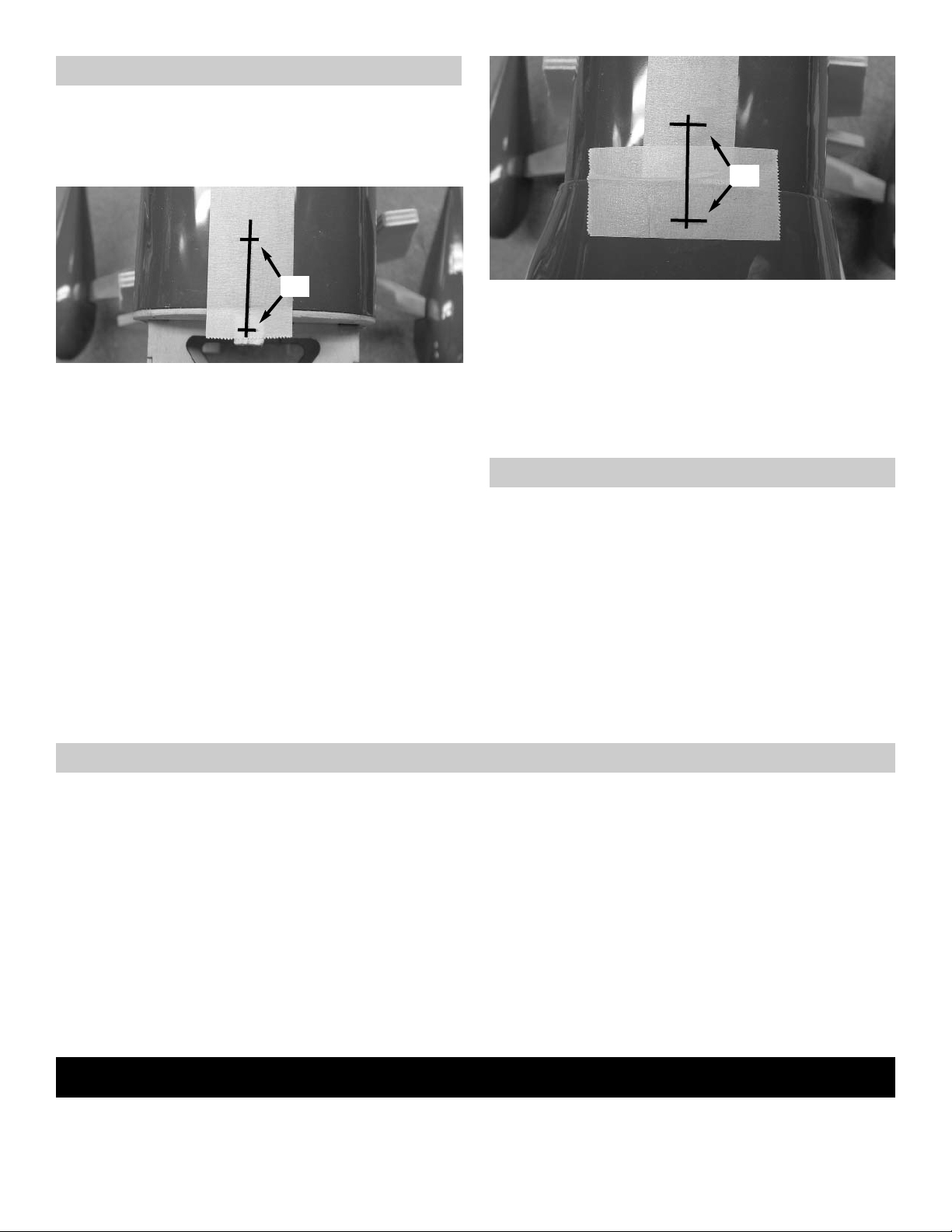

2. Place masking tape .over each of the cowl
mounting blocks.
Make a mark in the middle of the mounting
block.
Draw a 1” long straight line back from the
block.
Make another mark at the 1.” length.
3. Repeat this for the remaining blocks.
1”
1”
4. Slide the cowl over the motor and onto the
fuselage.
Center the motor and tape the cowl in place.
Draw a 1” long straight line back down over
the cowl and make a mark.
Drill a 1/16” hole and screw in place.
3. Repeat this for the remaining blocks.
1. Using glass cleaner and a soft cloth, clean the
model surface thoroughly before applying
decal's.
Cut the decal sheets apart in sections, as
needed.
Peel the backing off the decal and apply the
decal to the location desired.
Decal Locations
Control Set Up
Turn on your transmitter and plug in the receiver battery. Center all the control surfaces (rudder, ele-
vator & aileron). If required by your speed control this is the time to program it for your use.
Control Travel
Aileron up / down 1/2”
Elevator up / down 3/4”
Rudder right / left 1”
You will want to adjust these throws to suit your flying abilities. The throws given are starting
throws.
Balancing
Balance the Laser 200 at 2-5/8 back from the leading edge of the wing next to
the fuselage.

11

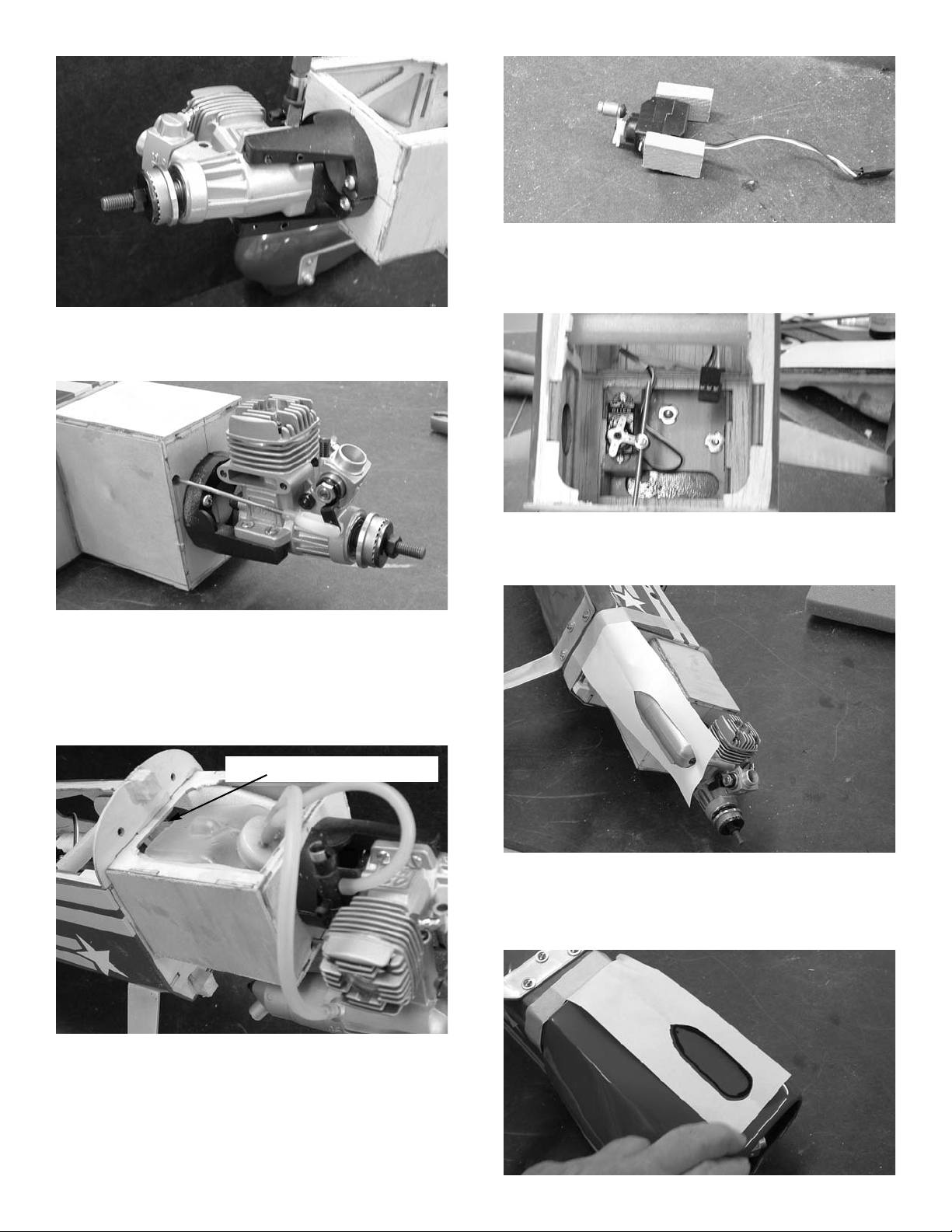

Glow Engine Conversion
You may wish to convert the Laser to a glow engine. We recommend no larger than a .015 which will
give very good performance. You will need to install a thicker firewall, up-grade the servos from micro to mini,
and reinforce the motor box. None of the material need for the conversion is included in the kit.
1. You will need a motor mount and mounting
bolts for the your motor.
2. Mount you motor to the mounts and meas-
ure from the surface of the table to the front
of the thrust washer (surface the prop will
mount on).
3. Measure from firewall to the front of the
cowl.This should be approximately 2-1/4”.
Using your measurement from the motor,
adjust the length of the motor box. Our
motor measured 3” from table to prop hub
so we cut 5/8” off the motor box length (1/8”
clearance from front of cowl).
Cut the motor box off to the proper length
cutting a 2 degree angle for right
thrust.(approximately 1/16” shorter on the
right side).
4. Epoxy the 1/4” firewall in place between the
original motor box sides and bottom.
The cross braces on the top of the motor
box can be removed.
5. Sheet the bottom and both sides of the
motor box with 1/16” plywood.

12
6. Mark the firewall center with vertical and
horizontal lines. Offset the vertical line 1/8”
to the left to compensate for the right thrust.
8. The fuel tank can now be fitted in the nose
of the plane. Use foam rubber to hold in
position. Some material on the F1 former
will need to be removed on the bottom side
of the bulkhead.
9. Cut two blocks of wood 1/4” thick by 3/4” x
1” and mount the throttle servo to them.
Install an e-z connector on the output arm.
11. Bolt the muffler in place and cut a scrap
piece of paper to fit around it.
Tape the paper to the bottom of the fuse-
lage.
remove material
7. Drill a 3/16” hole in the firewall in line with
your throttle output arm and flush with the
bottom floor.
Install a 2-56 pushrod with clevis to the
motor.
10. Glue the throttle servo in place and attach
the throttle pushrod to the e-z connector.

13
13. The switch can be mounted in the fuselage
on a plate or can be mounted in the turtle
deck.
If necessary to achieve the proper balance
the battery can be mounted on a shelf in the
turtle deck.
12. Fit the cowl in place and transfer the muffler
location to the cowl.
Make the cutout starting small and increas-
ing till large enough.
Use the same method to locate the needle
valve and glow plug access hole.
This completes the glow fuel conversions.
Balance the model in the same place as the
electric. We used the same spinner as the
electric version (Carl Goldberg 1-3/4”)
Props from 8-3 to 9-5 will work on the .15,
just make sure you motor will turn the prop
you choose at the proper RPM.
14. Up grade the servos from micro to mini. It
may be necessary to reinforce the mounts.
Important Information:
This is a 3D airplane and you must use throttle control to
avoid over speeding the plane and inducing flutter in the large
control surfaces.
