Carrier 38BRC Operation manual

Product
Data
38BRC (60 Hz)
Air Conditioner
Sizes 024 thru 060
Copyright 2000 Carrier Corporation Form 38BRC-9PD
Model 38BRC Energy-Efficient Air
Conditioner incorporates innovative
technology to provide quiet, reliable
cooling performance. Built into these
units are the features most desired by
homeowners today, including SEER
ratings of at least 12.0 when used with
specific Carrier indoor sections. All
models are listed with UL, c-UL,ARI,
CEC, and CSA-EEV. The 38BRC
meets the Energy Star
®
guidelines for
energy efficiency.
AVAILABLE OPTIONS
Electrical Range — All units are
offered in single phase 208/230v. The
38BRC 036 through 060 models are
offered in 208/230v 3 phase.
WideRange of Sizes —Available in 6
nominal sizes from 024 through 060 to
meet the needs of residential and light
commercial applications.
Compressor — This unit features a
scroll compressor. This compressor is
significantly more efficient than
conventional compressors. Its simple
design offers improved reliability.
Eachcompressor ismounted on rubber
isolators for additional sound
reduction. Scroll compressors
start under most system loads,
minimizing the need for start
assistance components. For improved
serviceability, all models are equipped
with a compressor terminal plug.
Continuous operation is approved
down to 55°F (12.8°C) in the cooling
mode. (See cooling performance
tables.) Operation down to 0°F or
–20°F is approved when low-ambient
requirements are met.
Weather Armor II Cabinet — The
access panels and top are protected

2
CERTIFICATION APPLIES
ONLY WHEN THE
COMPLETE SYSTEM
IS LISTED WITH ARI.
REGISTERED QUALITY SYSTEM
M
A
N
U
F
A
C
T
U
R
E
R
C
E
R
T
I
F
I
E
D
T
O
A
R
I
A
S
C
O
M
P
L
Y
I
N
G
W
I
T
H
A
R
I
S
T
A
N
D
A
R
D
2
1
0
U
N
I
T
A
R
Y
A
I
R
C
O
N
D
I
T
I
O
N
I
N
G
E
Q
U
I
P
M
E
N
T
Model number nomenclature
38BRC 024
Standard 12 SEER Split-System
Air Conditioner
Nominal Capacity
024 — 24,000 Btuh 042 — 42,000 Btuh
030 — 30,000 Btuh 048 — 48,000 Btuh
036 — 36,000 Btuh 060 — 60,000 Btuh
311
Packaging
Series
Electrical
3 — 208/230-1
5 — 208/230-3
with a galvanized coating, then treated
witha layer ofzinc phosphate to which
a modified polyester powder coating is
applied and baked on. This provides
each unit with a hard, smooth finish
that will last for many years.
All screws on cabinet exterior are
coatedforalong-lasting,rust-resistant,
quality appearance.
Totally Enclosed Fan Motor —
Meansgreaterreliabilityunderadverse
weather conditions and dependable
performance for many years. The
permanent-split-capacitor type motor
was designed for optimum efficiency.
The motor was tested and qualified
under extreme conditions to ensure the
greatest reliability.
Unit Design — Copper tube, enhanced
sinewave aluminumfin coil isdesigned
for optimum heat transfer.Vertical air
discharge carries sound and hot
condenser air up and away from
adjacent patio areas and foliage. Heat
pump style drain pan for easy removal
of water, dirt, and leaves.
Application Versatility — The
38BRC can be combined with a wide
variety of evaporator coils and blower
packages to provide quiet, dependable
comfort.Unit canbe installedon a roof
or at ground level.
External Service Valves — Both
service valves are brass, front seating
type with sweat connections. Valves
are externally located so refrigerant
tube connections can be made quickly
and easily. Each valve has a service
port for ease of checking operating
refrigerant pressures.
Easy Serviceability — One access
panel provides access to electrical
controls and compressor. Removal of
wire dome gives access to fan motor
and removal of the top gives access
to the coil.
Compressor Protection — Includes a
suction tube accumulator on the 048
and 060 sizes that reduces the amount
of liquid refrigerant reaching the
compressor.All compressors are
protected by internal temperature and
currentsensitiveoverloads.Aninternal
pressure relief is provided for high-
pressure protection.
Limited Warranty — Standard
1-year warranty on all parts, with an
additional 4-year warranty on the
compressor.
As an ENERGY STAR
®
Partner, Carrier Corporation
has determined that this
product meets the ENERGY
STAR
®
guidelinesforenergy
efficiency.

3
Physical data
* Tube sizes are for runs up to 50 ft. For tube sets between 50 and 175 ft, consult Residential Split System Long-Line Application Guideline.
NOTE: See unit Installation Instructions for proper installation.
ACCURATER® PISTON CHART
* Piston listed is for any approved non-capillary tube coil combination.
Piston is shipped with outdoor unit and must be installed in an approved
indoor coil.
CHARGING SUBCOOLING (TXV-TYPE EXPANSION DEVICE)
UNIT SIZE–SERIES 024-31 030-31 036-32, 52/33/53 042-32, 52/33/53 048-34,54/35 060-34,54/35
OPERATING WEIGHT (Lb)
147
161 169/169/173 180/180/186 237/231
264/260
COMPRESSOR
Manufacturer
Type
Copeland Copeland/Millennium/Millennium Copeland/Millennium
Scroll
REFRIGERANT
Control
Charge (Lb) @ 15 Ft
R-22
AccuRater® (Bypass Type)
5.25 6.25 6.50/6.50/7.10 6.75/6.75/8.38 10.45 12.88
CONDENSER FAN
Air Discharge
Air Qty (CFM)
Motor HP
Motor RPM
Propeller Type, Direct Drive
Vertical
1800 2500 2800 / 2800 / 3300 2800/3300 3300
1/15 1/8 1/5 /1/5,1/4 1/5 / 1/4 1/4
820 825 825 / 825 / 1125 825 / 1125 1125
CONDENSER COIL
Face Area (Sq ft)
Fins per In.
Rows
Circuits
Copper Tube, Aluminum Plate Fin
12.4 14.9 14.9/14.9/18.7 18.7/18.7/22.4 18.7 22.4
25 25 25 25 20 23
1111 2 2
2 2 2 3/3/4 5 6
VALVE CONNECT. (In. ID)
Vapor
Liquid
Sweat
5/8 3/4 3/4 7/8 7/8 7/8
3/8
REFRIGTUBES* (In. OD)
Vapor (0–50 FtTube Length)
5/8 3/4 3/4 7/8 7/8 1-1/8
Vapor (Max Diameter for
Long-Line Applications)
3/4 7/8 7/8 1-1/8 1-1/8 1-1/8
Liquid (0–50 FtTube Length) 3/8
Liquid (For Long-Line Applications) 3/8
UNIT SIZE-SERIES PISTON* IDENTIFICATION NO.
024-31 61
030-31 70
036-32, 33, 52, 53 73
042-53 84
042-32, 33, 52 82
048-34, 35, 54 90
060-34, 35, 54 104
UNIT SIZE-SERIES REQUIRED SUBCOOLING (°F)
024-31 13
030-31 11
036-53 13
036-32, 33, 52 14
042-53 9
042-32, 33, 52 12
048-34, 35, 54 11
060-34, 35, 54 11

4
Accessories
ORDERING NO. DESCRIPTION
KAATD0101TDR
Time-Delay Relay — All Sizes
KSALA0201R22 Low-Ambient Pressure Switch
32LT660004 (RCD) MotorMaster® Control — All Sizes
HC38GE231 (RCD) Ball Bearing Fan Motor — Sizes 024, 030, 036 (32, 33, 52), 042 (32, 33, 52), 048 (34)
HC40GE232 (RCD) Ball Bearing Fan Motor — Sizes 036 (53), 042 (53), 048 (35, 54), 060 (34, 35, 54)
KAAFT0101AAA Evaporator Freeze Thermostat — All Sizes
KAAWS0101AAA Winter Start Control — All Sizes
Standard Cycle Protector — Sizes 048 (35), 060 (35)
KSACY0101AAA Cycle Protector — Sizes 024, 030, 036 (32, 33, 52, 53), 042 (32, 33, 52, 53), 048 (34, 54), 060 (34, 54)
KSAHS1501AAA Start Assist — Capacitor and Relay — Sizes 024, 030, 036, 042, 048 (34)
KSAHS1601AAA Start Assist — Capacitor and Relay — Sizes 048 (35), 060 (34, 35)
KAACS0201PTC Start Assist — PTC — Sizes 030, 036 (32, 33), 042 (32, 33), 048 (34, 35), 060 (34, 35)
KAACH1201AAA Crankcase Heater — Sizes 024–042
Standard Crankcase Heater — Sizes 048, 060
KSACG1504CMD Inlet Grille Kit — Size 024 (31)
KSACG1704CMD Inlet Grille Kit — Sizes 030 (31), 036 (32, 33, 52)
KSACG2004CMD Inlet Grille Kit — Sizes 036 (53), 042 (32, 33, 52), 048
KSACG2304CMD Inlet Grille Kit — Sizes 042 (32, 53), 060
KSASH0601COP Sound Hood — Sizes 036, 042, 048 (34, 54)
KSASH1801COP Sound Hood — Sizes 024, 030
KSASH2101COP Sound Hood — Sizes 048 (35), 060 (34, 35, 54)
KAATX0301RPB TXV Kit (RPB) — Size 024
KAATX0401RPB TXV Kit (RPB) — Size 030
KAATX0501RPB TXV Kit (RPB) — Sizes 036, 042
KAATX0601RPB TXV Kit (RPB) — Size 048
KAATX0701RPB TXV Kit (RPB) — Size 060
KSATX0601HSO TXV Kit (Hard Shutoff) — Size 024–042
KSATX0701HSO TXV Kit (Hard Shutoff) — Size 048, 060
KAALP0101LPS Low-Pressure Switch — All Sizes
KSAHI0101HPS High-Pressure Switch — All Sizes
P502-8083S (RCD) Filter Drier — Sizes 024–036
P502-8163S (RCD) Filter Drier — Size 042
Standard Filter Drier — Sizes 048 (34, 35, 54), 060 (34, 35, 54)
KAALS0101LLS Liquid-Line Solenoid Valve — All Sizes
KAACF1101LRG Coastal Filter — All Sizes
THERMOSTAT/SUBBASE PKG. DESCRIPTION
TSTATCCNAC01-B
Thermostat—Auto Changeover, Non-Programmable, °F/°C, 1-Stage Heat, 1- Stage Cool
TSTATCCPAC01-B Thermostat—Auto Changeover, 7-Day Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool
TSTATCCPRH01-B Thermidistat
TM
Control—Programmable/Non-Programmable Thermostat with Humidity Control
TSTATCCBAC01-B Builder’s Thermostat—Manual Changeover, Non-Programmable, °F/°C, 1-Stage Heat, 1-Stage cool
TSTATCCSAC01 Thermostat, Manual Changeover, 5-2 Day Programmable, °F/°C, 1-Stage Heat/1-Stage Cool
TSTATXXSEN01-B Outdoor Air Temperature Sensor
TSTATXXBBP01 Backplate for Builder’s Thermostat
TSTATXXNBP01 Backplate for Non-Programmable Thermostat
TSTATXXPBP01 Backplate for Programmable Thermostat
TSTATXXSBP01 Backplate for Standard Programmable Thermostat
TSTATXXCNV10 Thermostat Conversion Kit (4 to 5Wire) — 10 Pack

5
Accessory usage guideline
* For tubing lines sets between 50 and 175 ft, refer to the Residential Split-System Long-Line Application Guideline.
† Only when low-pressure switch is used.
‡ Required for Low-Ambient Controller (full modulation feature) and MotorMaster® Control only.
Accessory description and usage (Listed alphabetically)
1. Ball Bearing Fan Motor
A fan motor with ball bearings which permits speed reduction while maintaining bearing lubrication.
SUGGESTED USE: Required on all units where Low-Ambient Controller (full modulation feature) or MotorMaster® Control has been added.
2. Coastal Filter
A mesh screen inserted under the top cover and inside the base pan to protect the condenser coil from salt damage without restricting airflow.
SUGGESTED USE: In geographic areas where salt damage could occur.
3. Compressor Start Assist — Capacitor and Relay
Start capacitor and start relay gives “hard” boost to compressor motor at each start-up.
SUGGESTED USE: Installations where interconnecting tube length exceeds 50 ft.
Installations where outdoor design temperature exceeds 105°F (40.6°C).
Installations where Liquid-Line Solenoid Valve has been added.
4. Compressor Start Assist — PTC
Solid state electrical device which gives a “soft” boost to compressor at each start-up.
SUGGESTED USE: Installations with marginal power supply.
Replacement installations with rapid pressure balance (RPB) expansion valve on indoor coil.
Replacement installations with undersized interconnecting refrigerant tubes.
5. Crankcase Heater
An electric resistance heater which mounts to the base of the compressor to keep the lubricant warm during off cycles. Improves compressor lubrication on
restart and minimizes chance of refrigerant slugging. May or may not include a thermostat control. (Thermostat control standard on 048 and 060 sizes.)
SUGGESTED USE: When interconnecting tube length exceeds 50 ft.
When unit will be operated below 55°F (12.8°C) outdoor air temperature. (Use with Low-Ambient Controller.)
All commercial installations.
6. Cycle Protector
Solid-state timing device which prevents compressor rapid recycling. Control provides an approximate 5-minute delay after power to the compressor has been
interrupted for any reason, including normal room thermostat cycling.
SUGGESTED USE: Installations in areas where power interruptions are frequent.
Where user is likely to “play” with the room thermostat.
All commercial installations.
Installations where interconnecting tube length exceeds 50 ft.
High-rise applications.
7. Evaporator FreezeThermostat
An SPST temperature actuated switch which stops unit operation when evaporator reaches freeze-up conditions.
SUGGESTED USE: All units where Winter Start Control has been added.
8. Filter Drier
A device for removing contaminants from refrigerant circulating in an air conditioner: 1-direction flow. (Filter drier standard on 048 and 060 sizes.)
9. Inlet Grille Kit
A field-installed enhanced inlet grille to replace the standard inlet grille on residential air conditioners and heat pumps.
SUGGESTED USE: For greater protection against inclement weather, incidental damage, and vandalism.
ACCESSORY
REQUIRED FOR
LOW-AMBIENT
APPLICATIONS
(Below 55°F)
REQUIRED FOR
LONG-LINE
APPLICATIONS*
(Over 50 Ft)
REQUIRED FOR
SEA COAST
APPLICATIONS
(Within 2 Miles)
Crankcase Heater
Yes Yes No
Evaporator FreezeThermostat Yes No No
Winter Start Control Yes† No No
Accumulator No No No
Compressor Start Assist
Capacitor and Relay
Yes Yes No
Low-Ambient Controller,
MotorMaster® Control
or
Low-Ambient Pressure Switch
Yes No No
Wind Baffle See Low-Ambient Instructions No No
Coastal Filter No No Yes
Support Feet Recommended No Recommended
Liquid-Line SolenoidValve
or
Hard ShutoffTXV
No See Long-Line Application
Guideline No
Ball Bearing Fan Motor Yes‡ No No

6
Accessory description and usage (Listed alphabetically continued)
10. High-Pressure Switch
Auto reset SPST switch activated by refrigerant pressure on high side of refrigerant circuit. Cycles compressor off if refrigerant pressure rises to 400 ± 10 psig
and resets at 298 ± 20 psig. Provides protection against compressor damage due to loss of outdoor airflow. To prevent rapid compressor recycling, Cycle
Protector can be used with this switch.
SUGGESTED USE: Installations exposed to very “dirty’’ outdoor air.
Installations where condenser inlet air temperature exceeds 125°F (51.7°C).
11. Liquid-Line SolenoidValve
An electrically operated shutoff valve to be installed at the outdoor or indoor unit (depending on tubing configuration) which stops and starts refrigerant liquid
flow in response to compressor operation. Maintains a column of refrigerant liquid ready for action at next compressor operation cycle.
NOTE: Compressor Start Assist — Capacitor and Relay must also be used. Do not use with hard shutoff TXV.
SUGGESTED USE: For improved system performance in air conditioners for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.
In certain long-line applications. Refer to Long-Line Application Guideline.
12. Low-Ambient Controller
Head pressure controller is a cycle control device activated by a temperature sensor mounted on a header tube of the outdoor coil. It is designed to cycle the
outdoor fan motors in order to maintain condensing temperature within normal operating limits (approximately 100°F high and 60°F low). The control will
maintain working head pressure at low-ambient temperatures down to 0°F when properly installed.
SUGGESTED USE: Cooling operation at outdoor temperatures below 55°F (12.8°C).
13. Low-Ambient Pressure Switch
A long life pressure switch which is mounted to outdoor unit service valve. It is designed to cycle the outdoor fan motor in order to maintain head pressure
within normal operating limits (approximately 100 psig to 225 psig). The control will maintain working head pressure at low-ambient temperatures down to
0°F when properly installed.
SUGGESTED USE: Cooling operation at outdoor temperatures below 55°F (12.8°C).
14. Low-Pressure Switch
Auto reset SPST switch activated by refrigerant pressure on low side of refrigerant circuit. Cycles compressor off if refrigerant pressure drops to about 27
psig. Prevents indoor coil freeze-up due to loss of indoor airflow.Also, provides additional protection against compressor damage due to loss of refrigerant
charge. To prevent rapid compressor recycling, Cycle Protector can be used with this switch.
SUGGESTED USE: Where indoor coil is exposed to “dirty’’air.
All commercial installations.
15. MotorMaster® Control
A fan speed control device activated by temperature sensor. Designed to control condenser fan motor speed in response to the saturated, condensing
temperature during operation in cooling mode only. For outdoor temperatures down to –20°F, it maintains condensing temperature at 100°F ± 10°F.
SUGGESTED USE: Cooling operation at outdoor temperatures below 55°F.
All commercial installations.
16. Outdoor AirTemperature Sensor
A device that allows the temperature at a remote location (outdoors) to be displayed at the thermostat.
SUGGESTED USE: All Carrier programmable thermostats.
17. Sound Hood
Wrap around sound attenuation cover for the compressor. Reduces unit sound level by about 2 dBA.
SUGGESTED USE: Unit installed closer than 15 ft to quiet areas — bedrooms, etc.
Unit installed between 2 houses less than 10 ft apart.
18. Thermostatic ExpansionValve (TXV)
A modulating flow control valve which meters refrigerant liquid flow rate into the evaporator in response to the superheat of the refrigerant gas leaving the
evaporator. Kit includes valve, adapter tubes, and external equalizer tube. Both hard shutoff and RPB type valves are available. Do not use hard shutoff TXV
with Liquid-Line Solenoid Valve.
SUGGESTED USE: For improved system performance in cooling mode for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.
Required for use on all zoning systems.
19. Time-Delay Relay
An SPST delay relay which briefly continues operation of the indoor blower motor to provide additional cooling after the compressor cycles off.
SUGGESTED USE: For improved efficiency ratings for certain combinations of indoor and outdoor units. Refer toARI Unitary Directory.
Required for use on all zoning systems.
20. Winter Start Control
An SPST delay relay which bypasses the low-pressure switch for approximately 3 minutes to permit start-up for cooling operation under low-load conditions.
SUGGESTED USE: All air conditioners where Low-Ambient Controller has been added.

7
Electrical data
* Permissible limits of the voltage range at which unit will operate satisfactorily. Operation outside these limits may result in unit failure.
† If wire is applied at ambient greater than 30°C (86°F), consult Table 310-16 of the NEC (ANSI/NFPA 70).
The ampacity of nonmetallic-sheathed cable (NM), trade name ROMEX, shall be that of 60°C (140°F) conductors, per the NEC (ANSI/NFPA 70)
Article 336-26. If other than uncoated (non-plated), 60° or 75°C (140° or 167°F) insulation, copper wire (solid wire for 10 AWG and smaller,
stranded wire for larger than 10 AWG) is used, consult applicable tables of the NEC (ANSI/NFPA 70).
‡ Length shown is as measured 1 way along wire path between the unit and service panel for a voltage drop not to exceed 2%.
** Time-delay fuse.
FLA — Full Load Amps
LRA — Locked Rotor Amps
MCA — Minimum Circuit Amps
RLA — Rated Load Amps
NOTES:
1. Control circuit is 24v on all units and requires external power source.
2. Copper wire must be used from service disconnect to unit.
3. All motors/compressors contain internal overload protection.
Sound power (dBA)
UNIT
SIZE–SERIES V/PH OPERVOLTS* COMPRESSOR FAN FLA MCA
60°C
MIN
WIRE
SIZE†
75°C
MIN
WIRE
SIZE†
60°C
MAX
LENGTH
(Ft)‡
75°C
MAX
LENGTH
(Ft)‡ MAX FUSE** CKT BKR AMPSMax Min LRA RLA
024-31
208/230/1 253 187
56.0 11.4 0.5 14.8 14 14 53 50 25
030-31 72.5 15.0 0.8 19.6 14 14 39 37 30
036-33 97.0 16.7 1.1 22.0 12 12 55 52 30
036-32 88.0 16.0 1.1 21.1 12 12 57 54 30
042-33 115.0 18.6 1.1 24.5 10 10 80 76 40
042-32 104.0 20.0 1.1 26.1 10 10 74 70 40
048-35 140.0 24.4 1.4 31.9 8 8 97 59 50
048-34 137.0 20.2 1.1 26.4 10 10 74 70 40
060-34 169.0 28.8 1.4 37.4 8 8 82 78 60
060-35 175.0 28.8 1.4 37.4 8 8 82 78 60
036-53
208/230/3 253 187
75.0 10.6 1.4 14.7 14 14 53 50 20
036-52 77.0 11.4 1.4 15.7 14 14 49 47 20
042-53 90.0 13.4 1.4 18.2 14 14 41 39 25
042-52 88.0 13.9 1.4 18.8 14 14 41 39 25
048-54 91.0 15.1 1.4 20.2 12 12 60 57 30
060-54 123.0 17.3 1.4 23.0 12 12 55 52 40
UNIT
SIZE SOUND Level (dBA) OCTAVE BAND CENTER FREQUENCY (Hz) 125 250 500 1000 2000 4000 8000
024-31 78 49.5 58.0 64.0 71.0 64.5 60.5 56.5
030-31 78 54.0 61.0 66.0 70.5 66.0 62.5 58.0
036-33 82 54.5 66.5 68.0 71.0 77.0 70.5 61.5
036-53 82 49.5 61.0 70.5 73.5 65.5 62.5 54.0
036-32, 52 82 52.0 58.5 68.0 78.0 68.0 64.0 58.0
042-33 82 55.0 69.0 67.0 70.5 76.5 68.5 61.5
042-53 82 49.5 60.5 67.5 72.0 66.0 63.0 56.0
042-32, 52 82 54.0 61.0 67.5 73.5 71.0 63.5 58.5
048-35 82 52.5 62.5 67.0 70.0 64.5 63.5 58.5
048-34, 54 82 51.5 58.5 65.5 66.5 64.0 64.5 61.5
060-35 82 58.5 66.0 71.5 75.0 68.5 68.0 60.5
060-34, 54 82 58.0 69.0 72.0 75.0 69.5 70.0 64.5

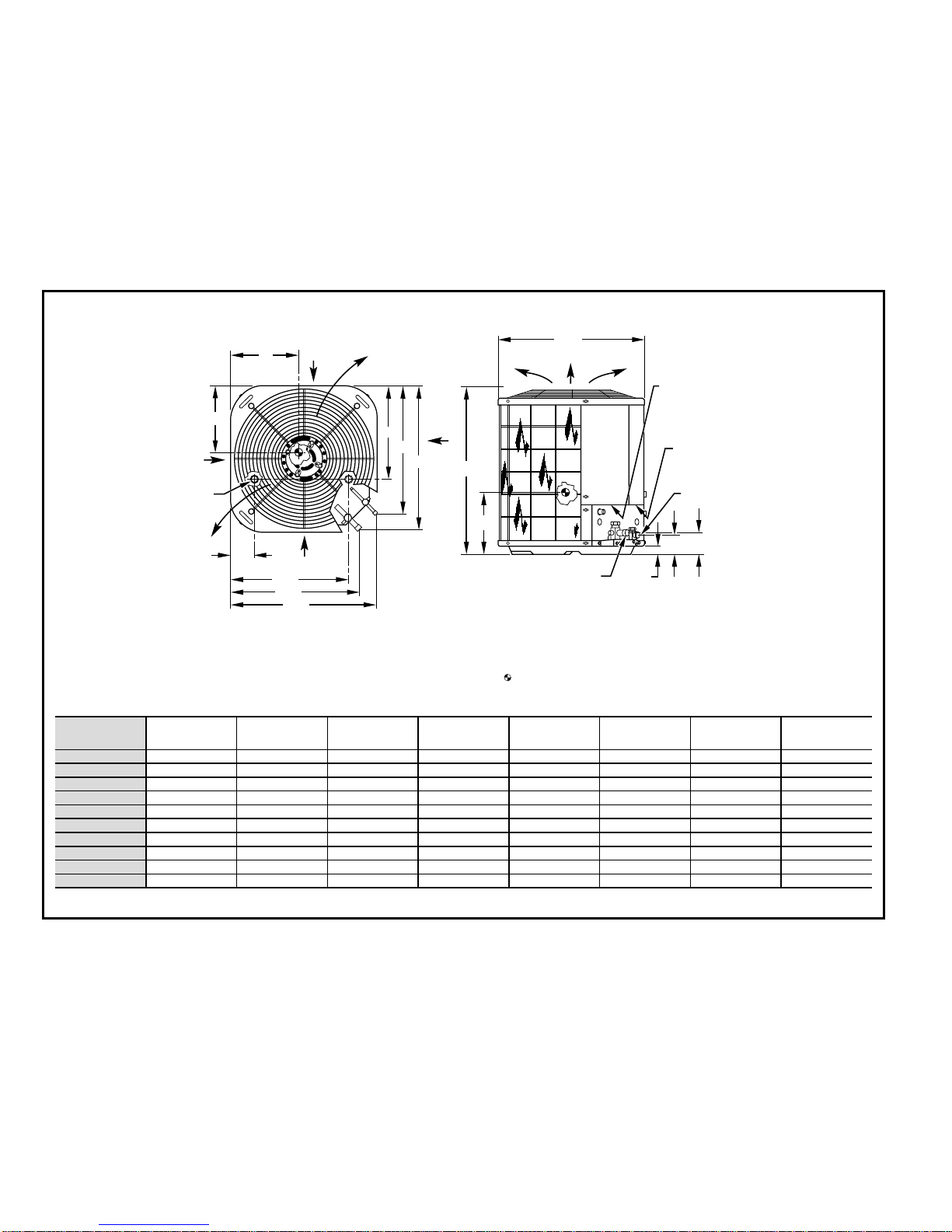

8 Dimensions
A97075
AIR DISCHARGE
AIR IN
30" SQ
B
P
C
3/8 -IN. DIA
TIEDOWN
KNOCKOUTS
(2) PLACES IN
BASEPAN
27/8″
11/4″
29 3/4"
271/4"
23 1/2"
6
1/2"
FIELD CONTROL SUPPLY
CONN 7/8 -IN. DIA
HOLE
FIELD POWER SUPPLY CONN
7/8 -IN. DIA HOLE WITH
11/8 -IN. DIA KNOCKOUT
AND 13/8 -IN. DIA
KNOCKOUT
3/8 -IN. DIA LIQUID
LINE CONN
D DIA VAPOR LINE CONN
299/16"
271/16"
20"
AIR IN
M
N
AIR DISCHARGE
AIR IN AIR IN
AIR DISCHARGE
NOTES:
1. Allow 30 in. clearance to service side of
unit, 48 in. above unit, 6 in. on one side, 12 in.
on remaining side, and 24 in. between units for proper airflow.
2. Minimum outdoor operating ambient in cooling mode is
55°F, max. 125°F.
3. Series designation is the 13th position of the unit
model number.
4. Center of gravity .
DIMENSIONS (IN.)
UNIT
SIZE SERIES B C D M N P
MINIMUM
MOUNTING PAD
DIMENSIONS
024 31 23-15/16 3-3/16 5/8 14-3/4 14 10 30 X 30
030 31 27-15/16 3-3/16 3/4 14-3/4 14 11 30 X 30
036 53 33-15/16 3-3/16 3/4 14-3/4 14 13 30 X 30
036 32, 33, 52 27-15/16 3-3/16 3/4 14-3/4 14 11 30 X 30
042 53 39-15/16 3-1/4 7/8 14-3/4 14 15 30 X 30
042 32, 33, 52 33-15/16 3-1/4 7/8 14-3/4 14 13 30 X 30
048 35 33-15/16 3-1/4 7/8 15-1/2 14-3/4 13 30 X 30
048 34, 54 33-15/16 3-1/4 7/8 15-1/2 14-3/4 13 30 X 30
060 35 39-15/16 3-1/4 7/8 15-1/2 14-3/4 15 30 X 30
060 34, 54 39-15/16 3-1/4 7/8 15-1/2 14-3/4 15 30 X 30

9
Combination ratings
See notes on pg. 14.
UNIT
SIZE-SERIES INDOOR MODEL TOT. CAP. BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
STANDARD
RATING
CARRIER GAS
FURNACE OR
ACCESSORY
TDR†
ACCESSORY
TXV‡LLS
024-31
CC5A/CD5AA024* 23,000 NONE —12.00 12.00 12.00 10.80
CC5A/CD5AA030 23,400 NONE —12.10 12.10 12.10 10.90
CC5A/CD5AW024 23,000 NONE —12.00 12.00 12.00 10.80
CC5A/CD5AW030 23,400 NONE —12.10 12.10 12.10 10.90
CE3AA024 23,400 NONE —12.00 12.00 12.00 10.90
CE3AA030 23,600 NONE —12.10 12.10 12.10 11.00
CF5AA024 23,400 NONE —12.00 12.00 12.00 10.90
CK3BA024 23,000 NONE —12.00 12.00 12.00 10.80
CK3BA030 23,400 NONE —12.10 12.10 12.10 10.95
CK5A/CK5BA024 23,000 NONE —12.00 12.00 12.00 10.80
CK5A/CK5BA030 23,400 NONE —12.10 12.10 12.10 10.95
CK5A/CK5BW024 23,000 NONE —12.00 12.00 12.00 10.80
CK5A/CK5BW030 23,400 NONE —12.10 12.10 12.10 10.95
F(A,B)4AN(F,C)024 23,200 TDR 12.00 —12.00 —10.90
F(A,B)4AN(F,C)030 23,600 TDR 12.20 —12.20 —11.15
FC4BNF024 23,200 TDR & TXV 12.00 ———10.90
FC4BNF030 23,600 TDR & TXV 12.20 ———11.15
FF1(B,C,D)NA024 23,200 TDR 12.00 —12.00 —10.80
FF1(B,C,D)NA030 23,400 TDR 12.20 —12.20 —11.05
FG3AAA024 23,000 NONE —11.80 11.80 11.80 10.65
FK4CNF001 23,800 TDR & TXV 13.00 ———12.30
40FKA/FK4CNF002 23,800 TDR & TXV 13.50 ———12.40
40FKA/FK4CNF003 23,800 TDR & TXV 14.00 ———12.70
COILS + 58MVP040-14VARIABLE-SPEED FURNACE
CC5A/CD5AA024 23,200 TDR 13.00 —13.00 —11.65
CC5A/CD5AA030 23,400 TDR 13.00 —13.00 —11.95
CC5A/CD5AW024 23,200 TDR 13.00 —13.00 —11.65
CC5A/CD5AW030 23,400 TDR 13.00 —13.00 —11.95
CK3BA024 23,200 TDR 13.00 —13.00 —11.65
CK3BA030 23,400 TDR 13.00 —13.00 —11.95
CK5A/CK5BW030 23,400 TDR 13.00 —13.00 —11.95
COILS + 58MVP060-14VARIABLE-SPEED FURNACE
CC5A/CD5AA024 23,200 TDR 13.00 —13.00 —11.65
CC5A/CD5AA030 23,400 TDR 13.00 —13.00 —11.95
CC5A/CD5AW024 23,200 TDR 13.00 —13.00 —11.65
CC5A/CD5AW030 23,400 TDR 13.00 —13.00 —11.95
CK3BA024 23,200 TDR 13.00 —13.00 —11.65
CK3BA030 23,400 TDR 13.00 —13.00 —11.95
CK5A/CK5BW024 23,200 TDR 13.00 —13.00 —11.65
CK5A/CK5BW030 23,400 TDR 13.00 —13.00 —11.95
COILS + 58MVP080-14VARIABLE-SPEED FURNACE
CC5A/CD5AA024 23,200 TDR 13.00 —13.00 —11.65
CC5A/CD5AA030 23,400 TDR 13.00 —13.00 —11.95
CC5A/CD5AW024 23,200 TDR 13.00 —13.00 —11.65
CC5A/CD5AW030 23,400 TDR 13.00 —13.00 —11.95
CK3BA024 23,200 TDR 13.00 —13.00 —11.95
CK3BA030 23,400 TDR 13.00 —13.00 —12.15
CK5A/CK5BW024 23,200 TDR 13.00 —13.00 —11.95
CK5A/CK5BW030 23,400 TDR 13.00 —13.00 —12.15
COILS + 58U(H,X)V060-12VARIABLE-SPEED FURNACE
CC5A/CD5AA024 23,200 TDR 13.00 —13.00 —11.75
CC5A/CD5AA030 23,400 TDR 13.00 —13.00 —11.95
CC5A/CD5AW024 23,200 TDR 13.00 —13.00 —11.75
CC5A/CD5AW030 23,400 TDR 13.00 —13.00 —11.95
CE3AA024 23,400 TDR 13.00 —13.00 —11.80
CE3AA030 23,600 TDR 13.00 —13.00 —12.05
CK3BA024 23,200 TDR 13.00 —13.00 —11.85
CK3BA030 23,200 TDR 13.00 —13.00 —12.10
CK5A/CK5BA024 23,200 TDR 13.00 —13.00 —11.85
CK5A/CK5BA030 23,200 TDR 13.00 —13.00 —12.10
CK5A/CK5BW030 23,200 TDR 13.00 —13.00 —12.10
030-31
CC5A/CD5AA030* 29,000 NONE —12.00 12.00 12.00 10.70
CC5A/CD5AA036 29,600 NONE —12.20 12.20 12.20 11.15
CC5A/CD5AW030 29,000 NONE —12.00 12.00 12.00 10.70
CD5A/CD5BW036 29,600 NONE —12.20 12.20 12.20 11.15
CE3AA030 29,000 NONE —12.00 12.00 12.00 10.85
CE3AA036 29,600 NONE —12.20 12.20 12.20 10.95
CF5AA036 29,600 NONE —12.20 12.20 12.20 11.05
CK3BA030 29,000 NONE —12.00 12.00 12.00 10.75
CK3BA036 29,600 NONE —12.20 12.20 12.20 11.15
CK5A/CK5BA030 29,000 NONE —12.00 12.00 12.00 10.75
CK5A/CK5BA036 29,600 NONE —12.20 12.20 12.20 11.15
CK5A/CK5BN036 27,600 NONE —12.20 12.20 12.20 11.15
CK5A/CK5BW030 29,000 NONE —12.00 12.00 12.00 10.75
CK5A/CK5BW036 29,600 NONE —12.20 12.20 12.20 11.15
F(A,B)4AN(F,C)030 29,200 TDR 12.10 —12.10 —10.90
F(A,B)4AN(F,C)036 29,600 TDR 12.00 —12.00 —10.85

10
Combination ratings continued
See notes on pg. 14.
UNIT
SIZE-SERIES INDOOR MODEL TOT. CAP. BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
STANDARD
RATING
CARRIER GAS
FURNACE OR
ACCESSORY
TDR†
ACCESSORY
LLS TXV‡
030-31
FC4BNF030 29,200 TDR & TXV 12.10 ———10.90
FC4BNF036 29,600 TDR & TXV 12.00 ———10.85
FF1(B,C,D)NA030 29,000 TDR 12.00 —12.00 —10.85
FG3AAA036 29,600 NONE —12.00 12.00 12.00 10.85
FK4CNF001 29,400 TDR & TXV 13.00 ———11.80
40FKA/FK4CNF002 29,400 TDR & TXV 13.00 ———11.90
40FKA/FK4CNF003 29,800 TDR & TXV 13.50 ———12.35
40FKA/FK4CNF005 30,000 TDR & TXV 14.00 ———12.85
COILS + 58MVP040-14VARIABLE-SPEED FURNACE
CC5A/CD5AA030 29,000 TDR 12.80 —12.80 —11.35
CC5A/CD5AA036 29,600 TDR 13.00 —13.00 —11.85
CC5A/CD5AW030 29,000 TDR 12.80 —12.80 —11.35
CD5AW036 29,600 TDR 13.00 —13.00 —11.85
CK3BA030 29,000 TDR 12.50 —12.50 —11.25
CK3BA036 29,600 TDR 13.00 —13.00 —11.85
CK5A/CK5BW030 29,000 TDR 12.50 —12.50 —11.25
CK5A/CK5BW036 29,600 TDR 13.00 —13.00 —11.85
COILS + 58MVP060-14VARIABLE-SPEED FURNACE
CC5A/CD5AA030 29,000 TDR 12.80 —12.80 —11.35
CC5A/CD5AA036 29,600 TDR 13.00 —13.00 —11.85
CC5A/CD5AW030 29,000 TDR 12.80 —12.80 —11.35
CD5AW036 29,600 TDR 13.00 —13.00 —11.85
CK3BA030 29,000 TDR 12.80 —12.80 —11.25
CK3BA036 29,600 TDR 13.00 —13.00 —11.85
CK5A/CK5BA036 29,600 TDR 13.00 —13.00 —11.85
CK5A/CK5BW030 29,000 TDR 12.80 —12.80 —11.25
COILS + 58MVP080-14VARIABLE-SPEED FURNACE
CC5A/CD5AA030 29,000 TDR 12.80 —12.80 —11.35
CC5A/CD5AA036 29,600 TDR 13.00 —13.00 —11.85
CC5A/CD5AW030 29,000 TDR 12.80 —12.80 —11.35
CD5AW036 29,600 TDR 13.00 —13.00 —11.85
CK3BA030 29,000 TDR 12.80 —12.80 —11.35
CK3BA036 29,600 TDR 13.00 —13.00 —11.95
CK5A/CK5BW030 29,000 TDR 12.80 —12.80 —11.35
CK5A/CK5BW036 29,600 TDR 13.00 —13.00 —11.95
COILS + 58MVP080-20VARIABLE-SPEED FURNACE
CK3BA030 29,000 TDR 12.50 —12.50 —11.20
CK3BA036 29,600 TDR 13.00 —13.00 —11.80
CK5A/CK5BW030 29,000 TDR 12.50 —12.50 —11.20
CK5A/CK5BW036 29,600 TDR 13.00 —13.00 —11.80
COILS + 58MVP100-20VARIABLE-SPEED FURNACE
CK3BA030 29,000 TDR 13.00 —13.00 —11.60
CK3BA036 29,600 TDR 13.00 —13.00 —12.20
CK5A/CK5BW030 29,000 TDR 13.00 —13.00 —11.60
CK5A/CK5BW036 29,600 TDR 13.00 —13.00 —12.20
COILS + 58MVP120-20VARIABLE-SPEED FURNACE
CK3BA030 29,000 TDR 13.00 —13.00 —11.55
CK3BA036 29,600 TDR 13.00 —13.00 —12.15
CK5A/CK5BW036 29,600 TDR 13.00 —13.00 —12.15
COILS + 58U(H,X)V060-12VARIABLE-SPEED FURNACE
CC5A/CD5AA030 29,000 TDR 13.00 —13.00 —11.35
CC5A/CD5AA036 29,600 TDR 13.50 —13.50 —11.90
CC5A/CD5AW030 29,000 TDR 13.00 —13.00 —11.35
CD5AW036 29,600 TDR 13.50 —13.50 —11.90
CE3AA030 29,000 TDR 13.00 —13.00 —11.50
CE3AA036 29,600 TDR 13.20 —13.20 —11.65
CK3BA030 29,000 TDR 13.00 —13.00 —11.45
CK3BA036 29,600 TDR 13.50 —13.50 —12.00
CK5A/CK5BA030 29,000 TDR 13.00 —13.00 —11.45
CK5A/CK5BA036 29,600 TDR 13.50 —13.50 —12.00
CK5A/CK5BN036 27,600 TDR 13.00 —13.00 —11.85
CK5A/CK5BW030 29,000 TDR 13.00 —13.00 —11.45
COILS + 58U(H,X)V080-16VARIABLE-SPEED FURNACE
CC5A/CD5AA030 29,000 TDR 13.00 —13.00 —11.35
CC5A/CD5AA036 29,600 TDR 13.50 —13.50 —11.90
CC5A/CD5AW030 29,000 TDR 13.00 —13.00 —11.35
CD5AW036 29,600 TDR 13.50 —13.50 —11.90
CE3AA030 29,000 TDR 13.00 —13.00 —11.50
CE3AA036 29,600 TDR 13.20 —13.20 —11.65
CK3BA030 29,000 TDR 13.00 —13.00 —11.60
CK3BA036 29,600 TDR 13.50 —13.50 —12.20
CK5A/CK5BW030 29,000 TDR 13.00 —13.00 —11.60
CK5A/CK5BW036 29,600 TDR 13.50 —13.50 —12.20
036-32, 33,
52, 53
CC5A/CD5AA036* 35,000 NONE —12.00 12.00 12.00 10.75
CC5A/CD5AA042 35,000 NONE —12.00 12.00 12.00 10.75
CC5A/CD5AW036 35,000 NONE —12.00 12.00 12.00 10.75
CC5A/CD5AW042 35,000 NONE —12.00 12.00 12.00 10.70
CE3AA036 35,000 NONE —11.80 11.80 11.80 10.65

11
Combination ratings continued
See notes on pg. 14.
UNIT
SIZE-SERIES INDOOR MODEL TOT. CAP. BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
STANDARD
RATING
CARRIER GAS
FURNACE OR
ACCESSORY
TDR†
ACCESSORY
LLS TXV‡
036-32, 33,
52, 53
CE3AA042 35,400 NONE —12.10 12.10 12.10 10.80
CF5AA036 35,000 NONE —12.00 12.00 12.00 10.70
CK3BA036 35,000 NONE —12.00 12.00 12.00 10.75
CK3BA042 35,000 NONE —12.00 12.00 12.00 10.75
CK5A/CK5BA036 35,000 NONE —12.00 12.00 12.00 10.75
CK5A/CK5BA042 35,000 NONE —12.00 12.00 12.00 10.75
CK5A/CK5BN036 33,000 NONE —12.00 12.00 12.00 10.85
CK5A/CK5BN042 33,000 NONE —12.00 12.00 12.00 10.75
CK5A/CK5BT036 35,000 NONE —12.00 12.00 12.00 10.75
CK5A/CK5BT042 35,000 NONE —12.00 12.00 12.00 10.75
CK5A/CK5BW036 35,000 NONE —12.00 12.00 12.00 10.75
F(A,B)4AN(F,B,C)042 35,400 TDR 12 ——12.00 10.70
F(A,B)4AN(F,C)036 35,000 TDR 11.50 ——11.50 10.45
FC4BN(F,B)042 35,400 TDR & TXV 12.00 ———10.70
FC4BNF036 35,000 TDR & TXV 11.50 ———10.45
FG3AAA036 34,600 NONE —11.80 11.80 11.80 10.55
FK4CNB006 36,000 TDR & TXV 14.00 ———12.40
FK4CNF001 34,400 TDR & TXV 12.00 ———11.15
FK4CNF002 34,600 TDR & TXV 12.00 ———11.20
FK4CNF003 35,000 TDR & TXV 13.00 ———11.70
FK4CNF005 35,600 TDR & TXV 13.50 ———12.15
COILS + 58MVP060-14VARIABLE-SPEED FURNACE
CC5A/CD5AA036 35,000 TDR 12.50 ——12.50 11.00
CC5A/CD5AA042 35,000 TDR 12.50 ——12.50 11.10
CC5A/CD5AW036 35,000 TDR 12.50 ——12.50 11.00
CK3BA036 35,000 TDR 12.50 ——12.50 11.00
CK3BA042 35,000 TDR 12.50 ——12.50 11.15
CK5A/CK5BA036 35,000 TDR 12.50 ——12.50 11.00
CK5A/CK5BN042 34,000 TDR 12.50 ——12.50 11.15
CK5A/CK5BT036 35,000 TDR 12.50 ——12.50 11.00
COILS + 58MVP080-14VARIABLE-SPEED FURNACE
CC5A/CD5AA036 35,000 TDR 12.80 ——12.80 11.20
CC5A/CD5AA042 35,000 TDR 12.80 ——12.80 11.35
CC5A/CD5AW036 35,000 TDR 12.80 ——12.80 11.20
CC5A/CD5AW042 35,000 TDR 12.80 ——12.80 11.25
CK5A/CK5BA042 35,000 TDR 12.80 ——12.80 11.25
CK5A/CK5BT042 35,000 TDR 12.80 ——12.80 11.25
CK5A/CK5BW036 35,000 TDR 12.50 ——12.50 11.10
COILS + 58MVP080-20VARIABLE-SPEED FURNACE
CK3BA036 35,000 TDR 12.50 ——12.50 11.00
CK3BA042 35,000 TDR 12.50 ——12.50 11.15
CK5A/CK5BA042 35,000 TDR 12.50 ——12.50 11.15
CK5A/CK5BT042 35,000 TDR 12.50 ——12.50 11.15
CK5A/CK5BW036 35,000 TDR 12.50 ——12.50 11.00
COILS + 58MVP100-20VARIABLE-SPEED FURNACE
CC5A/CD5AA036 35,000 TDR 12.80 ——12.80 11.25
CC5A/CD5AA042 35,000 TDR 13.00 ——13.00 11.40
CC5A/CD5AW036 35,000 TDR 12.80 ——12.80 11.25
CC5A/CD5AW042 35,000 TDR 13.00 ——13.00 11.35
CK3BA036 35,000 TDR 12.80 ——12.80 11.30
CK3BA042 35,000 TDR 13.00 ——13.00 11.45
CK5A/CK5BA042 35,000 TDR 13.00 ——13.00 11.45
CK5A/CK5BT042 35,000 TDR 13.00 ——13.00 11.45
CK5A/CK5BW036 35,000 TDR 12.80 ——12.80 11.30
COILS + 58MVP120-20VARIABLE-SPEED FURNACE
CK5A/CK5BA042 35,000 TDR 13.00 ——13.00 11.45
CK5A/CK5BT042 35,000 TDR 13.00 ——13.00 11.45
CK5A/CK5BW036 35,000 TDR 12.80 ——12.80 11.35
COILS + 58U(H,X)V060-12VARIABLE-SPEED FURNACE
CC5A/CD5AA036 35,000 TDR 12.50 ——12.50 11.25
CC5A/CD5AA042 35,000 TDR 12.50 ——12.50 11.25
CE3AA036 35,000 TDR 12.50 ——12.50 11.15
CE3AA042 35,000 TDR 13.00 ——13.00 11.35
CK3BA036 35,000 TDR 12.50 ——12.50 11.30
CK5A/CK5BA036 35,000 TDR 12.50 ——12.50 11.30
CK5A/CK5BN036 35,000 TDR 12.50 ——12.50 11.15
CK5A/CK5BT036 35,000 TDR 12.50 ——12.50 11.30

12
Combination ratings continued
See notes on pg. 14.
UNIT
SIZE-SERIES INDOOR MODEL TOT. CAP. BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
STANDARD
RATING
CARRIER GAS
FURNACE OR
ACCESSORY
TDR†
ACCESSORY
LLS TXV‡
036-32, 33,
52, 53
COILS + 58U(H,X)V080-16VARIABLE-SPEED FURNACE
CC5A/CD5AA036 35,000 TDR 12.50 ——12.50 11.45
CC5A/CD5AA042 35,000 TDR 13.00 ——13.00 11.60
CC5A/CD5AW036 35,000 TDR 12.50 ——12.50 11.45
CC5A/CD5AW042 35,000 TDR 13.00 ——13.00 11.55
CE3AA036 35,000 TDR 12.50 ——12.50 11.40
CE3AA042 35,000 TDR 13.00 ——13.00 11.60
CK3BA036 35,000 TDR 12.50 ——12.50 11.45
CK3BA042 35,000 TDR 13.00 ——13.00 11.55
CK5A/CK5BA042 35,000 TDR 13.00 ——13.00 11.55
CK5A/CK5BT042 35,000 TDR 13.00 ——13.00 11.55
CK5A/CK5BW036 35,000 TDR 12.50 ——12.50 11.45
COILS + 58U(H,X)V100-20VARIABLE-SPEED FURNACE
CC5A/CD5AW036 35,000 TDR 12.80 ——12.80 11.65
CC5A/CD5AW042 35,000 TDR 13.00 ——13.00 11.70
CE3AA036 35,000 TDR 12.50 ——12.50 11.60
CE3AA042 35,000 TDR 13.00 ——13.00 11.75
CK3BA042 35,000 TDR 13.00 ——13.00 11.80
CK5A/CK5BA042 35,000 TDR 13.00 ——13.00 11.80
CK5A/CK5BT042 35,000 TDR 13.00 ——13.00 11.80
CK5A/CK5BW036 35,000 TDR 12.80 ——12.80 11.75
COILS + 58U(H,X)V120-20VARIABLE-SPEED FURNACE
CC5A/CD5AW036 35,000 TDR 12.80 ——12.80 11.50
CC5A/CD5AW042 35,000 TDR 13.00 ——13.00 11.60
CE3AA036 35,000 TDR 12.50 ——12.50 11.45
CE3AA042 35,000 TDR 13.00 ——13.00 11.65
CK3BA042 35,000 TDR 13.00 ——13.00 11.70
CK5A/CK5BA042 35,000 TDR 13.00 ——13.00 11.70
CK5A/CK5BT042 35,000 TDR 13.00 ——13.00 11.70
CK5A/CK5BW036 35,000 TDR 12.80 ——12.80 11.65
042-32, 33,
52, 53
CC5A/CD5AA042* 40,000 NONE —12.00 12.00 12.00 10.45
CC5A/CD5AC048 40,000 NONE —12.00 12.00 12.00 10.35
CC5A/CD5AW042 40,000 NONE —12.00 12.00 12.00 10.35
CC5A/CD5AW048 40,500 NONE —12.00 12.00 12.00 10.45
CD5AA048 40,500 NONE —12.00 12.00 12.00 10.45
CE3AA042 40,000 NONE —12.00 12.00 12.00 10.50
CE3AA048 40,500 NONE —12.00 12.00 12.00 10.55
CF5AA048 40,500 NONE —12.00 12.00 12.00 10.45
CK3BA042 40,000 NONE —12.00 12.00 12.00 10.45
CK3BA048 40,500 NONE —12.00 12.00 12.00 10.50
CK5A/CK5BA042 40,000 NONE —12.00 12.00 12.00 10.45
CK5A/CK5BA048 40,500 NONE —12.00 12.00 12.00 10.50
CK5A/CK5BN042 39,000 NONE —12.00 12.00 12.00 10.45
CK5A/CK5BN048 39,500 NONE —12.00 12.00 12.00 10.50
CK5A/CK5BT042 40,000 NONE —12.00 12.00 12.00 10.45
CK5A/CK5BT048 40,500 NONE —12.00 12.00 12.00 10.50
CK5A/CK5BW048 40,500 NONE —12.00 12.00 12.00 10.50
F(A,B)4AN(F,B,C)042 40,000 TDR 11.50 ——11.50 10.30
F(A,B)4AN(F,B,C)048 40,500 TDR 12.00 ——12.00 10.50
FC4BN(F,B)042 40,000 TDR & TXV 11.50 ———10.30
FC4BN(F,B)048 40,500 TDR & TXV 12.00 ———10.50
FC4BNB054 42,000 TDR & TXV 12.50 ———11.15
FG3AAA048 40,500 NONE —12.00 12.00 12.00 10.40
FK4CNB006 42,000 TDR & TXV 14.00 ———12.00
FK4CNF003 41,000 TDR & TXV 12.50 ———11.15
FK4CNF005 41,500 TDR & TXV 13.00 ———11.65
COILS + 58MVP080-14VARIABLE-SPEED FURNACE
CC5A/CD5AA042 40,000 TDR 12.50 ——12.50 10.95
CC5A/CD5AW042 40,000 TDR 12.50 ——12.50 10.85
CC5A/CD5AW048 40,000 TDR 12.50 ——12.50 11.05
CD5AA048 40,000 TDR 13.00 ——13.00 11.05
CK3BA048 40,000 TDR 12.50 ——12.50 11.00
CK5A/CK5BA048 40,000 TDR 12.50 ——12.50 11.00
CK5A/CK5BT048 40,000 TDR 12.50 ——12.50 11.00
COILS + 58MVP080-20VARIABLE-SPEED FURNACE
CK3BA048 40,500 TDR 12.30 ——12.30 10.85
CK5A/CK5BA048 40,500 TDR 12.30 ——12.30 10.85
CK5A/CK5BT048 40,500 TDR 12.30 ——12.30 10.85
COILS + 58MVP100-20VARIABLE-SPEED FURNACE
CC5A/CD5AA042 40,000 TDR 12.50 ——12.50 11.00
CC5A/CD5AW042 40,000 TDR 12.50 ——12.50 10.90
CC5A/CD5AW048 40,000 TDR 13.00 ——13.00 11.10
CD5AA048 40,000 TDR 13.00 ——13.00 11.10
CK3BA048 40,500 TDR 13.00 ——13.00 11.20
CK5A/CK5BA048 40,500 TDR 13.00 ——13.00 11.20
CK5A/CK5BT048 40,500 TDR 13.00 ——13.00 11.20

13
Combination ratings continued
See notes on pg. 14.
UNIT
SIZE-SERIES INDOOR MODEL TOT. CAP. BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
STANDARD
RATING
CARRIER GAS
FURNACE OR
ACCESSORY
TDR†
ACCESSORY
LLS TXV‡
042-32, 33,
52, 53
COILS + 58MVP120-20VARIABLE-SPEED FURNACE
CK5A/CK5BW048 40,500 TDR 13.00 ——13.00 11.20
COILS + 58U(H,X)V080-16VARIABLE-SPEED FURNACE
CC5A/CD5AA042 40,000 TDR 12.50 ——12.50 10.95
CC5A/CD5AW042 40,000 TDR 12.50 ——12.50 10.85
CC5A/CD5AW048 40,500 TDR 13.00 ——13.00 11.10
CD5AA048 40,500 TDR 13.00 ——13.00 11.10
CE3AA042 40,000 TDR 12.80 ——12.80 11.00
CE3AA048 40,500 TDR 12.80 ——12.80 11.05
CK3BA042 40,000 TDR 12.50 ——12.50 10.95
CK3BA048 40,500 TDR 12.50 ——12.50 11.10
CK5A/CK5BA042 40,000 TDR 12.50 ——12.50 10.95
CK5A/CK5BA048 40,500 TDR 12.50 ——12.50 11.10
CK5A/CK5BT042 40,000 TDR 12.50 ——12.50 10.95
CK5A/CK5BT048 40,500 TDR 12.50 ——12.50 11.10
COILS + 58U(H,X)V100-20VARIABLE-SPEED FURNACE
CC5A/CD5AW042 40,000 TDR 12.50 ——12.50 11.10
CC5A/CD5AW048 40,500 TDR 13.00 ——13.00 11.30
CD5AA048 40,500 TDR 13.00 ——13.00 11.30
CE3AA042 40,000 TDR 13.00 ——13.00 11.25
CE3AA048 40,500 TDR 13.00 ——13.00 11.30
CK3BA042 40,000 TDR 12.50 ——12.50 11.20
CK5A/CK5BA042 40,000 TDR 12.50 ——12.50 11.20
CK5A/CK5BT042 40,000 TDR 12.50 ——12.50 11.20
CK5A/CK5BW048 40,500 TDR 13.00 ——13.00 11.35
COILS + 58U(H,X)V120-20VARIABLE-SPEED FURNACE
CC5A/CD5AW042 40,000 TDR 12.50 ——12.50 10.95
CC5A/CD5AW048 40,500 TDR 13.00 ——13.00 11.10
CD5AA048 40,500 TDR 13.00 ——13.00 11.10
CE3AA042 40,000 TDR 12.80 ——12.80 11.10
CE3AA048 40,500 TDR 13.00 ——13.00 11.15
CK3BA042 40,000 TDR 12.50 ——12.50 11.20
CK5A/CK5BA042 40,000 TDR 12.50 ——12.50 11.20
CK5A/CK5BT042 40,000 TDR 12.50 ——12.50 11.20
CK5A/CK5BW048 40,500 TDR 13.00 ——13.00 11.30
048-34, 35, 54
CD5AA048* 47,000 NONE —12.00 12.00 12.00 10.50
CC5A/CD5AA060 47,500 NONE —12.10 12.10 12.10 10.55
CC5A/CD5AC048 46,000 NONE —11.80 11.80 11.80 10.30
CC5A/CD5AW048 47,000 NONE —12.00 12.00 12.00 10.50
CC5A/CD5AW060 47,500 NONE —12.20 12.20 12.20 10.80
CE3AA048 47,000 NONE —12.00 12.00 12.00 10.65
CE3AA060 47,500 NONE —12.10 12.10 12.10 10.90
CF5AA048 47,000 NONE —12.00 12.00 12.00 10.60
CK3BA048 47,000 NONE —12.00 12.00 12.00 10.55
CK3BA060 47,500 NONE —12.10 12.10 12.10 10.80
CK5A/CK5BA048 47,000 NONE —12.00 12.00 12.00 10.55
CK5A/CK5BA060 47,500 NONE —12.10 12.10 12.10 10.80
CK5A/CK5BN048 46,000 NONE —12.00 12.00 12.00 10.55
CK5A/CK5BN060 47,500 NONE —12.10 12.10 12.10 11.00
CK5A/CK5BT048 47,000 NONE —12.00 12.00 12.00 10.55
CK5A/CK5BT060 47,500 NONE —12.10 12.10 12.10 10.80
CK5A/CK5BW048 47,000 NONE —12.00 12.00 12.00 10.55
CK5A/CK5BX060 47,500 NONE —12.20 12.20 12.20 11.00
F(A,B)4AN(F,B,C)048 47,000 TDR 12.00 —12.00 —10.50
F(A,B)4AN(F,B,C)060 47,500 TDR 12.10 —12.10 —10.60
FB4ANB070 47,500 TDR 12.20 —12.20 —11.00
FC4BN(F,B)048 47,000 TDR & TXV 12.00 ———10.50
FC4BN(F,B)060 47,500 TDR & TXV 12.10 ———10.60
FC4BNB054 48,000 TDR & TXV 12.50 ———11.05
FC4BNB070 47,500 TDR & TXV 12.20 ———11.00
FG3AAA048 47,000 NONE —12.00 12.00 12.00 10.50
FG3AAA060 48,000 NONE —12.20 12.20 12.20 10.75
40FKA/FK4CNB006 48,000 TDR 14.00 ———11.95
40FKA/FK4CNF005 47,000 TDR 13.50 ———11.60
COILS + 58MVP080-14VARIABLE-SPEED FURNACE
CD5AA048 47,000 TDR 12.00 —12.00 —10.60
CK3BA048 47,000 TDR 12.00 —12.00 —10.70
CK5A/CK5BA048 47,000 TDR 12.00 —12.00 —10.70
COILS + 58MVP080-20VARIABLE-SPEED FURNACE
CC5A/CD5AA060 47,500 TDR 12.00 —12.00 —10.55
CC5A/CD5AW060 47,000 TDR 12.65 —12.65 —10.90
CD5AA048 47,000 TDR 12.00 —12.00 —10.50
CK3BA048 47,000 TDR 12.00 —12.00 —10.60
CK5A/CK5BA048 47,000 TDR 12.00 —12.00 —10.60
CK5A/CK5BA060 47,500 TDR 12.00 —12.00 —10.85
CK5A/CK5BX060 47,500 TDR 12.65 —12.65 —11.15

14
Combination ratings continued
* Tested Combination
†In most cases, only 1 method should be used to achieve TDR function. Using more than 1 method in a system may cause degradation in perfor-
mance.Use either the accessory Time-Delay Relay KAATD0101TDR or a furnace equipped with TDR. Most Carrier furnaces are equipped with
TDR.
‡Based on computer simulation.TXV must be hard shutoff type.
EER —Energy Efficiency Ratio
LLS —Liquid-Line Solenoid Valve
SEER —Seasonal Energy Efficiency Ratio
NOTES: 1. Ratings are net values reflecting the effects of circulating fan motor heat.Supplemental electric heat is not included.
2. Tested outdoor/indoor combinations have been tested in accordance with DOE test procedures for central air conditioners. Ratings for
other combinations are determined under DOE computer simulation procedures.
3. Determine actual CFM values obtainable for your system by referring to fan performance data in fan coil or furnace coil literature.
UNIT
SIZE-SERIES INDOOR MODEL TOT. CAP. BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
STANDARD
RATING
CARRIER GAS
FURNACE OR
ACCESSORY
TDR†
ACCESSORY
LLS TXV‡
048-34, 35, 54
COILS + 58MVP100-20VARIABLE-SPEED FURNACE
CC5A/CD5AA060 47,500 TDR 12.50 —12.50 —10.90
CC5A/CD5AC048 47,000 TDR 12.00 —12.00 —10.55
CC5A/CD5AW060 47,000 TDR 13.00 —13.00 —11.20
CD5AA048 47,000 TDR 12.00 —12.00 —10.80
CKBA048 47,000 TDR 12.00 —12.00 —10.90
CK5BA060 47,500 TDR 12.50 —12.50 —11.15
CK5A/CK5BA048 47,000 TDR 12.00 —12.00 —10.90
CK5A/CK5BA060 47,500 TDR 12.50 —12.50 —11.15
CK5A/CK5BX060 47,000 TDR 13.00 —13.00 —11.45
COILS + 58MVP120-20VARIABLE-SPEED FURNACE
CC5A/CD5AA060 47,500 TDR 12.50 —12.50 —10.90
CC5A/CD5AW048 47,000 TDR 12.50 —12.50 —10.85
CC5A/CD5AW060 47,000 TDR 13.00 —13.00 —11.25
CK5BA060 47,500 TDR 12.50 —12.50 —11.20
CK5A/CK5BA060 47,500 TDR 12.50 —12.50 —11.20
CK5A/CK5BW048 47,000 TDR 12.50 —12.50 —10.95
CK5A/CK5BX060 47,000 TDR 13.00 —13.00 —11.45
COILS + 58U(H,X)V080-16VARIABLE-SPEED FURNACE
CC5A/CD5AC048 47,000 TDR 12.00 —12.00 —10.50
CD5AA048 47,000 TDR 12.00 —12.00 —10.65
CK3BA048 47,000 TDR 12.00 —12.00 —10.75
CK5A/CK5BA048 47,000 TDR 12.00 —12.00 —10.75
COILS + 58U(H,X)V100-20VARIABLE-SPEED FURNACE
CC5A/CD5AA060 47,000 TDR 12.50 —12.50 —11.25
CC5A/CD5AW048 47,000 TDR 12.50 —12.50 —11.10
CC5A/CD5AW060 47,000 TDR 13.00 —13.00 —11.60
CK3BA060 47,500 TDR 12.50 —12.50 —11.50
CK5A/CK5BA060 47,500 TDR 12.50 —12.50 —11.50
CK5A/CK5BW048 47,000 TDR 12.50 —12.50 —11.20
CK5A/CK5BX060 47,000 TDR 13.00 —13.00 —11.80
COILS + 58U(H,X)V120-20VARIABLE-SPEED FURNACE
CC5A/CD5AA060 47,000 TDR 12.50 —12.50 —11.10
CC5A/CD5AW048 47,000 TDR 12.80 —12.80 —11.00
CC5A/CD5AW060 47,000 TDR 13.00 —13.00 —11.45
CK5BA060 47,000 TDR 12.50 —12.50 —11.40
CK5A/CK5BA060 47,000 TDR 12.50 —12.50 —11.40
CK5A/CK5BW048 47,000 TDR 12.80 —12.80 —11.10
CK5A/CK5BX060 47,000 TDR 13.00 —13.00 —11.70
060-34, 35, 54
CC5A/CD5AW060* 58,000 NONE —12.00 12.00 12.00 10.70
CC5A/CD5AA060 56,000 NONE —11.50 11.50 11.50 10.50
CE3AA060 58,000 NONE —12.00 12.00 12.00 10.80
CK3BA060 56,000 NONE —12.00 12.00 12.00 10.60
CK5A/CK5BA060 56,000 NONE —11.50 11.50 11.50 10.60
CK5A/CK5BN060 56,000 NONE —11.50 11.50 11.50 10.95
CK5A/CK5BT060 56,000 NONE —11.50 11.50 11.50 10.45
CK5A/CK5BX060 58,000 NONE —12.00 12.00 12.00 10.90
F(A,B)4AN(F,B,C)060 58,000 TDR 11.50 —11.50 —10.40
FB4ANB070 58,500 TDR 12.00 —12.00 —10.85
FC4BN(F,B)060 58,000 TDR & TXV 11.50 ———10.40
FC4BNB070 58,500 TDR & TXV 12.00 ———10.85
40FKA/FK4CNB006 59,000 TDR & TXV 13.00 ———11.40
COILS + 58U(H,X)V100-20VARIABLE-SPEED FURNACE
CC5A/CD5AA060 56,000 TDR 12.20 —12.20 —10.75
CC5A/CD5AW060 58,000 TDR 12.50 —12.50 —11.30
CK3BA060 56,000 TDR 12.20 —12.20 —10.75
CK5A/CK5BA060 56,000 TDR 12.20 —12.20 —10.75
CK5A/CK5BT060 56,000 TDR 12.20 —12.20 —10.75
CK5A/CK5BX060 58,000 TDR 12.50 —12.50 —11.30
COILS + 58U(H,X)V120-20VARIABLE-SPEED FURNACE
CC5A/CD5AA060 56,000 TDR 12.20 —12.20 —10.90
CC5A/CD5AW060 58,000 TDR 12.50 —12.50 —11.30
CK3BA060 56,000 TDR 12.20 —12.20 —10.90
CK5A/CK5BA060 56,000 TDR 12.20 —12.20 —10.90
CK5A/CK5BT060 56,000 TDR 12.20 —12.20 —10.90
CK5A/CK5BX060 58,000 TDR 12.50 —12.50 —11.30

15
Detailed cooling capacities*
See notes on pg. 21.
EVAPORATOR
AIR CONDENSER ENTERING AIRTEMPERATURES °F 85 95 105 115 125
CFM EWB
Capacity
MBtuh†Total
System
KW**
Capacity
MBtuh†Total
System
KW**
Capacity
MBtuh†Total
System
KW**
Capacity
MBtuh†Total
System
KW**
Capacity
MBtuh†Total
System
KW**Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡
38BRC024-31 Outdoor SectionWith CC5A/CD5AA024 Indoor Section
700 72
67
62
57
25.9
23.6
21.4
20.3
12.7
15.9
19.0
20.3
1.92
1.93
1.93
1.92
25.0
22.7
20.6
19.7
12.3
15.5
18.6
19.7
2.13
2.13
2.13
2.12
24.1
21.9
19.8
19.1
12.0
15.2
18.2
19.1
2.37
2.36
2.36
2.35
23.1
21.0
19.0
18.5
11.6
14.8
17.8
18.5
2.63
2.63
2.62
2.63
22.2
20.1
18.2
17.8
11.3
14.5
17.4
17.8
2.94
2.93
2.92
2.94
800 72
67
62
57
26.5
24.1
21.9
21.1
13.2
16.9
20.3
21.1
1.96
1.96
1.96
1.97
25.5
23.2
21.1
20.5
12.9
16.5
19.9
20.5
2.17
2.17
2.17
2.17
24.5
22.3
20.2
19.8
12.5
16.1
19.4
19.8
2.40
2.40
2.40
2.41
23.5
21.4
19.4
19.2
12.2
15.8
19.0
19.2
2.67
2.67
2.66
2.66
22.5
20.5
18.6
18.5
11.8
15.4
18.5
18.5
2.98
2.97
2.96
2.98
900 72
67
62
57
26.9
24.5
22.3
21.8
13.8
17.8
21.4
21.8
2.00
2.00
2.00
2.00
25.8
23.5
21.4
21.1
13.4
17.4
20.9
21.1
2.20
2.20
2.20
2.20
24.8
22.6
20.6
20.5
13.0
17.0
20.4
20.5
2.44
2.44
2.44
2.43
23.8
21.7
19.8
19.8
12.7
16.6
19.8
19.8
2.71
2.71
2.70
2.70
22.8
20.7
19.1
19.1
12.3
16.3
19.1
19.1
3.02
3.01
3.00
3.03
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size Cooling Indoor Section Size Cooling Capacity Power Capacity Power
CC5A/CD5AA 024 1.00 1.00 COILS + 58MVP060-14VARIABLE-SPEED FURNACE
030 1.02 1.00 CC5A/CD5AA 024 1.01 0.94
CC5A/CD5AW 024 1.00 1.00 030 1.02 0.93
030 1.02 1.00 CC5A/CD5AW 024 1.01 0.94
CE3AA 024 1.02 1.00 030 1.02 0.93
030 1.03 1.00 CK3BA 024 1.01 0.94
CF5AA 024 1.02 1.00 030 1.02 0.94
CK3BA 024 1.00 1.00 CK5A/CK5BW 024 1.01 0.94
030 1.02 1.00 030 1.02 0.94
CK5A/CK5BA 024 1.00 1.00 COILS + 58MVP080-14 VARIABLE-SPEED FURNACE
030 1.02 1.00 CC5A/CD5AA 024 1.01 0.94
CK5A/CK5BW 024 1.00 1.00 030 1.02 0.93
030 1.02 1.00 CC5A/CD5AW 024 1.01 0.94
F(A,B)4AN(F,C) 024 1.01 1.00 030 1.02 0.93
030 1.03 0.99 CK3BA 024 1.01 0.93
FC4BNF 024 1.01 1.00 030 1.02 0.92
030 1.03 0.99 CK5A/CK5BW 024 1.01 0.93
FF1(B,C,D)NA 024 1.01 1.01 030 1.02 0.92
030 1.02 1.01 COILS + 58U(H,X)V060-12VARIABLE-SPEED FURNACE
FG3AAA 024 1.00 1.00 CC5A/CD5AA 024 1.01 0.92
FK4CNF 001 1.03 0.92 030 1.02 0.91
40FKA/FK4CNF 002 1.03 0.92 CC5A/CD5AW 024 1.01 0.92
003 1.03 0.90 030 1.02 0.91
COILS + 58MVP040-14VARIABLE-SPEED FURNACE CE3AA 024 1.02 0.93
CC5A/CD5AA 024 1.01 0.94 030 1.03 0.92
030 1.02 0.93 CK3BA 024 1.01 0.92
CC5A/CD5AW 024 1.01 0.94 030 1.01 0.91
030 1.02 0.93 CK5A/CK5BA 024 1.01 0.92
CK3BA 024 1.01 0.94 030 1.01 0.91
030 1.02 0.94 CK5A/CK5BW 030 1.01 0.91
CK5A/CK5BW 030 1.02 0.94

16
Detailed cooling capacities* continued
See notes on pg. 21.
EVAPORATOR
AIR CONDENSER ENTERING AIRTEMPERATURES °F 85 95 105 115 125
CFM EWB
Capacity
MBtuh†Total
System
KW**
Capacity
MBtuh†Total
System
KW**
Capacity
MBtuh†Total
System
KW**
Capacity
MBtuh†Total
System
KW**
Capacity
MBtuh†Total
System
KW**Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡
38BRC030-31 Outdoor SectionWith CC5A/CD5AA030 Indoor Section
875 72
67
62
57
32.3
29.5
26.9
25.5
15.8
19.8
23.8
25.5
2.41
2.39
2.37
2.36
31.2
28.5
25.9
24.7
15.4
19.4
23.3
24.7
2.65
2.62
2.61
2.60
30.0
27.4
24.9
23.9
14.9
18.9
22.8
23.9
2.91
2.88
2.87
2.86
28.8
26.2
23.8
23.1
14.5
18.5
22.3
23.1
3.21
3.18
3.15
3.16
27.5
25.1
22.8
22.3
14.0
18.0
21.7
22.3
3.54
3.52
3.47
3.50
1000 72
67
62
57
32.9
30.1
27.4
26.5
16.4
21.0
25.3
26.5
2.46
2.44
2.42
2.42
31.7
29.0
26.4
25.6
16.0
20.5
24.8
25.6
2.70
2.67
2.66
2.65
30.5
27.9
25.3
24.8
15.6
20.1
24.2
24.8
2.96
2.94
2.91
2.91
29.2
26.7
24.3
24.0
15.1
19.6
23.6
24.0
3.26
3.23
3.18
3.21
28.0
25.5
23.3
23.1
14.6
19.1
23.0
23.1
3.59
3.57
3.55
3.55
1125 72
67
62
57
33.4
30.6
27.9
27.3
17.1
22.1
26.7
27.3
2.51
2.49
2.47
2.47
32.2
29.4
26.8
26.4
16.6
21.7
26.1
26.4
2.75
2.73
2.71
2.70
30.9
28.2
25.8
25.6
16.2
21.2
25.4
25.6
3.01
2.99
2.96
2.96
29.6
27.0
24.7
24.7
15.7
20.7
24.7
24.7
3.31
3.28
3.26
3.26
28.3
25.7
23.8
23.8
15.2
20.2
23.8
23.8
3.65
3.58
3.58
3.60
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size Cooling Indoor Section Size Cooling Capacity Power Capacity Power
CC5A/CD5AA 030 1.00 1.00 CC5A/CD5AW 030 1.00 0.96
036 1.02 1.00 CD5AW 036 1.02 0.95
CC5A/CD5AW 030 1.00 1.00 CK3BA 030 1.00 0.96
CD5AW 036 1.02 1.00 036 1.02 0.94
CE3AA 030 1.00 1.00 CK5A/CK5BW 030 1.00 0.96
036 1.02 1.00 036 1.02 0.94
CF5AA 036 1.02 1.00 COILS + 58MVP080-20VARIABLE-SPEED FURNACE
CK3BA 030 1.00 1.00 CK3BA 030 1.00 0.97
036 1.02 1.00 036 1.02 0.95
CK5A/CK5BA 030 1.00 1.00 CK5A/CK5BW 030 1.00 0.97
036 1.02 1.00 036 1.02 0.95
CK5A/CK5BN 036 0.95 1.00 COILS + 58MVP100-20VARIABLE-SPEED FURNACE
CK5A/CK5BW 030 1.00 1.00 CK3BA 030 1.00 0.94
036 1.02 1.00 036 1.02 0.93
F(A,B)4AN(F,C) 030 1.01 0.99 CK5A/CK5BW 030 1.00 0.94
036 1.02 1.01 036 1.02 0.93
FC4BNF 030 1.01 0.99 COILS + 58MVP120-20VARIABLE-SPEED FURNACE
036 1.02 1.01 CK3BA 030 1.00 0.95
FF1(B,C,D)NA 030 1.00 1.00 036 1.02 0.93
FG3AAA 036 1.02 1.00 CK5A/CK5BW 036 1.02 0.93
FK4CNF 001 1.01 0.93 COILS + 58U(H,X)V060-12VARIABLE-SPEED FURNACE
40FKA/FK4CNF 002 1.01 0.93 CC5A/CD5AA 030 1.00 0.94
003 1.03 0.91 036 1.02 0.93
005 1.03 0.90 CC5A/CD5AW 030 1.00 0.94
COILS + 58MVP040-14VARIABLE-SPEED FURNACE CD5AW 036 1.02 0.93
CC5A/CD5AA 030 1.00 0.96 CE3AA 030 1.00 0.94
036 1.02 0.95 036 1.02 0.94
CC5A/CD5AW 030 1.00 0.96 CK3BA 030 1.00 0.94
CD5AW 036 1.02 0.95 036 1.02 0.92
CK3BA 030 1.00 0.97 CK5A/CK5BA 030 1.00 0.94
036 1.02 0.95 036 1.02 0.92
CK5A/CK5BW 030 1.00 0.97 CK5A/CK5BN 036 0.95 0.93
036 1.02 0.95 CK5A/CK5BW 030 1.00 0.94
COILS + 58MVP060-14VARIABLE-SPEED FURNACE COILS + 58U(H,X)V080-16 VARIABLE-SPEED FURNACE
CC5A/CD5AA 030 1.00 0.96 CC5A/CD5AA 030 1.00 0.94
036 1.02 0.95 036 1.02 0.93
CC5A/CD5AW 030 1.00 0.96 CC5A/CD5AW 030 1.00 0.94
CD5AW 036 1.02 0.95 CD5AW 036 1.02 0.93
CK3BA 030 1.00 0.96 CE3AA 030 1.00 0.94
036 1.02 0.95 036 1.02 0.94
CK5A/CK5BA 036 1.02 0.95 CK3BA 030 1.00 0.93
CK5A/CK5BW 030 1.00 0.96 036 1.02 0.91
COILS + 58MVP080-14VARIABLE-SPEED FURNACE CK5A/CK5BW 030 1.00 0.93
CC5A/CD5AA 030 1.00 0.96 036 1.02 0.91
036 1.02 0.95 —— —

17
Detailed cooling capacities* continued
See notes on pg. 21.
EVAPORATOR
AIR CONDENSER ENTERING AIRTEMPERATURES °F 85 95 105 115 125
CFM EWB
Capacity
MBtuh†Total
System
KW**
Capacity
MBtuh†Total
System
KW**
Capacity
MBtuh†Total
System
KW**
Capacity
MBtuh†Total
System
KW**
Capacity
MBtuh†Total
System
KW**Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡
38BRC036-32, 33, 52, 53 Outdoor Section With CC5A/CD5AA036 Indoor Section
1050 72
67
62
57
39.0
35.7
32.7
31.3
19.3
24.5
29.5
31.3
2.89
2.86
2.83
2.82
37.6
34.4
31.4
30.4
18.8
24.0
28.9
30.4
3.18
3.15
3.12
3.11
35.9
32.9
30.1
29.3
18.2
23.4
28.2
29.3
3.48
3.45
3.42
3.41
34.3
31.4
28.7
28.2
17.6
22.7
27.5
28.2
3.83
3.79
3.75
3.74
32.6
29.8
27.3
27.0
17.0
22.1
26.7
27.0
4.21
4.15
4.10
4.11
1200 72
67
62
57
39.7
36.4
33.3
32.5
20.2
26.0
31.5
32.5
2.95
2.92
2.89
2.89
38.2
35.0
32.1
31.5
19.7
25.5
30.8
31.5
3.24
3.21
3.19
3.18
36.5
33.5
30.7
30.4
19.0
24.9
30.0
30.4
3.55
3.52
3.49
3.48
34.8
31.9
29.3
29.2
18.5
24.2
29.1
29.2
3.90
3.85
3.82
3.81
33.1
30.2
27.9
27.9
17.9
23.6
27.9
27.9
4.28
4.21
4.17
4.18
1350 72
67
62
57
40.2
36.9
33.9
33.5
21.0
27.5
33.2
33.5
3.01
2.98
2.96
2.95
38.6
35.4
32.6
32.5
20.5
26.9
32.3
32.5
3.30
3.26
3.23
3.24
36.9
33.9
31.3
31.3
19.9
26.3
31.3
31.3
3.61
3.58
3.55
3.55
35.2
32.2
30.0
30.0
19.3
25.7
30.0
30.0
3.96
3.92
3.89
3.88
33.4
30.5
28.7
28.7
18.7
25.0
28.7
28.7
4.34
4.27
4.25
4.26
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size Cooling Indoor Section Size Cooling Capacity Power Capacity Power
CC5A/CD5AA 036 1.00 1.00 COILS + 58MVP080-20VARIABLE-SPEED FURNACE
042 1.00 1.00 CK3BA 036 1.00 0.98
CC5A/CD5AW 036 1.00 1.00 042 1.00 0.97
042 1.00 1.00 CK5A/CK5BA 042 1.00 0.97
CE3AA 036 1.00 1.00 CK5A/CK5BT 042 1.00 0.97
042 1.01 1.00 CK5A/CK5BW 036 1.00 0.98
CF5AA 036 1.00 1.00 COILS + 58MVP100-20VARIABLE-SPEED FURNACE
CK3BA 036 1.00 1.00 CC5A/CD5AA 036 1.00 0.96
042 1.00 1.00 042 1.00 0.95
CK5A/CK5BA 036 1.00 1.00 CC5A/CD5AW 036 1.00 0.96
042 1.00 1.00 042 1.00 0.95
CK5A/CK5BN 036 0.94 0.97 CK3BA 036 1.00 0.96
042 0.94 1.00 042 1.00 0.95
CK5A/CK5BT 036 1.00 1.00 CK5A/CK5BA 042 1.00 0.95
042 1.00 1.00 CK5A/CK5BT 042 1.00 0.95
CK5A/CK5BW 036 1.00 1.00 CK5A/CK5BW 036 1.00 0.96
F(A,B)4AN(F,B,C) 042 1.01 1.01 COILS + 58MVP120-20 VARIABLE-SPEED FURNACE
F(A,B)4AN(F,C) 036 1.00 1.02 CK5A/CK5BA 042 1.00 0.95
FC4BN(F,B) 042 1.01 1.01 CK5A/CK5BT 042 1.00 0.95
FC4BNF 036 1.00 1.02 CK5A/CK5BW 036 1.00 0.96
FG3AAA 036 0.99 0.99 COILS + 58U(H,X)V060-12VARIABLE-SPEED FURNACE
FK4CNB 006 1.03 0.91 CC5A/CD5AA 036 1.00 0.94
FK4CNF 001 0.98 0.95 042 1.00 0.94
002 0.99 0.95 CC5A/CD5AW 036 1.00 0.95
003 1.00 0.92 042 1.00 0.94
005 1.02 0.92 CE3AA 036 1.00 0.94
COILS + 58MVP060-14VARIABLE-SPEED FURNACE 042 1.00 0.94
CC5A/CD5AA 036 1.00 0.98 CK3BA 036 1.00 0.94
042 1.00 0.97 CK5A/CK5BA 036 1.00 0.94
CC5A/CD5AW 036 1.00 0.98 CK5A/CK5BN 036 1.00 0.95
CK3BA 036 1.00 0.98 CK5A/CK5BT 036 1.00 0.94
042 1.00 0.97 COILS + 58U(H,X)V080-16VARIABLE-SPEED FURNACE
CK5A/CK5BA 036 1.00 0.98 CC5A/CD5AA 036 1.00 0.93
CK5A/CK5BN 042 0.97 0.97 042 1.00 0.92
CK5A/CK5BT 036 1.00 0.98 CC5A/CD5AW 036 1.00 0.93
COILS + 58MVP080-14VARIABLE-SPEED FURNACE 042 1.00 0.92
CC5A/CD5AA 036 1.00 0.97 CE3AA 036 1.00 0.92
042 1.00 0.96 042 1.00 0.93
CC5A/CD5AW 036 1.00 0.97 CK3BA 036 1.00 0.93
042 1.00 0.96 042 1.00 0.93
CK5A/CK5BA 042 1.00 0.96 CK5A/CK5BA 042 1.00 0.93
CK5A/CK5BT 042 1.00 0.96 CK5A/CK5BT 042 1.00 0.93
CK5A/CK5BW 036 1.00 0.98 CK5A/CK5BW 036 1.00 0.93

18
Detailed cooling capacities* continued
See notes on pg. 21.
EVAPORATOR
AIR CONDENSER ENTERING AIRTEMPERATURES °F 85 95 105 115 125
CFM EWB
Capacity
MBtuh†Total
System
KW**
Capacity
MBtuh†Total
System
KW**
Capacity
MBtuh†Total
System
KW**
Capacity
MBtuh†Total
System
KW**
Capacity
MBtuh†Total
System
KW**Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡
38BRC036-32, 33, 52, 53 Outdoor Section With CC5A/CD5AA036 Indoor Section continued
1050 72
67
62
57
39.0
35.7
32.7
31.3
19.3
24.5
29.5
31.3
2.89
2.86
2.83
2.82
37.6
34.4
31.4
30.4
18.8
24.0
28.9
30.4
3.18
3.15
3.12
3.11
35.9
32.9
30.1
29.3
18.2
23.4
28.2
29.3
3.48
3.45
3.42
3.41
34.3
31.4
28.7
28.2
17.6
22.7
27.5
28.2
3.83
3.79
3.75
3.74
32.6
29.8
27.3
27.0
17.0
22.1
26.7
27.0
4.21
4.15
4.10
4.11
1200 72
67
62
57
39.7
36.4
33.3
32.5
20.2
26.0
31.5
32.5
2.95
2.92
2.89
2.89
38.2
35.0
32.1
31.5
19.7
25.5
30.8
31.5
3.24
3.21
3.19
3.18
36.5
33.5
30.7
30.4
19.0
24.9
30.0
30.4
3.55
3.52
3.49
3.48
34.8
31.9
29.3
29.2
18.5
24.2
29.1
29.2
3.90
3.85
3.82
3.81
33.1
30.2
27.9
27.9
17.9
23.6
27.9
27.9
4.28
4.21
4.17
4.18
1350 72
67
62
57
40.2
36.9
33.9
33.5
21.0
27.5
33.2
33.5
3.01
2.98
2.96
2.95
38.6
35.4
32.6
32.5
20.5
26.9
32.3
32.5
3.30
3.26
3.23
3.24
36.9
33.9
31.3
31.3
19.9
26.3
31.3
31.3
3.61
3.58
3.55
3.55
35.2
32.2
30.0
30.0
19.3
25.7
30.0
30.0
3.96
3.92
3.89
3.88
33.4
30.5
28.7
28.7
18.7
25.0
28.7
28.7
4.34
4.27
4.25
4.26
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size Cooling Indoor Section Size Cooling Capacity Power Capacity Power
COILS + 58U(H,X)V100-20VARIABLE-SPEED FURNACE COILS + 58U(H,X)V120-20VARIABLE-SPEED FURNACE
CC5A/CD5AW 036 1.00 0.92 CC5A/CD5AW 036 1.00 0.93
042 1.00 0.91 042 1.00 0.91
CE3AA 036 1.00 0.91 CE3AA 036 1.00 0.92
042 1.00 0.92 042 1.00 0.92
CK3BA 042 1.00 0.91 CK3BA 042 1.00 0.92
CK5A/CK5BA 042 1.00 0.91 CK5A/CK5BA 042 1.00 0.92
CK5A/CK5BT 042 1.00 0.91 CK5A/CK5BT 042 1.00 0.92
CK5A/CK5BW 036 1.00 0.92 CK5A/CK5BW 036 1.00 0.92

19
Detailed cooling capacities* continued
See notes on pg. 21.
EVAPORATOR
AIR CONDENSER ENTERING AIRTEMPERATURES °F 85 95 105 115 125
CFM EWB
Capacity
MBtuh†Total
System
KW**
Capacity
MBtuh†Total
System
KW**
Capacity
MBtuh†Total
System
KW**
Capacity
MBtuh†Total
System
KW**
Capacity
MBtuh†Total
System
KW**Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡
38BRC042-32, 33, 52, 53 Outdoor Section With CC5A/CD5AA042 Indoor Section
1225 72
67
62
57
44.8
41.1
37.5
35.9
22.1
28.1
33.8
35.9
3.42
3.38
3.33
3.32
42.9
39.4
36.0
34.8
21.4
27.4
33.1
34.8
3.75
3.71
3.67
3.66
41.1
37.7
34.4
33.5
20.8
26.7
32.2
33.5
4.13
4.09
4.02
4.01
39.1
35.8
32.8
32.0
20.0
25.9
31.4
32.0
4.53
4.48
4.42
4.40
36.8
33.8
31.0
30.7
19.2
25.1
30.3
30.7
4.96
4.89
4.83
4.83
1400 72
67
62
57
45.5
41.8
38.3
37.2
23.1
29.8
36.0
37.2
3.49
3.45
3.41
3.39
43.7
40.0
36.7
36.0
22.5
29.0
35.1
36.0
3.84
3.77
3.73
3.73
41.7
38.3
35.1
34.7
21.7
28.4
34.3
34.7
4.20
4.15
4.11
4.11
39.5
36.3
33.4
33.2
21.0
27.6
33.1
33.2
4.60
4.55
4.49
4.50
37.2
34.1
31.6
31.8
20.1
26.7
31.6
31.8
5.03
4.96
4.90
4.93
1575 72
67
62
57
45.9
42.3
38.9
38.4
24.0
31.4
37.9
38.4
3.56
3.51
3.47
3.48
44.1
40.6
37.3
37.0
23.3
30.7
36.9
37.0
3.90
3.86
3.80
3.80
42.1
38.7
35.7
35.7
22.6
29.9
35.7
35.7
4.27
4.22
4.17
4.18
39.8
36.6
34.1
34.2
21.8
29.1
34.1
34.2
4.67
4.61
4.57
4.59
37.4
34.4
32.5
32.6
21.0
28.2
32.5
32.6
5.10
5.03
5.01
5.01
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size Cooling Indoor Section Size Cooling Capacity Power Capacity Power
CC5A/CD5AA 042 1.00 1.00 CC5A/CD5AW 042 1.00 0.93
CC5A/CD5AC 048 1.00 0.99 048 1.00 0.93
CC5A/CD5AW 042 1.00 1.00 CD5AA 048 1.00 0.93
048 1.01 1.00 CK3BA 048 1.01 0.93
CD5AA 048 1.01 1.00 CK5A/CK5BA 048 1.01 0.97
CE3AA 042 1.00 1.00 CK5A/CK5BT 048 1.01 0.93
048 1.01 1.00 COILS + 58MVP120-20VARIABLE-SPEED FURNACE
CF5AA 048 1.01 1.00 CK5A/CK5BW 048 1.01 0.93
CK3BA 042 1.00 1.00 COILS + 58U(H,X)V080-16VARIABLE-SPEED FURNACE
048 1.01 1.00 CC5A/CD5AA 042 1.00 0.94
CK5A/CK5BA 042 1.00 1.00 CC5A/CD5AW 042 1.00 0.94
048 1.01 1.00 048 1.01 0.93
CK5A/CK5BN 042 0.98 1.00 CD5AA 048 1.01 0.93
048 0.99 1.00 CE3AA 042 1.00 0.94
CK5A/CK5BT 042 1.00 1.00 048 1.01 0.94
048 1.01 1.00 CK3BA 042 1.00 0.94
CK5A/CK5BW 048 1.01 1.00 048 1.01 0.94
F(A,B)4AN(F,B,C) 042 1.00 1.01 CK5A/CK5BA 042 1.00 0.94
048 1.01 1.02 048 1.01 0.94
FC4BN(F,B) 042 1.00 1.01 CK5A/CK5BT 042 1.00 0.94
048 1.01 1.02 048 1.01 0.94
FC4BNB 054 1.05 0.99 COILS + 58U(H,X)V100-20VARIABLE-SPEED FURNACE
FG3AAA 048 1.01 1.00 CC5A/CD5AW 042 1.00 0.92
FK4CNB 006 1.05 0.92 048 1.01 0.92
FK4CNF 003 1.03 0.93 CD5AA 048 1.01 0.92
005 1.04 0.93 CE3AA 042 1.00 0.93
COILS + 58MVP080-14VARIABLE-SPEED FURNACE 048 1.01 0.93
CC5A/CD5AA 042 1.00 0.94 CK3BA 042 1.00 0.93
CC5A/CD5AW 042 1.00 0.94 CK5A/CK5BA 042 1.00 0.93
048 1.00 0.93 CK5A/CK5BT 042 1.00 0.93
CD5AA 048 1.00 0.93 CK5A/CK5BW 048 1.01 0.93
CK3BA 048 1.00 0.95 COILS + 58U(H,X)V120-20VARIABLE-SPEED FURNACE
CK5A/CK5BA 048 1.00 0.95 CC5A/CD5AW 042 1.00 0.94
CK5A/CK5BT 048 1.00 0.95 048 1.01 0.93
COILS + 58MVP080-20VARIABLE-SPEED FURNACE CD5AA 048 1.01 0.93
CK3BA 048 1.01 0.95 CE3AA 042 1.00 0.94
CK5A/CK5BA 048 1.01 0.95 048 1.01 0.94
CK5A/CK5BT 048 1.01 0.95 CK3BA 042 1.00 0.93
COILS + 58MVP100-20VARIABLE-SPEED FURNACE CK5A/CK5BA 042 1.00 0.93
CC5A/CD5AA 042 1.00 0.94 CK5A/CK5BT 042 1.00 0.93
—— —CK5A/CK5BW 048 1.01 0.92

20
Detailed cooling capacities* continued
See notes on pg. 21.
EVAPORATOR
AIR CONDENSER ENTERING AIRTEMPERATURES °F 85 95 105 115 125
CFM EWB
Capacity
MBtuh†Total
System
KW**
Capacity
MBtuh†Total
System
KW**
Capacity
MBtuh†Total
System
KW**
Capacity
MBtuh†Total
System
KW**
Capacity
MBtuh†Total
System
KW**Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡
38BRC048-34, 35, 54 Outdoor SectionWith CC5A/CD5AA048 Indoor Section
1400 72
67
62
57
52.6
48.1
44.0
41.4
25.5
32.0
38.5
41.4
4.05
4.00
3.97
3.94
50.3
46.0
42.1
40.1
24.7
31.2
37.5
40.1
4.51
4.44
4.41
4.39
48.0
43.8
40.1
38.5
23.8
30.3
36.6
38.5
5.00
4.92
4.87
4.85
45.6
41.5
38.0
36.9
22.9
29.3
35.5
36.9
5.52
5.43
5.37
5.35
43.0
39.2
35.8
35.1
22.0
28.3
34.3
35.1
6.08
5.98
5.90
5.88
1600 72
67
62
57
53.5
49.1
44.9
43.1
26.6
33.9
40.9
43.1
4.12
4.09
4.04
4.04
51.1
47.0
42.9
416.
25.7
33.0
39.9
41.6
4.58
4.54
4.48
4.47
48.7
44.7
40.8
39.9
24.8
32.1
38.8
39.9
5.07
5.02
4.95
4.94
46.1
42.4
38.6
38.1
23.9
31.2
37.6
38.1
5.60
5.54
5.45
5.45
43.4
39.9
36.3
36.2
23.0
30.2
36.1
36.2
6.16
6.08
5.98
5.98
1800 72
67
62
57
54.1
49.8
45.6
44.4
27.5
35.6
43.2
44.4
4.19
4.16
4.13
4.11
51.7
47.5
43.6
42.8
26.6
34.7
42.1
42.8
4.66
4.61
4.58
4.55
49.2
45.4
41.5
41.0
25.8
33.9
40.8
41.0
5.15
5.11
5.05
5.03
46.5
43.0
39.4
39.1
24.8
32.9
39.3
39.1
5.68
5.63
5.55
5.54
43.7
40.2
37.1
37.2
23.9
31.8
37.1
37.2
6.24
6.16
6.08
6.08
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size Cooling Indoor Section Size Cooling Capacity Power Capacity Power
CD5AA 048 1.00 1.00 CK5A/CK5BX 060 1.00 0.98
CC5A/CD5AA 060 1.01 1.00 COILS + 58MVP100-20VARIABLE-SPEED FURNACE
CC5A/CD5AC 048 0.98 1.00 CC5A/CD5AA 060 1.01 0.96
CC5A/CD5AW 048 1.00 1.00 CC5A/CD5AC 048 1.00 0.97
CC5A/CD5AW 060 1.01 1.00 CC5A/CD5AW 060 1.00 0.96
CE3AA 048 1.00 1.00 CD5AA 048 1.00 0.96
060 1.01 1.00 CK3BA 048 1.00 0.96
CF5AA 048 1.00 0.99 060 1.01 0.96
CK3BA 048 1.00 1.00 CK5A/CK5BA 048 1.00 0.96
060 1.01 1.00 060 1.01 0.96
CK5A/CK5BA 048 1.00 1.00 CK5A/CK5BX 060 1.00 0.96
060 1.01 1.00 COILS + 58MVP120-20VARIABLE-SPEED FURNACE
CK5A/CK5BN 048 0.98 0.98 CC5A/CD5AA 060 1.01 0.96
060 1.01 1.00 CC5A/CD5AW 048 1.00 0.96
CK5A/CK5BT 048 1.00 1.00 060 1.00 0.96
060 1.01 1.00 CK3BA 060 1.01 0.96
CK5A/CK5BW 048 1.00 1.00 CK5A/CK5BA 060 1.01 0.96
CK5A/CK5BX 060 1.01 1.00 CK5A/CK5BW 048 1.00 0.96
F(A,B)4AN(F,B,C) 048 1.00 1.02 CK5A/CK5BX 060 1.00 0.96
060 1.01 1.03 COILS + 58U(H,X)V080-16VARIABLE-SPEED FURNACE
FB4ANB 070 1.01 1.02 CC5A/CD5AC 048 1.00 0.97
FC4BN(F,B) 048 1.00 1.02 CD5AA 048 1.00 0.97
060 1.01 1.03 CK3BA 048 1.00 0.97
FC4BNB 054 1.02 1.01 CK5A/CK5BA 048 1.00 0.97
070 1.01 1.02 COILS + 58U(H,X)V100-20VARIABLE-SPEED FURNACE
FG3AAA 048 1.00 1.00 CC5A/CD5AA 060 1.00 0.94
060 1.02 1.00 CC5A/CD5AW 048 1.00 0.94
40FKA/FK4CNB 006 1.02 0.94 060 1.00 0.93
40FKA/FK4CNF 005 1.00 0.95 CK3BA 060 1.01 0.94
COILS + 58MVP080-14VARIABLE-SPEED FURNACE CK5A/CK5BA 060 1.01 0.94
CD5AA 048 1.00 0.97 CK5A/CK5BW 048 1.00 0.94
CK3BA 048 1.00 0.98 CK5A/CK5BX 060 1.00 0.94
CK5A/CK5BA 048 1.00 0.98 COILS + 58U(H,X)V120-20 VARIABLE-SPEED FURNACE
COILS + 58MVP080-20VARIABLE-SPEED FURNACE CC5A/CD5AA 060 1.00 0.94
CC5A/CD5AA 060 1.01 0.98 CC5A/CD5AW 048 1.00 0.95
CC5A/CD5AW 060 1.00 0.98 060 1.00 0.94
CD5AA 048 1.00 0.98 CK3BA 060 1.00 0.95
CK3BA 048 1.00 0.98 CK5A/CK5BA 060 1.00 0.95
CK5A/CK5BA 048 1.00 0.98 CK5A/CK5BW 048 1.00 0.95
060 1.01 0.98 CK5A/CK5BX 060 1.00 0.94
